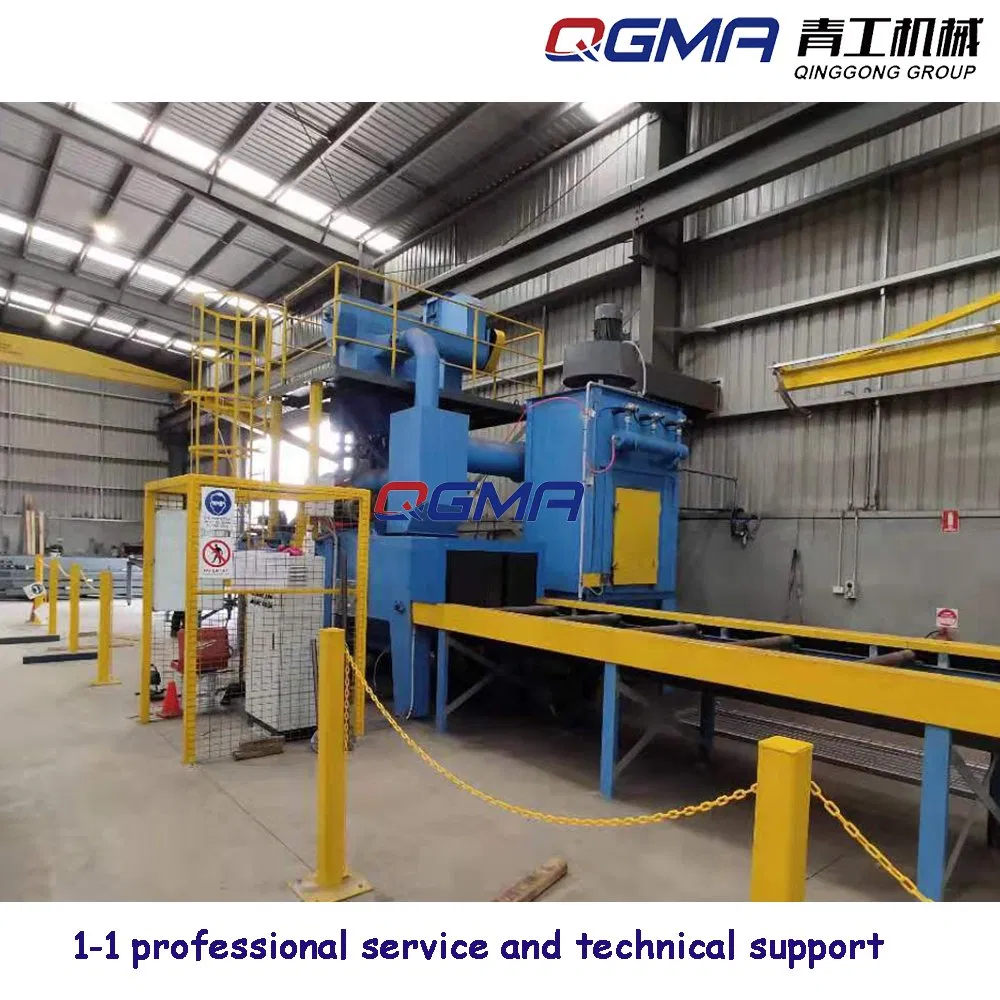

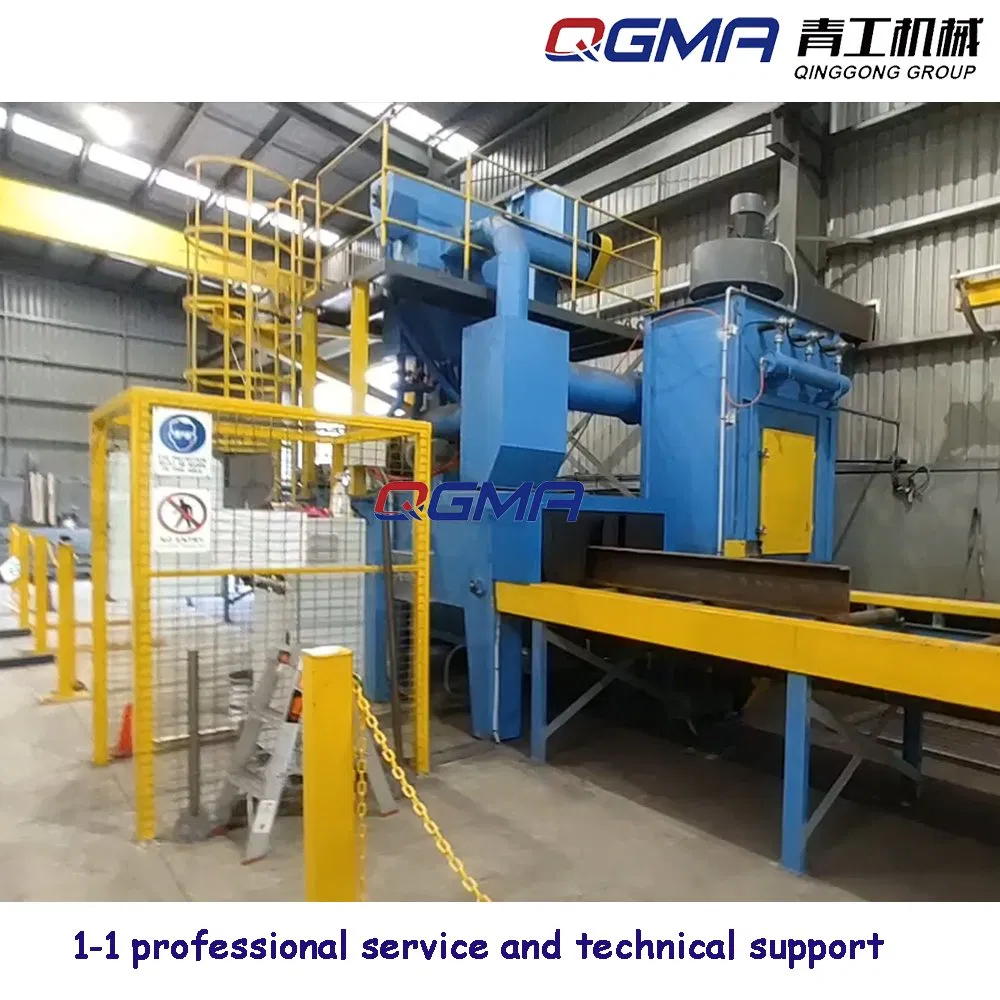

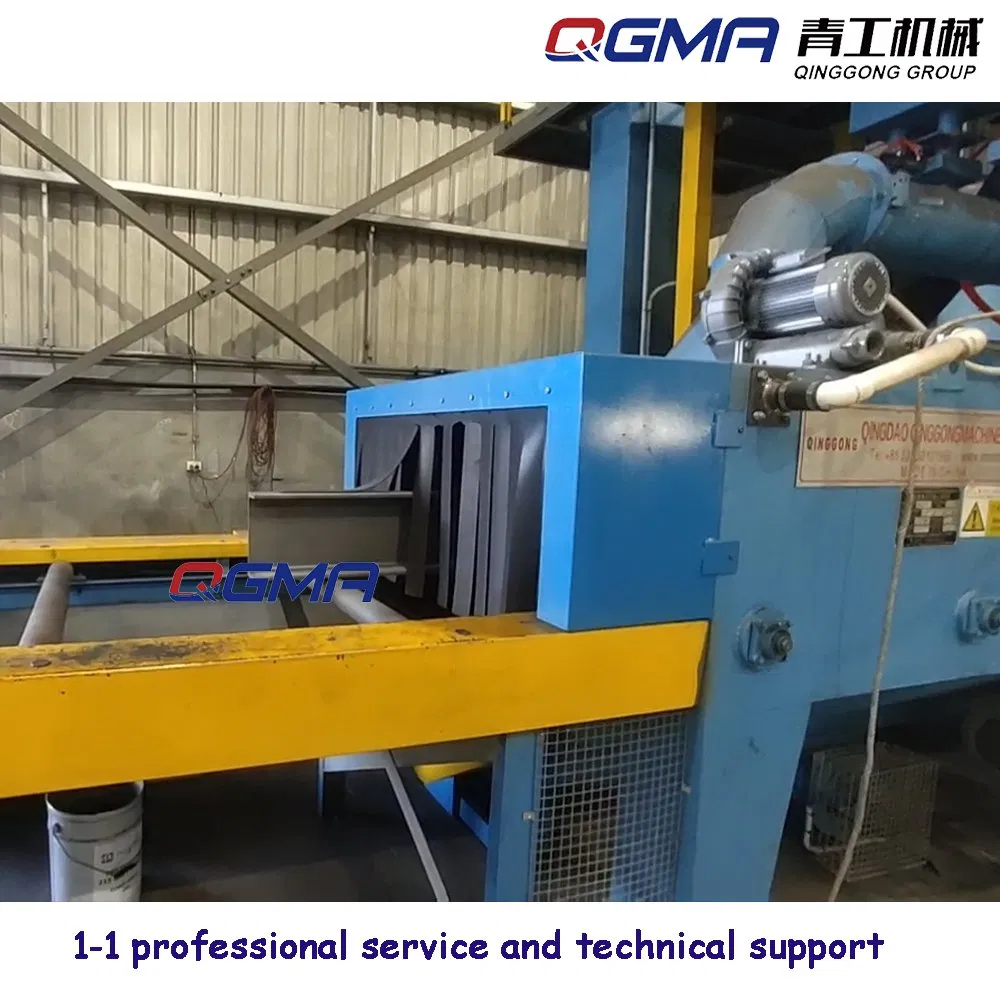

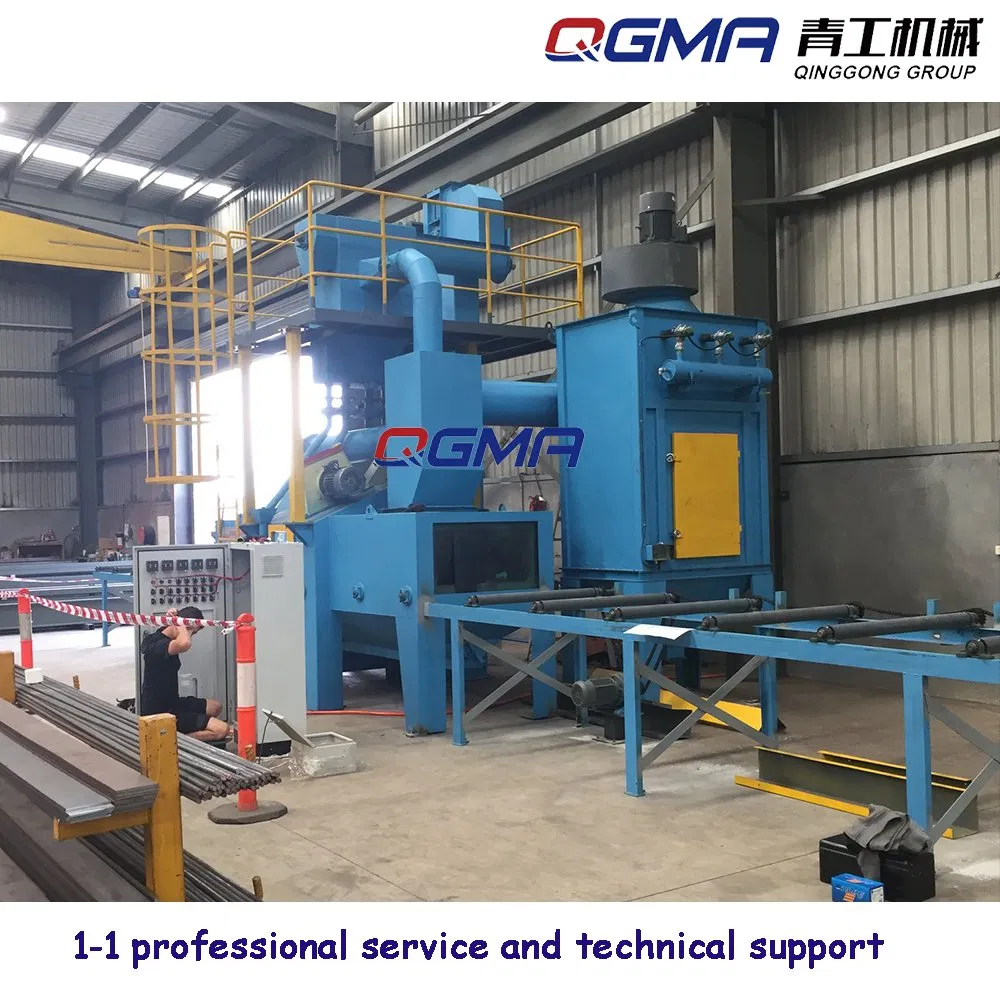

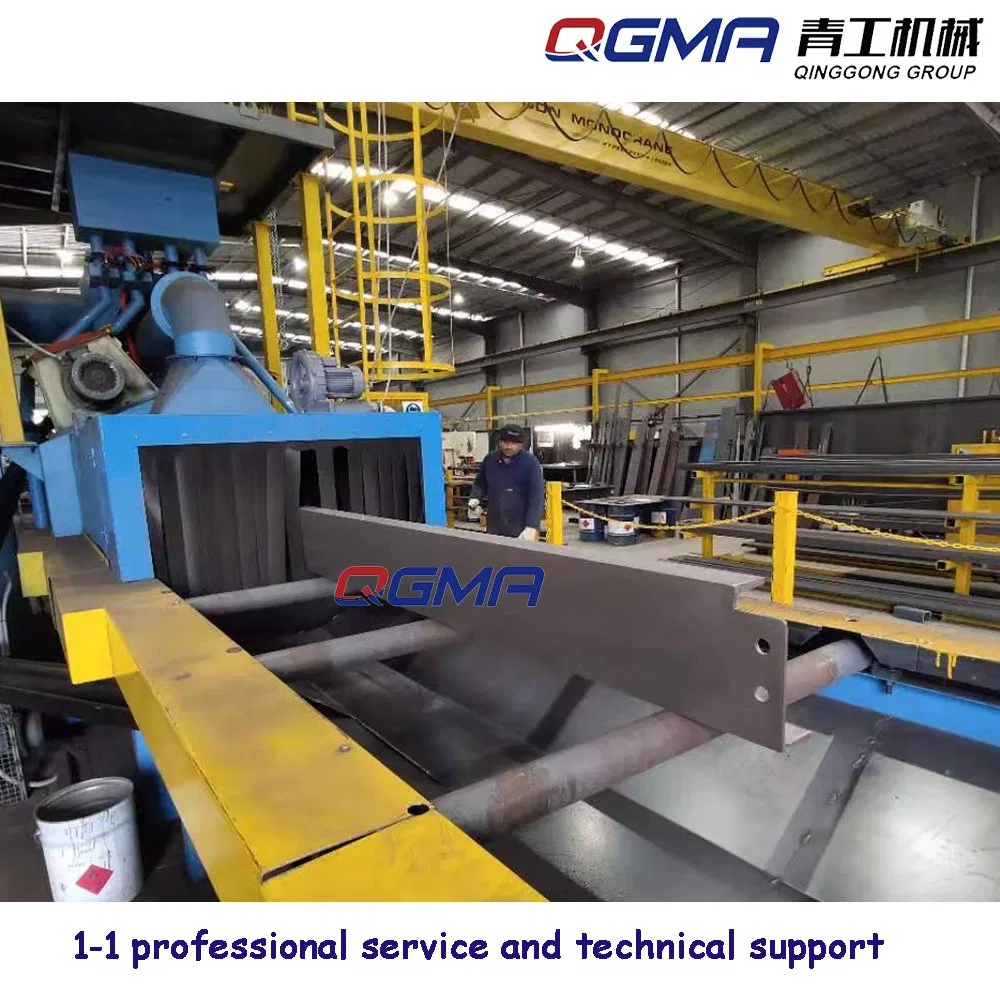

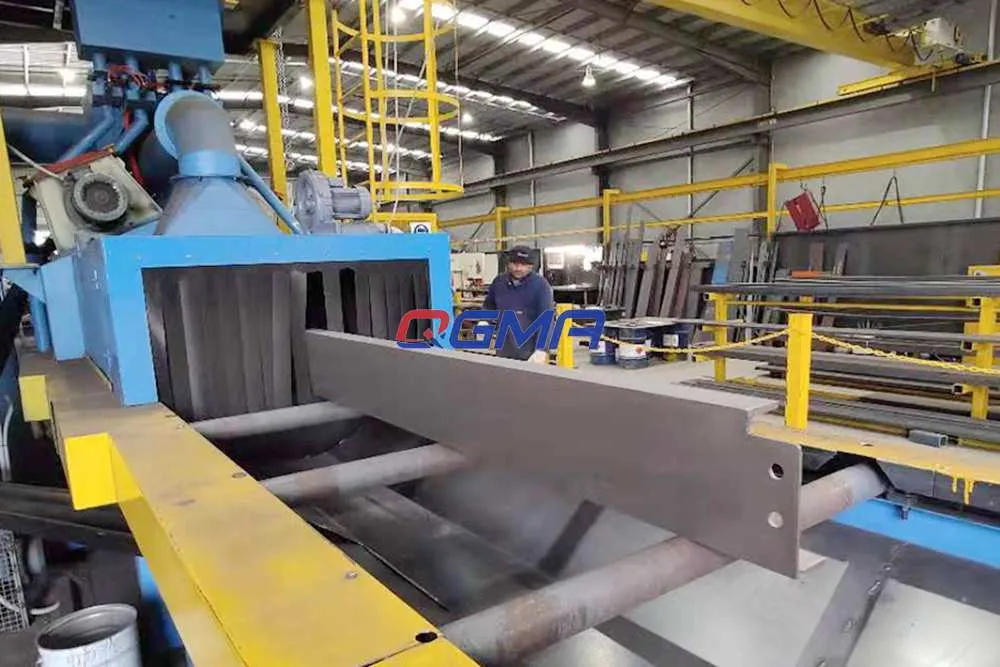

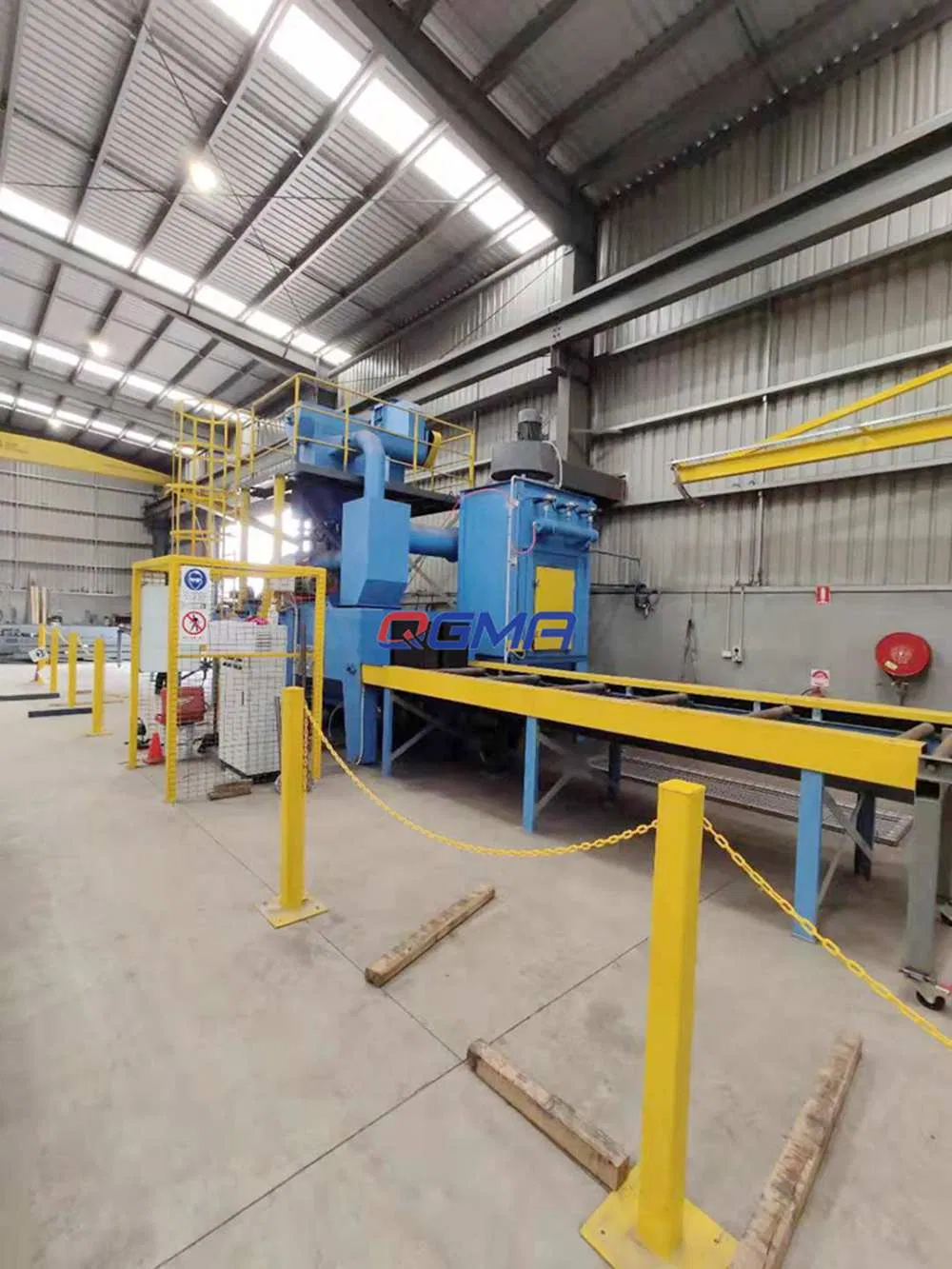

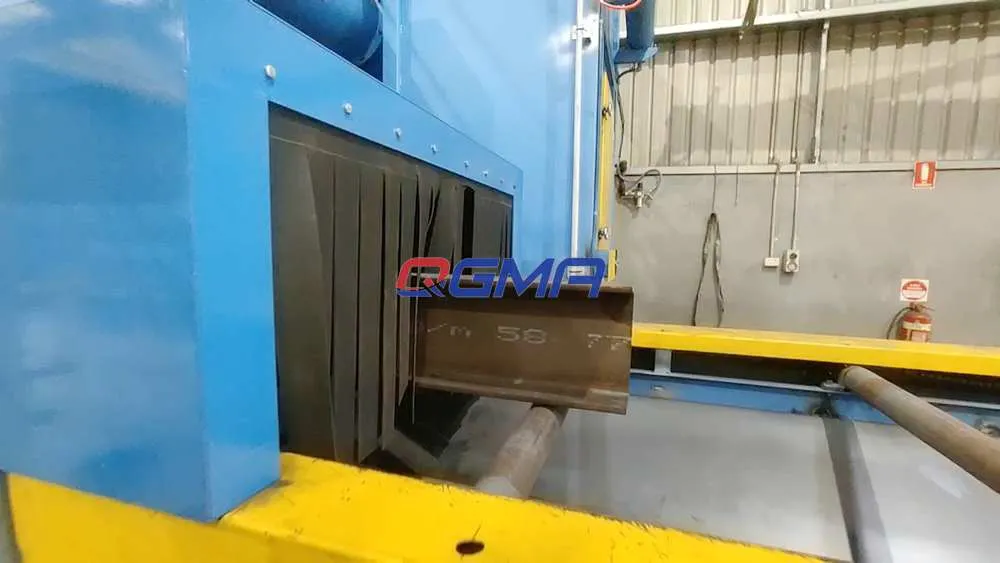

Steel Tube and H Beam Roller Conveyor Shot Blasting Machine
Q69 Steel Profiles shot blasting machines are used to remove scale and rust from metal profiles and sheet metal components. It applies to surface rusting and painting art of shipping, car, motorcycle, bridge, machinery, etc. By combining a roller conveyor with the appropriate crossover conveyors, individual process steps such as blasting, conservation, sawing and drilling can be interlinked. This ensures a flexible manufacturing process and high material output.
Remove rust, scale, sand, burrs, etc. Finished rust removal grade: SA2.5-3.0. Relieve internal stress, increase adhesion of coating. Delivery time: 3 - 8 weeks.
| Type | Unit | QGX600 | QGX1200 | QGX1500 | QGX1800 | QGX2000 |
|---|---|---|---|---|---|---|
| Effective blasting width | mm | 600 | 1200 | 1500 | 1800 | 2000 |
| Entrance Dimension (W×H) | mm | 800×1400 | 1400×1600 | 1700×1600 | 2000×1700 | 2200×2400 |
| Work speed (Sa2.5) | m/min | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~2 |

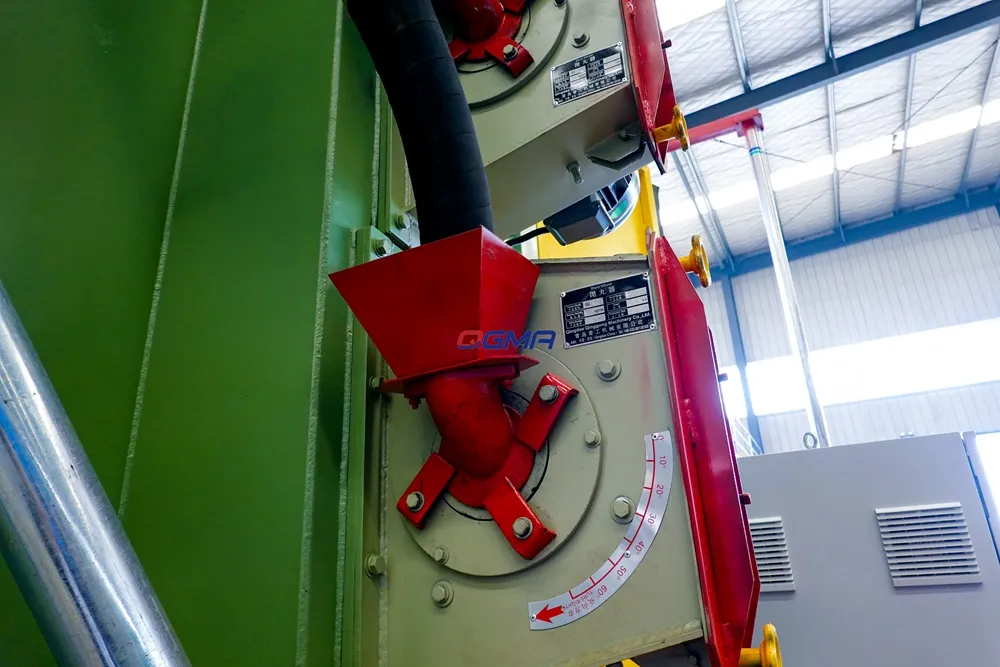

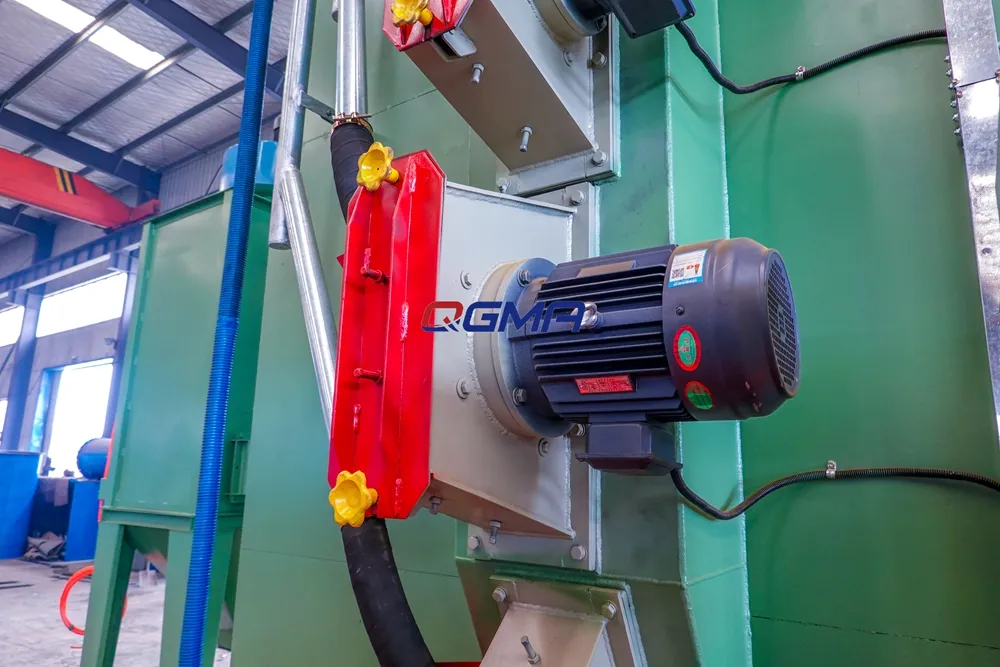

| Wheels × Power | kW | 8×7.5/11 | 8×11/15 | 8×11/15 | 8×11/15 | 12×11/15 |
| Pit Required | - | Yes | Yes/No | Yes | Yes | Yes |
Providing perfect solutions for shot blasting machines, preservation lines, sandblasting rooms, and spray booths to users around the world. We adhere to the concept of efficient, intelligent, creative, environmental protection and compatible product development.
From standard machines to non-standard automatic blasting lines, the professional engineer team is at your disposal to define and answer all your needs related to the blasting machine.
