Automatic Steel Pipe Tube H Beam Steel Structure Roller Conveyor Type Shot Blasting Machine

1 / 5

Automatic Steel Pipe Tube H Beam Steel Structure Roller Conveyor Type Shot Blasting Machine

Customization:	Available
After-sales Service:	Arrange Engineers to Commission and Install at The
Warranty:	1 Year

Send Inquiry

Product Description

Technical Specifications

Model

QG Series

Application

Steel Tube/Pipe Cleaning

Fuel Type

Electric

Technology

Crawler Abrator

Cleanliness

High Cleanliness (Sa 2.5)

Automation

Fully Automatic

Certification

CE, CB, ETL, RoHS, UR

Feature

Rust / Corrosion Proof

Condition

Brand New

Production Capacity

50 Sets/Month

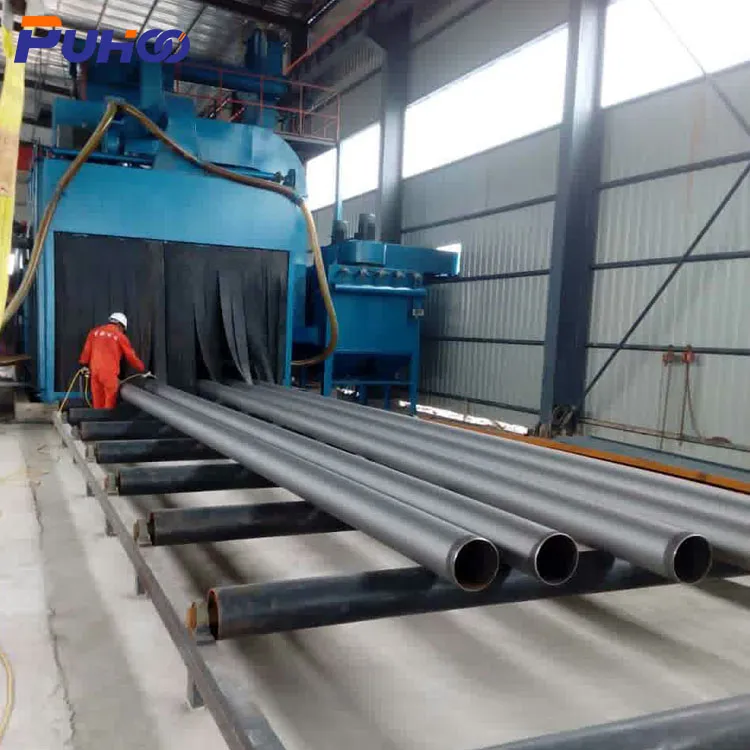

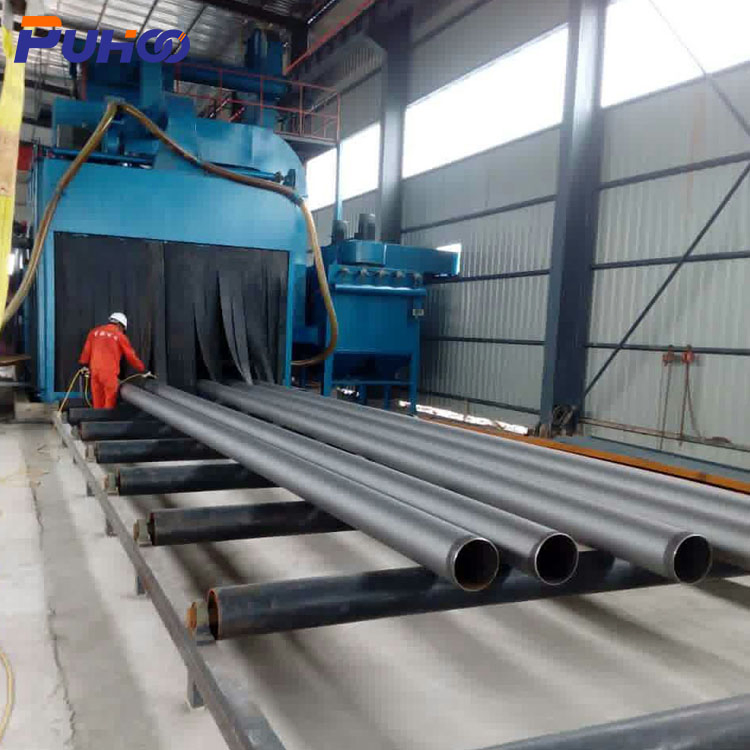

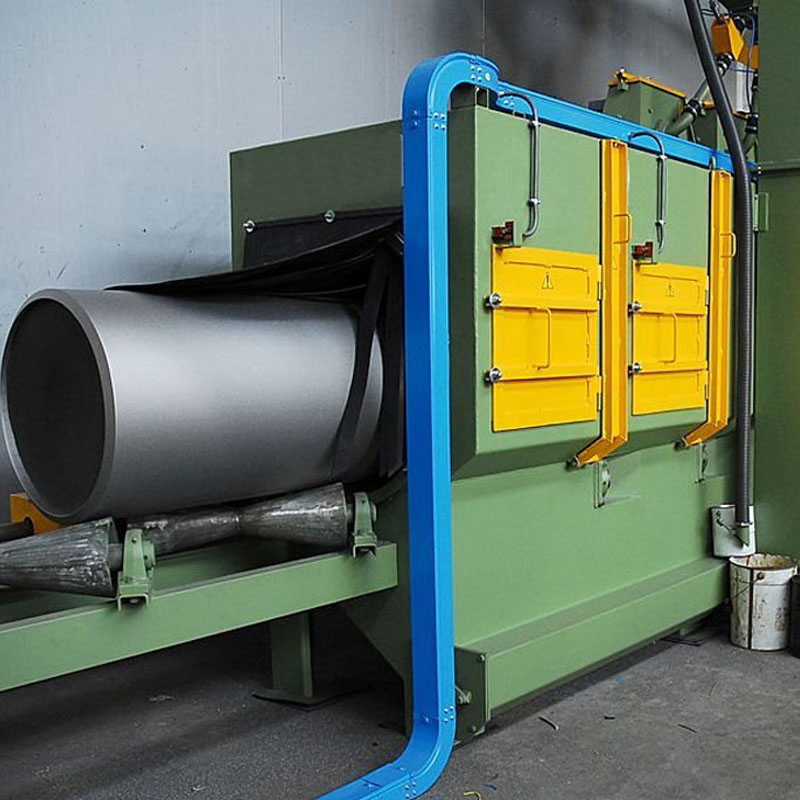

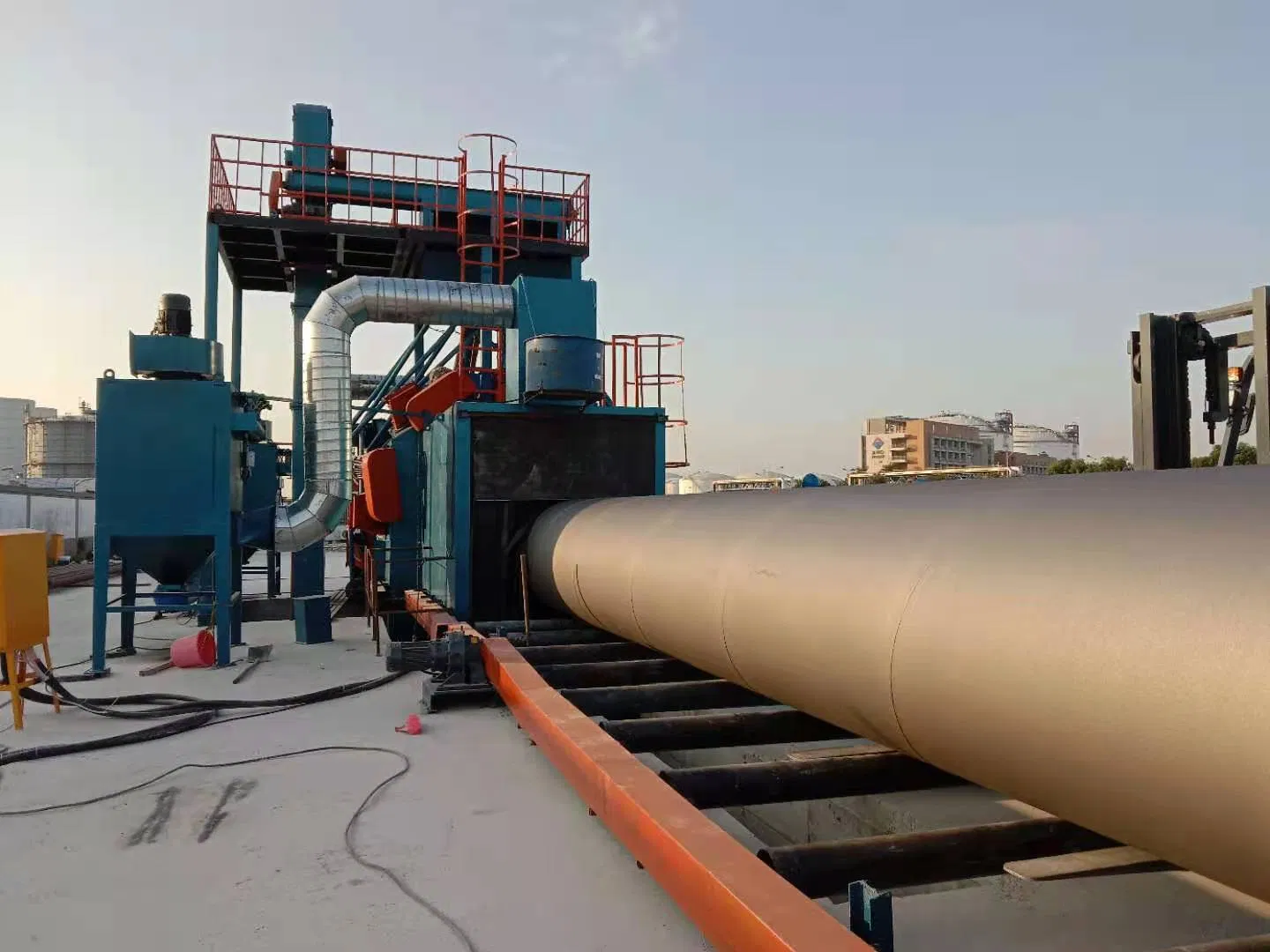

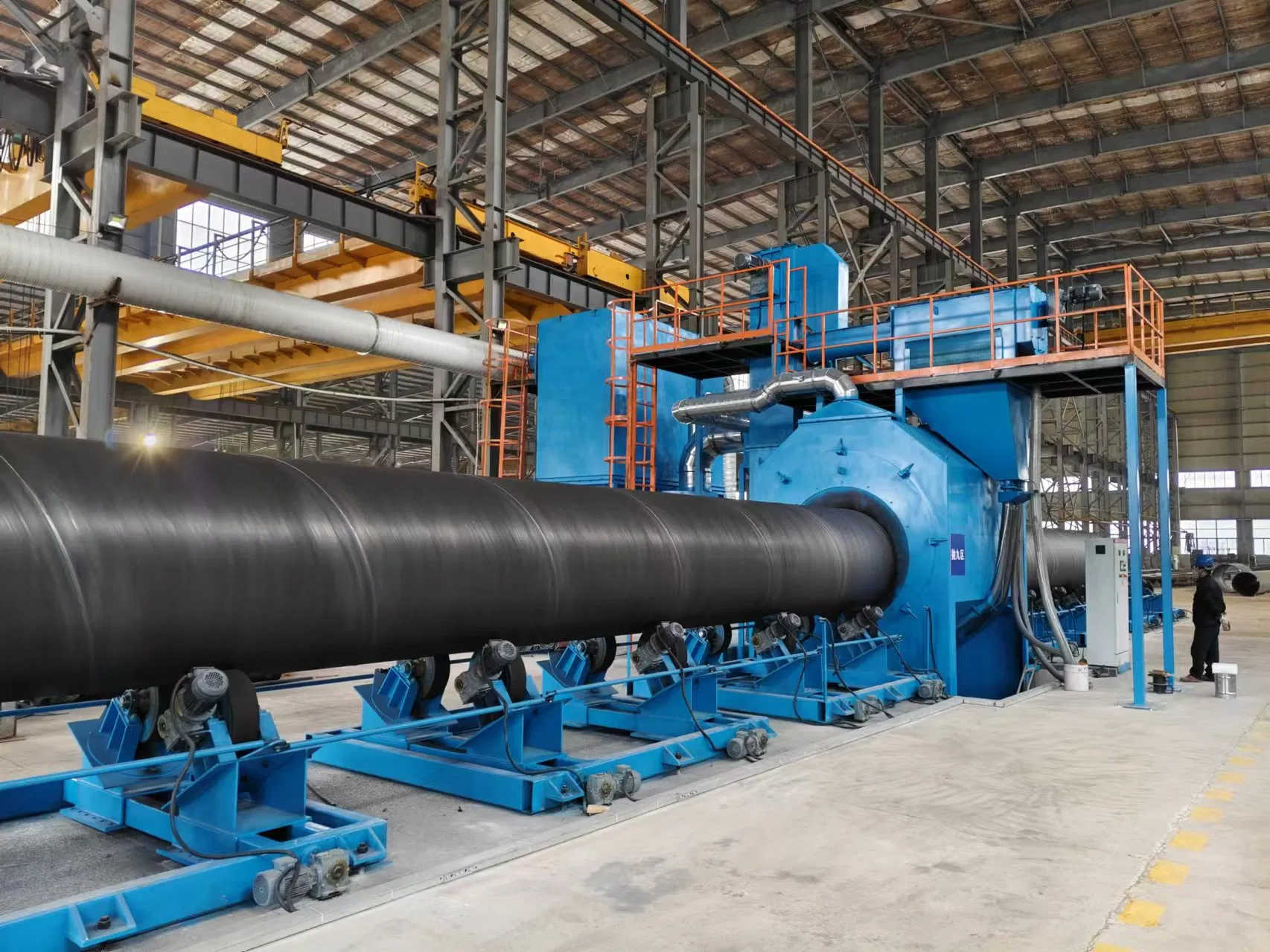

Steel Pipe Outer Wall Shot Blasting Cleaning Machine

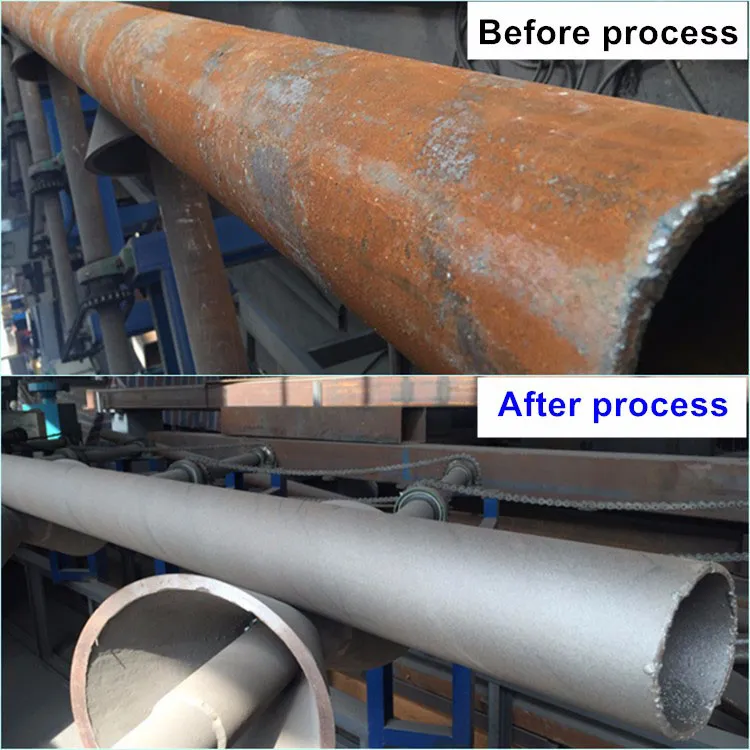

QG series steel pipe inner and outer wall shot blasting machine is designed for professional surface treatment. It efficiently removes oxide coatings, welding slag, and restores the metallic sheen while increasing surface area for better UV coating adhesion. Widely applied in petroleum, chemical, steel, city centralized heating, and drainage industries.

Primary Applications

Descaling of forged or heat-treated parts
Desanding of ferrous and non-ferrous metal castings
Deburring of metallic and non-metallic components
Deflashing of die-cast parts
Removal of surface contaminants

Technical Data & Models

Type	Cleaning Size (mm)	Speed (m/min)	Primary Purpose
QGW100	φ50-300	2-10	Outer wall cleaning
QGW720	φ159-720	2-6	Outer wall cleaning
QGW1200	φ219-1016	1-6	Outer wall cleaning
QGW1500	φ325-1600	1-6	Outer wall cleaning
QGW2800	φ1016-2800	1-2	Outer wall cleaning
QGN100	φ50-300	1-4	Inner wall cleaning
QGN700	φ325-720	1-2	Inner wall cleaning
QGN1000	φ720-1016	1-4	Inner wall cleaning
QGN1500	φ1016-1500	1-4	Inner wall cleaning

Core Advantages

Cantilever Centrifugal Wheel: Simple structure with an exceptionally long service life.
Full Curtain Separator: Superior abrasive mixture separation for higher productivity and longer blade life.
Wear-Resistant Track: Durable rubber track minimizes workpiece damage and operating noise.
Pulse Dust Collector: Advanced environmental protection system to keep the workspace clean.
High-End Components: Key parts adopt imported international famous brands for stability.

Professional Service & Support

Installation	Technical assistance for on-site installation and commissioning.
Warranty	12 months from commissioning (max 18 months from delivery).
Documentation	Full English manuals, pit designs, wiring diagrams, and maintenance books.
Lead Time	Typically 20-60 days depending on equipment specifications.
Payment	30% deposit by T/T, balance before delivery or L/C at sight.

Frequently Asked Questions

Q1: What is the standard warranty period for your shot blasting machines? A: We provide a 12-month warranty from the date of commissioning completion, ensuring no more than 18 months have passed since the delivery date.

Q2: Can you provide customized designs for specific pipe sizes? A: Yes, customized design solutions are available. Our engineering team can develop specific configurations for various pipe diameters and cleaning requirements.

Q3: What documents are included with the equipment delivery? A: We provide full English documentation, including general installation drawings, pit designs, operation manuals, electrical wiring diagrams, and maintenance guides.

Q4: What materials are used for the wear-resistant parts? A: We use high-quality materials such as Cr20S High Chrome, ZGMn13, and Mn65 to ensure maximum durability and reduce maintenance frequency.

Q5: How do you handle international installation? A: We dispatch professional technicians to assist with site installation and commissioning. Our team also provides training for your local operators to ensure smooth equipment performance.

Q6: What is the typical delivery timeframe for a standard order? A: Depending on the specific equipment type and customization requirements, delivery usually takes between 20 to 60 days.
