| Model NO. | Q69 |
| Application | Steel Plate, Steel Structure, H Beam, etc |
| Fuel | Electric |
| Type | Roller Conveyor Shot Blasting Machine |
| Automation | Automatic |
| Certification | CE |
| Industrial Experience | Over 20 Years Professional Design Experience |
| Cleaning Process | Steel Shot, Sand Grit and Other Abrasive |
| Dust Collector | Cartridge Filters, Fireproof and Antistatic |

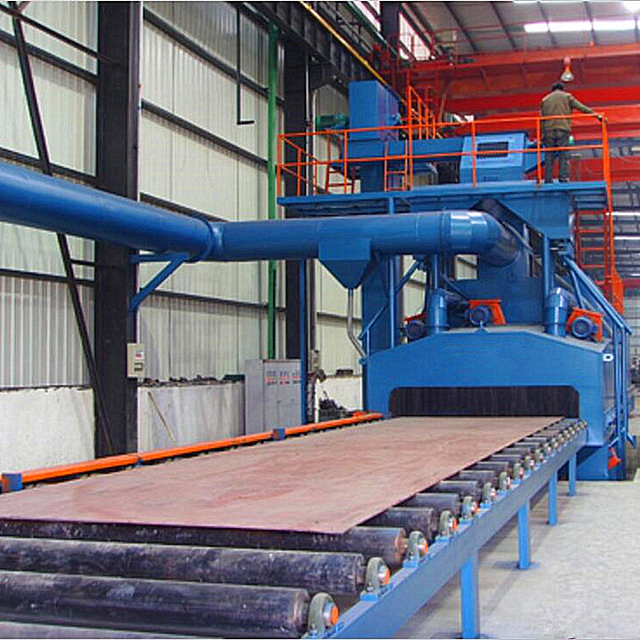

Q69 steel plate, section shot blast clean-up machine is mainly composed of such stage as preheating, shot blast cleaning, painting and stove, etc. It is suitable for the surface derusting & painting craft for steel plates and sections in such industries as shipmaking, automobile making, locomotive vehicle, bridge and machinery.

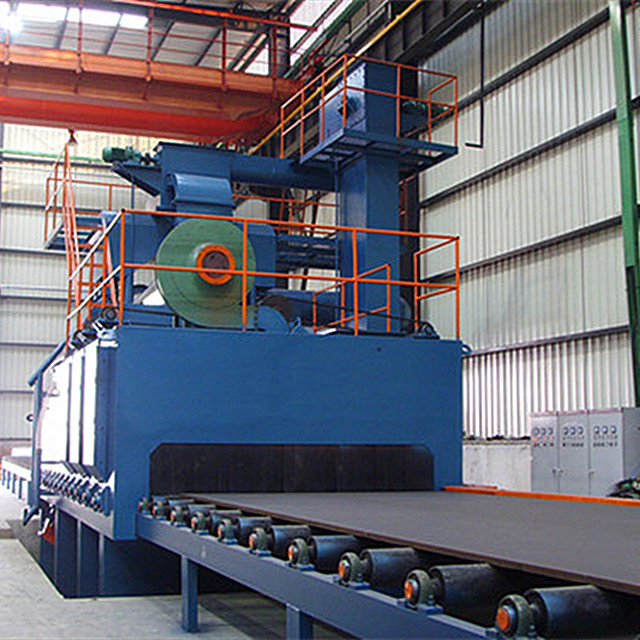

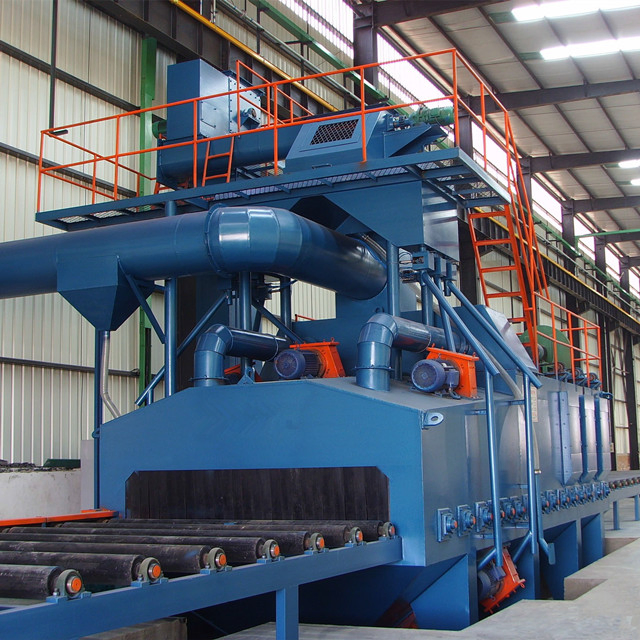

The series belongs to roller-type blast cleaning machine, mainly used for buildings, bridges and other industries with large I-beam, H-beam steel structure such as size pieces of high stress and the elimination of cleaning the surface rust.
| Effective cleaning width | 800-4000 mm |
| Room feed-in size | 1000*400 --- 4200*400 mm |
| Length of cleaning workpiece | 1200-12000 mm |
| Speed of wheel conveyer | 0.5-4 m/min |
| Quantity of shot blasting | 4*180 --- 8*360 kg/min |
| Airness capacity | 22000 --- 38000 m³/h |
| Total power | 90 --- 293.6 kw |
Various non-standard steel pretreatment equipment can be designed and manufactured according to the steel size you provide.

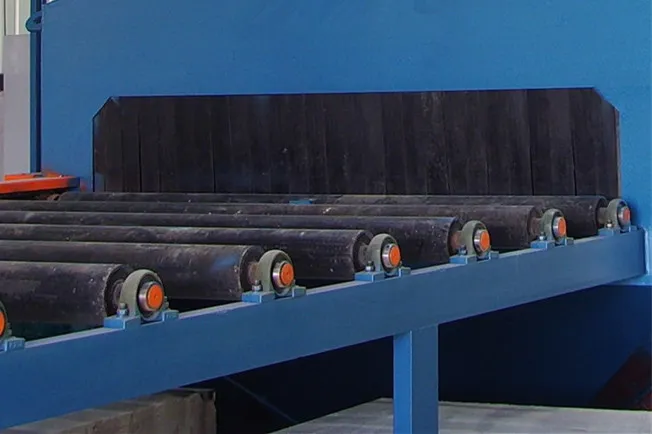

Rollers in the blasting cabinet are protected by special alloy jacket with lifetime over 4,000 hours. Supports manual or automatic control.

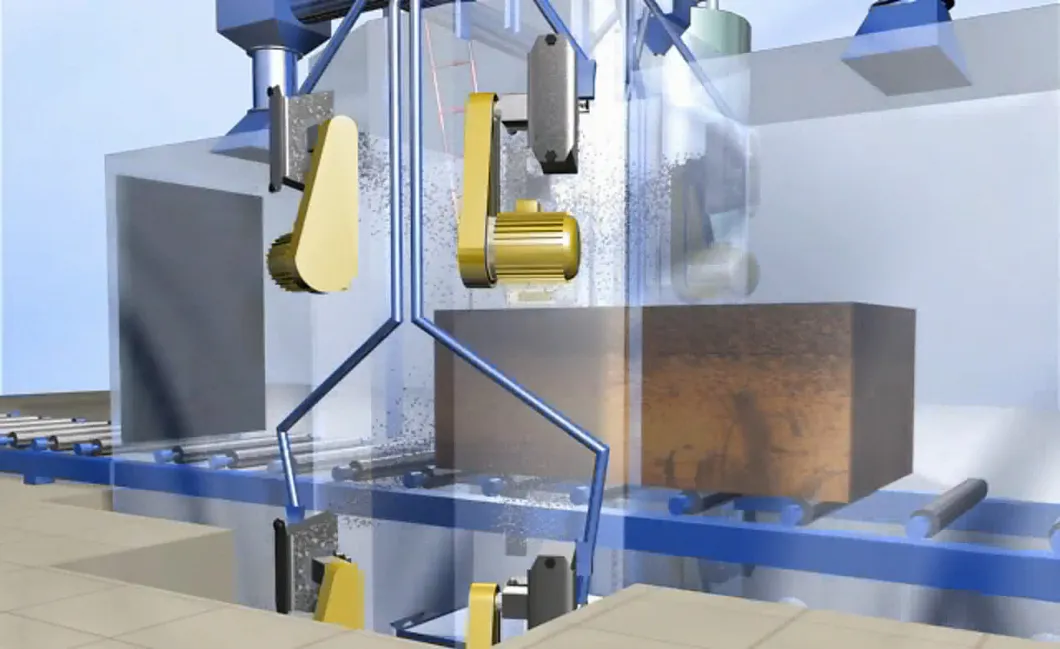

In the blasting chamber, the wall is protected by SPMn13 material liner and 65Mn protective liner, ensuring easy replacement and high durability.

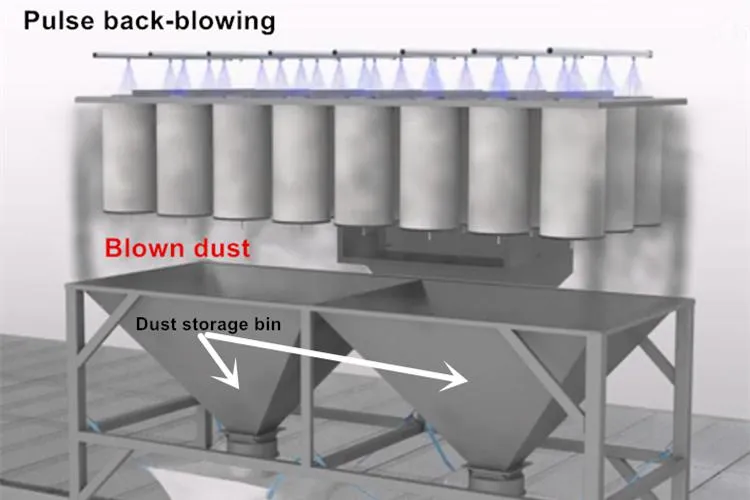

The dust removal system consists of ducting system and filter cartridge dust collector. The emission standard can be lower than 80 g/m3. Ventilation quantity reaches 26000 m3/h.
