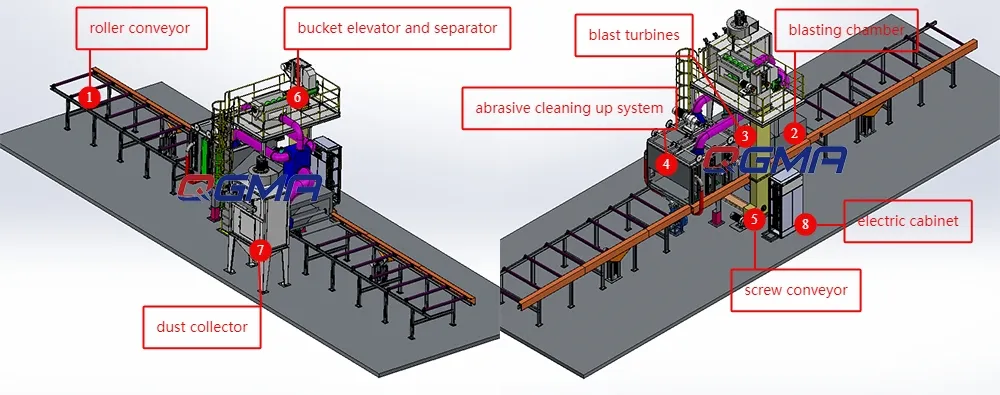

The steel plate shot blasting machine is a specialized roller conveyor system designed to remove rust, corrosion, and mill scale. It provides an ideal surface finish (SA2.5) for securing a continuous and effective bond between the steel surface and coating. The angled arrangement of the shot blast wheels on the top reduces abrasive build-up on longer profiles, maximizing energy efficiency for de-rusting.

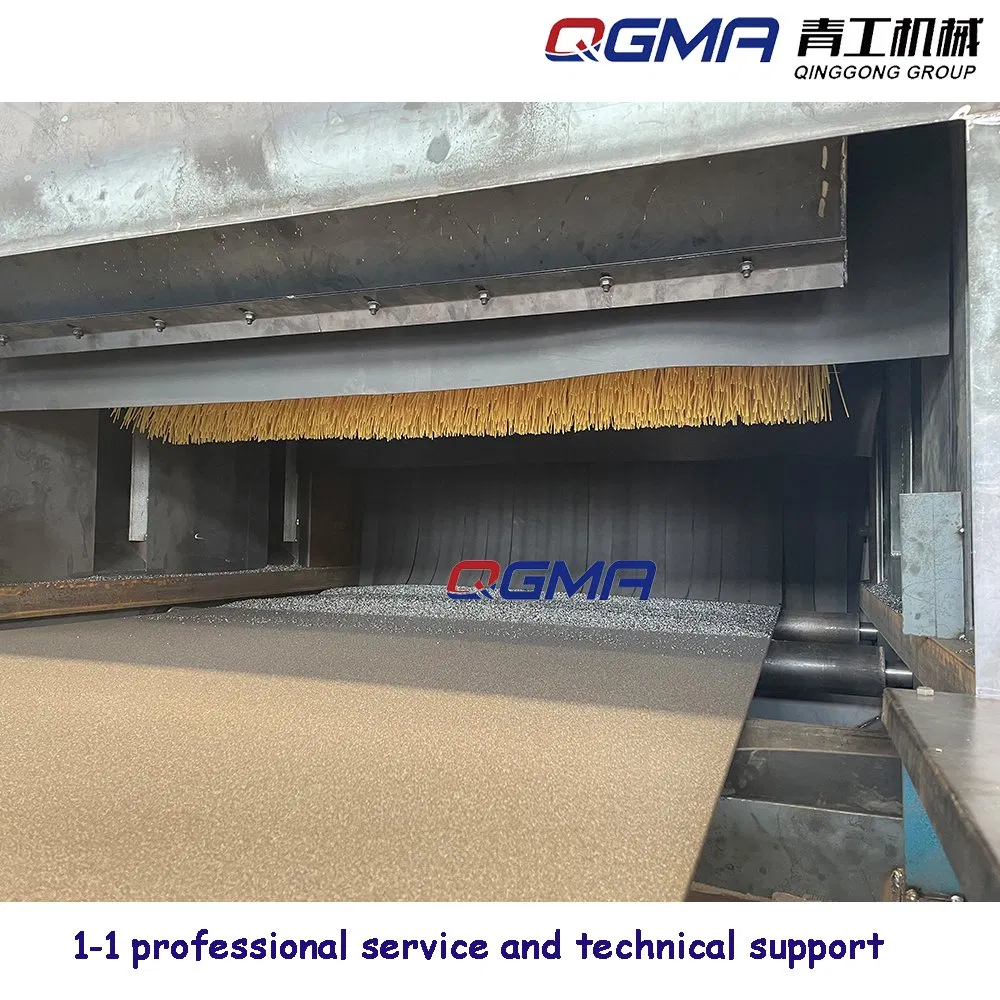

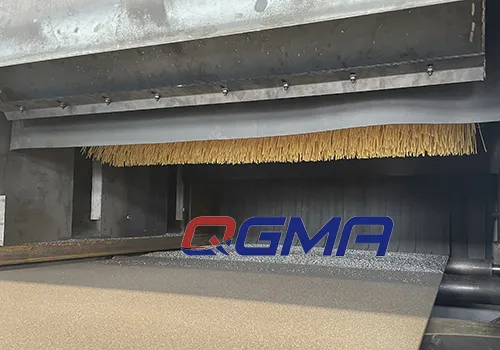

Abrasive Cleaning System: Includes nylon brush, screw conveyor, and blower with height adjustment. It efficiently removes residual abrasives from the workpiece surface. The imported nylon material ensures tenacity at high temperatures with a service life of up to 10,000 hours.

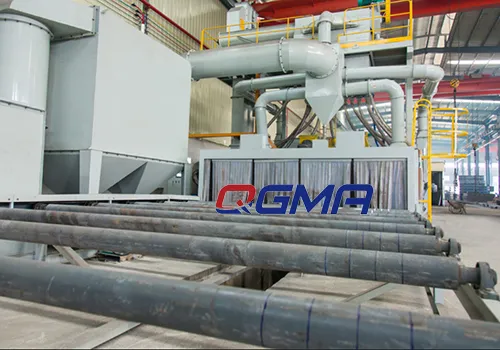

Conveyor Features: Adopts frequency conversion stepless speed for synchronous or independent operation. Rollers are welded and processed to ensure perfect concentricity. The chamber rollers are protected by high-chrome wear-resistant casting iron sheaths.
| Type | Unit | QGRB600 | QGRB1000 | QGRB1500 | QGRB2000 | QGRB2500 | QGRB3000 |
|---|---|---|---|---|---|---|---|
| Effective blasting width | mm | 600 | 1000 | 1500 | 2000 | 2500 | 3000 |
| Dimension of entrance(W×H) | mm | 800×300 | 1200×300 | 1700×300 | 2200×300 | 2700×300 | 3200×300 |
| Work speed (Sa2.5) | m/min | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 |
| Number of wheels×power | kW | 4×7.5/11 | 4×11/15 | 4×11/15 | 6×11/15 | 8×11/15 | 8×11/15 |
| Initial filling capacity | kg | 2000 | 4000 | 4000 | 4500 | 6000 | 6000 |
| Processed length | mm | 1200~12000 | 1200~6000 | 1200~12000 | 3000~12000 | 2400~12000 | 3000~18000 |
| Foundation pit required | - | No | No | No | Yes | Yes | Yes |

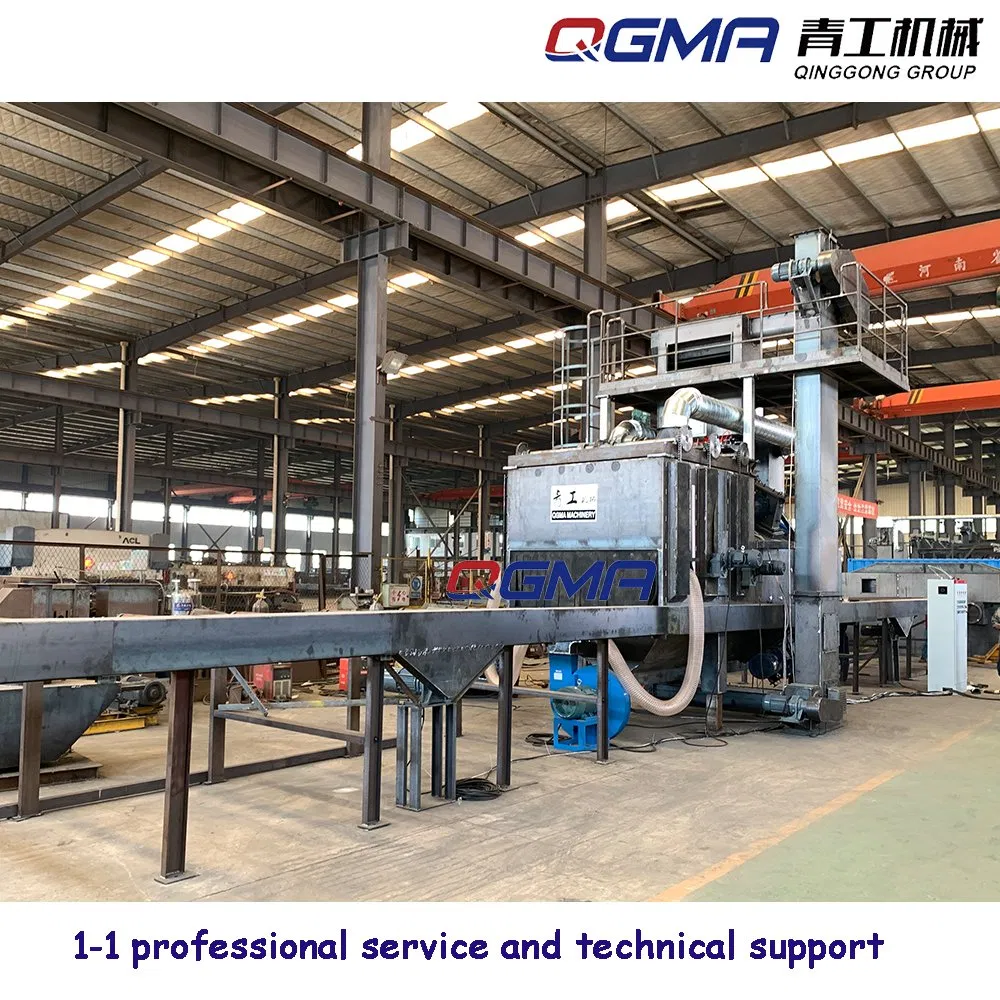

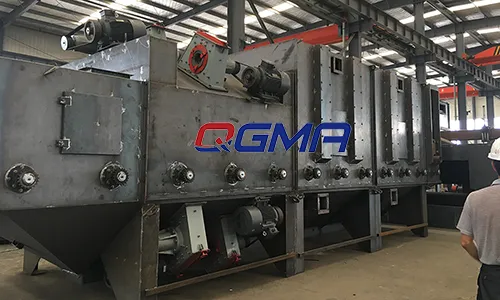

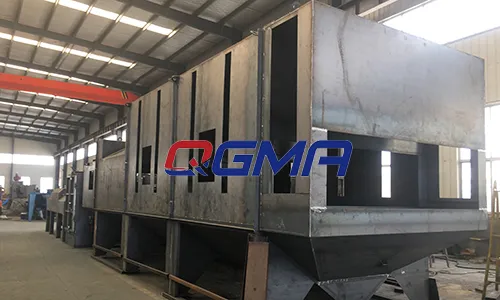

In Production:

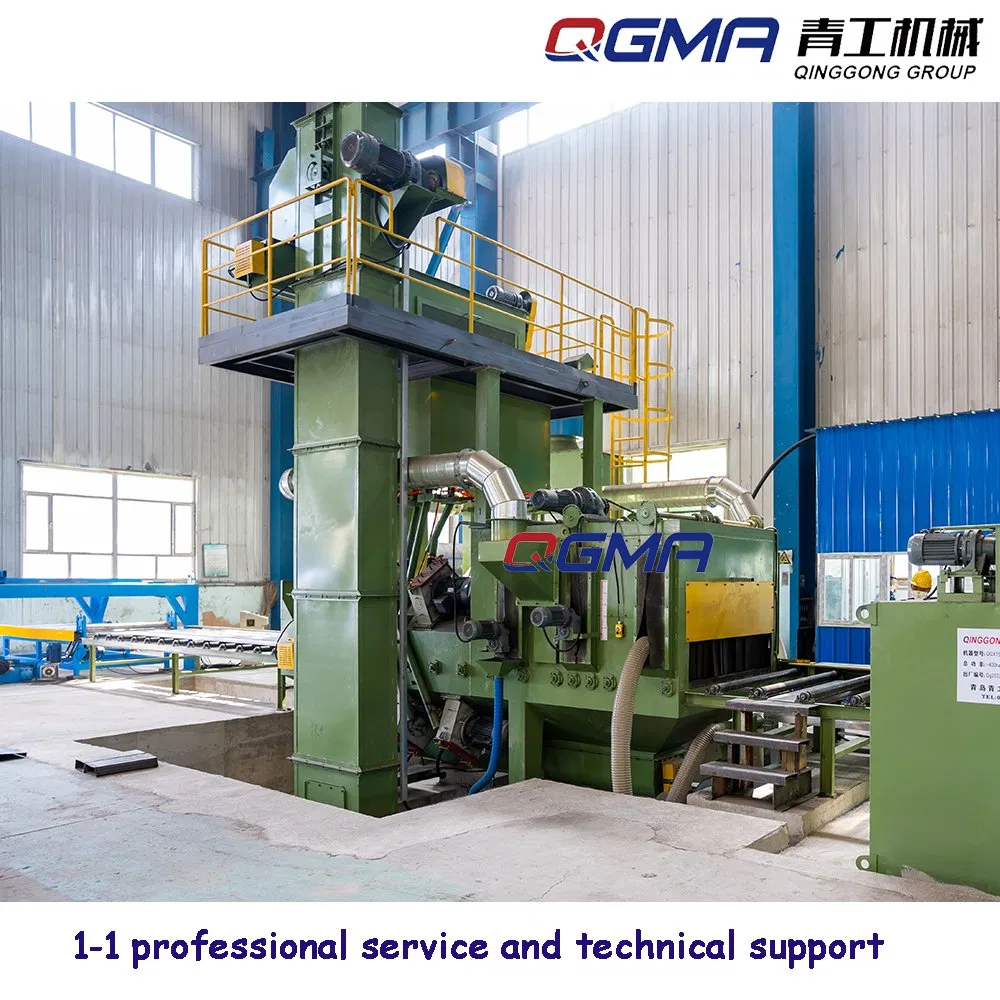

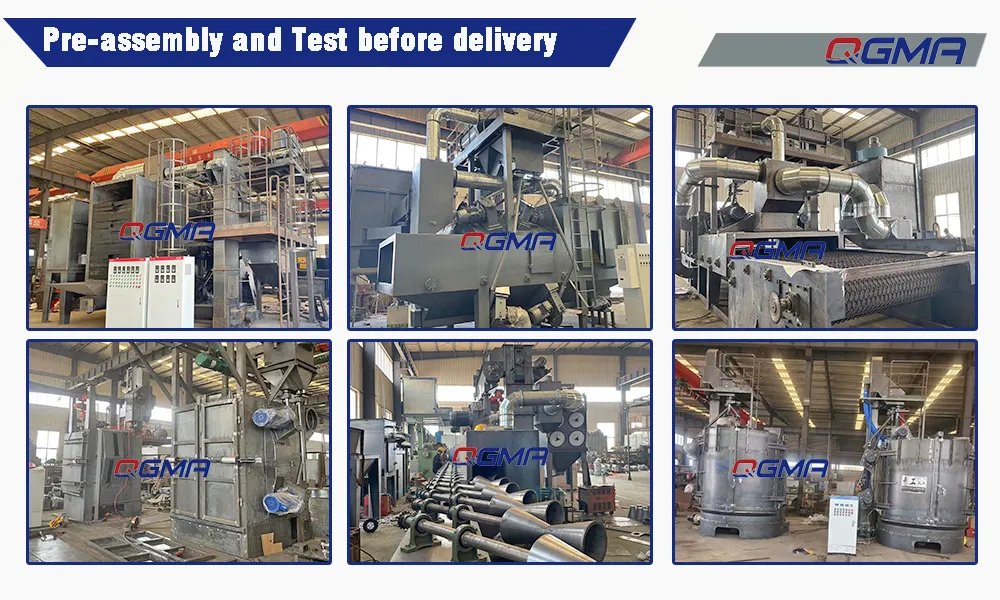

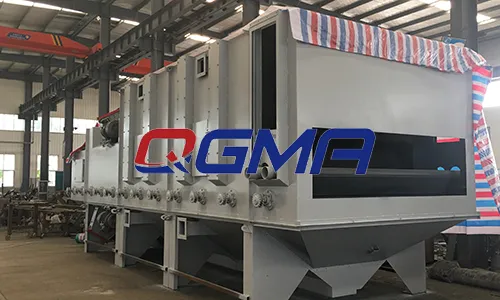

Finished & Painted:

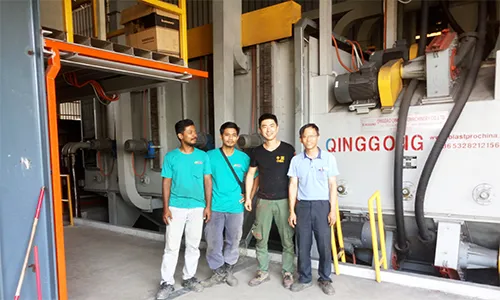

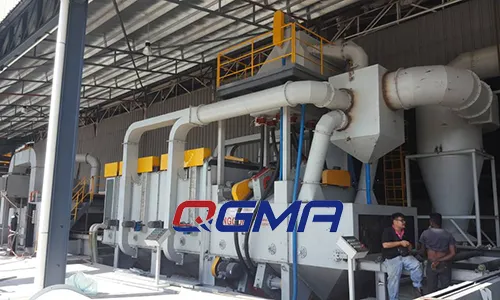

Customer Site Installation:

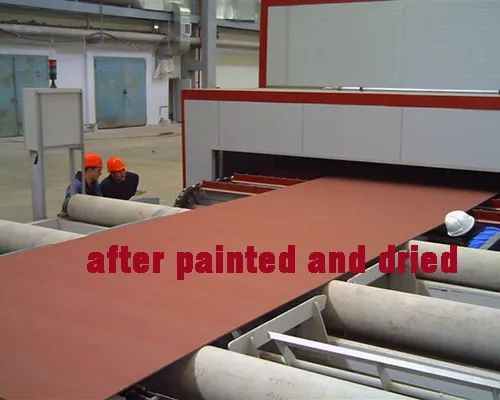

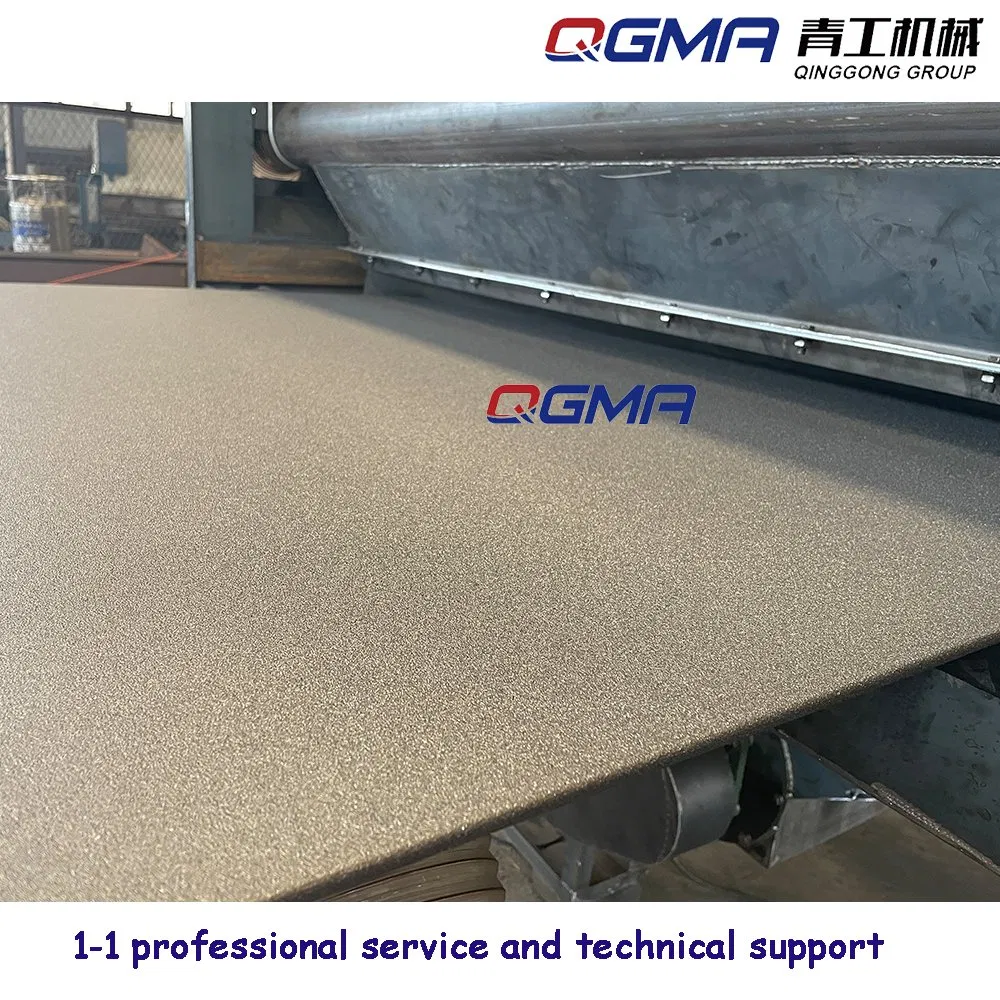

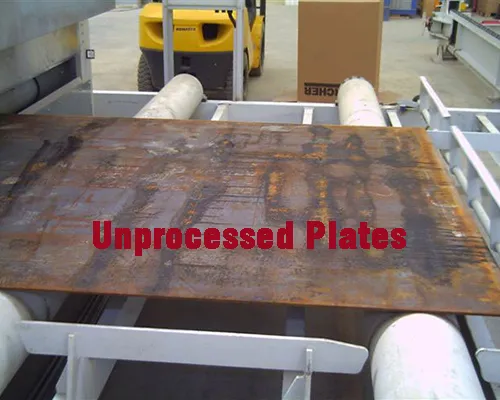

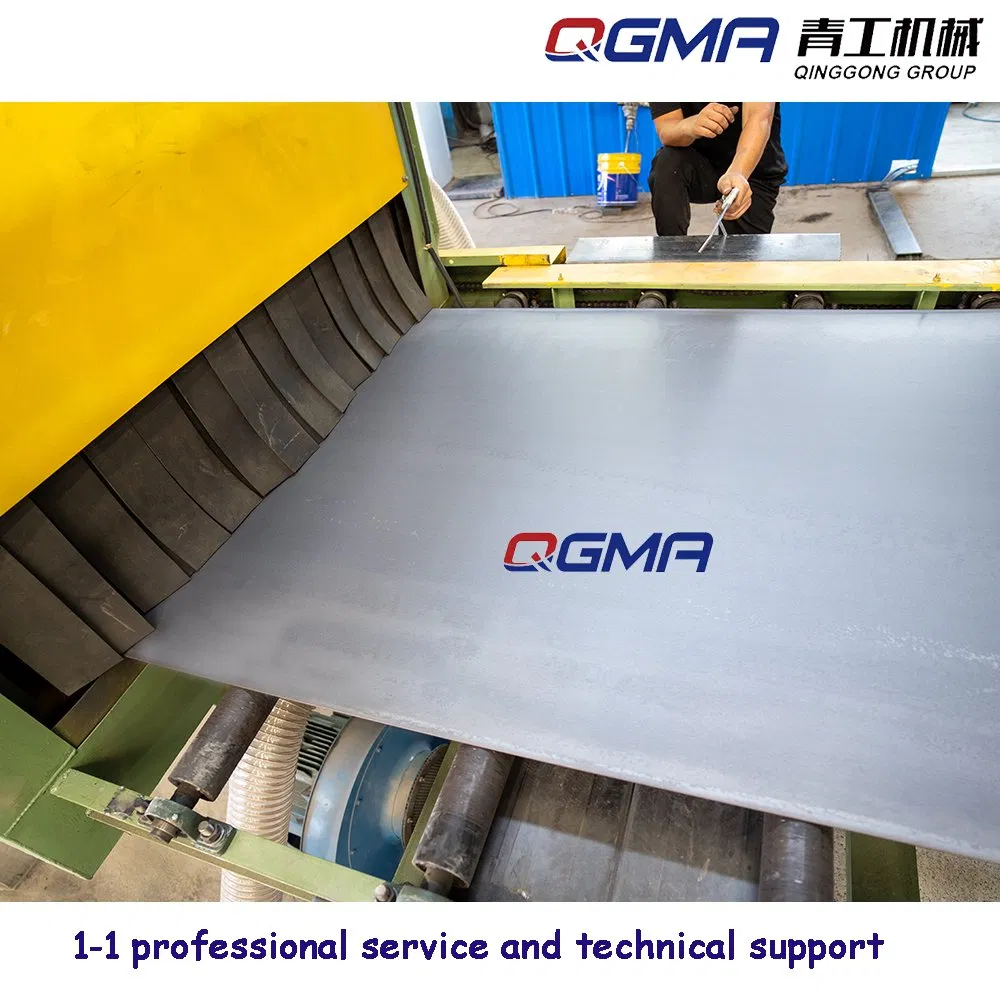

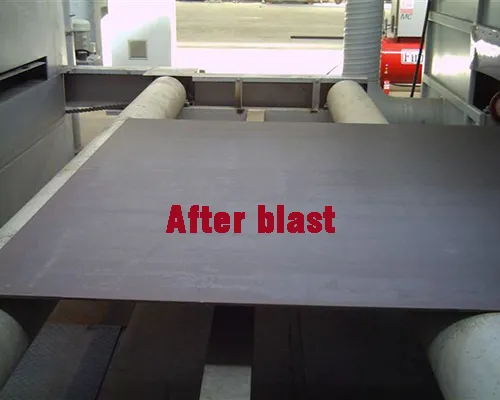

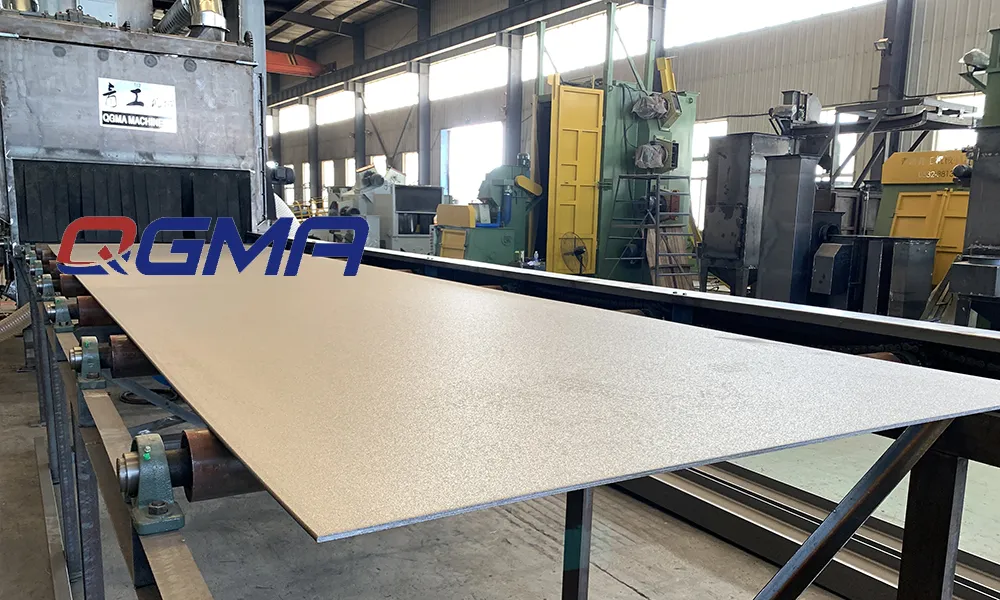

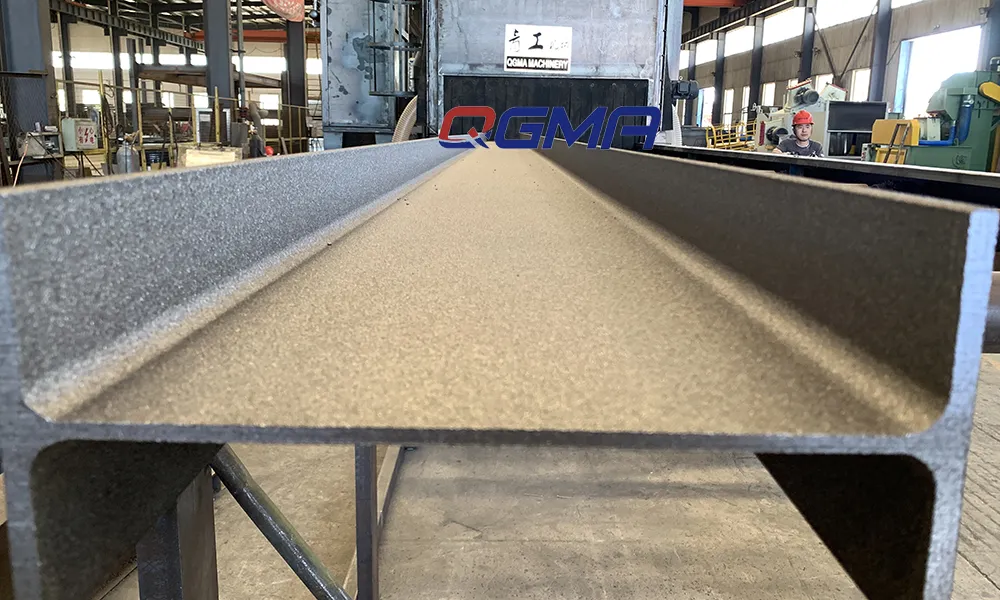

Surface Treatment Result:
Production time: 40-60 days
Shipping: Compatible with 20GP/40HQ/40OH/40FR containers
The company provides perfect solutions for shot blasting machines, preservation lines, sandblasting rooms, and spray booths to users worldwide. Adhering to the concept of efficient, intelligent, creative, and environmental protection, the team focuses on sustainable development and diverse equipment lines.

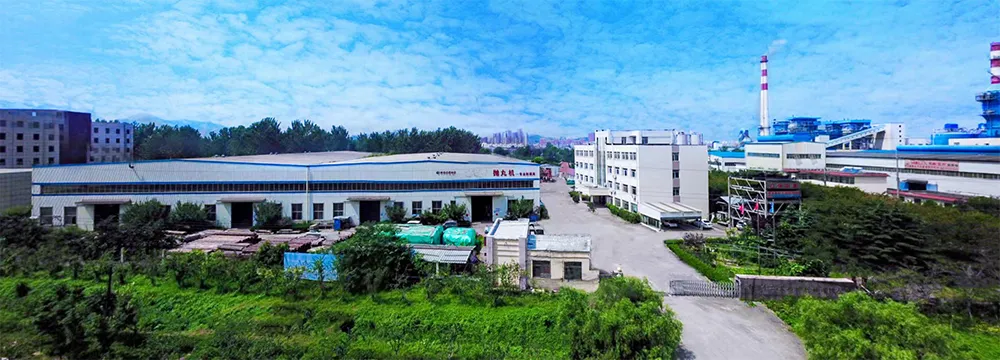

With strong production bases, abundant manufacturing experience, and a professional engineer team, we offer one-to-one after-sales service. From standard machines to non-standard automatic blasting lines, our team is at your disposal to meet all surface treatment needs.
