Customization: Available
Warranty: 1 Year
Fuel: Electric
Send Inquiry

Product Description

General Overview
Type
Catenary-Through Abrator
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE, CB, ETL, RoHS, UR
Feature
Rust / Corrosion Proof
Condition
New
Customized
Customized
Report
Machinery Test Provided
After-Sales
Field Installation, Training
Surface Finish
SA2.5 to SA3.0
Dust Collector
Cartridge/Bag Pulse Filter
PLC
Siemens, Omron or Top Brands
Packaging & Delivery
Package Size
100.00cm * 1000.00cm * 2000.00cm
Gross Weight
1000.000kg
Media Type
Abrasive Media
Transport
Secure Wooden Packages
Product Description
Shot Blasting Machine

Steel Plate Shot Blasting Machines for Profiling is one of the roller conveyor shot blasting machines, designed and produced by adopting the advantages of similar products internationally. It boasts state-of-the-art speeds to remove surface contamination, scale, and other impurities effectively.

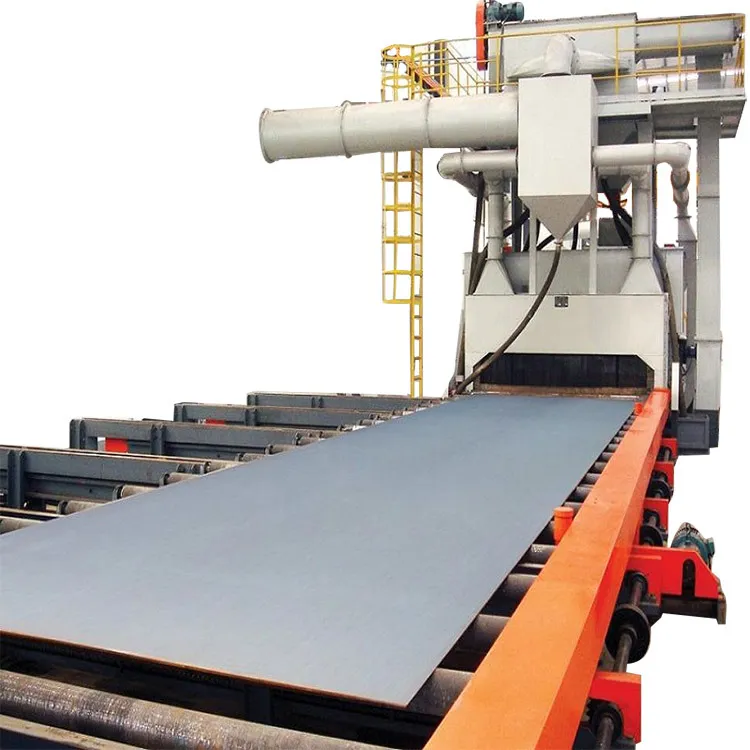

Equipment Detail 1

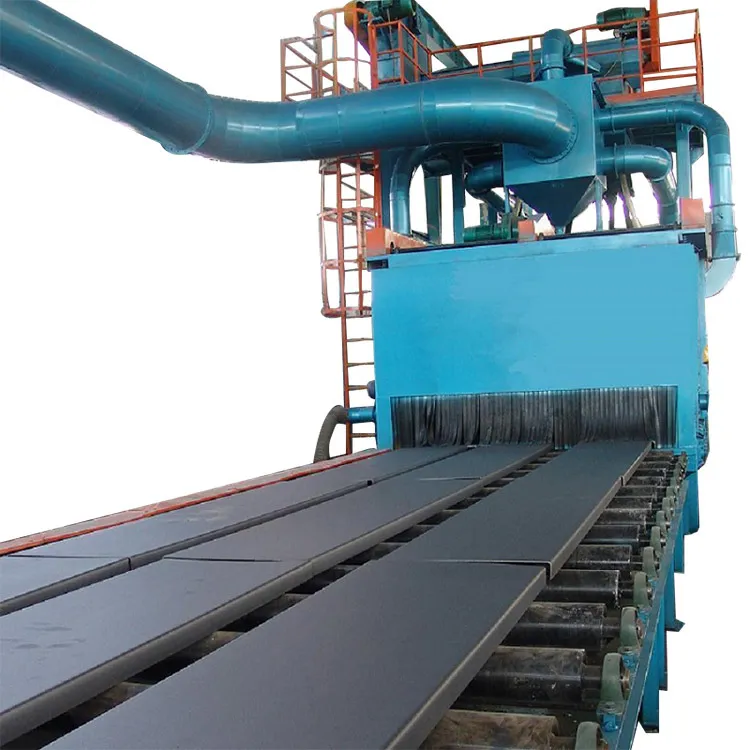

Equipment Detail 2

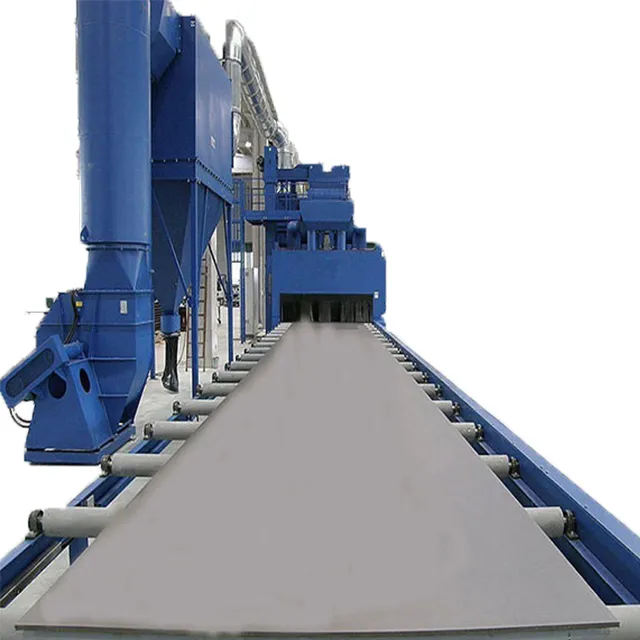

Equipment Detail 3
Core Components of the System:
  • Main Blast Cabinet with integrated inspection Door.
  • High-performance Blast Wheel Units with Drive Mechanism.
  • Efficient Abrasive circulation unit.
  • Heavy-duty Bucket Elevator unit.
  • Abrasive Separation and Cleaning system with Storage Hopper.
  • Advanced Dust Collector with Pulse Cleaning Mechanism.
  • Roller Conveyor system (Inlet & Outlet).
  • Control Panel equipped with PLC Control System.

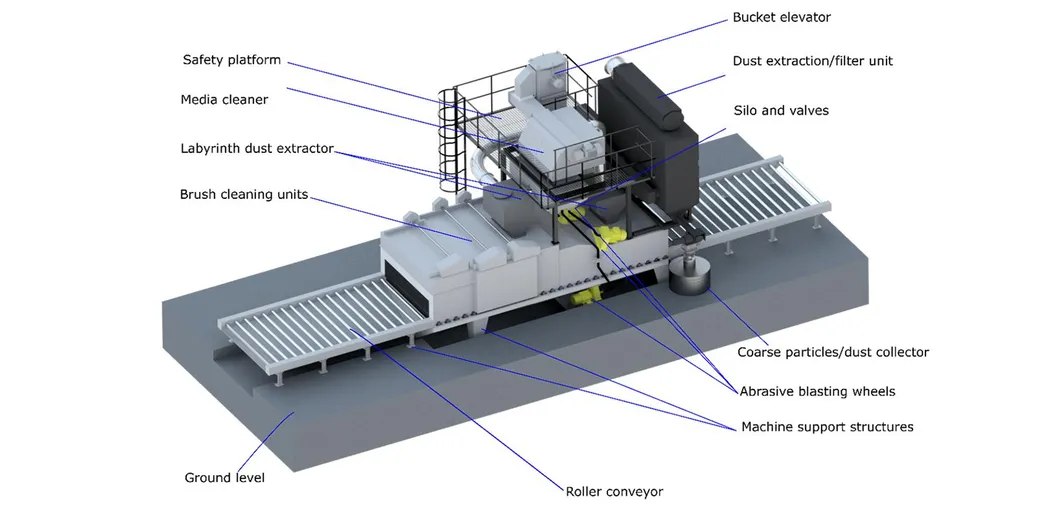

Component Diagram

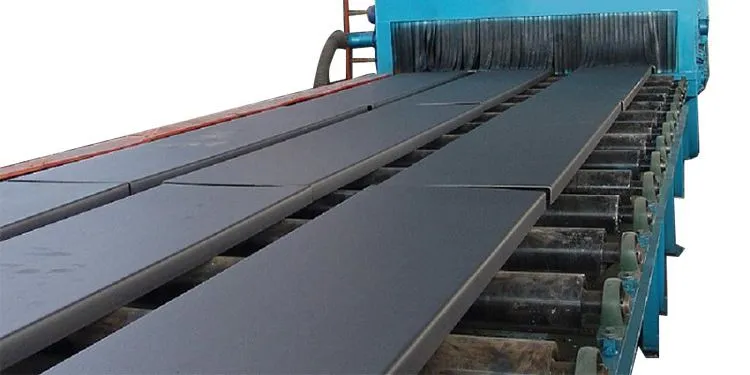

Roller System

Roller Conveyor Systems
Composition: Feeding, middle, and out-feeding rollers. Loading capacity: 2 tons/meter. Speed: 0.5-4 m/min.

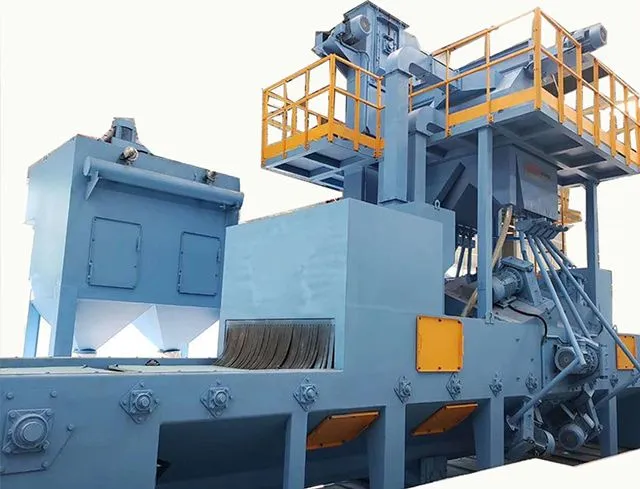

Blasting Chamber

Blasting Chamber
Composition: Main and 2 auxiliary chambers. Protected by SPMn13 and 65Mn protective liners for durability.

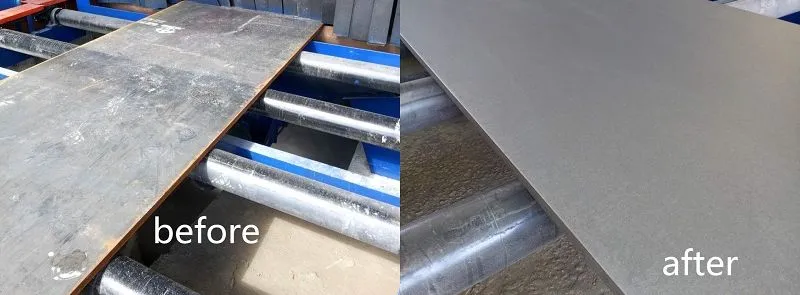

Machine Overview
Product Parameters
Item Type DX698 DX6912 DX6915 DX6920 DX6925 DX6930
Width of work piece (mm) ≤800 ≤1200 ≤1500 ≤2000 ≤2500 ≤3000
Height of work piece (mm) ≤300 ≤400 ≤500 ≤600 ≤600 ≤650
Cleaning rate (m/min) 0.5-4 0.5-4 0.5-4 0.5-4 0.5-4 0.5-4
Shot blasting rate (kg/min) 4*125 4*125 4*200 6*250 6*250 6*250
Customization Note: This machine is highly customizable. Any parameters can be adjusted according to specific requirements. Our engineering team provides professional and cost-effective solutions.
Manufacturing Excellence
Facility 1
Facility 2
Production 1

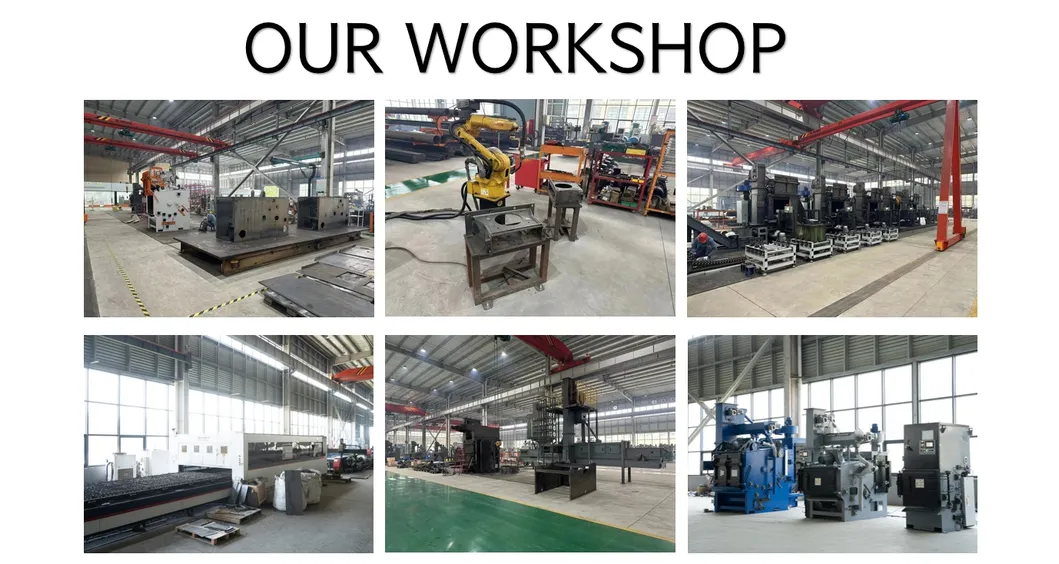

Production 2
Assembly Line
Frequently Asked Questions
How to choose the correct blast machine type?
Please provide information about your work-piece dimensions and required productivity; our experienced engineers will suggest the most suitable model.
How to choose the appropriate abrasive?
We offer various kinds of abrasives like steel shot, cut wire shot, and stainless steel shot. The choice depends on your specific workpiece material and finish requirements.
What is the quality warranty period?
We provide a 1-year quality warranty. In regions with local agents, enhanced local support and service are also available.
Is a foundation pit essential for installation?
The requirement for a foundation pit depends on the specific machine size and your workshop's height/layout.
How many workers are needed to operate the machine?
Typically, 1 to 2 workers are sufficient to operate the machine effectively, depending on the model and degree of automation.
Do you provide installation assistance?
Yes, we provide 1-on-1 installation assistance and on-site operation training conducted by experienced engineers.
