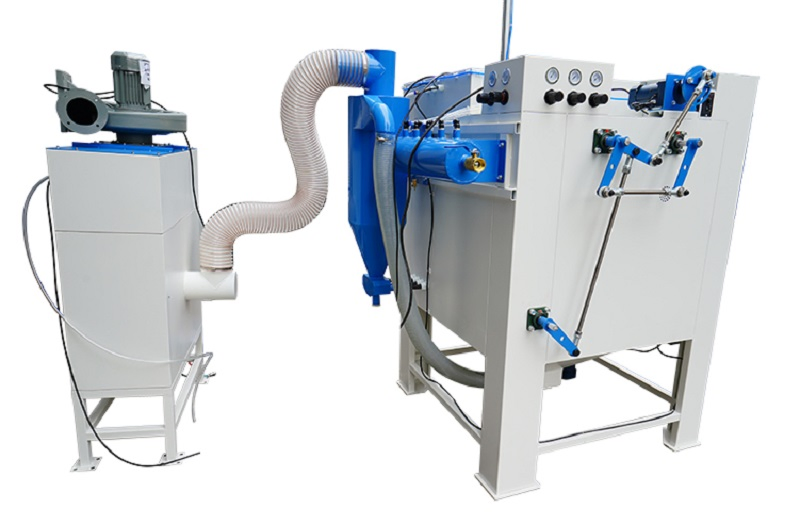

Automatic Sandblasting Equipment Media Blasting Machine for Wheel Cleaning

1 / 5

Automatic Sandblasting Equipment Media Blasting Machine for Wheel Cleaning

Customization:	Available
After-sales Service:	1 Year Warranty
Warranty:	12 Months

Send Inquiry

Product Description

📊 Basic Information

Model NO.	KF-1212-4A	Drive	Electric
Principle	Suction Type	Control	PLC
Layout	Horizontal	Automation	Automatic
Kind	Dry Sandblaster	Condition	New
Certification	CE	Working Chamber Size	L1200 * W1200 * H850 mm
Power Supply	220V, 50Hz	Rotating Speed	8r/Min
Lighting	2 LED Lights	Blasting Gun Qty	4 PCS
Blasting Nozzle	Boron Carbide	Packaging	Wooden Case

💎 Our Advantages

Automatic Sandblasting Equipment Advantages

📝 Product Description

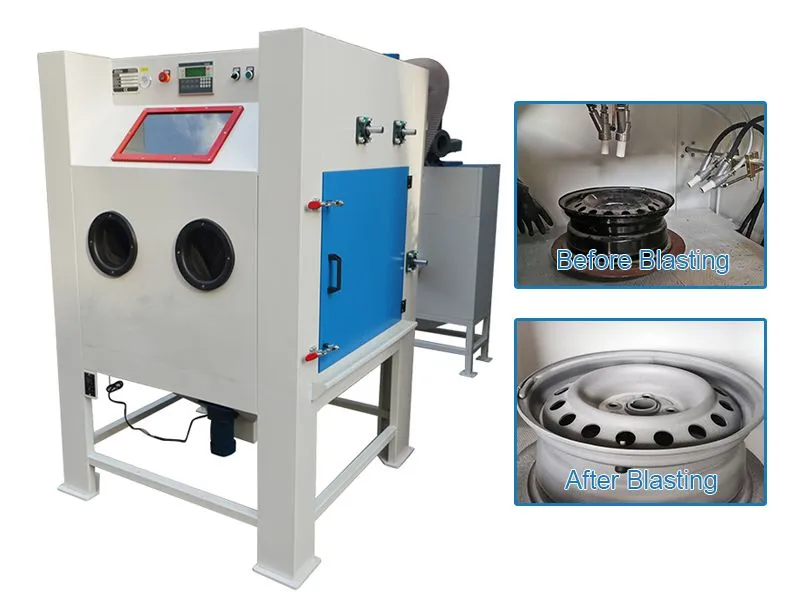

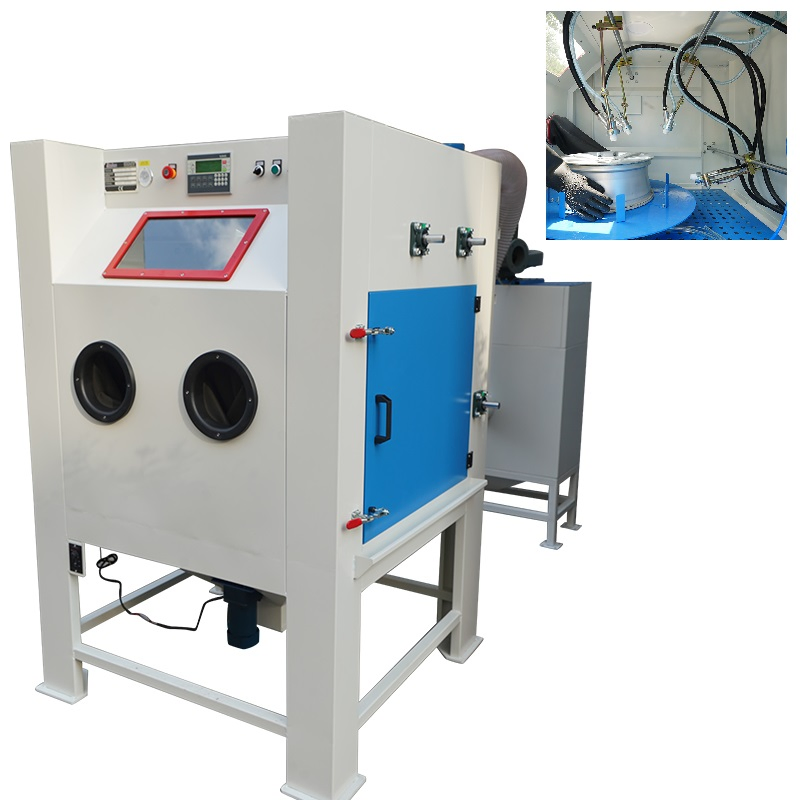

Automatic Sandblasting Equipment Media Blasting Machine for Wheel Cleaning

This automatic media blasting machine is designed with a 360-degree rotating turntable to enhance and improve working efficiency when operating heavy or irregular-shaped workparts, making it especially excellent for wheel cleaning.

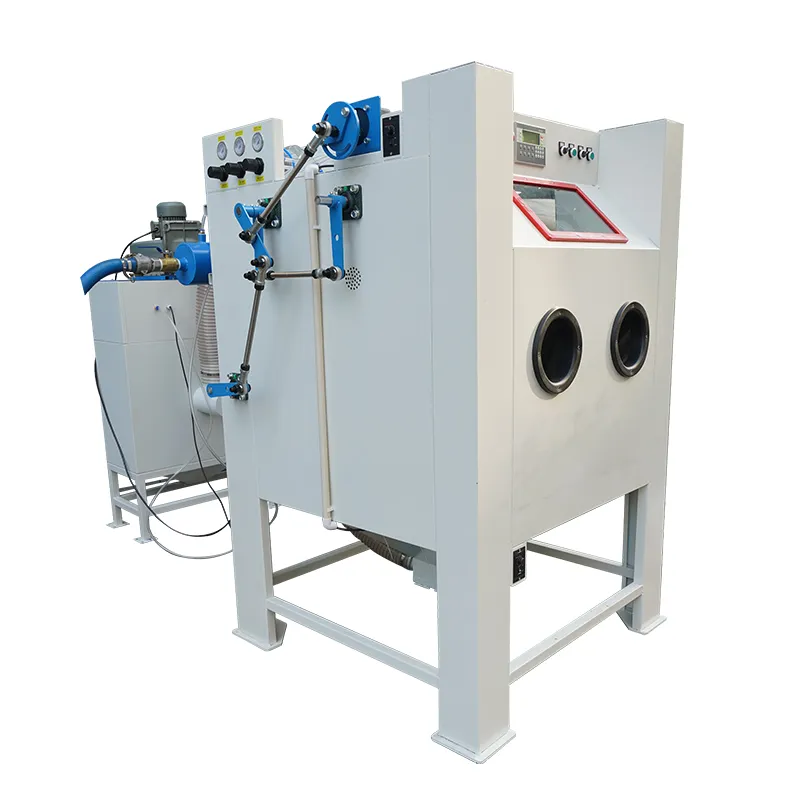

📸 Detailed Components

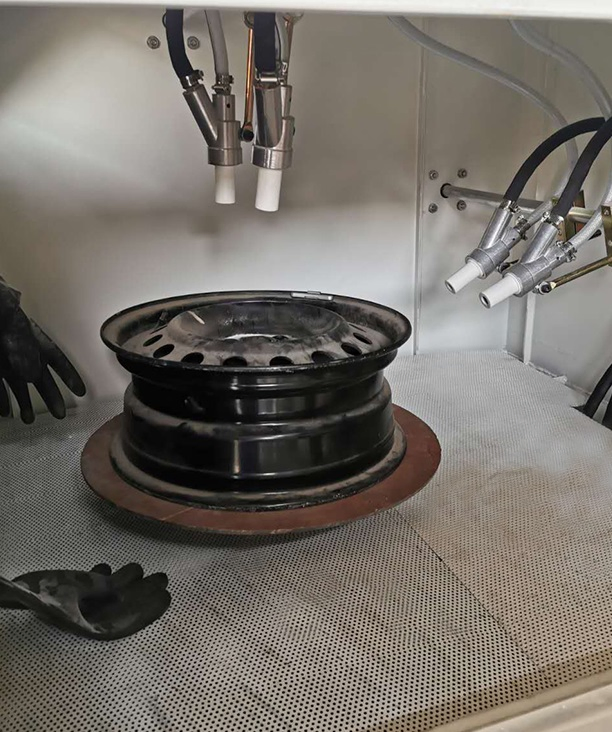

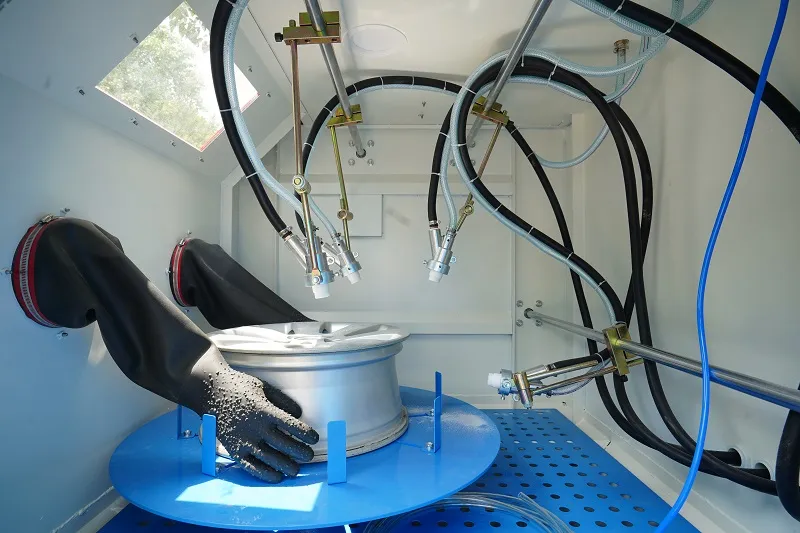

Automatic Turntable

Automatic and heavy-duty turntable is ideal to load large or irregular shaped workparts, supports to adjust speed of turntable to meet different requirements.

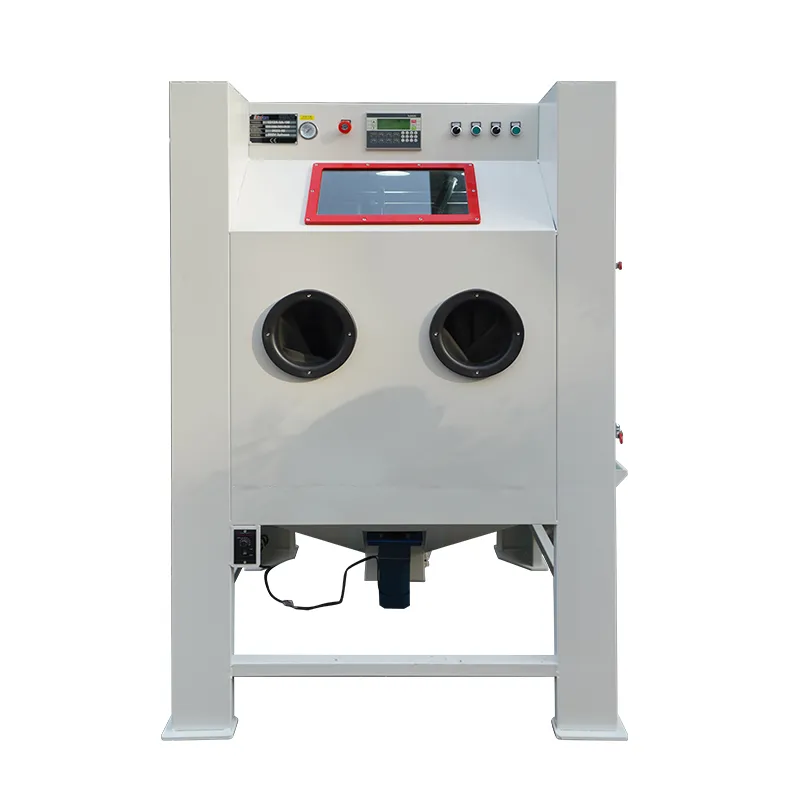

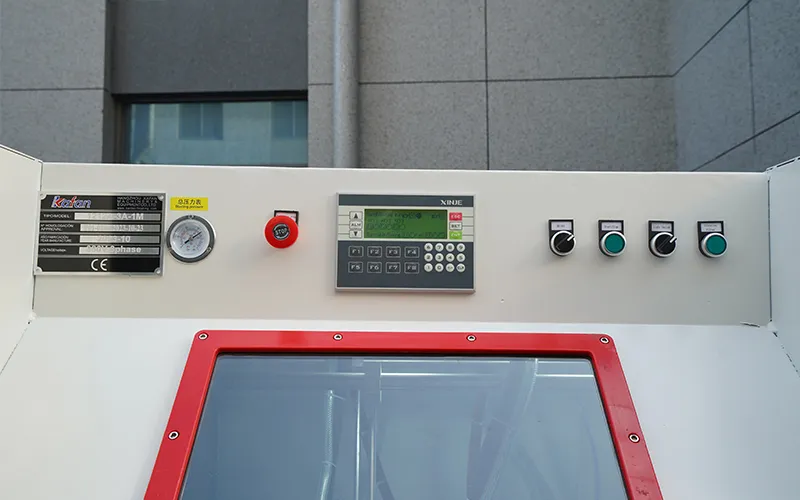

Control Panel

Includes: power switch, pressure regulating valve, dust valve, inlet pressure gauge and blasting pressure gauge, also control to turn on/off swing, turntable, blasting gun, etc.

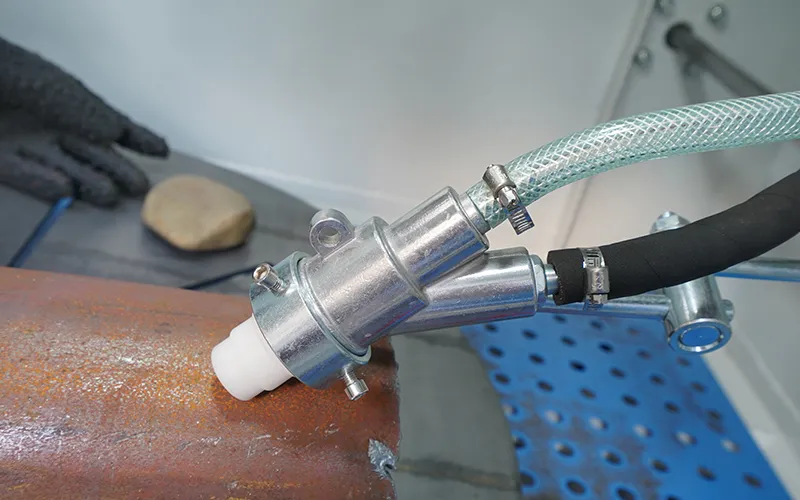

Blasting Guns

Equipped with four automatic blasting guns (manual blasting gun optional). High-performance blasting guns with durable boron carbide nozzles.

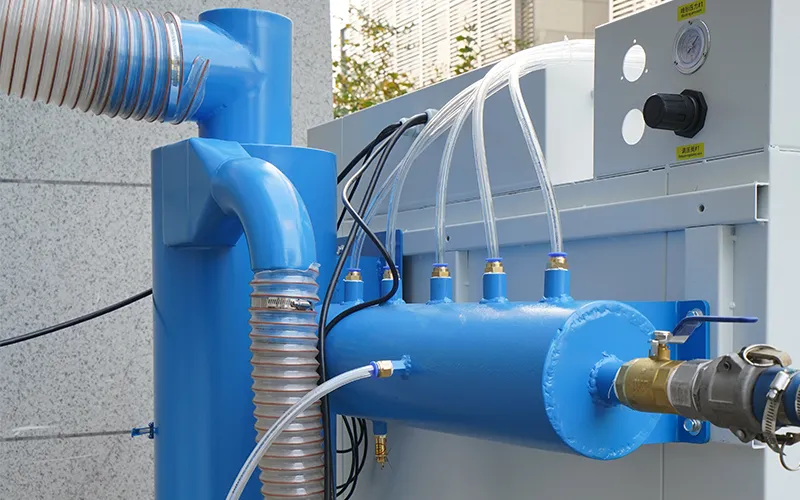

Cyclone Separator

Used to separate ultrafine abrasives from dust, significantly increasing the recycling rate of pure abrasives.

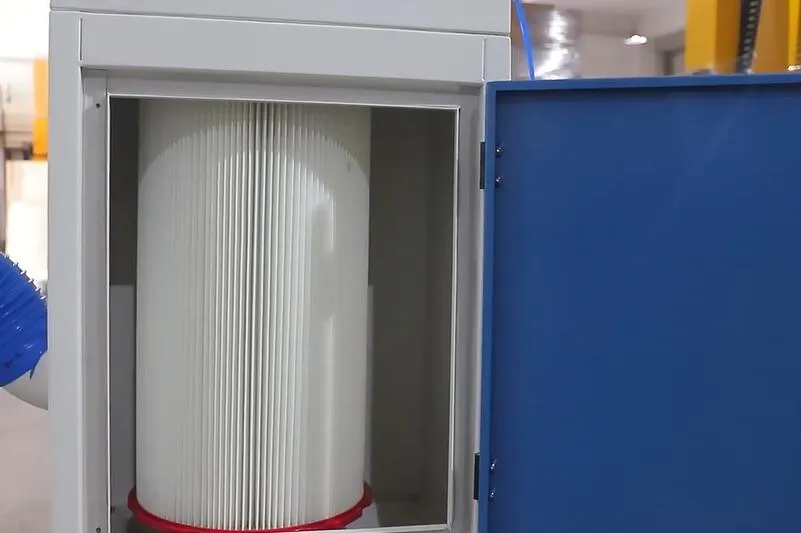

Cartridge Filter Dust Collector

Removes dust from the working chamber, ensures that only dustless and clean air is discharged, making it environmentally friendly.

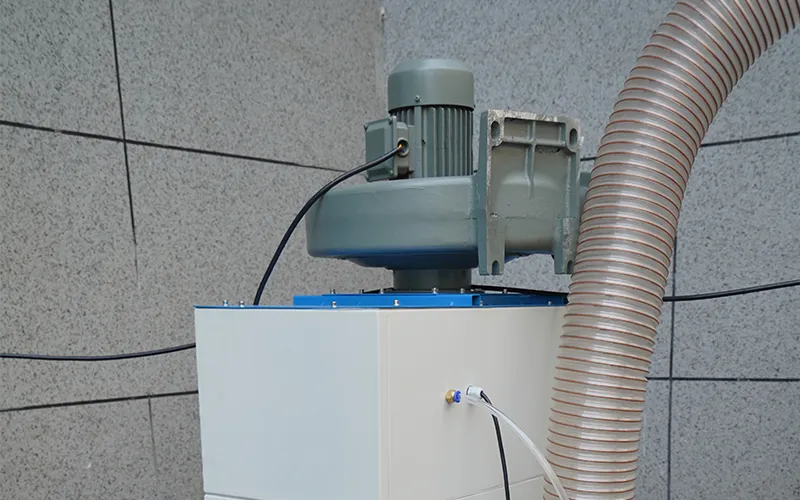

Fan Motor

Provides a powerful wind force for the sandblasting process, spraying the sand evenly onto the workpiece surface.

📋 Technical Specifications

Model	KF-1212-4A
Working Chamber Dimension	1200mm * 1200mm * 850mm
Power Supply	220V, 50HZ (Customizable)
Machine Light Power	220V, LED * 2
Compressed Air Source	5-7 bar
Air Flow	0.8-3m3/min dry and clean air
Separator Air Volume	8.5m3/min
Dust Removal Method	Cartridge Filter Type
Blasting Gun Qty	4 pcs
Blasting Nozzle Material	Boron Carbide

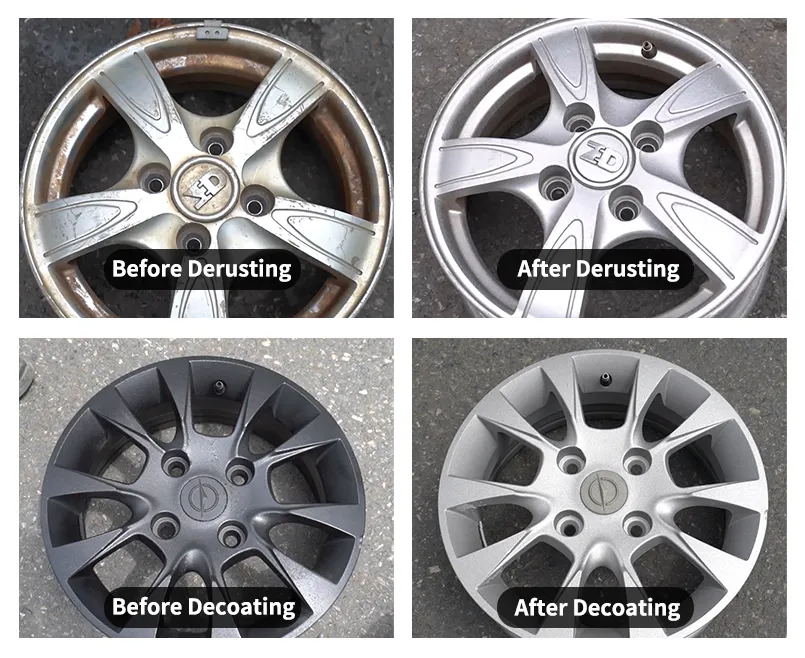

🚀 Application

The KF-1212-4A automatic blasting machine with turntable is suitable for blasting bigger or heavier parts, often alloy wheels/rims or complex shaped parts. The abrasive blasting process is carried out on a turntable which can be set for manual or automatic rotation.

🛠️ Our Product Range & Services

Sandblasting Equipment: Manual sandblasting machines, suction blast cabinets, pressure blasting machines, wet abrasive equipment, portable blaster pots, automatic conveyor systems, tumbler blasters, and rotary table machines.

Mass Finishing Systems: Vibratory polishing & deburring bowls, centrifugal barrel tumbling machines, centrifugal disc finishing systems, and mass finishing media.

Support: Customized Design Service, Technical Support, Engineer Installation & Training, Free Sample Testing, ODM, and OEM services.

❓ Frequently Asked Questions

What are the main applications for the KF-1212-4A?

It is primarily designed for cleaning and finishing heavy or irregular-shaped workparts, such as alloy wheels, rims, and complex industrial components.

How does the automatic turntable benefit the operator?

The 360-degree rotating turntable allows for even blasting of heavy parts without manual handling, significantly increasing efficiency and ensuring consistent surface finishing.

What type of dust collection system is integrated?

The machine uses a Cartridge Filter Type Dust Collector, which efficiently removes dust from the working chamber to maintain a clean environment and discharge clean air.

Are the blasting nozzles durable?

Yes, the machine is equipped with boron carbide nozzles, which are known for their extreme hardness and long service life compared to standard nozzles.

Can the voltage and power supply be customized?

Yes, while the standard is 220V/50Hz, the power supply and voltage can be customized to meet local industrial standards in your region.

Does the machine support abrasive recycling?

Yes, it features a cyclone separator that separates fine dust from reusable abrasives, maximizing the media recycling rate and reducing operational costs.
