Basic Specifications
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Metal Surface Cleaning
Transport Package
Wooden Case
Product Description

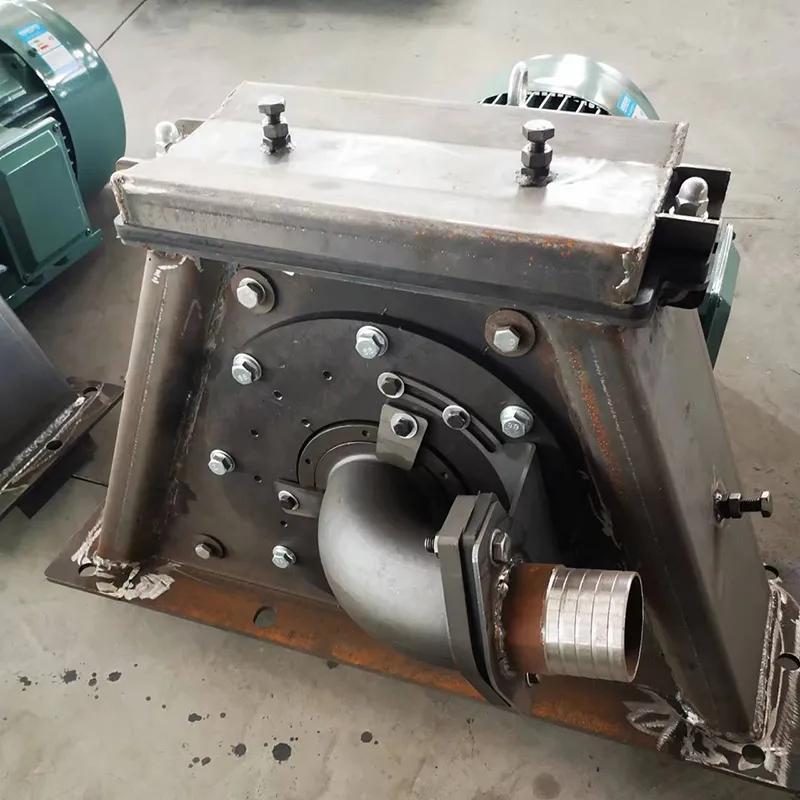

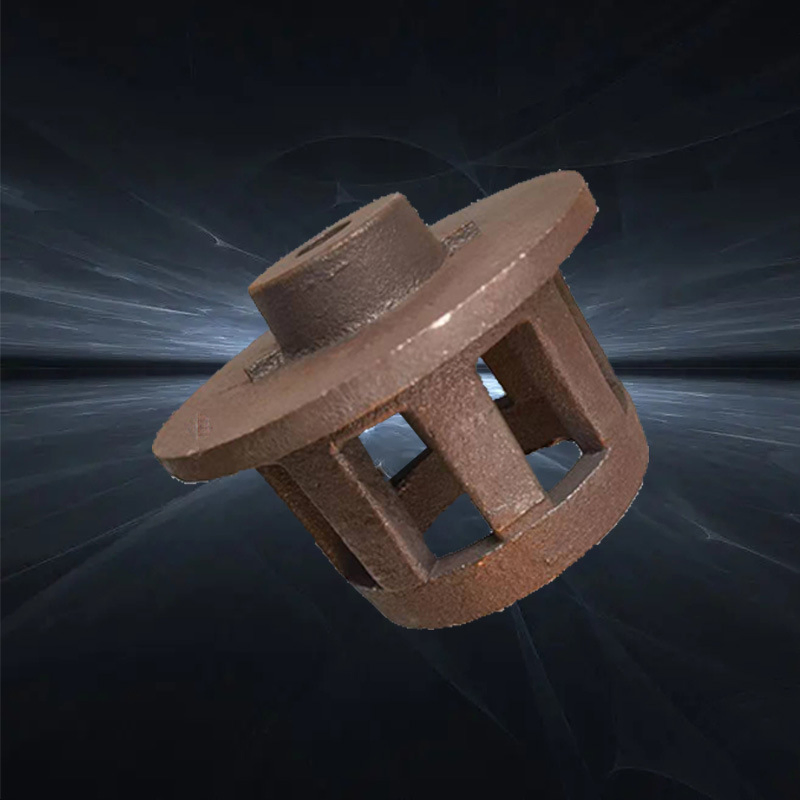

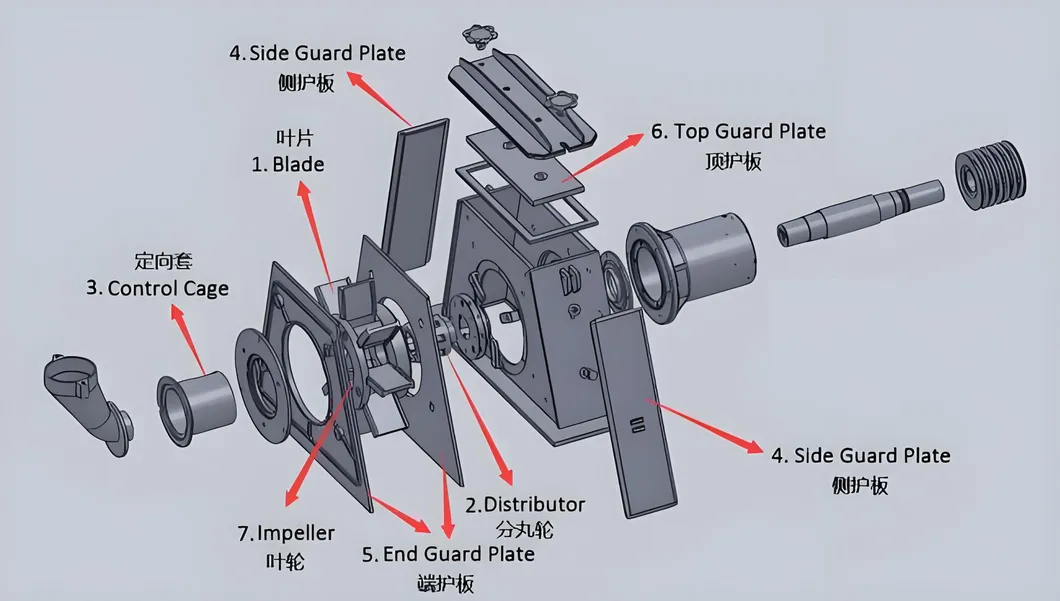

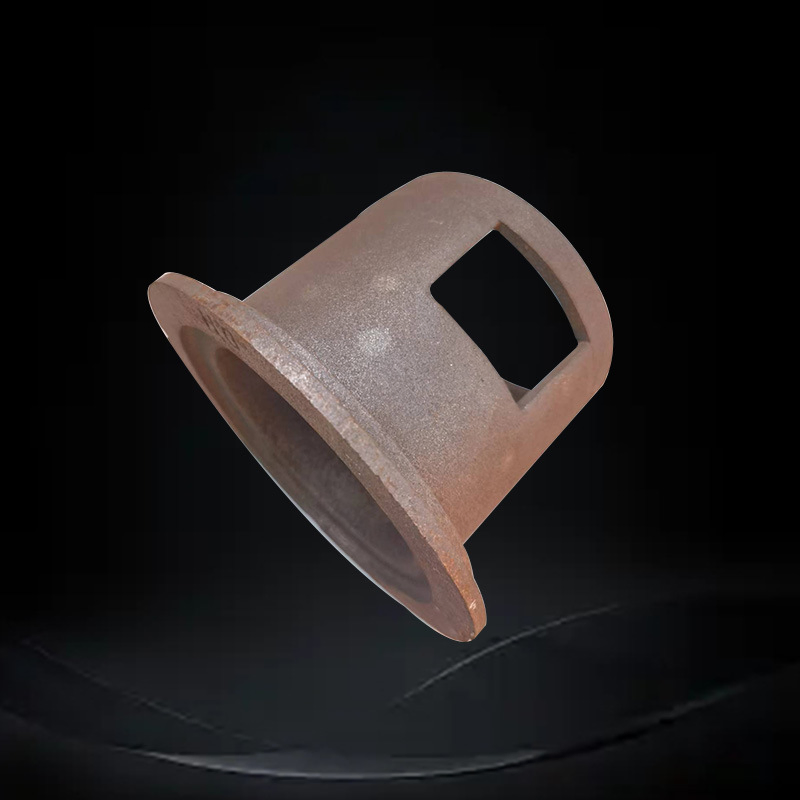

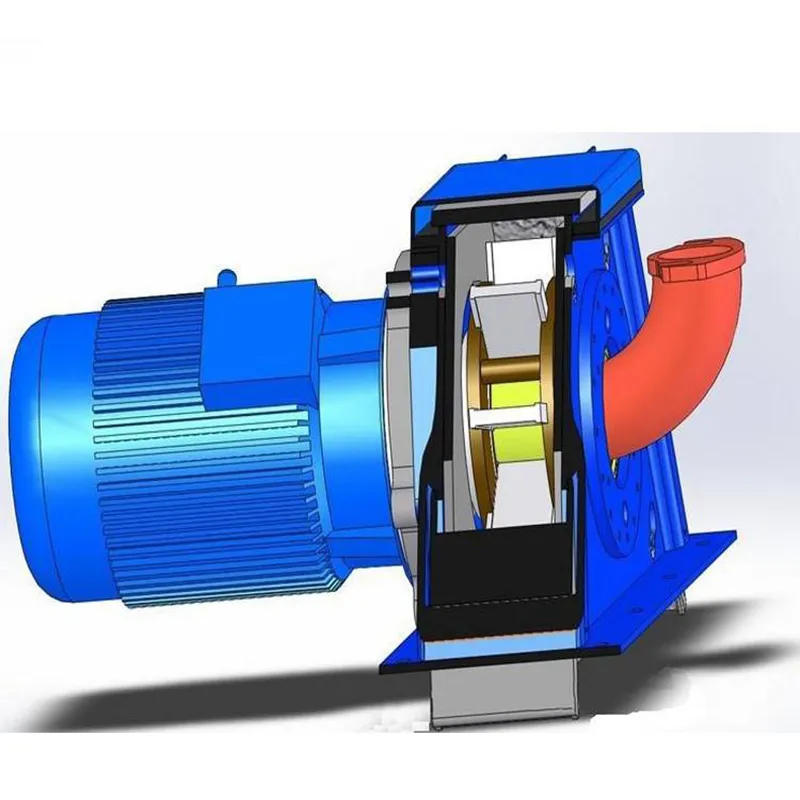

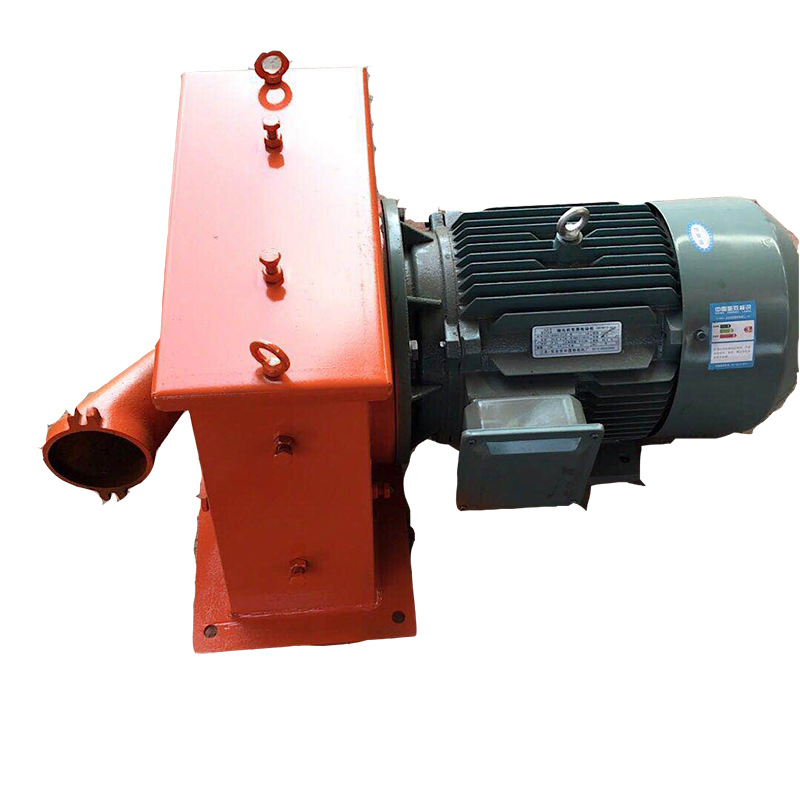

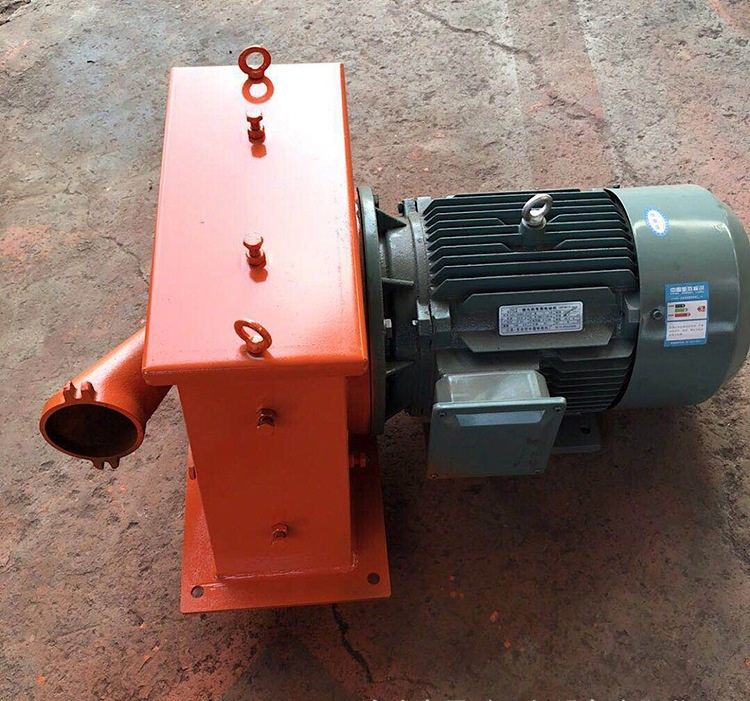

The direct-connect 034 motor type cast blast volume features high efficiency and a long service life for wear parts. This specialized turbine consists of a blade wheel, blade, control cage, shot wheel, feeding tube, guard board, shield, and spindle. The motor with turbine adopts a one-piece flange installation on the chamber body, ensuring high stability and minimal vibration.
Projectiles enter through the import tube into the round pill section, pre-accelerated by the directional thrown mouth. After the blades continue to accelerate the flow, a strong attack of high-speed projectiles hits the workpiece surface to achieve thorough cleaning.
Key Advantages
A
High Efficiency: Special points and shot blasting wheel structure allow the blasting ratio to reach 17.5 kg/min per Kw.
B
Quick Blade Replacement: Blades are inserted using centrifugal force during rotation, requiring no clamping tools. Replacement of eight blades takes only 5-10 minutes.
C
Stable Operation: Adopts a double disc impeller for good stability, concentrated mass ejection, and uniform blasting.
D
Low Noise & Durability: Uses special high chromium wear-resistant cast iron. Blade weight difference is controlled within 5 grams, reducing noise to less than 85 dB.
E
Superior Quality: Beautiful appearance and easy maintenance. Surface quality meets strict visual and magnetic particle inspection criteria.
Technical Parameters
| Model |
Diameter of rotation (mm) |
Rotating speed (r/min) |
Abrasive flow (kg/min) |
Motor power (kw) |
Type |
| Q0343Z4 | 260 | 2900 | 100 | 4 | Direct-driven |
| Q0343Z5.5 | 260 | 2910 | 120 | 5.5 | Direct-driven |
| Q034Z7.5 | 380 | 2930 | 150 | 7.5 | Direct-driven |
| Q034Z11 | 430 | 2930 | 200 | 11 | Direct-driven |
| Q034Z15 | 430 | 2945 | 250 | 15 | Direct-driven |
| Q035 | 420 | 2600 | 250 | 15 | Belt-driven |
| Q035 | 500 | 2250 | 360 | 22 | Belt-driven |
| Q035 | 500 | 2250 | 480 | 30 | Belt-driven |
Product Gallery
Frequently Asked Questions
What materials is this sand blasting machine suitable for?
It is highly effective for cleaning surfaces of Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, and various other metal materials.
How long does it take to replace the blasting blades?
The machine is designed for quick maintenance. Due to the centrifugal force installation method, you can remove and replace all eight blades in just 5 to 10 minutes without special tools.
What is the noise level during operation?
By using high chromium wear-resistant materials and precision manufacturing, the operating noise is kept remarkably low, typically less than 85 dB.
What are the advantages of the direct-connect motor design?
The direct-connect design provides higher stability, reduces vibration, and ensures a more compact structure compared to traditional belt-driven models.

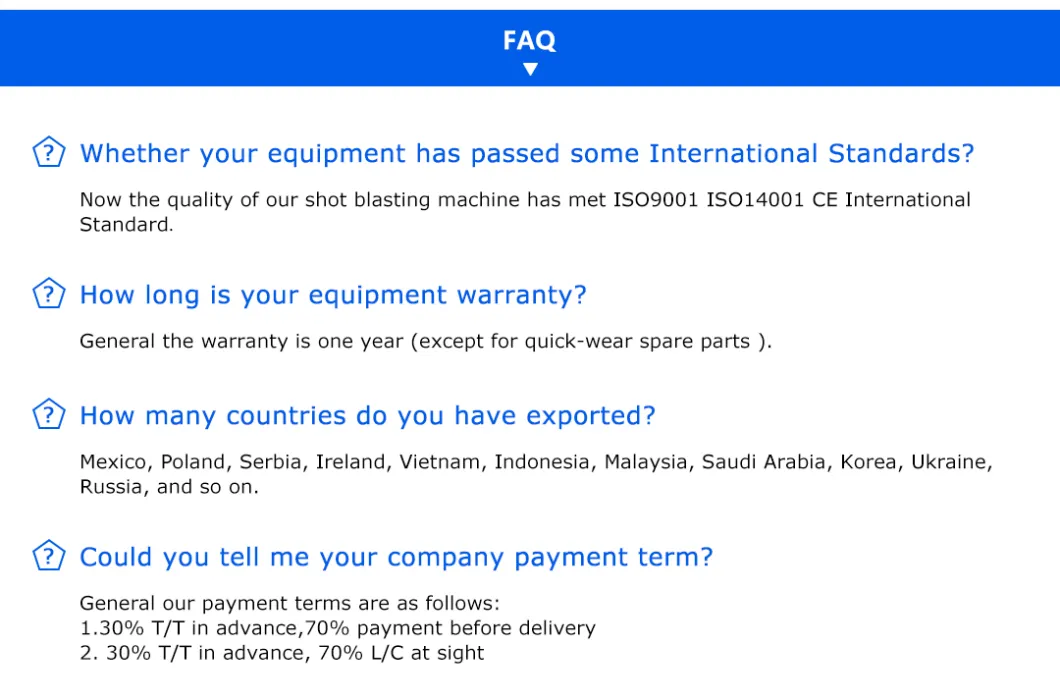

Does the equipment come with any certifications?
Yes, the equipment is CE certified and comes with a 1-year warranty to ensure reliable performance and safety.

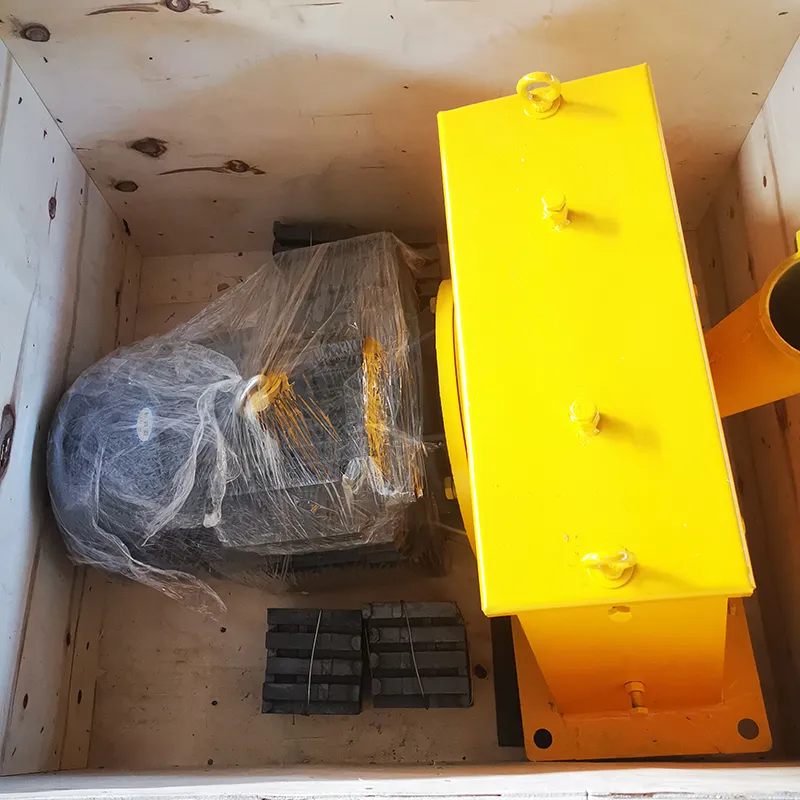

How is the product packaged for international shipping?
All units are securely packed in professional wooden cases to prevent damage during transit and ensure they arrive in perfect condition.
