Blatrixo Machine
Blatrixo Machine

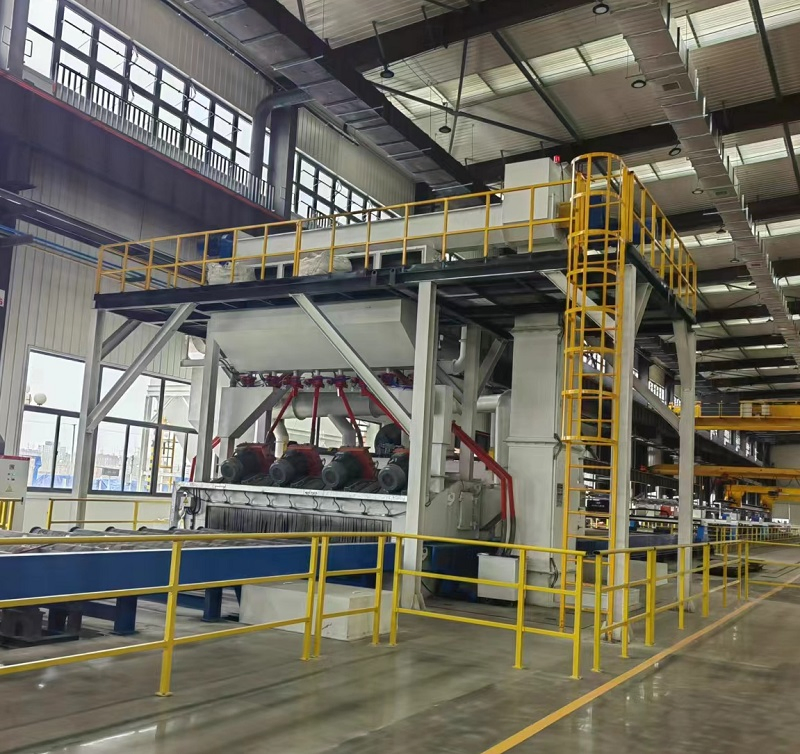

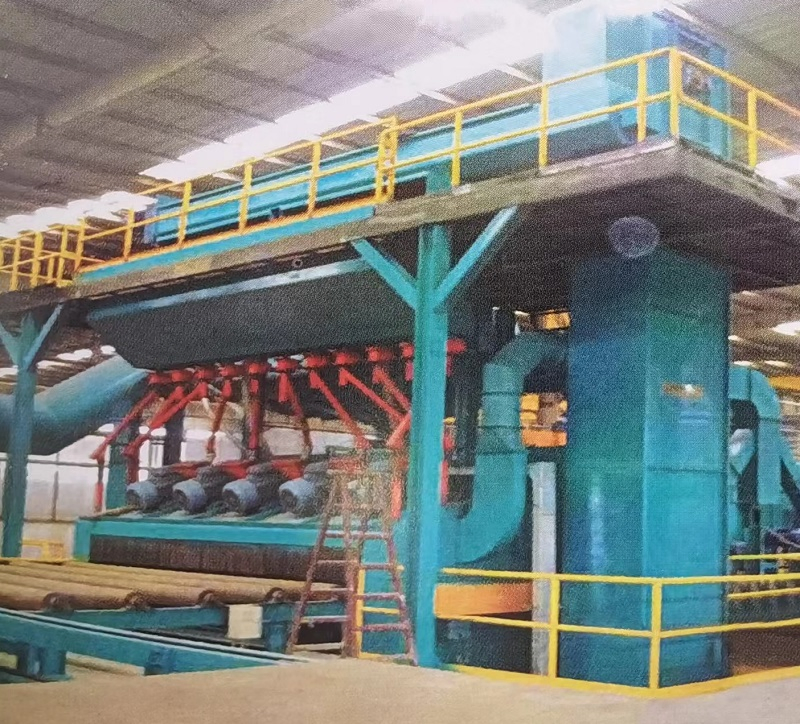

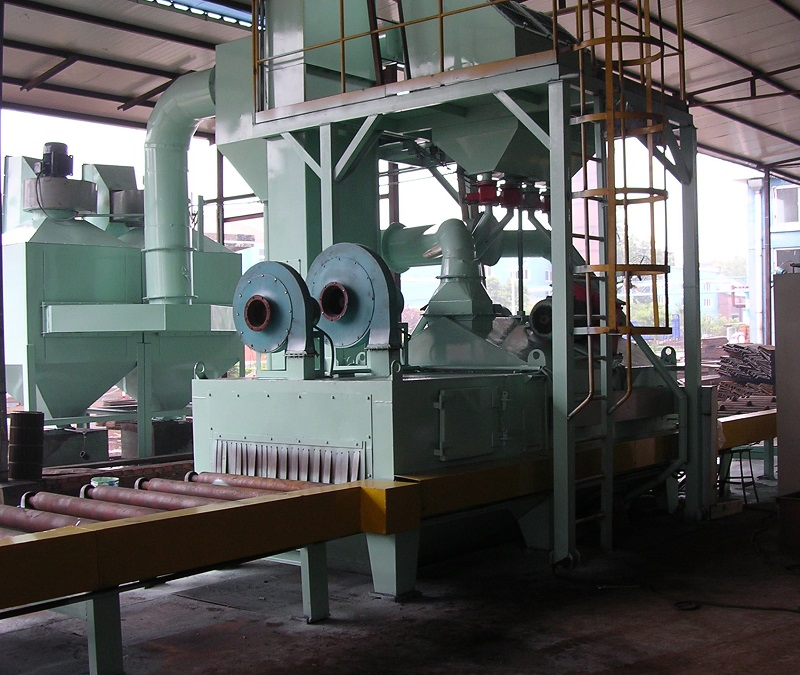

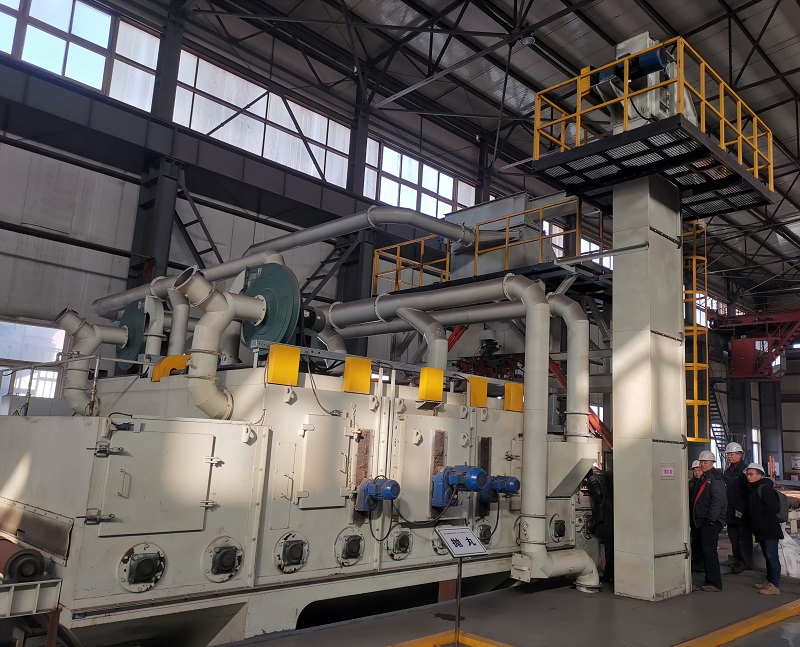

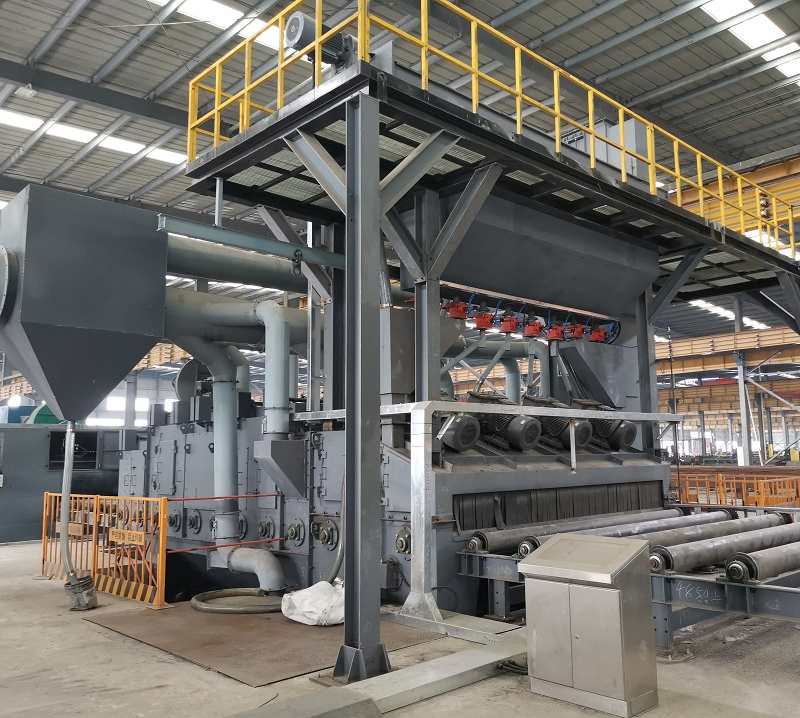

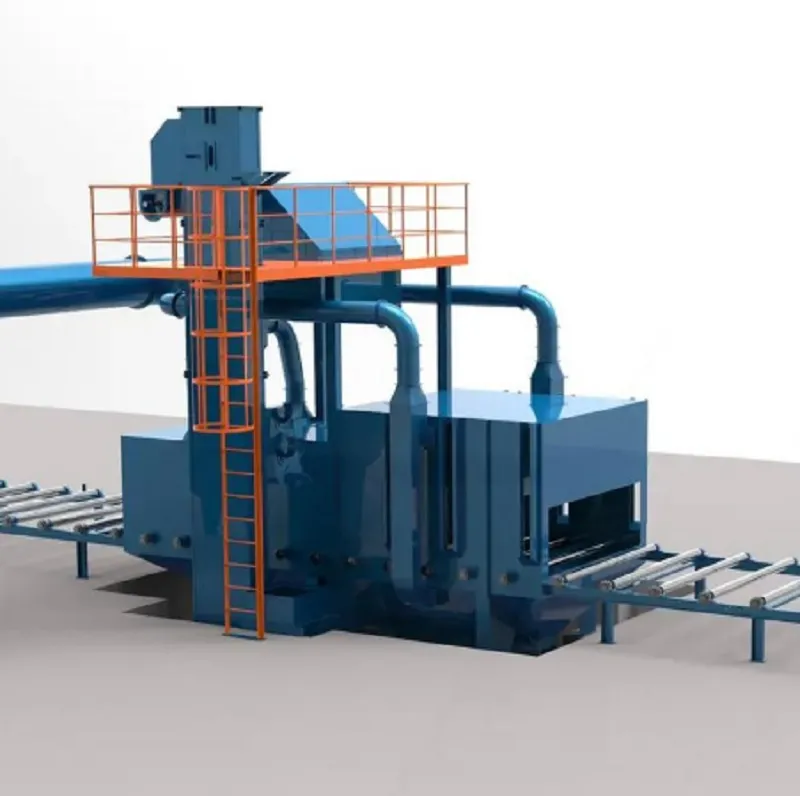

The steel plate shot blasting machine is specialized equipment for steel plate surface treatment, widely used in industries such as steel processing, bridge manufacturing, and shipbuilding. Its core function is to clean and strengthen the steel plate surface through the shot blasting process.
Working Principle: It uses a motor-driven shot blaster to project shot (e.g., steel shot, iron shot) onto the steel plate surface at high speed. When the shot impacts the steel plate, it can break and peel off impurities such as oxide scale, rust layers, and oil stains. Meanwhile, a reasonable projection force and density can create a uniform roughness on the steel plate surface, optimize surface mechanical properties, enhance subsequent coating adhesion and corrosion resistance, and also help improve the steel plate's fatigue strength.
| Model Parameter | WQB08 | WQB12 | WQB15 | WQB20 | WQB25 | WQB30 | WQB40 | WQB50 |
|---|---|---|---|---|---|---|---|---|
| Effective cleaning width (MM) | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 | 5000 |
| Size of feed inlet (MM) | 800x400 | 1200x400 | 1500x400 | 2000x400 | 2500×800 | 3000x800 | 4000x400 | 5000x400 |
| Workpiece length (MM) | 1200~12000 | 1200~12000 | 1200~12000 | 1200~12000 | 3000~12000 | 2400~12000 | 4500~16000 | 4500~16000 |
| Conveying speed (M/MIN) | 0.5~4 | 0.5~4 | 0.5~5 | 0.5~4 | 0.5~4.5 | 0.5~4 | 2~8 | 2~8 |
| Plate thickness (MM) | 5~60 | 5~60 | 5~60 | 5~60 | 5~60 | 5~100 | 5~100 | 4.5~100 |

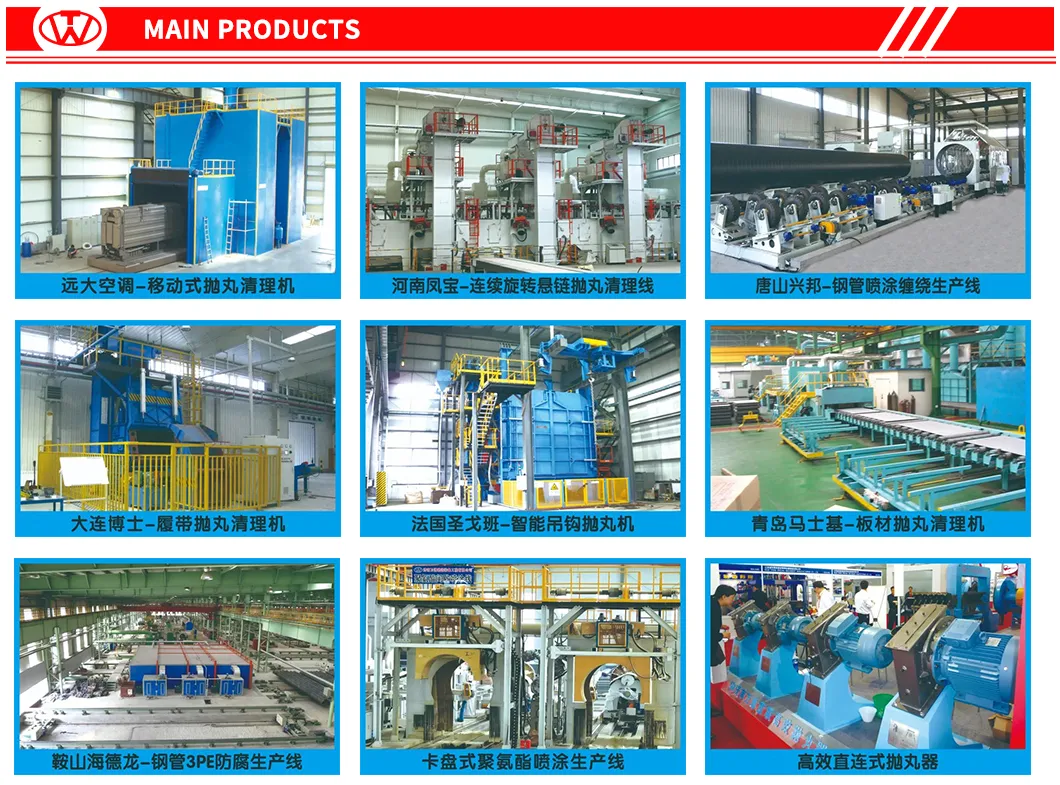

Our company insists on the concept of "The way out comes from forging ahead and development from innovation", dedicated to technology improvement. Our patented products include direct connection high-efficiency shot blasting machines, manipulator shot blasting machines, and novel dust removal purification equipment.
We developed specialized lines for engine blocks, automobile crankshafts, and metallurgical round steel/square billets. These solutions satisfy national key projects and oil-gas transmission pipeline construction, contributing significantly to the blasting industry.
Our company is dedicated to technical research, design, and manufacturing of equipment for shot blasting treatment and surface anti-corrosion. With nearly 40 years of experience, we provide advanced technology widely used in automobile transportation, steel metallurgy, and petroleum industries.

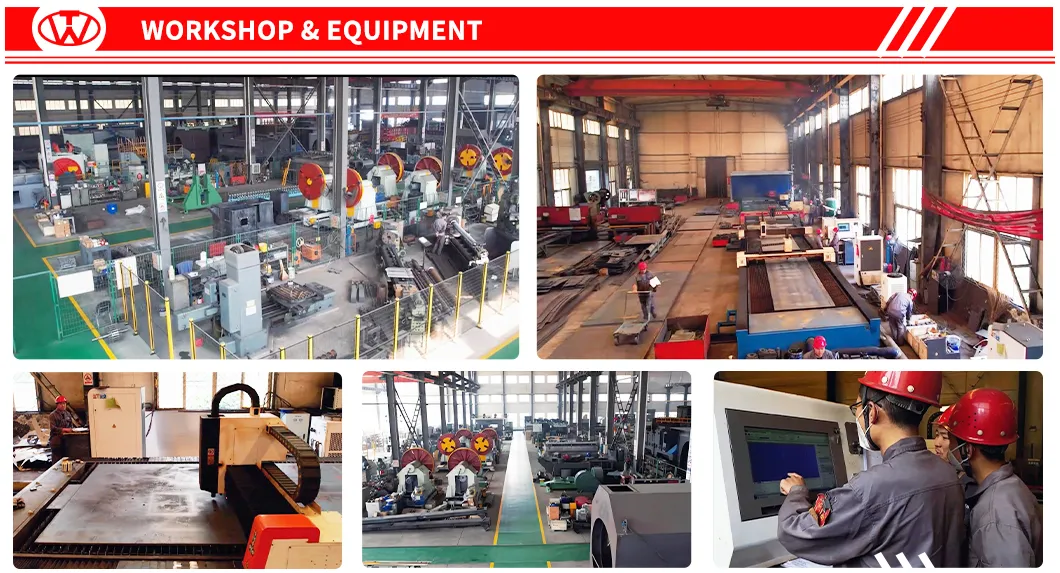

We maintain an outstanding professional R&D team composed of senior engineers. Our facility includes numerical control machining, cutting, and dynamic balance detection devices, ensuring an annual production capacity of over 300 sets.
