Customization: Available
After-sales Service: Service Need to Be Negotiated
Warranty: One Year Warranty
Send Inquiry

Product Description

Basic Specifications
Model NO.
HWTB-03
Application
Steel Pipe Blasting
Fuel
Electric
Type
Hook Type Abrator
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE, RoHS
Feature
Non-Toxic
Condition
New
Customized
Customized
Main Products
Through-Type Plates
HS Code
8424300000
Equipment Performance Overview

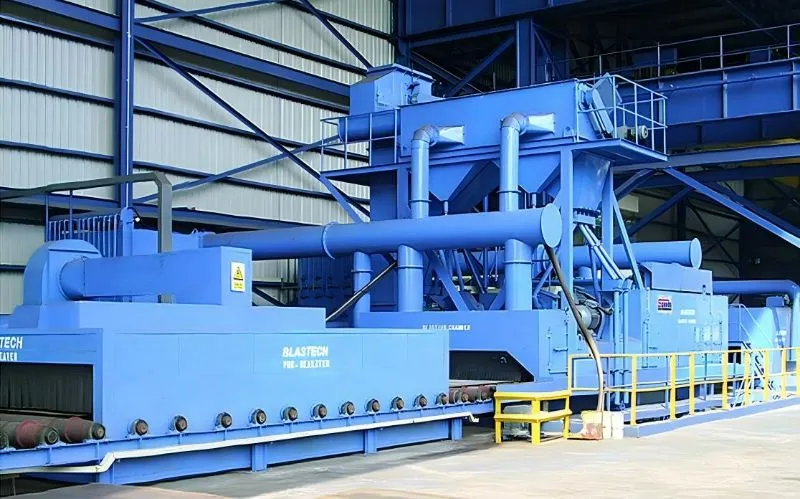

Shot Blasting Machine Overview

Professional Customization & Technical Strength

  • 30 years of industry production experience with over 500+ equipment in safe operation.
  • Professional manufacturer of shot blasting, sandblasting, painting, and environmental protection equipment.
  • Integrating scientific research, design, manufacturing, installation, and consulting services.
  • Main products include wind recovery sandblasting rooms, mechanical recycling sandblasting rooms, and H-beam through shot blasting machines.
  • Specialized in hooks, chain shot blasting cleaning rooms, turntables, trolley blasting, and various high-efficiency shot blasting machines.
  • Advanced environmental protection equipment: pulse bag dust collectors, air chamber dust collectors, and paint mist treatment cabinets.
Main Technical Parameters
Project Item Unit Numeric Value
Clean Workpiece Size (L×W×H)mm10000 × 2200 × 2500 ≤
Shot Blasting Machine Through Doormm2400 × 2800
Conveying Frequency Conversion Speedm/min0.5 ∽ 5.0
Surface Roughness After Rust Removal-Sa2.5
Host Size (L×W×H)mm9000 * 3100 * 3750
Factory VoltageV/HZ380V±10% / 50HZ±1HZ
Ambient TemperatureºC-15 ~ 40ºC
Relative Humidity%85% ≤
Total PowerkwApproximately 165kw
Blast Performance Details
Component Parameter Unit Value
Shot Blasting ChamberSteel Plate Thicknessmm12mm
Guard Material-High chromium cast iron
Shot Blasting MachineModel-Q034l1
Single Capacitykg/min140
Quantitypcs12
Shot MediaFirst Loading Volumekg5000
Diametermmφ0.6 ~ 1.2
Circulation SystemScrew Conveyor CapacityT/H80
Bucket Elevator Lift VolumeT/H80
Equipment Acceptance

1. Pre-acceptance: Air operation test run of each sports organization in the factory. Functional components are verified against state, industry, and enterprise standards. Customers are invited to participate in the manufacturing plant.

2. Final acceptance: Carried out at the customer's site after installation and commissioning by our technical personnel, ensuring full compliance with technical agreements.

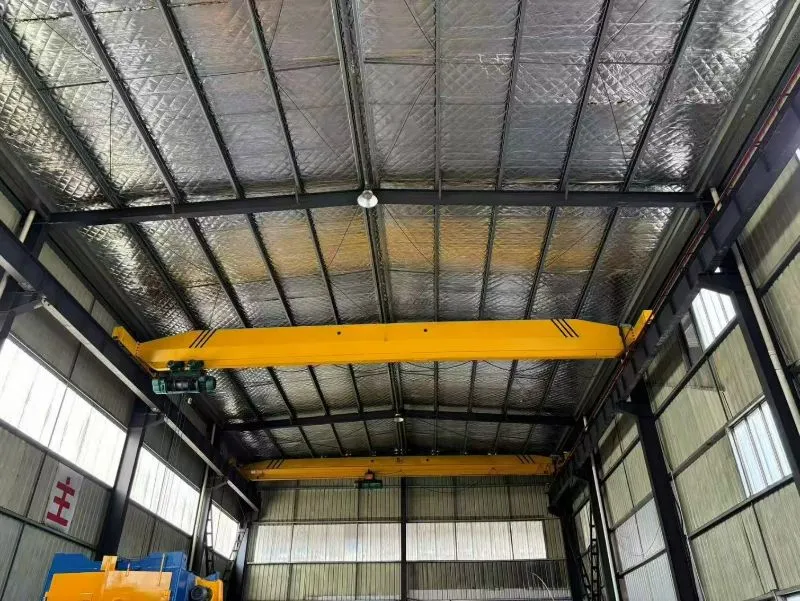

Site Installation 1
Site Installation 2
Equipment Detail 1
Equipment Detail 2

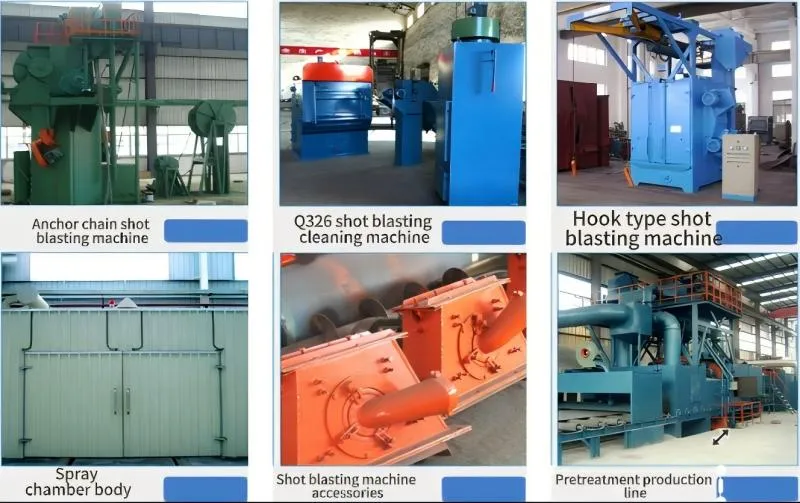

Final Product
Frequently Asked Questions
What is the primary application of the HWTB-03 model?
The HWTB-03 is specifically designed for high-efficiency steel pipe blasting and cleaning, suitable for various steel structures and plates.
What level of cleanliness can this machine achieve?
The machine achieves a high cleanliness standard of Sa2.5, effectively removing rust and surface contaminants.
Is the equipment customizable for specific project needs?
Yes, the equipment supports professional customization. We can design and manufacture non-standard special shot blasting machinery according to specific user requirements.
What are the power requirements for the HWTB-03?
The total power is approximately 165kw, operating on a factory voltage of 380V±10% at 50HZ.
What is the lifespan of the blasting blades?
The high-efficiency blades are designed for durability, with a typical service life ranging between 400 to 600 hours of operation.
What certifications does the equipment hold?
The machine is fully certified with CE and RoHS standards, ensuring compliance with international safety and environmental regulations.
