Blatrixo Machine
Blatrixo Machine

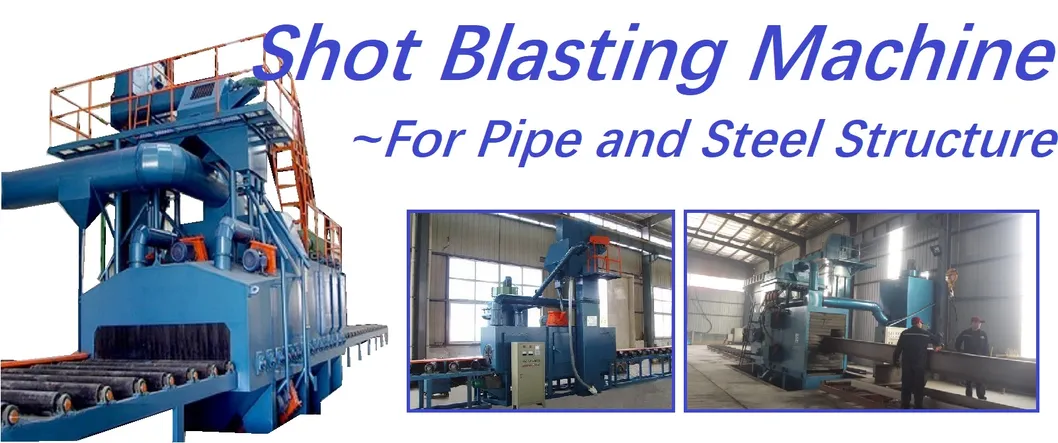

Shot-blasting machine is a kind of high-performance equipment applied to clean the surface of steel structure welding workpieces, H-style steel, plates, and other profiles. It efficiently removes rusty spots, scale, welding slag, and welding stress, thereby improving surface lacquer quality and the rot proofness of steel structures.
| Workpiece Specifications | |
|---|---|
| Size (Width × Height) | ≤800 × 1800mm |
| Length | 3000-12000mm |
| Quality Requirement | Sa2.5, Ra15-50 |
| Impeller Head System | |
| Model | QZ320 |
| Shot-blasting Quantity | 8 × 200kg/min |
| Turning Speed | 2940r/min |
| Shot Blasting Speed | 73m/s |
| Driving Power | 8 × 11KW |
| Conveying & Dusting | |
| Conveying Speed | 0.5-5m/min |
| Load Capacity | 1000kg/m |
| Handling Volume (Dusting) | 15000m3/h |
| Overall Power | ≈140KW |

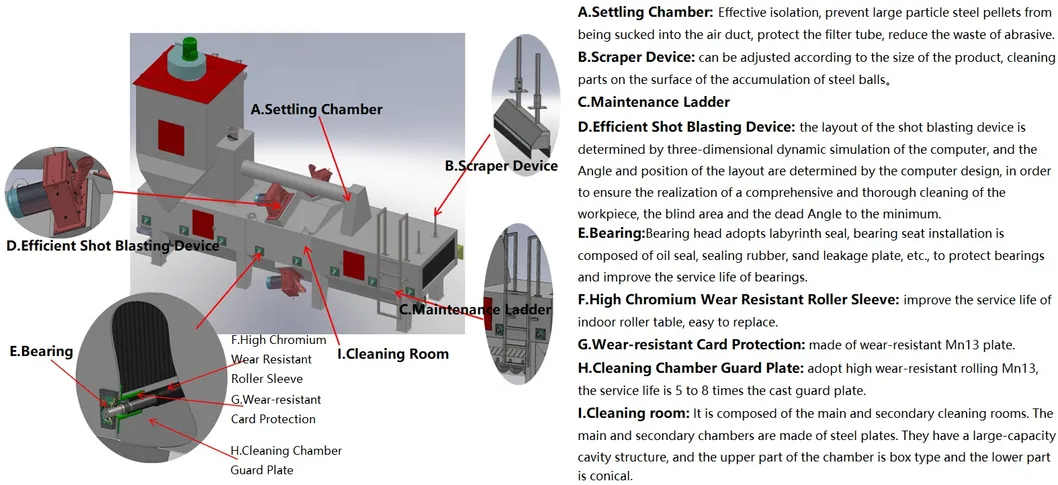

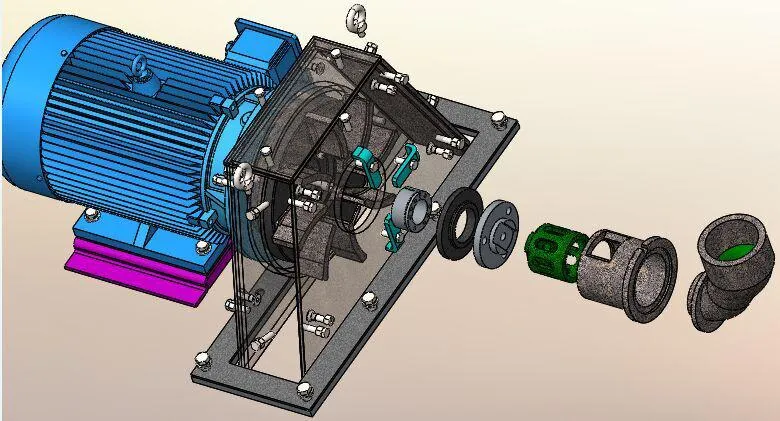

Impeller Head: The core of the machine. It utilizes centrifugal force to accelerate shots through an orientation window, creating a high-speed sector stream that cleans the workpiece surface effectively.

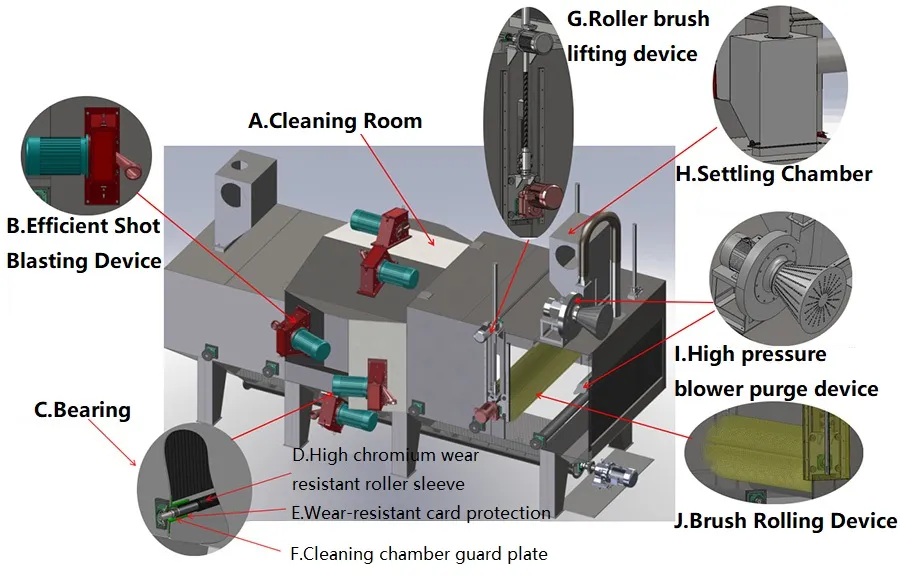

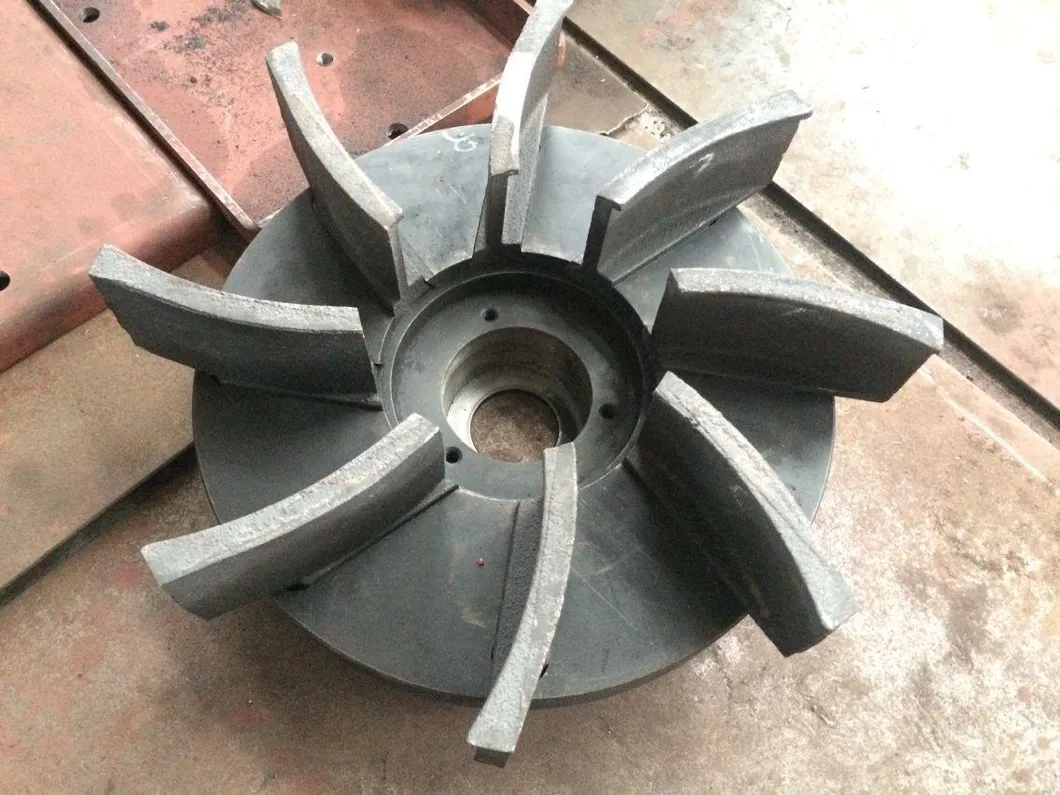

The impeller head includes the vane wheel, vanes, shot dividing gear, orientation jacket, and motor. Vanes are designed with a self-positioning structure for stable operation and easy maintenance.
Durability: Key parts like vanes, separating gears, and orientation jackets are made from high-chromium wearing alloy. Vanes are rated for 1500 useful hours, while other components can reach 2000 hours.
