Customizable Alloy Wheels Hook Type Shoot Blasting Machine for Foudry

Customization:	Available
After-sales Service:	Provided
Warranty:	Provided

Send Inquiry

Product Description

Basic Information

Application

Industrial Processing

Fuel

Electric

Type

Hook Type Abrator

Cleanliness

High Cleanliness

Automation

Automatic

Feature

Rust / Corrosion Proof

Condition

New

Workpiece Size

Φ600X1200~Φ2800X5400

Ventilation

5000-28000m³/H

Lifting Capacity

25-150t/H

Separator Capacity

25-150t/H

Production Capacity

300 Sets Per Year

Customizable Alloy Wheels Hook Type Shoot Blasting Machine

Customizable Alloy Wheels Hook Type Shot Blasting Machine

Product Description

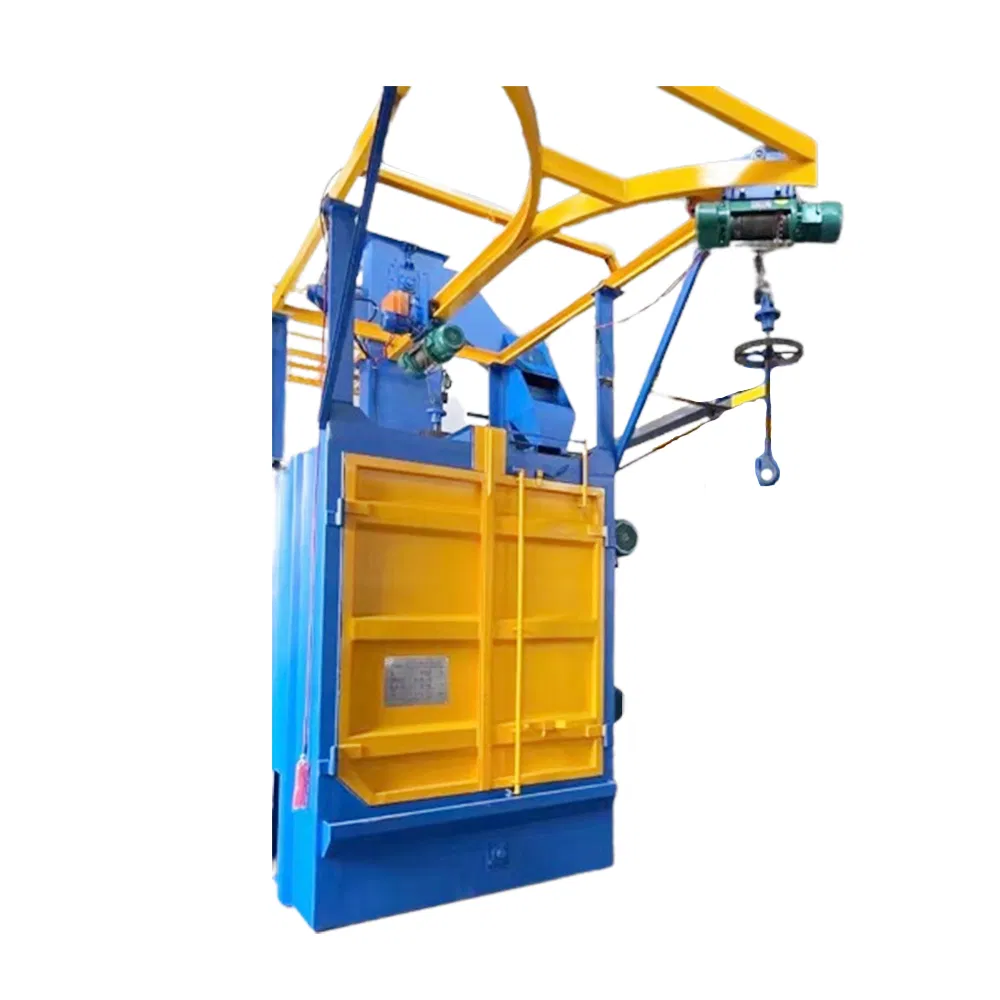

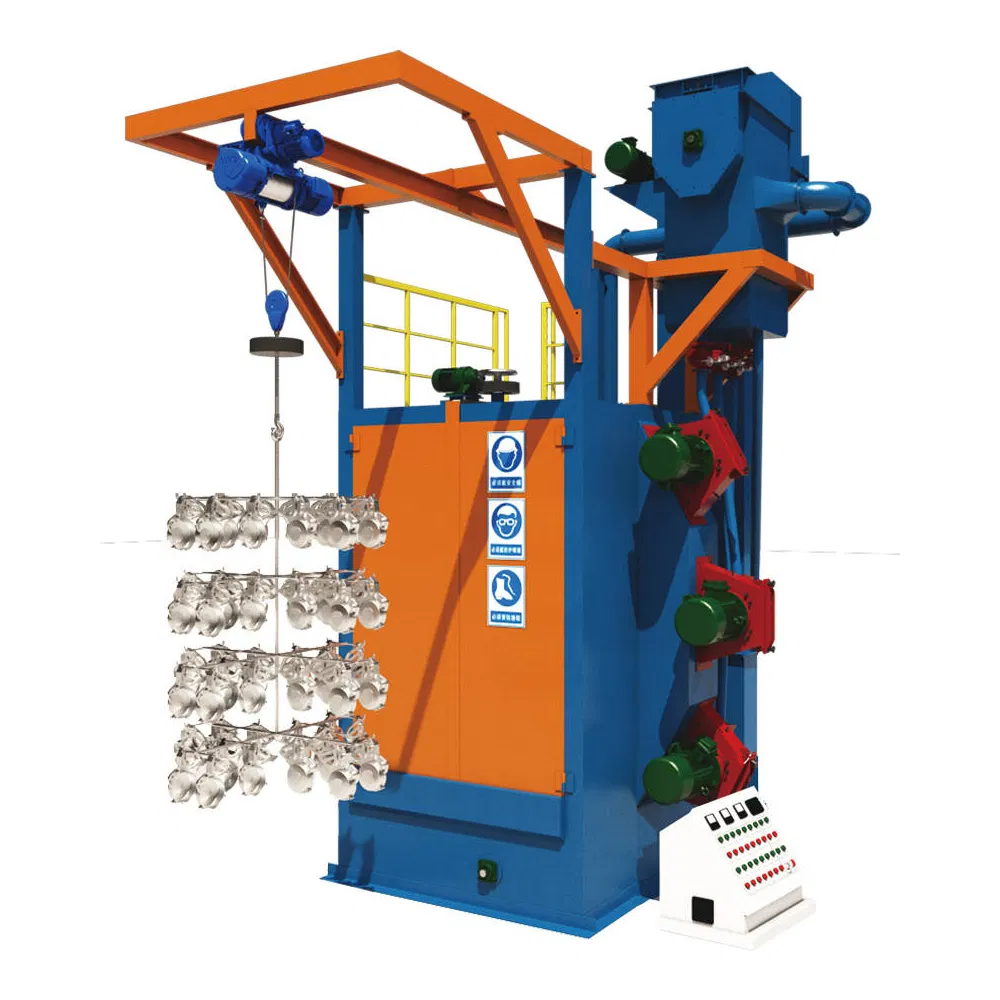

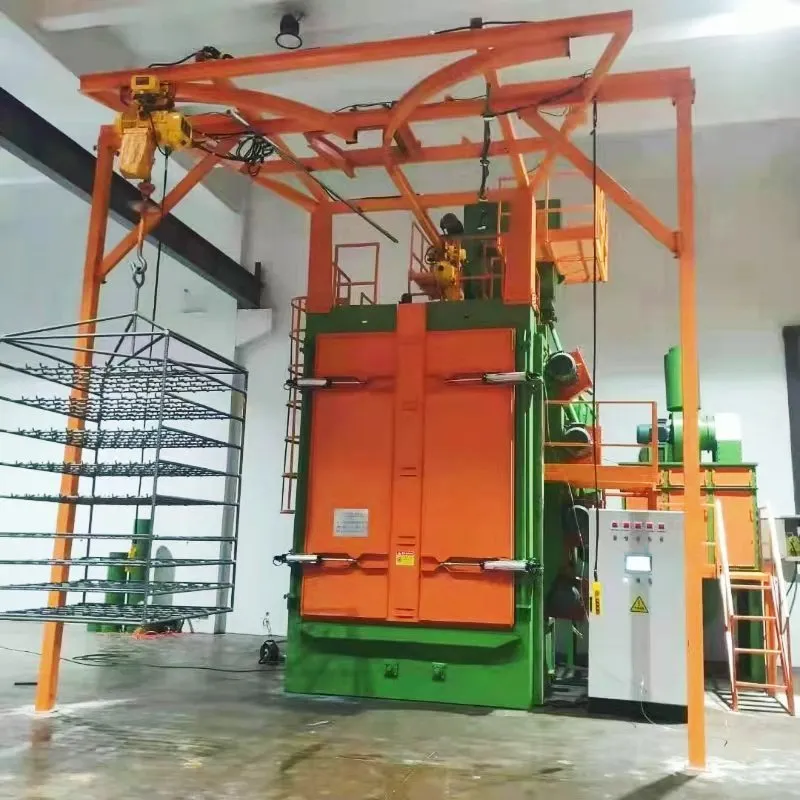

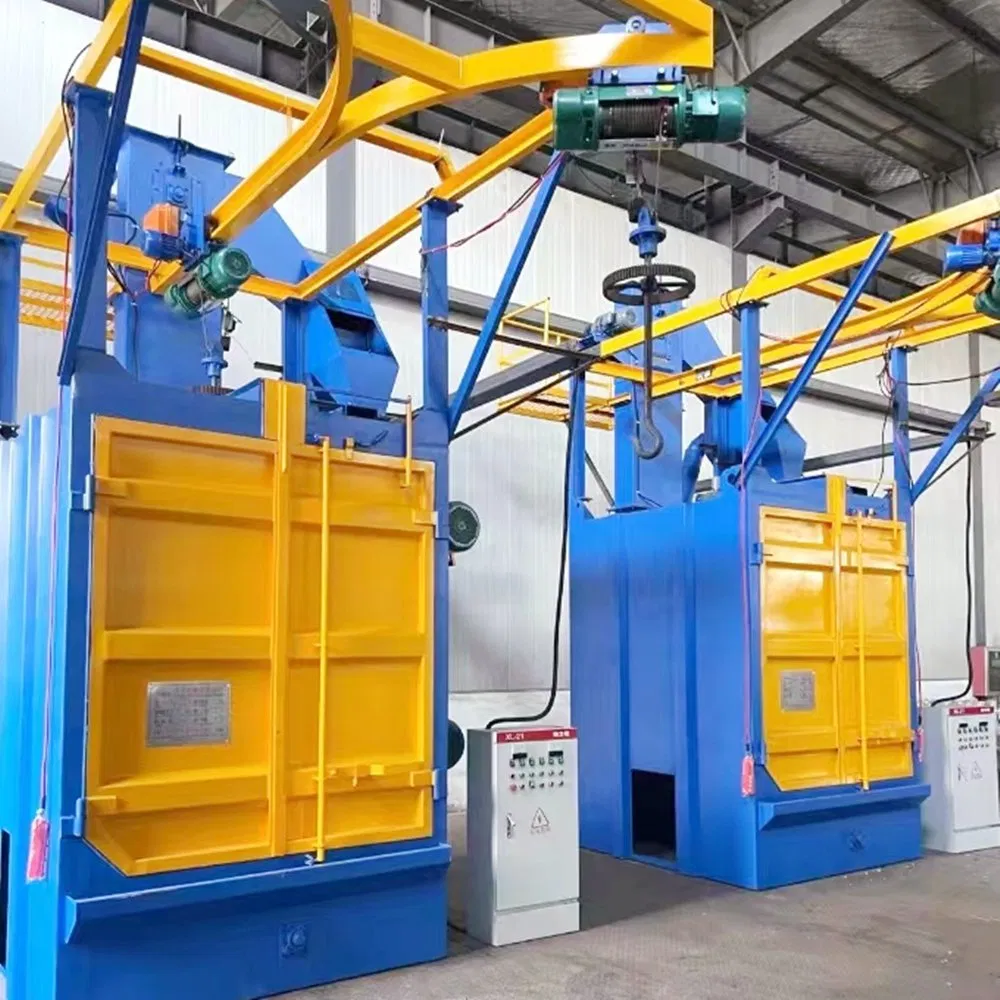

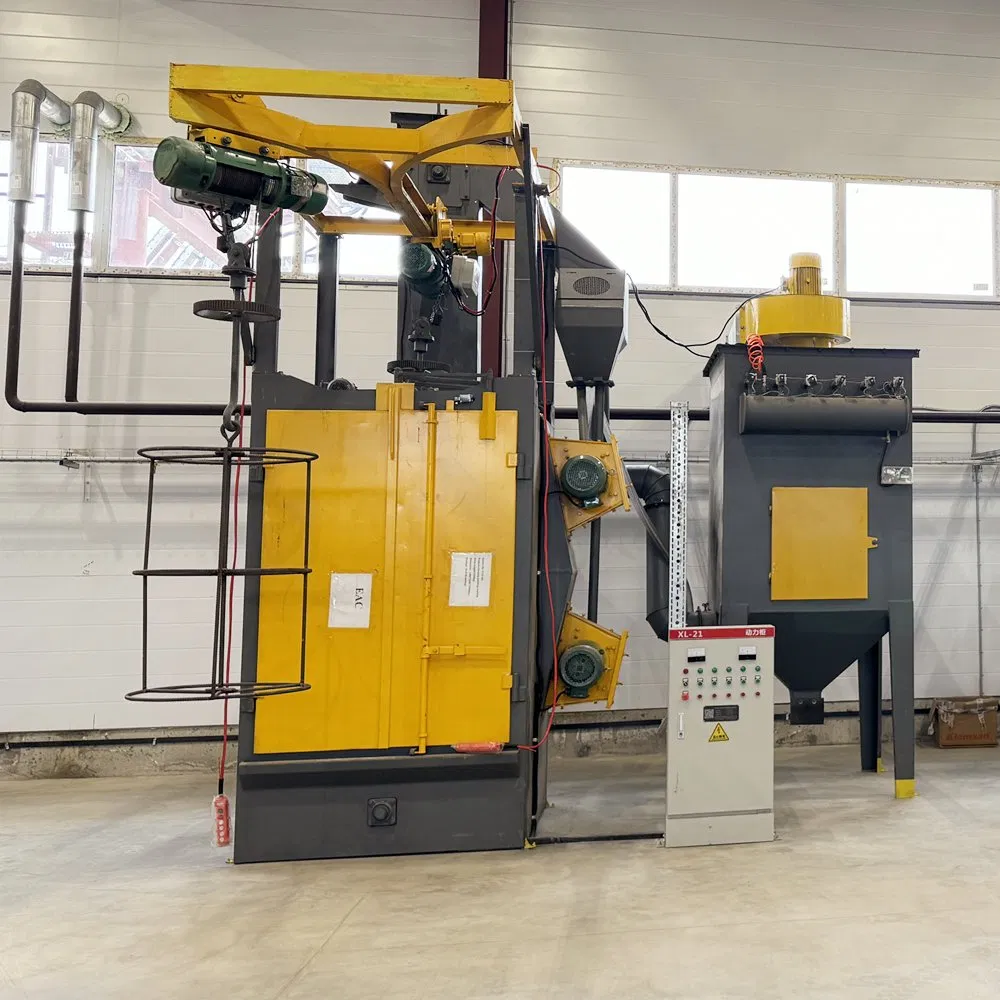

1. Q37 Hook Type Shot Blasting Machine

Suitable for surface cleaning or strengthening of castings, forgings, welded parts, and heat-treated parts.
Fully enclosed chamber structure with special wear-resistant alloy guard plates to prevent projectile splashing.
Electric hoist for loading, unloading, lifting, and walking; self-rotation device for thorough cleaning.
Optional automatic or manual control modes.
Compact structure, no pit required, and high productivity.

Item	Unit	Q376	Q3710	Q3720	Q3740	Q37100
Hook Lifting Weight	kg	600	1000	2000	5000	10000
Blasting Capacity	kg/min	2X150	2X220	3X220	6X250	8X270
Separator Capacity	T/h	25	30	45	60	150
Max Product Size	mm	Φ600X1200	Φ1000X2000	Φ1200X2200	Φ1600X3000	Φ2800X5400
Ventilation	m³/h	5000	9600	15600	22000	28000

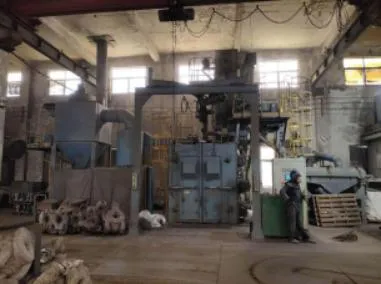

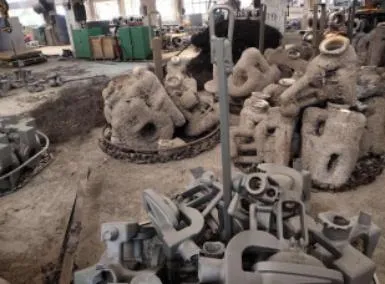

2. 37 Series Membrane Shell Shot Blasting Machine

This advanced equipment integrates shelling, shot blasting, and screening. It eliminates the traditional wax mold casting shell shaking process, allowing modeling sand to be recycled and significantly saving operational costs.

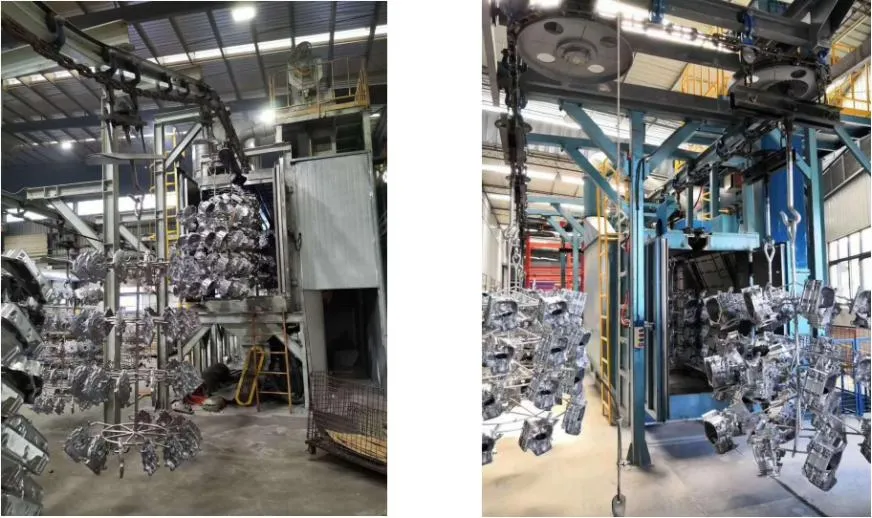

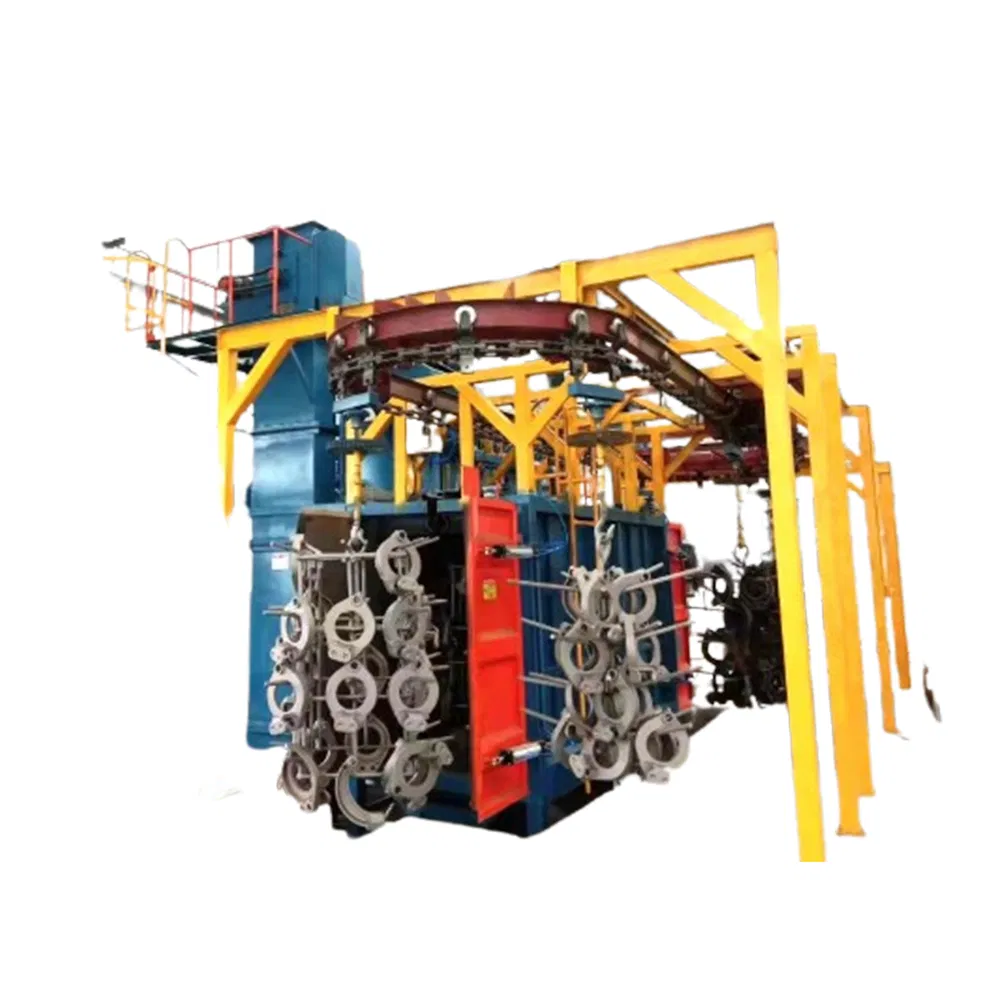

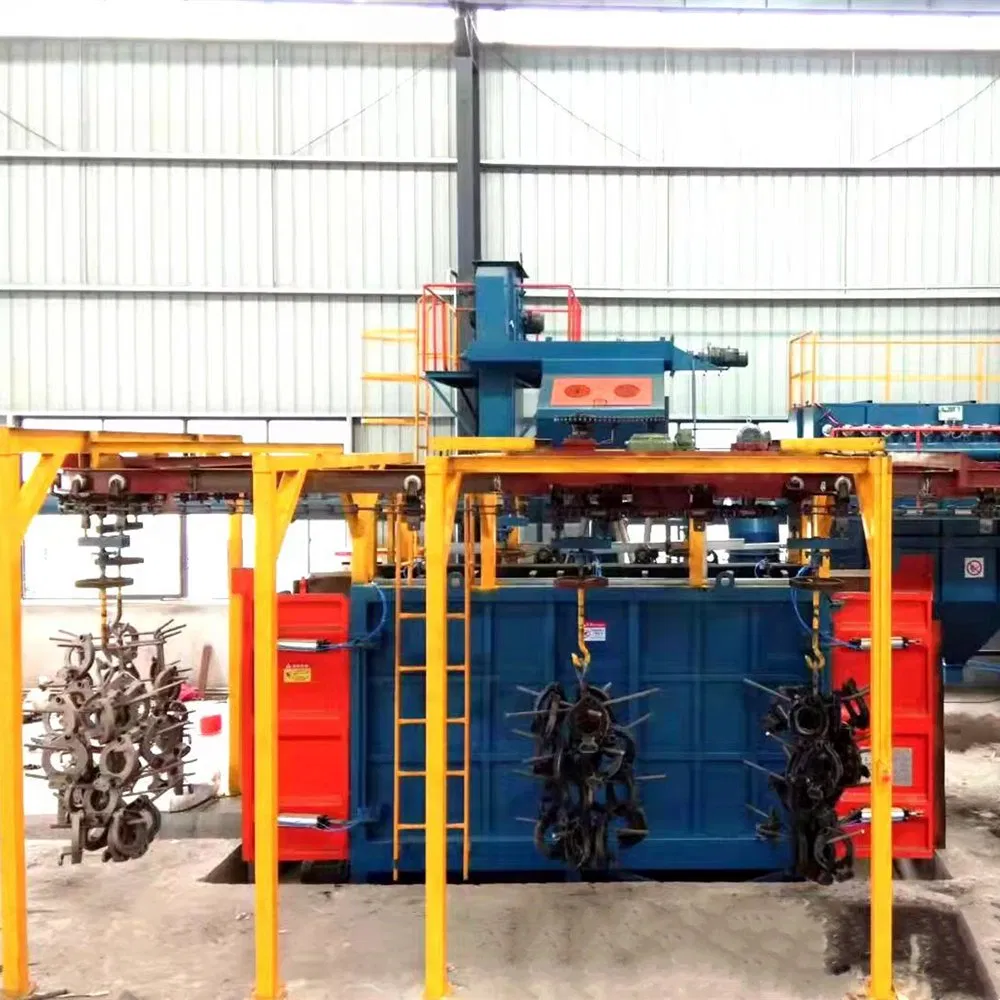

3. Q38/48/58 Series Catenary Shot Blasting Machine

Continuous or step-by-step chain-through machines for batches of small to medium parts. Features advanced accumulation-release push rod catenary conveying for fixed-point loading and blasting.

Model	Single Hook (kg)	Product Size (mm)	Capacity (hook/h)	Type
Q382	200	Φ500x1200	30-60	Continuous
Q483	300	Φ1060x1200	10-25	Stepping
Q588	800	Φ1300x2400	30-60	Accumulating

Packaging & Shipping

After Sales Service

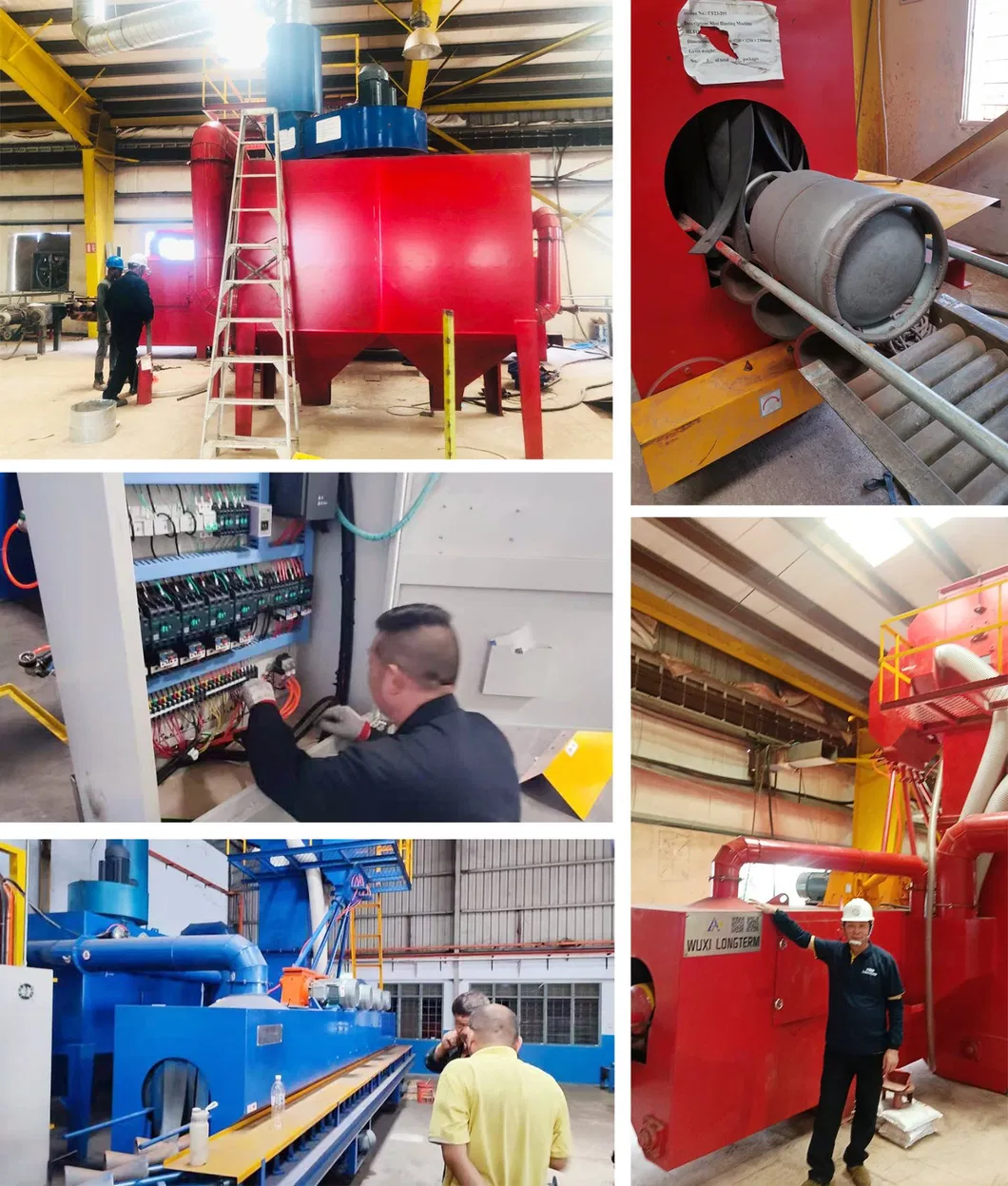

Overseas installation and commissioning support available.

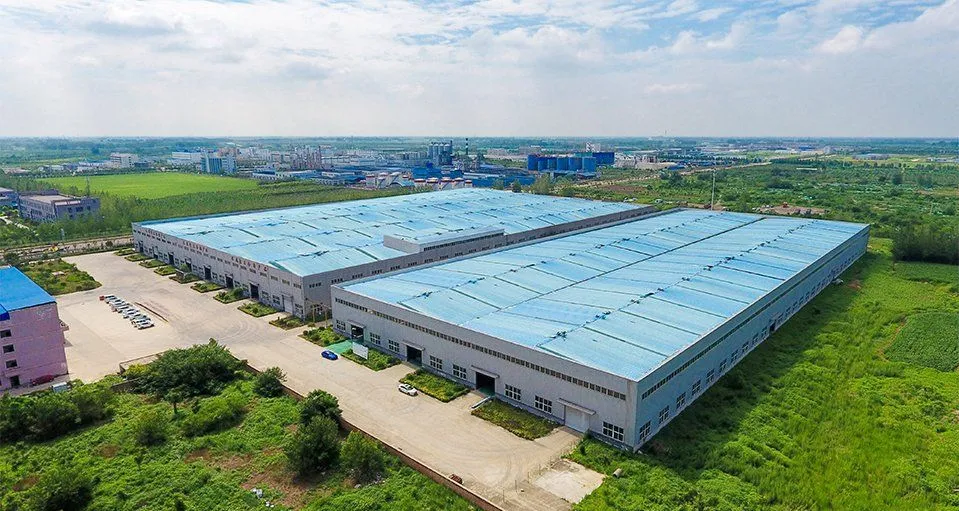

Exhibition & Profile

We are an advanced manufacturing enterprise focused on shot blasting, waste gas treatment, and coating equipment. Our expert technical team continuously improves manufacturing standards to provide reliable industrial solutions.

Frequently Asked Questions

Q: What is a shot blast machine? A: A shot blaster is a machine that controls the flow or stream of fine metal beads as they are forcibly projected against a surface by mechanical acceleration to clean or strengthen the material.

Q: What material is used for shot blasting? A: Common abrasives include steel grit, copper shots, and aluminum pellets. Other methods may use glass beads, synthetic materials, or even agricultural crushed kernels.

Q: Will shot blasting remove rust? A: Yes, shot blasting effectively removes rust, dirt, and contaminants. It is also capable of deburring, shaping, and texturing metal surfaces.

Q: What is the difference between sandblasting and shot blasting? A: Sandblasting uses compressed air to shoot abrasive media, while shot blasting employs centrifugal force from a mechanical wheel to propel treatment media.

Q: How can I get an accurate quotation for my project? A: Please provide information on your workpiece material/shape, maximum dimensions (L/W/H), weight, required daily productivity, and your local power supply specifications (e.g., 380V, 50HZ).
