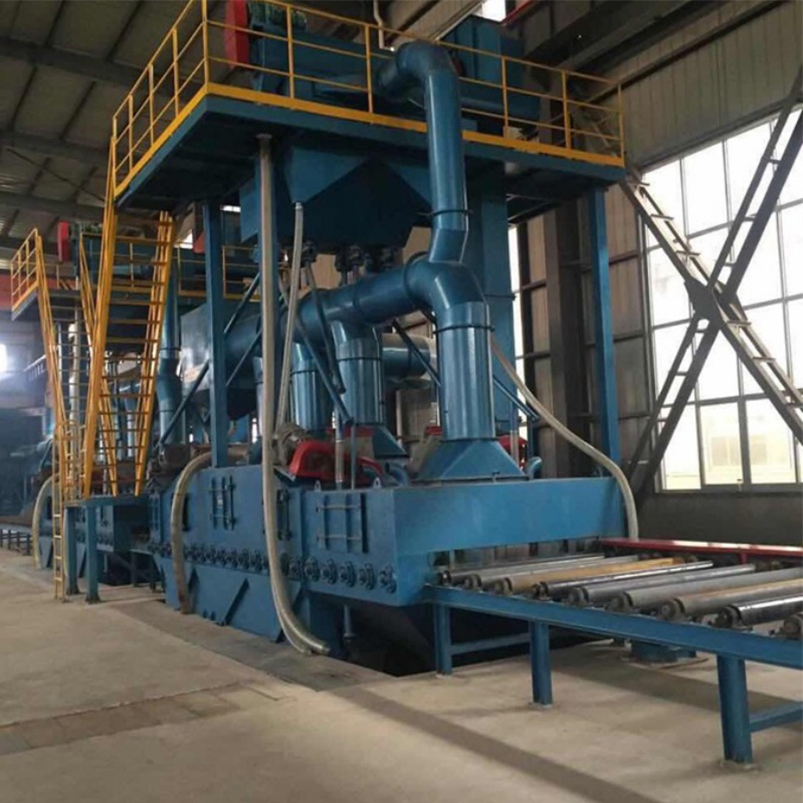

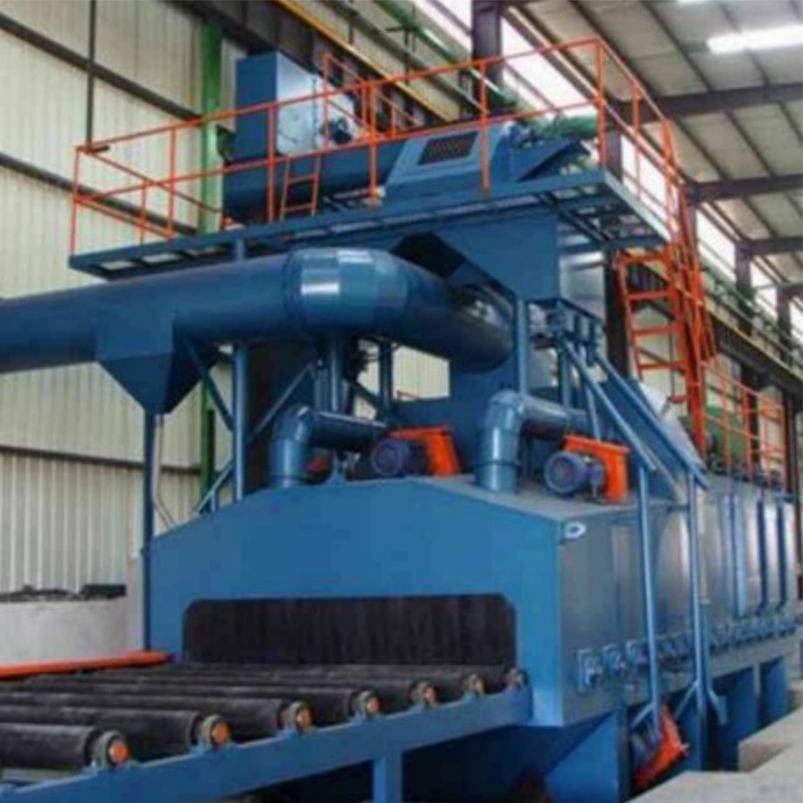

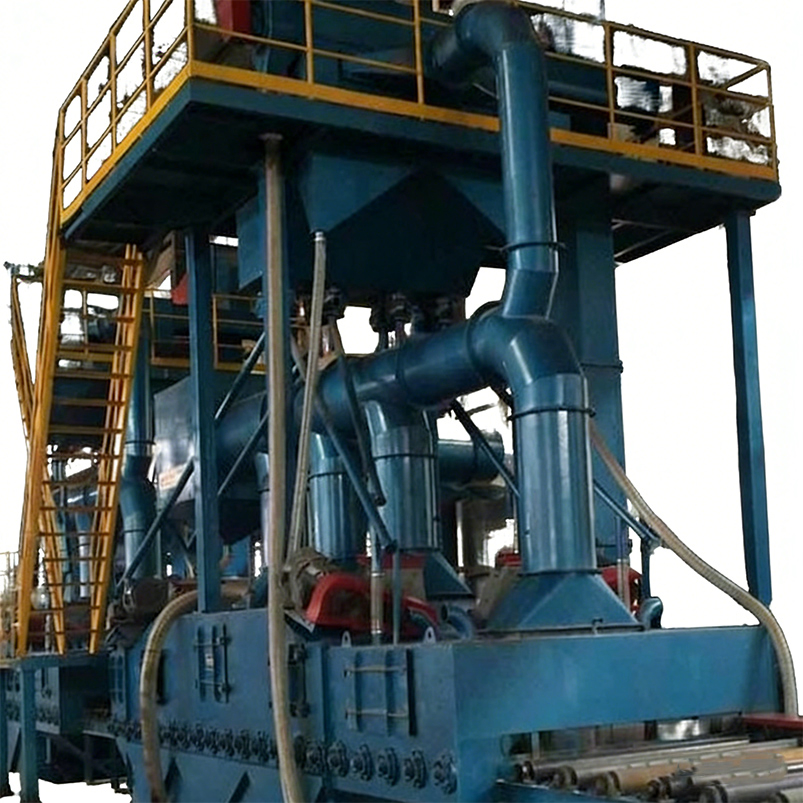

Cost-Effective Roller Conveyor Type Shot Blasting Machine for Metal Steel Rust Removal
Cost-Effective Roller Conveyor Type Shot Blasting Machine for Metal Steel Rust Removal
Cost-Effective Roller Conveyor Type Shot Blasting Machine for Metal Steel Rust Removal
Cost-Effective Roller Conveyor Type Shot Blasting Machine for Metal Steel Rust Removal
Cost-Effective Roller Conveyor Type Shot Blasting Machine for Metal Steel Rust Removal
1 / 5
Cost-Effective Roller Conveyor Type Shot Blasting Machine for Metal Steel Rust Removal
Cost-Effective Roller Conveyor Type Shot Blasting Machine for Metal Steel Rust Removal
Cost-Effective Roller Conveyor Type Shot Blasting Machine for Metal Steel Rust Removal
Cost-Effective Roller Conveyor Type Shot Blasting Machine for Metal Steel Rust Removal
Cost-Effective Roller Conveyor Type Shot Blasting Machine for Metal Steel Rust Removal

Cost-Effective Roller Conveyor Type Shot Blasting Machine for Metal Steel Rust Removal

Customization: Available
After-sales Service: One Year
Warranty: One Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
Q6915 Q6925 Q6930
Application
Electronic Industry
Fuel
Electric
Type
Hook Type Abrator
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE, CB, ETL, RoHS, UR
Feature
Rust / Corrosion Proof
Condition
New
Customized
Customized
Industry Used
Surface Cleaning
HS Code
842430
Product Description

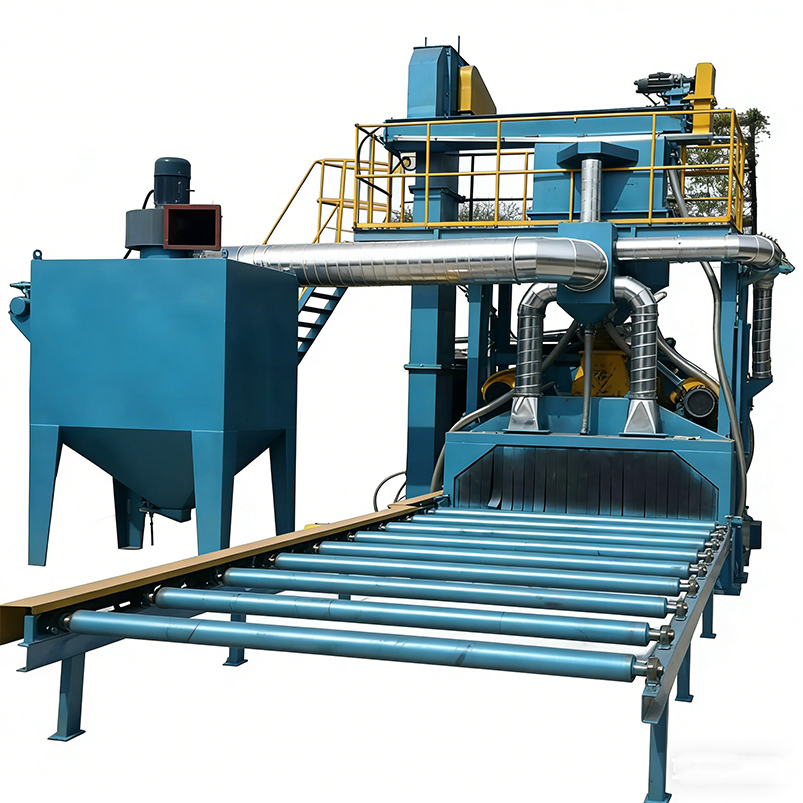

Roller Conveyor Shot Blasting Machine
⚙️Roller Conveyor Shot Blasting Machine
When workpieces enter the main shot blasting chamber via the roller conveyor mechanism, the shot blasters start operating in sequence. After treatment, surface cleanliness grades of Sa2-Sa2.5 are achieved through a continuous and cyclic workflow.
The pellets used in the system are collected and processed by a recycling system for repeated use. Scattered pellets are conveyed to the bucket elevator through screw and belt conveyors, lifted to the cleaning chamber, and processed by a high-efficiency BE separator to separate dust and impurities from qualified pellets.

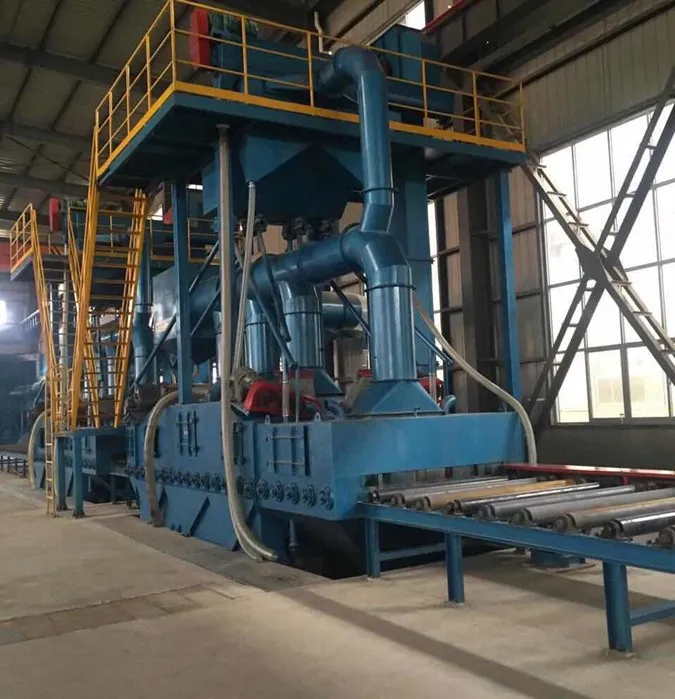

Shot Blasting Detail

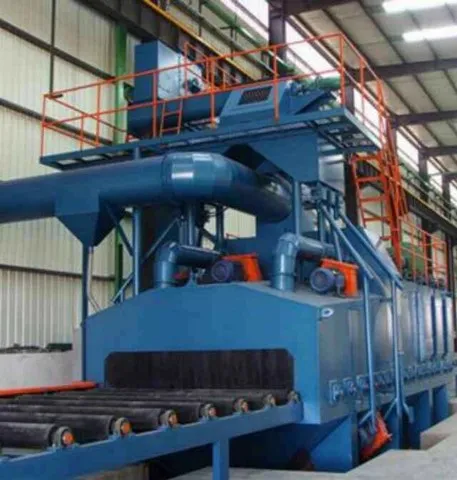

Processing View

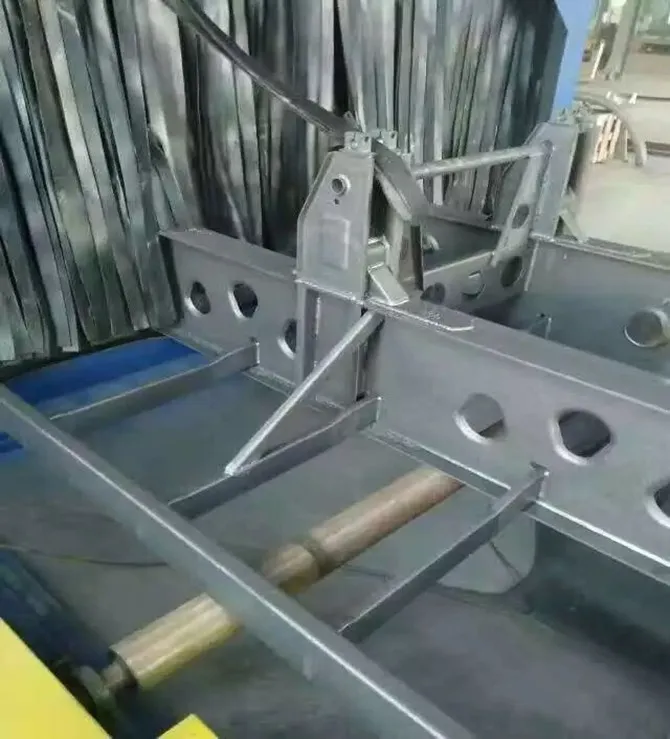

Machine Components
🌬️Dust Collection System
Equipped with a high-efficiency LT-48 pulse jet filter cartridge dust collector, featuring superior removal efficiency and convenient maintenance.
Technical Parameters
Item QXY-1500 QXY-2000 QXY-2500 QXY-3000 QXY-3500 QXY-4000
Shot blasting machine (qty) 4~6 6 6 6 6~8 8
Single motor Power 15~22kw 15~30kw 15~30kw 22~37kw 22~37kw 22~37kw
Cleaning speed 1 - 5 meters per minute (Grade Sa2.5)
Steel Plate Width (mm) 1000-1500 1000-2000 1000-2500 1000-3000 1000-3500
Thickness (mm) 5-32 5-32 5-32 5-60 5-60
Length (mm) 6000-12000
Control System PLC controlled, variable frequency speed control, touch screen interface.
Manufacturing Excellence

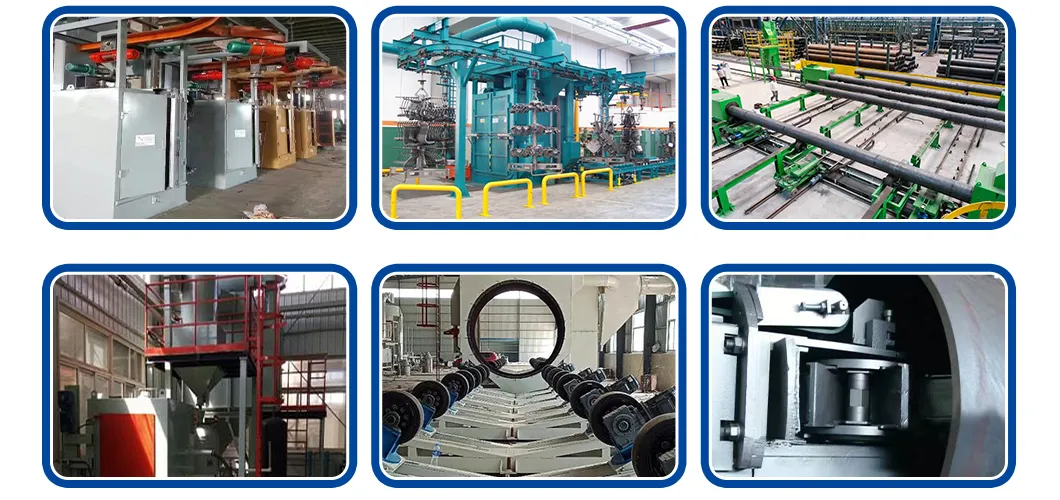

Main Production
🏆Mastering Shot Blasting Solutions
A leading manufacturer specializing in automated shot blasting machines and surface treatment equipment. With over 20 years of expertise, providing complete solutions for surface cleaning, rust removal, and coating preparation. Offering a full spectrum of solutions—mixing, cleaning, and dust collection equipment—with diverse models designed to meet industrial needs.

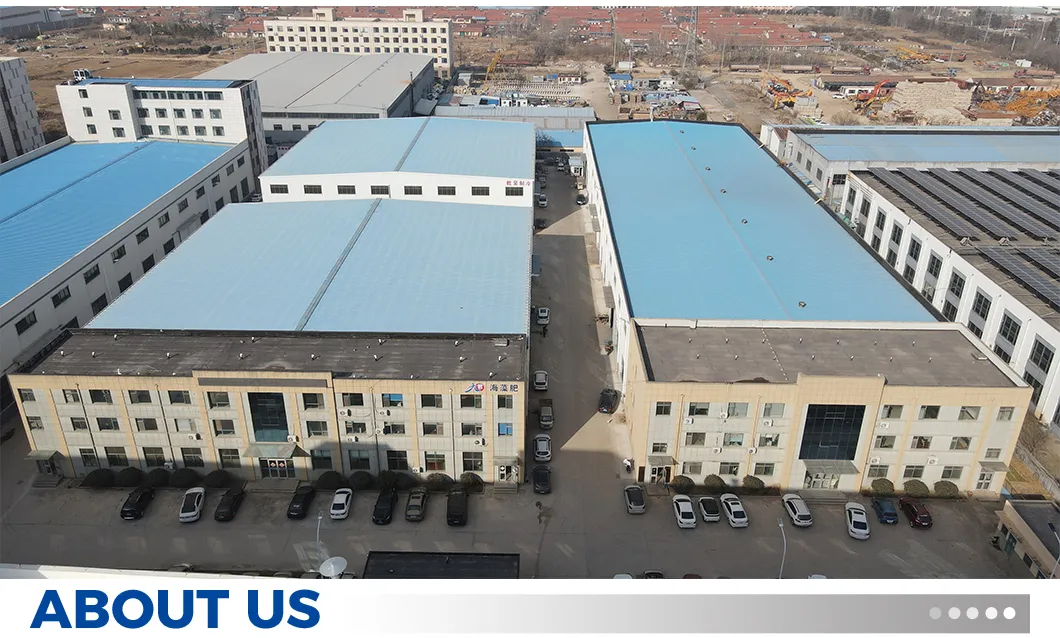

Workshop View
Operations are certified under ISO 9001:2015, possessing strong R&D capabilities and multiple patents. Products comply with EU Machinery Directive requirements (CE certification standards: EN ISO 12100:2010, EN 60204-1:2018).
Certifications & Global Presence
Certifications
Customer Group
Exhibition
Packaging & Shipping
Safe Logistics
Frequently Asked Questions
What kind of workpieces can your shot blasting machine handle?
Handles steel plates, profile steel, castings, structural parts, hardware, aluminum profiles, and supports customized models for special shapes and oversized workpieces.
How do I choose between different types (crawler/hook/pass-through)?
Crawler type suits small parts in batches; hook type for large/heavy parts; through type for assembly line operation. We recommend based on size, output, and process needs.
How long is the service life and what are the consumable parts?
Design life is 8-10 years. Consumables include blaster blades, sleeves, and plates, made of durable high-chromium alloy with low replacement cost.
Do you support customized non-standard shot blasting machines?
Yes, the production plan is fully customizable based on workpiece size, capacity needs, site conditions, and automation requirements.
Does the machine meet environmental protection standards?
Yes, machines are equipped with pulse cloth bag dust collectors. Dust emission is below national standards; noise and dust control meet international environmental requirements.
