Blatrixo Machine

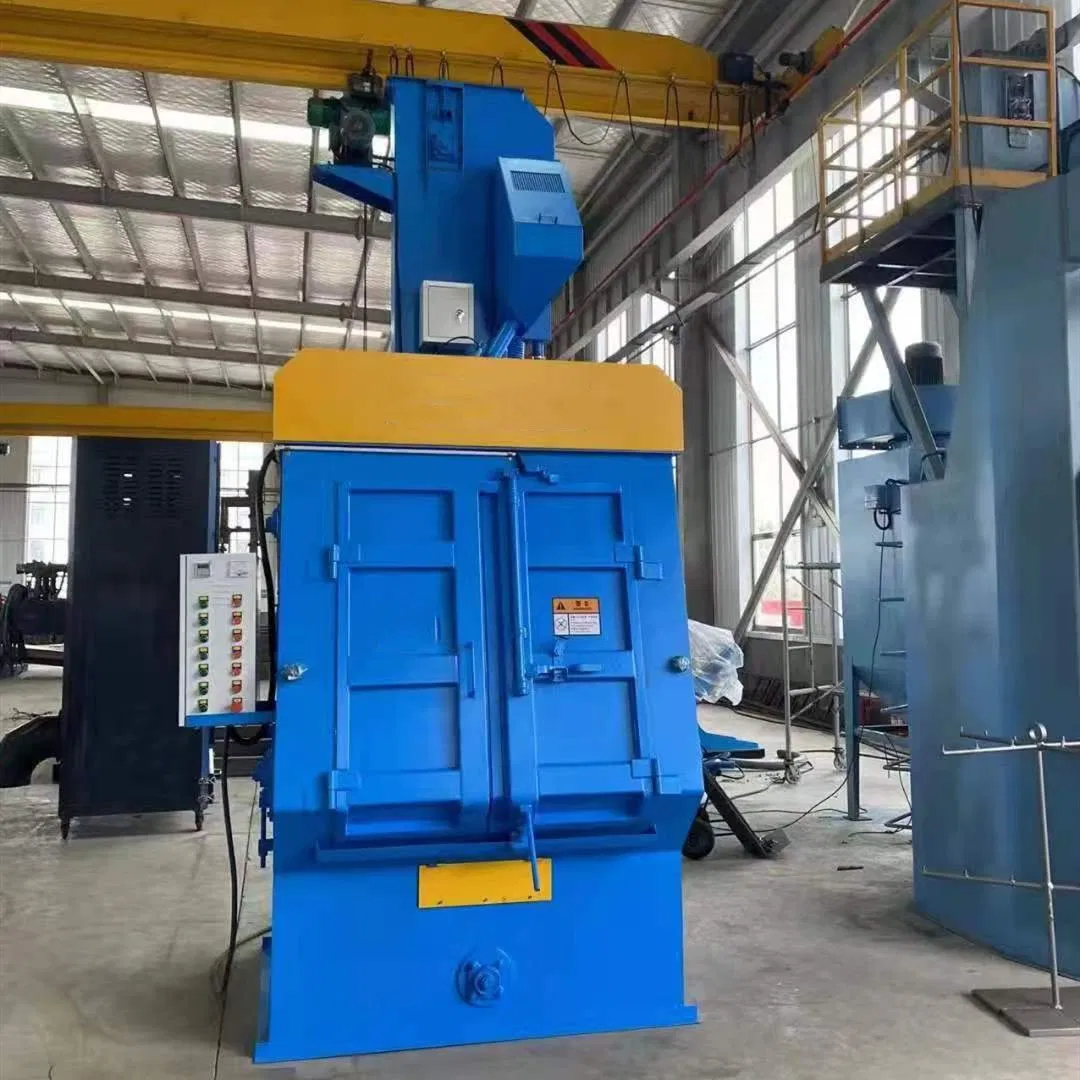

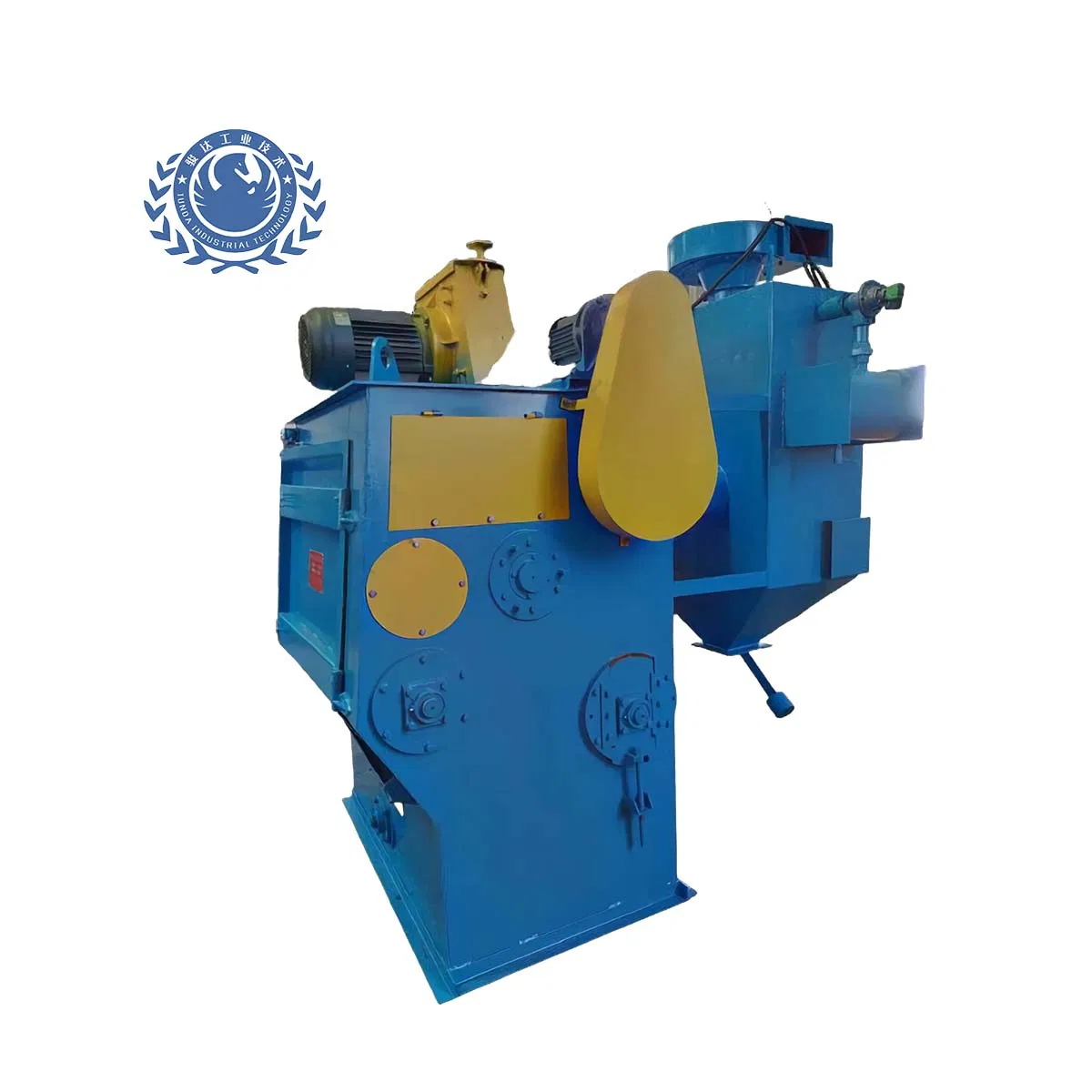

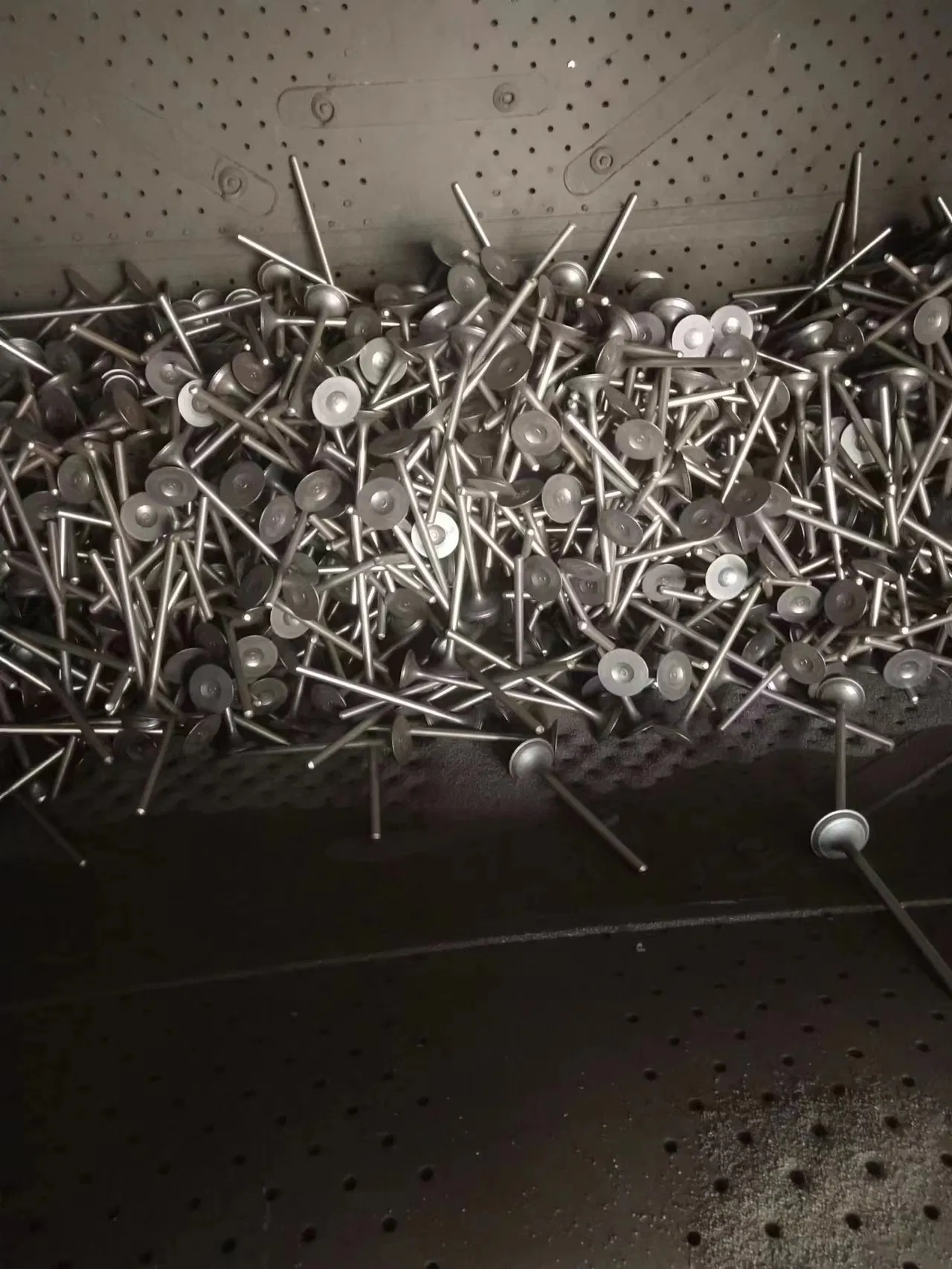

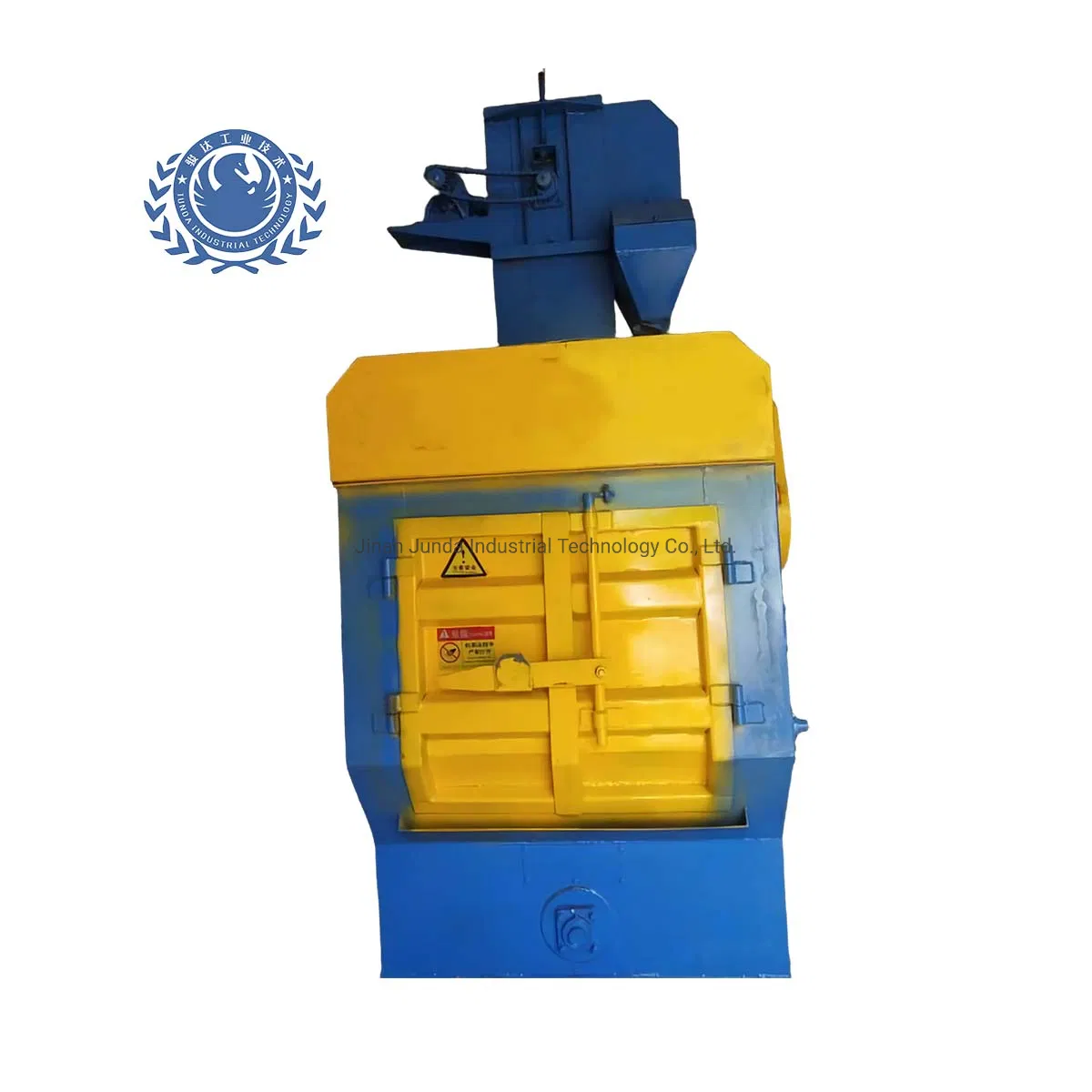

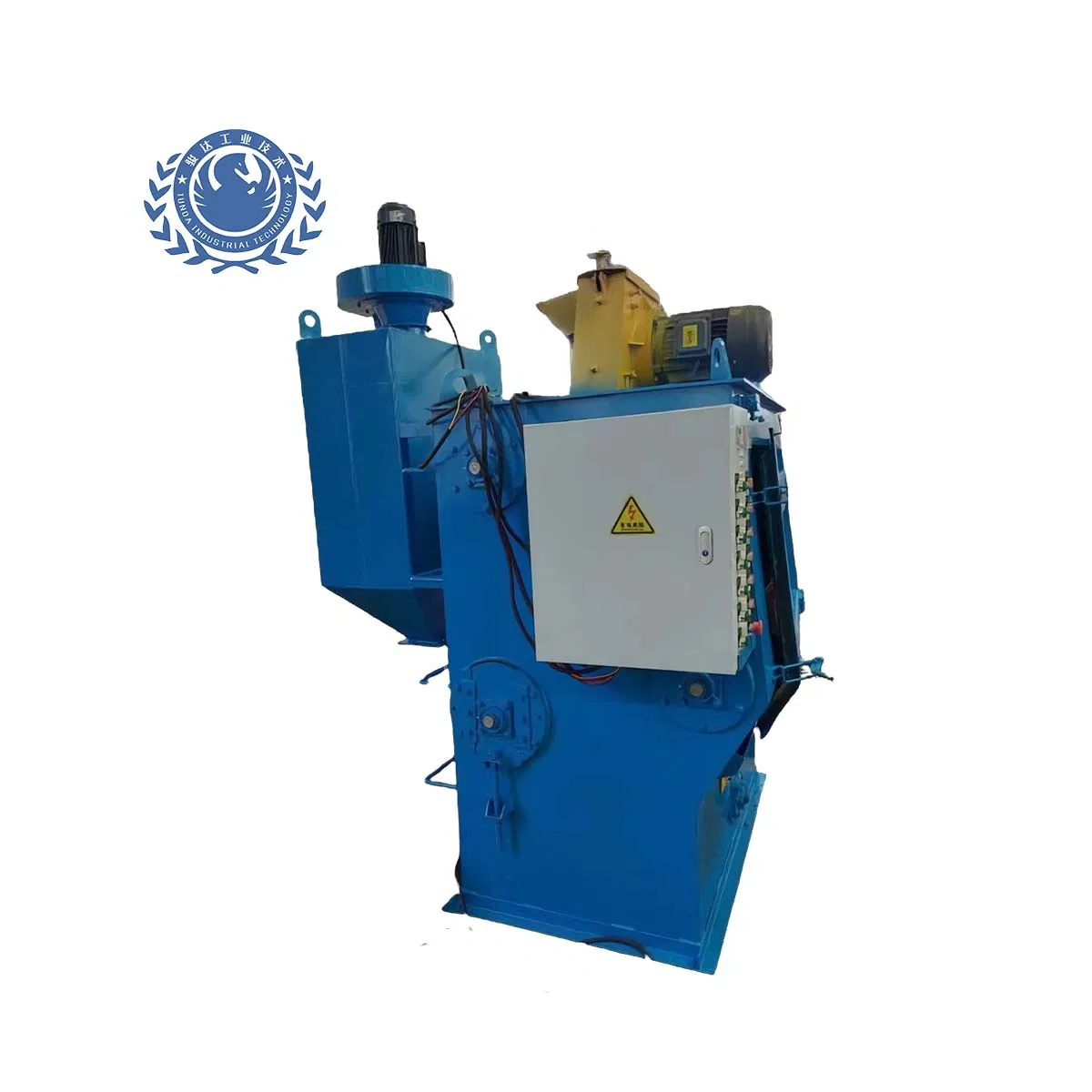

Crawler shot blasting machine is the most universal among all shot blasters as their design makes them suitable for processing parts of different sizes in bulk loads. Ideal for shot blasting of casts, forged and pressed parts, springs, and various complicated forms weighing up to 20 kg. It is highly effective for cleaning surfaces, removing casting sand, roughing surfaces before coloring, and consolidating surfaces.
Shot blasting is an essential method for removing surface contaminants and roughening smooth surfaces before coating. Our equipment serves industries including aerospace, automotive, construction, foundry, and shipbuilding. Every machine is tailored according to specific customer requirements and object conditions.
| Crawler Type Shot Blasting Machine Specifications | |
|---|---|
| Model | JD-Q326 |
| Processing capacity | ≤200KG |
| Maximum load capacity | 200KG |
| Steel shot diameter | 0.2-2.5mm |
| End disc diameter | 650mm |
| Track power | 1.1Kw |
| Track speed | 3.5r/min |
| Sand blasting rate | 78m/S |
| Shot blasting quantity | 110KG/min |
| Impeller speed | 2700rmp |
| Impeller power | 7.5Kw |
| Dust collector filter material | Filter bag |
| Total power of equipment | 12.6Kw |
| Equipment size (L×W×H) | 3792×2600×4768mm |

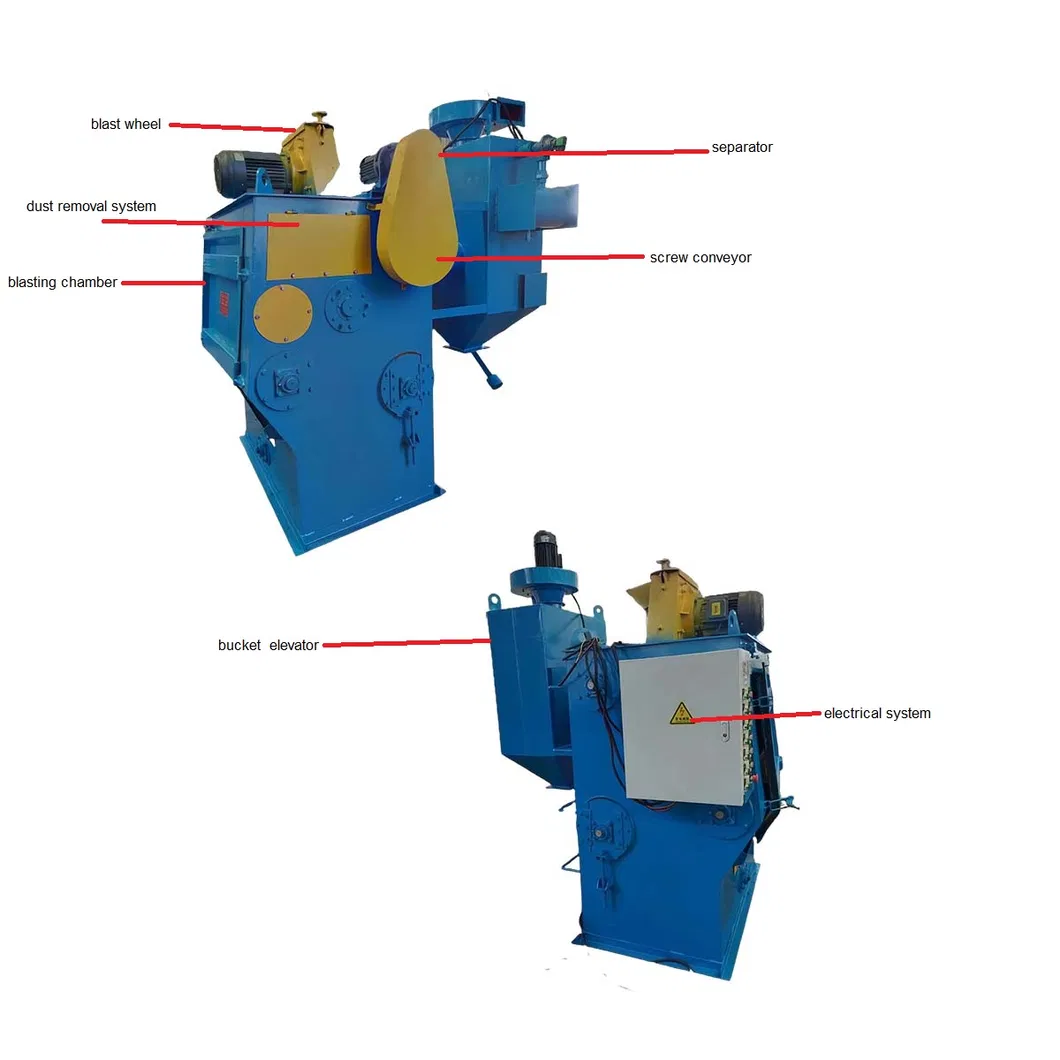

During operation, the electrically controlled transport system conveys items into the blasting chamber. Powerful steel shots hit the surfaces from different directions, quickly removing rust and dirt. Contaminants fall into a screw conveyor, are reclaimed by a bucket elevator, and then pass through an air wash cleaner system for recycling. The dust is captured by a high-efficiency dust collector, ensuring clean air discharge.

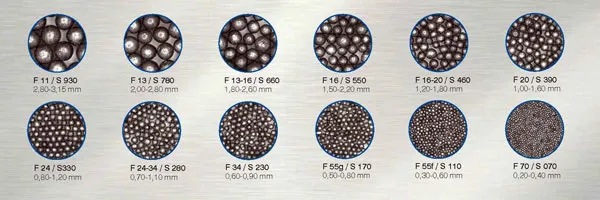

Choosing the right abrasive depends on the workpiece material and desired surface roughness. Options include steel shot, steel grit, iron sand, and stainless steel wire cut shot. Larger diameters increase efficiency and roughness, while moderate hardness ensures excellent resilience and reduced blasting time.
