Parameters and information of various types of Roller conveyor shot blasting machines
Roller conveyor shot blasting machine is a multifunctional pre-treatment equipment for cleaning steel plates, steel structures, profiles, steel pipes, and more.
Characterized by the use of power drum transport, it can handle heavy and ultra-long workpieces seamlessly. Widely used in automobile, tractor, motor, and valve industries.
After shot blasting, the corrosion resistance and fatigue resistance of the workpiece and metal components are significantly improved.
| Model Number | QH0808 | QH0612 | QH0816 | QH1018 | QH1525 |
|---|---|---|---|---|---|
| Workpiece Width*Height (mm) | 600*600 | 400*1000 | 600*1400 | 800*1600 | 1300*2300 |
| Workpiece Length (mm) | 3000-12000 | 3000-12000 | 3000-12000 | 3000-12000 | 3000-12000 |
| Blasting Capacity (kg/min) | 4*200 | 6*200 | 8*200 | 8*200 | 10*200 |
| Blasting Wheel Power (kw) | 4*11 | 6*11 | 8*11 | 8*11 | 10*11 |
| Roller Table Load (kg/m) | 500 | 500 | 1000 | 1000 | 1500 |
| Conveyor Speed (m/min) | 0.4-4 | 0.4-4 | 0.4-4 | 0.4-4 | 0.4-4 |
| Ventilation Capacity (m³/h) | 12000 | 15000 | 18000 | 18000 | 24000 |
| Total Power (kw) | ≈70 | ≈120 | ≈125 | ≈130 | ≈200 |
A1: It is designed for various steel materials, including steel plates, steel structures, profiles, and steel pipes.
A2: Yes, the powered drum transport system is specifically built to handle heavy and ultra-long components efficiently.

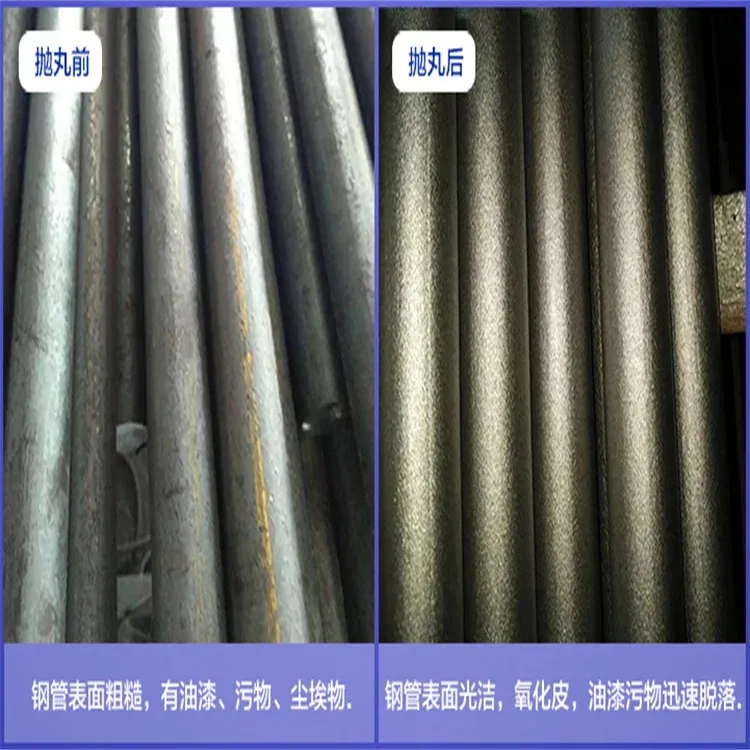

A3: The process removes rust and impurities, which significantly enhances the corrosion resistance and fatigue strength of the metal.
A4: It is widely utilized in the automobile, tractor, motor, valve, and general steel construction industries.
A5: Yes, the roller conveyor speed is adjustable, typically ranging from 0.4 to 4 meters per minute depending on the model.
A6: Yes, the machine features an automatic control system using blasting turbines for high-efficiency operation.
