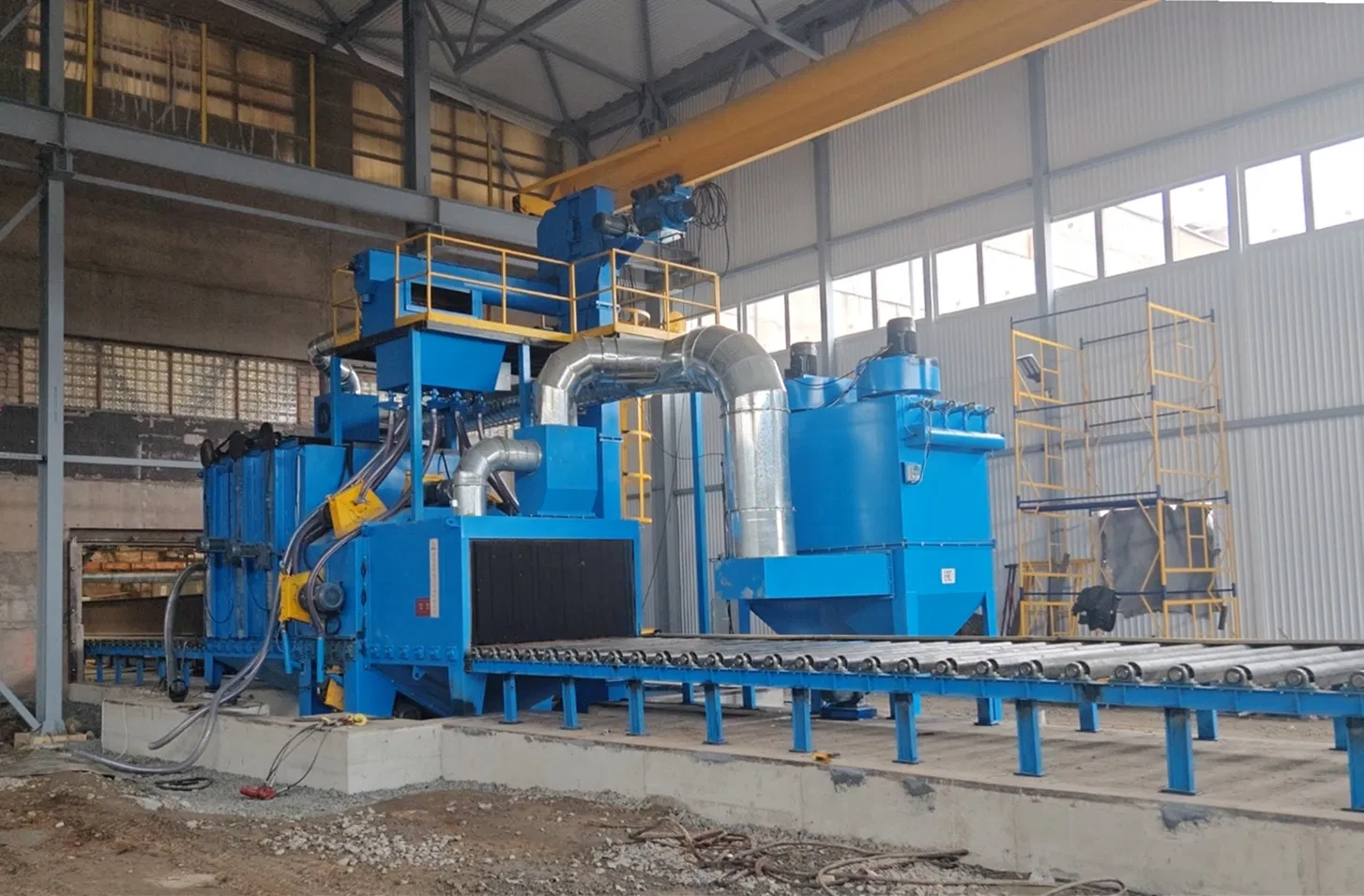

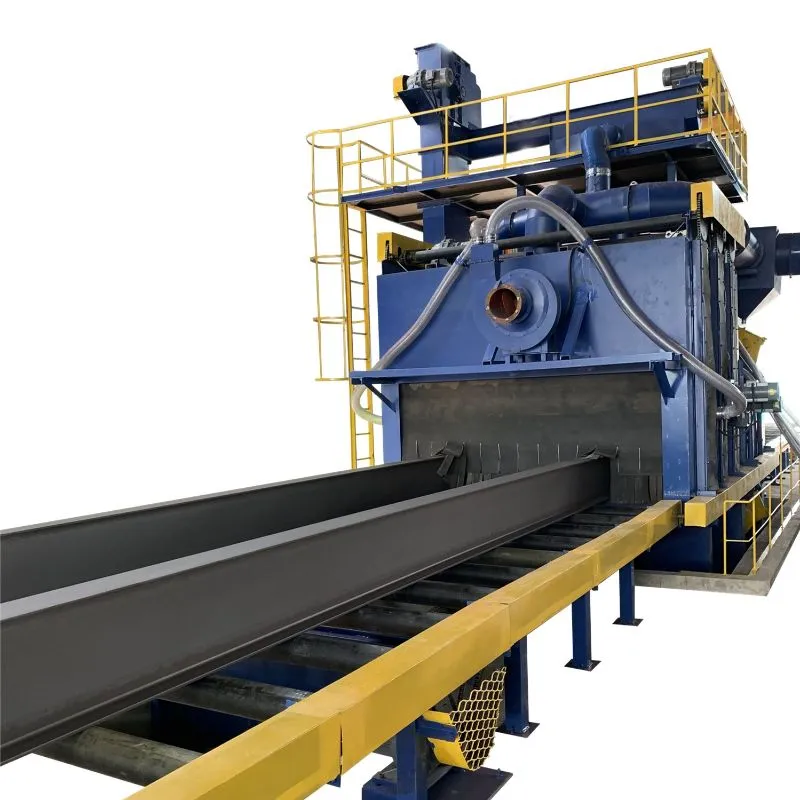

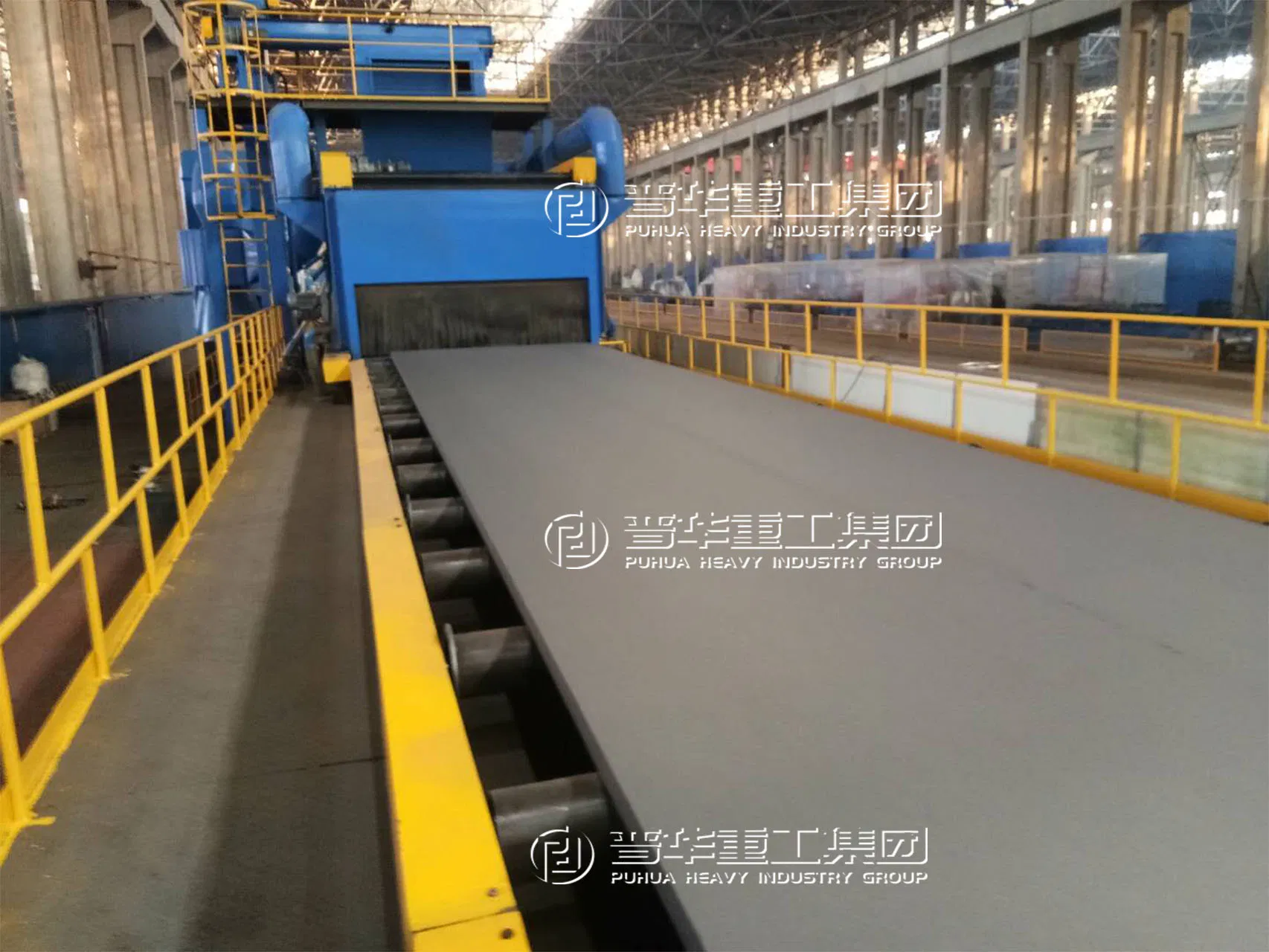

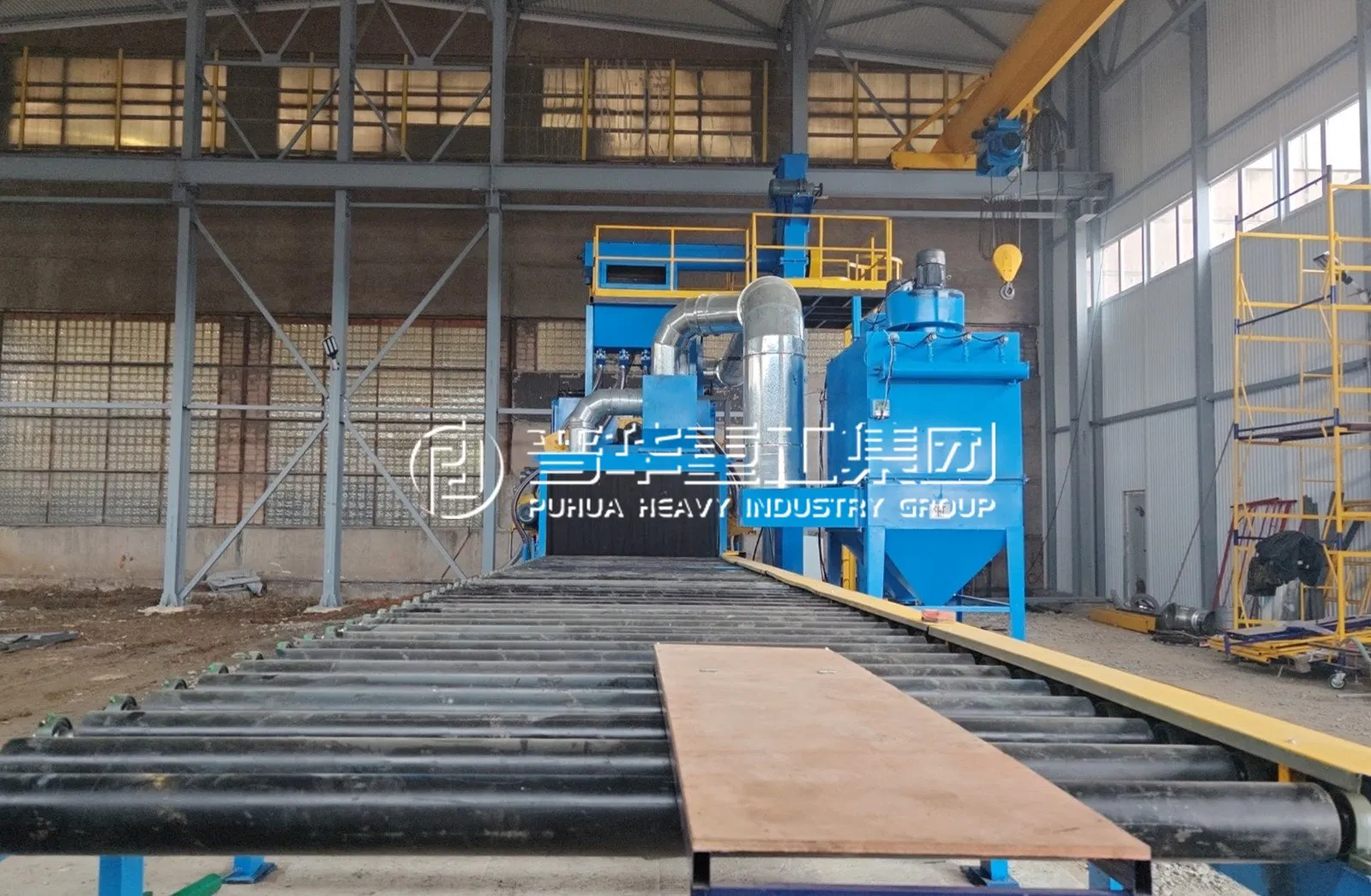

Q69 Roller Conveyor Shot Blasting Machine for H Beam, Steel Plate Sheet, Profile.

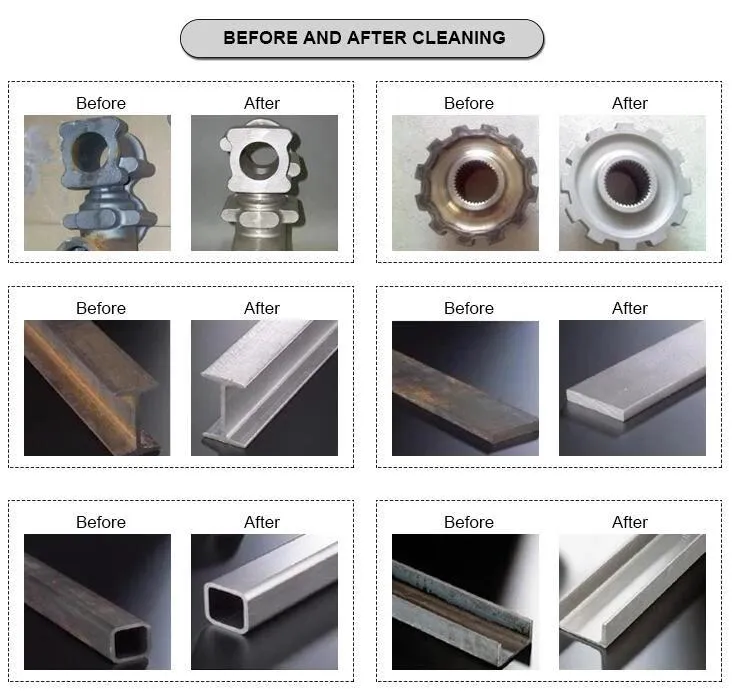

Q69 Steel Profiles shot blasting machines are used to remove scale and rust from metal profiles and sheet metal components. It applies to surface rusting and painting art of shipping, car, motorcycle, bridge, machinery, etc. By combining a roller conveyor with the appropriate crossover conveyors, individual process steps such as blasting, conservation, sawing and drilling can be interlinked. This ensures a flexible manufacturing process and high material output.
| Type | Q698 | Q6912 | Q6915 | Q6920 | Q6925 | Q6930 |
|---|---|---|---|---|---|---|
| Effective cleaning width(mm) | 800 | 1200 | 1500 | 2000 | 2500 | 3000 |
| Room feed-in size(mm) | 1000*400 | 1400*400 | 1700*400 | 2200*400 | 2700*800 | 3200*800 |
| Wheel conveyer speed(m/min) | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
| Steel sheet thickness(mm) | 3-60 | 3-60 | 1.5-60 | 3-60 | 3-60 | 3-110 |
| Shot blasting quantity(kg/min) | 4*180 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 |
| Total power (kw) | 90 | 78.3 | 113.5 | 156.6 | 204.8 | 224.55 |
We can design and manufacture all kinds of non-standard shot blasting machines according to customers' different workpiece requirements.

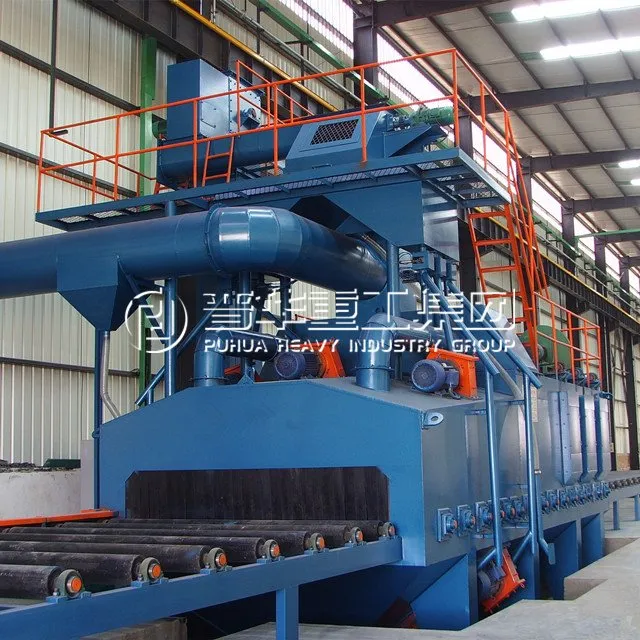

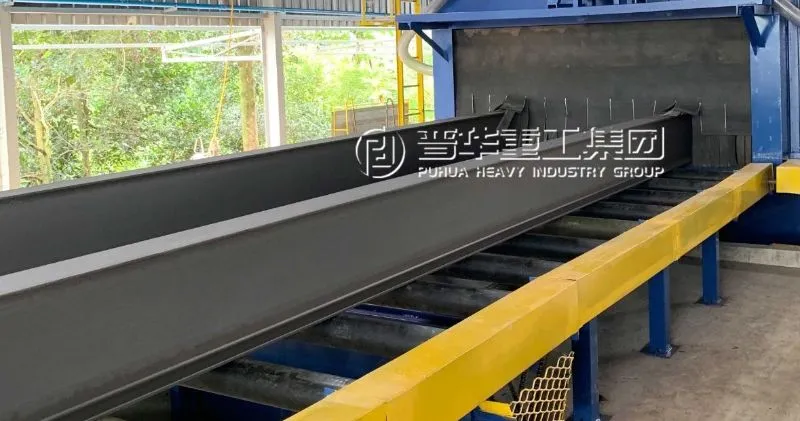

Roller Conveyor Systems: Composition includes feeding rollers, middle rollers, and out-feeding rollers. Loading capacity is 2 tons per meter with a variable speed reducer (0.5-4 m/min). Rollers in the blasting cabinet are protected by special alloy jackets with a lifetime over 4,000 hours.

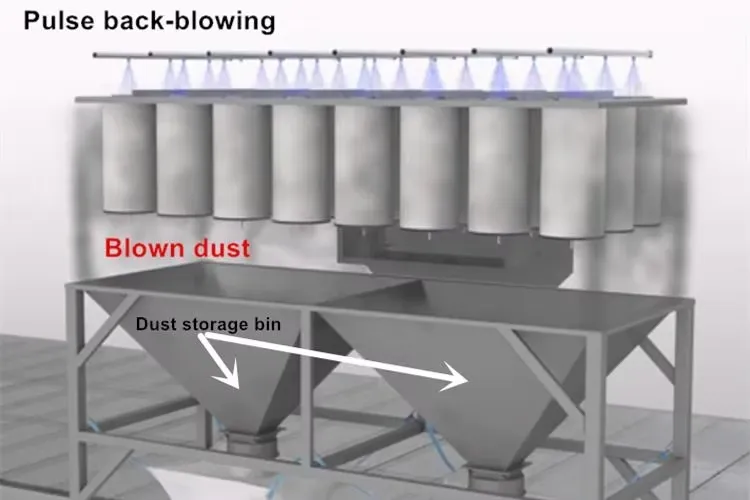

Blasting Chamber: Features a main blasting chamber and 2 auxiliary chambers. Walls are protected by SPMn13 material liners and 65Mn protective liners for easy replacement. High-efficiency dust collection ensures emission standards lower than 80 g/m³.
