Steel Angle Channel Metal Plates and Profiles Pass-Though Type Roller Conveyor Shot Blasting Machine
Steel Angle Channel Metal Plates and Profiles Pass-Though Type Roller Conveyor Shot Blasting Machine
Steel Angle Channel Metal Plates and Profiles Pass-Though Type Roller Conveyor Shot Blasting Machine
Steel Angle Channel Metal Plates and Profiles Pass-Though Type Roller Conveyor Shot Blasting Machine
Steel Angle Channel Metal Plates and Profiles Pass-Though Type Roller Conveyor Shot Blasting Machine
1 / 5
Steel Angle Channel Metal Plates and Profiles Pass-Though Type Roller Conveyor Shot Blasting Machine
Steel Angle Channel Metal Plates and Profiles Pass-Though Type Roller Conveyor Shot Blasting Machine
Steel Angle Channel Metal Plates and Profiles Pass-Though Type Roller Conveyor Shot Blasting Machine
Steel Angle Channel Metal Plates and Profiles Pass-Though Type Roller Conveyor Shot Blasting Machine
Steel Angle Channel Metal Plates and Profiles Pass-Though Type Roller Conveyor Shot Blasting Machine

Steel Angle Channel Metal Plates and Profiles Pass-Though Type Roller Conveyor Shot Blasting Machine

Customization: Available
After-sales Service: Yes
Warranty: 5 Years
Send Inquiry

Product Description

Basic Information
Model NO.
DTW-0618
Application
Electronic Industry
Type
Rotary Abrator
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE
Condition
New
Customized
Customized
Specification
1800*580*640mm
Origin
China
Capacity
300 sets/Year
Product Description

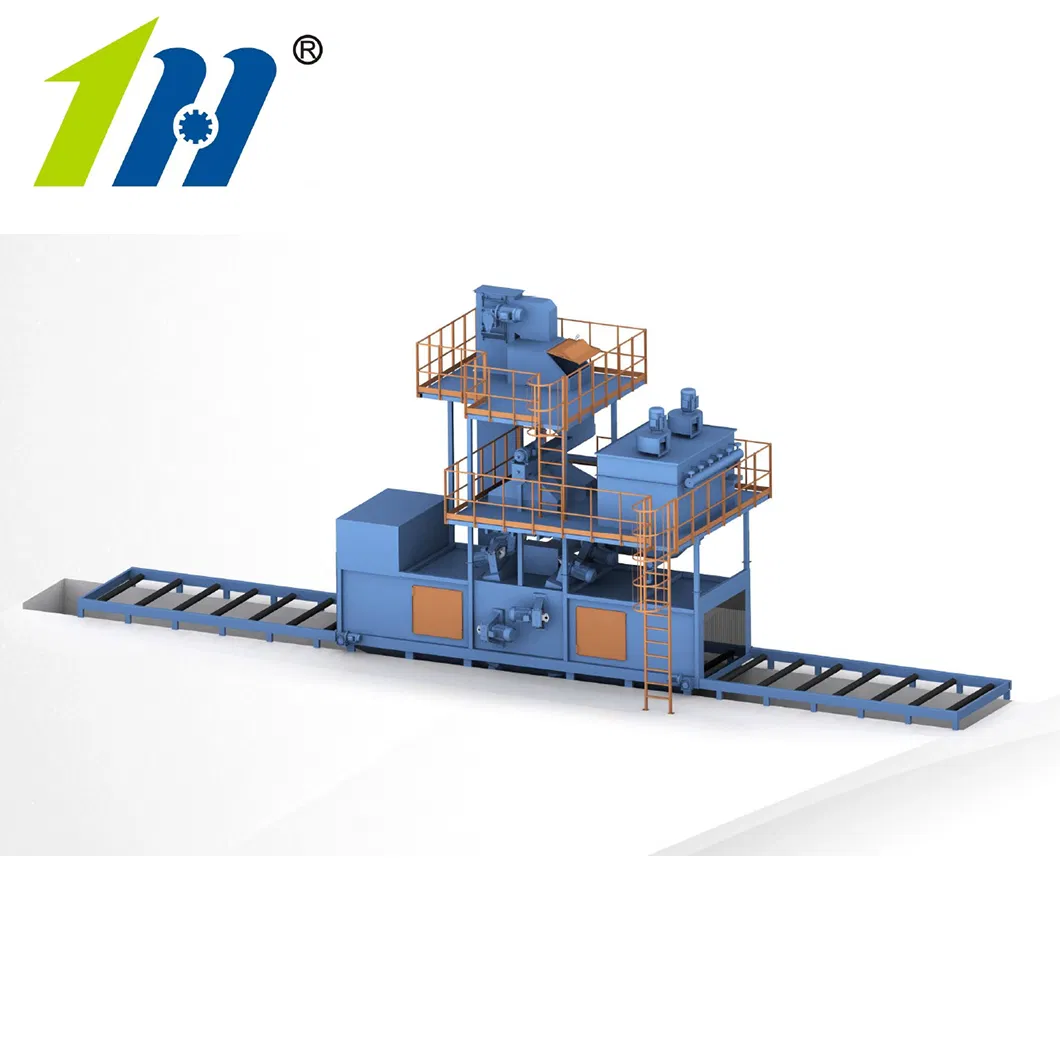

Shot Blasting Machine 1

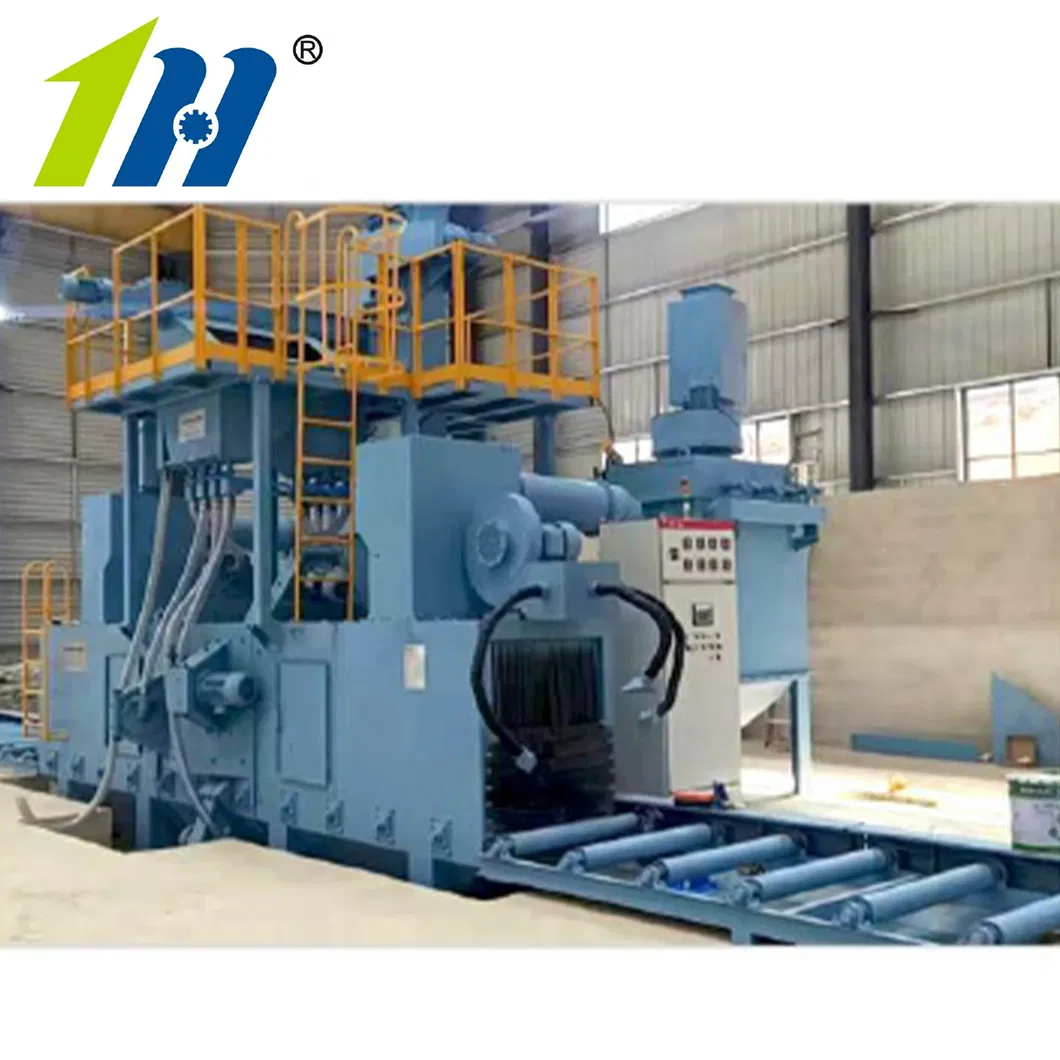

Shot Blasting Machine 2

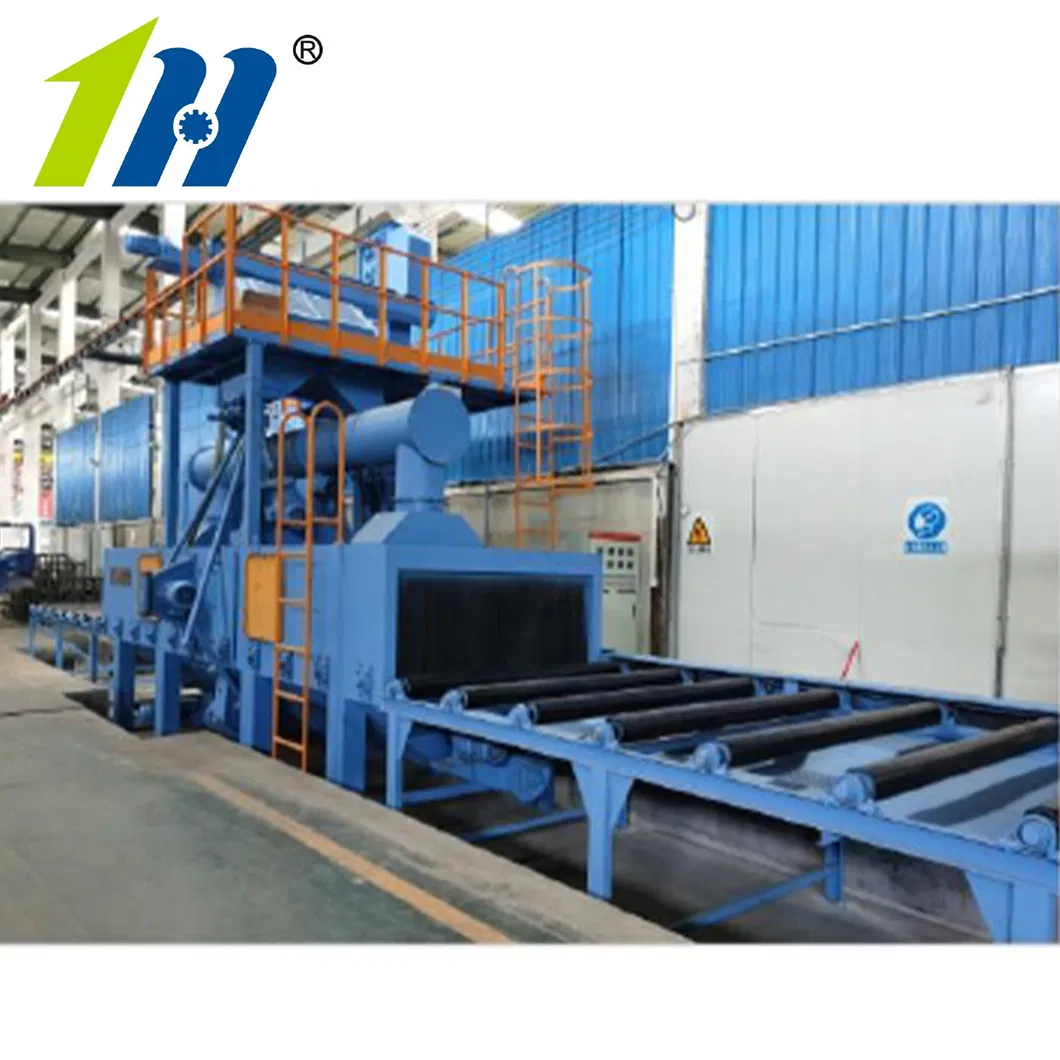

Shot Blasting Machine 3

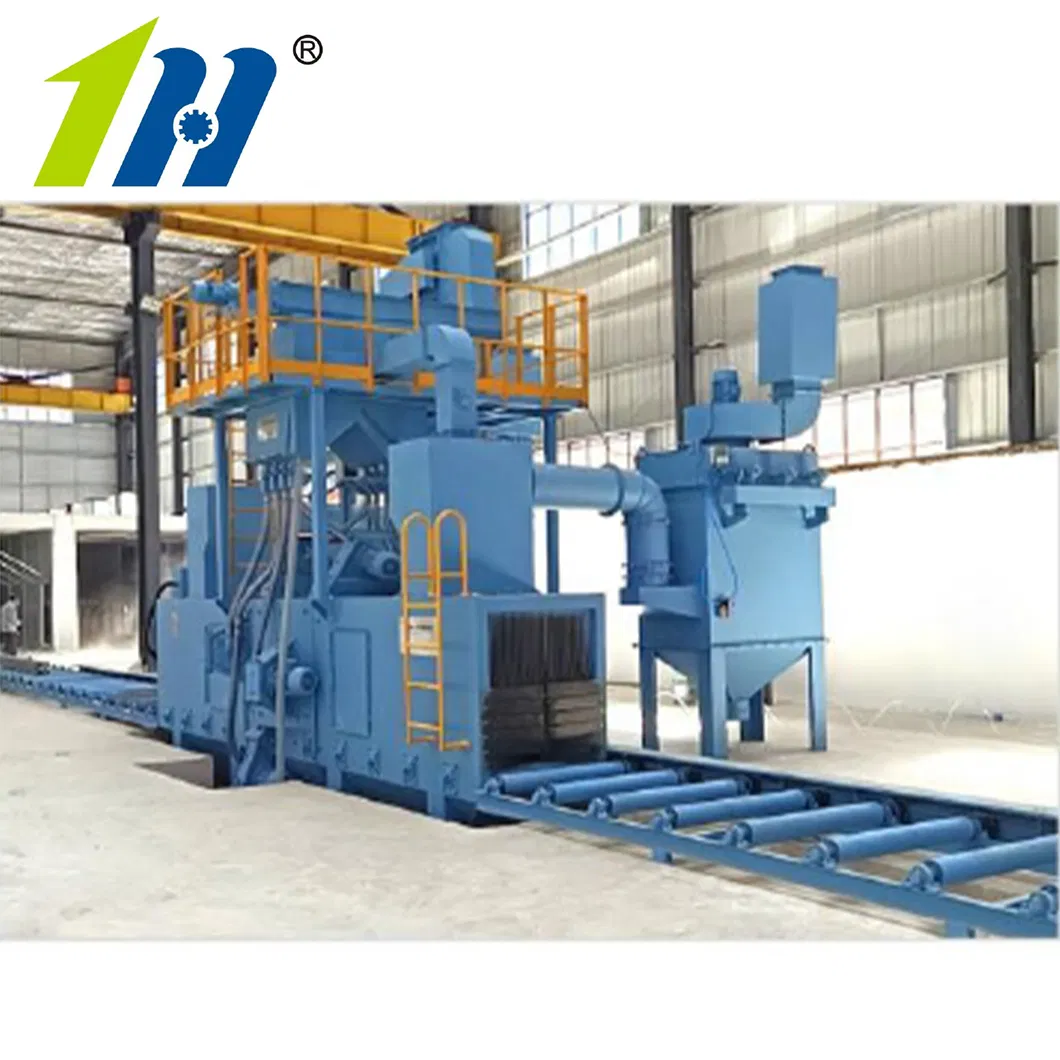

Shot Blasting Machine 4

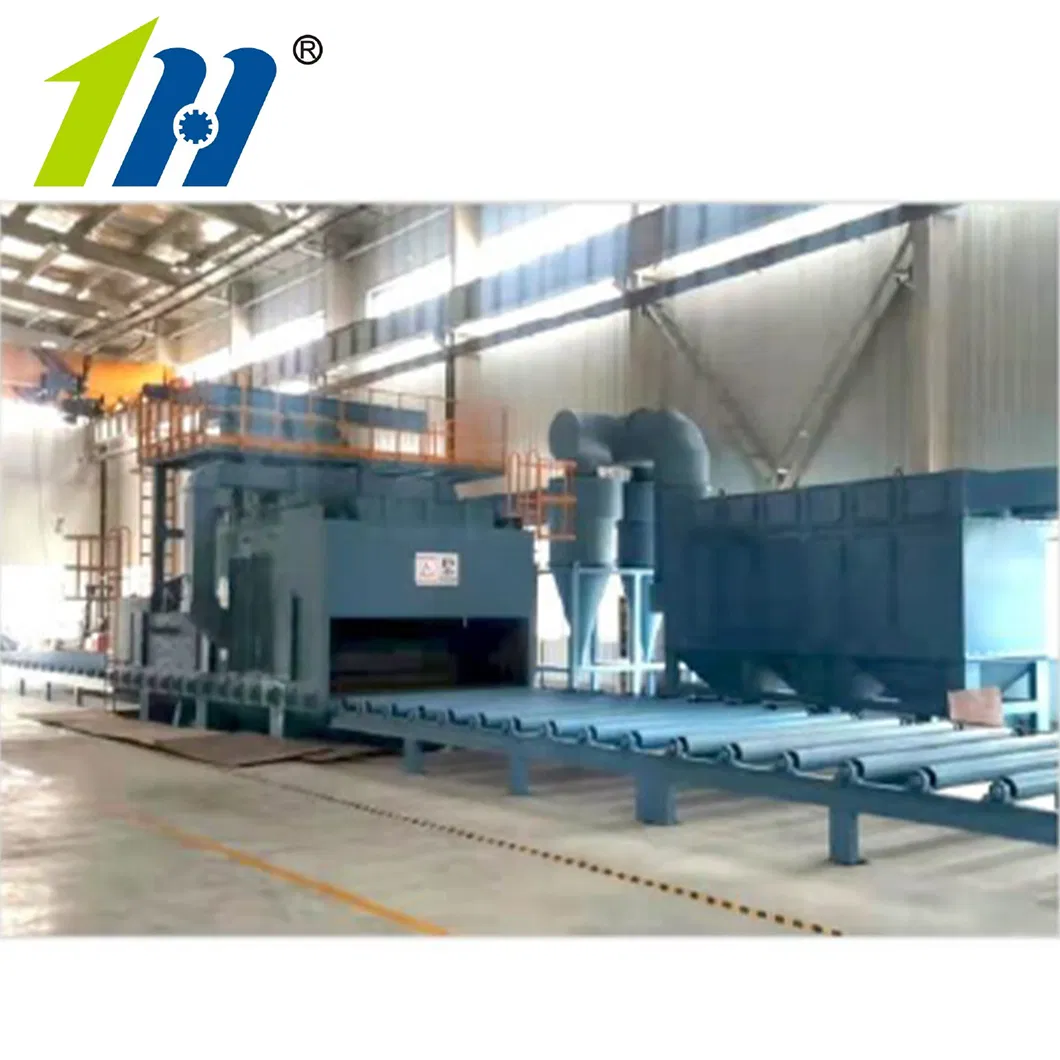

Shot Blasting Machine 5

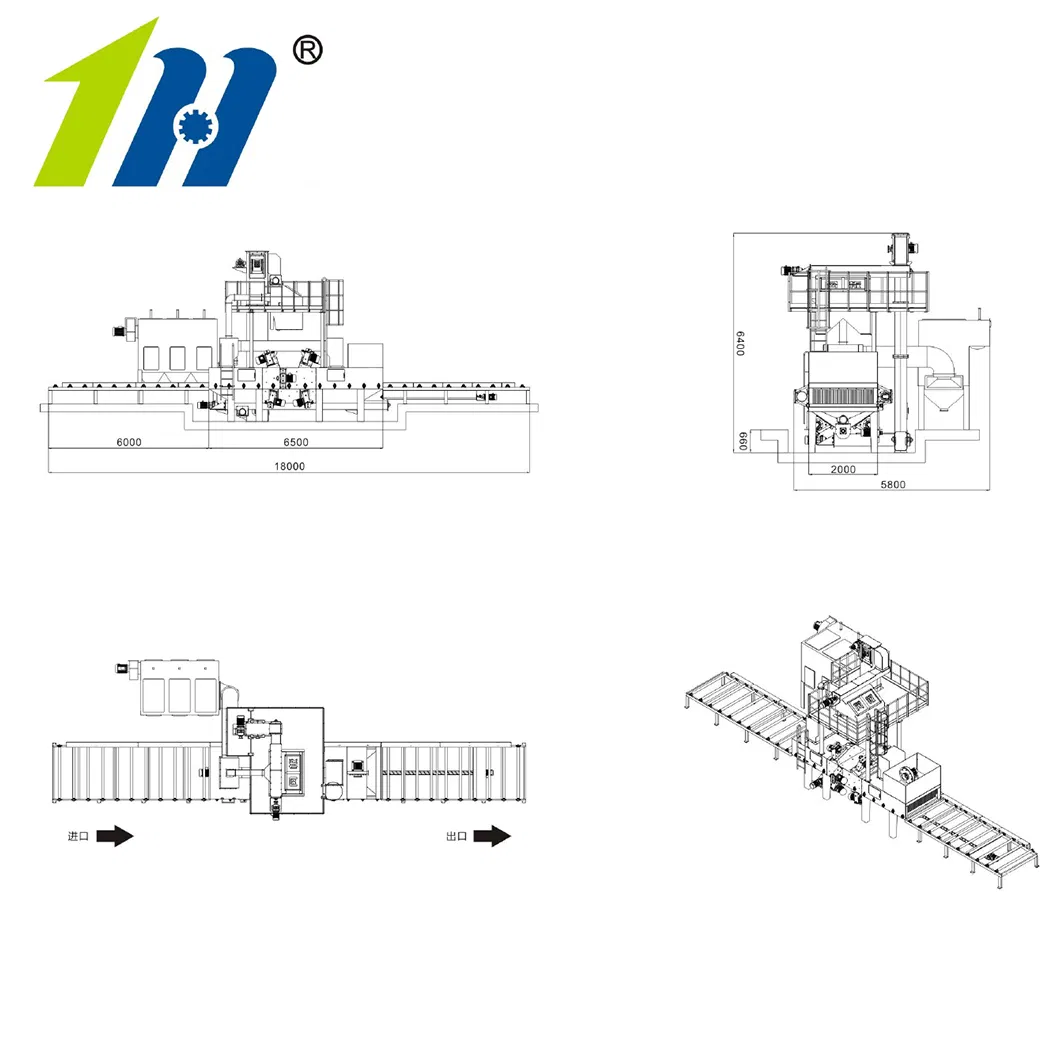

Shot Blasting Machine 6
Technical Specifications: DTW-0618
Handling Products Building climbing frame Cleaning Speed 0.5-2.5m/min
Total Power 127kw Door Opening Size W1800×H600mm
Air Consumption 2.3-3.5m³/min Effective Cleaning Size W1350×H350mm
Dust Removal System Power: 18.5kw Bucket Elevator Power: 7.5kw
Separation System Power: 4kw Longitudinal Screw Power: 5.5kw
Shot Blaster Power: 10×7.5kw Horizontal Screw Power: 4kw
Control System Siemens PLC, Touch Screen Cleaning Mechanism Power: 7.5kw
Certifications
Certifications
Factory & Production

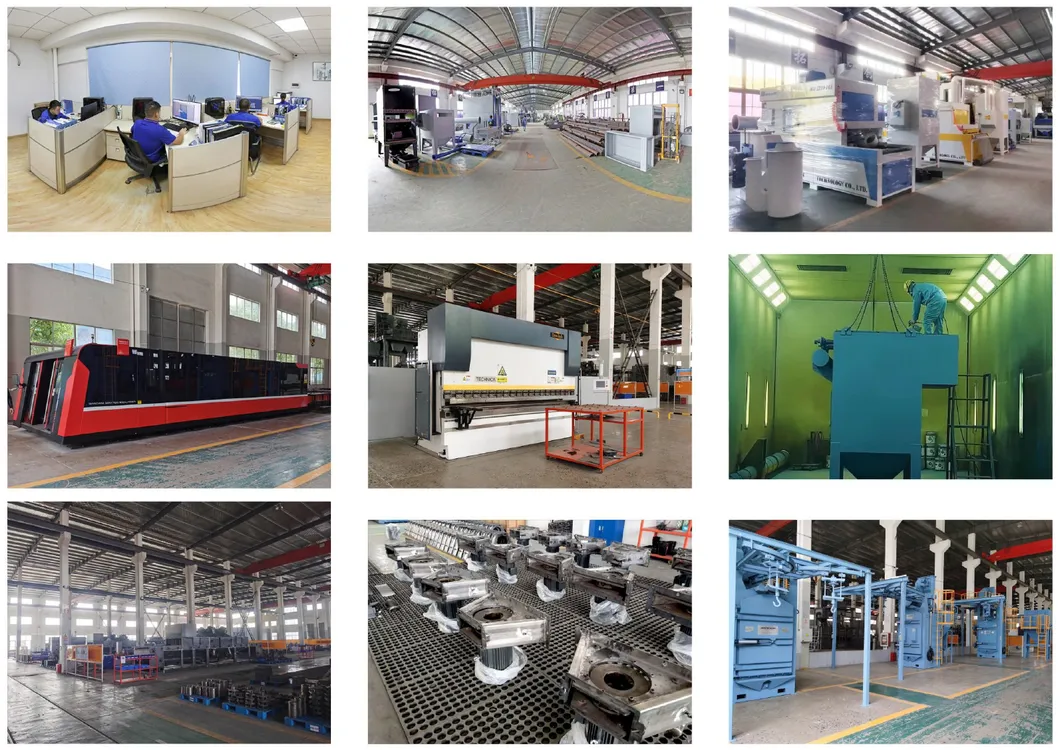

Factory View 1

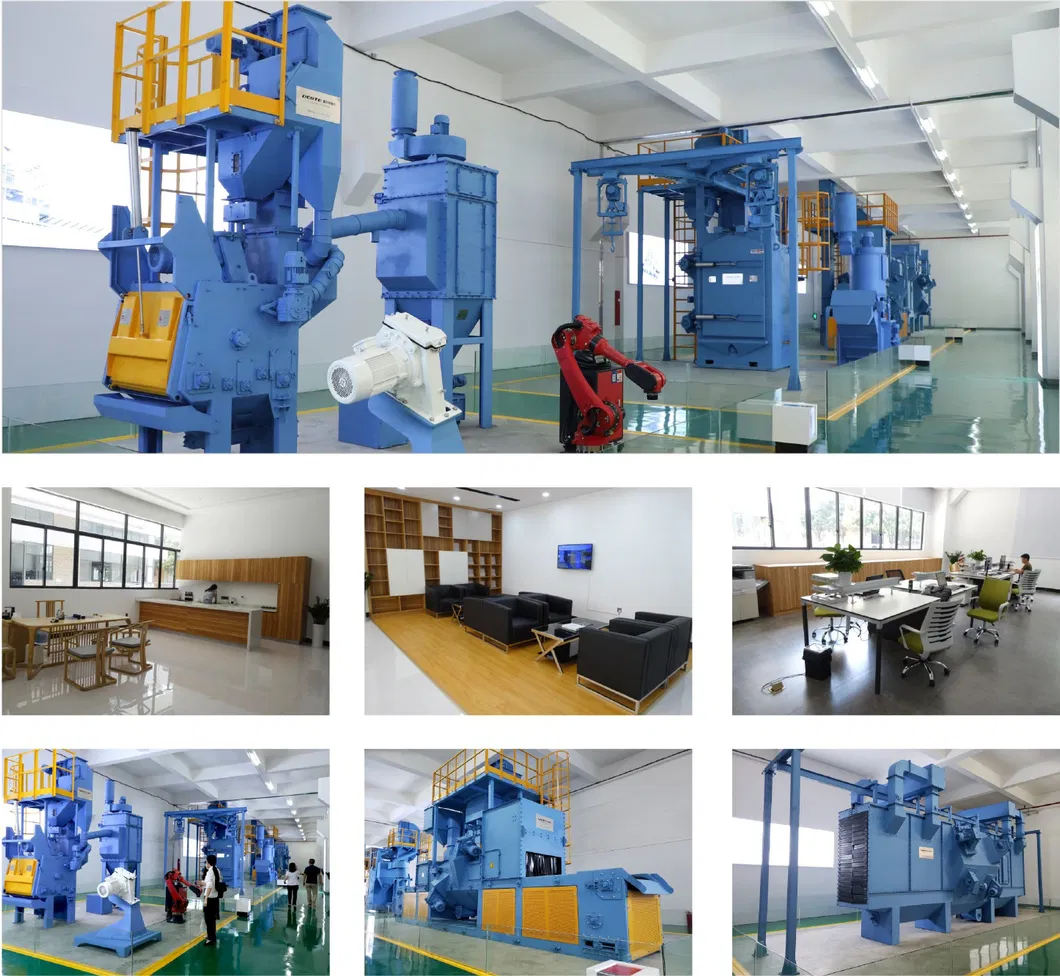

Factory View 2
Frequently Asked Questions
What are the standard packaging and shipping options?
We provide general export packing or customized packaging based on your specific requirements. Shipping is handled by professional goods shipping forwarders to ensure safety.
What is the typical delivery time for the machine?
If the machine is in stock, it generally takes 3-5 days. If customization is required or it's out of stock, production usually takes 15-20 days.
What information is needed to get a detailed technical proposal?
Please provide the material and type of workpiece, the maximum and minimum dimensions (L x W x H), the weight of the maximum workpiece, and your daily or monthly production capacity needs.
Is the machine suitable for different types of metal profiles?
Yes, this pass-through type roller conveyor shot blasting machine is designed for steel angles, channels, metal plates, and various profiles used in the electronic and building industries.
Does the machine feature an automated control system?
Yes, the machine is equipped with an automatic system featuring a Siemens PLC and touch screen control for efficient operation and monitoring.
What is the production capacity of this equipment?
The facility has a production capacity of approximately 300 sets per year for this series of machinery.
