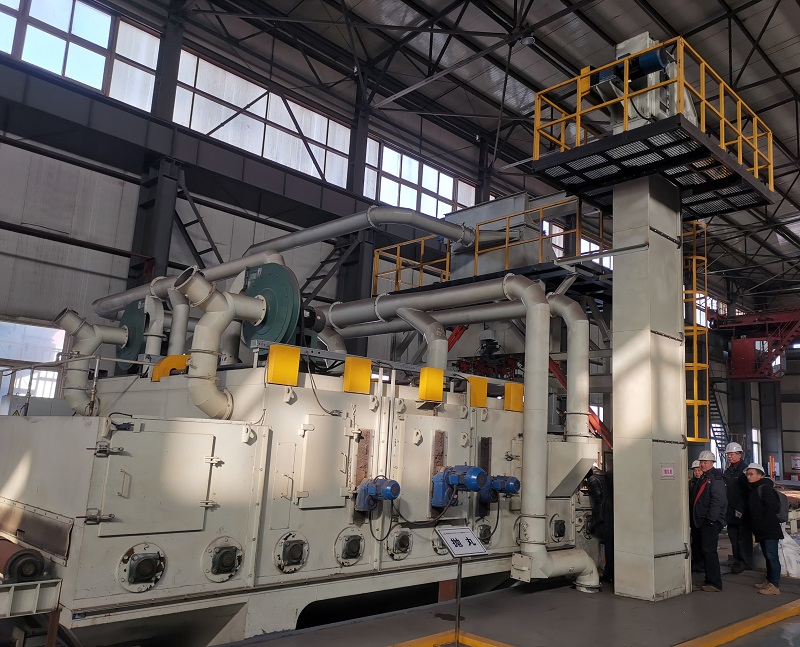

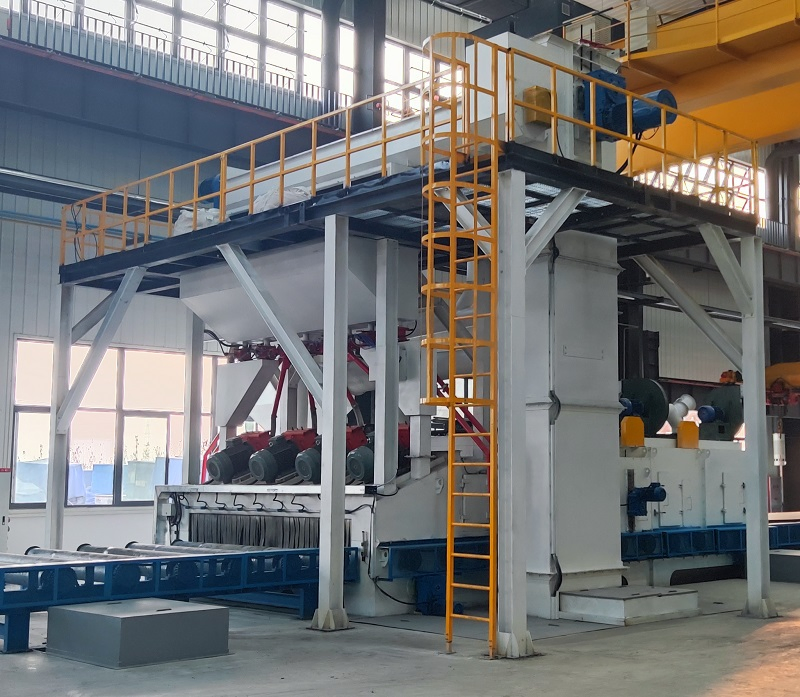

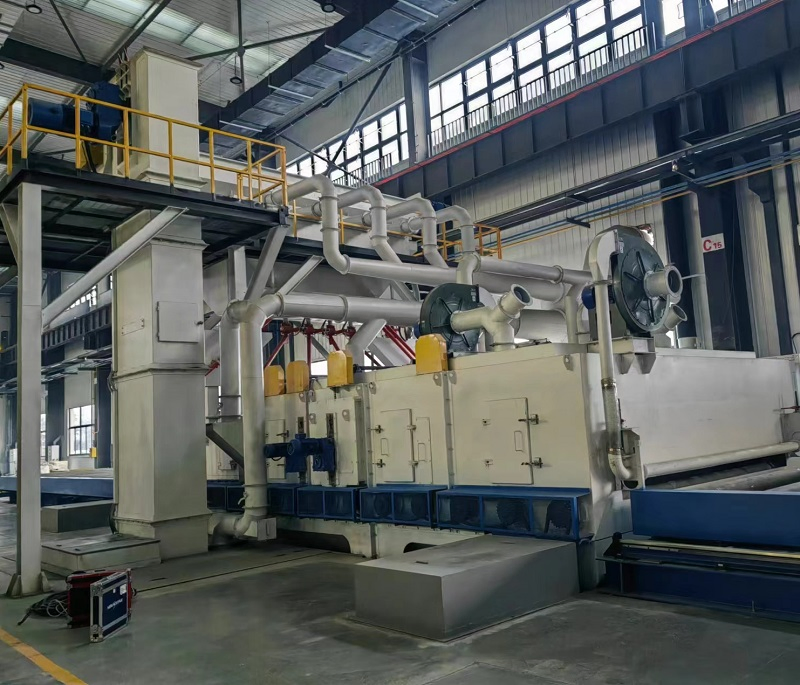

Rust Removal Metal Steel Sheet Plate Surface Cleaning Shot Blasting Machine
Rust Removal Metal Steel Sheet Plate Surface Cleaning Shot Blasting Machine
Rust Removal Metal Steel Sheet Plate Surface Cleaning Shot Blasting Machine
Rust Removal Metal Steel Sheet Plate Surface Cleaning Shot Blasting Machine
Rust Removal Metal Steel Sheet Plate Surface Cleaning Shot Blasting Machine
1 / 5
Rust Removal Metal Steel Sheet Plate Surface Cleaning Shot Blasting Machine
Rust Removal Metal Steel Sheet Plate Surface Cleaning Shot Blasting Machine
Rust Removal Metal Steel Sheet Plate Surface Cleaning Shot Blasting Machine
Rust Removal Metal Steel Sheet Plate Surface Cleaning Shot Blasting Machine
Rust Removal Metal Steel Sheet Plate Surface Cleaning Shot Blasting Machine

Rust Removal Metal Steel Sheet Plate Surface Cleaning Shot Blasting Machine

Customization: Available
After-sales Service: Yes
Warranty: 1-2 Year
Send Inquiry

Product Description

Basic Information
Application
Electronic Industry
Fuel
Electric
Type
Steel Plate Profile Abrator
Cleanliness
High Cleanliness
Automation
Automatic
Certification
ISO 9001
Feature
Shot Blasting
Condition
New
Product Name
Shot Blasting Machine
Abrasive
Steel Shot
Electric Control
PLC
Origin
Shangdong, China
Product Description

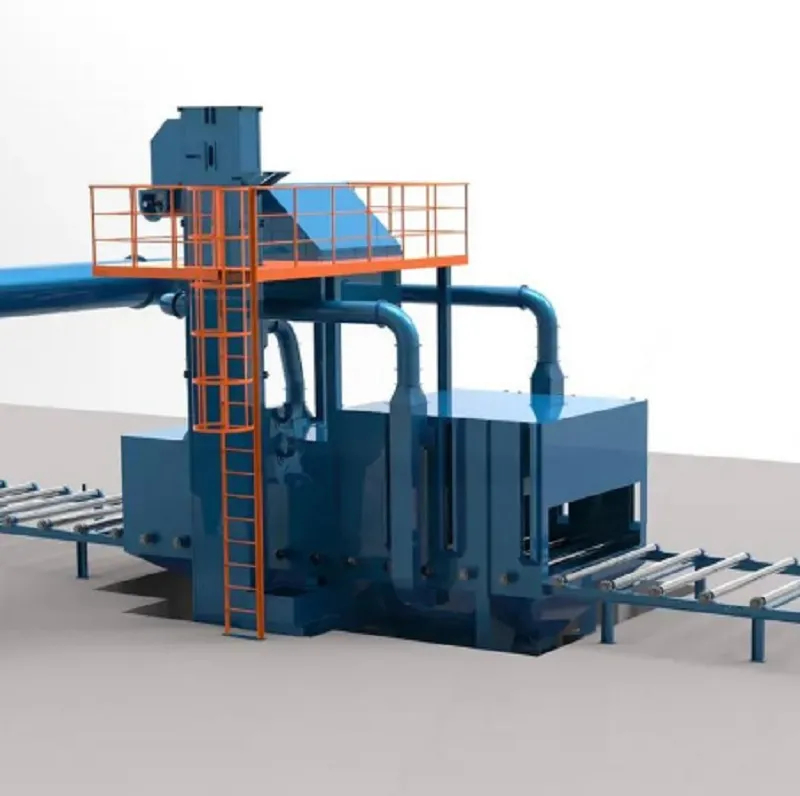

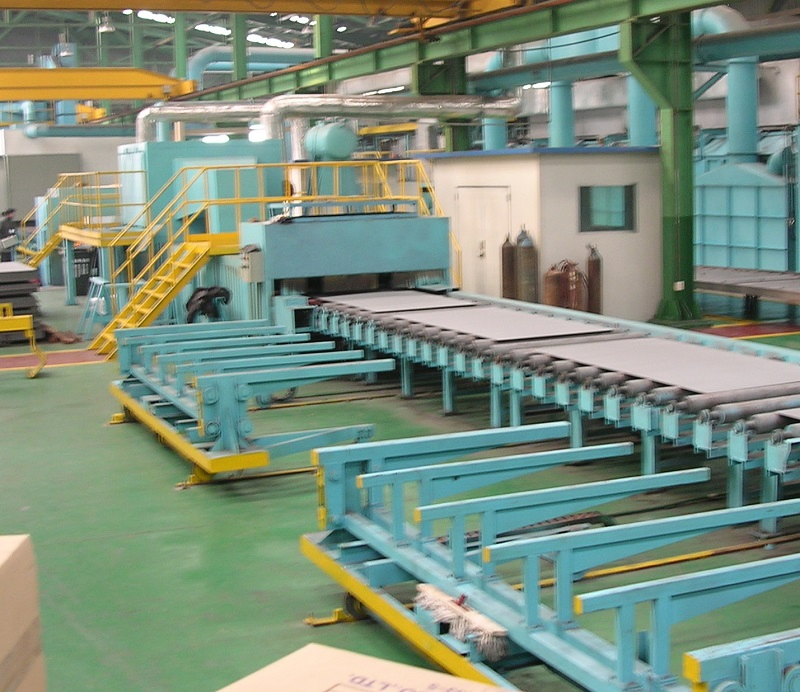

Steel Plate Shot Blasting Machine

The steel plate shot blasting machine is specialized equipment for steel plate surface treatment, widely used in industries such as steel processing, bridge manufacturing, and shipbuilding. Its core function is to clean and strengthen the steel plate surface through the shot blasting process.

Working Principle:
It uses a motor-driven shot blaster to project shot (e.g., steel shot, iron shot) onto the steel plate surface at high speed. When the shot impacts the steel plate, it can break and peel off impurities such as oxide scale, rust layers, and oil stains. Meanwhile, a reasonable projection force and density can create a uniform roughness on the steel plate surface, optimize surface mechanical properties, enhance subsequent coating adhesion and corrosion resistance, and also help improve the steel plate's fatigue strength.
Product Parameters
Model Parameter WQB08 WQB12 WQB15 WQB20 WQB25 WQB30 WQB40 WQB50
Effective cleaning width(MM) 800 1200 1500 2000 2500 3000 4000 5000
Size of feed inlet(MM) 800x400 1200x400 1500x400 2000x400 2500×800 3000x800 4000x400 5000x400
Workpiece length(MM) 1200~12000 1200~12000 1200~12000 1200~12000 3000~12000 2400~12000 4500~16000 4500~16000
Conveying speed(M/MIN) 0.5~4 0.5~4 0.5~5 0.5~4 0.5~4.5 0.5~4 2~8 2~8
Steel plate thickness(MM) 5~60 5~60 5~60 5~60 5~60 5~100 5~100 4.5~100
Application Scenarios
Besides basic cleaning and strengthening, it can also be used for pre-treatment before steel plate painting (improving paint adhesion and reducing the risk of coating peeling) and renovation of old steel plates (removing old coatings and rust to restore surface performance). In fields such as wind power tower steel plate processing and building steel structure manufacturing, it is a key equipment to ensure steel plate quality and the connection with subsequent processes.
Main Products

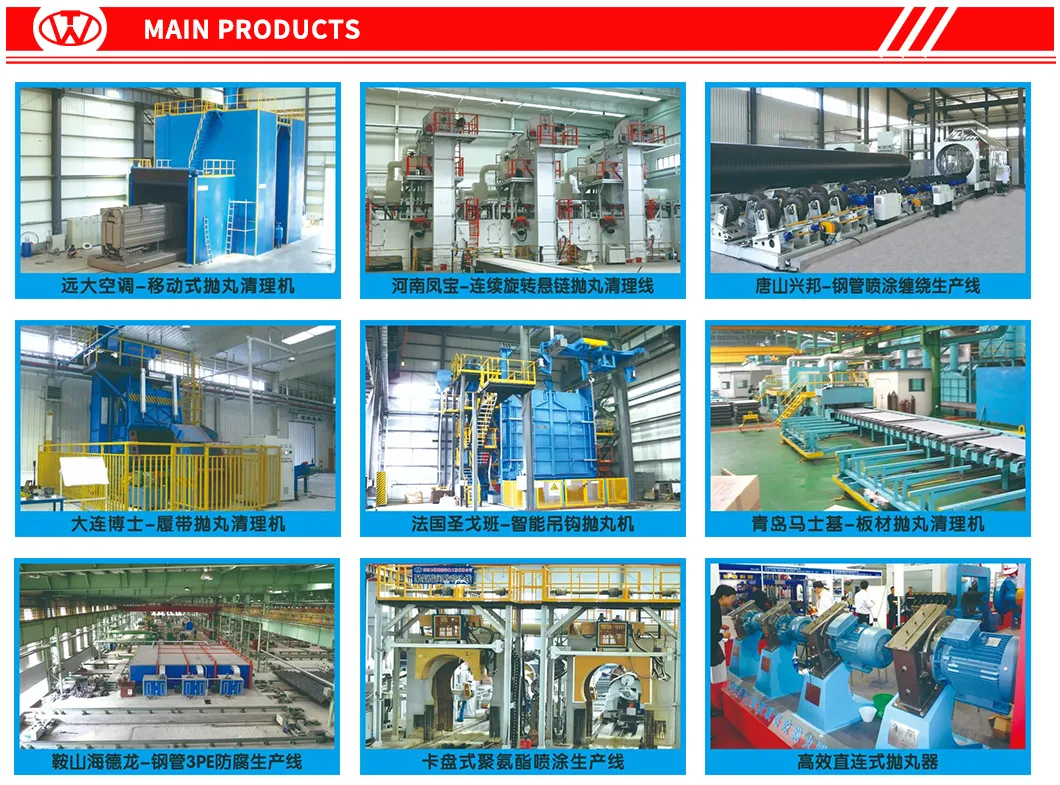

Main Products Range
Patented products include "direct connection high-efficiency shot blasting machine", "manipulator shot blasting machine", "floating grinding head for grinding machine" and a double-station cantilever shaft disc round shot blasting machine, as well as a novel high-efficiency dry and wet method of dust removal ventilation and purification equipment.
Technical Strength & Manufacturing
Manufacturing Facility

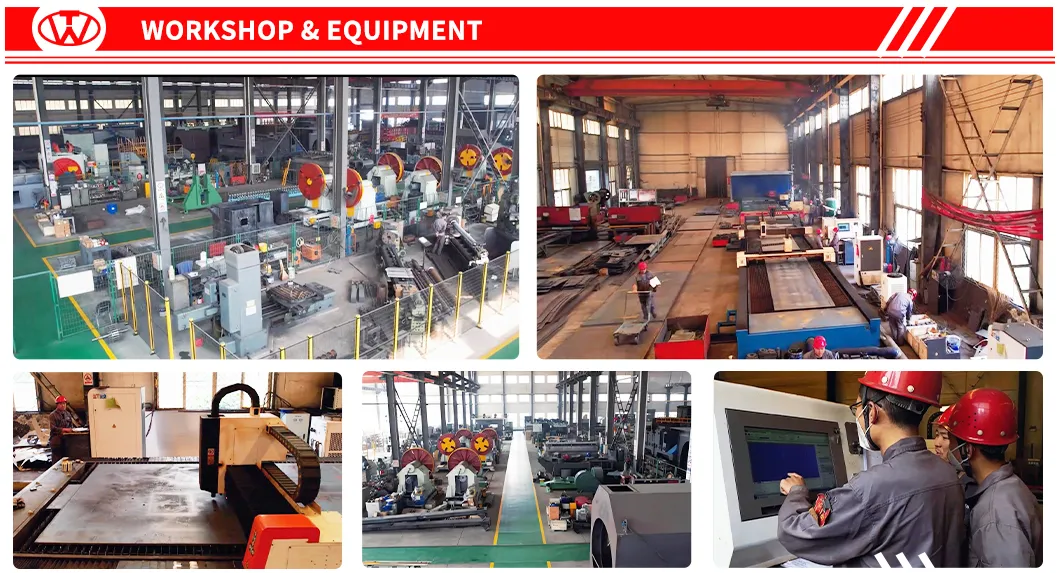

Research and Development
The company has a mechanical equipment research institute, with an outstanding professional research and development team mainly composed of professor level senior engineers and engineers. With nearly 40 years' experience in the industry, the technology development and patented product design are at the forefront. The manufacturing team utilizes numerical control machining machines, cutting equipment, and dynamic balance detection devices to ensure product reliability.
Certifications & Global Presence
Certifications
Exhibition
Partners
Packaging & Shipping
Packaging and Shipping
Frequently Asked Questions
How many days are required to produce this machine?
Some standard machines are in stock and can be delivered immediately after your deposit. For customized machines, the process from engineering design to production completion typically takes about 90 days.
What measures are taken for quality control?
We pay significant attention to quality control from start to finish. Each machine is fully assembled and carefully tested before shipment to ensure performance.
Do you provide overseas installation and commissioning?
Yes, we provide overseas services. Customers are responsible for the engineers' flight tickets, local transport, accommodation, and food.
How long does the installation process take?
Small machines usually take about 5 days for installation, while larger machines can take between 20 days to two months depending on complexity.
How can I be sure the correct machine will be delivered?
Through our history of excellent products and services, we have gained widespread recognition. We strictly follow the specifications confirmed in the order to deliver high-quality equipment.
What is your annual production capacity?
We have an annual production capacity of approximately 300 sets of polishing and shot blasting equipment, ensuring timely fulfillment of large-scale industrial needs.
