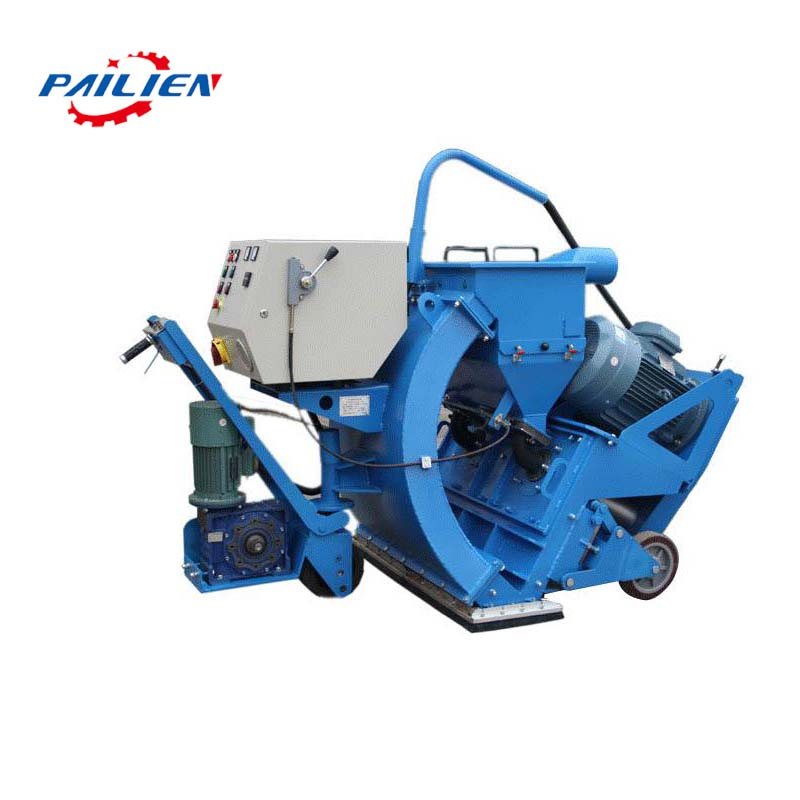

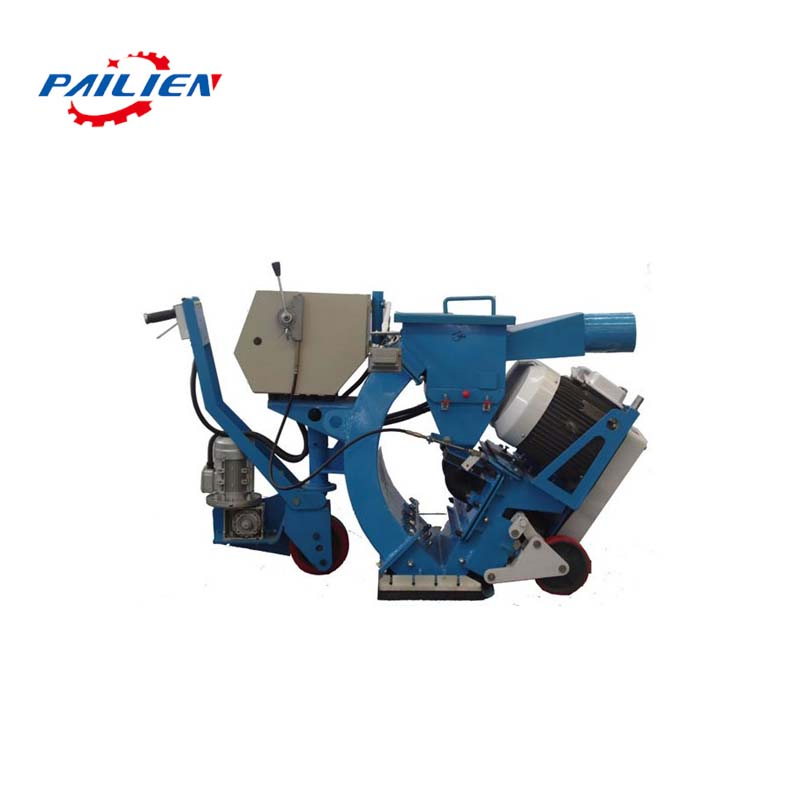

Mobile Concrete Road Floor Surface Steel Surface Shot Blasting Cleaning Machine Steel Plate Rust Removal

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO.:PLE-PW270
Application:Road Shot Blasting & Steel Plate Rust Removal
Fuel:Electric
Type:Ring Rail Abrator
Cleanliness:High Cleanliness
Automation:Automatic
Feature:Rust / Corrosion Proof
Condition:New
Working Width:270mm (550mm & 880mm Optional)
Impeller Diameter:200mm
Steel Ball Diameter:1.2-1.5mm
Production Capacity:3000 Pieces Per Year

Product Description

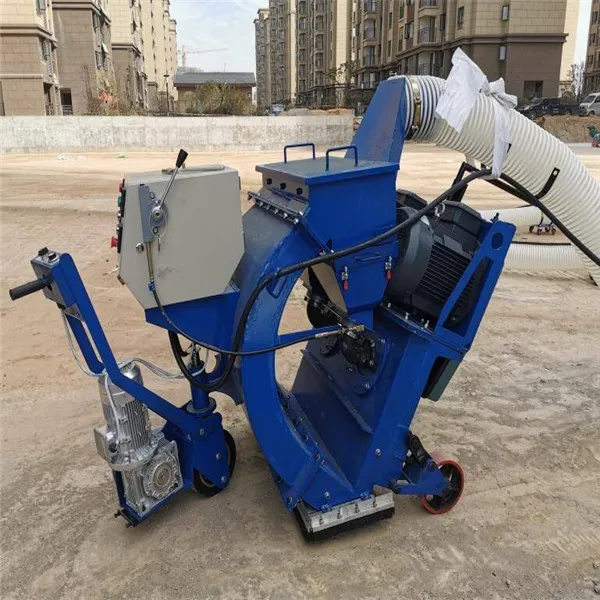

Road Shot Blasting Machine

Road Shot Blasting Machine is designed to clean slurry and impurities from concrete roads, scabbing the surface to create a uniform and rough texture. This significantly improves the adhesion strength of waterproof layers and concrete base layers. Additionally, it exposes concrete cracks fully to help prevent future structural issues.

Key Applications

  • Surface Cleaning & Maintenance: Removing dirt, debris, cracks, and rutting to improve road adhesion.
  • Road & Bridge Renovation: Bridge deck anti-corrosion coating, municipal road paving, and metal surface rust removal.
  • Tunnel & Airport Runway: Specialized maintenance for high-traffic infrastructure.

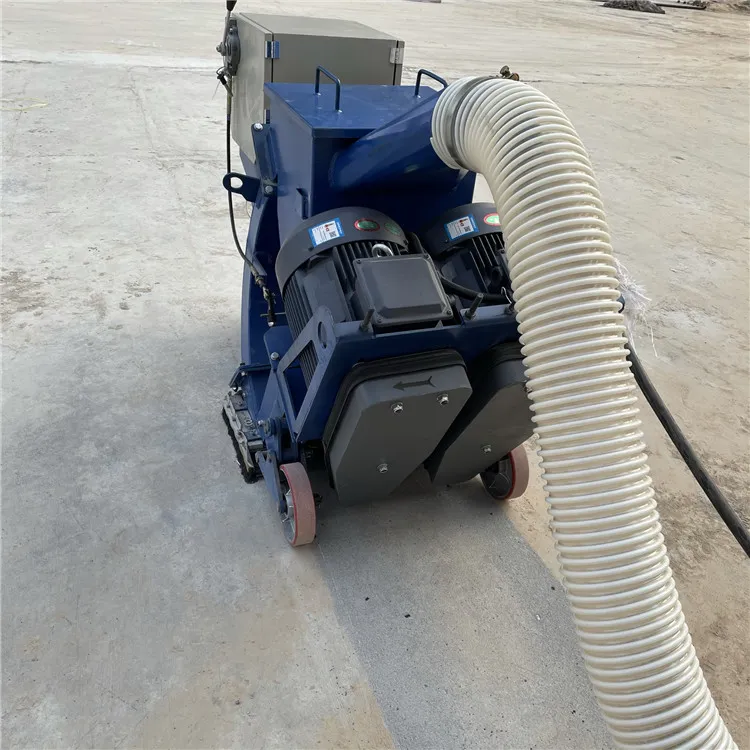

Application 1

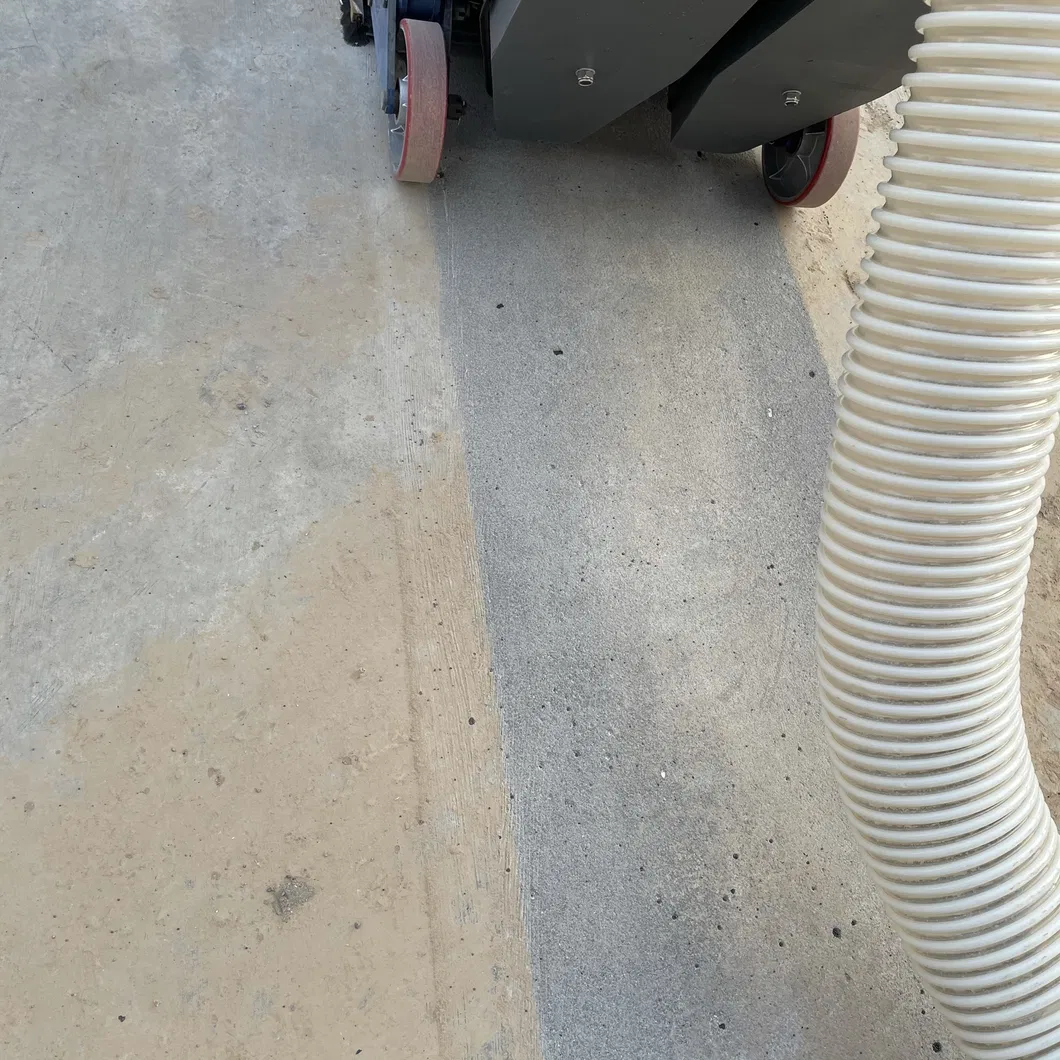

Application 2

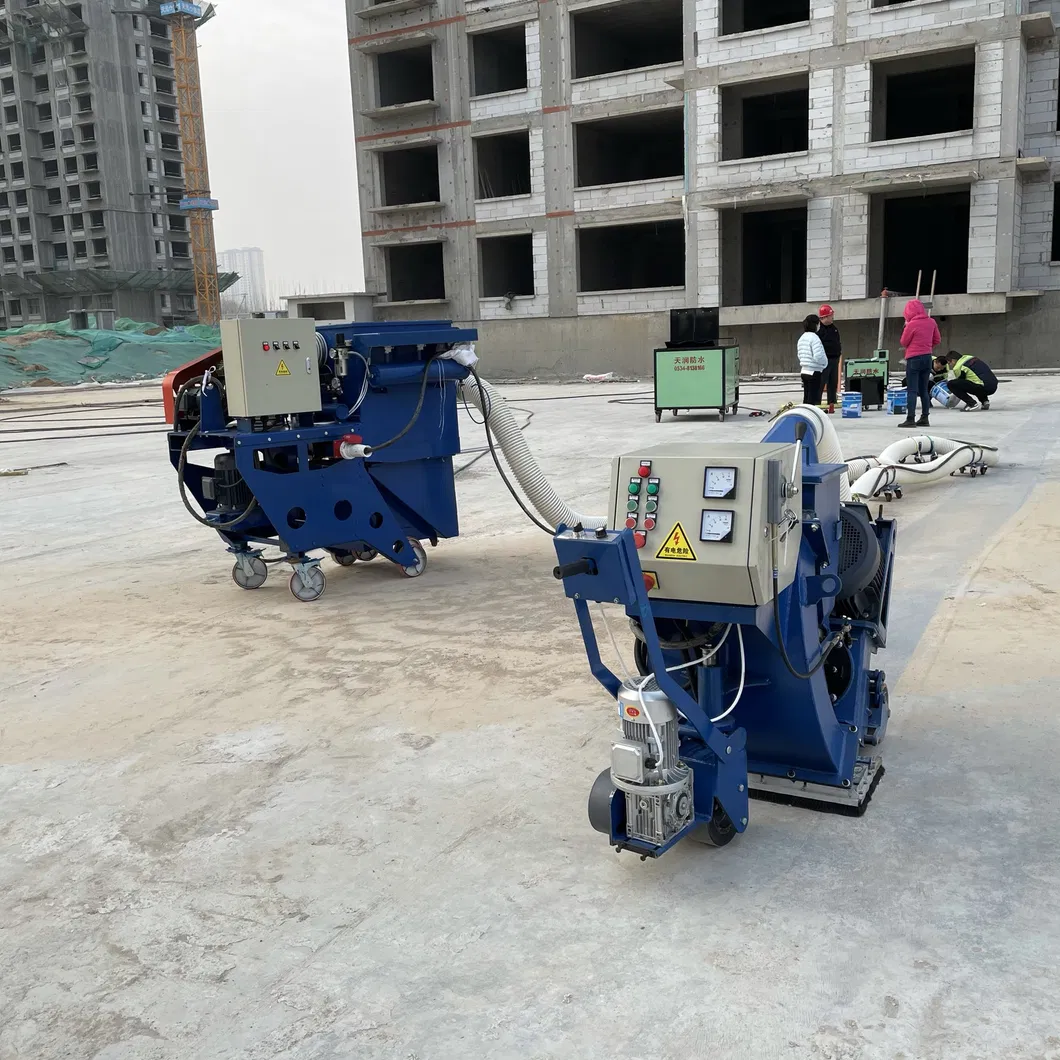

Application 3

Technical Parameters

Model PLE-PW270 (Single) PLE-PW550 (Double) PLE-PW-850 (Double)
Working Width 270 mm 550 mm 850 mm
Impeller Diameter 200 mm 200 mm 200 mm
Concrete Efficiency ≥180 m²/h ≥400 m²/h ≥600 m²/h
Steel Plate Efficiency 15-25 m²/h 75-100 m²/h 100-160 m²/h
Dust Pipe Diameter 120 mm 150 mm 150 mm
Power Consumption 11 KW 11 KW*2 15 KW*2
Weight 320 kg 560 kg 650 kg

Factory Display & Details

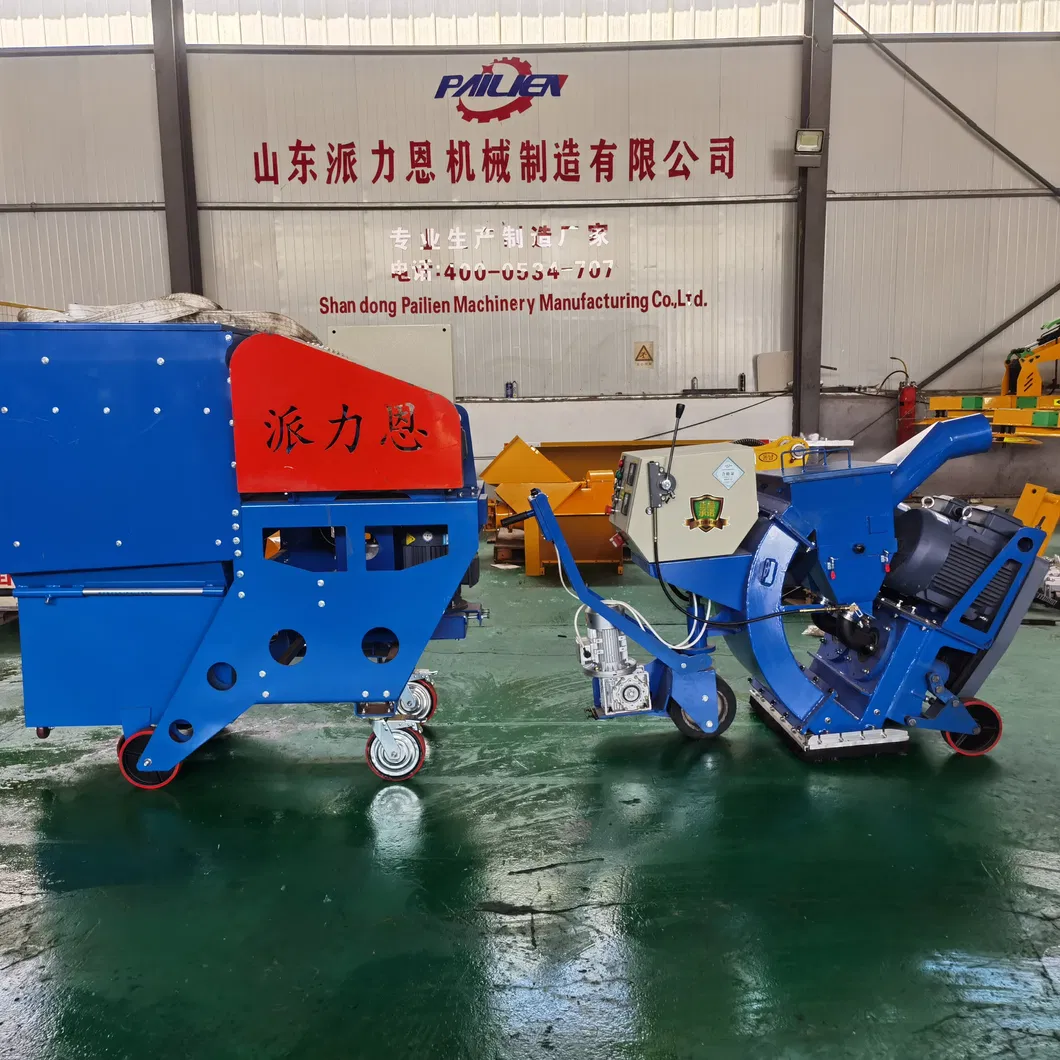

Factory Display 1

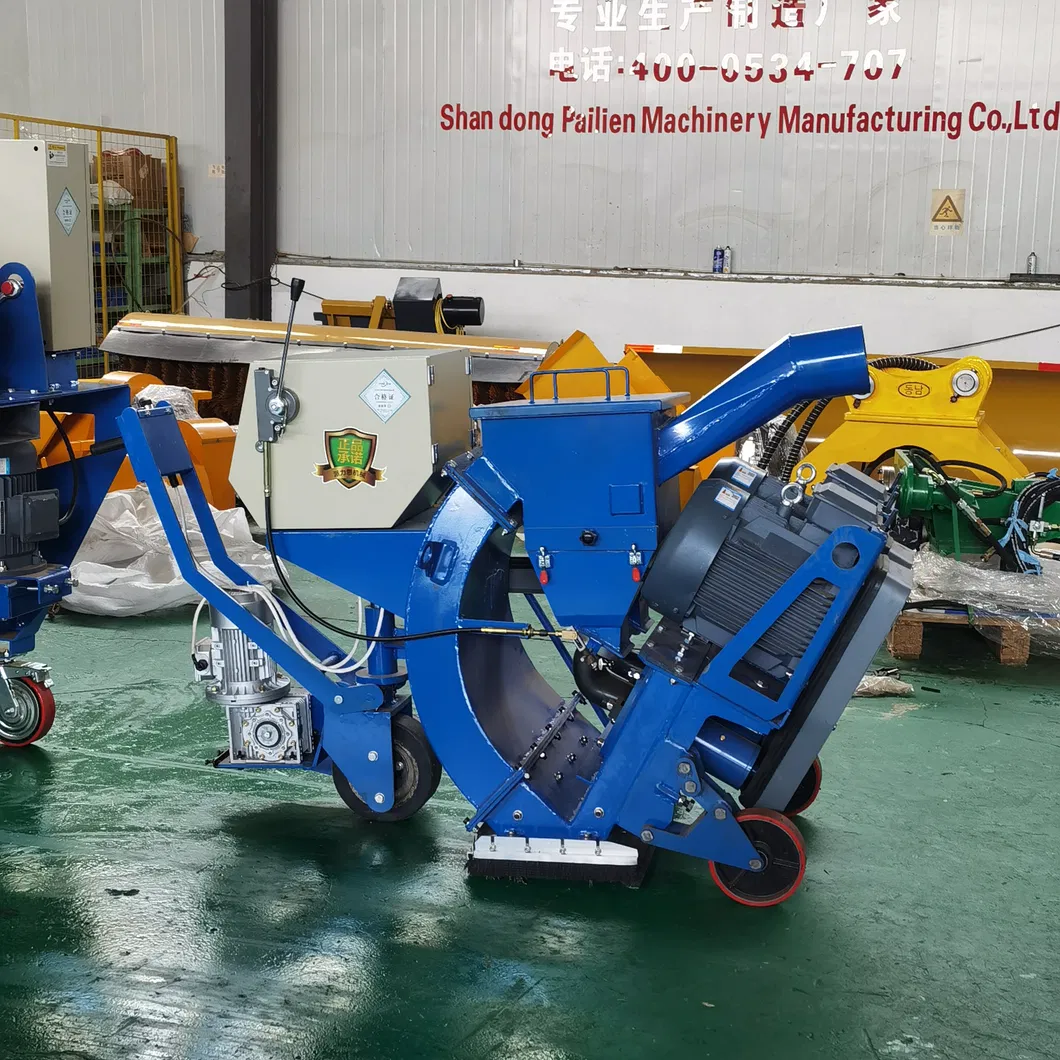

Factory Display 2

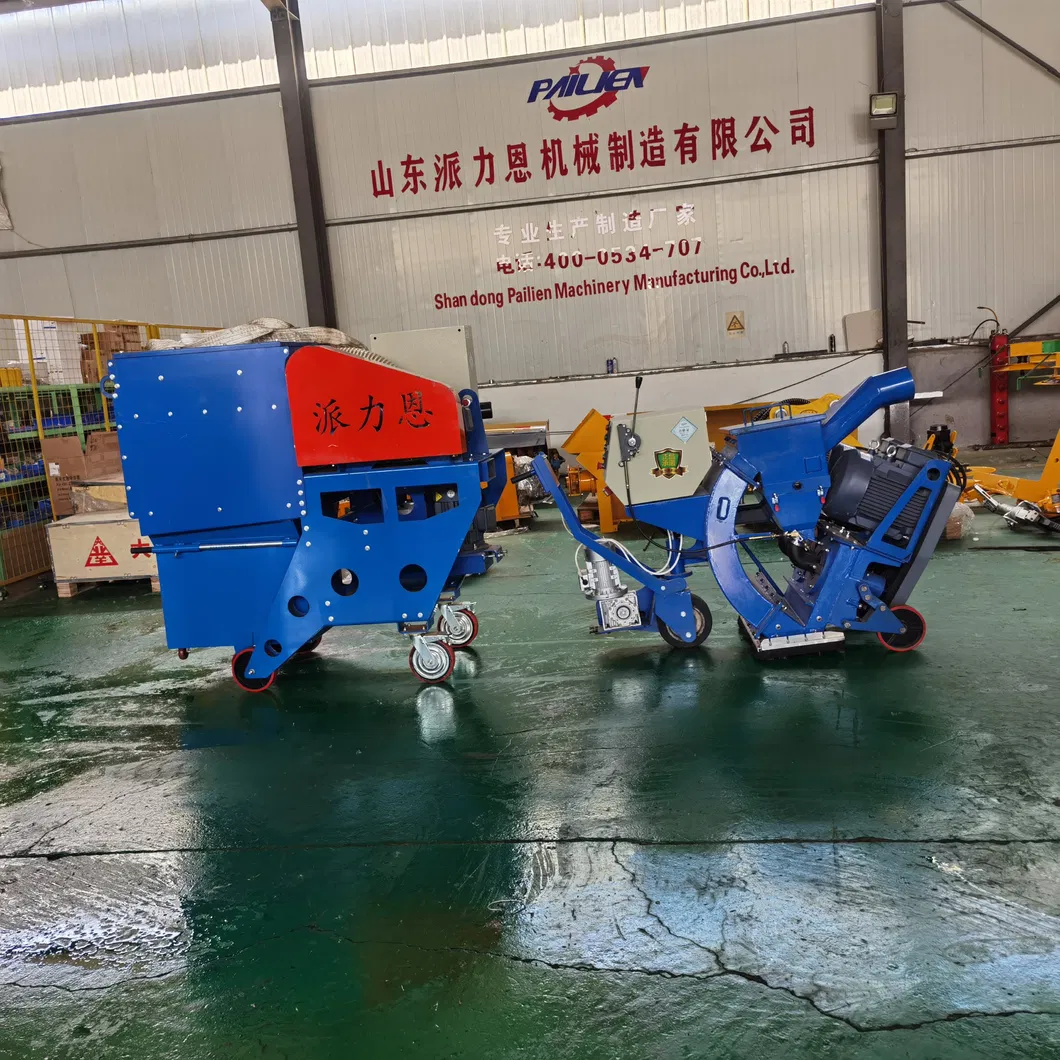

Factory Display 3

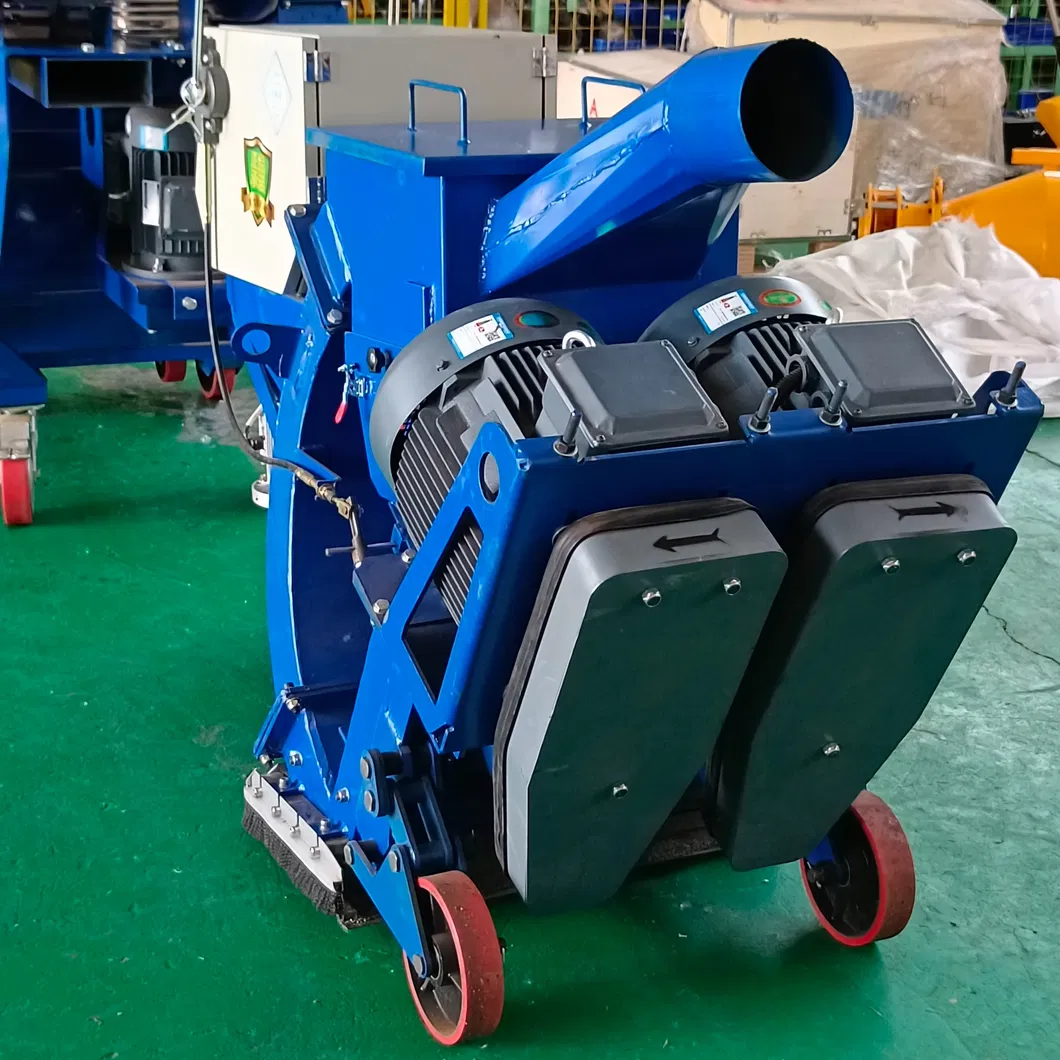

Detail 1

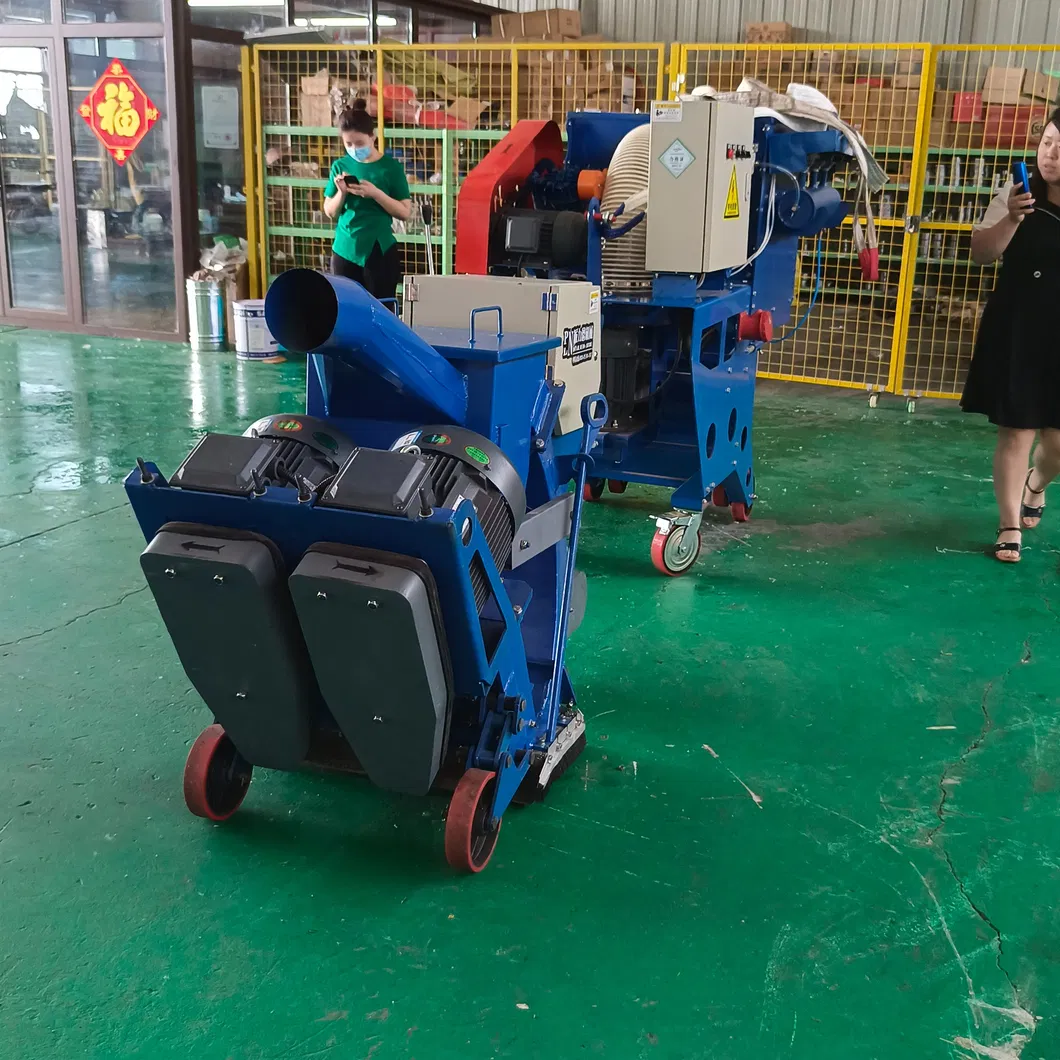

Detail 2

Packaging & Shipping

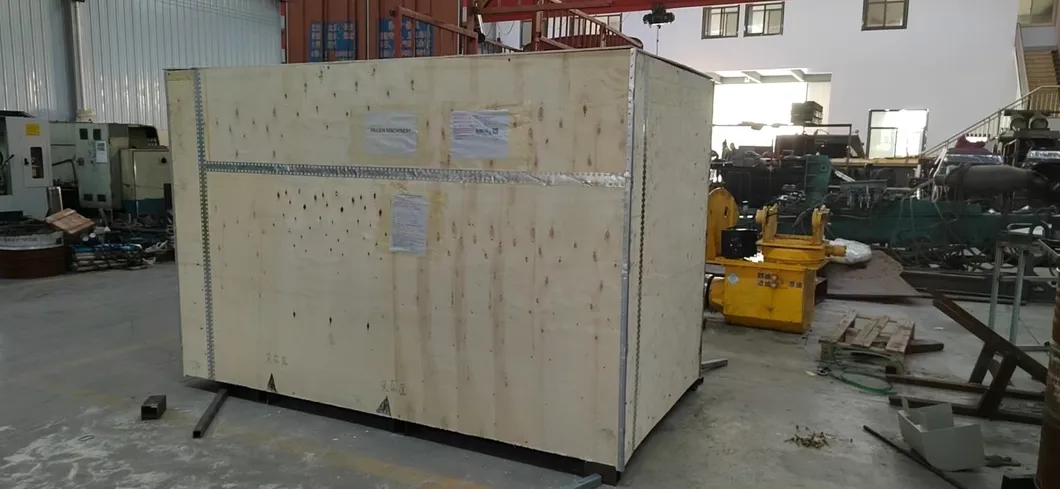

Packaging

About Our Company

Founded in 2015, our company is a comprehensive enterprise integrating product development, manufacturing, sales, and service. We hold more than 80 national utility model and invention patents and have been recognized as a "National High-tech Enterprise." Our products are certified under CE European safety standards and ISO9001 international systems.

Our product line includes four main series: Excavator accessories, Mining crushing and demolition, Urban road construction and maintenance, and Jack push series. With over 70 types of equipment and 500+ specifications, we serve customers in over 40 countries, including the USA, Germany, Japan, and Malaysia.

Company 1

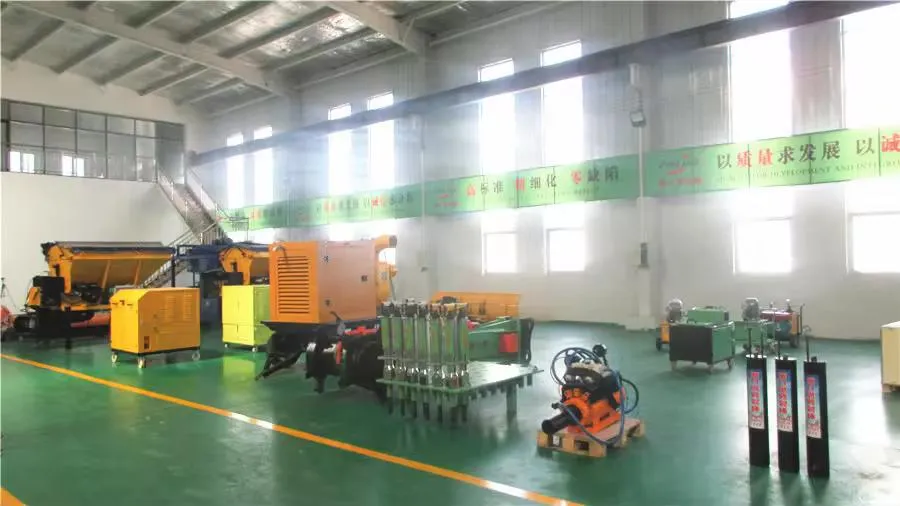

Company 2
Company 3

Our Team & Certifications

Team 1
Team 2
Certification

Frequently Asked Questions

What are the warranty terms for your machines?
We provide a one-year warranty for the machine along with technical support tailored to your specific needs.
Do you provide spare parts for the equipment?
Yes, we provide necessary spare parts to ensure the continuous operation of your machinery.
Can the product voltage be customized?
Our standard voltage is 380V, 50HZ, 3-phase. However, we can customize the voltage according to your local power requirements.
How long does production and delivery take?
Normal goods can be delivered within 3-5 working days. For non-standard electrical items, delivery typically takes 25-30 days.
Do you accept OEM orders?
Yes, our professional design team welcomes OEM orders to meet your personalized branding and functional requirements.
Why should we choose your factory?
We are a direct factory with years of experience serving customers in over 50 countries. We offer free technical advice, fast delivery, and 24-hour English-speaking support.
