Blatrixo Machine Blatrixo Machine

LPG Cylinder Machine, Pipe Cleaning Machine, Shot Blasting Machine, Manufacture LPG Gas Cylinders, LPG Cylinder Making Machine

Customization: Available
Warranty: 1 Year
Application: Surface Cleaning

Product Description

i

Basic Information

Fuel
Electric
Type
Roller Conveyor Type
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE, CB, ETL, RoHS, UR
Feature
Rust / Corrosion Proof
Condition
New
Customized
Customized
Machinery Report
Provided
Applicable Industry
Metal Surface Cleaning
Surface Finish
SA2.5 to SA3.0
Operation
Fully Automatic Continuous
Cleaning Type
Shot Blasting / Wheel Blasting
Spare Parts
Chrome & Mn Alloy
Dust Collector
Cartridge/Bag Type Pulse
PLC
Siemens, Omron or similar
Origin
China

Product Description

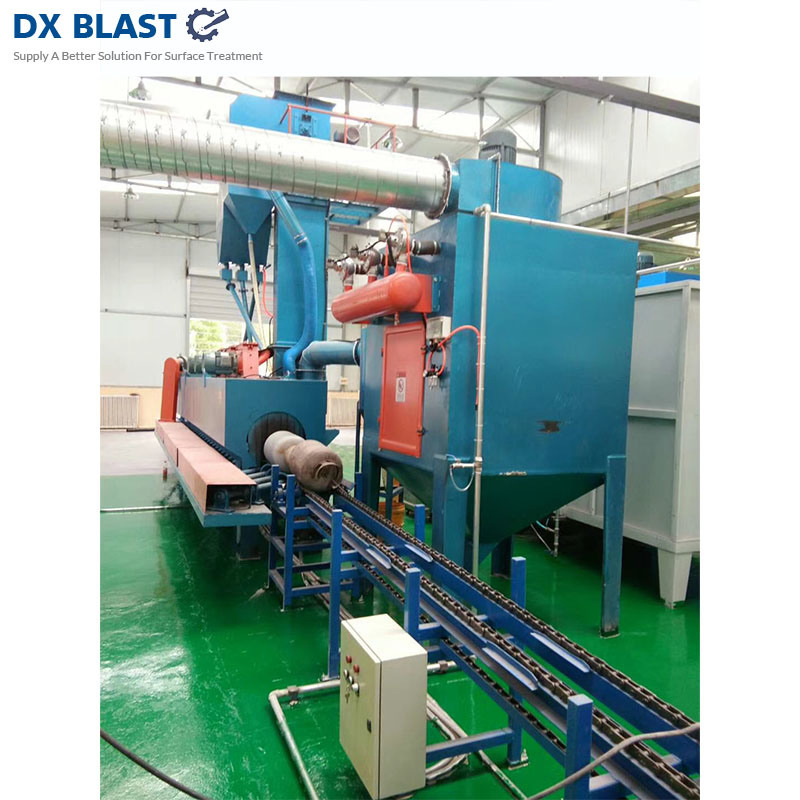

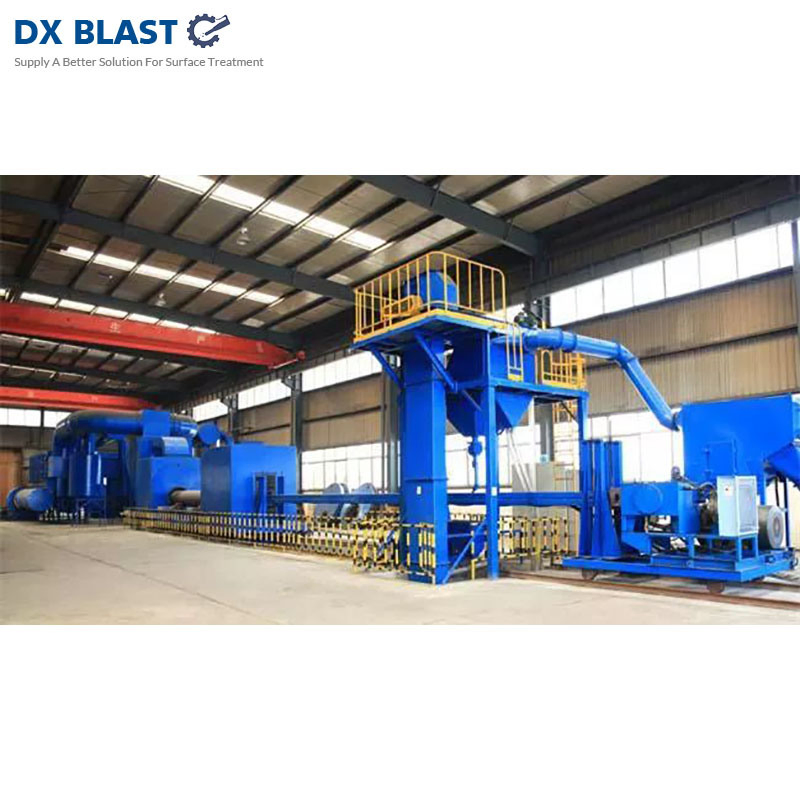

Steel Pipe Outer Shot Blasting Cleaning Machines are specifically designed for large, middle, and small calibre steel tubes and cylinders. With impeller heads strategically located at multiple angles, these high-efficiency blasting wheels use high-speed thick blasting pills to provide tridimensional and omnibearing cleaning. This process quickly removes rust, oxidation layers, and contaminants from the surface.

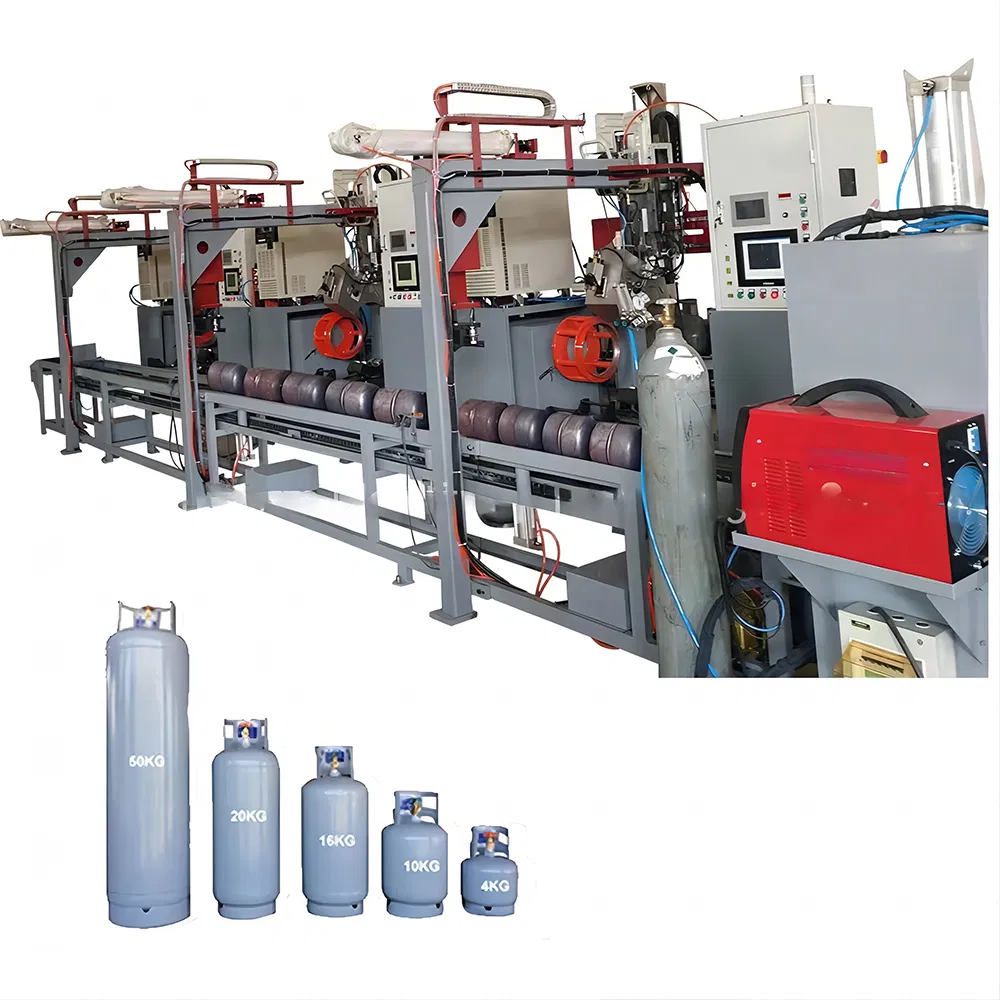

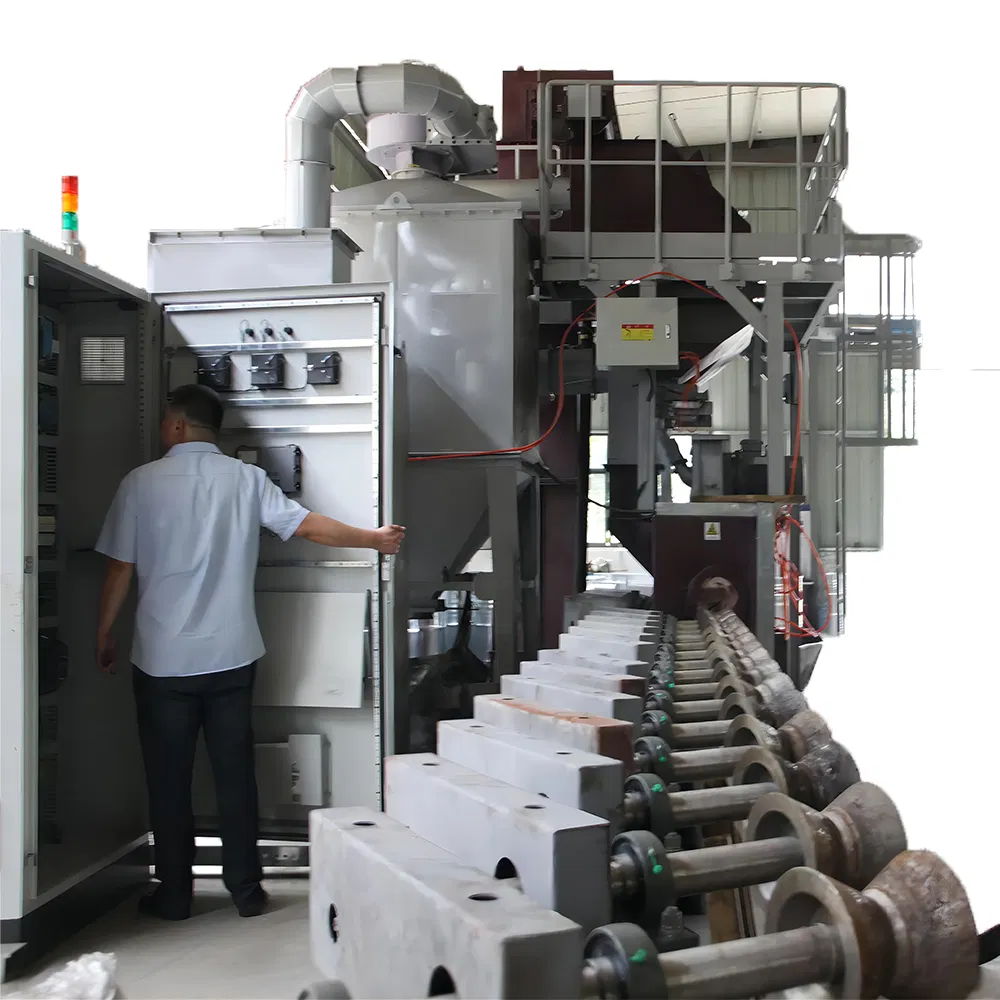

Shot Blasting Machine 1

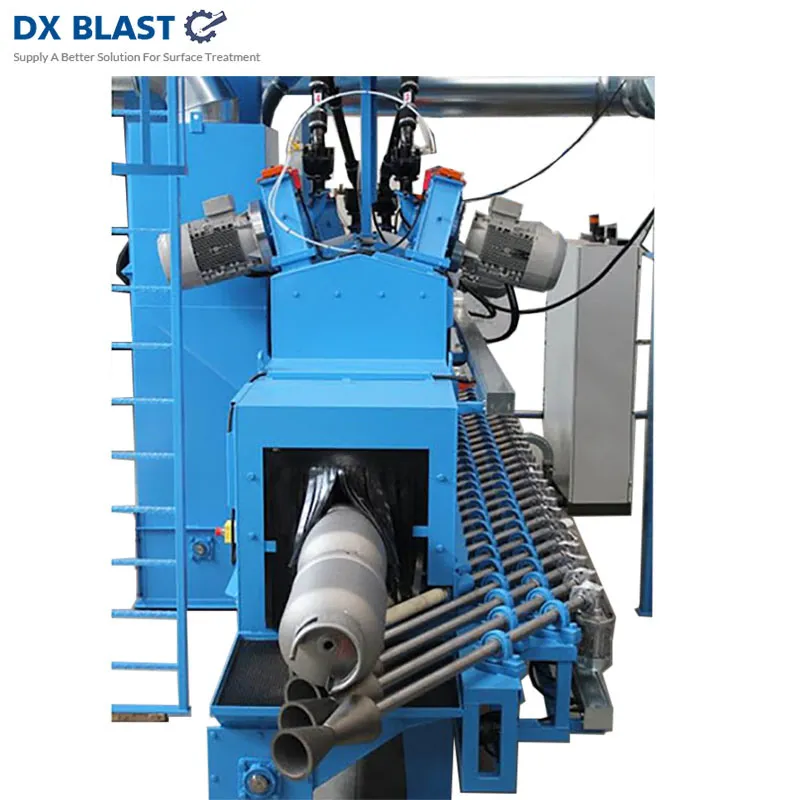

Shot Blasting Machine 2

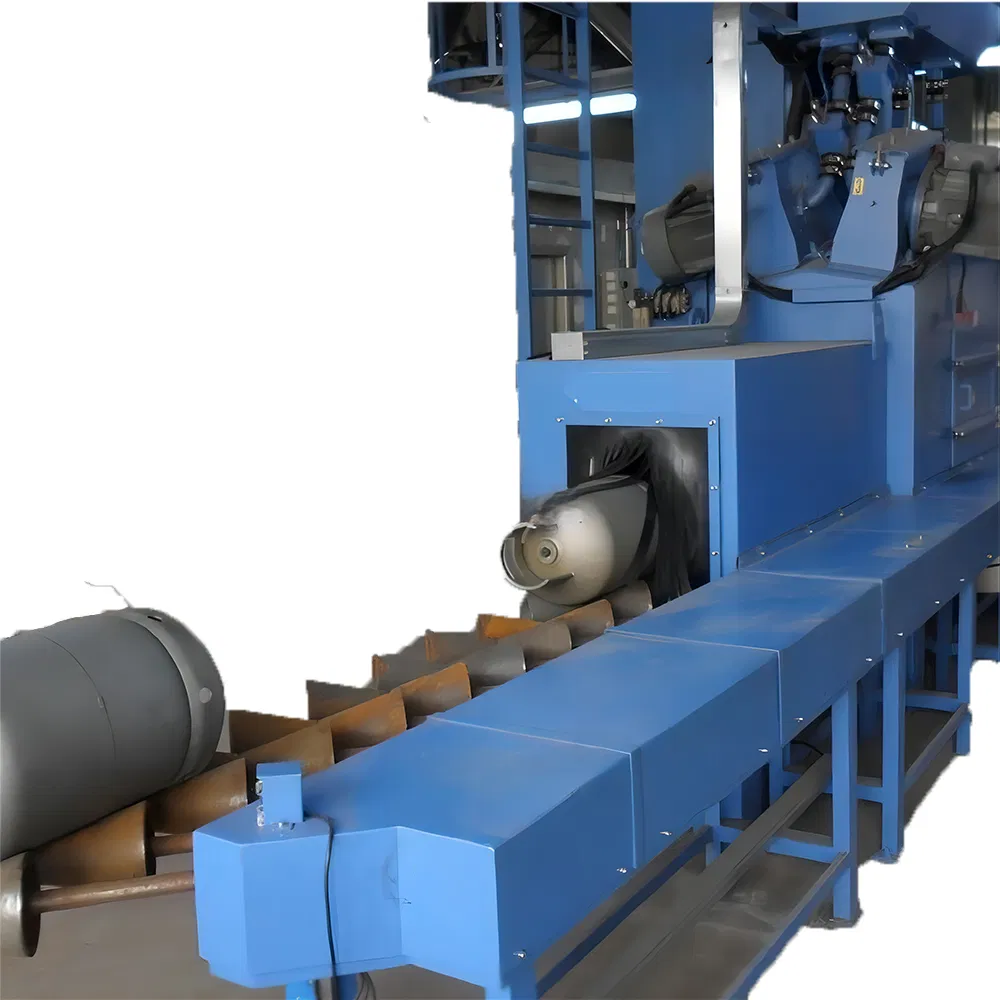

Shot Blasting Machine 3

A versatile range of roller conveyors is available, from small simple machines to heavy-duty preservation lines, configurable with 4, 6, 8, 10, or 12 wheel units to suit various production requirements.

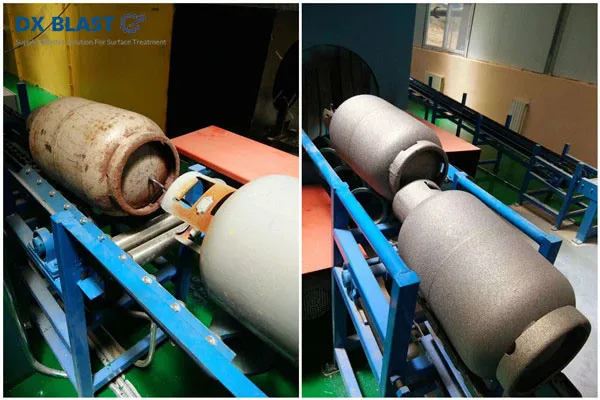

Equipment Detail 1

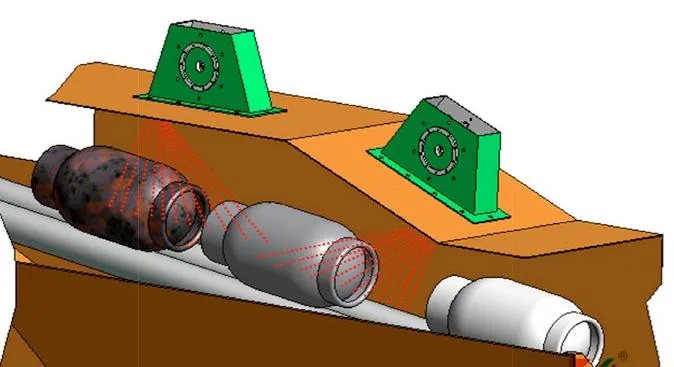

Equipment Detail 2
Technical Specifications: Steel Cylinder Shot Blasting Machine
Model DXGP300-2 DXGP400-2 DXQG484-4
Size of Steel Cylinder 2.2kg, 5kg, 10kg, 13kg, 15kg, 20kg, 45kg
Productivity 80~100pcs/hr 160~200pcs/hr 160~200pcs/hr
Blasting Turbine 7.5kw*2 15kw*2 11kw*4
Shots Recycle System 15 t/hr 30 t/hr 48 t/hr
Cylinder Transportation Roller Conveyor Overhead Conveyor
Dust Removal Volume 9000m³/hr 12000m³/hr 18000m³/hr
Surface Quality Sa2.5~3.0
Total Power 28kw 50kw 75kw

Note: These parameters can be fully customized according to specific client requirements to provide the most professional and cost-effective solution.

P

Gallery & Factory View

Factory Overview
Production Line 1
Production Line 2
Quality Control
Shipping Area
?

Frequently Asked Questions

How to choose the blast machine type?
Please provide information regarding your workpiece size and required productivity; our engineers will suggest the most suitable model.
How to choose the right abrasive?
Selection depends on the workpiece. Options include steel shot, cut wire shot, stainless steel shot, etc., in various sizes.
What is the quality warranty period?
We provide a 1-year warranty. Support is available through local technical assistance or online support.
Is a foundation pit essential for installation?
This depends on the specific machine size and the height constraints of your workshop.
How many workers are needed to operate the machine?
Typically 1 to 2 workers are sufficient, depending on the specific machine configuration.
Do you provide installation assistance?
Yes, we offer on-site installation assistance and operation training conducted by experienced engineers.
