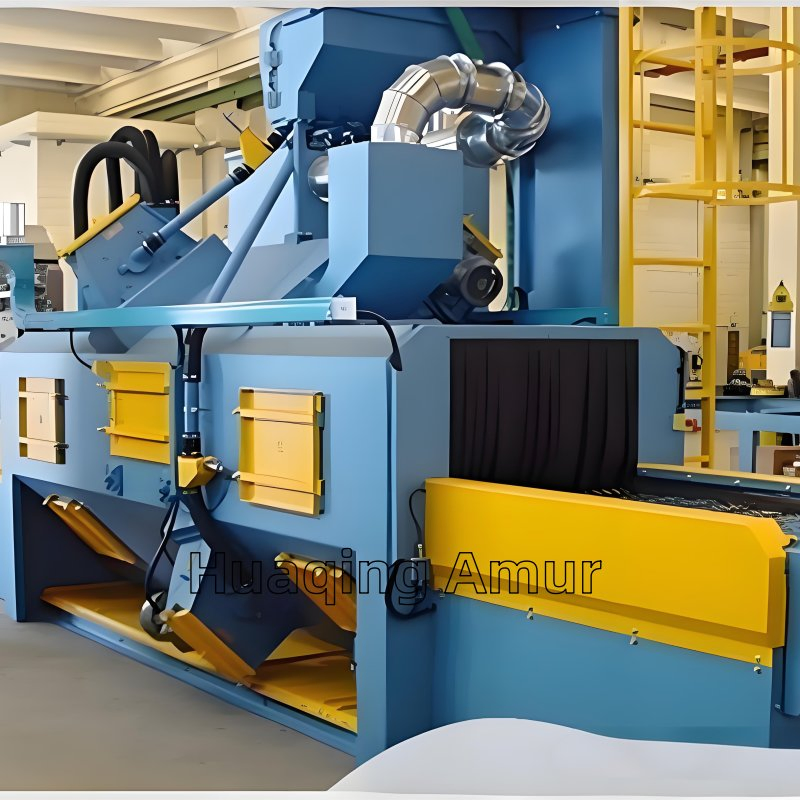

Automatic High-Performance H Beam Steel Profile Surface Cleaning Shot Blasting Machine/Steel Structure Sand Blasting Machine/Pipe Cleaning Machine/Sand Blaster

Customization: Available
After-sales Service: 24/7 on Line
Warranty: 12 Months

Product Description

Basic Information
Model NO.:QH6910
Application:Steel Structure, Beam, Steel Plate
Fuel:Electric
Type:Roller Pass Through Type Shot Blasting Machine
Cleanliness:SA2.5
Automation:Automatic
Certification:CE, TUV, ISO9001
Feature:Clean Rust, Descaling, Stress Removal
Impeller Speed:60-80m/S
Cleaning Speed:0.5-4m/Min
PLC:Siemens
Delivery Time:20-30 Working Days
Product Description

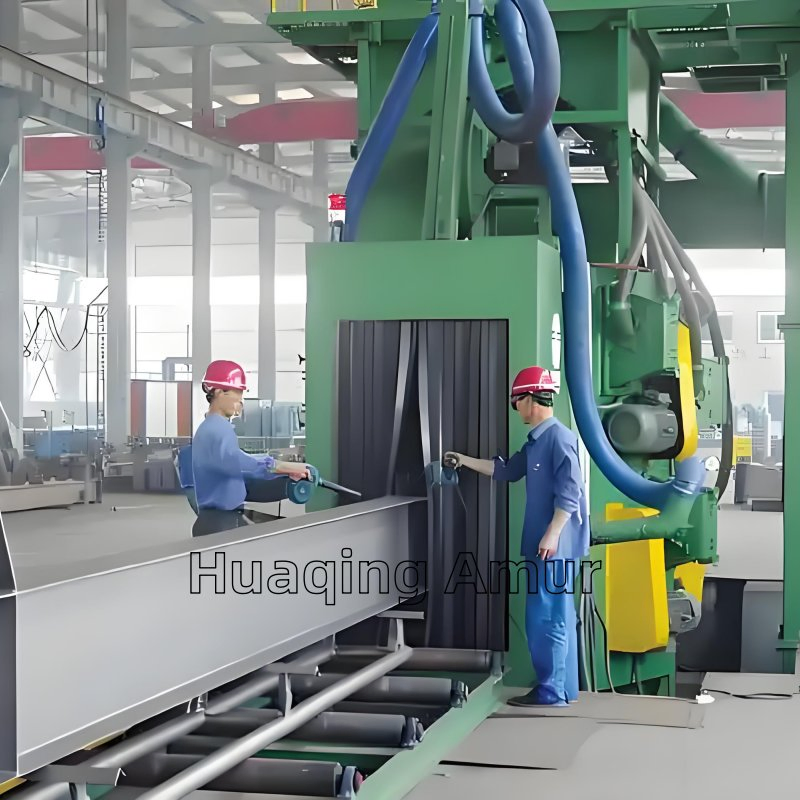

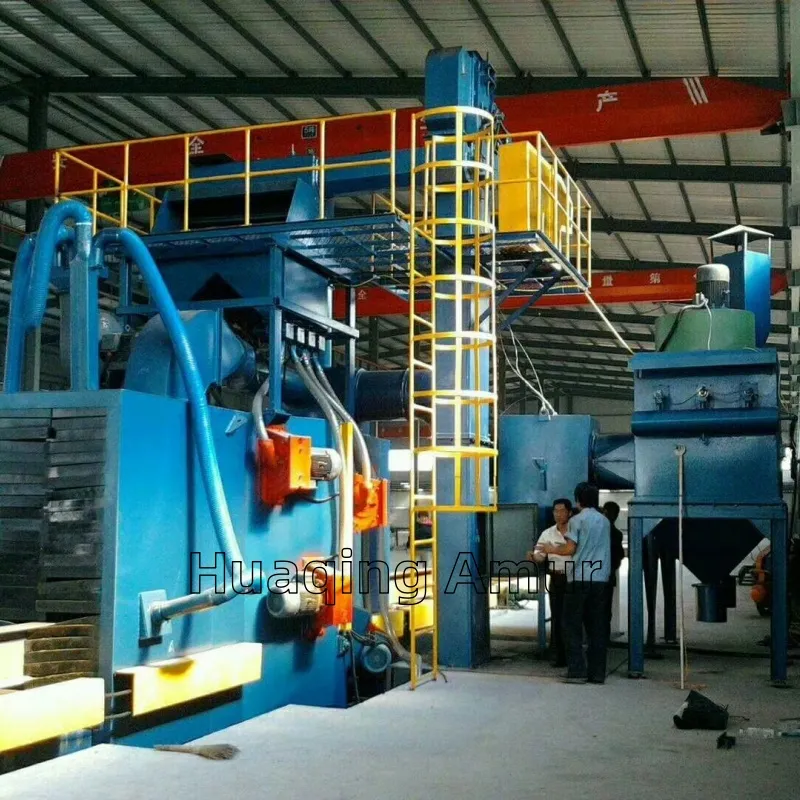

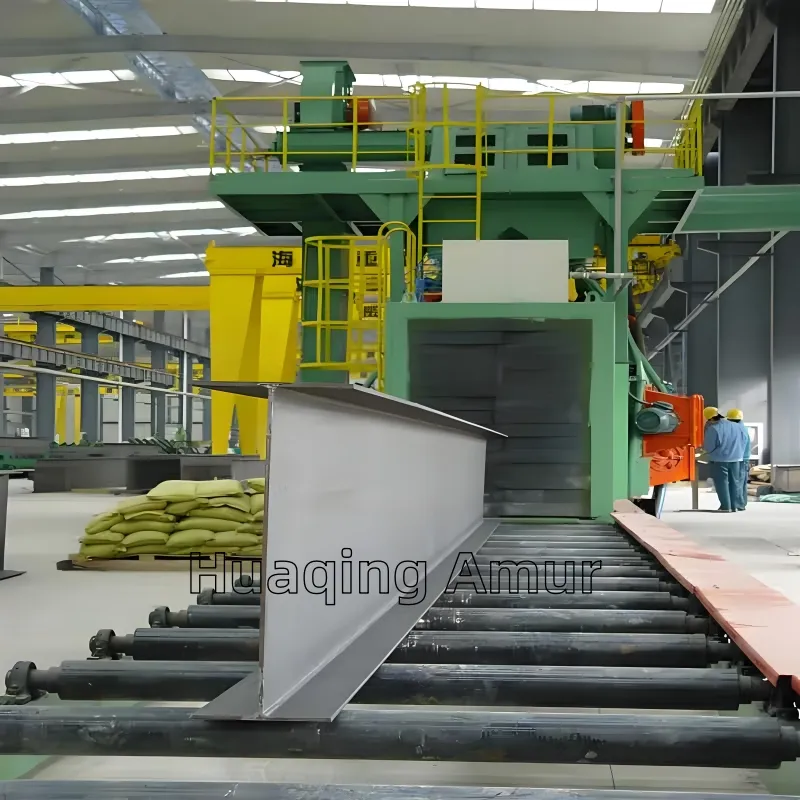

Automatic H-Beam Steel Profile Shot Blaster

The QH69 roller conveyor shot blasting machine is primarily used for cleaning and relieving internal stress in steel plates and large-scale steel structural components such as I-beams, H-beams, and I-sections for construction and bridge projects.

🚀 Key Features:
✅ Three-dimensional turbine arrangement simulation
✅ Increased quantity of turbine coverage
✅ Automatic PLC control system
✅ Automated continuous operation
✅ Superior roller protection performance
✅ High-efficiency automatic cleaning
🛠 Application Fields:
  • Steel Structure Industry: Pre-treatment for large I-beams, H-beams, towers, and bridges to enhance coating quality.
  • Shipbuilding Industry: Rust removal on ship plates to improve coating adhesion and extend service life.
  • Auto Industry: Cleaning chassis, frames, and components to remove scale and rust layers.
  • Machinery Manufacturing: Stress elimination and fatigue strength enhancement for various mechanical parts.
Technical Parameters
📊 Steel Cleaning Parameters
Model QH698 QH6912 QH6915 QH6920 QH6925 QH6930
Inlet Size (W*H mm) 1000*1600 1400*1600 1700*1700 2200*1800 2700*2000 3200*2500
Workpiece Length (mm) 1200-12000 1200-12000 1200-12000 1200-12000 1200-12000 1200-12000
Turbine Power (kw) 7.5kw 11-15kw 11-15kw 11-15kw 15-18kw 15-18kw
Technical Drawing
Main Products

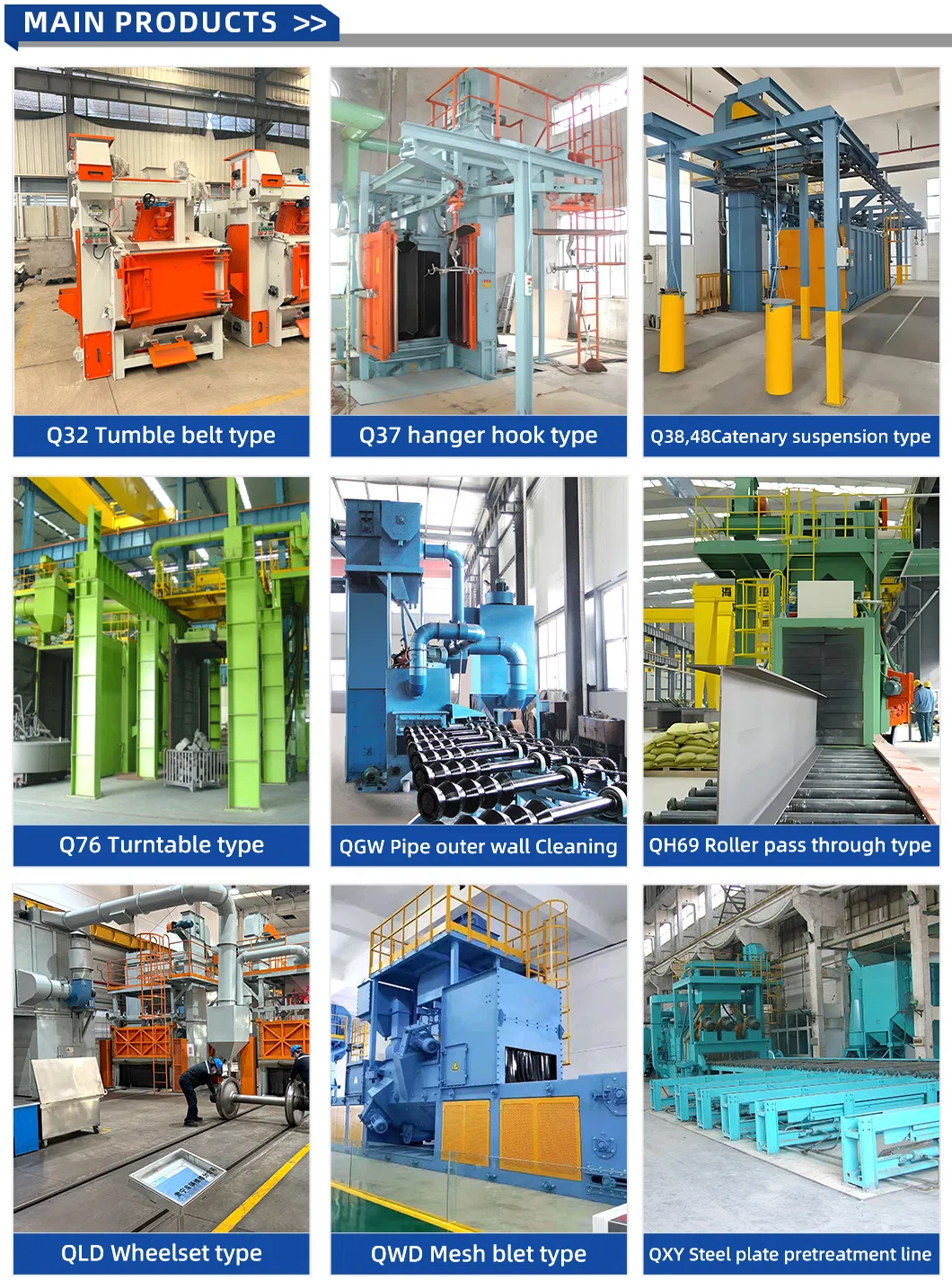

Product Range
Company Profile
Company Overview

We are a modern equipment manufacturing enterprise specializing in research, development, and manufacturing of shot blasting machines, sand processing equipment, and dust collection systems for over three decades. Our high-precision equipment is exported to over 30 countries and regions including Russia, Southeast Asia, the Middle East, Europe, and the Americas.

By integrating advanced technology, we implement precise control throughout the production process, ensuring zero-defect production. All equipment undergoes 100% pre-delivery testing to ensure reliable operation. We provide one-stop solutions and a commitment to free, timely pre-sales and after-sales service.

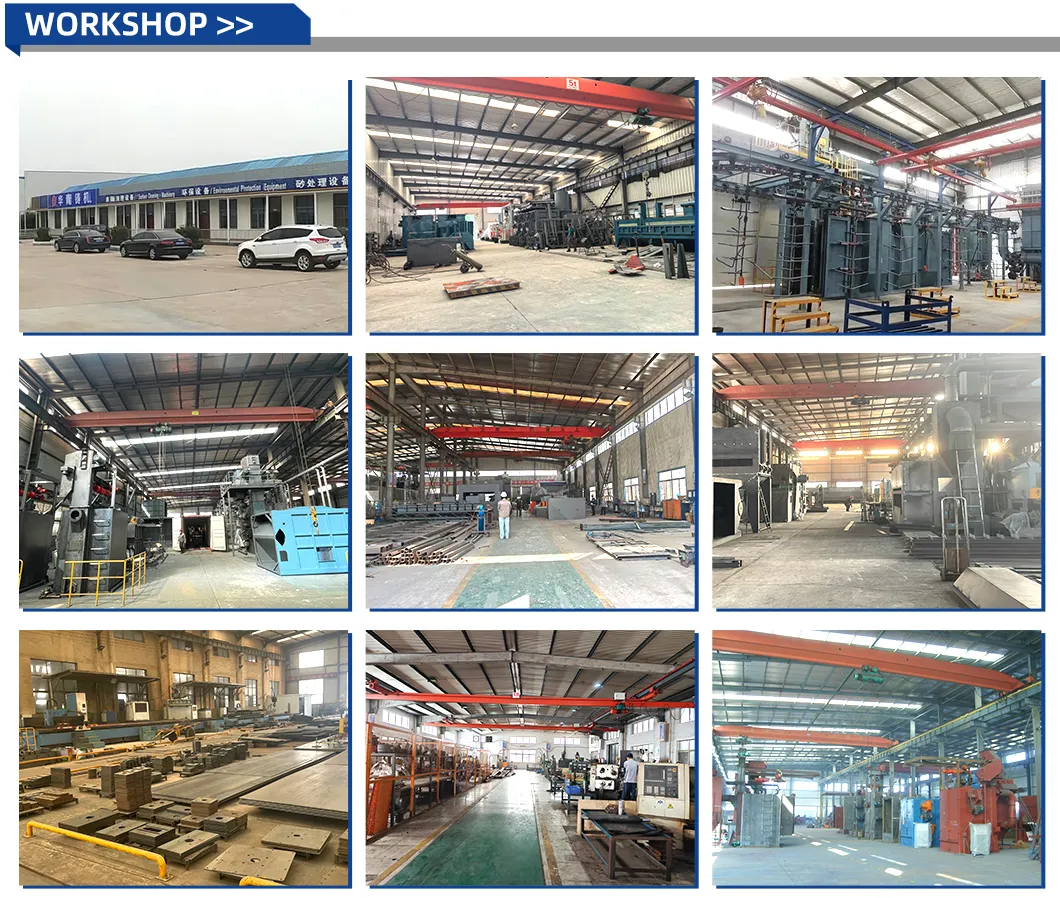

Workshop & Production Process
Certifications
Certificates
Exhibition & Our Customers
Packing & Delivery
Packaging Info
Frequently Asked Questions
How to choose the right machine?
Provide us with the maximum size, weight, and required productivity of your workpiece, and we will design the optimal solution for your needs.
What are the available payment terms?
We accept T/T, L/C, Western Union, and PayPal. Standard terms are a 30% deposit via T/T, with the balance due before shipment.
How is the machine delivered?
Machines are typically delivered via 40'HQ containers or by truck, depending on the destination and machine size.
What is the installation process?
For large and complex machinery, we provide on-site installation assistance and operation training by experienced engineers. For standard machines, we supply comprehensive manuals, photos, and videos.
What after-sales services are provided?
We maintain a full stock of spare parts, provide regular maintenance services, and offer 24/7 online technical support.
Why should you choose our solutions?
With over 30 years of focus on surface cleaning technology, we provide professional, one-stop solutions tailored to industrial requirements.
