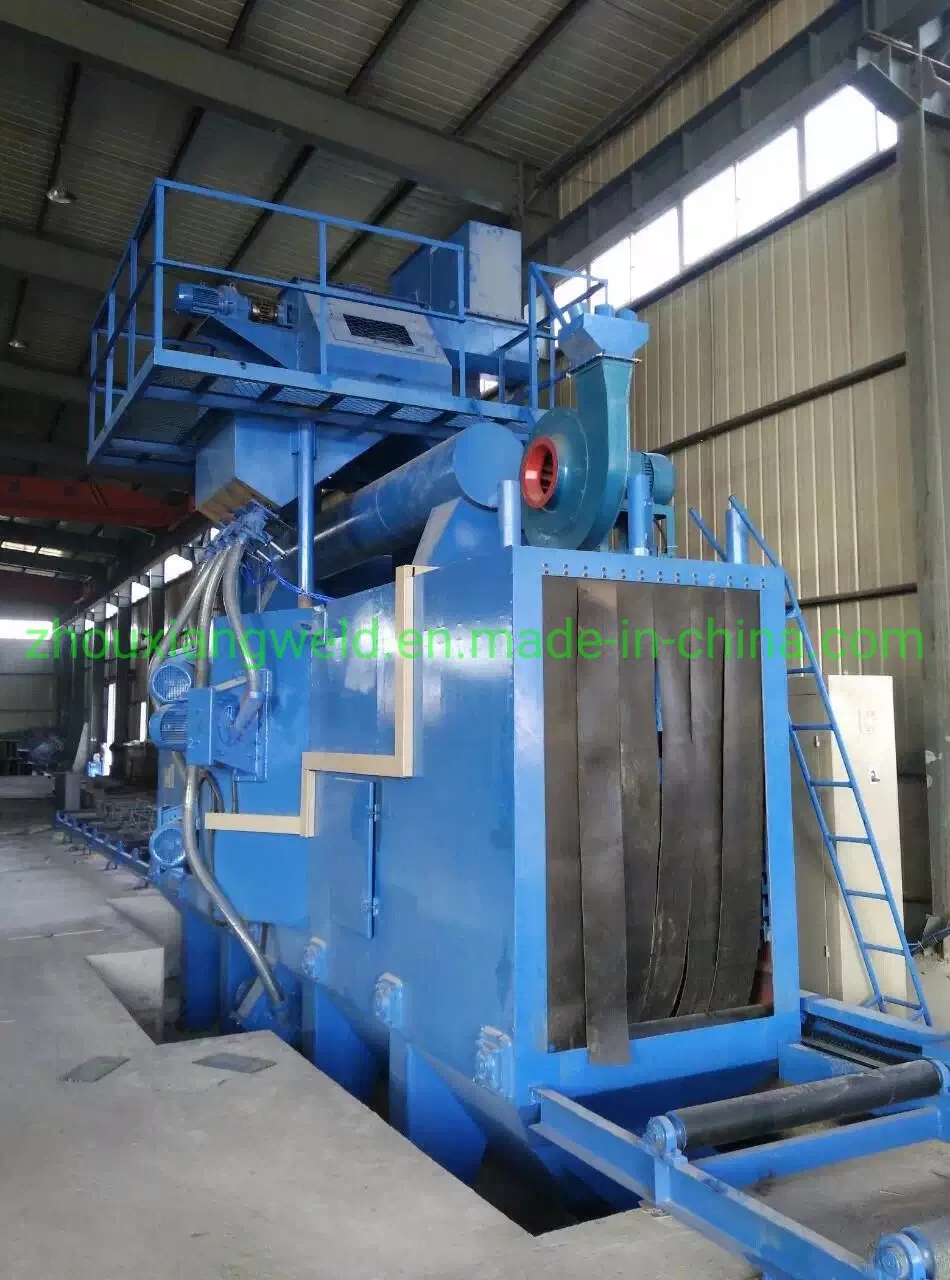

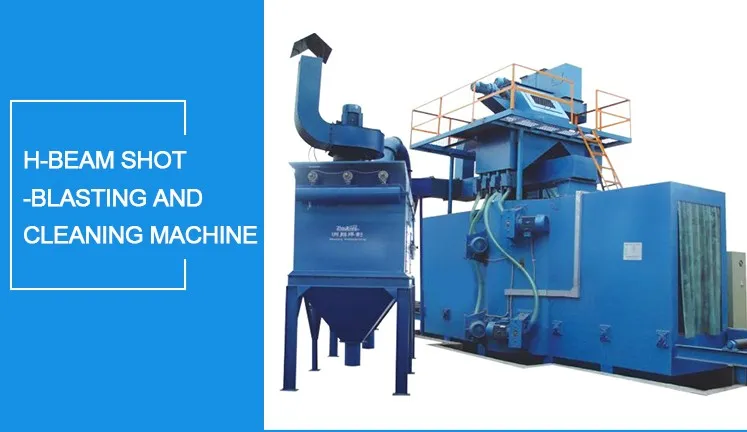

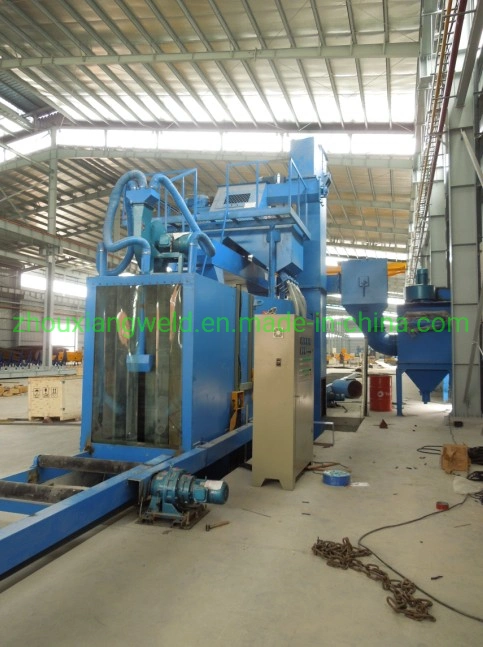

H Beam Steel Plate Profile Through Type Shot Blasting Cleaning Machine

Customization: Available
Application: Electronic Industry
Fuel: Electric

Product Description

📊 Basic Information
Model NO.
HGP
Type
Abrator
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE
Feature
Non-Toxic
Condition
New
Customized
Customized
Size
6100*2100*2900mm
Shot Blaster Qty
8
Conveying Speed
0.5~5m/Min
Work Piece Length
12000mm
Production Cap.
15sets/Month
HS Code
8460909000
⚙️ Product Description
Shot-blasting machine is a kind of shot-blasting equipment, which is applied to clean the surface of steel structure welding work-piece, H-style steel, plate and other profiles. It can clean away rusty spot, rusty scale, welding slag on the work-piece surface, as well as welding stress, in order to remove stress and improve surface lacquer quality and rot proofness of steel structure and steel.
Technical Parameter HGP0816 HGP1018 HGP1220
Width×height of work-piece800×1600mm1000×1600mm1200×2000mm
Length of work-piece3000~12000mm3000~15000mm3000~15000mm
Quantity of Shot blaster888
Allowable load of conveyor1000kg/m1000kg/m1000kg/m
Conveying speed0.5~5m/min0.5~5m/min0.5~5m/min
Air volume for dust removal12000m3/h12000m3/h12000m3/h
Circulation of grinding shots120t/h120t/h120t/h
External dimension (L×W×H)6770×2100×2900mm7200×2300×3250mm7200×2520×3650mm
Depth of pit1950mm1950mm1820mm
Total power135kW140kW140kW
Note: Standard models can be designed and manufactured according to customer's request.
🌍 Global Reach
🛠️ Main Products & Solutions
🏢 Company Overview
Founded in 1991, we have fixed assets of 150 million yuan and cover an area of 160,000 m2. With a dedicated staff of 500 people, including more than 100 engineering and technical personnel, we are a leading provider of professional welding and cleaning equipment. Our quality management system is ISO9001 certified, and many products have achieved China Compulsory Certification (CCC). Our equipment is widely exported to Europe, America, Southeast Asia, the Middle East, and other regions.

Our product portfolio includes CNC flame/plasma cutting machines, H-beam light and heavy-duty production lines, horizontal H-beam production lines, assembly welding straightening integral machines, corrugated web H-beam production lines, box beam production lines, welding manipulators, rotators, positioners, edge milling machines, end face milling machines, shot blasting machine series, plate rolling machines, profile bending machines, fiber laser cutting machines, and automated welding/cutting robots.
Frequently Asked Questions
What types of work-pieces can the shot-blasting machine clean?
The machine is designed to clean steel structure welding work-pieces, H-style steel, steel plates, and various other profiles effectively.
Does the machine help in improving painting quality?
Yes, by removing rusty scale, welding slag, and spots, it significantly improves surface lacquer quality and the overall rot-proofness of the steel.
Is the equipment customizable for specific sizes?
Absolutely. While we have standard models like the HGP series, we can design and manufacture equipment according to specific customer requirements.
What is the typical conveying speed of the HGP series?
The conveying speed ranges from 0.5 to 5 meters per minute, allowing for thorough cleaning based on the level of surface contamination.
What certifications do your products hold?
Our products are manufactured under ISO9001 quality systems and carry CE and CCC certifications to ensure international safety and quality standards.
How many shot blasters are included in the standard HGP series?
The standard HGP0816, HGP1018, and HGP1220 models are equipped with 8 high-efficiency shot blasters.
