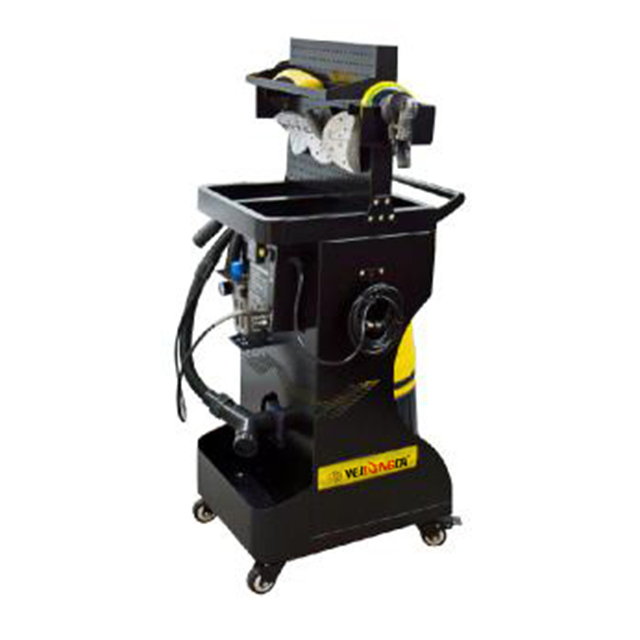

Wld-98b Plus Mobile Sandblasting Dust Collector Dry Grinding System
Wld-98b Plus Mobile Sandblasting Dust Collector Dry Grinding System
Wld-98b Plus Mobile Sandblasting Dust Collector Dry Grinding System
Wld-98b Plus Mobile Sandblasting Dust Collector Dry Grinding System
Wld-98b Plus Mobile Sandblasting Dust Collector Dry Grinding System
1 / 5
Wld-98b Plus Mobile Sandblasting Dust Collector Dry Grinding System
Wld-98b Plus Mobile Sandblasting Dust Collector Dry Grinding System
Wld-98b Plus Mobile Sandblasting Dust Collector Dry Grinding System
Wld-98b Plus Mobile Sandblasting Dust Collector Dry Grinding System
Wld-98b Plus Mobile Sandblasting Dust Collector Dry Grinding System

Wld-98b Plus Mobile Sandblasting Dust Collector Dry Grinding System

Customization: Available
After-sales Service: Online and Others
Warranty: 12 Months
Send Inquiry

Product Description

Basic Specifications
Model NO.
WLD-98B PLUS
Power Supply
220V AC
Buffing Pad Size
6 inch
Power
60W
Certification
CE
Rotational Speed
600-1499r/m
Dust Bucket
1 Unit
HS Code
8479820090
Origin
China
Production Capacity
1000 Sets/ Year
Product Description & Components

Removing harmful airborne contaminants from the manufacturing process is an essential part of creating a safe working environment. Exposure to dust and fumes can not only cause long term health problems for operators but can also damage machinery, reduce productivity and lower the quality of end products.

Tool Cart
Tool Cart
Quantity: 1
Dust Bucket
Dust Bucket
Quantity: 1
Serving System
Serving System
Quantity: 1
6 inch Porous 5mm Grinder
6 inch Porous 5mm Grinder
Quantity: 1
Two-in-One Vacuum Hose
Two-in-One Vacuum Hose
Quantity: 1
Tee Kit
Tee Kit
Quantity: 1
Mobile Sandblasting Dust Collector
Advanced Cleaning Technology: Regular dusting will give dust, allergens, germs, and bacteria fewer places to hide. Our dry cleaning process is designed to remove the most stubborn stains and particles that other processes cannot reach.
Key Features & Advantages
🛡️
Dust-Free Design: Specifically engineered for industrial dust-free grinding workshops to ensure maximum hygiene.
🚀
Turbo Technology: Features a 1200W ultra-quiet motor with high-road suction principle for superior dust collection.
🔄
Dual Operation: Supports both automatic and manual switching. The vacuum activates with the grinder and delays 5-8 seconds after stopping to clear residual dust.
💧
Self-Maintenance: Equipped with a high-precision oil-water separator; the grinder automatically supplies lubricating oil.
👥
Dual Station Support: Strong suction allows two stations to work simultaneously with over 90% collection efficiency.
Technical Parameters
Working Pressure 6.1KG/cm² Power Consumption 1,200W ± 10%
Negative Pressure 2,100mm/H2 Capacity 36L
Air Volume 2.5mm²/min Voltage 220-240V/60HZ
Dimensions 73 * 54 * 95cm Weight 64KG
Frequently Asked Questions
Q: Can this system support two operators at once?
A: Yes, the system is designed with strong suction capabilities to support two stations working simultaneously with a dust collection efficiency of over 90%.
Q: How does the automatic switching function benefit the user?
A: The vacuum host automatically starts when the grinding machine is in operation and stops with a 5-8 second delay, ensuring all residual dust is sucked away while saving energy.
Q: Does the machine require manual lubrication?
A: No, the system includes a high-precision oil-water separator and oil mist system that automatically supplies lubricating oil to the grinder for maintenance.
Q: What is the filtration precision of the WLD-98B PLUS?
A: The machine features high-precision double dust filtration to ensure workshop hygiene and protect operators from breathing harmful dust particles.
Q: What applications is this system best suited for?
A: It is ideal for substrate preparation before painting, including atomic ash grinding, primer sanding, and finish polishing.
Q: Is the motor noisy during industrial use?
A: The system uses a 1200W ultra-quiet high-road motor designed for low noise and high efficiency in professional workshop environments.
