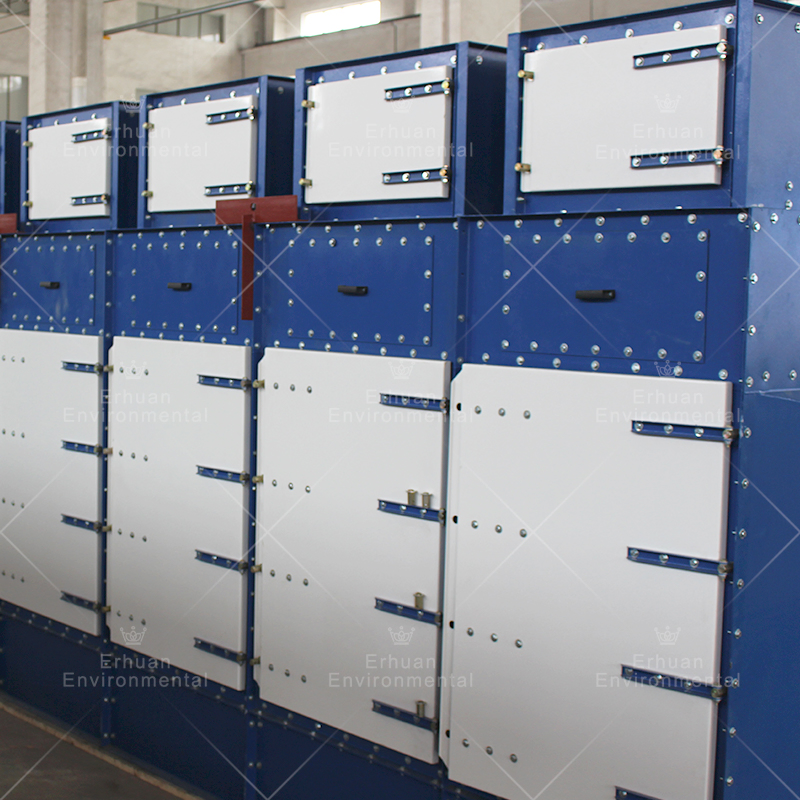

Erhuan Dust Extraction Collector System for Steel Plate Sandblasting Lines

Customization: Available
Certification: CE, ISO
Installation
Method:
Horizontal

Product Description

📋 Basic Information
Model NO.
EH-DHC
Operation Type
Automatic
Medium Material
Metal Fiber
Dust Collecting Method
Half Dry
Type
Filter Cartridge Dust Collector
Filter Material
Antistatic Filter Cartridge
Air Volume
1000-8000m³/H
Motor
2.2kw - 22kw
Motor Brand
Simens/Dongyuan/Wannan
Colour
Ral9001/Ral5015/Ral9014
Origin
China
Production Capacity
5000
📦 Packaging & Delivery
Package Size
1303.00cm * 650.00cm * 1310.00cm
Gross Weight
230.000kg
Transport Package
Plywood Packing
💻 Product Description

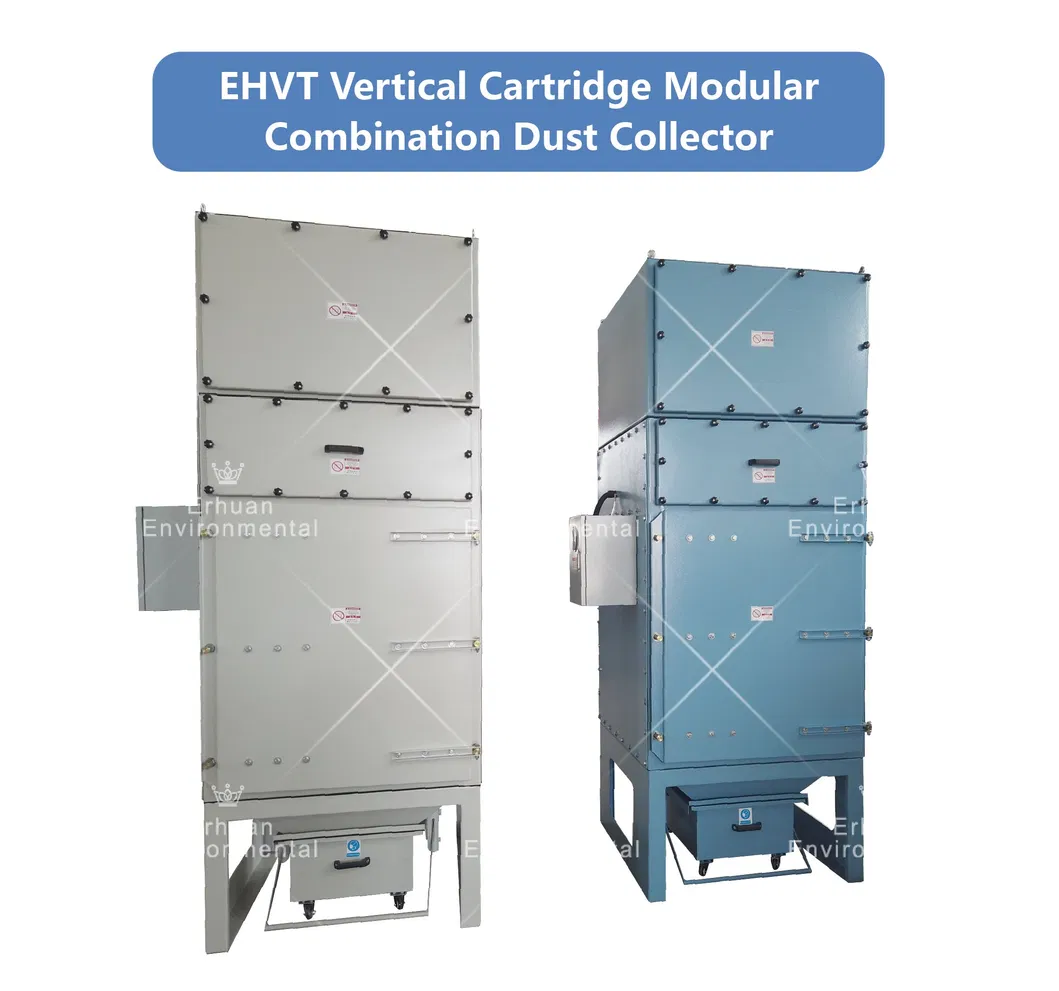

EHVT Vertical Cartridge Modular Combination Dust Collector, Cartridge Dust Collector, Floor Cleaner, Air Filter, Explosion Proof Dust Collector.
Dust Extraction System 1
Dust Extraction System 2
Dust Extraction System 3

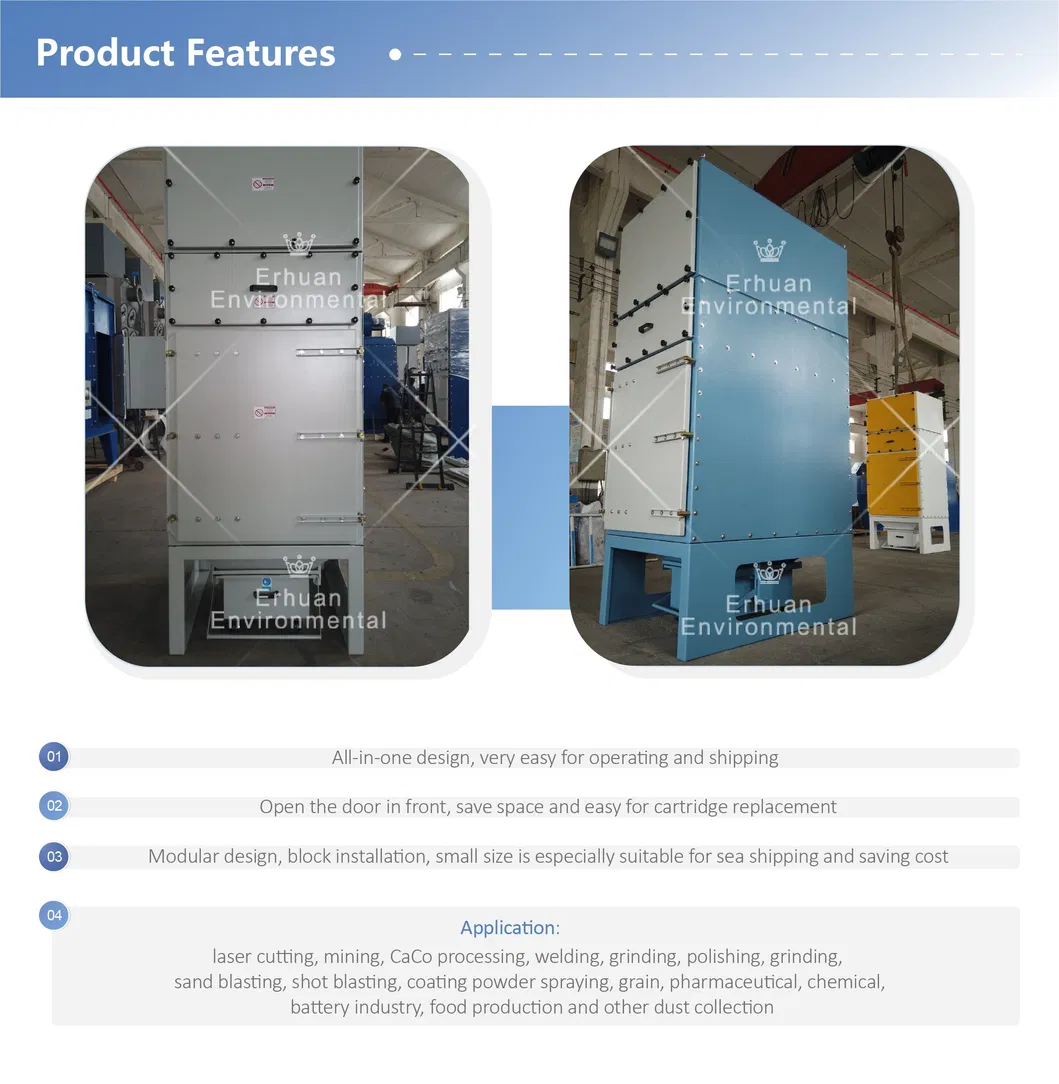

Dust Extraction System 4

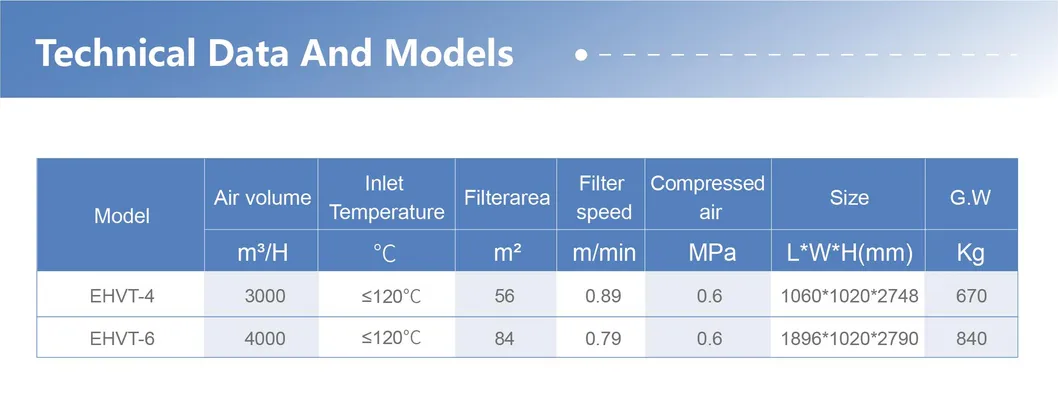

Dust Extraction System 5
Model Air Volume (M³/H) Size (L*W*H mm) Cartridge Filter Qty (pcs) Pulse Valve Qty (pcs) Power (KW) N.W (T)
DHC-4YT40001020*1000*274044@DN*255.50.654
DHC-6YT60001020*1426*279066@DN*257.50.840
DHC-8YT80002040*1000*289088@DN*25111.025
DHC-12YT120002040*1426*29001212@DN*25111.320
Model Air Volume (M³/H) Size (L*W*H mm) Cartridge Qty (pcs) Pulse Valve (pcs) N.W (T)
DHC4-440001020*1000*381344@DN*250.624
DHC4-880002040*1000*381388@DN*251.136
DHC4-12120003060*1000*38131212@DN*251.648
DHC4-24240006120*1000*38132424@DN*253.184
DHC4-404000010200*1000*38134040@DN*255.232
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Operation View
Scale Footer
❓ Frequently Asked Questions
How is the price determined?
The price is based on your requested technical data, such as air volume, application, and configuration. Different models have different prices. Please provide detailed technical data or photos for an accurate quote.
What payment methods are accepted?
We accept most payment methods, primarily T/T, L/C, and Western Union.
What is the warranty period for the products?
Our officially promised warranty time is one full year after delivery.
What is the typical delivery time?
Delivery depends on order quantity and complexity. Generally, shipment is 4 weeks after deposit for standard 380v/50hz/3phase fans. For special electrical requirements, delivery is within 6-8 weeks.
Is customized logo service available on the machine?
Yes, we support customized logo services. Please note that this is an additional service and a small extra fee may apply.
Can you design products based on specific needs?
Absolutely. We have a dedicated product design team to meet your personal customization and engineering requirements.
