Blatrixo Machine
Blatrixo Machine

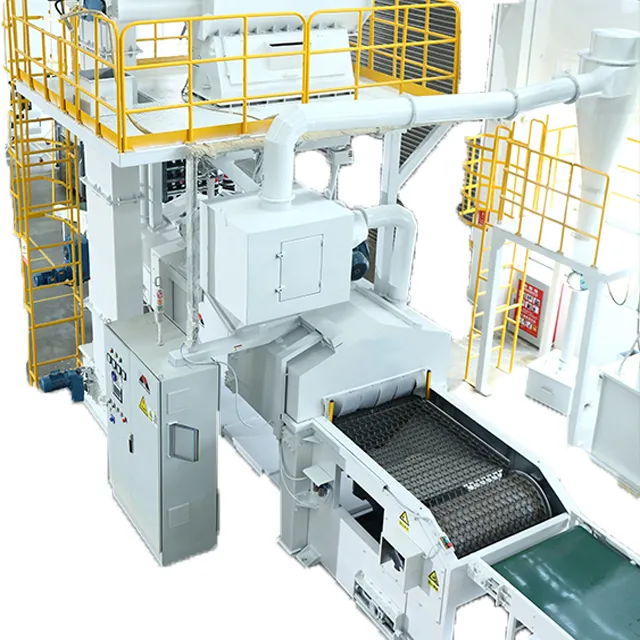

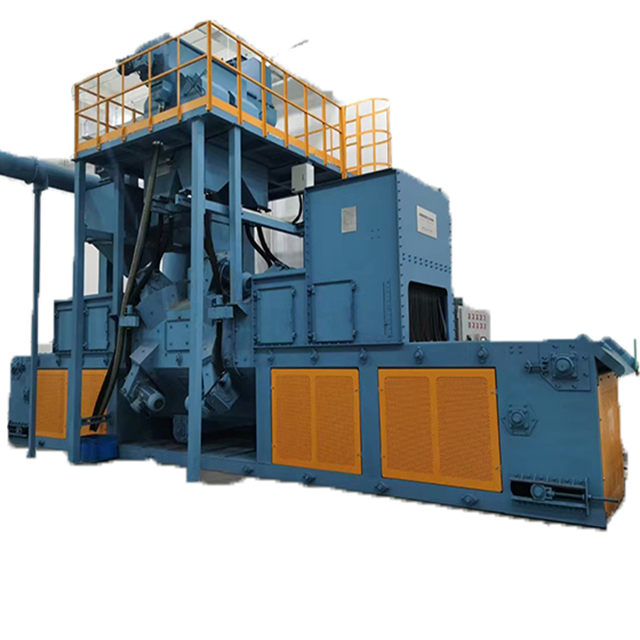

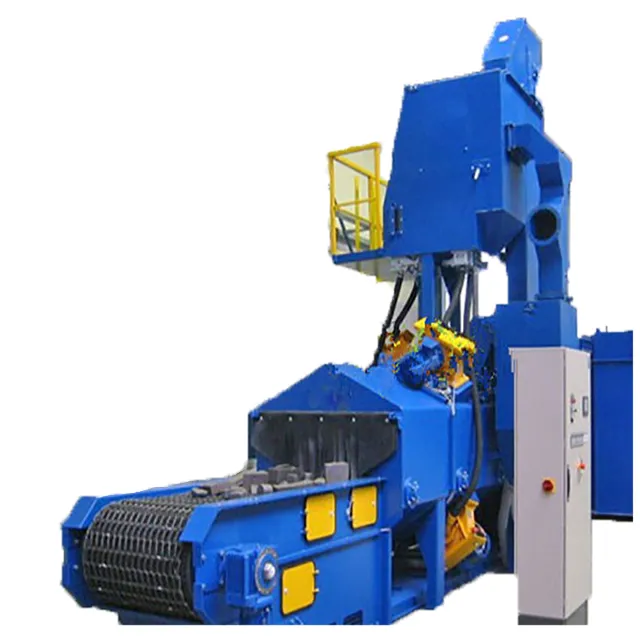

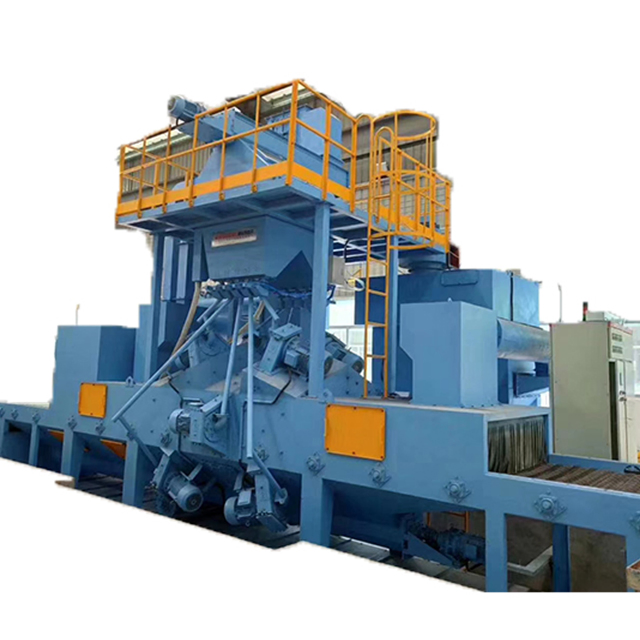

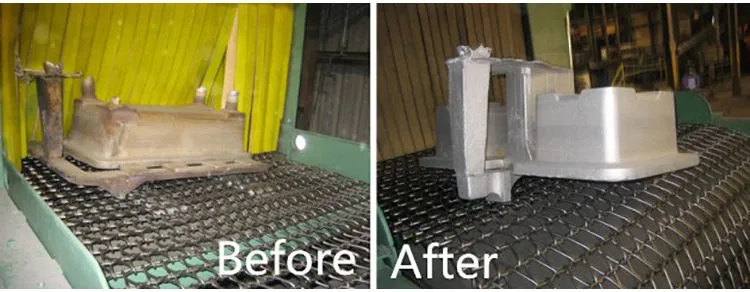

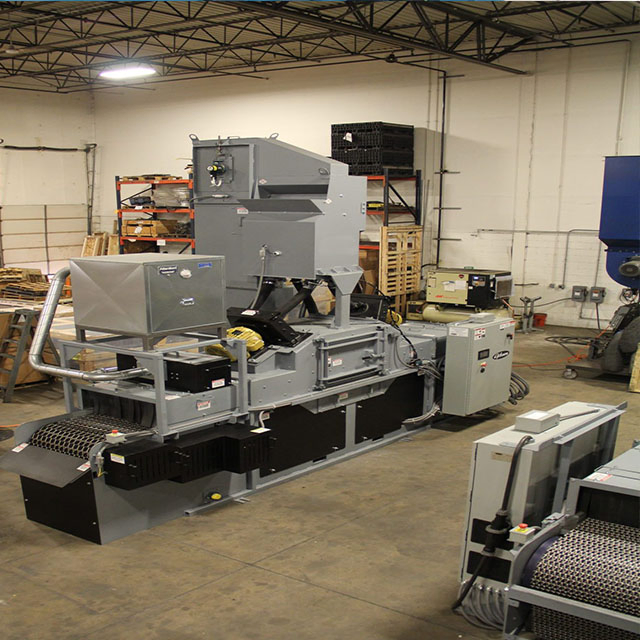

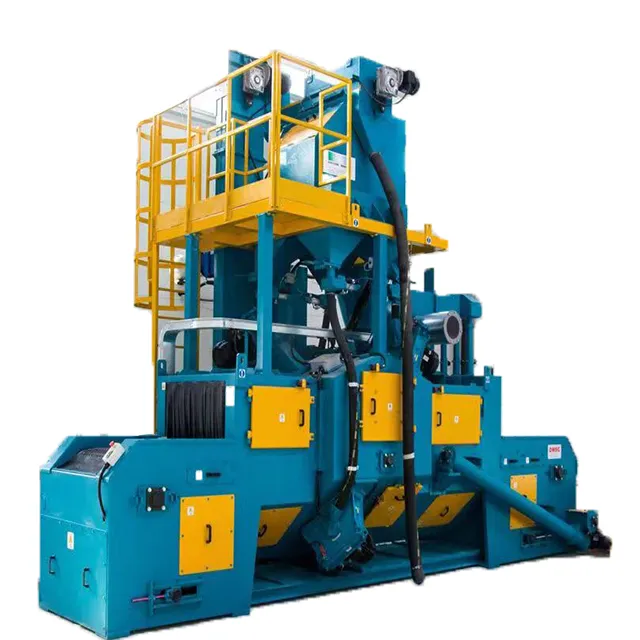

Mesh belt-type shot blasting machine/Sand blast Equipment is mainly used for thin-walled castings, thin-walled and fragile iron or aluminum alloy castings, ceramic and other small parts surface shot blasting. It can also be used for mechanical parts shot blasting and strengthening with high cleaning efficiency and low deformation characteristics.

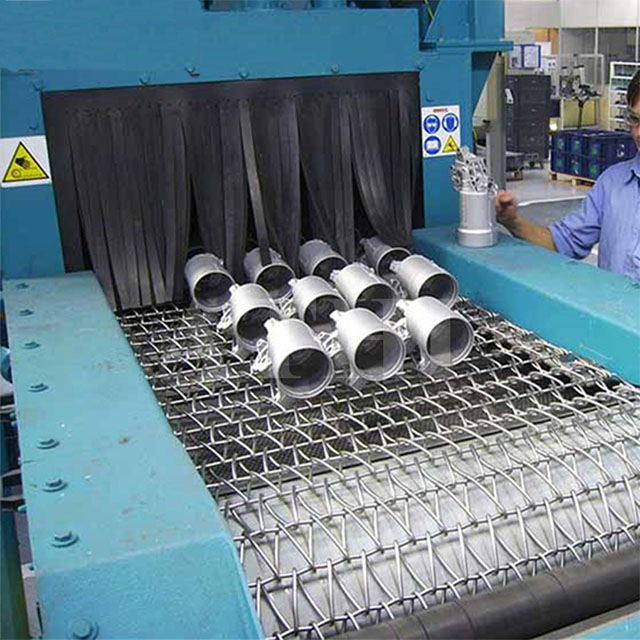

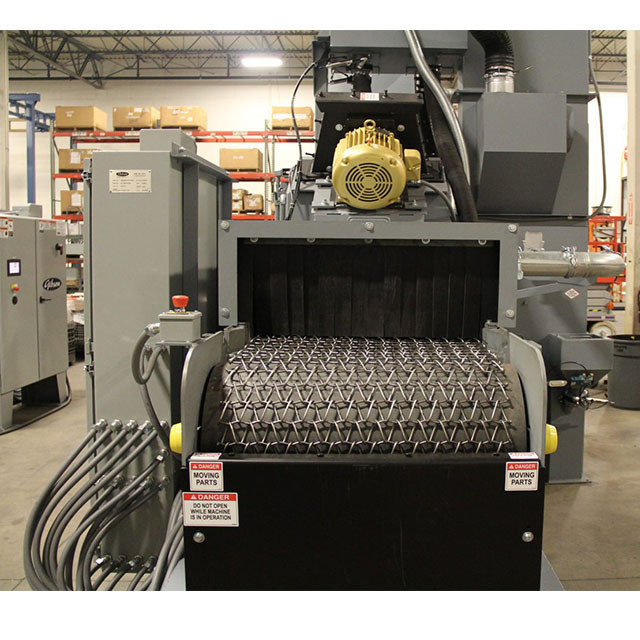

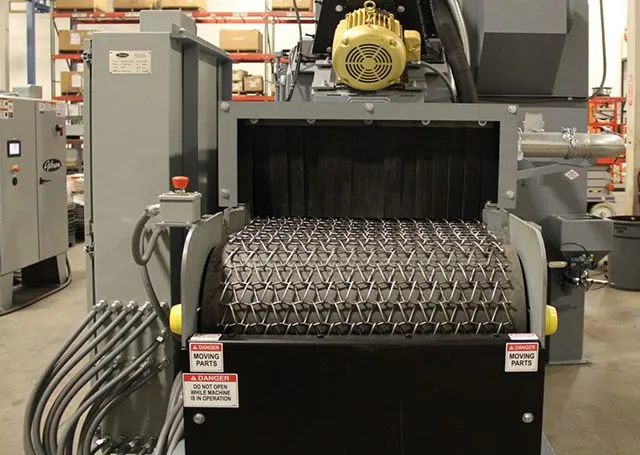

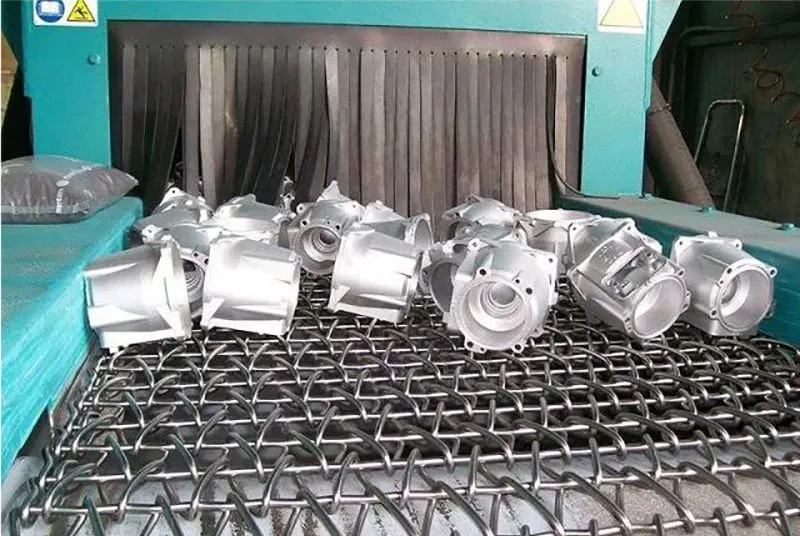

Work-pieces are placed on the wire mesh conveyor with high wear resistance, shot blasted both above and below in a single pass. Progress speed and blast wheel rotation can be controlled via the Inverter.
| Item & Type | DX60 | DX80 | DX100 | DX120 |
|---|---|---|---|---|
| Width of net (mm) | 600 | 800 | 1000 | 1200 |
| Cleaning speed (m/min) | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
| Shot blasting rate (kg/min) | 4-120 | 4-150 | 4-180 | 4-250 |
