Blatrixo Machine
Blatrixo Machine

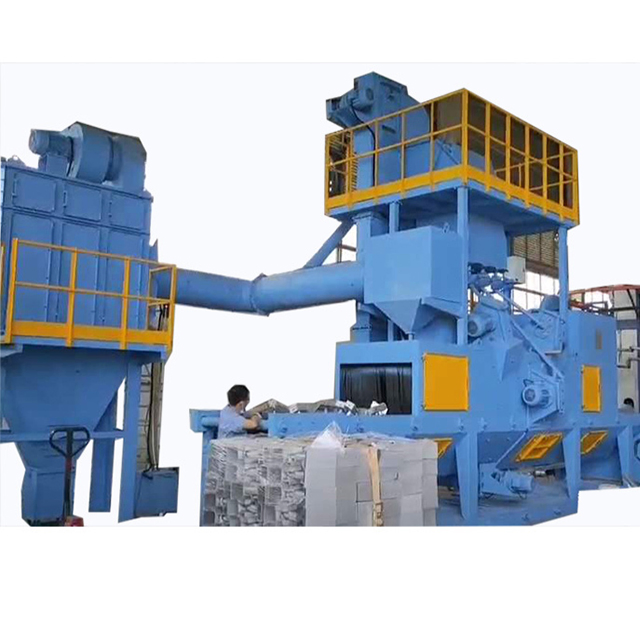

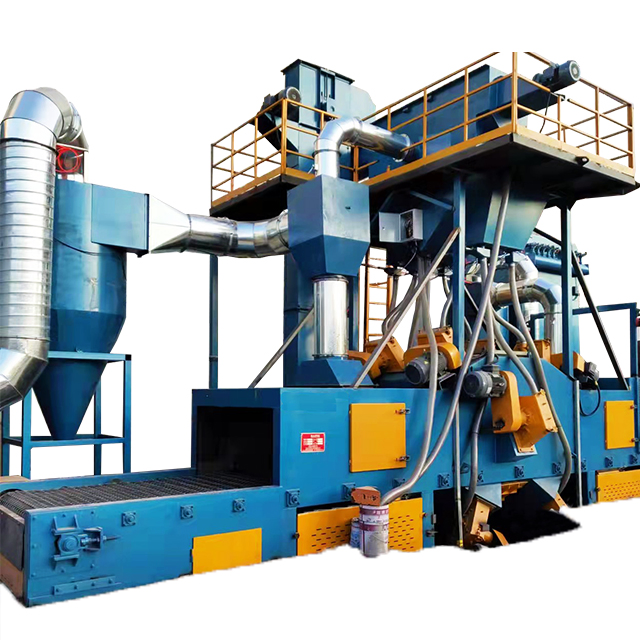

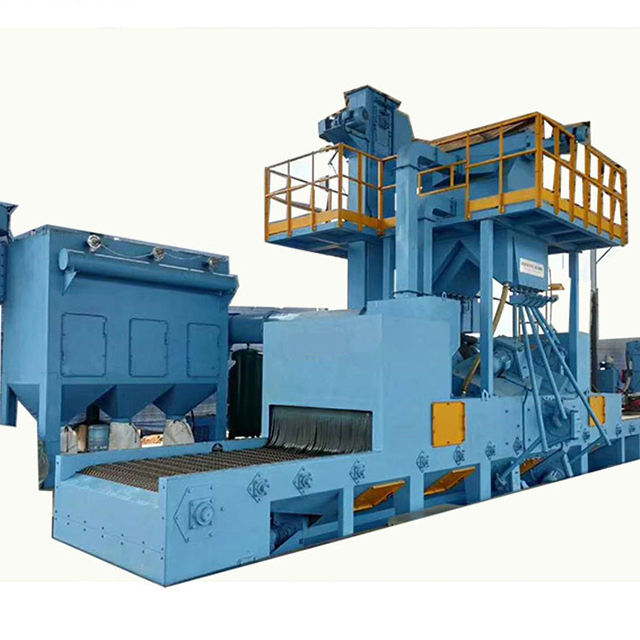

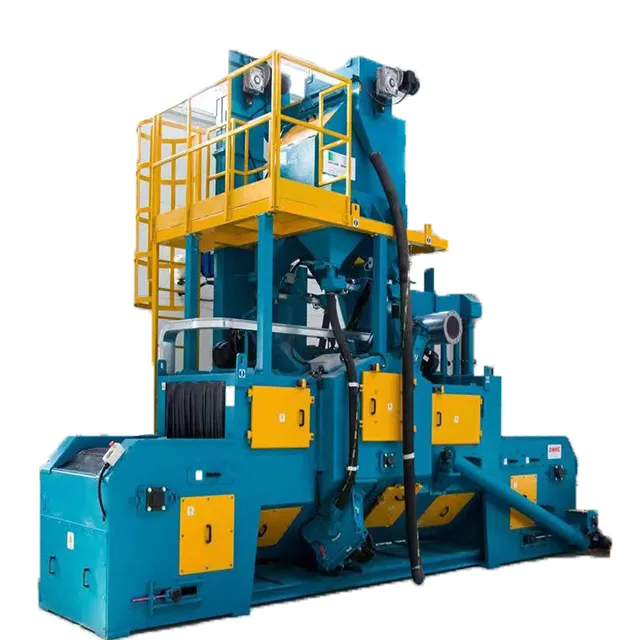

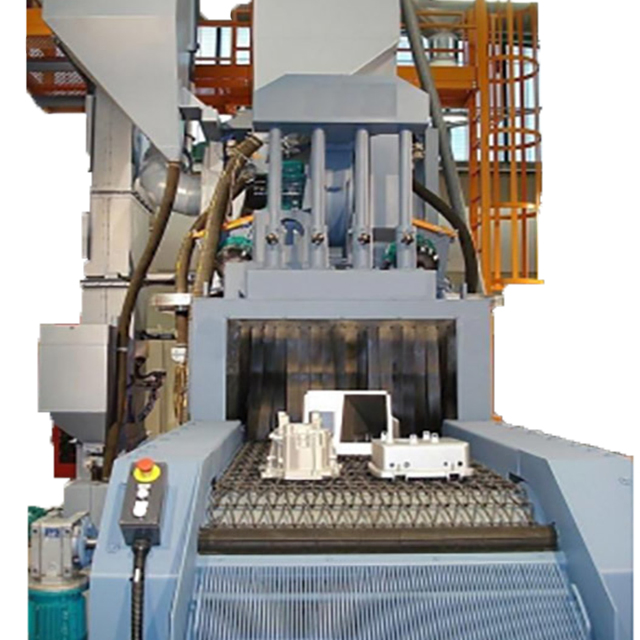

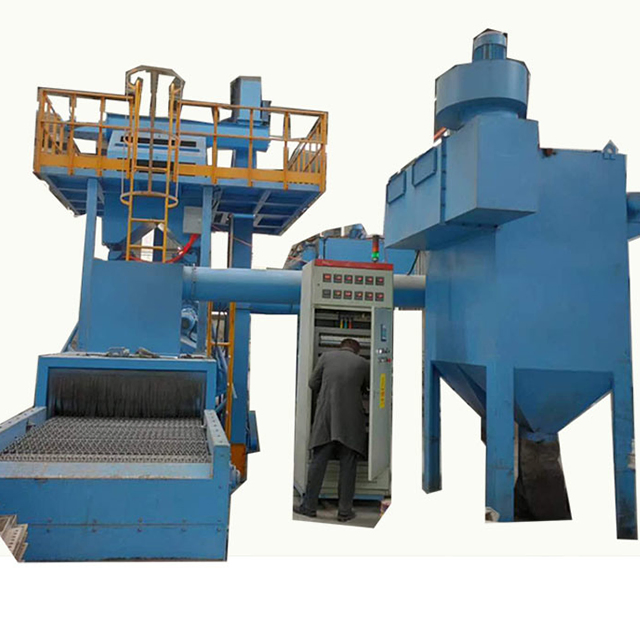

Mesh belt-type shot blasting machine is mainly used for thin-walled castings, fragile iron or aluminum alloy castings, ceramic and other small parts surface shot blasting. It can also be used for mechanical parts shot blasting and strengthening with high cleaning efficiency, small deformation, and no pit characteristics.

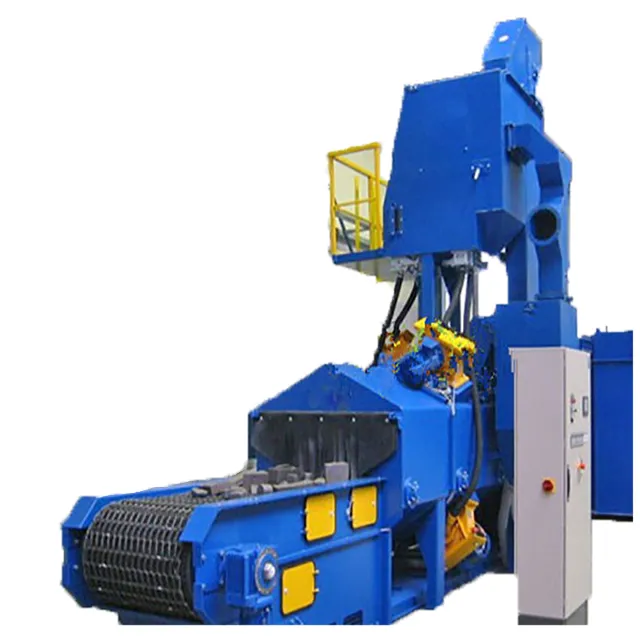

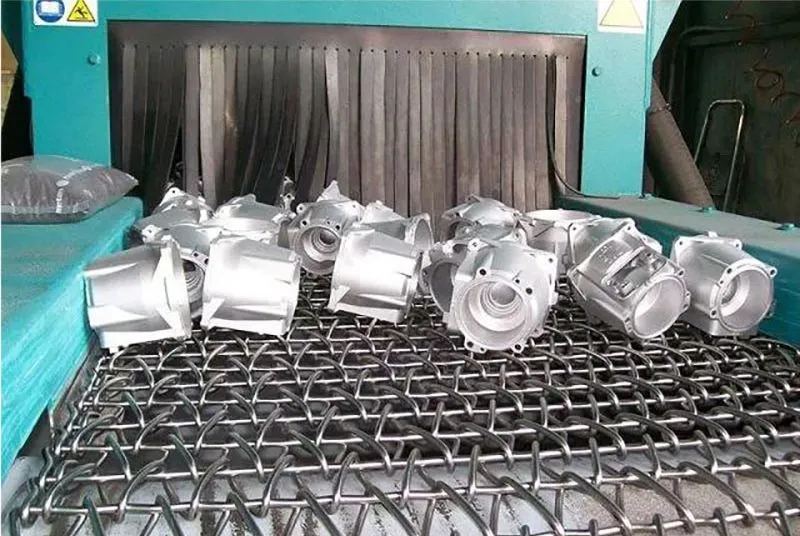

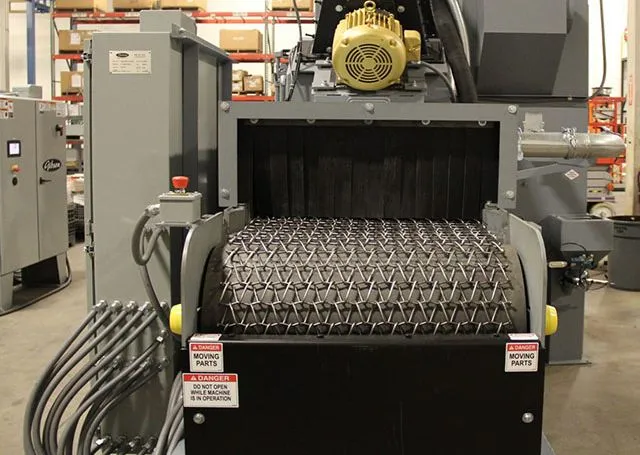

Work-pieces are placed on the high wear-resistant wire mesh conveyor, shot blasted both above and below in a single pass. Speed and rotation can be adjusted via Inverter.
Wire Conveyor Width: 600-1200mm
Wire Conveyor Speed: 0.5-4m/min
Wire Conveyor Load: Max unit 150kg
Wire Mesh Diameter: 3.5-6.5mm
Max Temperature: <1000°c
Chamber Shell: 10mm fabrication steel
Chamber Liner: 10mm Mn alloy liner with high resistance

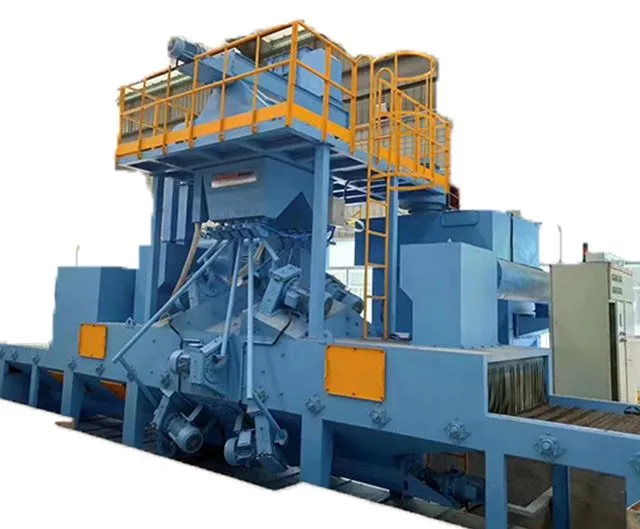

Auxiliary Blasting Chamber: Four layers rubber curtains to prevent shots escaping
Curtains: Durable rubber curtains
Model: Automatic (Manual type available)
Control Unit: PLC optional
Emergency Stop: Located on main control panel and conveyors
Power Indicator: Available on control panel
| Item & Type | DX60 | DX80 | DX100 | DX120 |
|---|---|---|---|---|
| Width of net (mm) | 600 | 800 | 1000 | 1200 |
| Cleaning speed(m/min) | 0.5-2 | 0.5-2 | 0.5-2 | 0.5-2 |
| Shot blasting rate(kg/min) | 4-120 | 4-150 | 4-180 | 4-250 |
