Wire Mesh Belt Continous Surface Shot Blasting Machine for Aluminum Shuttering

Customization:	Available
After-sales Service:	on Site Installation, Online Technical Support
Warranty:	2 Years

Send Inquiry

Product Description

📊

Basic Information

Model NO.	ETSA-WM	Application	Degreasing, Descaling / Stripping, Sterilizing
Fuel	Electric	Type	Roller Conveyor Shot Blasting Machine
Cleanliness	High Cleanliness	Automation	Automatic
Certification	CE, CB, ETL, RoHS, UR	Condition	New
Blast Media	Shot Steel/Shot Grit/Wire Cut etc	Dust Collector	Donaldson Filter Cartridge
Bearings	SFK or NSK	Blast Wheel	2-5 Wheels or Customized
Surface Finish	SA2.5 to SA3.0	PLC Brand	Siemens, Omron or Famous Brand

⚙️

Product Description

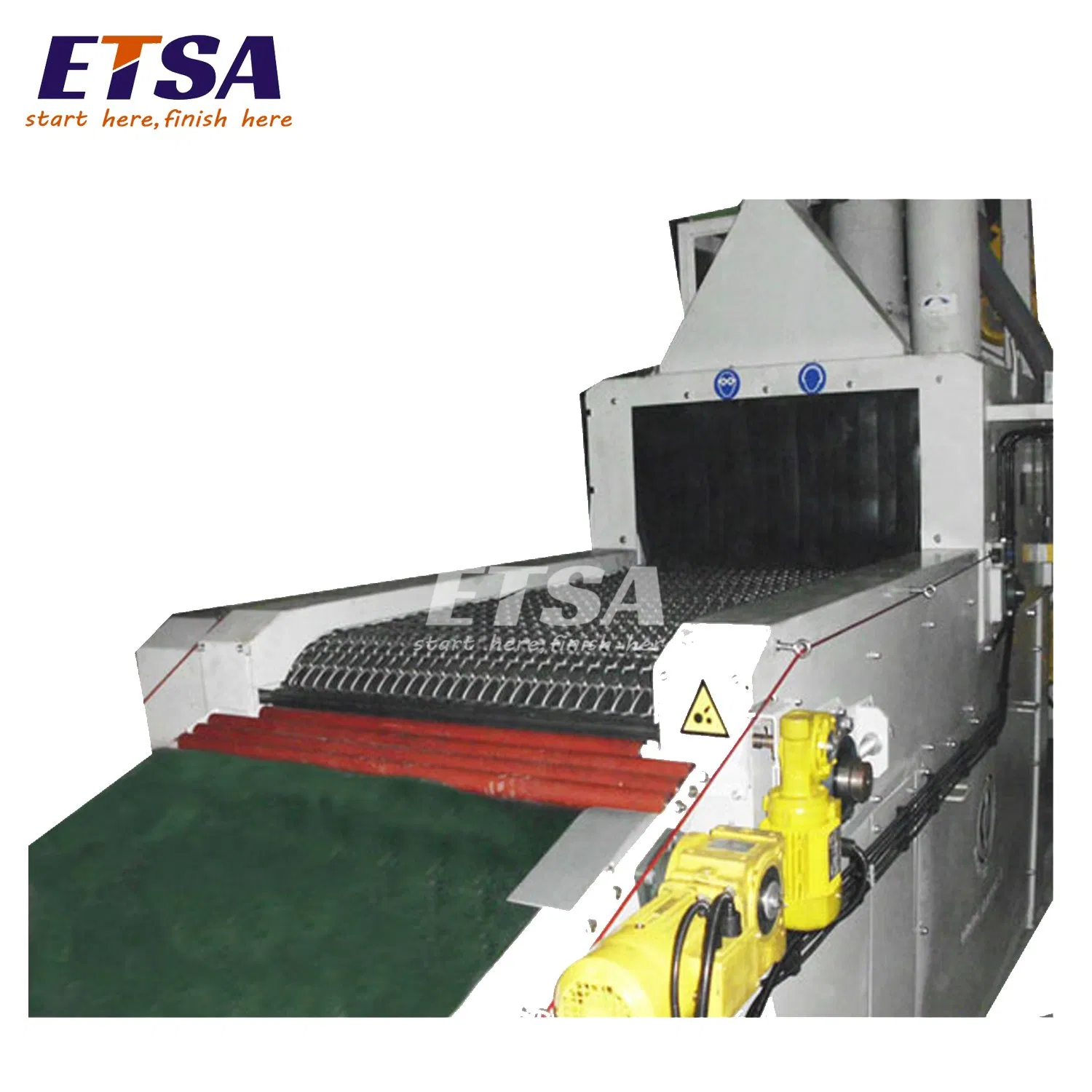

Wire Mesh Belt Continous Surface Shot Blasting Machine

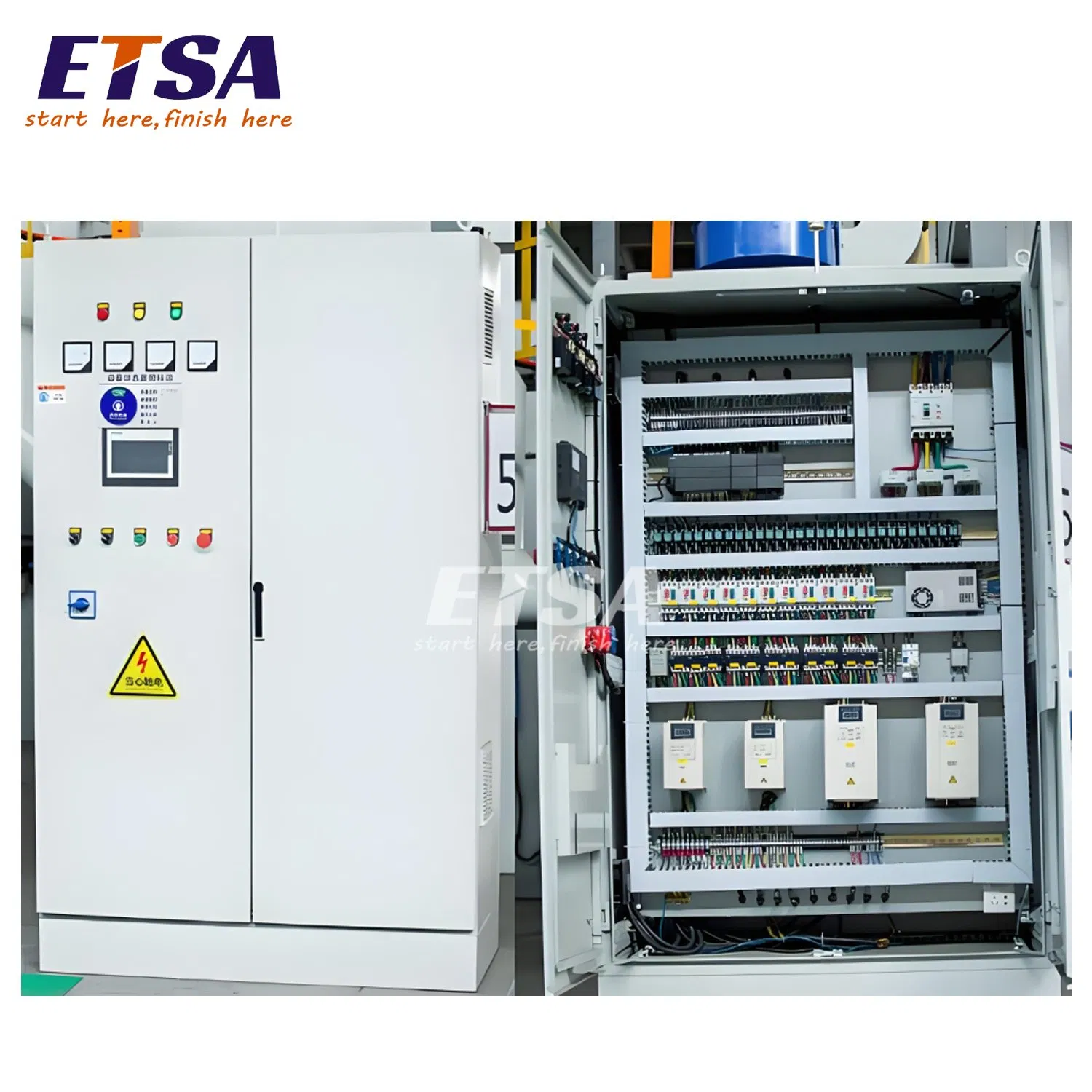

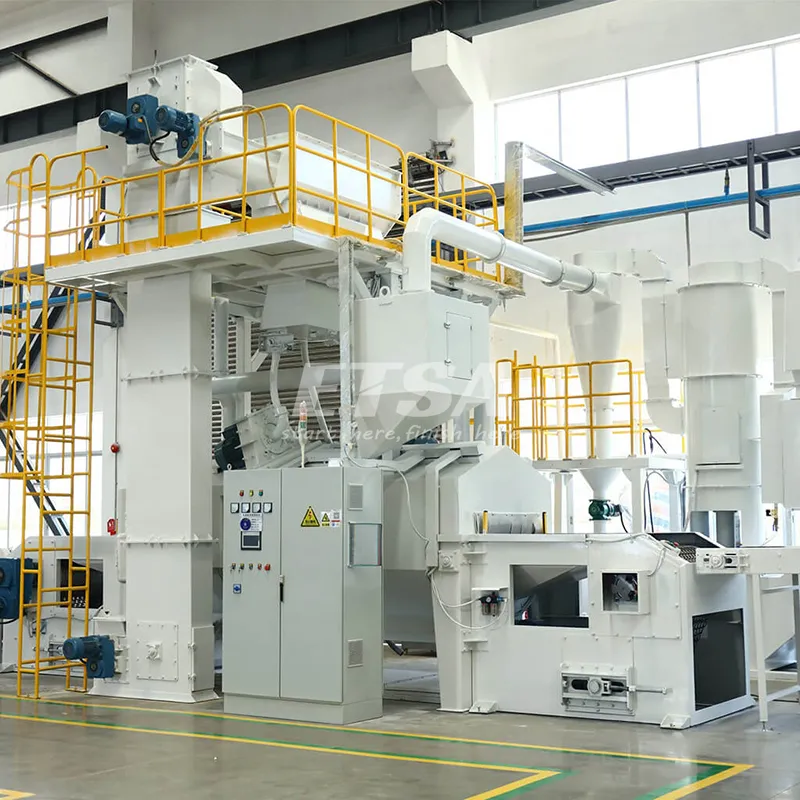

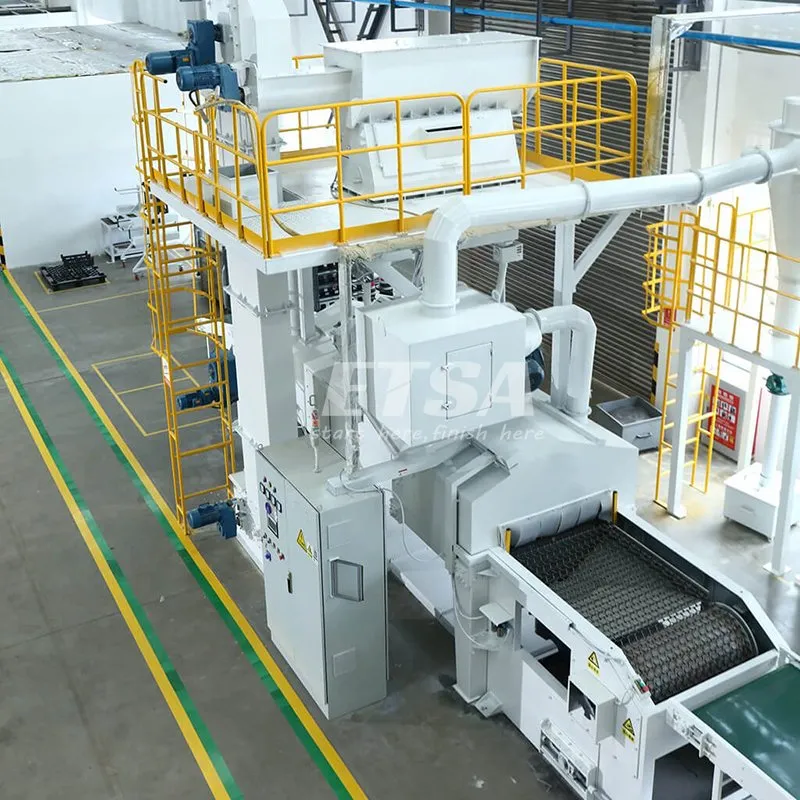

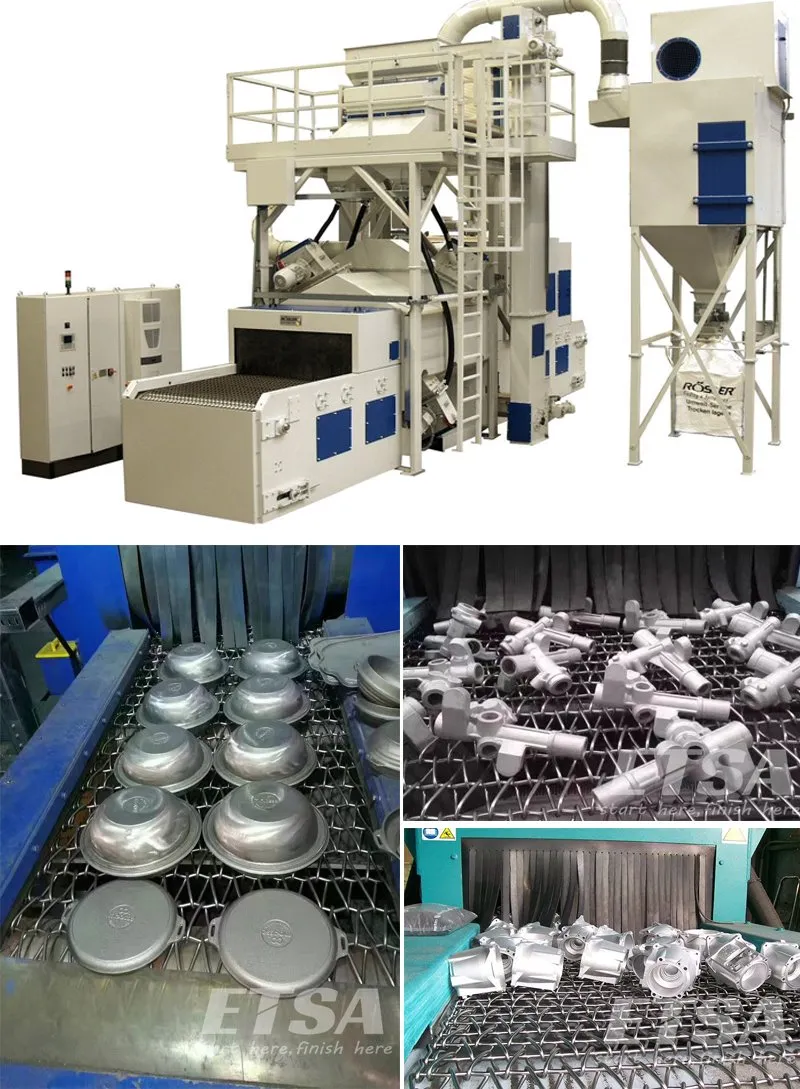

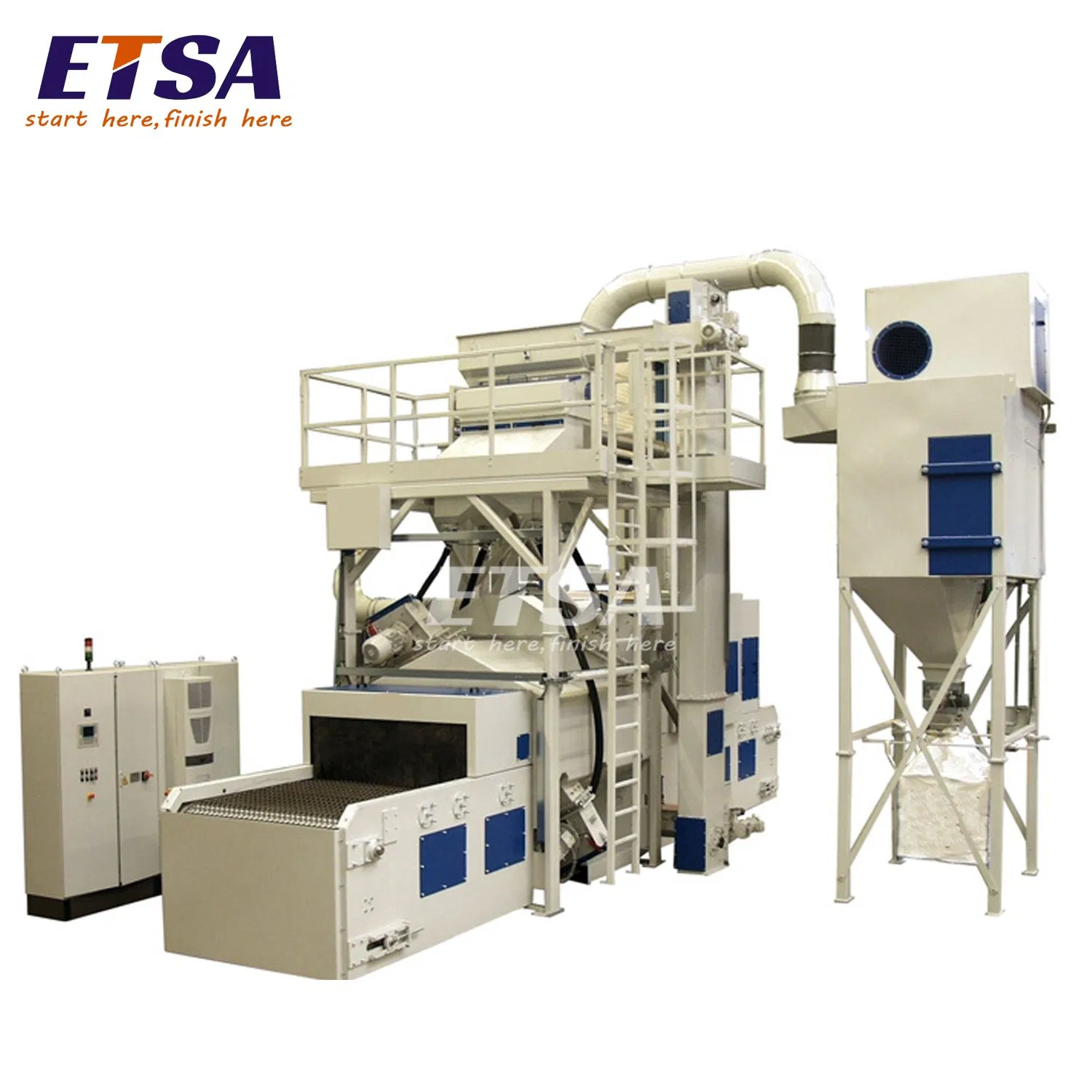

The wire mesh belt shot blasting machine consists of a conveying system, blasting chamber, bucket elevator, wheel blast, longitudinal screw conveyor, crosswise screw conveyor, dust collector system, and electronic control system. These machines are designed for continuous flow blasting of thin-walled and shock-sensitive castings, as well as geometrically demanding pieces like welded constructions.

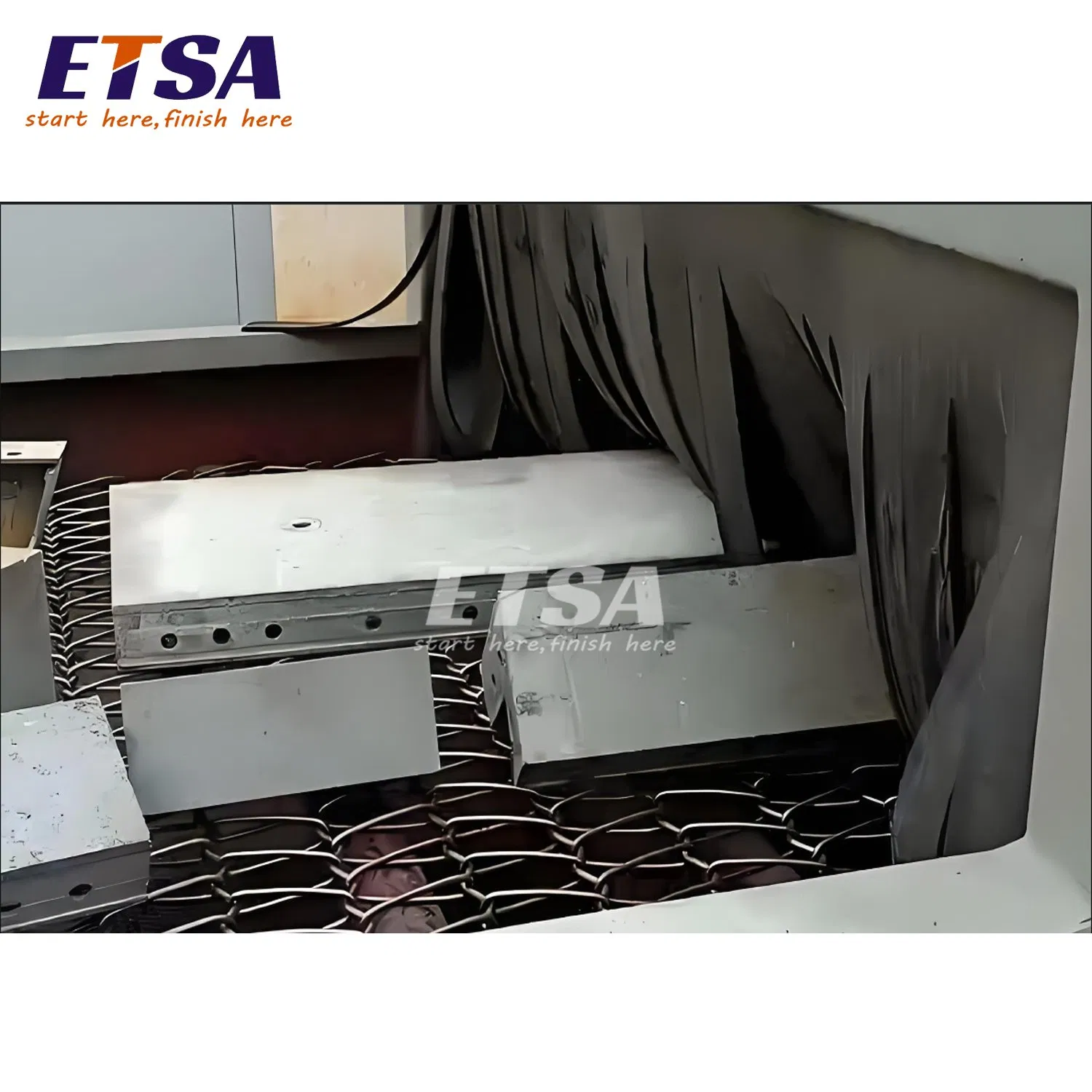

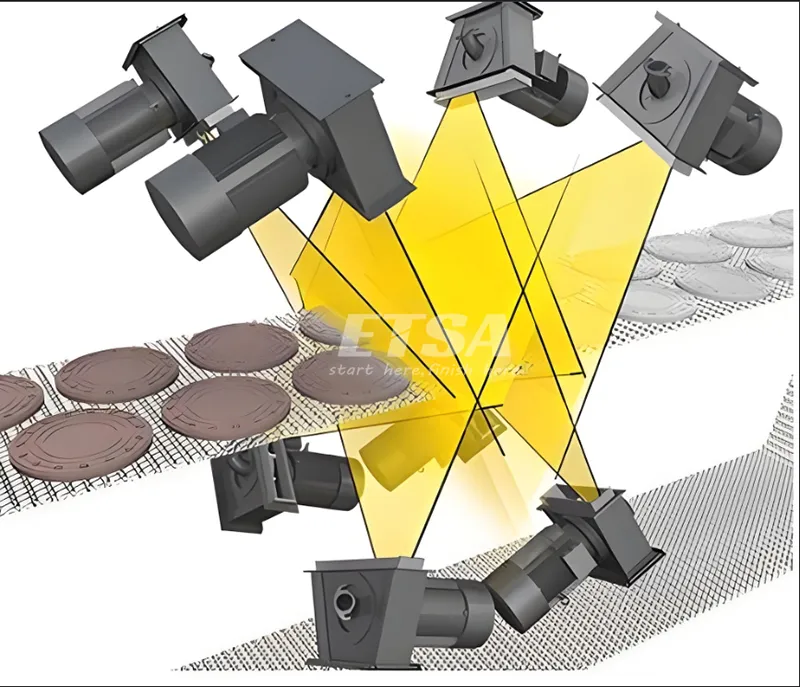

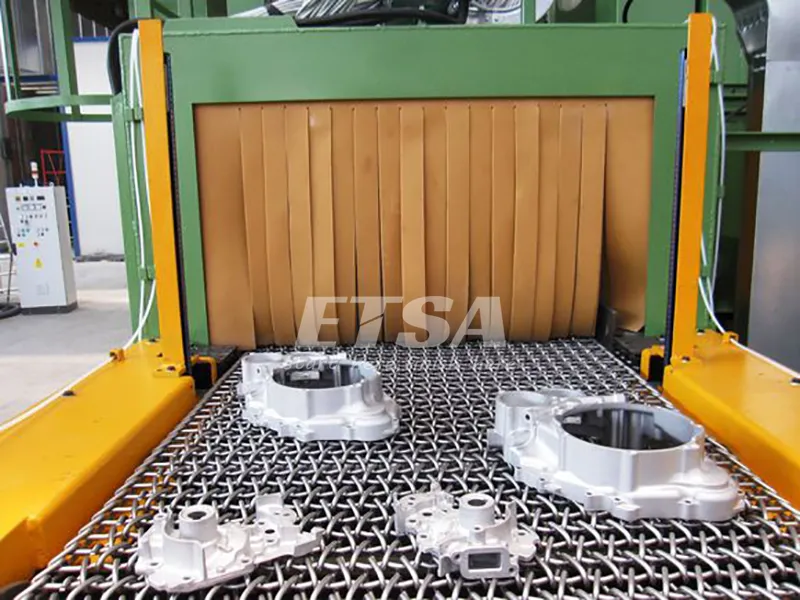

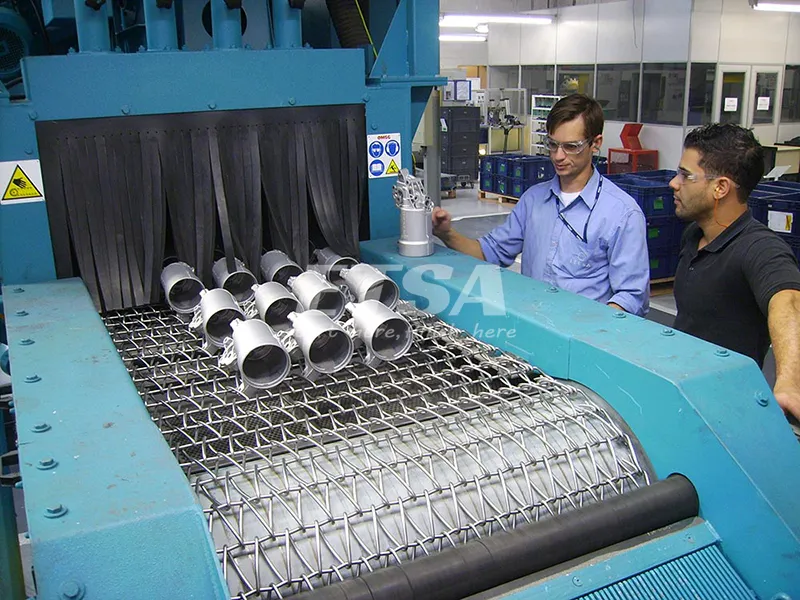

Workpieces are loaded onto a special conveyor mesh made of high-quality wear-resistant wire. Turbines positioned horizontally and vertically at optimized angles ensure complete cleaning from all sides as the pieces travel through the tunnel.

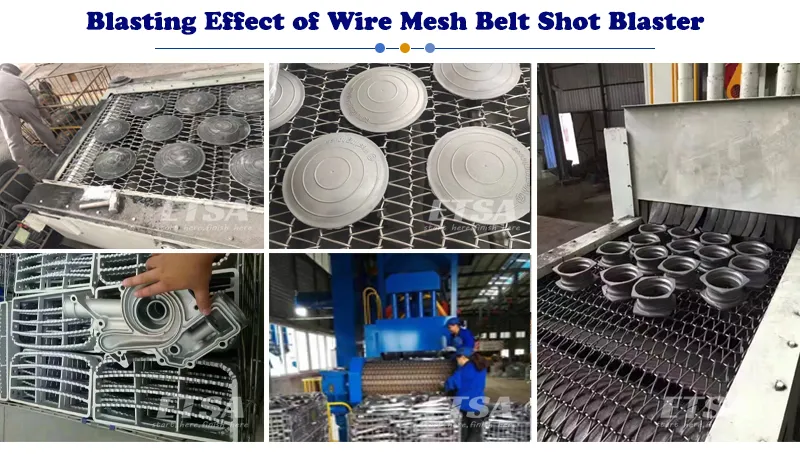

Main Applications

Rust and heat scale removal
Deburring of cast flanges
Sand removal from oil sumps
Improvement of surface roughness
Shot peening for fatigue improvement

🌟

Technical Features

Adjustable Mesh Belt: Frequency conversion allows for adjustable speed, ensuring uniform shot blasting and high cleaning efficiency.

Heat Dissipation: The steel mesh structure allows slag to leak easily and provides excellent heat dissipation for high-temperature workpieces.

Advanced Separation: Features an overflow controllable full curtain multi-stage winnowing separator for efficient pellet recycling.

Durable Chamber: Welded with 10mm thick steel plate. Interior uses 12mm ZGMn13 guard plates for extended service life.

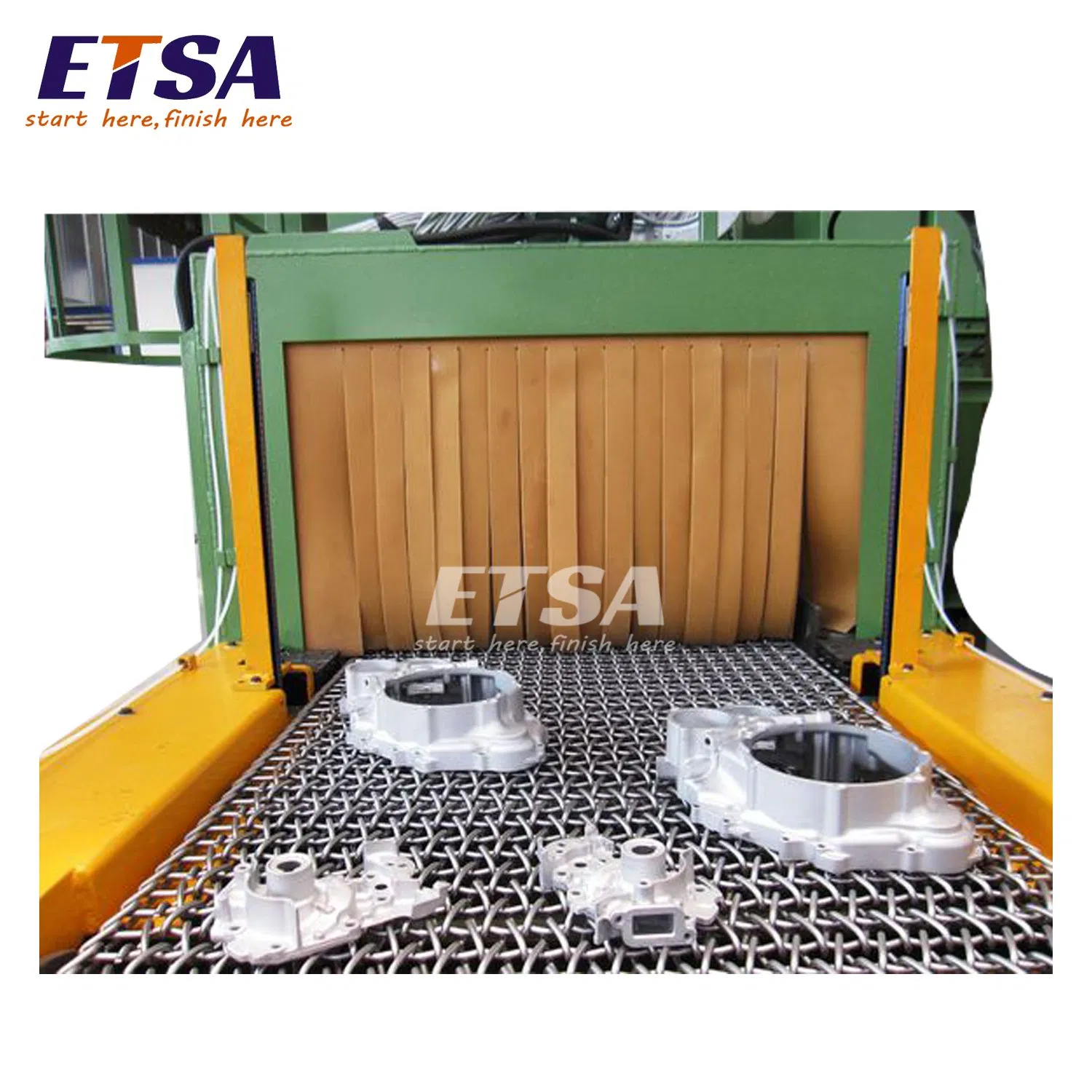

Precision Sealing: Front and rear chambers use V-shaped loose-leaf spring sealing to prevent projectile splashing.

Energy Efficient: The number of active blasting devices can be adjusted based on workpiece size to reduce energy waste.

📋

Technical Specifications

Item	WM600	WM800	WM1000	WM1200	WM1500
Cleaning Width (mm)	600	800	1000	1200	1500
Inlet Opening (mm)	600*400	800*500	1000*500	1200*600	1500*600
Number of Wheels	4	4	4/8	4/8	4/8
Wheel Power (kW)	7.5	11	11/15	11/15	11/15
Foundations	No	No	No	No	Yes
Weight (T)	20	20.4	33	41	53.2

📷

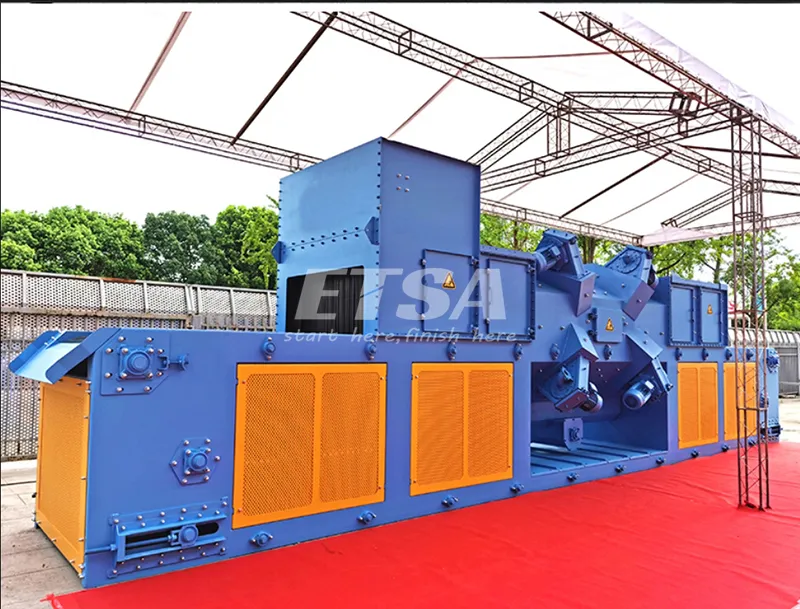

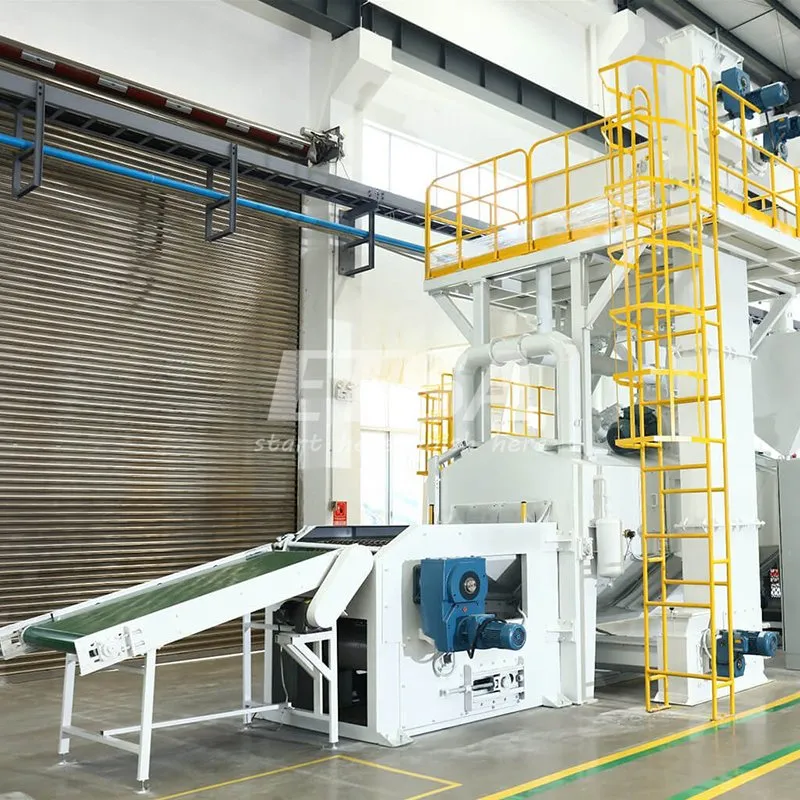

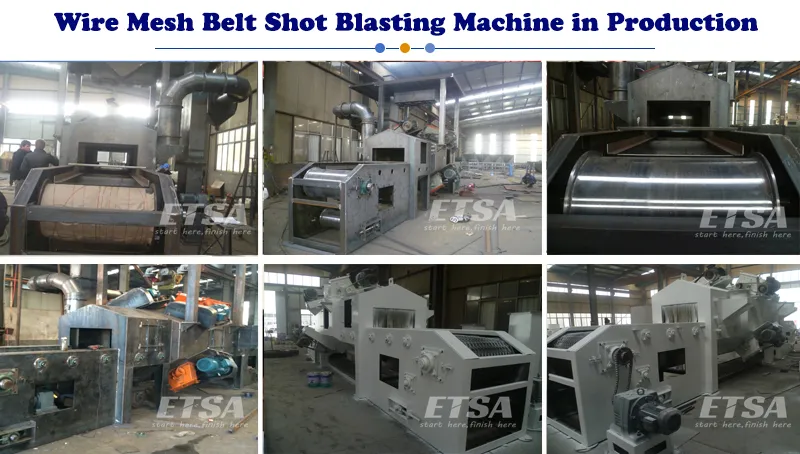

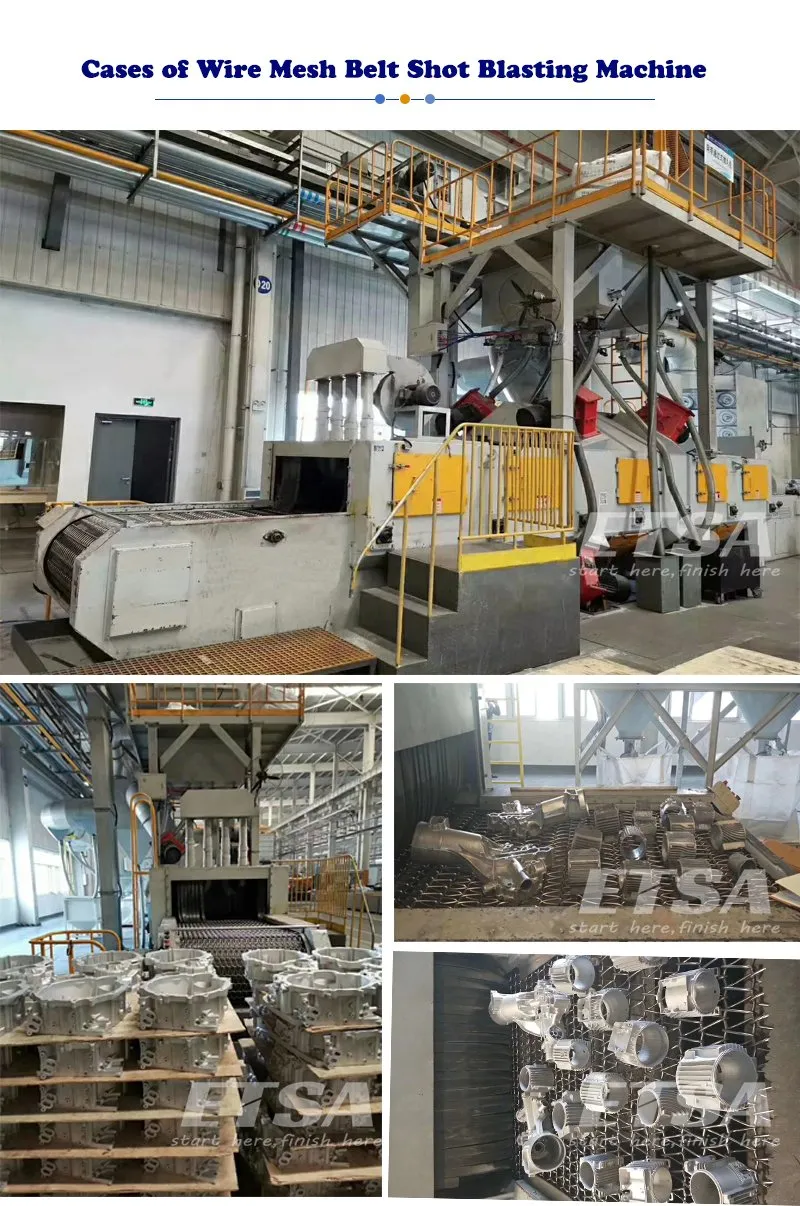

Detailed Photos

❓

Frequently Asked Questions

Q1: What types of workpieces are best suited for wire mesh belt shot blasting? A1: It is ideal for thin-walled, shock-sensitive castings, and complex welded constructions that require continuous cleaning from all sides.

Q2: Can the cleaning speed be adjusted? A2: Yes, the blasting cleaning speed is adjustable between 0.5-4 m/min via frequency conversion control.

Q3: How does the machine handle dust and waste? A3: The system includes a high-efficiency Donaldson filter cartridge dust collector and a multi-stage winnowing separator for pellet recycling.

Q4: What is the durability of the blasting chamber? A4: The chamber is built with 10mm steel plates and lined with 12mm ZGMn13 high-manganese steel guard plates for maximum wear resistance.

Q5: Is the machine customizable for specific power supplies? A5: Yes, the power supply and dimensions can be fully customized to meet the specific requirements of your facility.

Q6: What surface finish level can be achieved? A6: The machine consistently achieves high cleanliness levels ranging from SA2.5 to SA3.0.
