📦 Product Description

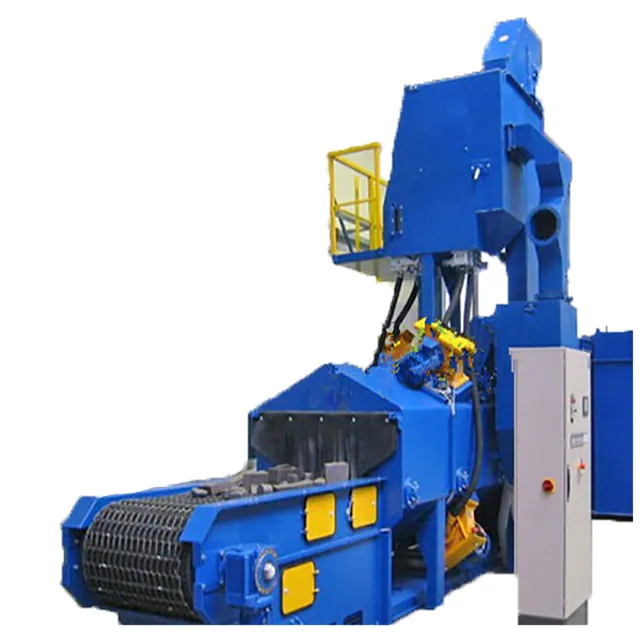

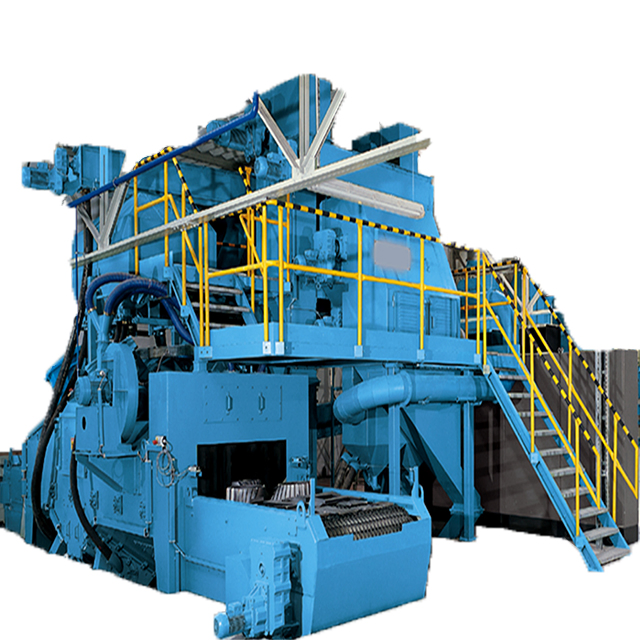

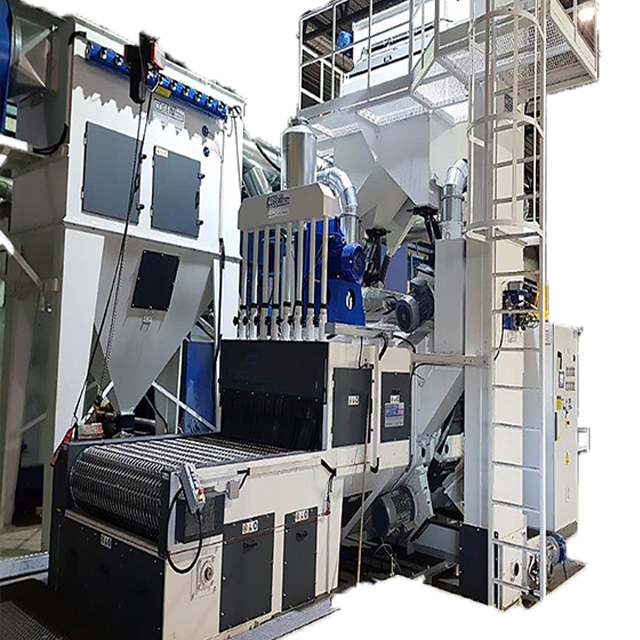

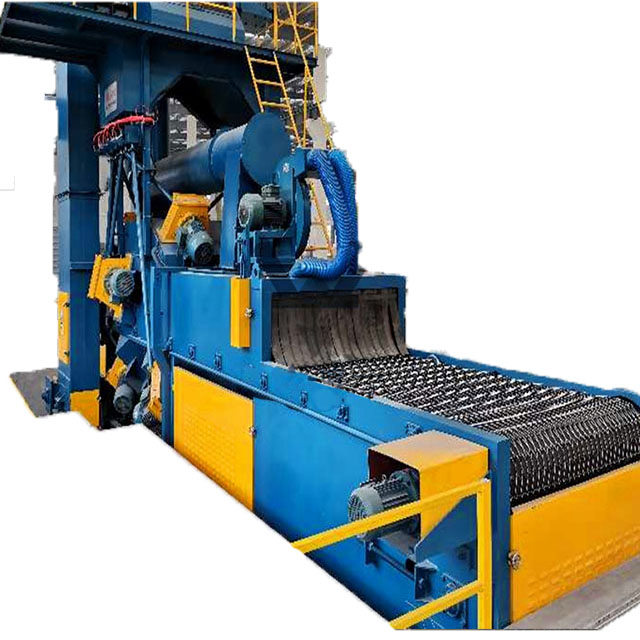

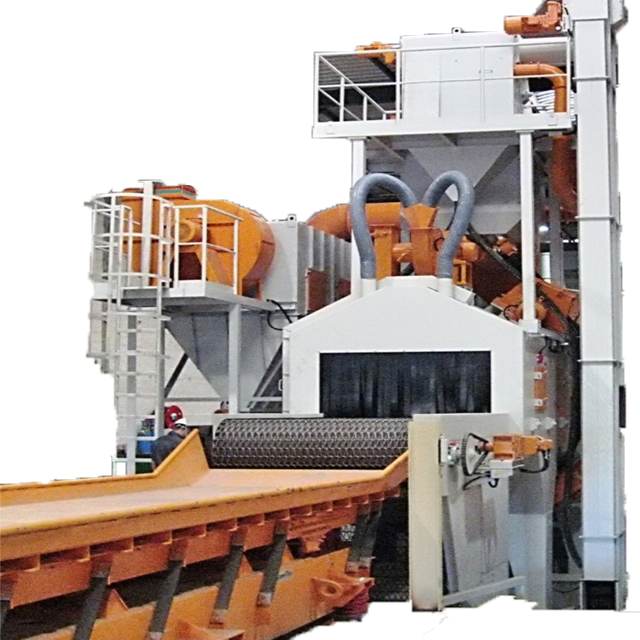

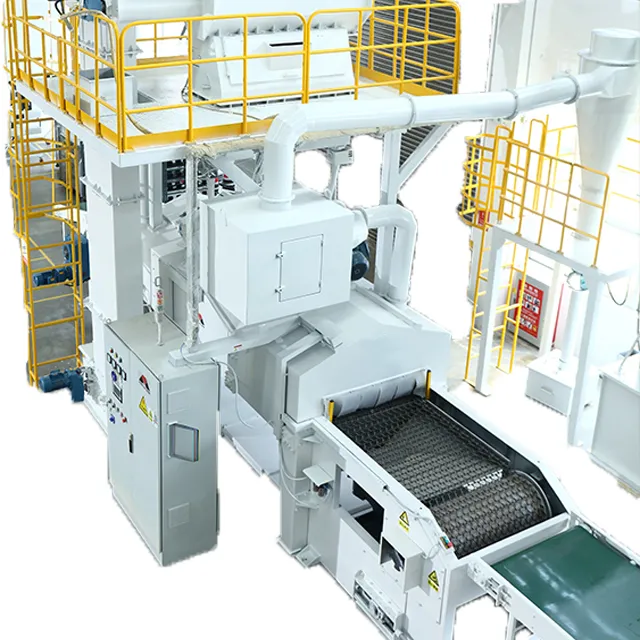

Mesh belt-type shot blasting machine is primarily designed for thin-walled castings, fragile iron or aluminum alloy castings, ceramics, and other small parts surface treatment. It excels in providing continuous operation, high cleaning efficiency, minimal deformation, and excellent surface consistency.

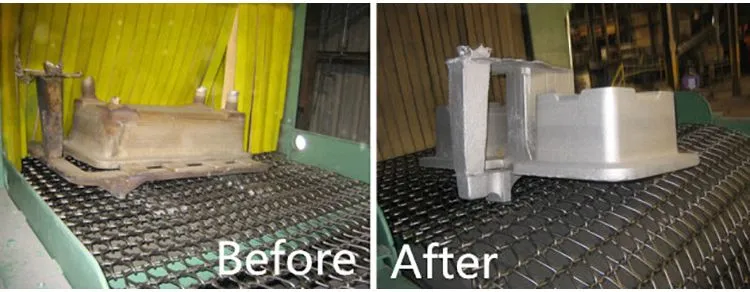

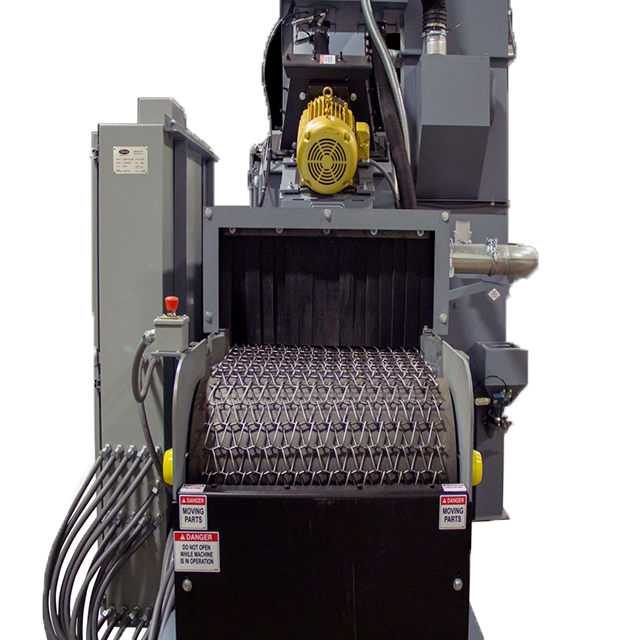

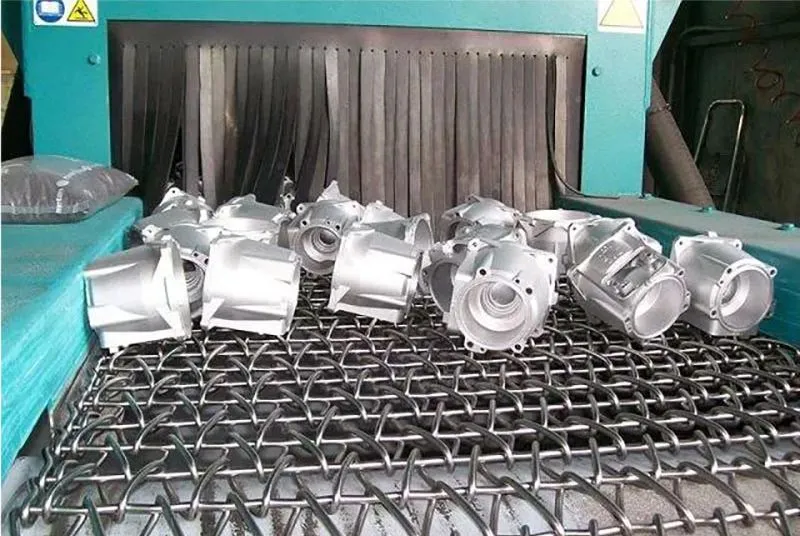

The work-pieces are placed on a high wear-resistance wire mesh conveyor, undergoing shot blasting from both above and below in a single pass. Both conveyor speed and blast wheel rotation are adjustable via high-performance Inverters.
🚀 High Efficiency Conveying
- Wire Conveyor Width: 600-1200mm
- Conveying Speed: 0.5-4m/min
- Max Load Capacity: 150kg per unit
- Wire Mesh Diameter: 3.5-6.5mm
- Temperature Tolerance: Up to 1000°C

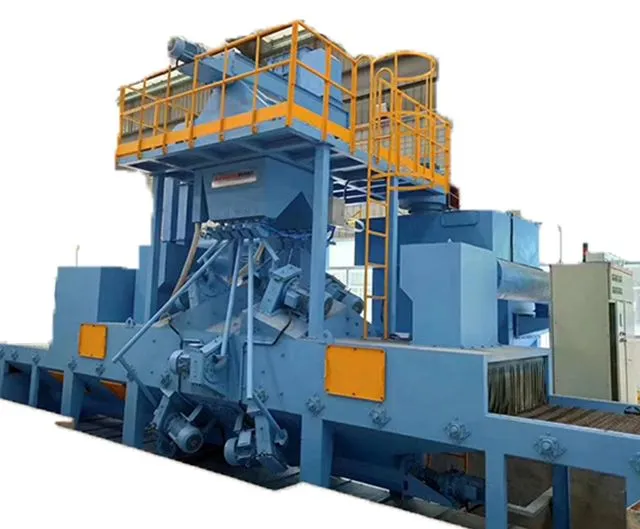

🛡️ Safe & Durable Blasting Chamber
- Chamber Shell: 10mm structural steel fabrication
- Internal Liner: 10mm high-resistance Mn alloy
- Sealing System: Four-layer rubber curtains to prevent shot leakage
- Safety: Robust design for continuous industrial use

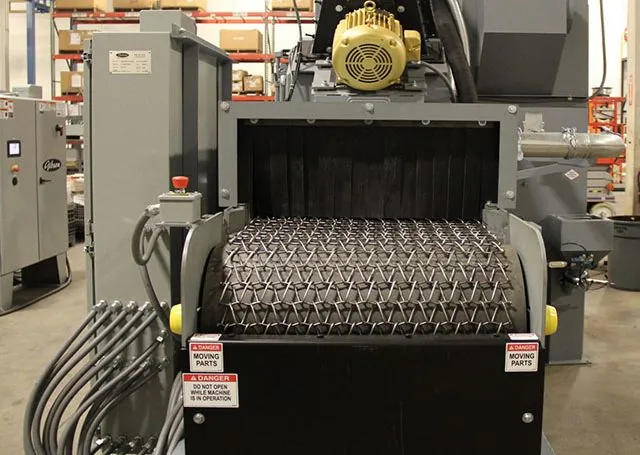

⚡ Smart Electric Control
- Operation Mode: Full Automatic (Manual available)
- Logic Control: Premium PLC Integration
- Safety: Multiple Emergency Stops on panels and conveyors
- Monitoring: Visual power indicators and status displays
Frequently Asked Questions
How to choose the correct blast machine type?
Please provide information about your work-piece dimensions, material, and required productivity. Our engineers will suggest the most suitable model.
How to choose the right abrasive media?
Selection depends on the workpiece material. Options include steel shot, cut wire shot, stainless steel shot, etc.
What is the quality warranty period?
We provide a 1-year warranty. Local service and video technical support are also available for maintenance.
Is a foundation pit essential for installation?
This depends on the specific machine size and your workshop height/layout requirements.
How many workers are needed to operate the machine?
Usually 1-2 workers are sufficient, depending on the automation level and loading requirements.
Do you provide installation assistance?
Yes, we provide on-site installation assistance and operation training by experienced engineers.
