Product Description

📋 Basic Information
Model NO. GA-2206-B
Usage Vacuum Plasma Cleaner
Transport Package Plywood Case
Origin China
HS Code 9024800000
Capacity 200 Units
📍 Product Description

Vacuum Plasma Cleaning System: An environmentally friendly and efficient surface treatment solution. Through the excitation power supply, gas is separated into a plasma state. This plasma interacts with product surfaces to remove pollutants, improve surface activity, and significantly enhance adhesion.

Key Product Features:
✔ Flexible fixture design adapted to irregular products.
✔ Horizontal electrode design for soft product processing.
✔ Low energy and gas consumption.
✔ Convenient board loading and unloading.
✔ Integrated vacuum system with small footprint.
✔ Optimized reaction space for uniform treatment.
✔ PLC-based integrated control system for easy operation.
Industry Applications:
⚙ Mobile Industry: Cleaning and activation of TP, middle frames, and back covers.
⚙ PCB/FPC Industry: Hole drilling cleaning and Coverlay surface roughening.
⚙ Semiconductor: Packaging for camera modules, LEDs, BGA, and wire bond pretreatment.
⚙ Ceramics: Packaging and glue pre-treatment.
⚙ Etching: PI surface roughening, PPS etching, and ITO film etching.
📝 Product Parameters
Parameter Category Specifications (Option A) Specifications (Option B)
Power System Power Type Radio-frequency (RF) Medium-frequency (MF)
Range / Freq 0~600W / 13.56MHz 0~2000W / 40KHz
Vacuum System Pump Type Double stage rotary vane pump / Roots pump
Chamber Material Aluminum alloy (Customizable Stainless Steel)
Chamber Size 500 × 500 × 670 mm (W x H x D)
Effective Electrode 587 × 470 mm
Control & Gas Gas Path Dual channel (Standard), 0~300SCCM
Control Method PLC + 7 Inch Touch Screen
Dimensions Outer Size 1020 × 1720 × 1120 mm
Weight Total Weight 350 KG
📷 Detailed Photos

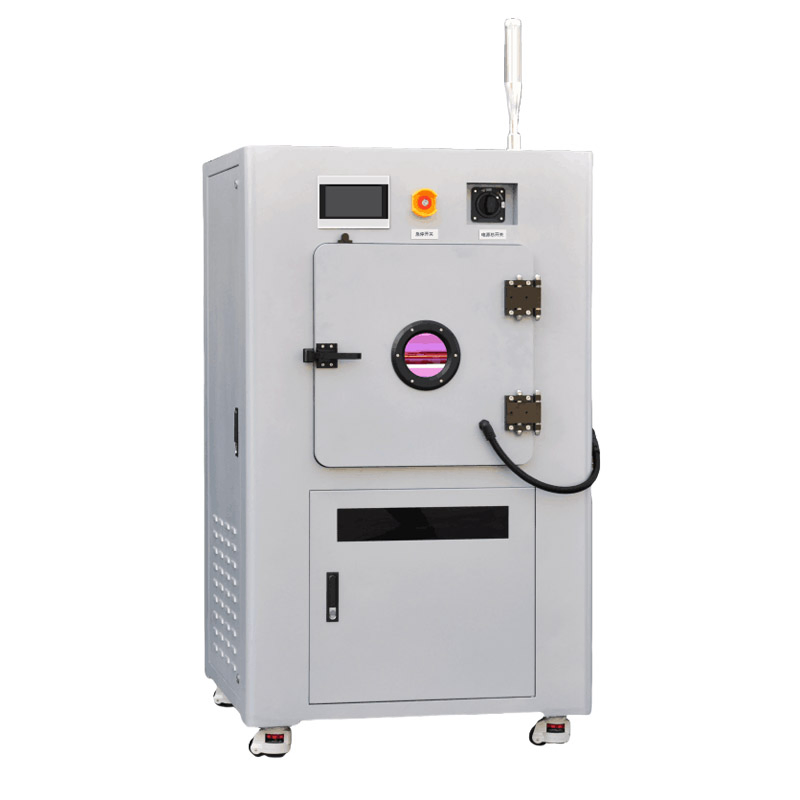

Vacuum Plasma Cleaner Front View

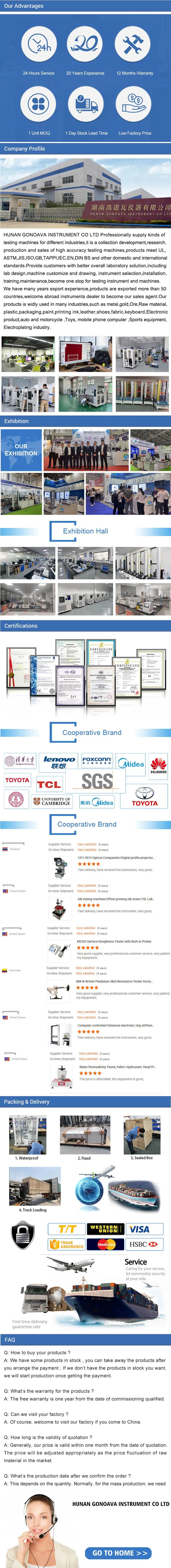

Plasma Cleaning System Detail
❓ Frequently Asked Questions
Q: What is the primary function of a Vacuum Plasma Cleaner? A: It is used to remove surface contaminants at a microscopic level and increase surface energy to improve the bonding strength of adhesives, coatings, or inks.
Q: What power frequencies are available for this equipment? A: We offer two standard configurations: 13.56MHz Radio-frequency (RF) and 40KHz Medium-frequency (MF) power supplies to suit different processing needs.
Q: Is the plasma cleaning process environmentally friendly? A: Yes, it is a dry cleaning process that eliminates the need for hazardous chemical solvents, making it a sustainable choice for industrial surface treatment.
Q: Can the vacuum chamber be customized? A: While the standard chamber is made of aluminum alloy, we can provide customizable stainless steel cavities based on specific material requirements.
Q: Which industries commonly use this system? A: It is widely used in the mobile phone, PCB/FPC manufacturing, semiconductor packaging, LED, and automotive electronics industries.
Q: What gas is typically used in the system? A: The system supports standard process gases, and flow rates can be precisely controlled between 0~300SCCM via the integrated PLC system.
