PVC Vinyl Profile Corner Surface Cleaning Equipment
PVC Vinyl Profile Corner Surface Cleaning Equipment
PVC Vinyl Profile Corner Surface Cleaning Equipment
PVC Vinyl Profile Corner Surface Cleaning Equipment
PVC Vinyl Profile Corner Surface Cleaning Equipment
1 / 5
PVC Vinyl Profile Corner Surface Cleaning Equipment
PVC Vinyl Profile Corner Surface Cleaning Equipment
PVC Vinyl Profile Corner Surface Cleaning Equipment
PVC Vinyl Profile Corner Surface Cleaning Equipment
PVC Vinyl Profile Corner Surface Cleaning Equipment

PVC Vinyl Profile Corner Surface Cleaning Equipment

Customization: Available
After-sales Service: Engineer Go to Client's Site or on-Line
Warranty: 2 Years Warranty Time
Send Inquiry

Product Description

■ Basic Information
Model NO.
SQJB-CNC-120
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Cutter Quantity
3/5/6 Cutters
Total Power
1.8kw
Control Way
CNC Control
CNC System
Taiwan Delta
■ Product Description

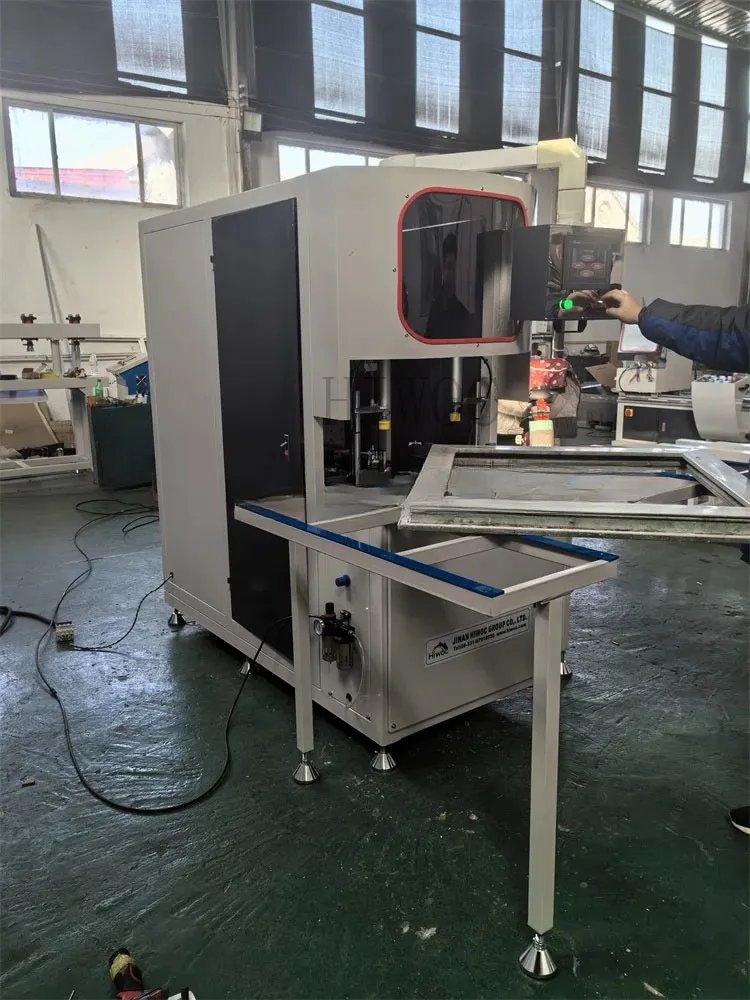

PVC window door corner cleaning machine

PVC Vinyl Profile Corner Surface Cleaning Equipment
PVC Vinyl Profile Corner Surface Cleaning Equipment

Main Features

  • This machine is used for cleaning PVC window/door corner welding seam.
  • Double-axis control system, Huyin control system with easy operation feature, less faults.
  • Can cleaning the up and bottom surface, also the external and inner Corner.
  • High processing precision due to size error compensation function.
  • Can store more than 120 kinds programs for various profile processing.
  • Easy adjusting and high automatization.
  • Processing speed could be up to 10-15 seconds.
  • Option 1: 3 cutters cleaning the up, bottom and outer corner.
  • Option 2: 5 cutters cleaning the up, bottom and outer corner, inner corner, and drilling holes for rubber gasket.
  • Option 3: 6 cutters cleaning the up, bottom and outer corner, inner corner, drilling holes for rubber gasket and vertical line inside corners.
■ Specification
No Item Parameter Data Reference Data
1Air Pressure0.4~0.7MPa2.5KW
2Air consumption100L/min0.4-0.6MPA
3Input Voltage380V 50~60Hz100L/MIN
4Input Power1.8Kw220V/50HZ
5Cutting profile height20-140mm400-3500mm
6Cutting WidthMax 120mm4400*1100*1700mm
7Drawing groove width3mm800KGS
8Drawing groove depth0.3mmWelding upvc window corner
9Overall size2000×1820×1500 (mm)-
10Weight950kg-
■ Packing & Delivery
Packing
Delivery
Package Size
200.00cm * 182.00cm * 150.00cm
Gross Weight
820.000kg
■ Factory Display

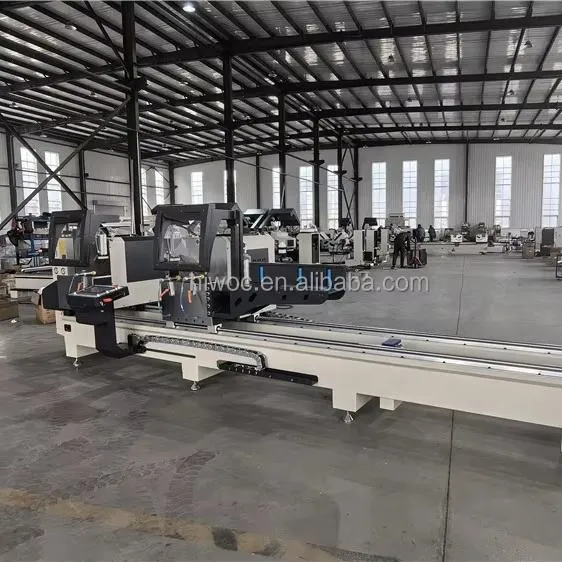

Production Area
Machine Testing
? Frequently Asked Questions
1. What is the processing speed of the SQJB-CNC-120 cleaning machine?
The processing speed for cleaning a PVC window corner is highly efficient, typically taking only 10 to 15 seconds per corner.
2. Which parts of the PVC corner can this machine clean?
The machine is designed to clean the top and bottom surfaces, as well as the external and inner corners of the welded profile.
3. How many profile processing programs can the CNC system store?
The Taiwan Delta CNC system is capable of storing more than 120 different programs to accommodate various profile designs and processing requirements.
4. What are the differences between the 3, 5, and 6 cutter configurations?
The 3-cutter model cleans basic surfaces and outer corners. The 5-cutter model adds inner corner cleaning and rubber gasket hole drilling. The 6-cutter model further includes vertical line cleaning for inside corners.
5. Does the machine support customized input voltages?
Yes, while the standard input voltage is 380V at 50-60Hz, it can be customized according to specific customer requirements.
6. What certifications does the SQJB-CNC-120 hold?
The machine is fully certified with ISO and CE standards, ensuring international quality and safety compliance.
