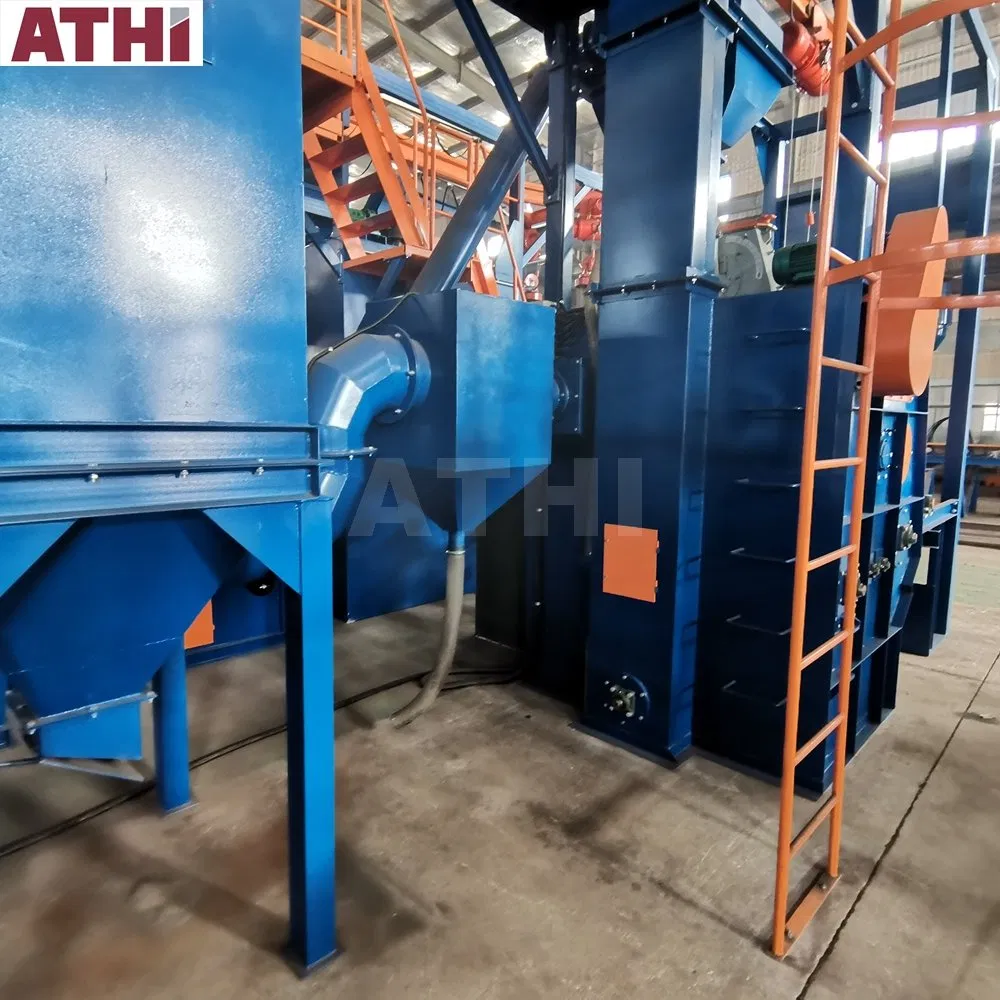

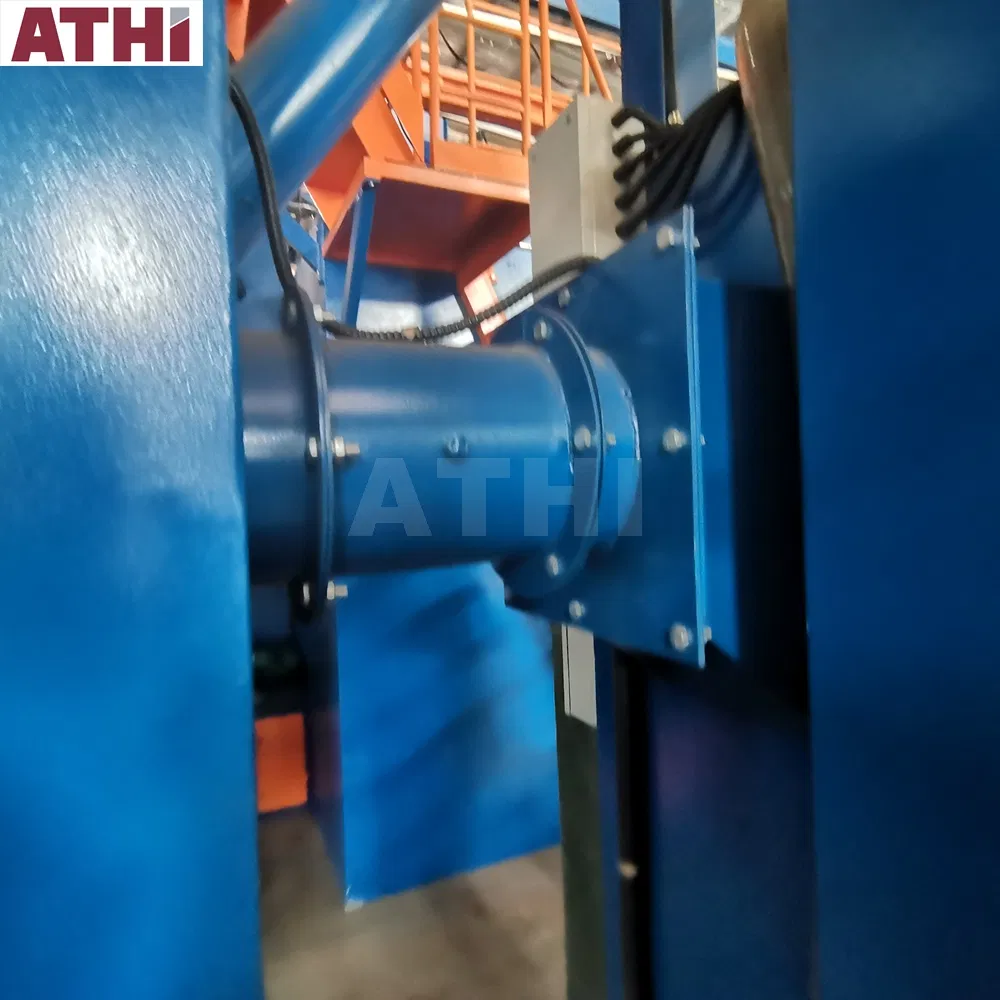

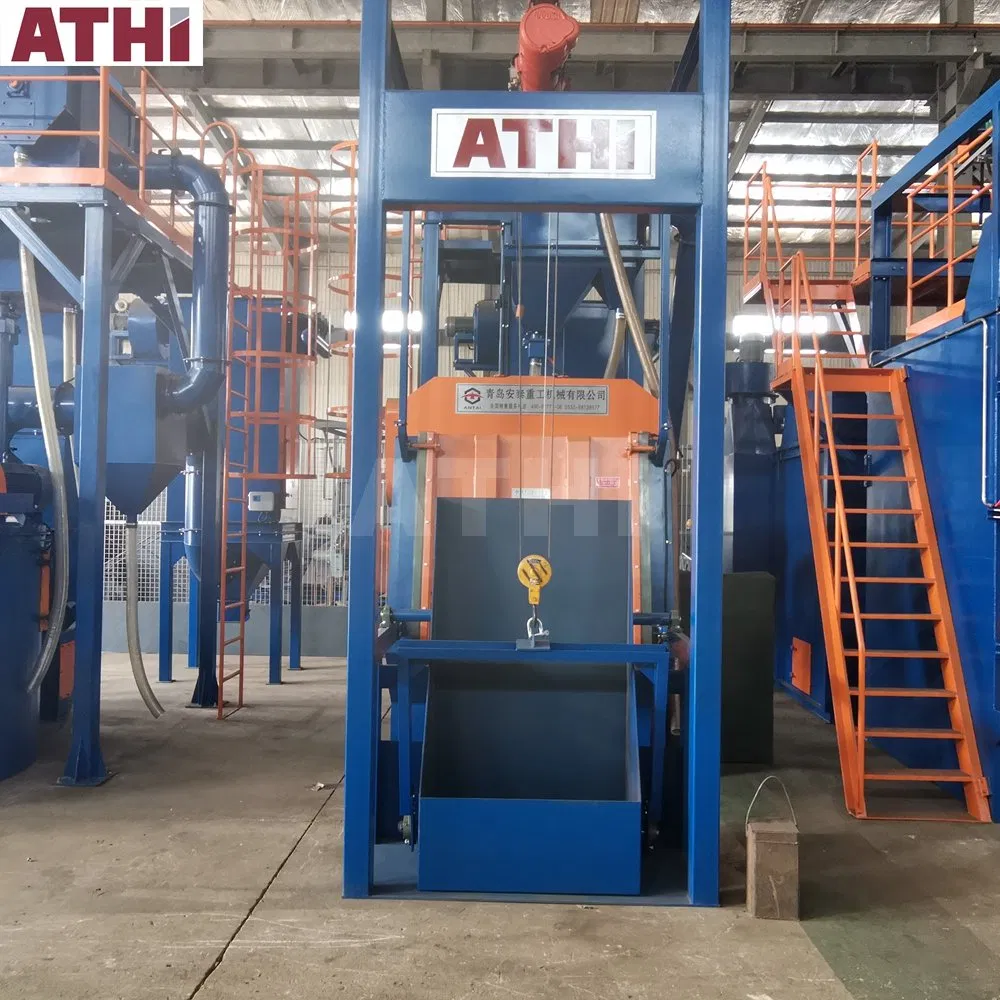

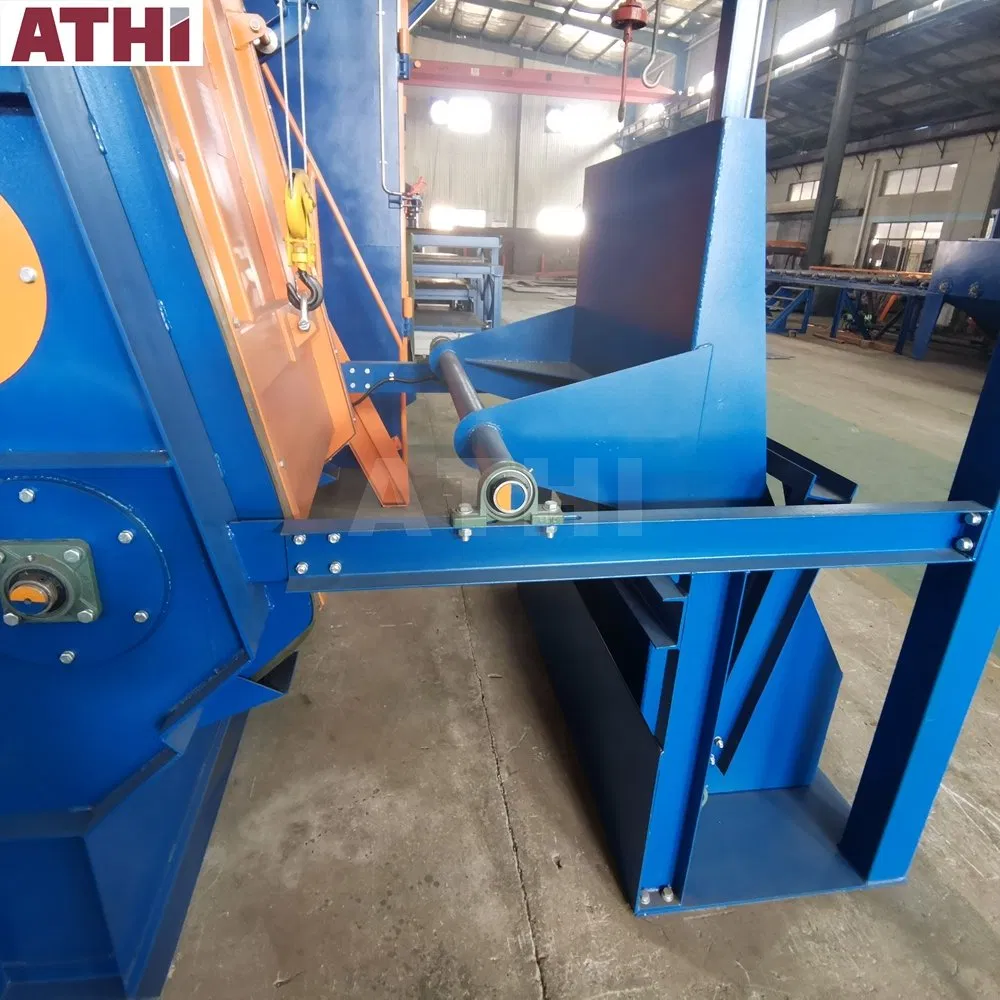

Tumble Rubber Type Surface Shot Blast Cleaning Machine /Crawler Type Wheelabrator

1 / 5

Tumble Rubber Type Surface Shot Blast Cleaning Machine /Crawler Type Wheelabrator

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.QAT37 / Qat35

ApplicationSurface Rust Removal

FuelElectric

TypeHook Type Abrator

CleanlinessHigh Cleanliness

AutomationSemi-automatic

CertificationCE

FeatureRust / Corrosion Proof

ConditionNew

ColorNamed Color

UsageCar Accessories, Bolster, Side Frame, Coupling

HS Code8424

Capacity48 Set/Year

Automatic Tumble Rubber Belt Shot Blasting Machine

Product Features

Compact Design: Simple operation principle, suitable for single machine use or integrated automatic production lines.
Flexible Configuration: Available with steel or rubber tumble belts. Rubber belts reduce collision damage and noise; steel belts offer large loading capacity.
Continuous Cleaning: Tumble belt ensures work pieces are gently and continuously overturned for all-round blasting.
Automatic Unloading: Positive motion for cleaning and negative motion for automatic unloading.
Durability: Wear-resistant protective plates within the blasting chamber are easy to change and maintained tightly.

Applications

Mainly suitable for blasting, rust removal, oxide skin removal, and surface strengthening for medium and small-sized castings, forgings, stamping parts, and heat-treated pieces. Ideal for batch production where part-on-part collision must be minimized.

Technical Parameters

Item	Unit	Q326C	QR3210	15GN	28GN
Productivity	T/h	0.6-1.2	1.5-2.5	5-6	10-12
Max feeding capacity	Kg	200	600	1300	3500
Max weight of single piece	Kg	10	30	230	363
End disk diameter	mm	∅650	∅1000	∅1092	∅1245
Effective volume	m³	0.15	0.3	0.43	0.79
Blasting capacity	Kg/min	100	250	480	700
Ventilation volume	m³/h	2200	5000	5300	6500
Power consumption	Kw	12.6	24.3	49.3	64.5
Overall dimension	mm	3681x1650x5800	3972x2600x4768	4597x3262x5709	5300x5432x6814

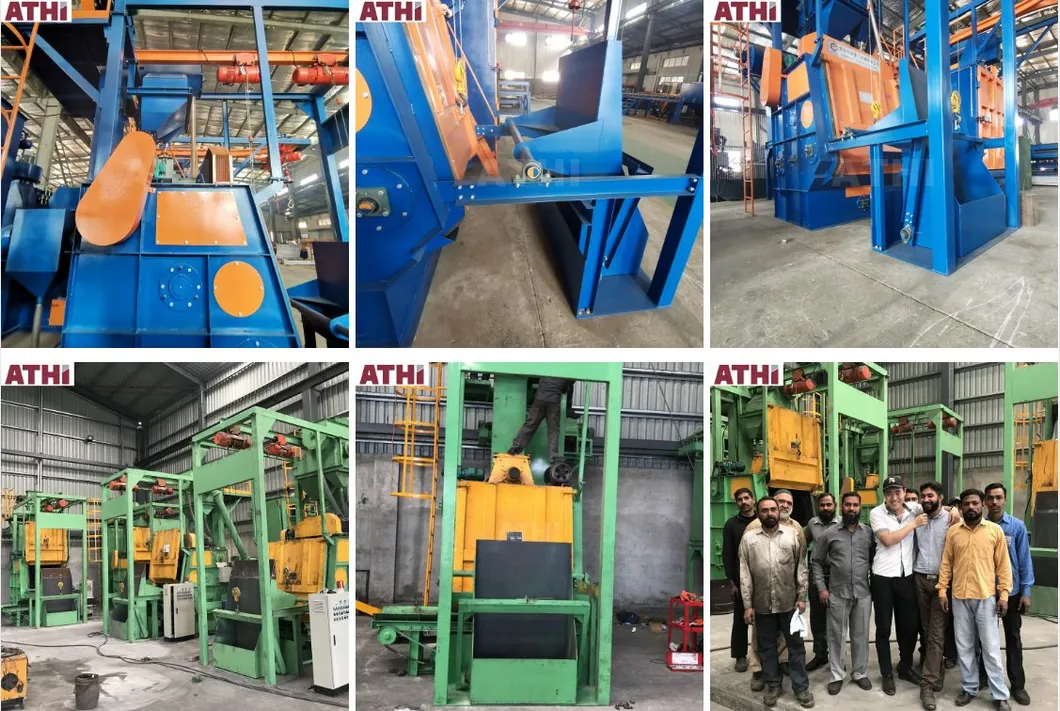

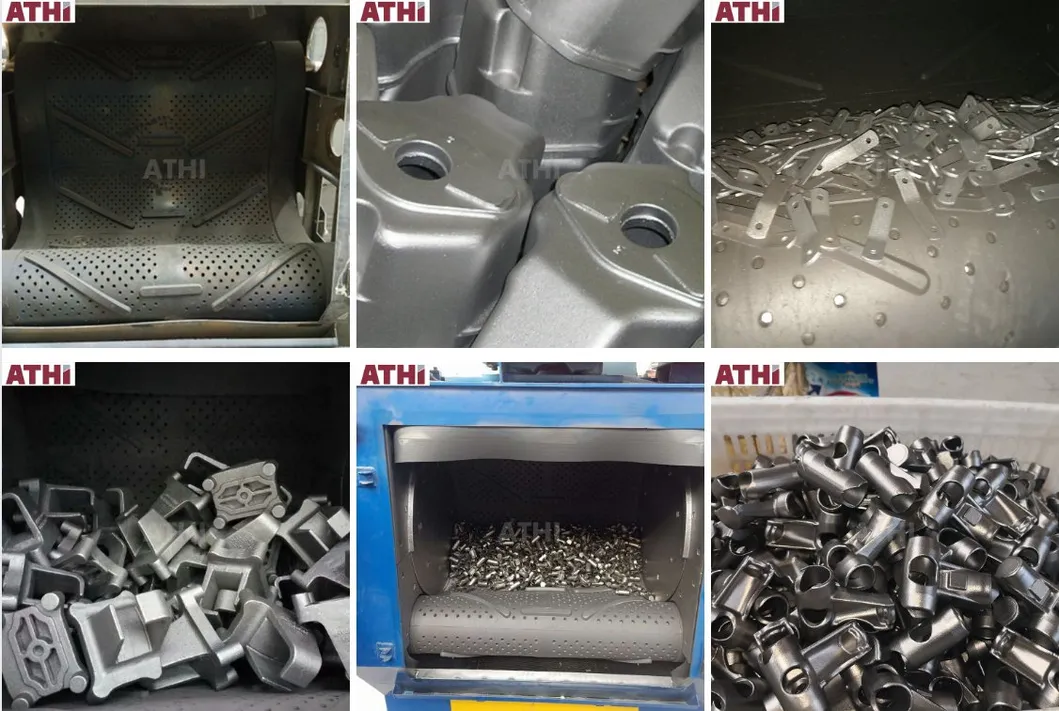

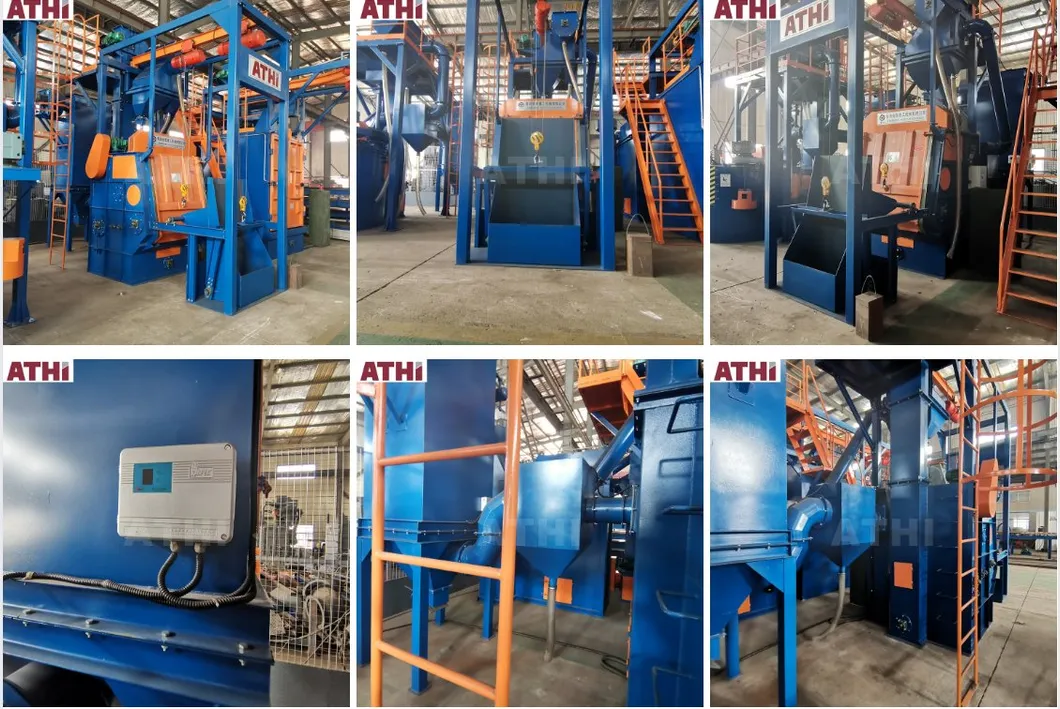

Product Showcase

Packing & Delivery

1. Equipment painting is completed before shipment. Stretch film is used to avoid rubbing off the surface paint. Wooden cases can be provided based on requirements. Key parts like electric cabinets use shockproof packaging.

2. Our experienced engineering and skilled worker teams ensure high quality and prompt delivery.

3. Long-term cooperation with major shipping lines ensures goods reach the port on time.

Professional Services

Custom Design

Engineers provide customized designs based on specific client requirements to optimize costs and efficiency.

Progress Tracking

During manufacture, we provide production progress photos so customers can track their order status.

Documentation

Provision of original documents including packing lists, CO, Form E/A/F, and full technical manuals.

Global Support

Overseas installation, debugging, and free training for operators and maintenance workers.

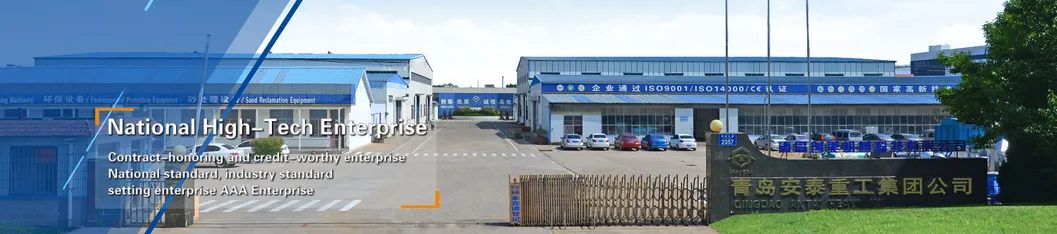

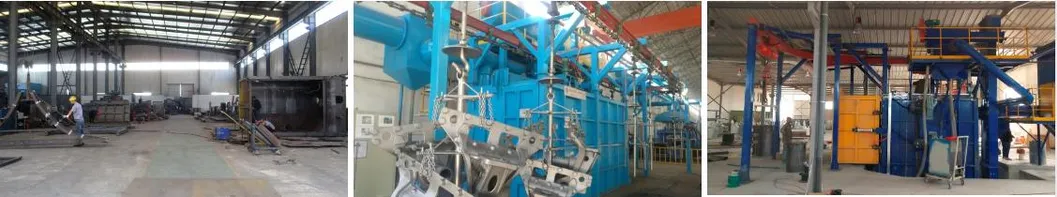

Manufacturing Excellence

Founded in 2003, we are an integrated machinery business focusing on research, design, manufacture, and installation. Our main products include shot blasting machines, dust removal equipment, and molding machinery. We adhere to a "customer satisfaction first" philosophy, providing flexible and efficient full-service solutions with a perfect quality management system.

Global Projects

Frequently Asked Questions

1. What kind of work pieces are best suited for this machine?

The tumble belt shot blasting machine is ideal for small to medium-sized castings, forgings, stamping parts, and heat-treated pieces, especially those that require high cleanliness without heavy collision.

2. How long does the production process take?

Since these are specifically designed machines based on your requirements, the timeline from engineering design to completion usually takes about 45-55 days.

3. What is the quality guarantee for the equipment?

We offer a one-year quality guarantee. We use world-famous brand components to ensure the machine remains in perfect working condition.

4. Do you provide overseas installation services?

Yes, we supply overseas installation and debugging services. We also provide free training for your operators and maintenance workers.

5. How is quality control handled in your factory?

We pay strict attention to quality control from start to finish. Every machine is fully assembled and carefully tested before shipment to ensure performance.

6. What information is needed for a customized machine design?

Please provide the type of work piece, the dimensions (max/min length, width, height), the weight of the work pieces, and your required cleaning efficiency.
