Rubber Belt Blast Machine Automatic Tumble Blasting Machine

Customization:	Available
Warranty:	12months
Drive:	Electric

Send Inquiry

Product Description

Basic Information

Model NO.	KF-A100
Principle	Press-in
Control	Electric
Layout	Vertical
Automation	Automatic
Kind	Dry Sandblaster
Condition	New
Certification	CE
Productivity	0.3-0.5 T/H
Load Capacity	1-100kgs
Voltage	380V 50Hz
Transport Package	Wooden Case
Specification	L600W500H500 (mm)

Product Description

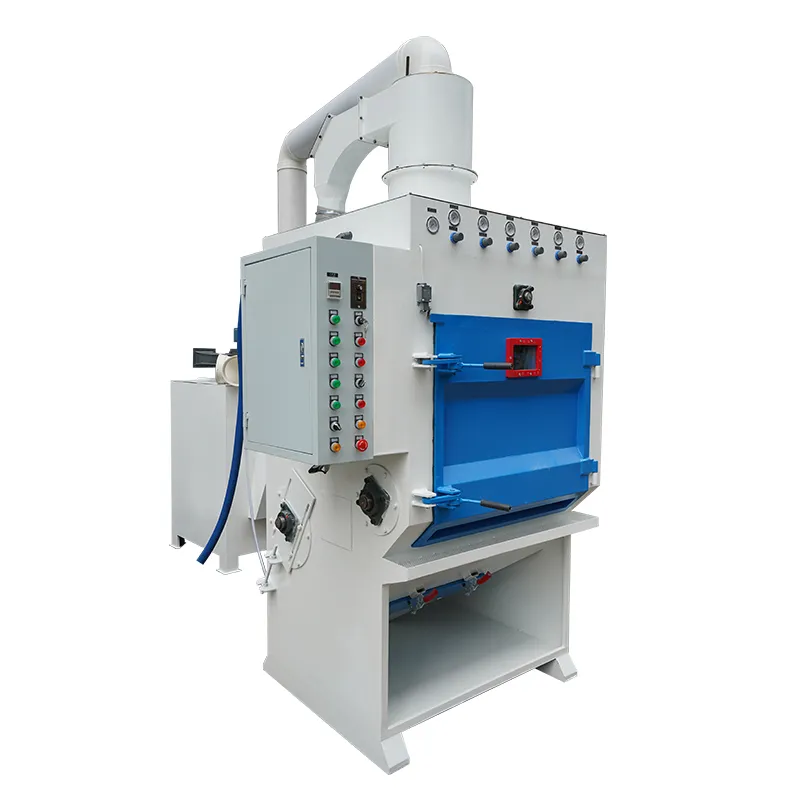

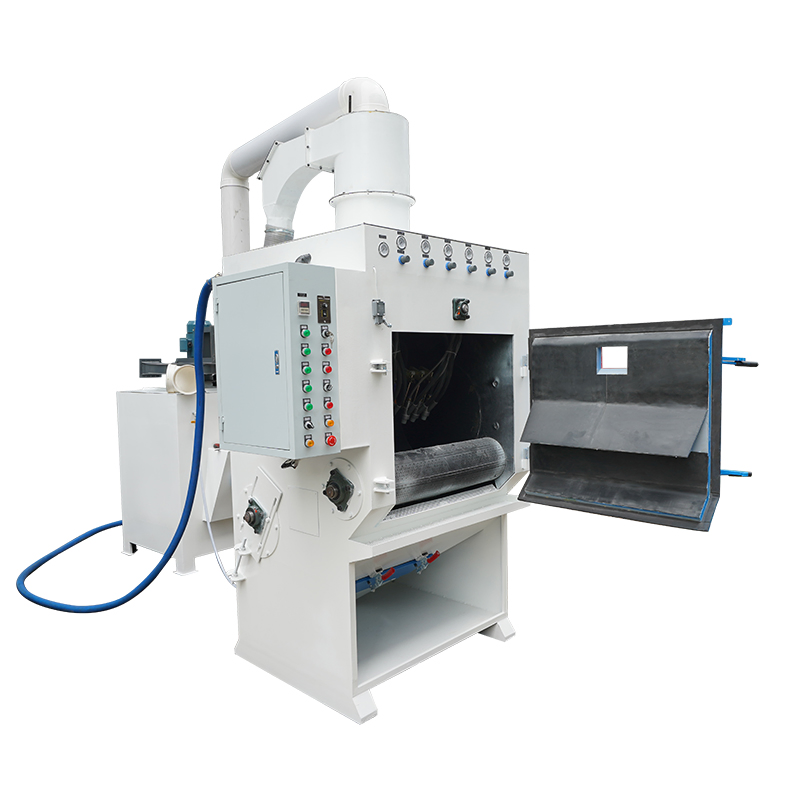

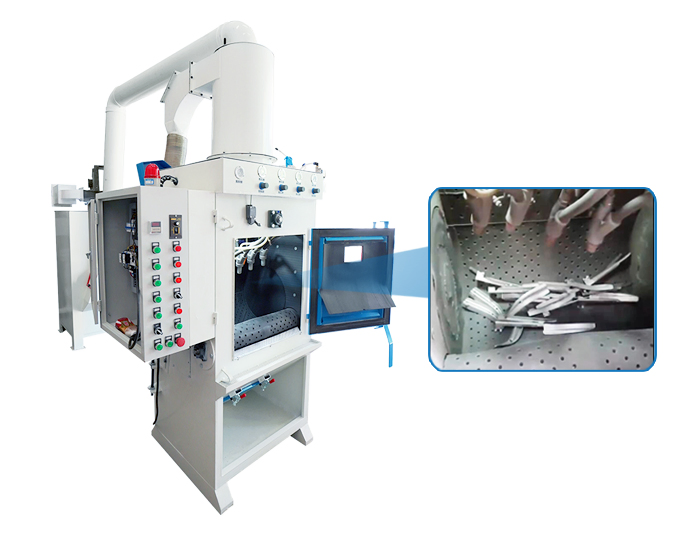

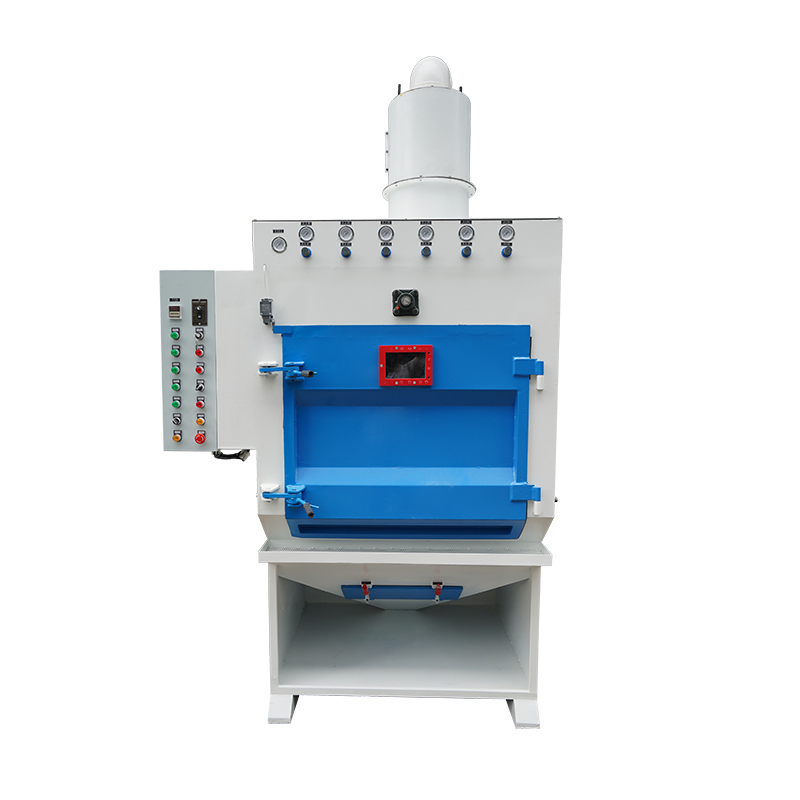

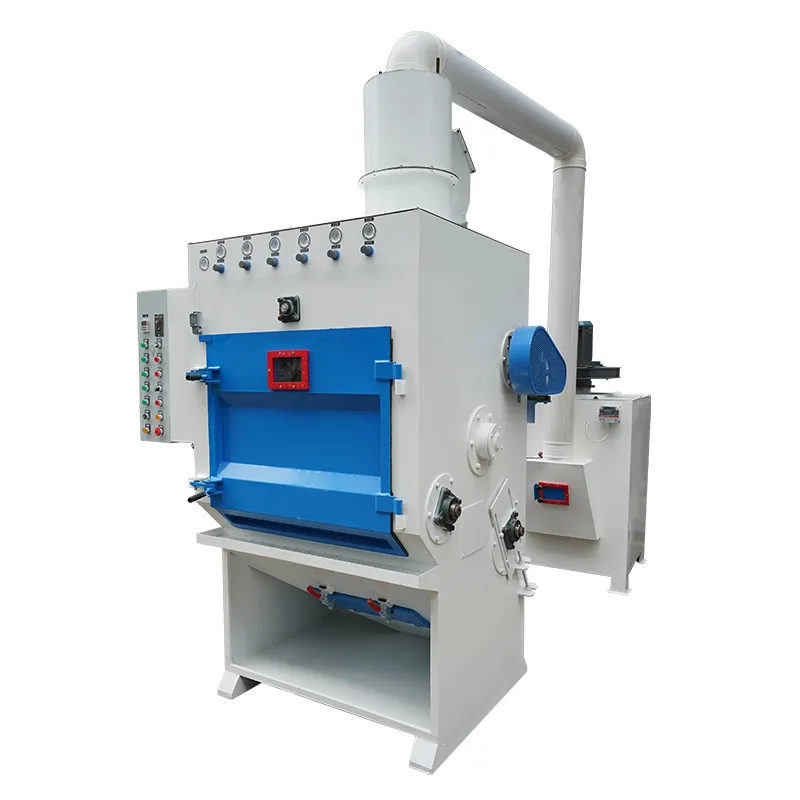

Rubber Belt Blast Machine Automatic Tumble Blasting Machine

Rubber belt automatic tumble blasting machines are ideal for processing small and medium-sized parts in batches, as well as relatively heavy, complex-shaped parts that would be hard to handle in a traditional blasting cabinet.

Application Range

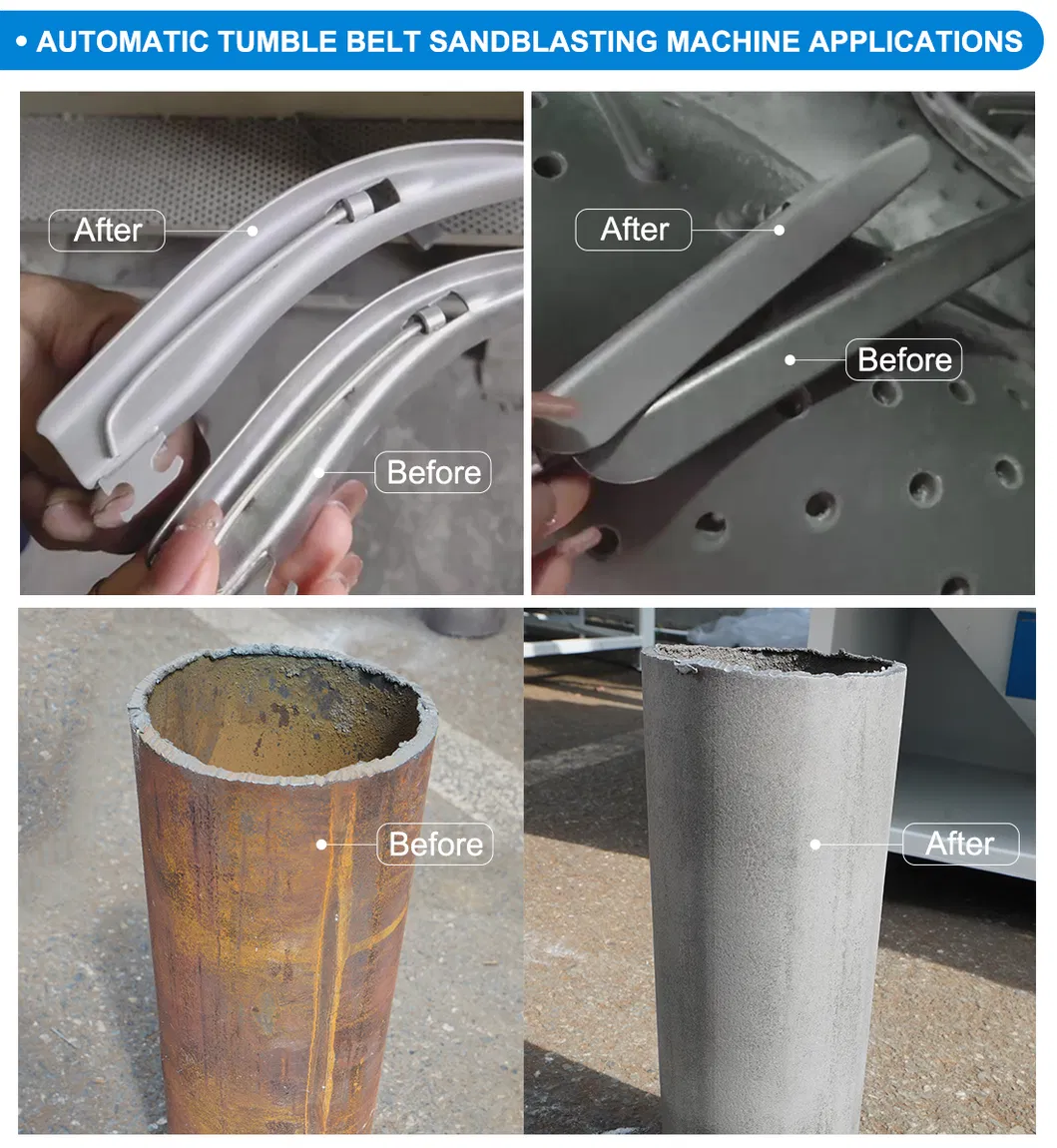

The tumble belt sand blasting machines are used for surface cleaning of cast, pressed, heat treated, forged products without sharp corners and suitable for rounding. The ability to sandblast small and medium-sized parts efficiently is a significant advantage.

Main Features & Detailed Photos

✓Long life, wear-resistant rubber belt with a loading capacity of 100kgs.

✓Blasting guns composed of boron carbide nozzles, the most durable materials in the market.

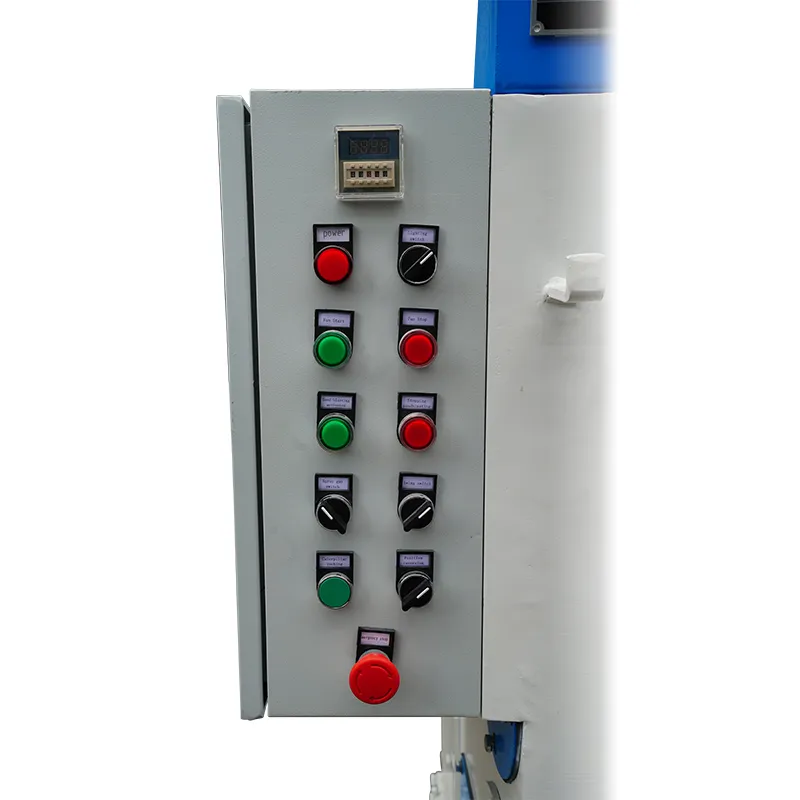

✓Easy-to-use electric control to adjust blasting pressures, belt tumbling speed, and blasting cycle time.

✓Cyclone device for continuous separation of blast media from dust, ensuring optimal results.

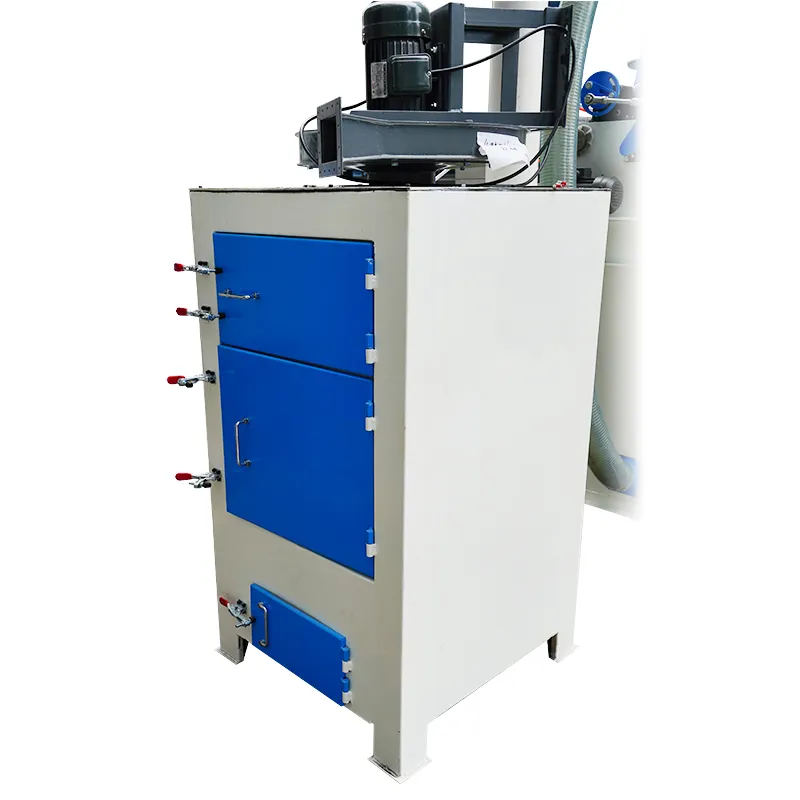

✓Pulse filter cartridge dust removal system for high efficiency and easy maintenance.

✓Tailored specifications: blast gun quantity, swing speed, and rubber belt size can be customized.

The Working Principle:

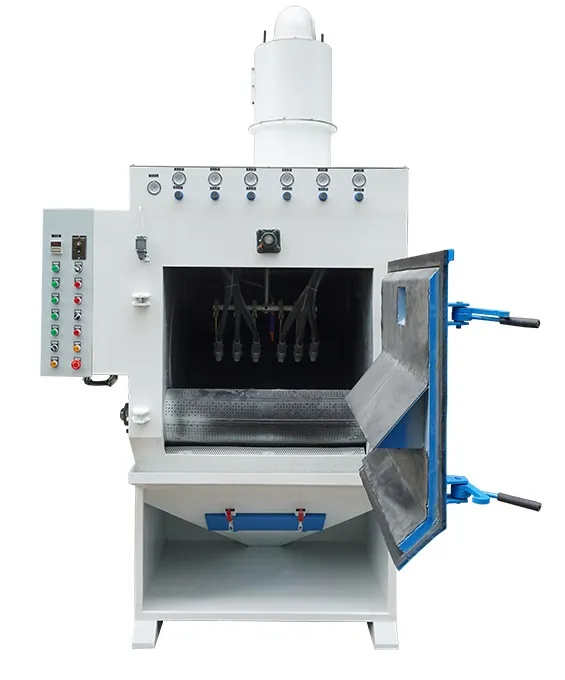

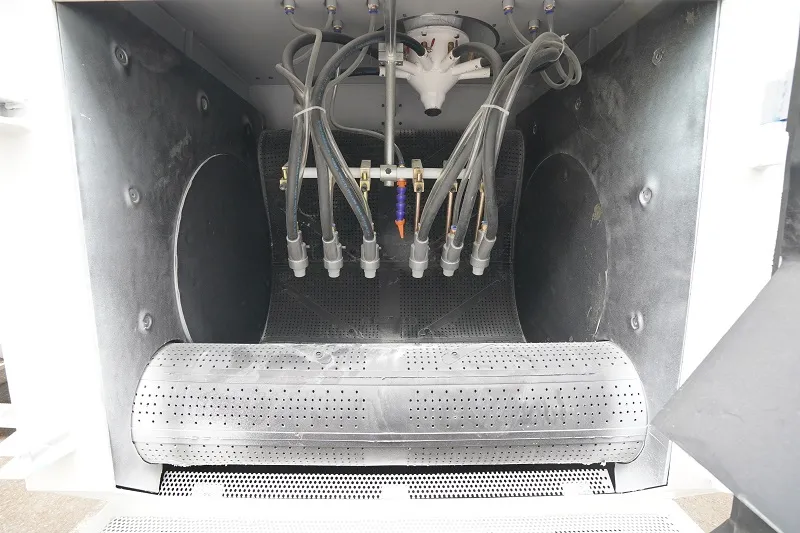

Simply load parts on the rubber belt and set the timer. Parts tumble on a thick, perforated rubber belt while a group of oscillating blast guns uniformly blast media to all exposed surfaces, delivering a consistent finish automatically.

Technical Specifications

Working cabinet:	L900W600H600 (mm)
Cabinet outsize:	L1160W1000H2800 (mm)
Dust collector dimensions:	L1200W900H2140 (mm)
Productivity:	0.5-1.0 T/H
Load capacity:	≤200KGS
Rolling motor power:	1.5KW
Dust collection motor power:	3.0KW
Automatic blasting gun:	6pcs Aluminium alloy guns, 4pcs boron carbide nozzles (8mm).
Voltage:	380V 50HZ (customizable)

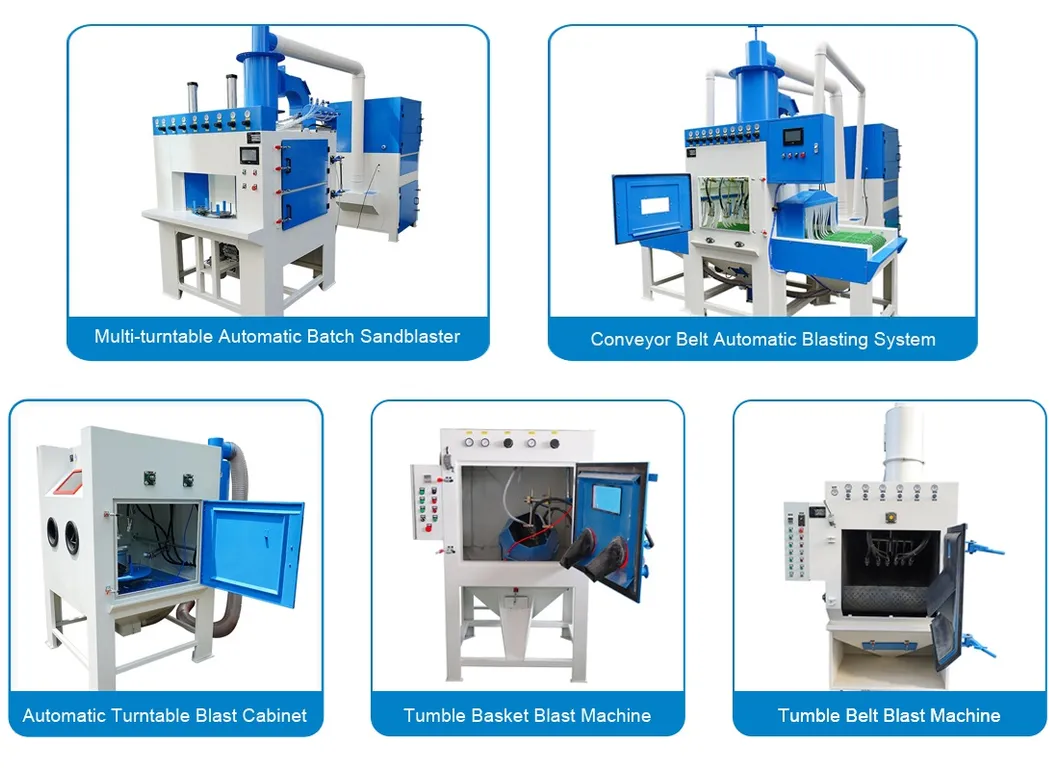

Hot-selling & Our Advantages

Note: We provide Custom Design services. The size of the working chamber and the blast gun quantity can be made to customer requirements.

About Our Surface Treatment Solutions

We provide professional surface treatment solutions for industries such as shipping, steel structures, containers, automobile accessories, hardware, stone carving, and more. Our products include sandblasting equipment (manual/automatic cabinets, portable blasters, conveyor systems) and mass finishing systems (vibratory polishing, centrifugal barrel machines).

Frequently Asked Questions (FAQ)

Q1: What types of parts are best suited for the tumble belt blasting machine?

A: It is ideal for small to medium-sized parts processed in batches, especially those with complex shapes that are difficult to handle manually.

Q2: What material is used for the blasting nozzles?

A: The machine uses boron carbide nozzles, which are known for being the most durable and wear-resistant material available.

Q3: Is the machine capable of automatic dust collection?

A: Yes, it features a pulse filter cartridge dust removal system and a cyclone device to separate pure blast media from dust.

Q4: Can the voltage and machine size be customized?

A: Absolutely. We offer custom design services where voltage, chamber size, and gun quantity can be tailored to your specific requirements.

Q5: What is the maximum load capacity of the KF-A100 model?

A: The standard load capacity is up to 100kgs, though specific configurations can handle up to 200kgs.

Q6: How does the "Tumble" principle work?

A: Parts are placed on a perforated rubber belt that rotates, causing parts to tumble. This ensures all surfaces are exposed to the oscillating blasting guns for a uniform finish.
