Overview & Basic Information
| Model NO. |
Q326 |
Application |
Surface Treatment |
| Fuel |
Electric |
Type |
Crawler Abrator |
| Cleanliness |
High Cleanliness |
Automation |
Automatic |
| Certification |
CE |
Feature |
Critical Cleaning / Residue Free |
| Loading Capacity |
200kgs |
HS Code |
846090 |
Product Description

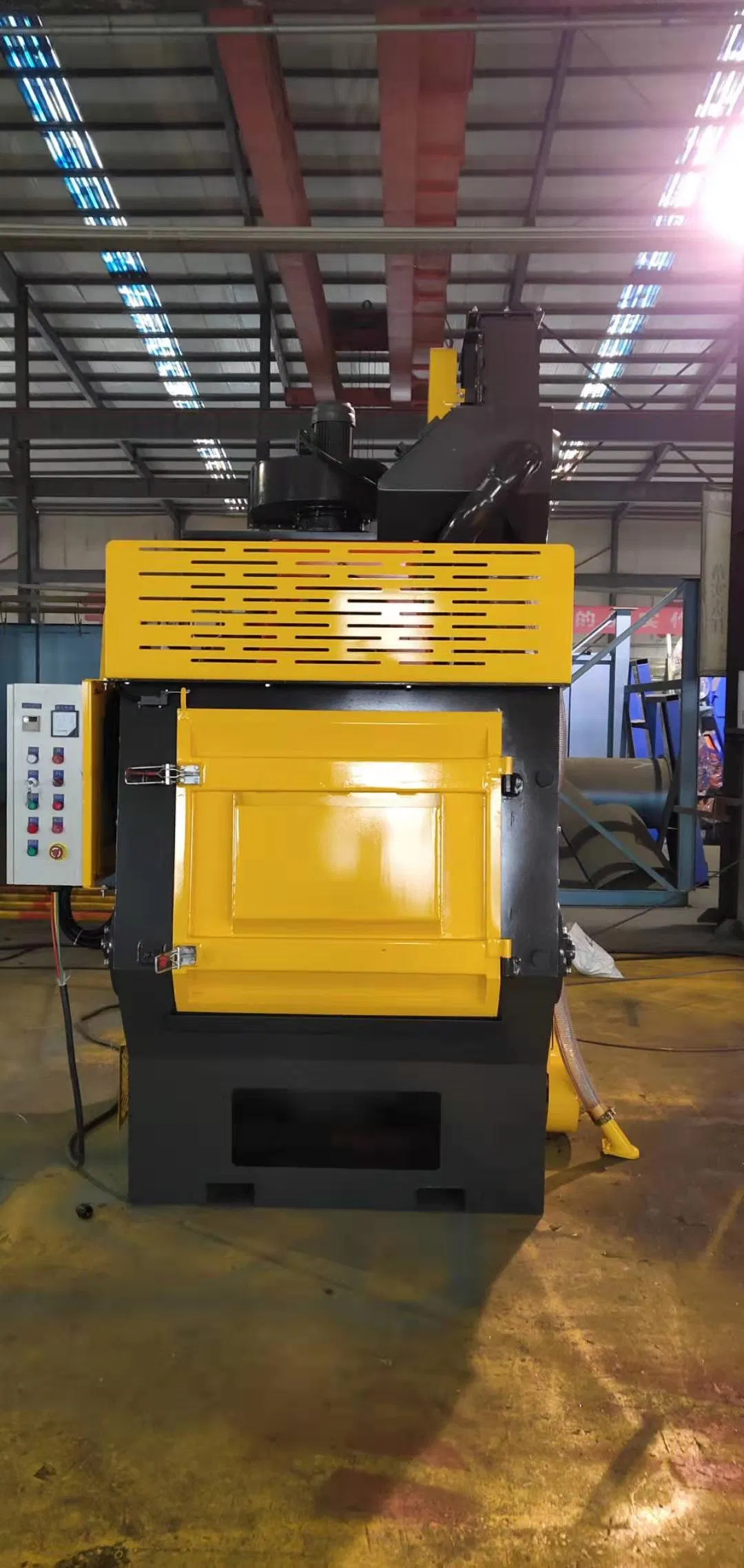

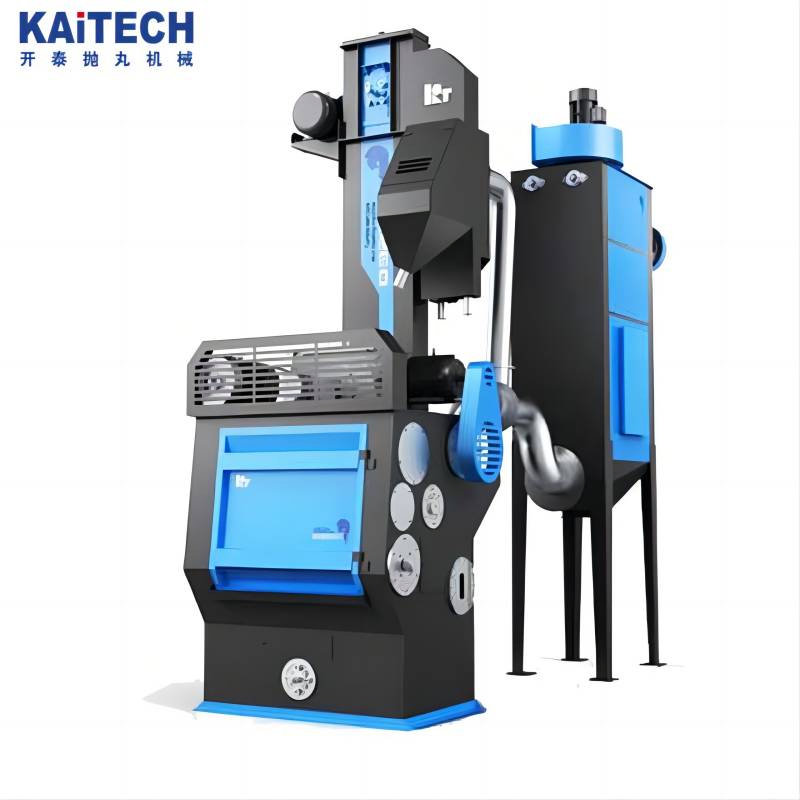

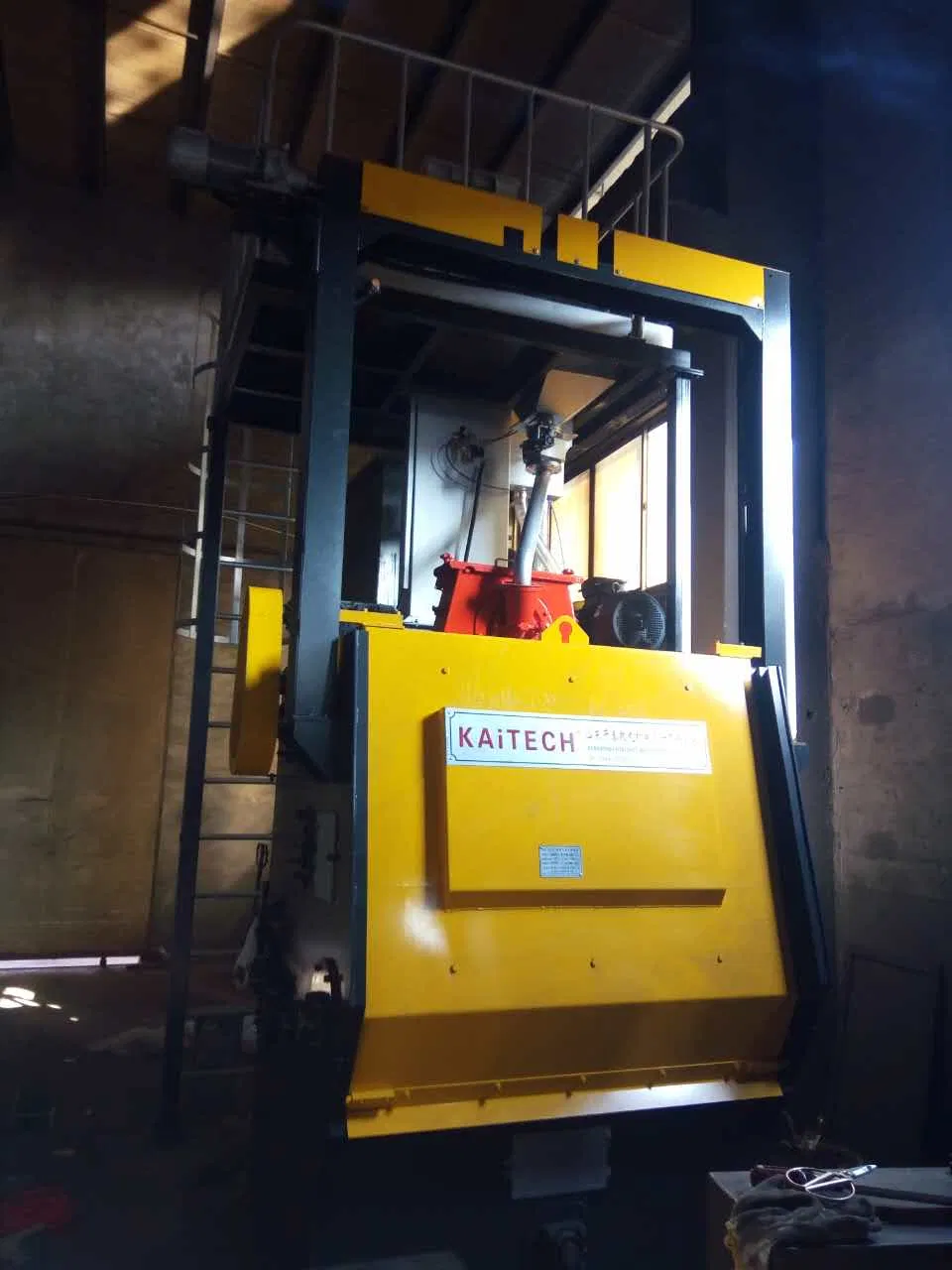

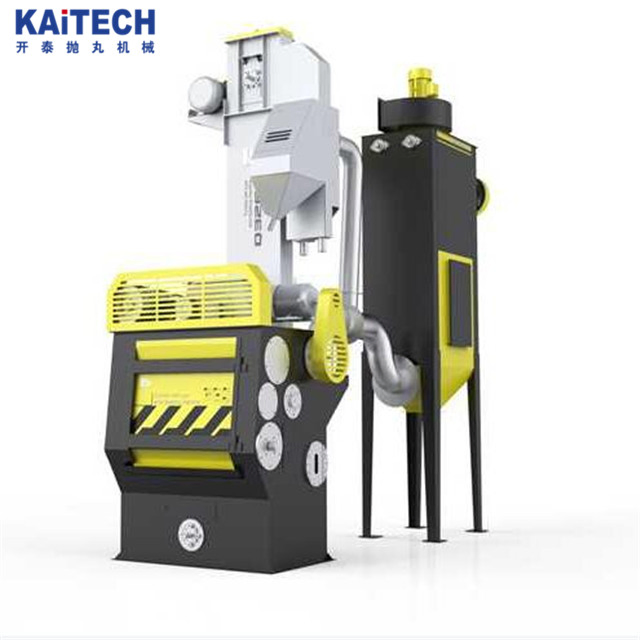

Tumble/Rubber Belt Surface Cleaning Sand/Shot Blasting Machine
Technical Parameters:
| Item |
Name |
Technical parameters |
Remarks |
| 1 |
Cleaning capacity |
≤0.1m3 and ≤200Kg |
Quantity/times |
| 2 |
Workpiece |
Unit weight: ≤ 10Kg, L ≤ 300mm, t ≥10mm |
Temperature: ≤80ºC |
| 3 |
Blasting chamber |
1330B×1010L×1653Hmm (max) |
- |
| 4 |
Blasting wheel |
Blasting volume: 110Kg/min, Model: QY360 |
Motor power: 7.5kw |
| 5 |
Elevator |
Model: TS-10, Capacity: 10t/h |
Power: 1.5kw |
| 6 |
Separator |
Model: FL-10, Wind speed: 4-5m/min |
Result: >99% |
| 10 |
Dust collector |
Model: ZB24, Ventilation: 1800m3/h |
Blower: 2.2KW |
| 11 |
Total power |
~12.85KW |
As per request |

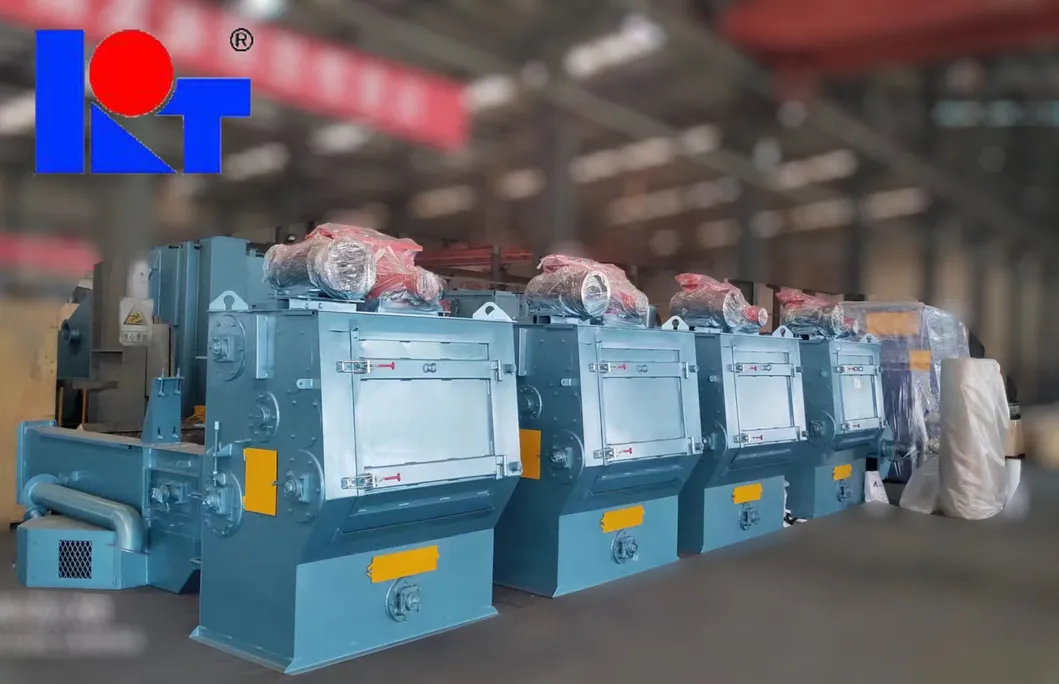

Application
High efficiency Crawler Type Shot Blasting Machine is suitable for surface cleaning, rust removing and strengthening of various medium, small castings, forging and heat treatment workpieces.
Detailed Components

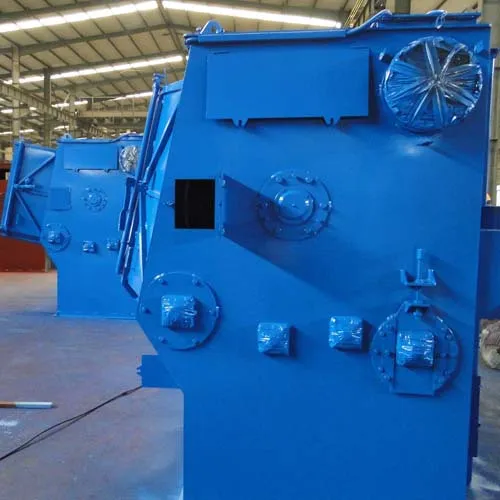

3.1 Blasting Chamber: Blasting chamber has liners inside to protect the chamber shell, liners divide into normal casting liner and rolled Mn13 materials.

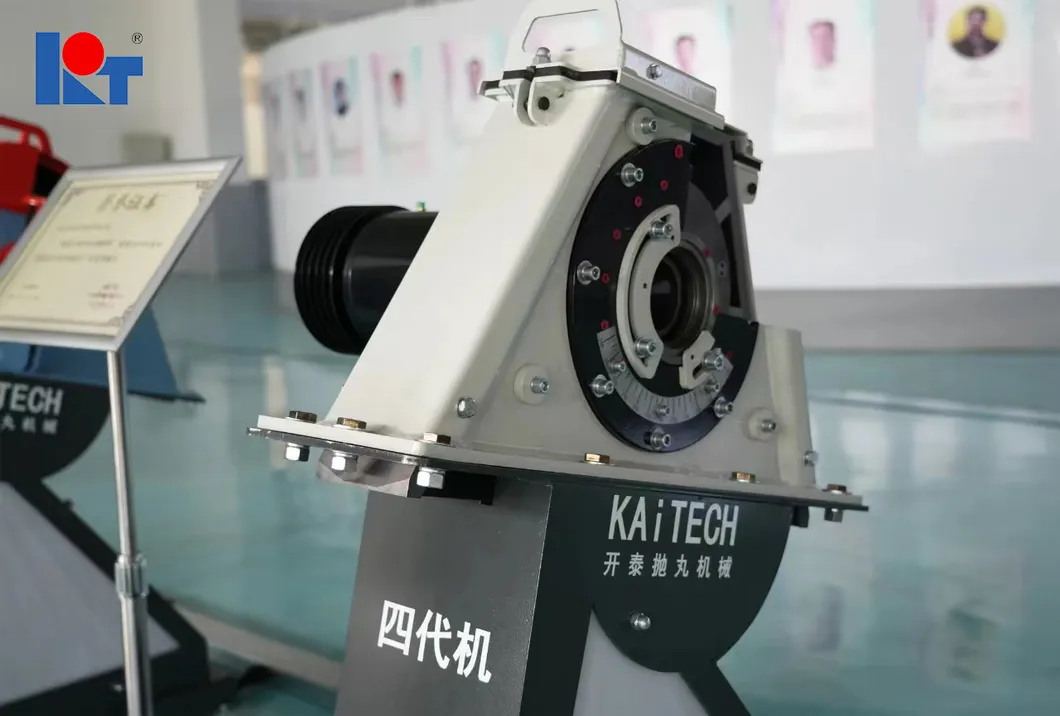

3.2 Blasting Wheel: The key component composed of high chrome blade, distributor, control cage, and guard plate.

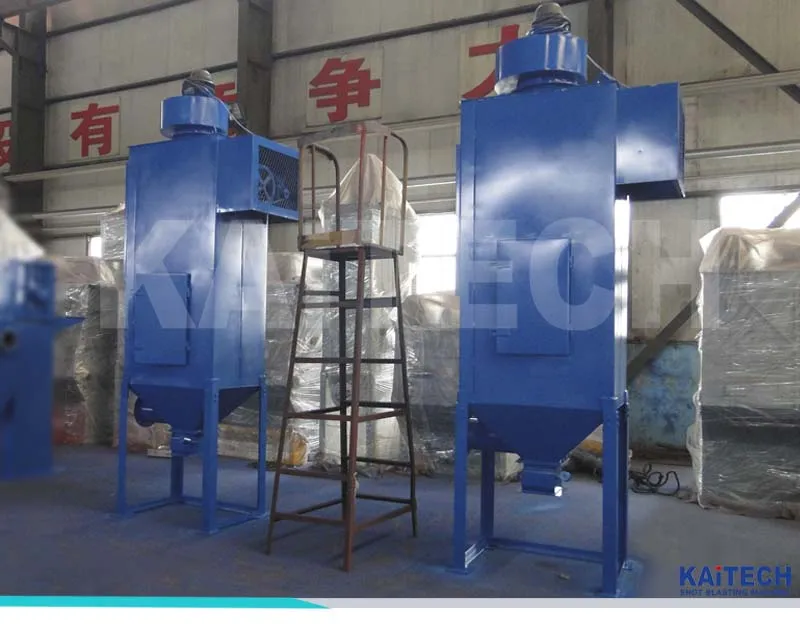

3.3 Dust Collector: Uses bag filter type dust collector, providing excellent capture capability for environmental protection.

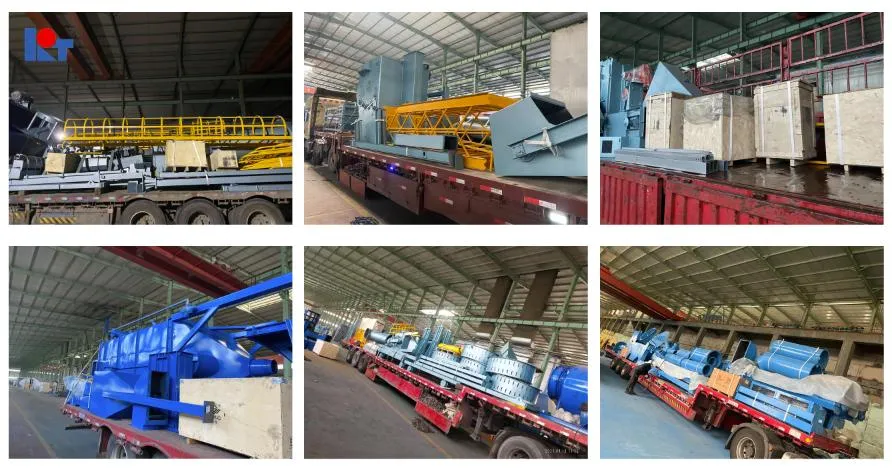

Packaging, Shipping & Certifications

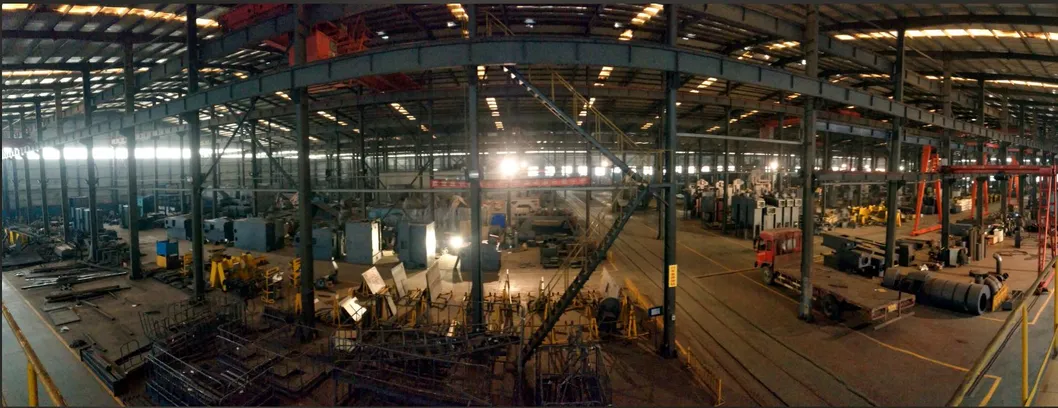

Professional Capability

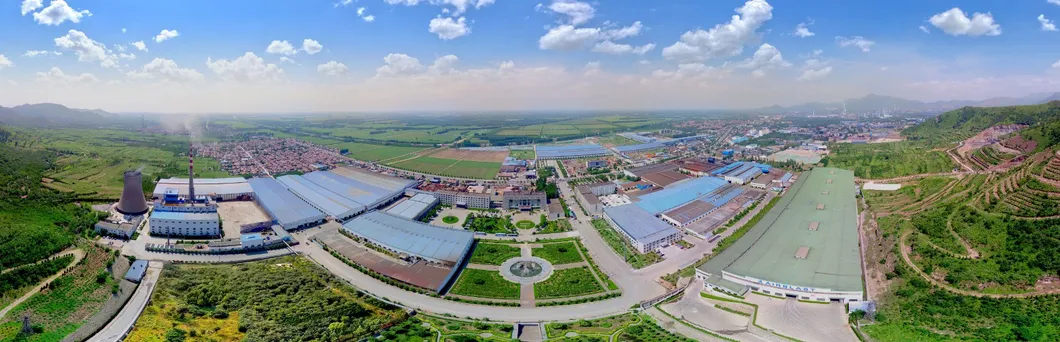

Dedicated to the blasting industry for over 20 years, we are a global professional and leading manufacturer of intelligent air & wheel blasting technology solutions for the metal surface treatment industry. With 1800 employees and an area of 600,000 square meters, we provide high-quality all-round blasting solutions globally. Our focus includes intelligent equipment, metal abrasives, air blowers, and environmental protection equipment across fields such as engineering machinery, shipyards, aerospace, and automotive.
Our Advantages:
- Professional supplier in metal surface treatment technology.
- Comprehensive blasting technology and equipment solutions provided by an expert technical team.
- Customized R&D schemes for different performance requirements.
- Complete training schemes for surface treatment technology.
Frequently Asked Questions
Do you have after-sale service?
Yes, we provide comprehensive after-sale service to support our customers globally.
How long can your spare parts be used?
High chrome blades, control cages, and distributors can be used for more than 2000 hours. Guard boards can exceed 3000 hours of use.
What standards do you carry out for your products?
We produce all equipment strictly according to ISO9001 and ISO14001 rules.
How is the machine installed?
We arrange 1-2 engineers to your facility to guide the installation and assembly process.
What is your experience in the international market?
We have exported to more than 80 countries and regions worldwide, including the USA, France, Singapore, Australia, and the Middle East.
Do you have the right to export directly?
Yes, we are registered with Customs and possess full independent export rights.
