Blatrixo Machine Blatrixo Machine

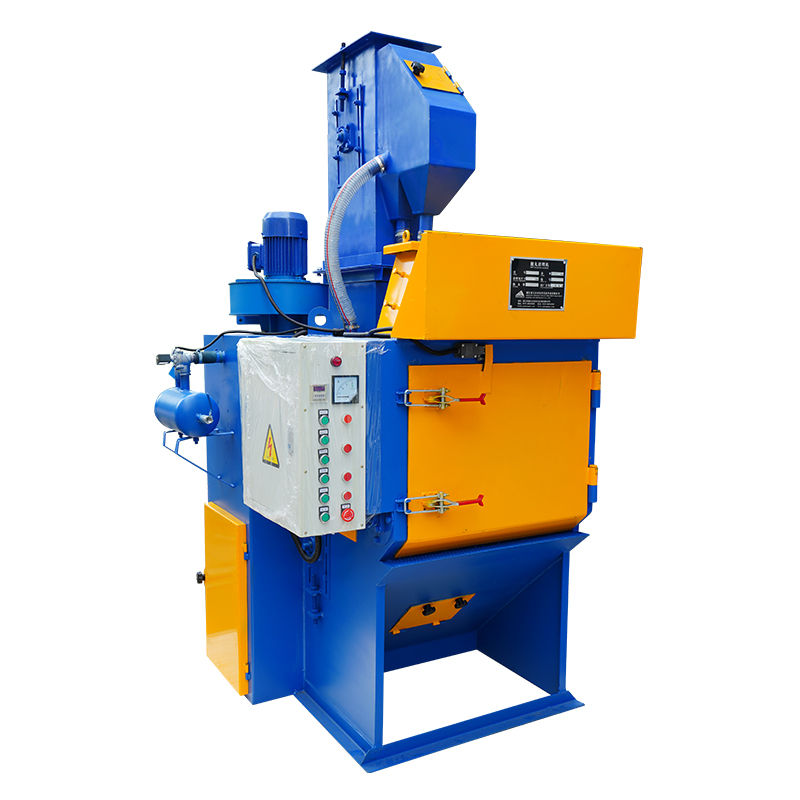

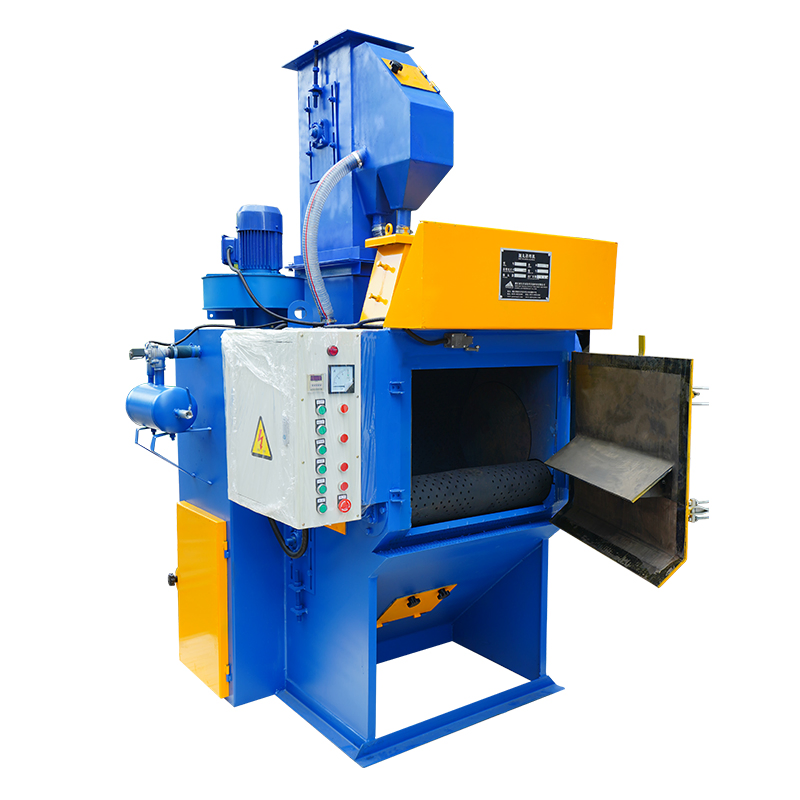

Automatic Tumble Blast Machine Shot Blasting Cabinet

Customization: Available
After-sales Service: 1 Year Warranty
Warranty: 1 Year

Product Description

📊

Basic Specifications

Model NO.KF-S4065
DrivePneumatic
PrinciplePress-in
ControlArtificial
LayoutHorizontal
AutomationAutomatic
KindDry Sandblaster
ConditionNew
CertificationCE
CustomizedCustomized
ProductTumble Blast Machine
ApplicationShot Blasting, Shot Peening, Cleaning
Power Supply380V/50Hz
Dust CollectorCartridge Filter Type
Production Capacity200PCS/Month
⚙️

Product Description

Automatic Tumble Blast Machine Shot Blasting Cabinet is suited for surface treatment of small and medium sized parts in batches, such as forged, cast, pressed, heat treated components without hard-to-reach corners, can be finished to the highest standard.

Shot blasting performs extraordinary effective for oxide removal, core removal, rounding and other cleaning purposes.

Shot Blasting Cabinet

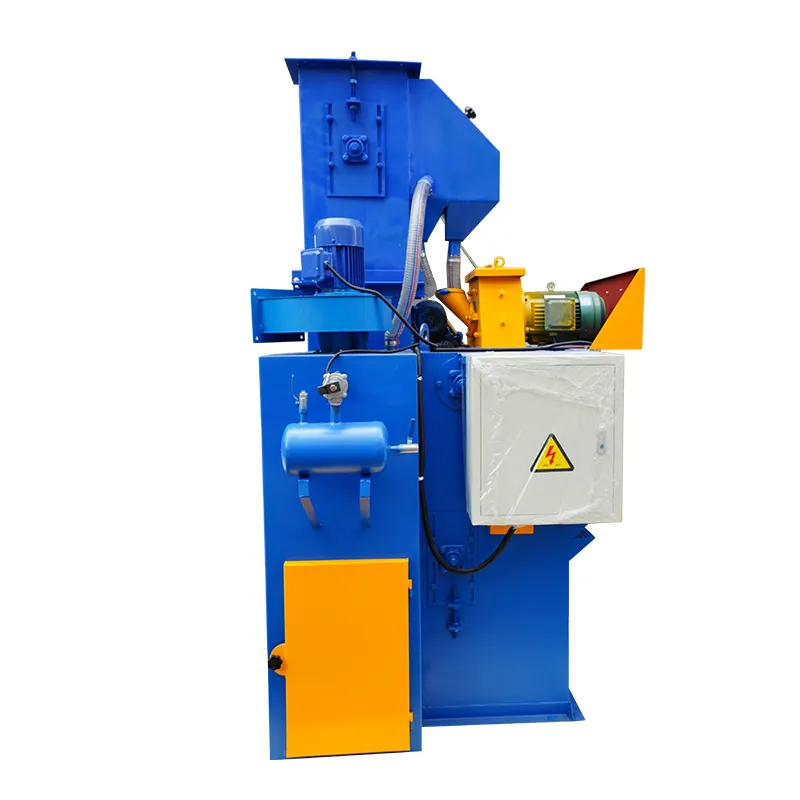

Automatic Tumble Blast

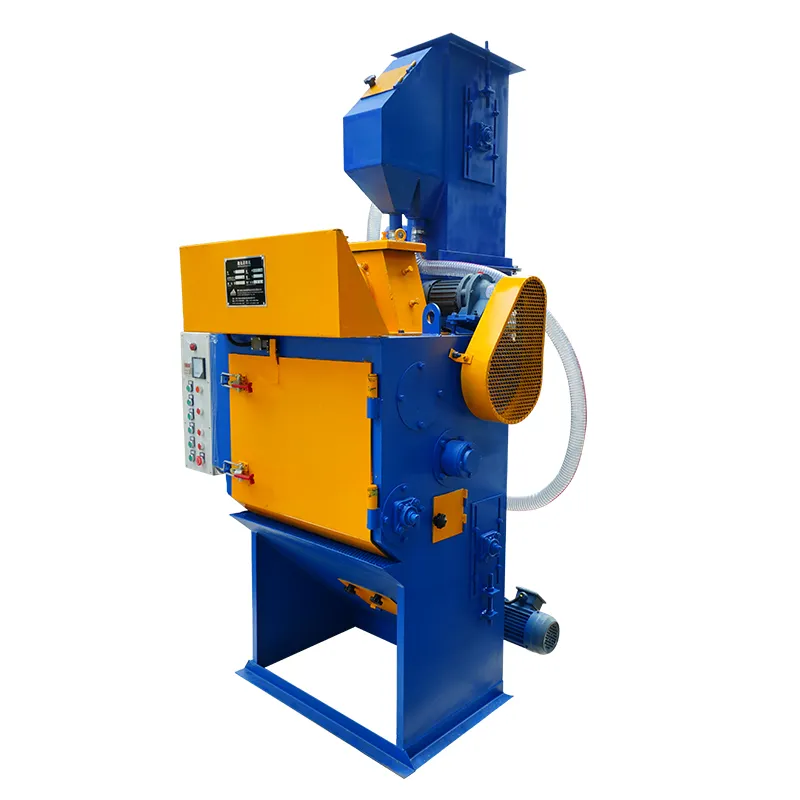

Tumble Blast Machine

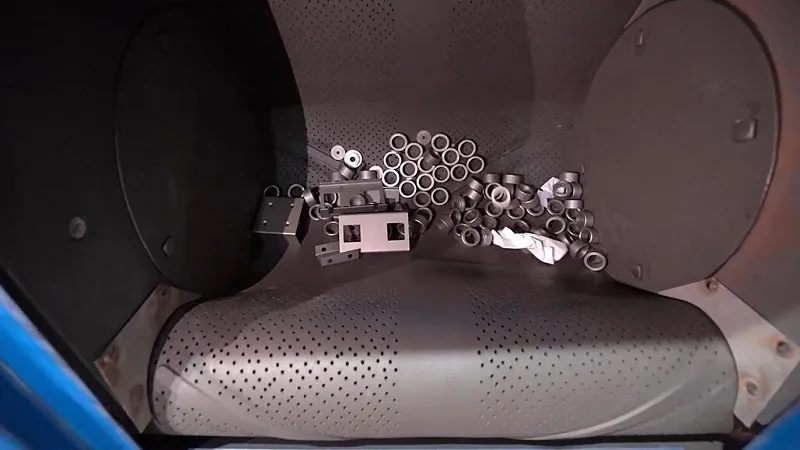

Oxide Removal Effect

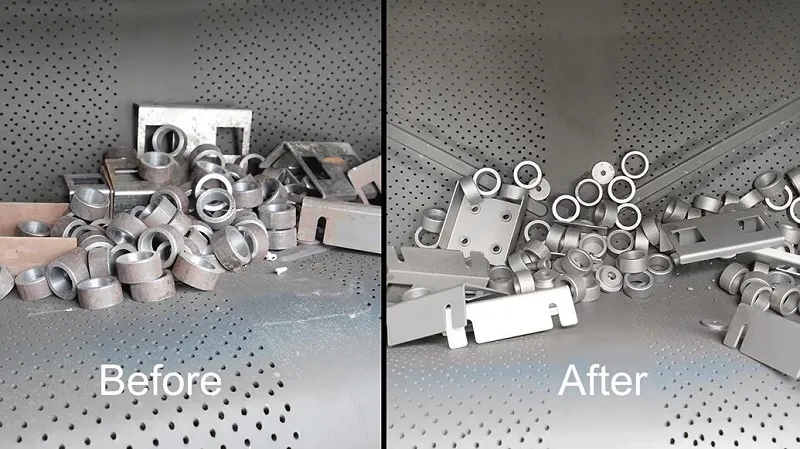

Cleaning Purposes
💡

Operation Principle

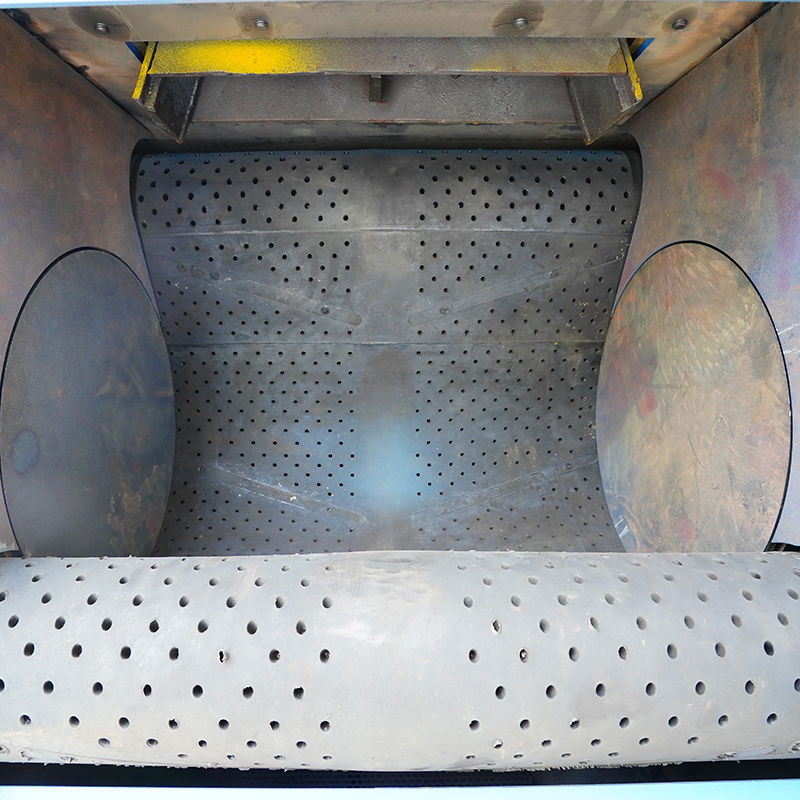

Shot blasting machine is powered by electromechanical systems, working through a high-speed rotating impeller to throw out steel shots at high velocity and flow, creating a forceful impact on the surface. In the tumble belt blaster, parts are placed in a half-cylinder volume and moved by the swiveling motion of the belt.

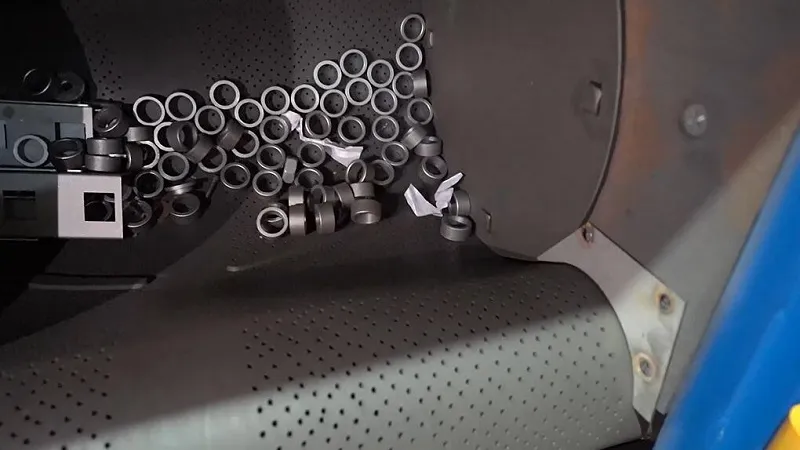

Working Process

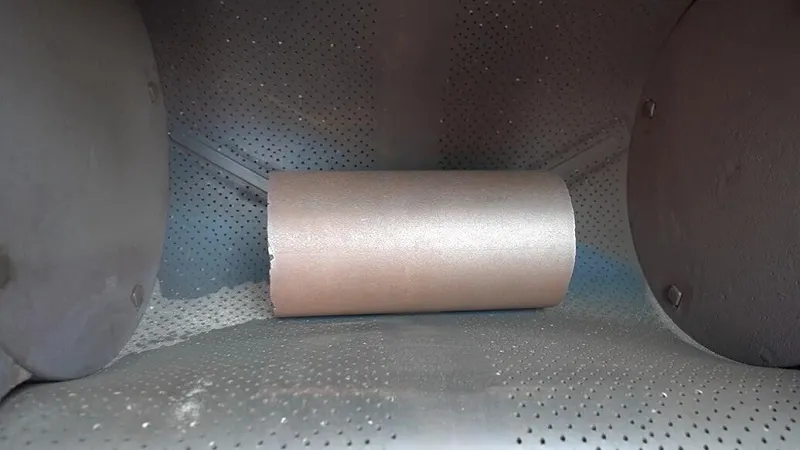

Internal Mechanism

Detail Features

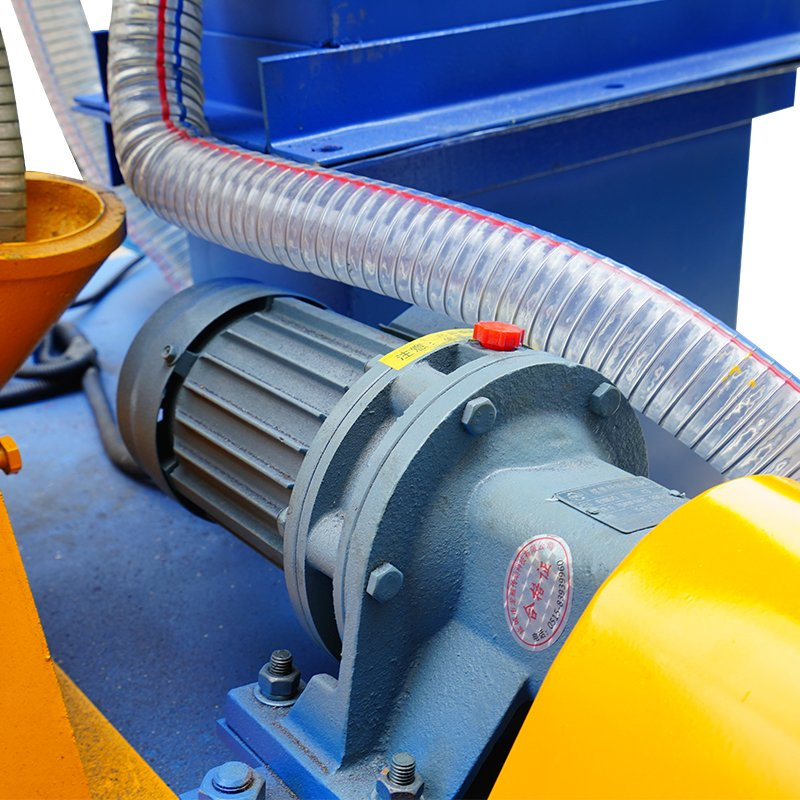

Uniquely designed with double-disc impeller for high-flow projectile throwing, directly driven by a reliable electric motor.
Configured pulse filter cartridge dust removal system for high efficiency and easy maintenance.
Blasting chamber constructed of riveted steel welding with alloy guard plates for wear and impact resistance.
Integrated safety protection devices to ensure safe and effective operation.
Fully customizable based on the size, weight, and daily volume of parts.
Compatible with automatic filling and automatic emptying systems.
Feature Detail 1

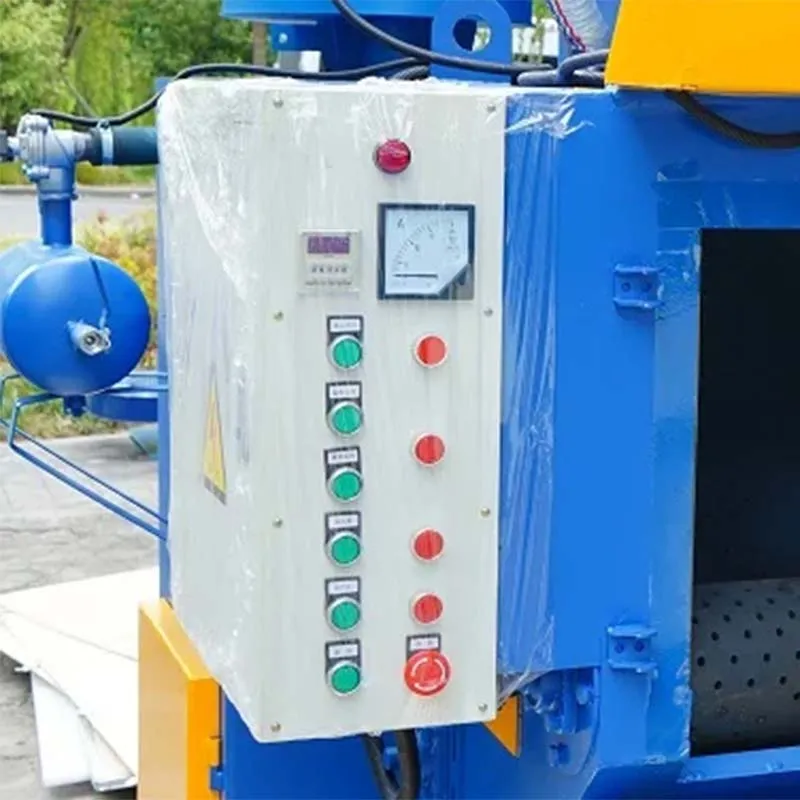

Feature Detail 2
📋

Technical Specifications

ModelKF-S4065
Cabinet WorksizeDiameter 400mm * Length 650mm
Overall Dimension1300*1600*2500mm
Impeller TypeDouble-disc
Impeller Head Power4.0KW
Belt Drive Motor0.75KW
Dust Removal Fan Motor1.5KW
Shot Lifting System0.75KW
Abrasive Flow Rate60kg/min
Tumble Belt Hole Diameter3mm

Frequently Asked Questions

What types of parts are best suited for this machine?
It is ideal for surface treatment of small and medium-sized parts in batches, such as forged, cast, and heat-treated components.
How does the dust removal system work?
The machine is configured with a pulse filter cartridge system that provides high removal efficiency and is easy to maintain.
Is the blasting chamber durable enough for heavy use?
Yes, the chamber is made of steel with riveted welding and lined with alloy guard plates for superior wear and impact resistance.
Can the machine be customized for specific needs?
Absolutely. Each machine can be customized and manufactured depending on the specific size, weight, and daily volume requirements of your parts.
What is the abrasive flow rate of the KF-S4065?
The abrasive flow rate for this model is approximately 60kg per minute, ensuring efficient surface cleaning.
Does the machine support automatic operations?
Yes, it features an automatic design and can be further equipped with automatic filling and emptying systems.
