Blatrixo Machine
Blatrixo Machine

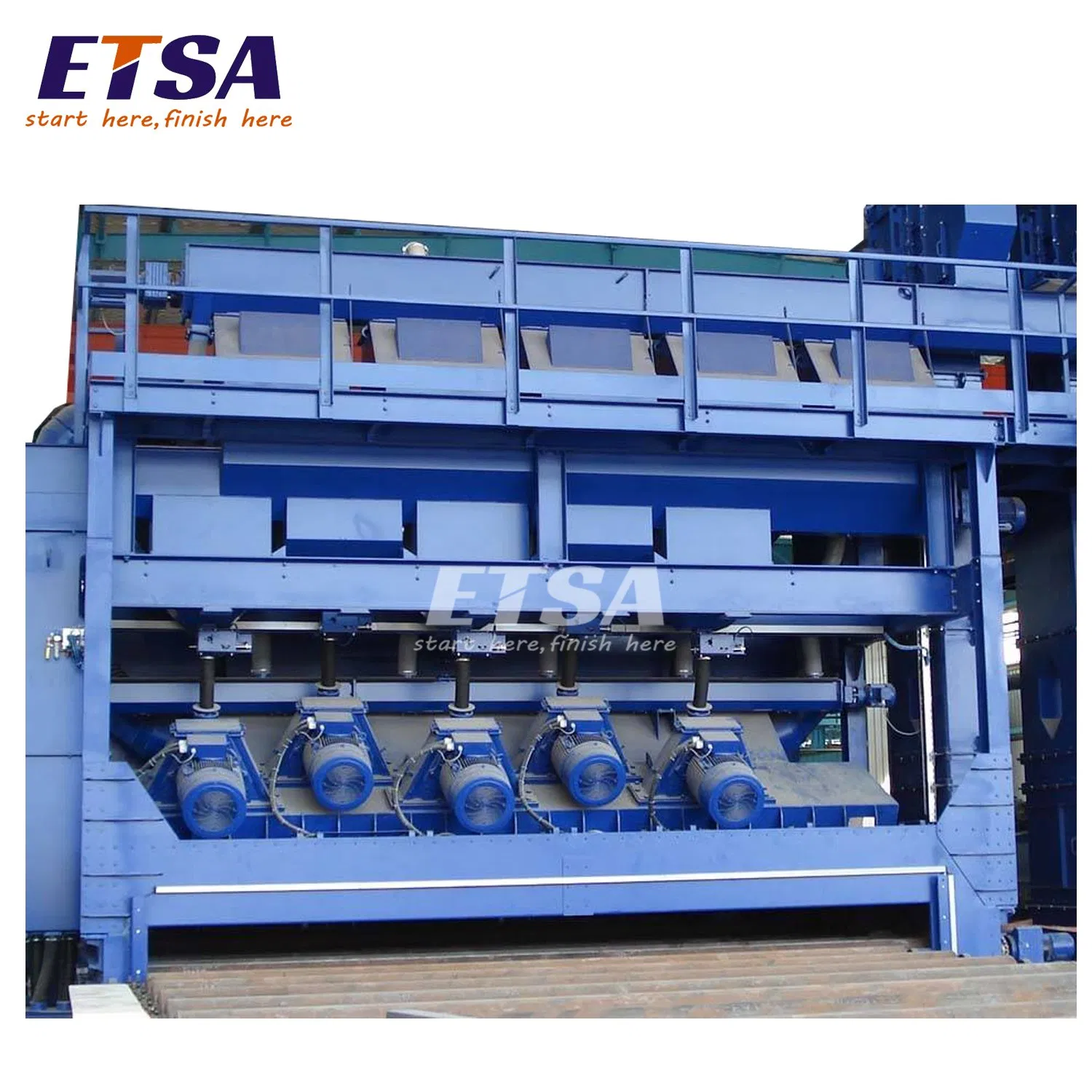

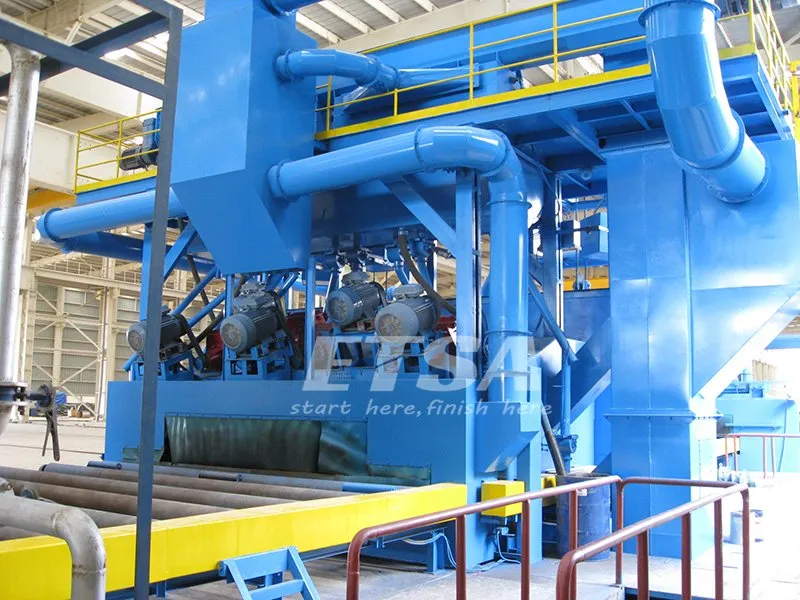

Blasting chamber liner is manufactured completely from high manganese. High manganese has a property which is hard enough to deal with the shot blasting from 35HRC to more than 60HRC. They are attached from the outside and are easy to replace. To avoid shot leakage, several rubber layers or curtains are fitted in areas of heavy wear.

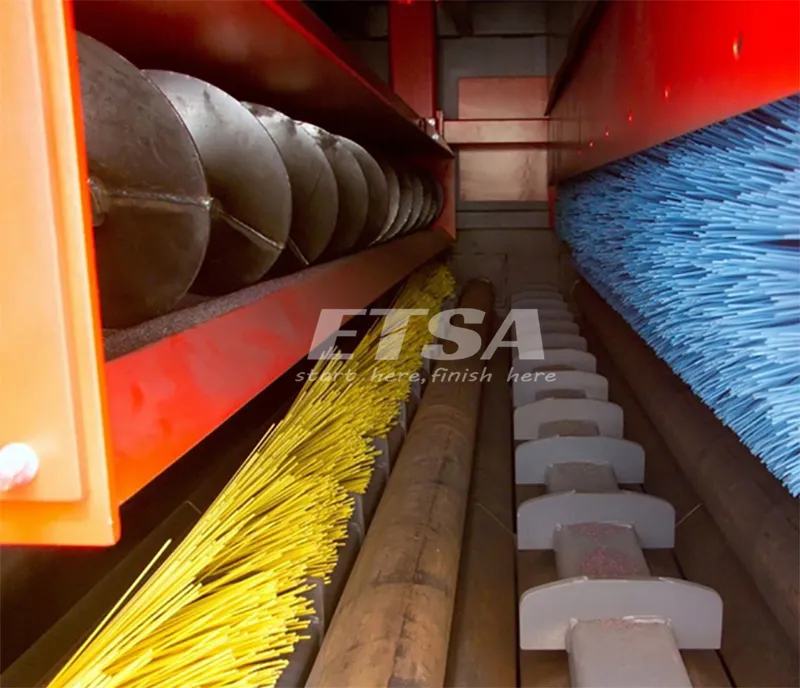

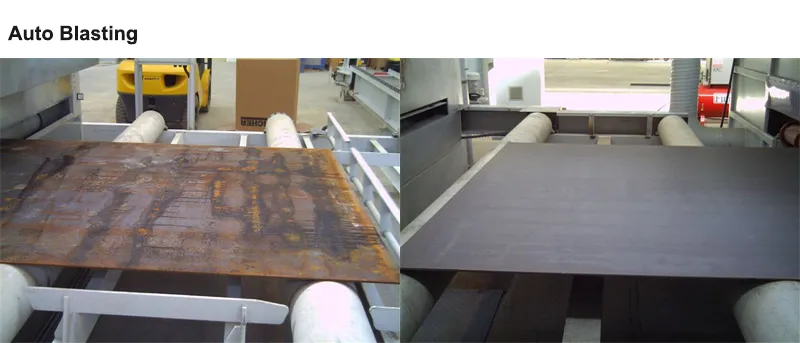

To avoid blast media building upon long parts, the rotation brushes remove the spent abrasive from the workpieces surface into a specially designed trough that has a screw conveyor taking the media back into circulation. Finally, any remaining media on the work pieces will be removed by the blow off station using high pressure ventilators.

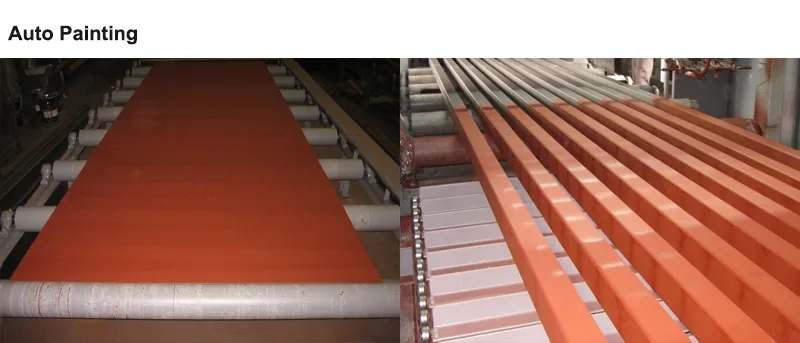

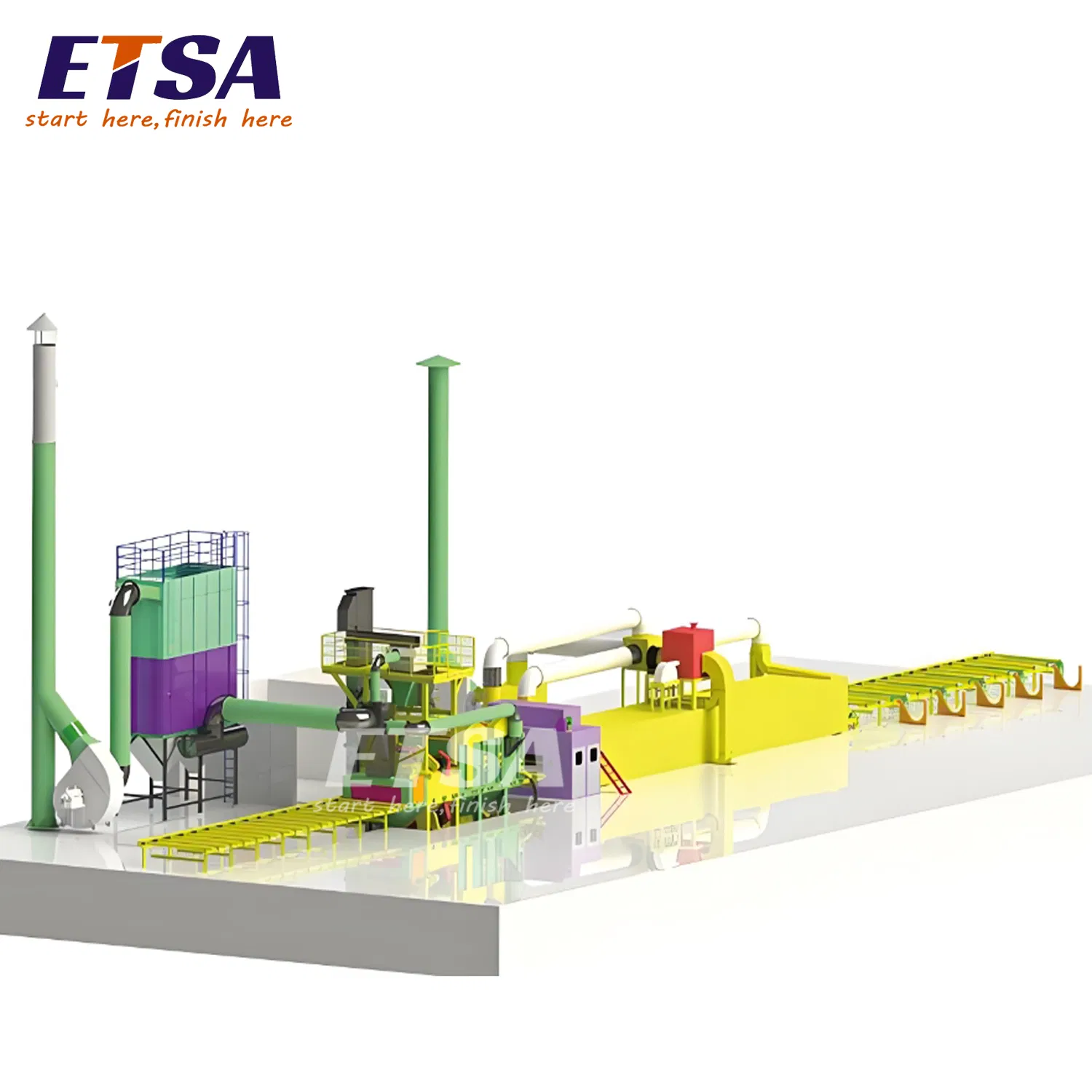

After shot blasting the metal roll goes to painting booth. The painting equipment provides the coating thickness 15-20 micron. To avoid the raw paint damage the metal roll is transferred by the chain conveyor with bearing elements, providing minimal contact with painted surface.

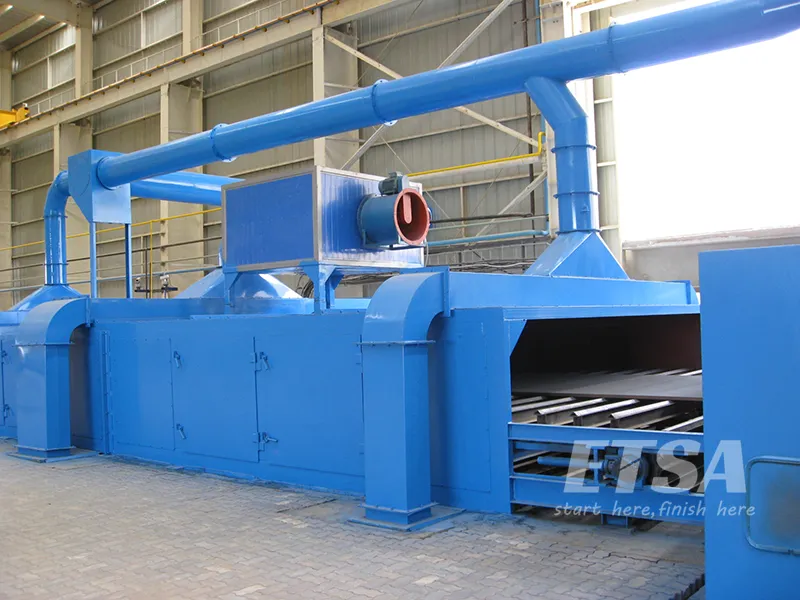

The primer drying chamber works in recycling mode: heated air is fed from the preliminary drying chamber with 10-15% fresh air intake to prevent solvent oversaturation. The temperature from 30 С to 80 С is set according to primer type.
| Type | 1500HD | 2000HD | 2500HD | 3000HD | 4000HD |
|---|---|---|---|---|---|
| Size of the workpiece (mm) | 500 | 500 | 500 | 500 | 500 |
| Width of the workpiece (mm) | 1500 | 2000 | 2500 | 3000 | 4000 |
| Work speed (m/min) | 1.5-4.5 | 1.8-5.0 | 1.0-3.0 | 0.8-2.5 | 0.8-2.0 |
| Number of blast wheels | 4 | 6 | 6 | 6 | 8 |
| Power per wheel (kW) | 11/15/18.5 | 11/15 | 11/15/18.5 | 15/18.5 | 11/15 |
| Roller pitch (mm) | 800 | 1000 | 1000 | 1000 | 1000 |
