Application
Blasting & Painting Steel Plate, Profiles, Bars...
Cleanliness
High Cleanliness (SA2.5-3.0)
Feature
High Efficiency, Dust-Free
Key Selling Points
High Productivity, Easy to Operate
Blast Media
Shot Steel/Shot Grit/Wire Cut etc
Main Components
Siemens, Omron, Schneider, Mitsubishi
Product Description

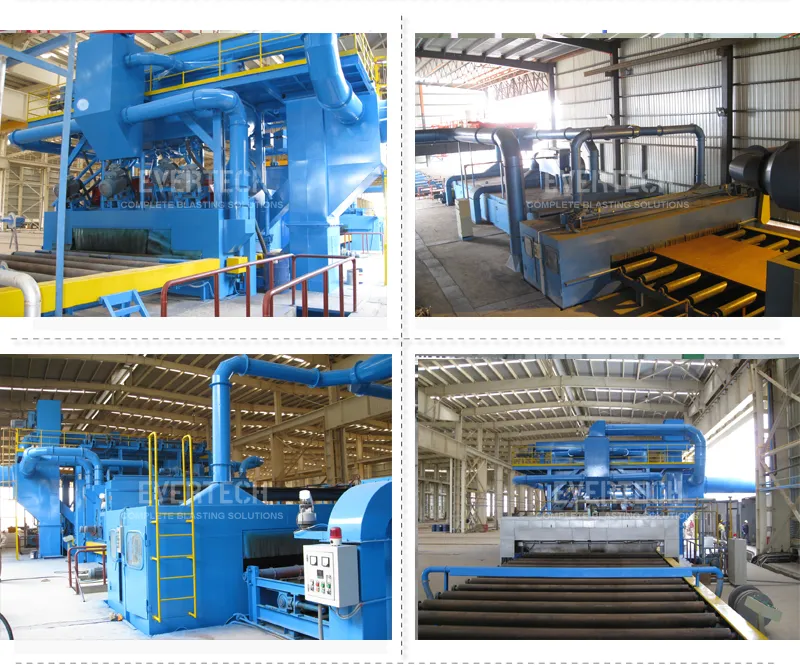

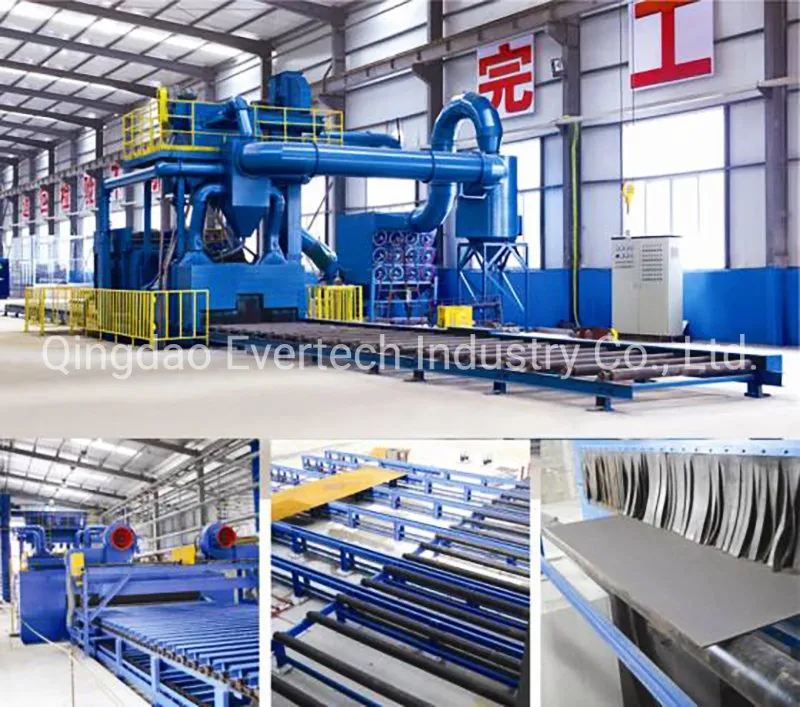

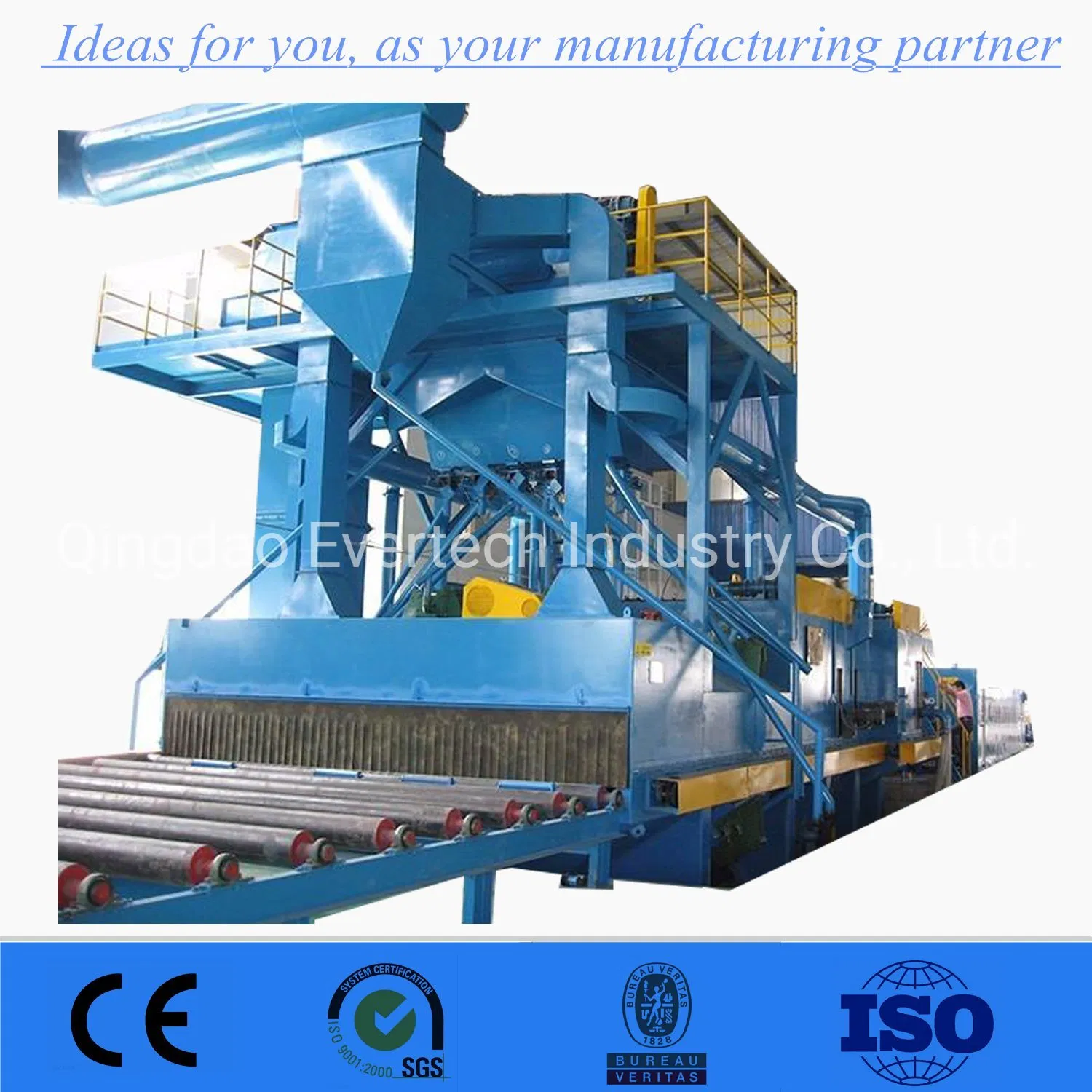

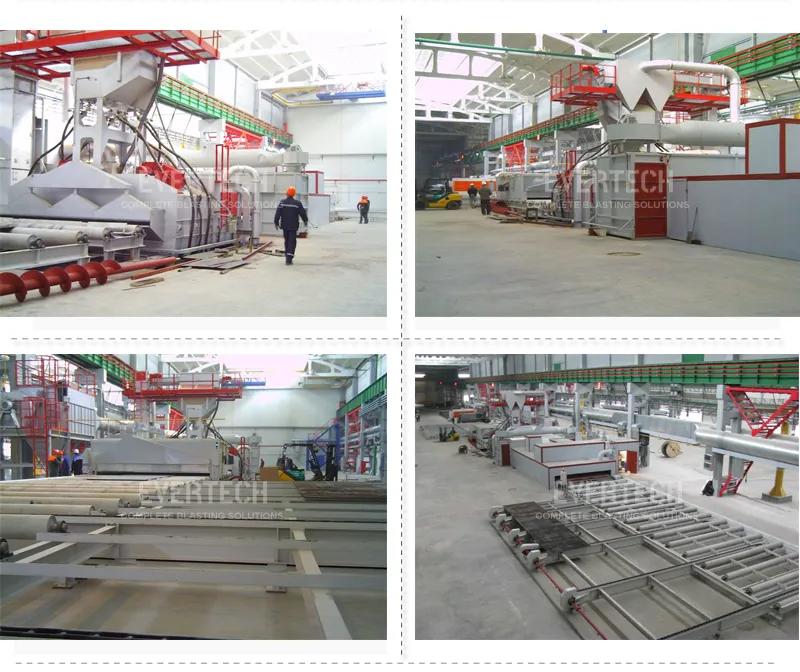

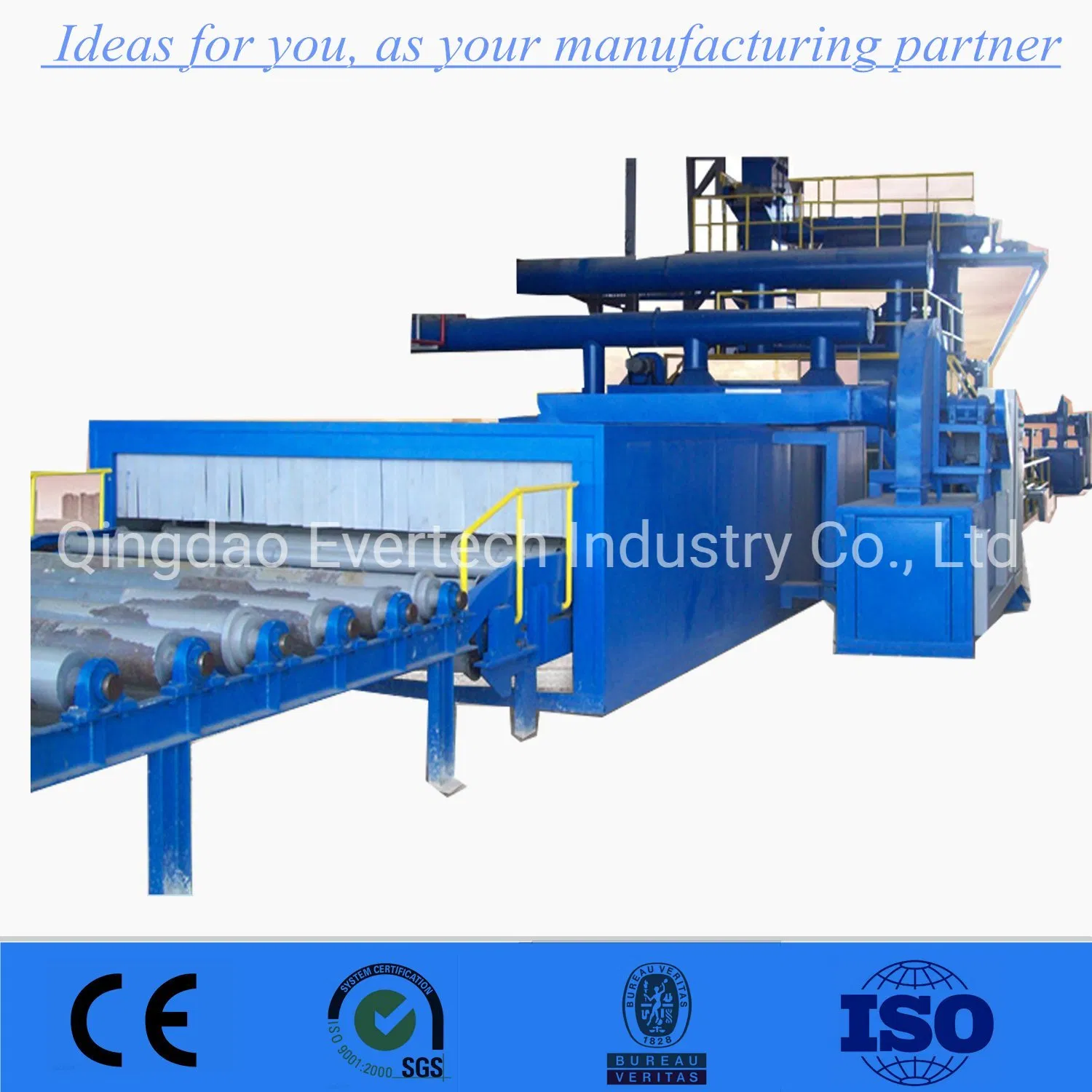

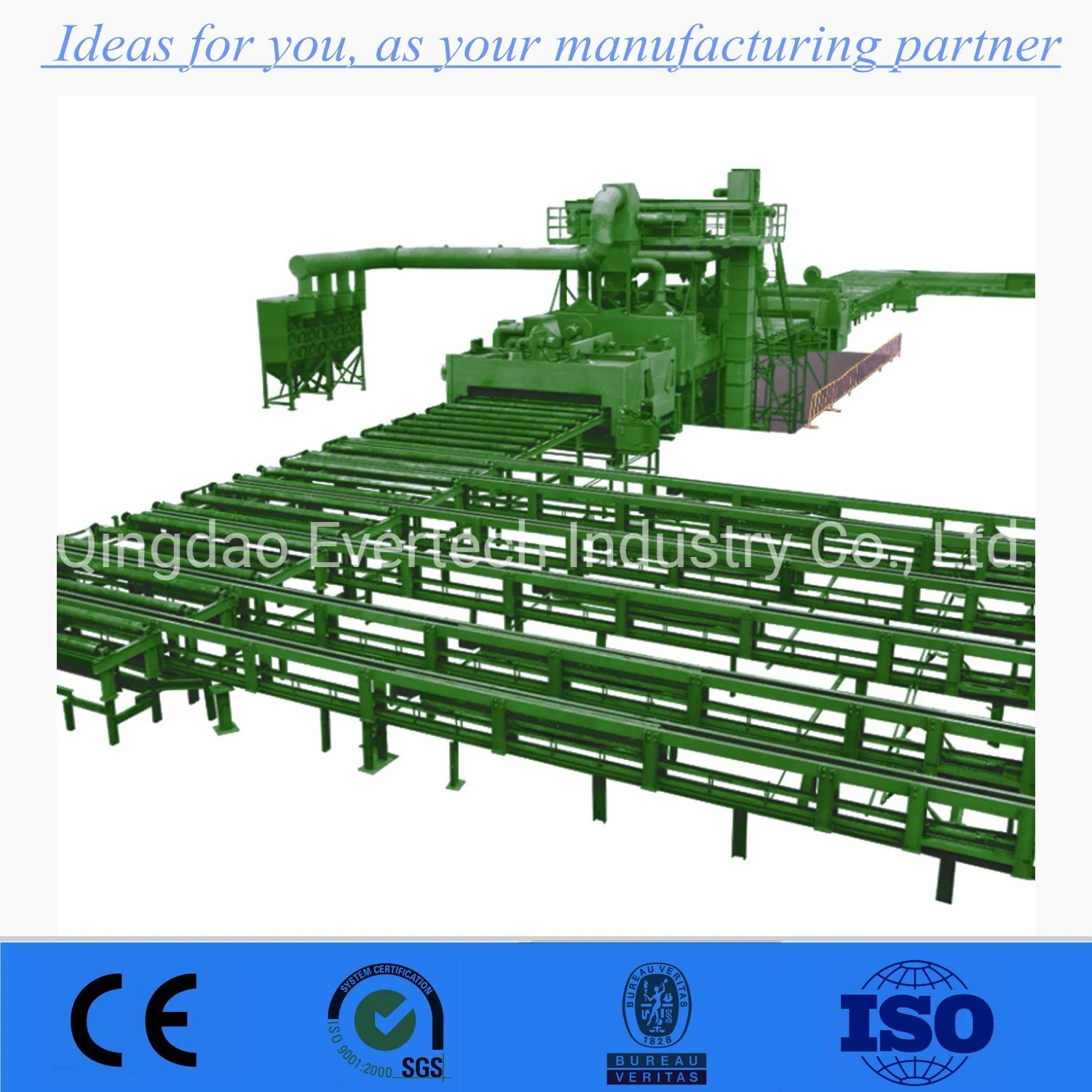

System Overview

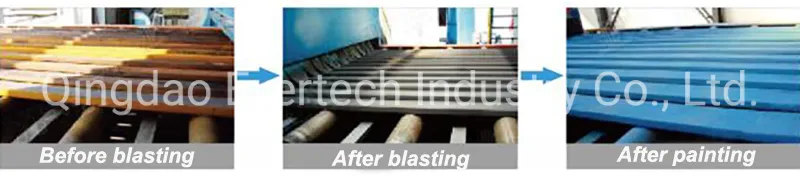

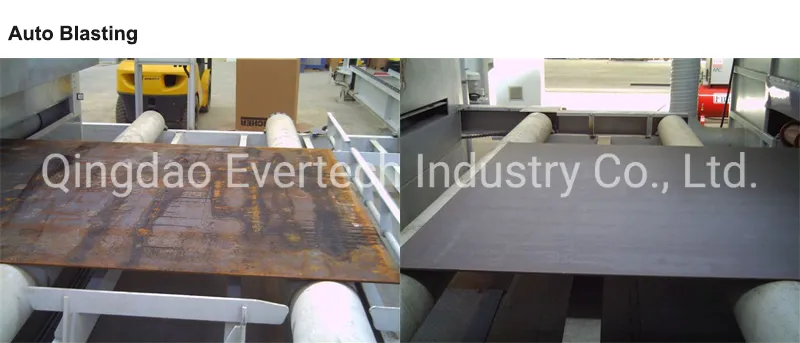

On the preservation line, sheets and profiles are thoroughly blast cleaned and provided with a temporary corrosion protection coating. Along with the external transportation unit, the preservation line consists of a pass through blasting and painting machine, a painting unit and a drying tunnel with its associated slat conveyor. Typical plates widths can vary up to 2500mm, height can vary from 5mm to 1000mm, length can vary from 2000mm to 12000mm.
Application Range
Suitable for steel plate, H beams, I beams, steel pipe, and other regular shape steel workpieces, etc.

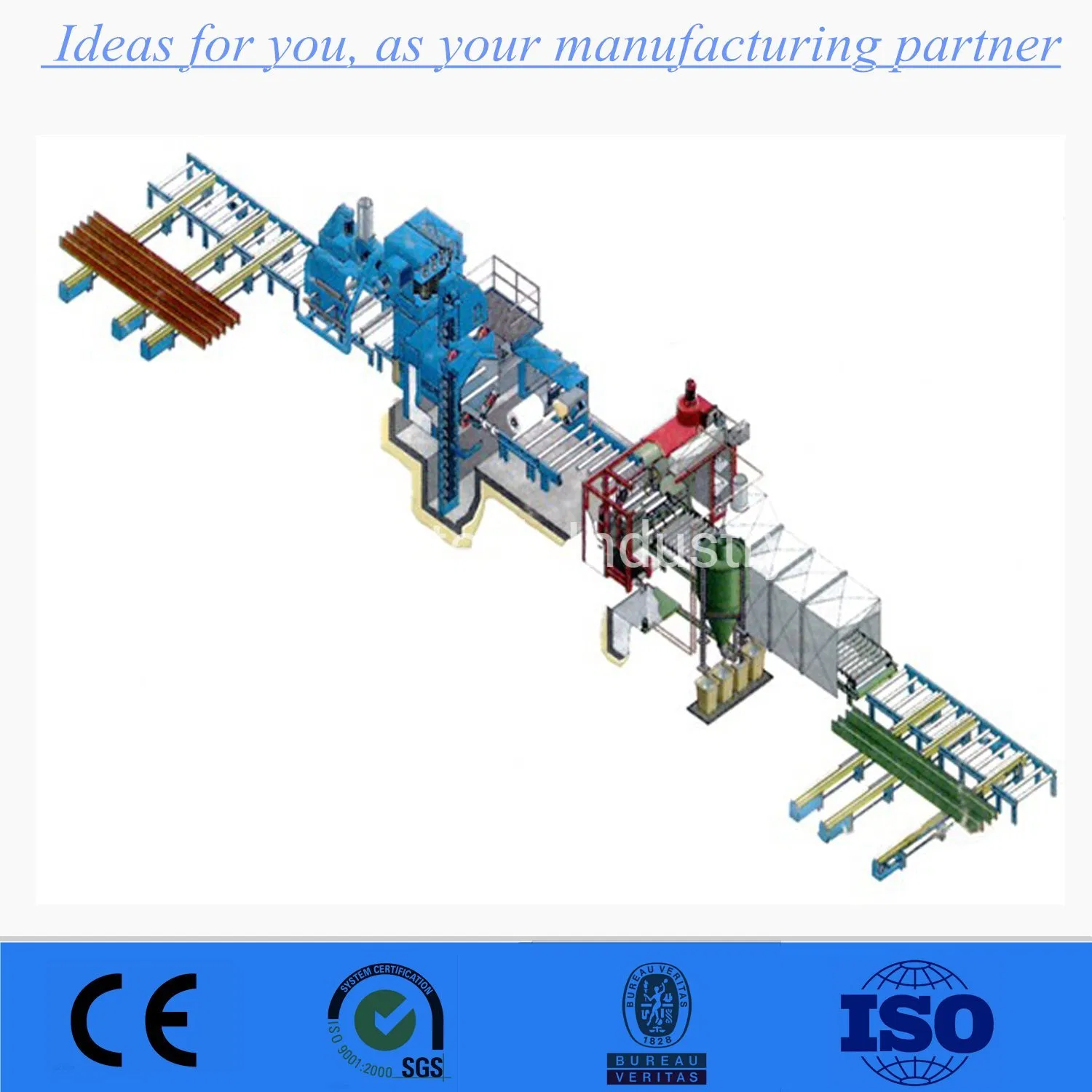

Equipment Components
- Cross transfer conveyor
- Inlet roller conveyor
- Roller conveyor shot blast machine
- Blast machine filter

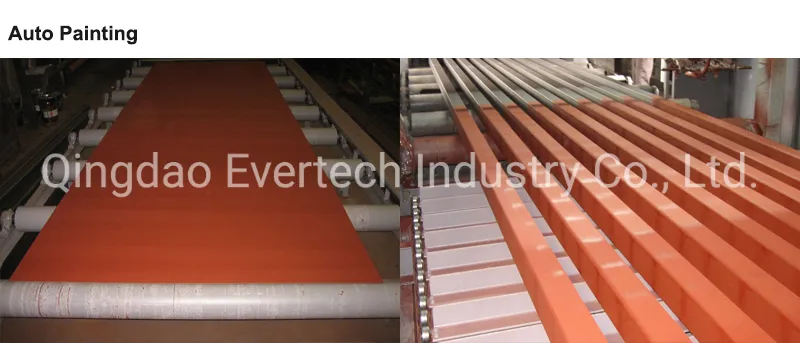

- Paint spray chamber
- Paint supply system
- Filter from VOC-System
- VOC-System
- Drying chamber
- Slat conveyor
- Outlet roller table
- Cross transfer conveyor
Core Features
- Continuous blasting for high throughput
- Highly efficient blast wheels and proven technology
- Versatile transport technology and flexible layouts
- High process security and quality components
- Simple integration into existing manufacturing processes
- Wide range of system sizes and variants
Technical Parameters
| Type |
ETPL 1500HD |
ETPL 2000HD |
ETPL 2500HD |
ETPL 3000HD |
ETPL 4000HD |
| Size of workpiece (mm) |
500 |
500 |
500 |
500 |
500 |
| Width of workpiece (mm) |
1500 |
2000 |
2500 |
3000 |
4000 |
| Work speed (m/min) |
1.5-4.5 |
1.8-5.0 |
1.0-3.0 |
0.8-2.5 |
0.8-2.0 |
| Blast wheels qty |
4 |
6 |
6 |
6 |
8 |
| Power per wheel (kW) |
11/15/18.5 |
11/15 |
11/15/18.5 |
15/18.5 |
11/15 |
Frequently Asked Questions
Q1: How do I get the best price for a blasting machine?
As different types of blasting machines apply to different price points, we recommend choosing based on your specific production needs.
Q2: What machine suits my workpieces best?
Selection depends on the kind of workpieces and their maximum size. Please provide your workpiece dimensions so we can recommend the most suitable model.
Q3: What is the delivery time?
Generally, it is 7 working days if the goods are in stock, or 15 working days if the goods are not in stock, depending on the order quantity.
Q4: How many operators are needed to run the machine?
For standard blasting units, one person is enough. For complex custom production lines, the number of operators varies according to accessory equipment and automation levels.
Q5: What are the typical operating costs?
Operating costs including abrasive, power, and maintenance average from $5 to $20 per hour. The automatic system is at least 4-5 times more productive than manual cleaning.
Q6: What utilities are required to run the equipment?
The system requires a three-phase electrical input (transformers can be provided for specific voltages) and a clean, dry compressed air supply.
