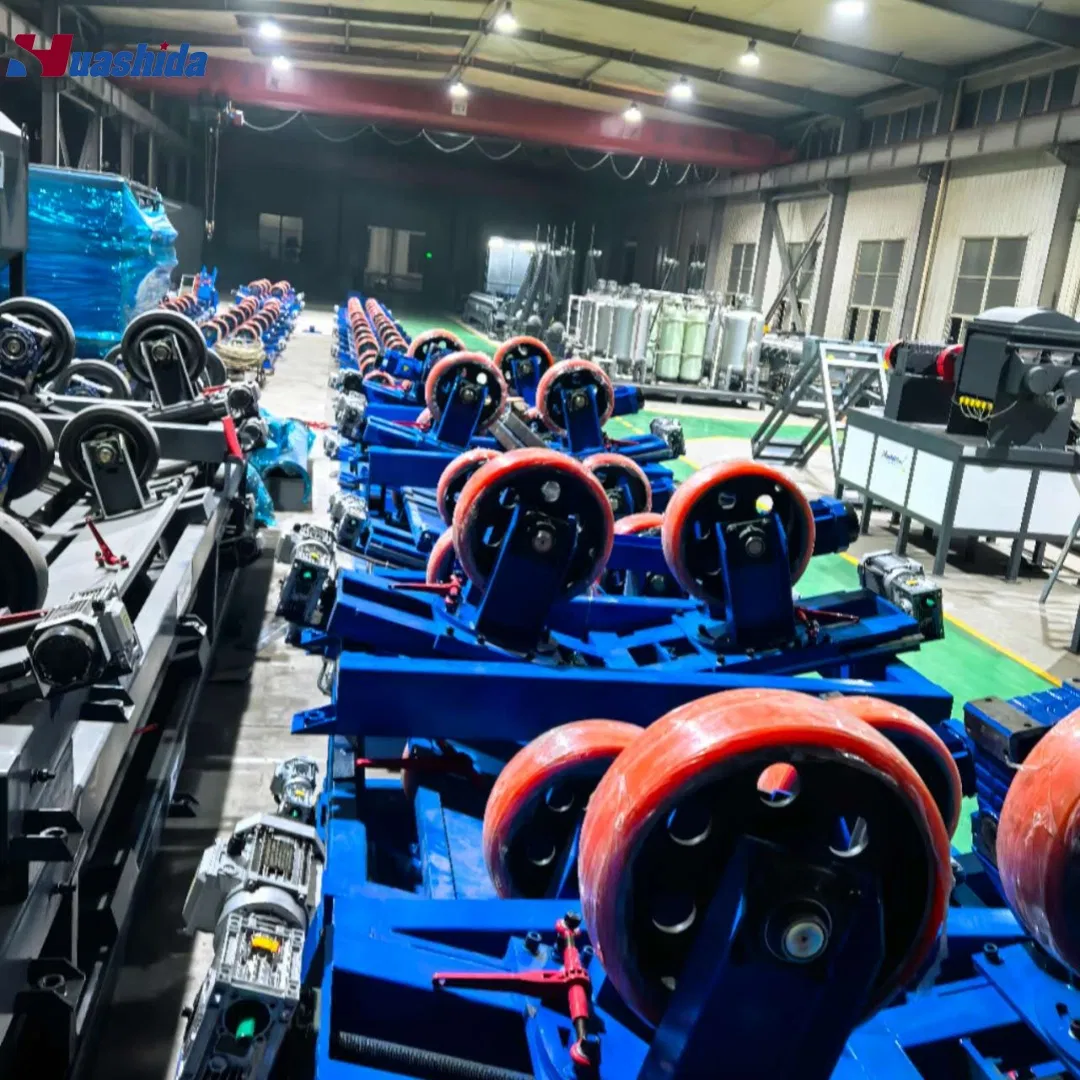

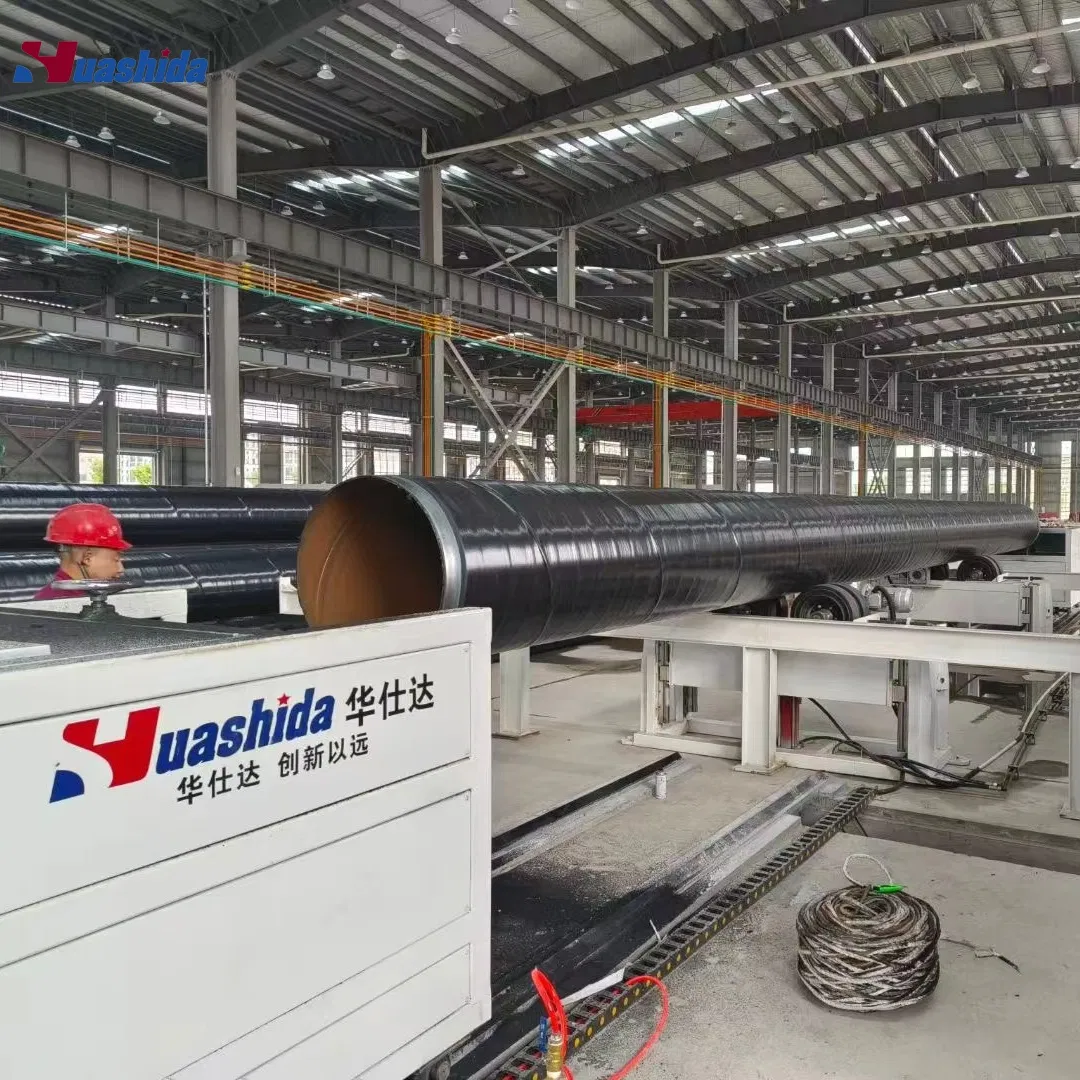

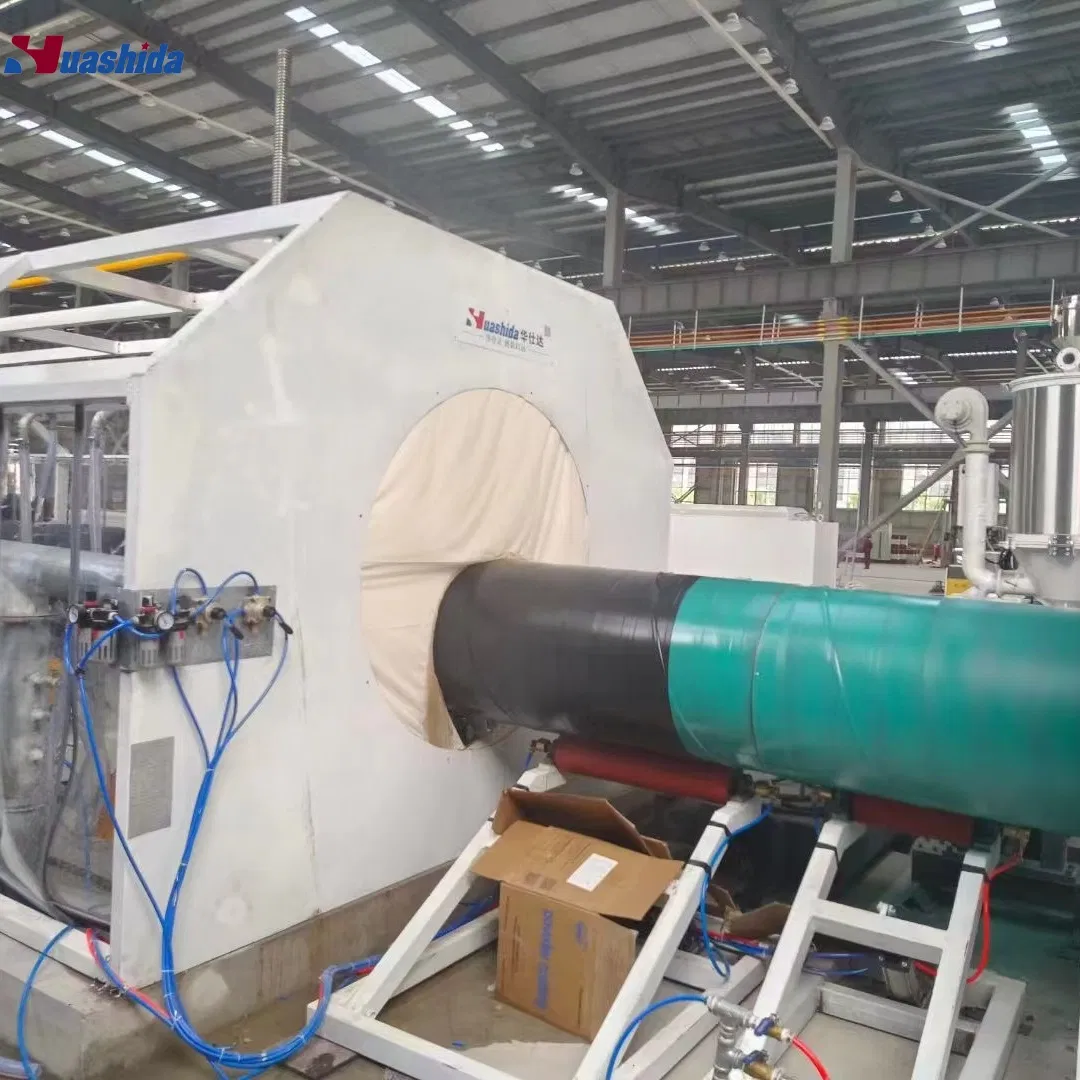

Automatic 3LPE / 3LPP FBE Steel Pipe Anticorrosion Coating Process Line with Shot Blasting System
The steel pipe anti-corrosion coating line is employed for applying anti-corrosion coatings to steel pipes with different diameters. It is extensively utilized in various engineering projects, especially in heating, gas, and oil sectors.

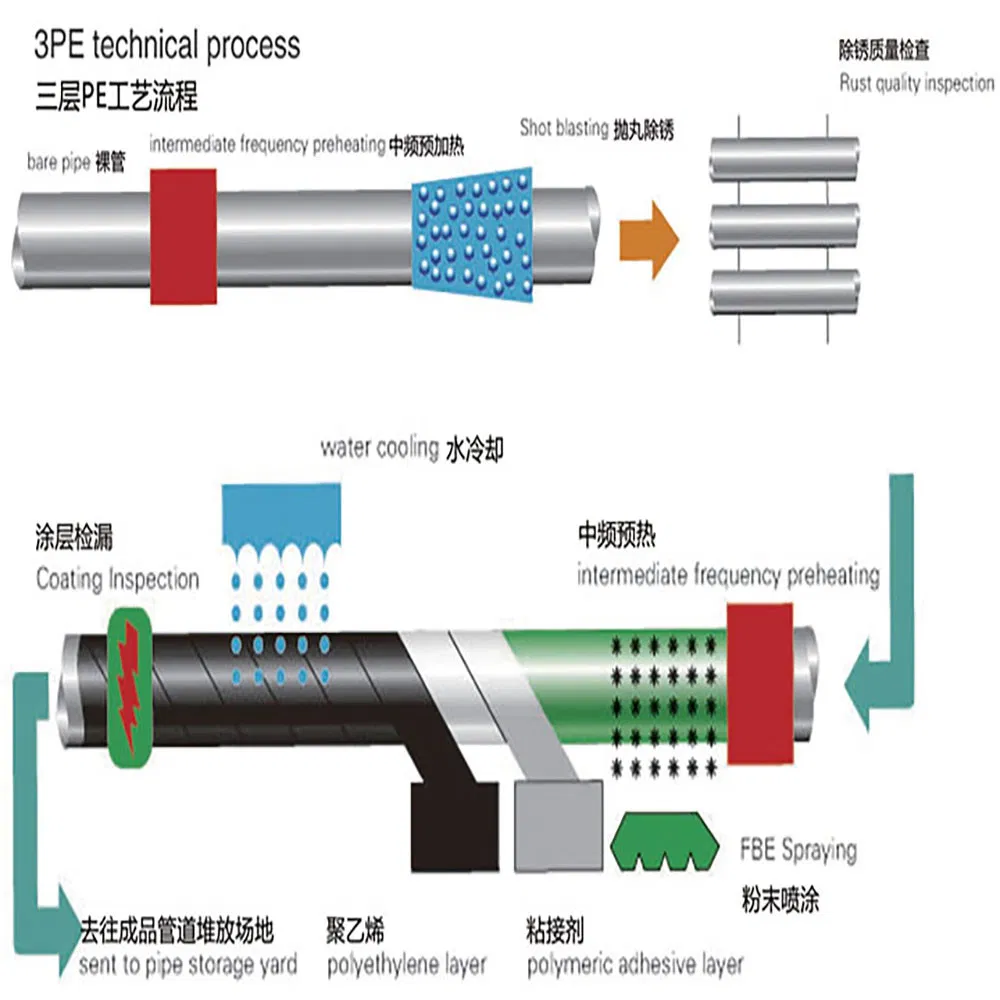

The lines can be applied to FBE, 2 layer FBE, 2 layer PE, 2 layer PP and 3 layer PE anti-corrosion coating. The 3-layer PE coating contains a first FBE coating, an intermediate adhesive layer, and an outer polyethylene layer.

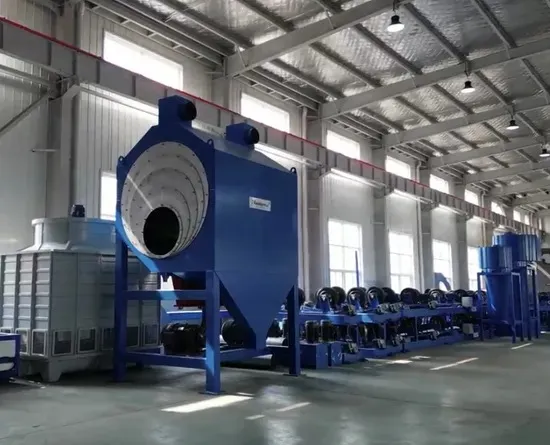

Shot blasting equipment

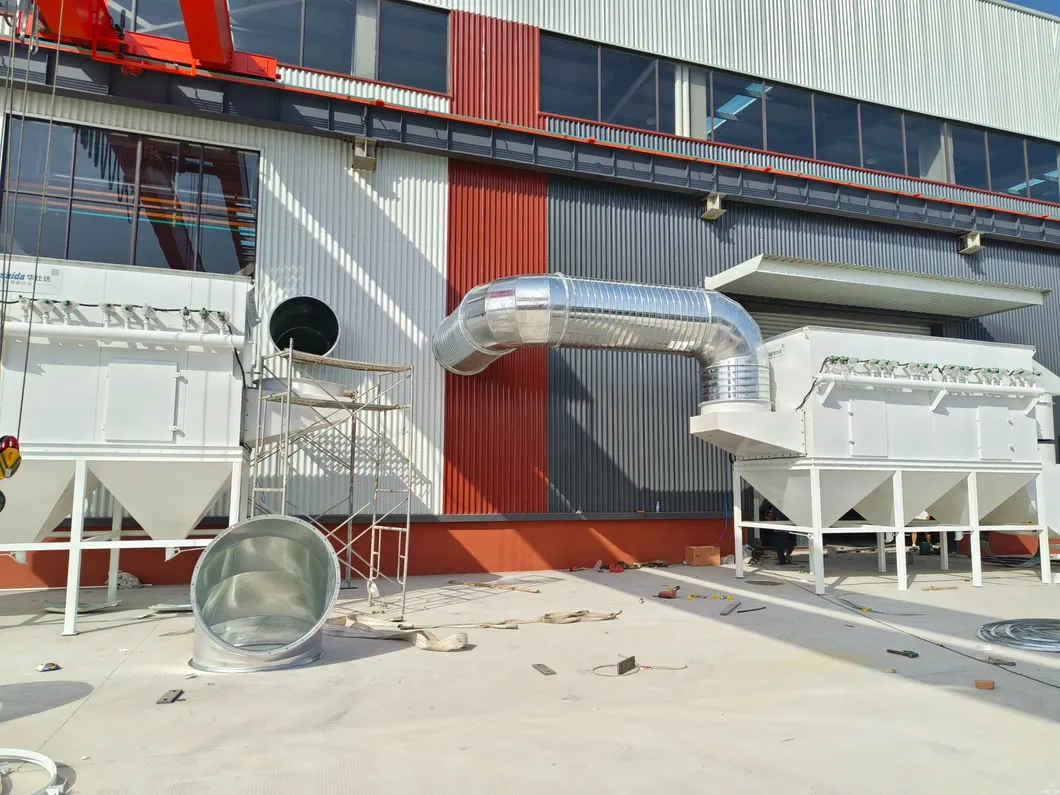

Dust removal equipment

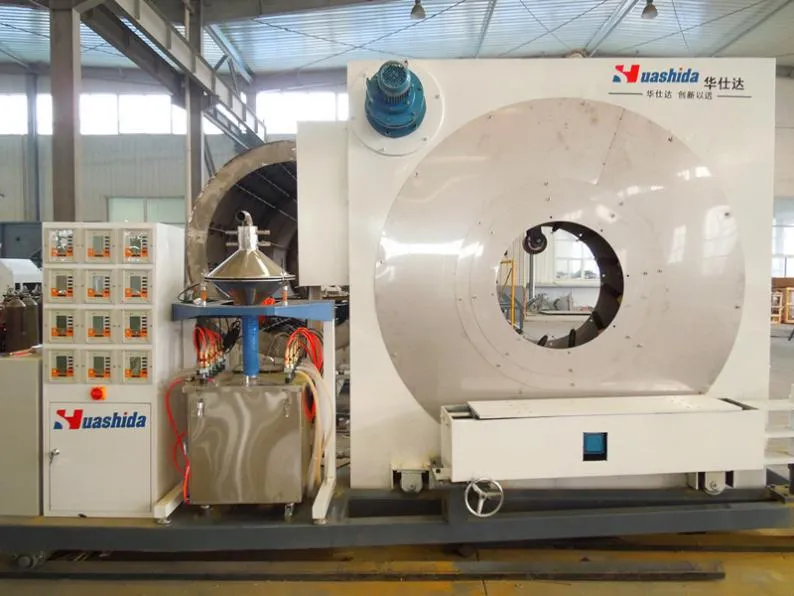

Epoxy powder equipment
High sealing performance saves energy and reduces operational costs significantly while protecting the environment.
Simple operation with high production speed. The anti-corrosion service life can reach 30-50 years.
Maintains excellent impact resistance even under low temperature conditions.
Combines high strength epoxy, low water absorption PE, and soft hot melt adhesive for maximum reliability.
Equipped with sensors to analyze position, speed, and efficiency for high-precision stable processing.

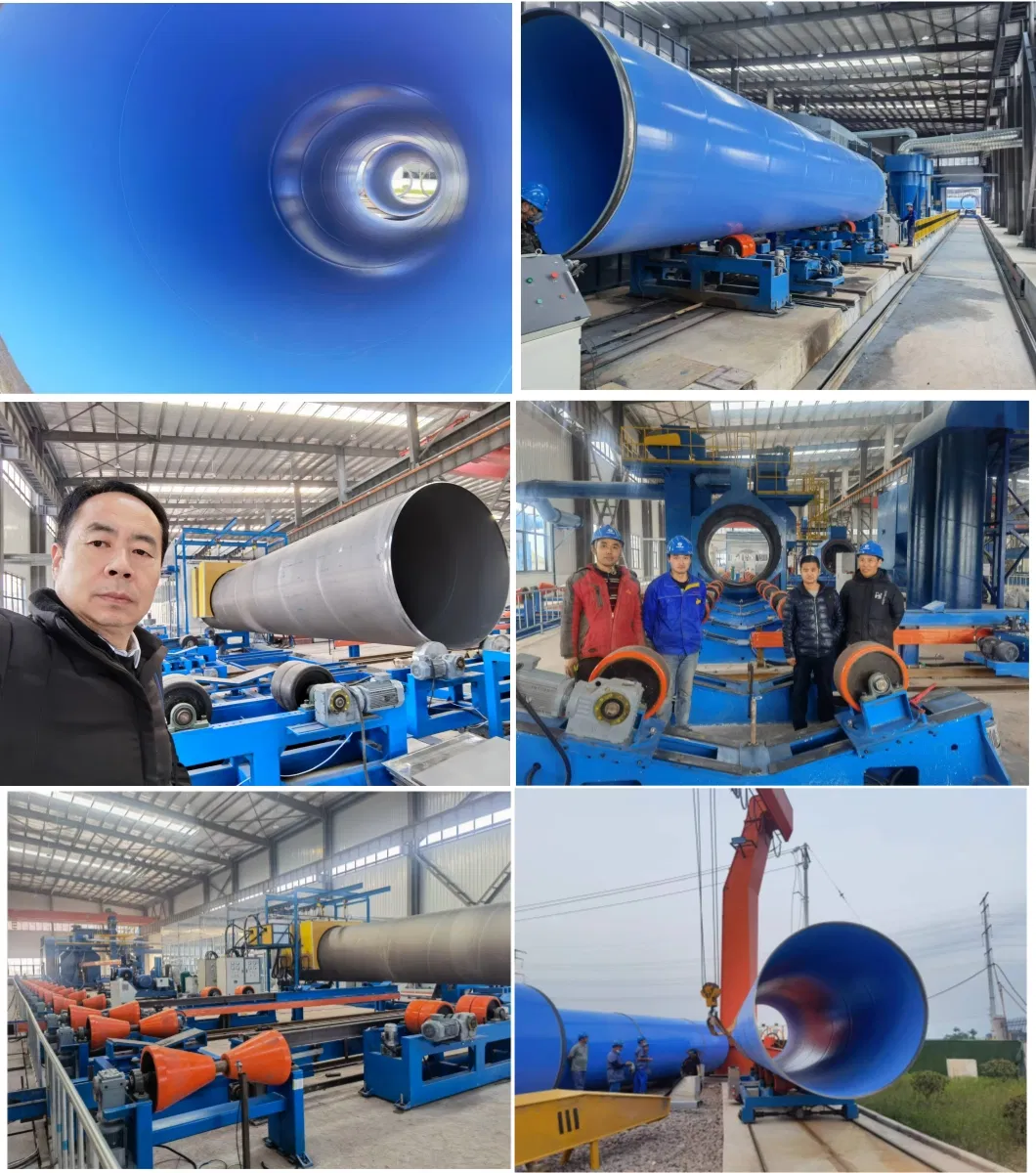

Internal/External FBE Line (500-4200mm)

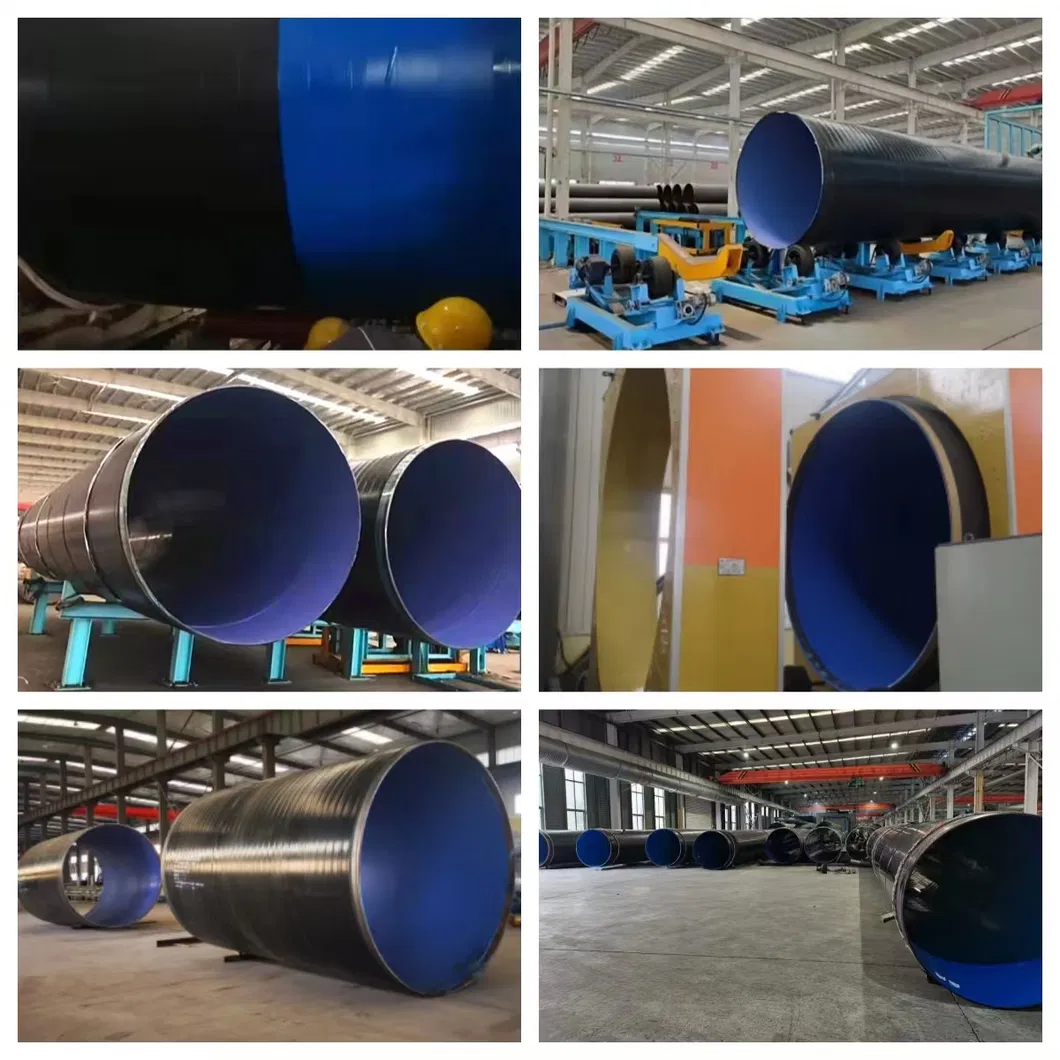

Internal FBE / External 3LPE (159-4200mm)

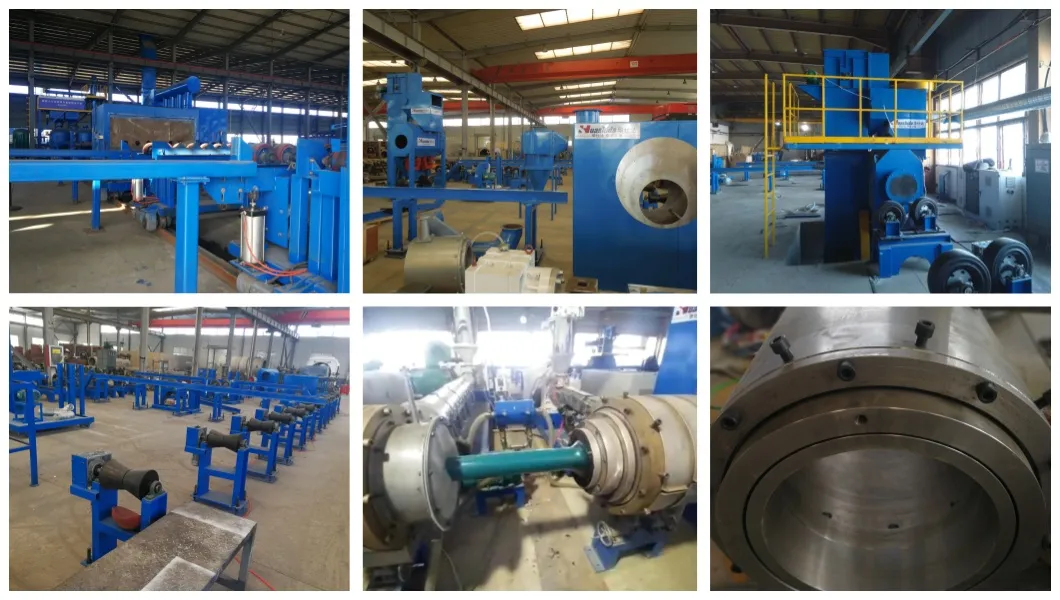

Small Size O-type Extrusion (57-426mm)

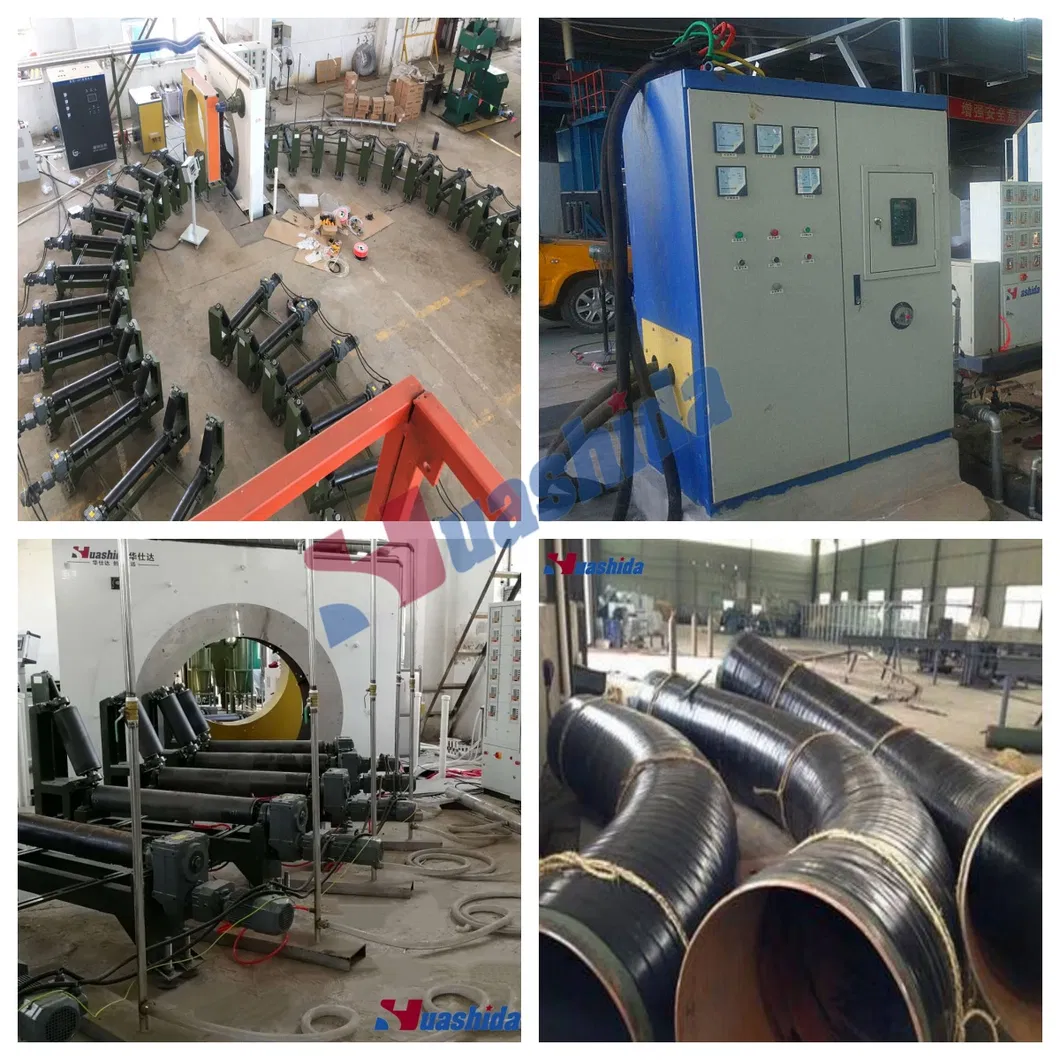

Steel Bend Pipe FBE & 3LPE Coating Line
| No. | Equipment Name | Set |
|---|---|---|
| A. Derusting Equipment | ||
| 1 | Pipe wheel conveyor | 1 |
| 2 | Shot Blasting Machine | 1 |
| 3 | Cyclone Dust Collector | 1 |
| 4 | Pulse dust collector | 1 |
| B. Coating Equipment | ||
| 1 | Induction heating device | 1 |
| 2 | Powder spraying device | 1 |
| 3 | SJ-120/30 Extruder | 1 |

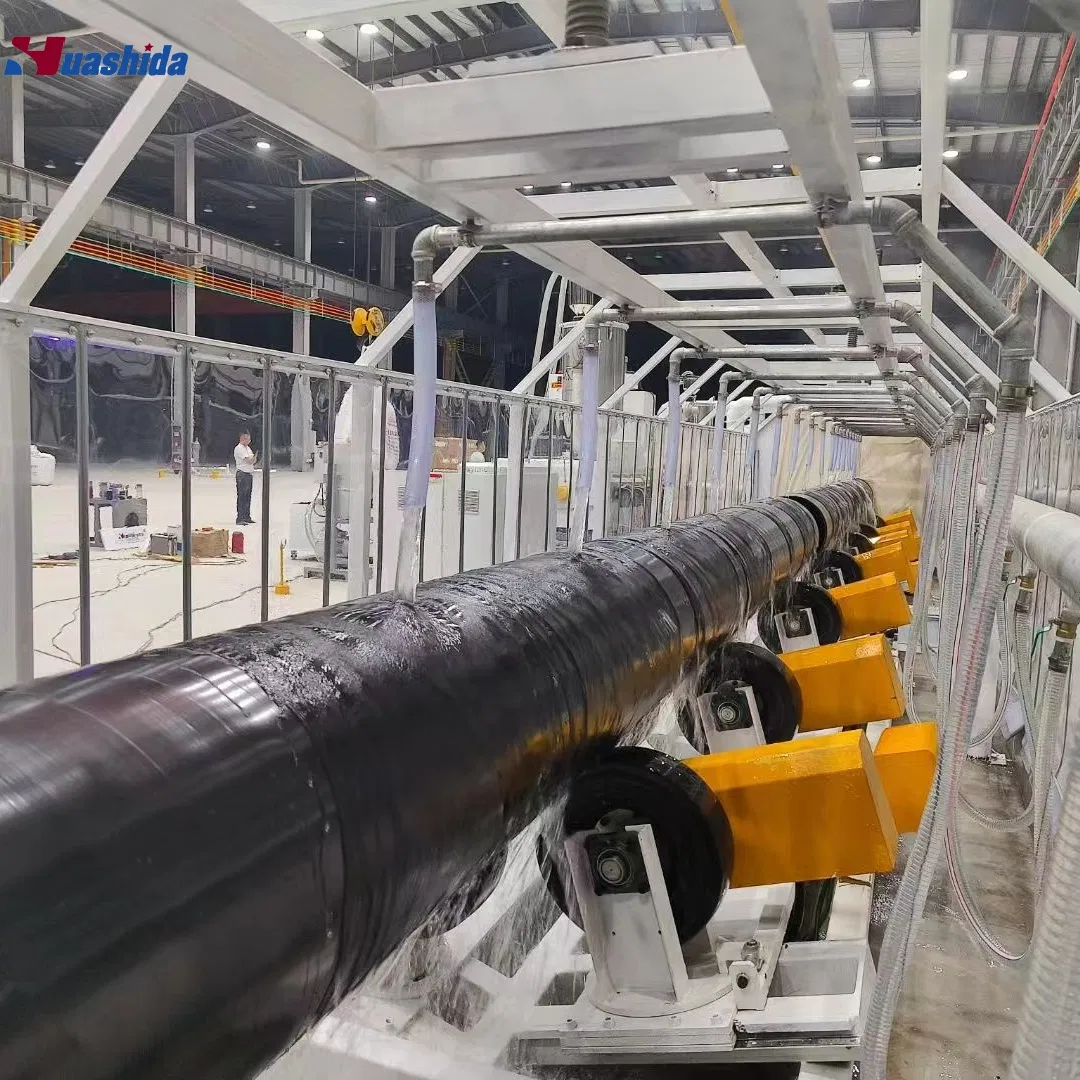

| 4 | Cooling Spray equipment | 1 |
| C. Platform & Control | ||
| 1 | Steel pipe platforms | 3 |
| 2 | PE Beveling Machine | 2 |
| 3 | PLC automatic control system | 1 |
