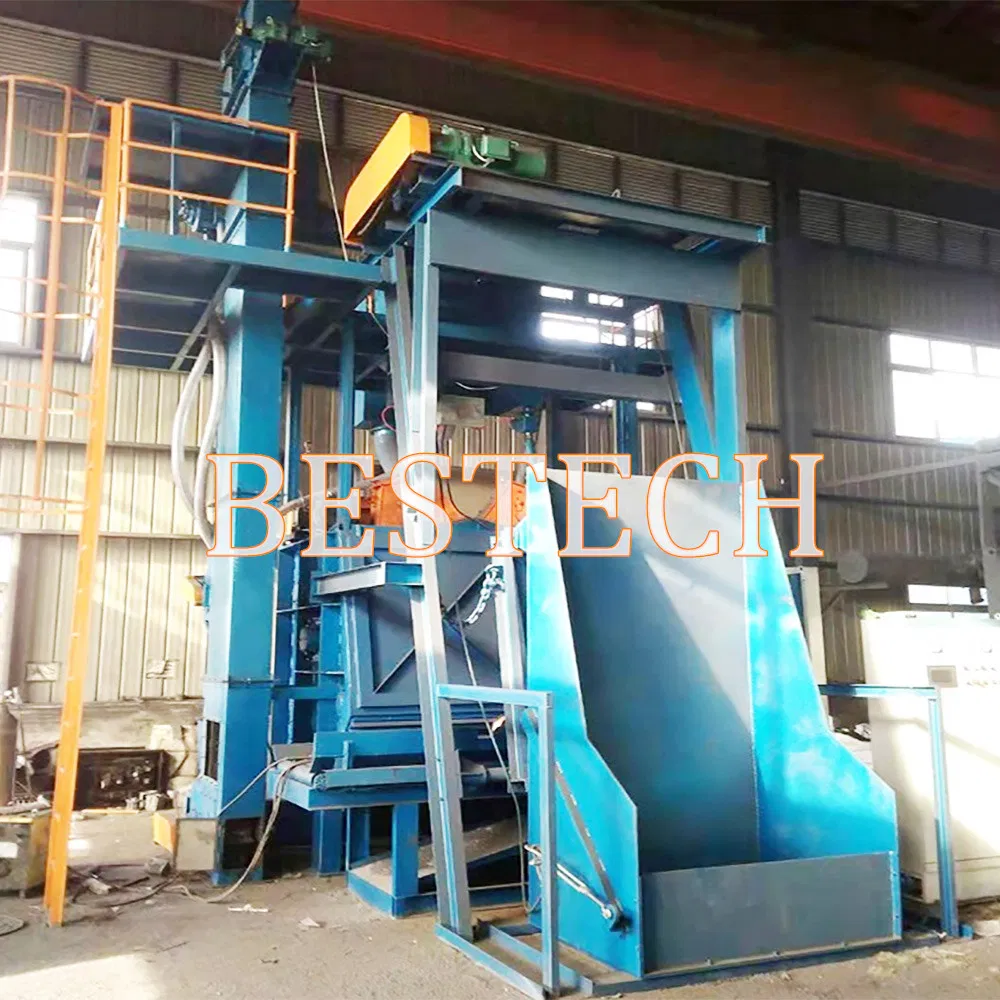

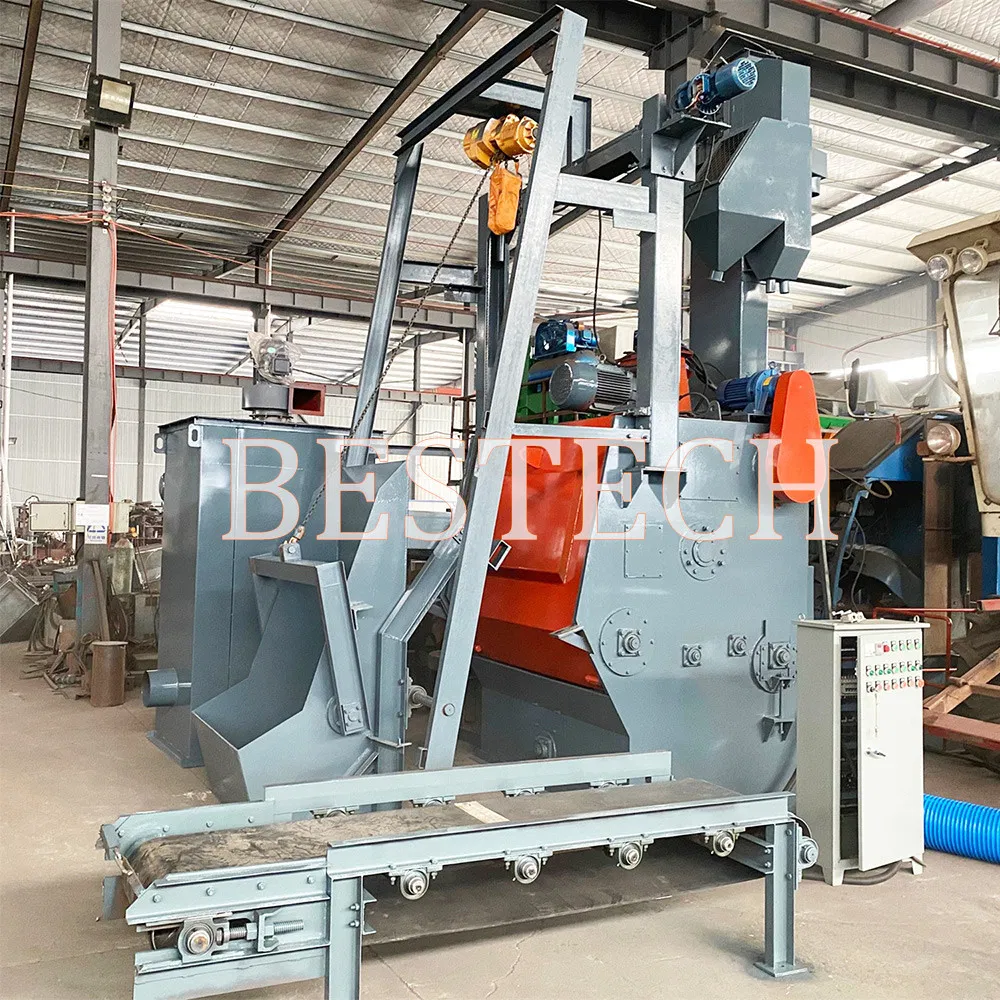

Steel Belt Tumble Blast Machines for Cleaning Steel Aluminum Brass Bronze Pressed Parts

1 / 5

Steel Belt Tumble Blast Machines for Cleaning Steel Aluminum Brass Bronze Pressed Parts

Customization:	Available
After-sales Service:	on Line Support or Overseas Technical Guidance
Warranty:	12monthes

Send Inquiry

Product Description

Basic Specifications

Model NO.

Application

Pharmaceutical Cleaning

Fuel

Electric

Type

Ring Rail Abrator

Cleanliness

High Cleanliness

Automation

Automatic

Certification

CE, ISO

Feature

Non-Toxic

Condition

New

Customized

Available

Material

Metal

HS Code

8424300000

Product Description

The system features strong development strength and advanced production craftsmanship with a comprehensive management system. The automation level and technical quality are positioned at an advanced industry level.

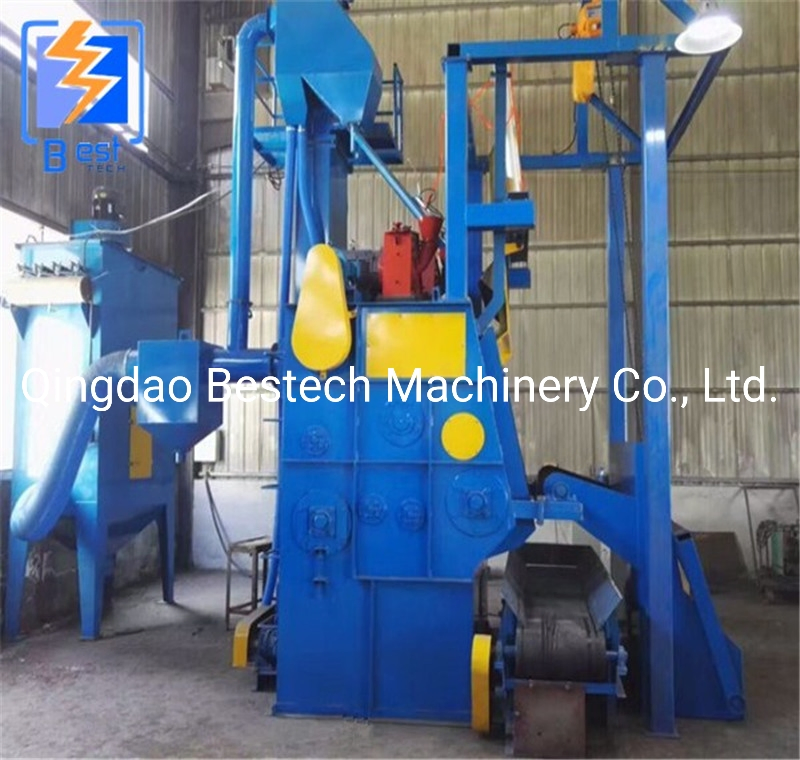

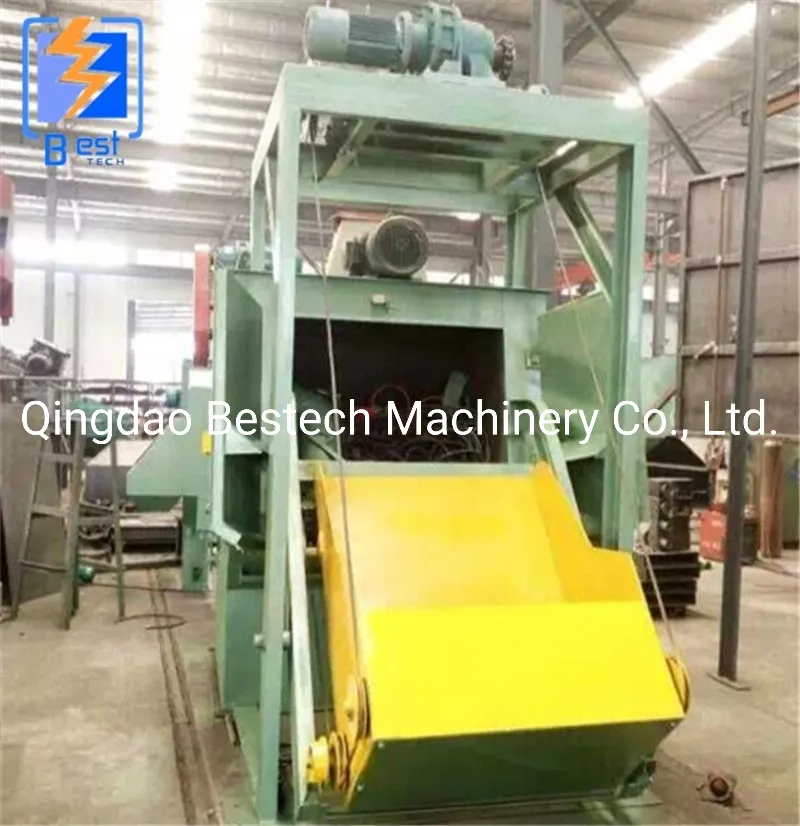

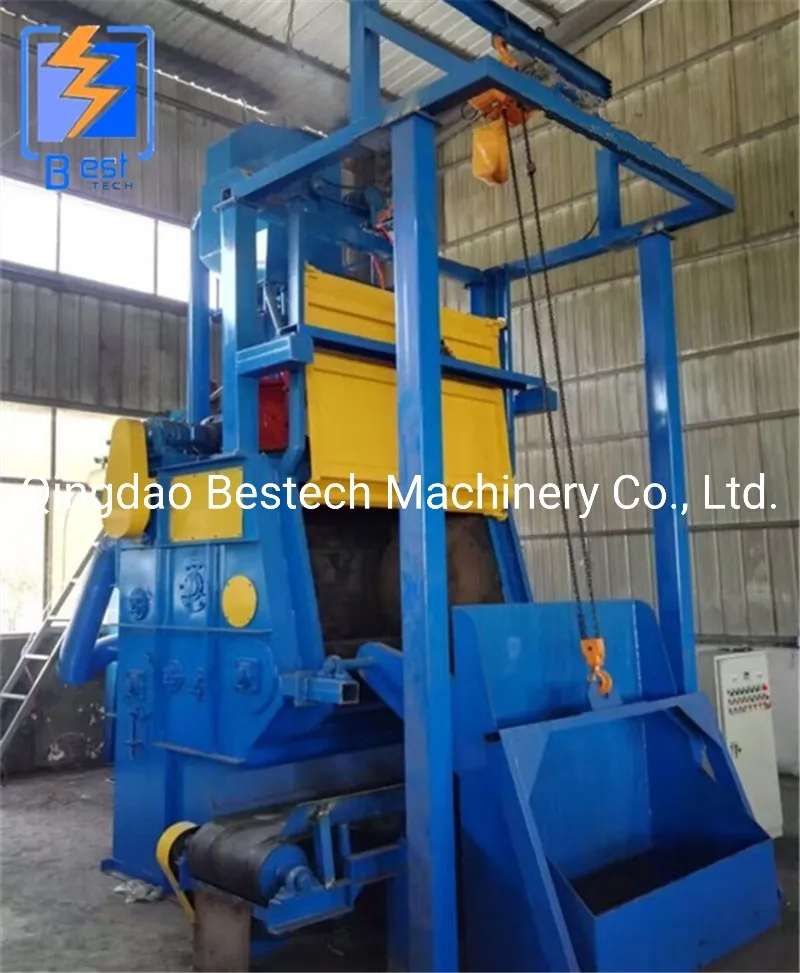

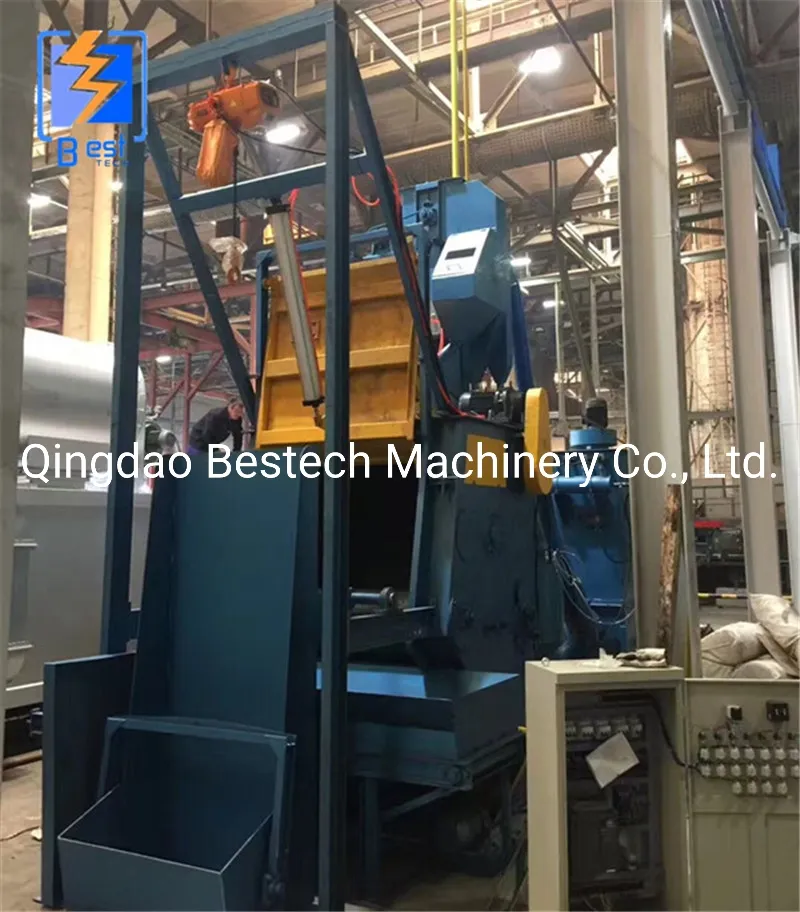

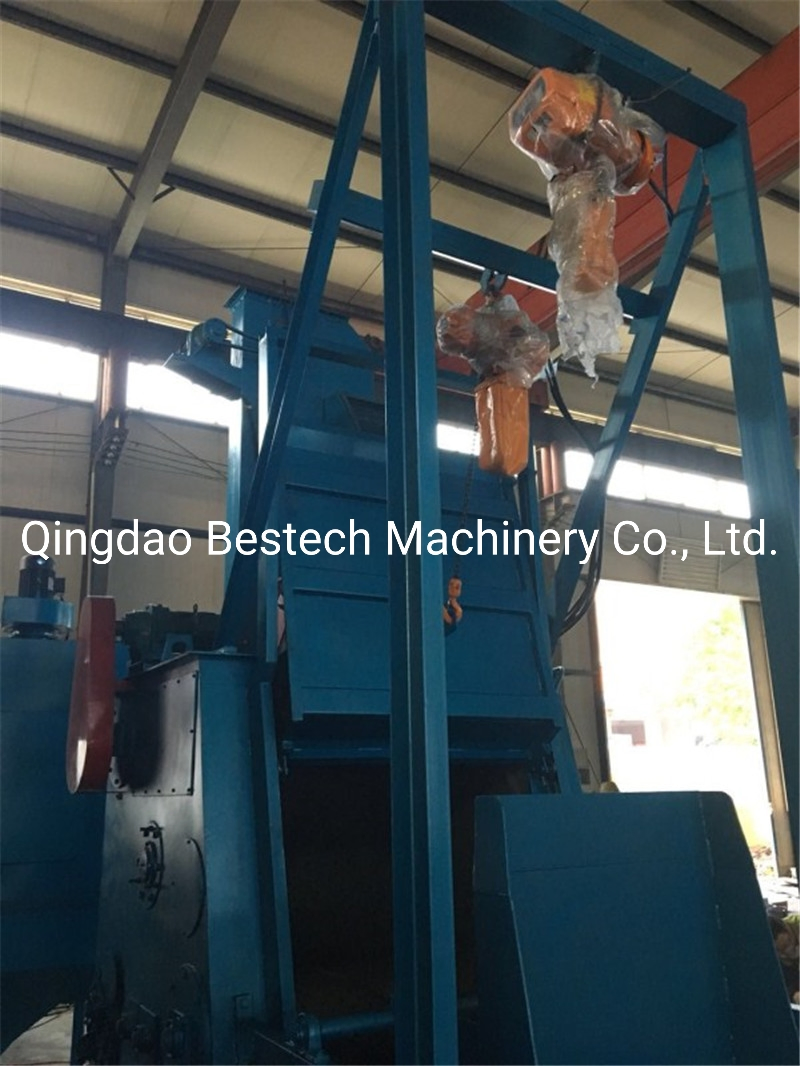

Q32 Crawler Type Shot Blasting Machine
Advantage:
The Q32 tumble shot blasting machine offers a reasonable structure, low energy consumption, and high efficiency. The blast chamber is equipped with a wear protection plate on the inner wall to avoid punctures due to high-velocity shots. The rubber belt conveyor allows easy tumbling of workpieces and features multiple shot leakage holes for ball cycling.

Technical Parameters

Item	Units	Q326/QR326	Q3210/QR3210	QR3210C	15GN	28GN
Productivity	T/h	0.6-1.2	1.5-2.5	2-3	5-6	10-12
Feeding amount	kg	200	600	800	1300	1500
Max weight (single piece)	kg	10	30	120	230	363
Diameter of end disk	mm	Φ650	Ø1000	Ø1000	Ø1092	Ø1245
Effective volume	m³	0.15	0.3	0.3	0.43	0.79
Shot-blasting capacity	kg/min	100	250	250	480	700
Power consumption	kw	14.75/19.5	24.3/29.5	32	49.3	64.5
Track type	-	Rubber	Rubber	Metal	Metal	Metal

Product Visuals

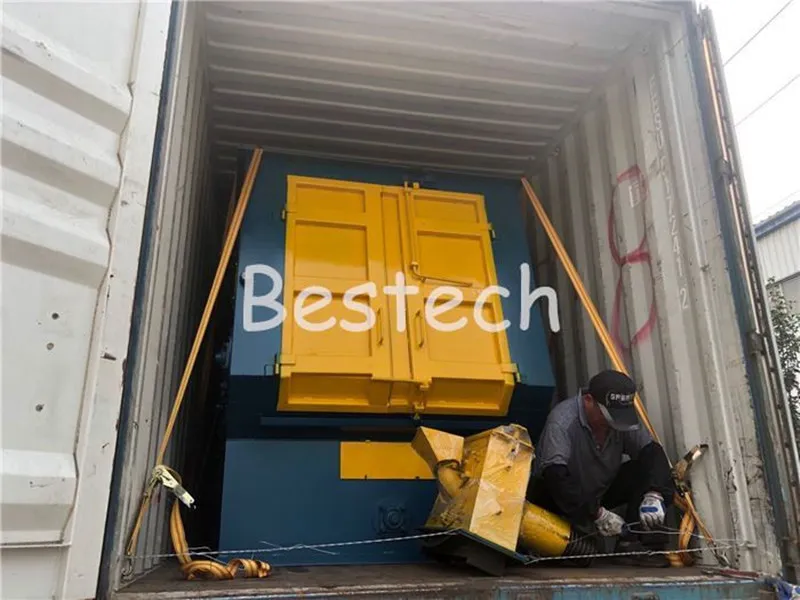

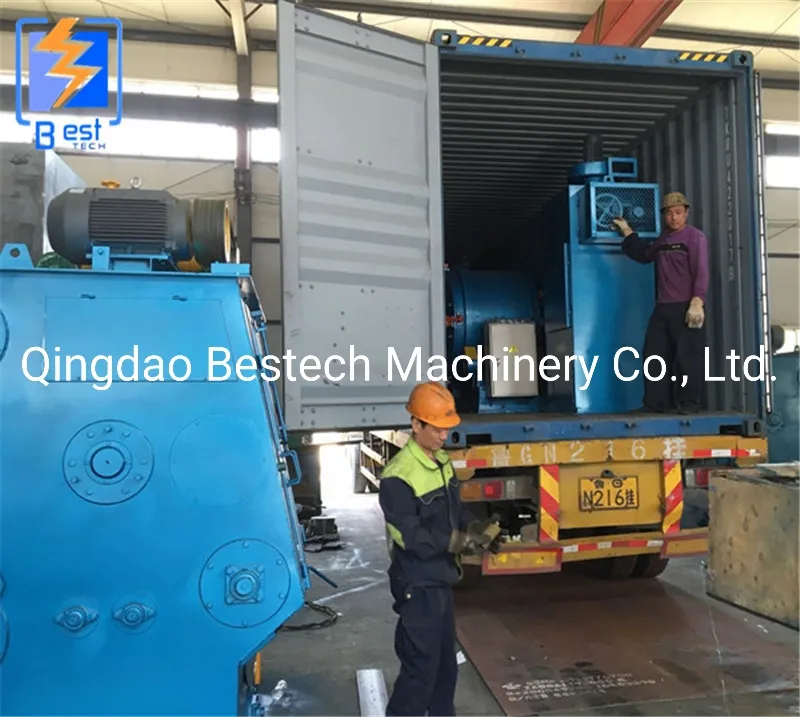

Shipping & Delivery

Factory Overview

Frequently Asked Questions

What is the primary advantage of the Q32 tumble shot blasting machine?

It offers a highly efficient cleaning process with low energy consumption and a robust wear-resistant structure for long-term industrial use.

What types of tracks are available for these machines?

Depending on the model, we provide both rubber and metal tracks to suit different workpiece weights and material requirements.

Can the machine handle large or heavy individual pieces?

Yes, models like the 28GN can handle single pieces up to 363kg, while smaller models like the QR326 are designed for pieces around 10kg.

How is the blast chamber protected from high-velocity shots?

The inner walls of the blast chamber are equipped with professional-grade wear protection plates to prevent punctures and extend the machine's lifespan.

Are these machines certified for international standards?

Yes, our equipment is fully certified with CE and ISO standards, ensuring safety and quality compliance.

Is customization available for specific site requirements?

We offer customized solutions including non-standard sizes and configurations according to specific customer requirements.
