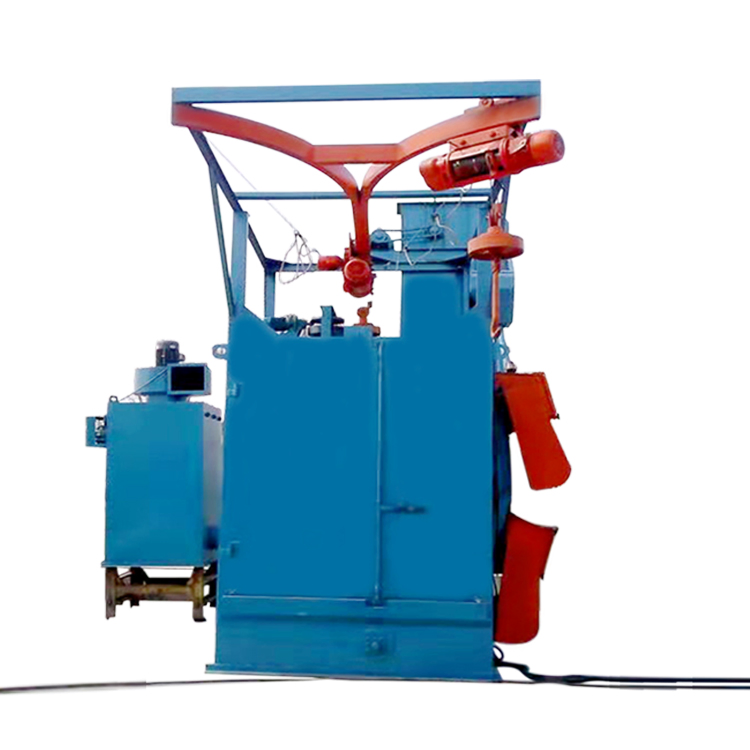

All-Purpose Shot Blasting Machine Steel Structure Hook Type Shot Blasting Machine

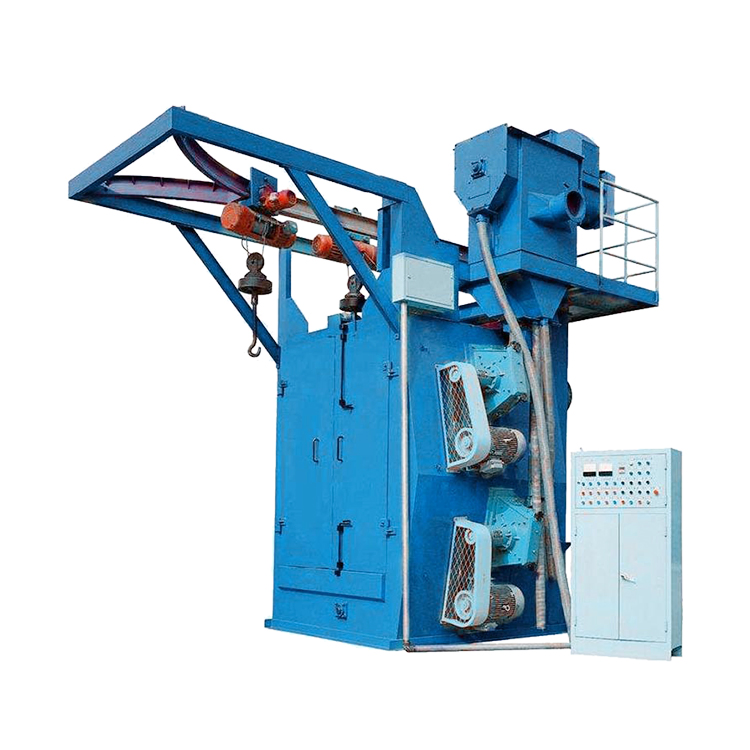

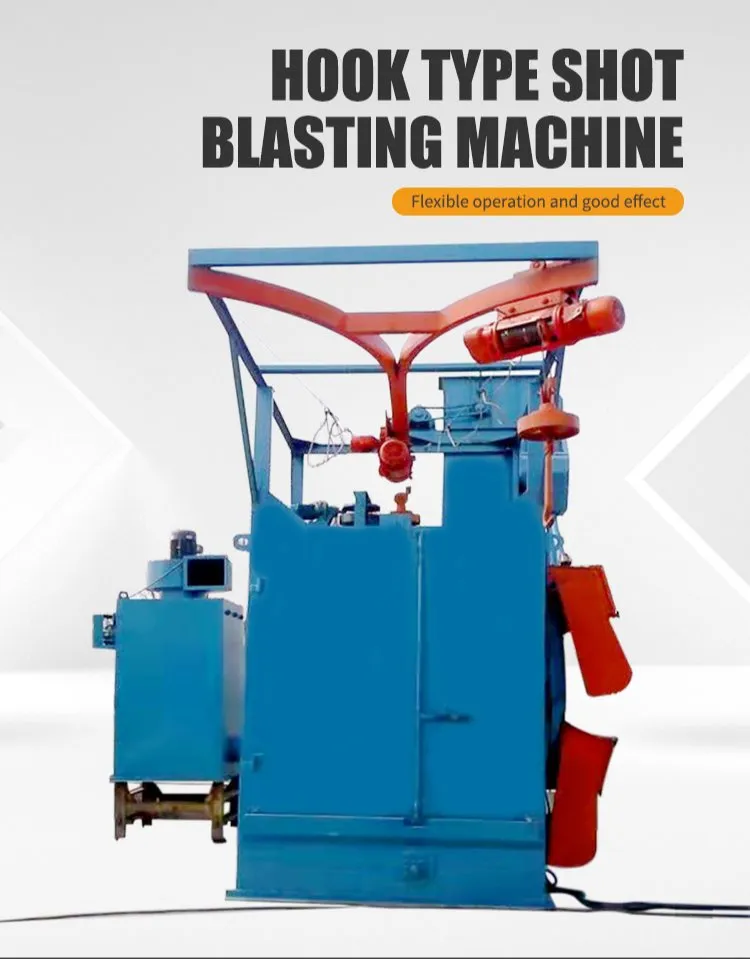

Hook-type shot blasting machine is primarily available in two configurations: single-hook and double-hook models. It is suitable for surface cleaning or strengthening of small to medium-sized castings, forgings, welded components, and heat-treated parts across various industries. It is particularly well-suited for cleaning and strengthening parts that are prone to damage from collisions.

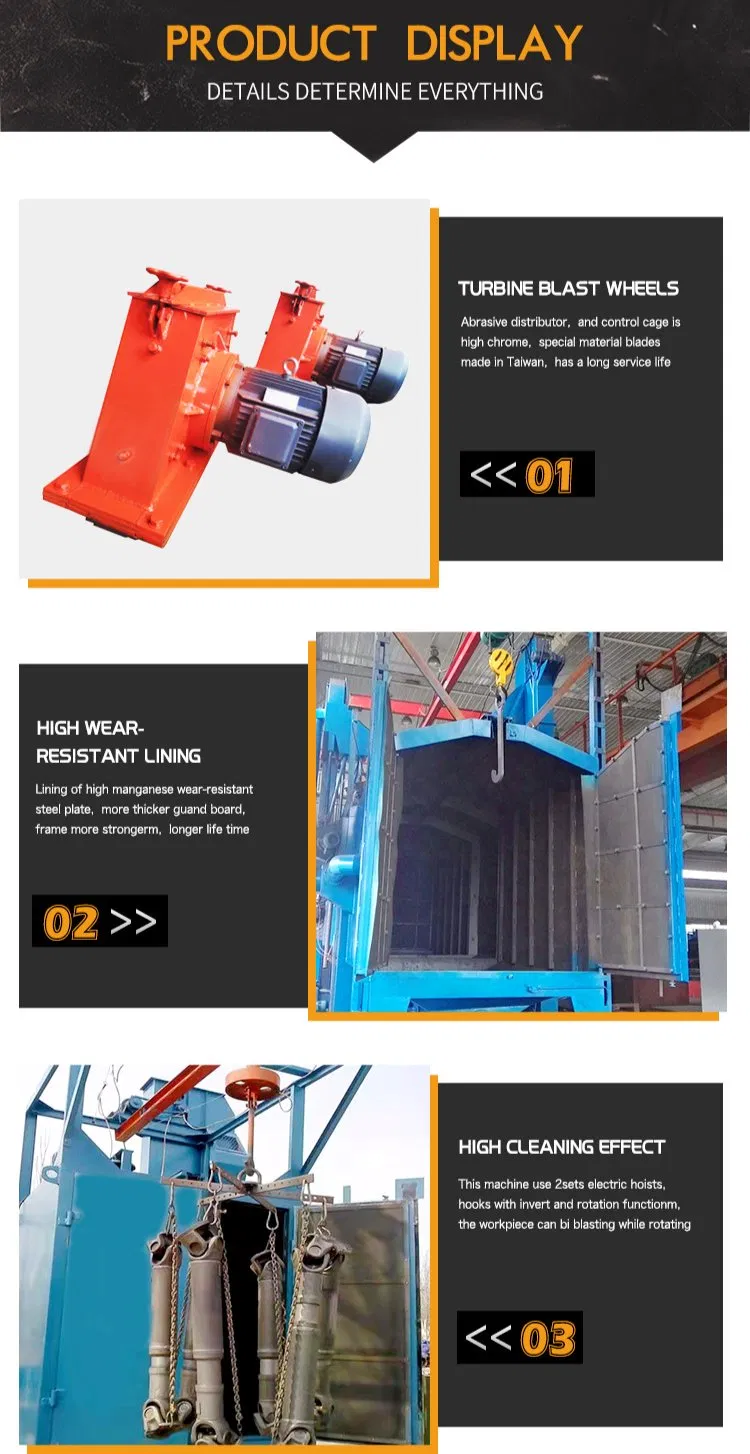

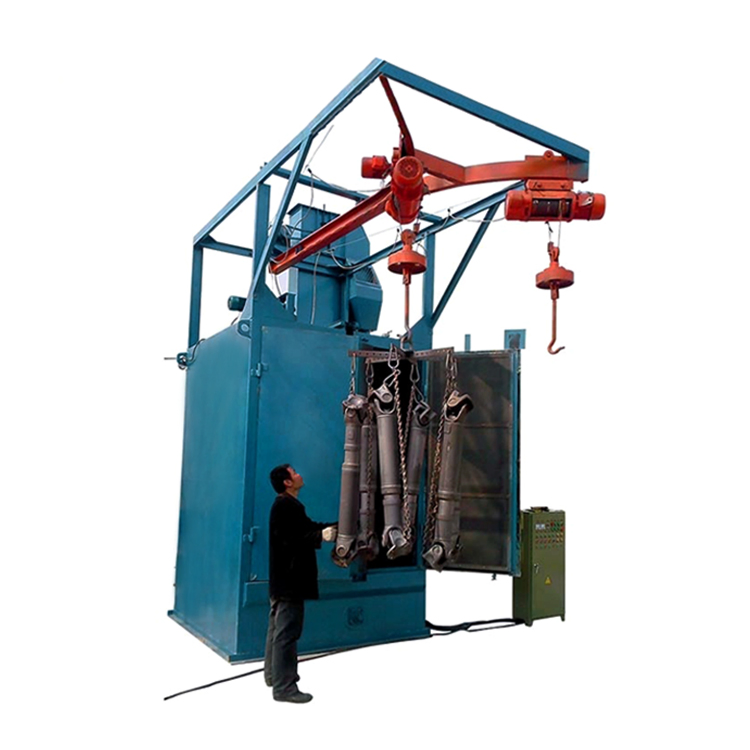

This machine adopts the popular pit-free structural design, offering a compact layout, convenient installation, and stable operation. The chamber features a fully enclosed structure, eliminating the risk of shot blast spillage. The interior is protected with wear-resistant alloy cast iron guard plates. An electric hoist is utilized for loading, unloading, lifting, and moving the workpieces. A self-rotating device is employed to enable both clockwise and counterclockwise rotation within the chamber.
| Model | YG376 | YG378 | YG379 | YG3710 | YG3720 | YG3730 | YG3740 | YG3780 | YG37100 |
|---|---|---|---|---|---|---|---|---|---|
| Single hook lifting (kg) | 600 | 1000 | 1000 | 1000 | 2000 | 3000 | 5000 | 10000 | 10000 |
| Shot blasting capacity(kg/min) | 2*150 | 2*200 | 2*200 | 2*200 | 3*220 | 3*250 | 6*250 | 8*250 | 8*270 |
| Workpiece size(mm) | 600*1200 | 800*1500 | 900*1600 | 1000*2000 | 1200*2200 | 1400*2700 | 1600*3000 | 2500*5100 | 2800*5400 |
| Total power (kW) | ≈23 | ≈34 | ≈34 | ≈48 | ≈60 | ≈67 | ≈80 | ≈150 | ≈180 |
