Blatrixo Machine
Blatrixo Machine

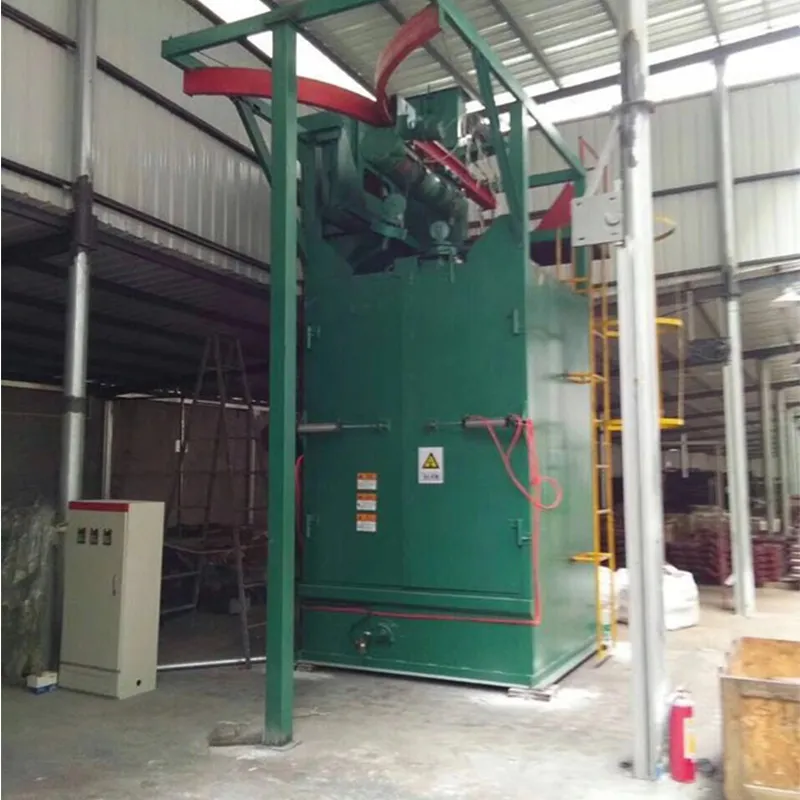

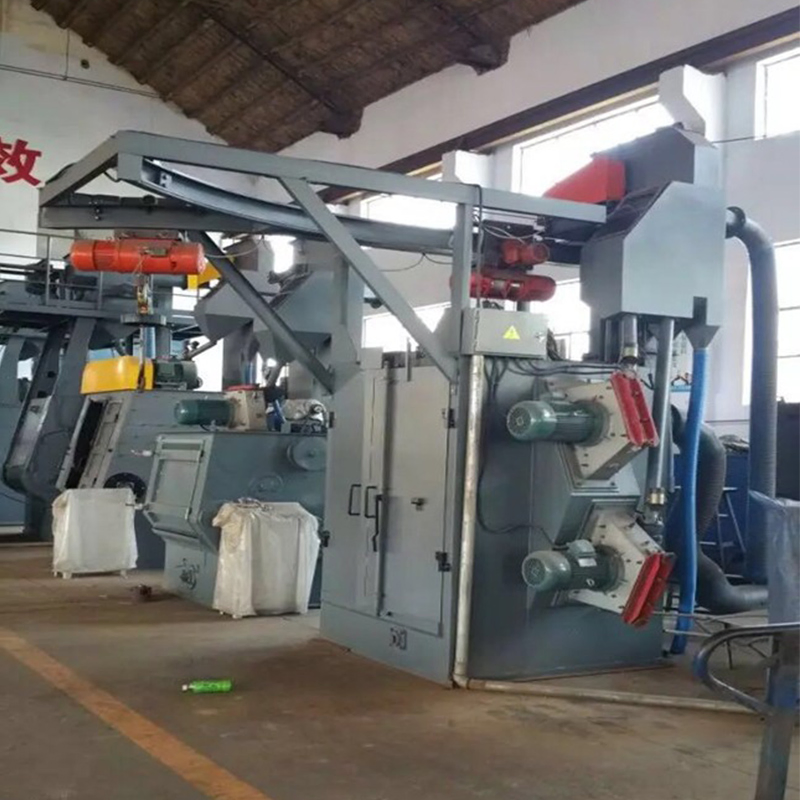

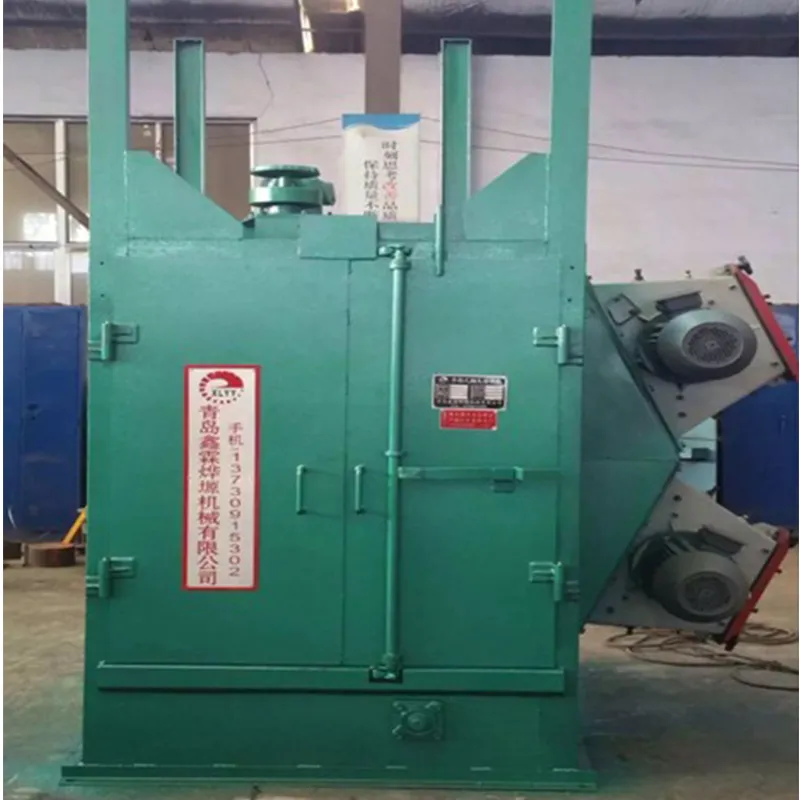

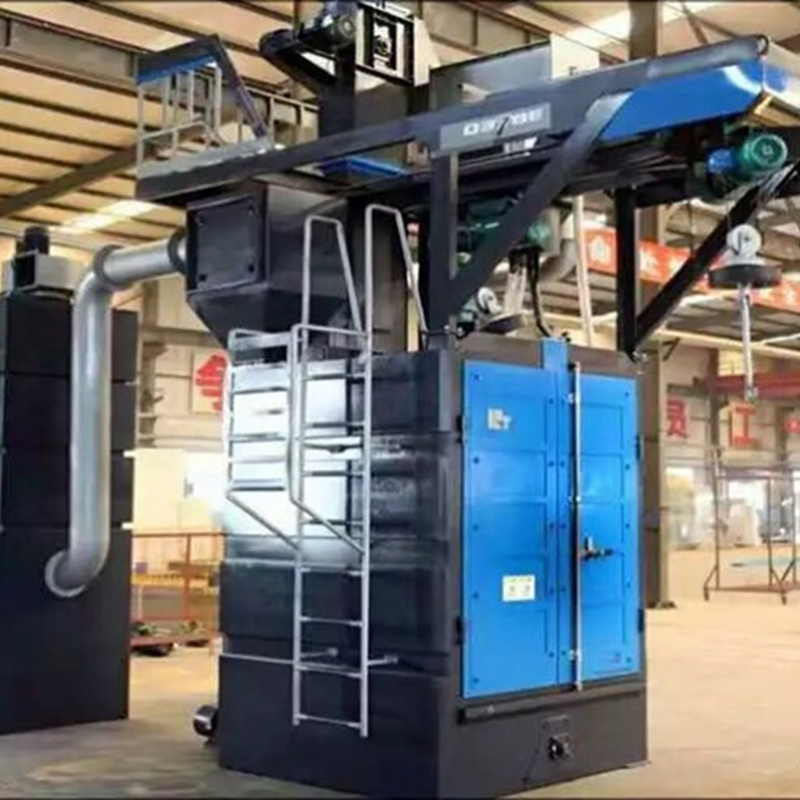

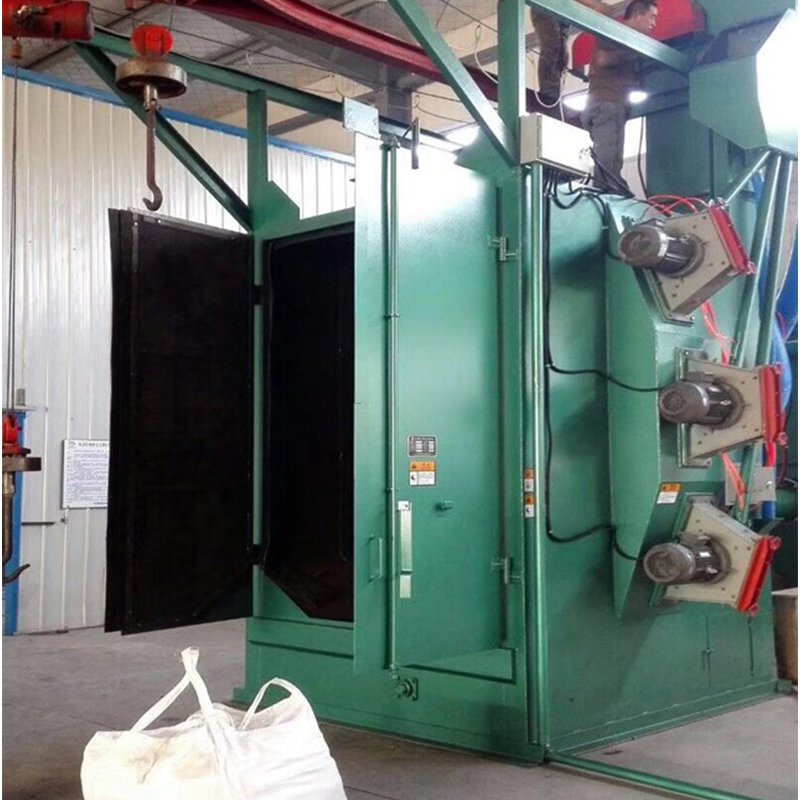

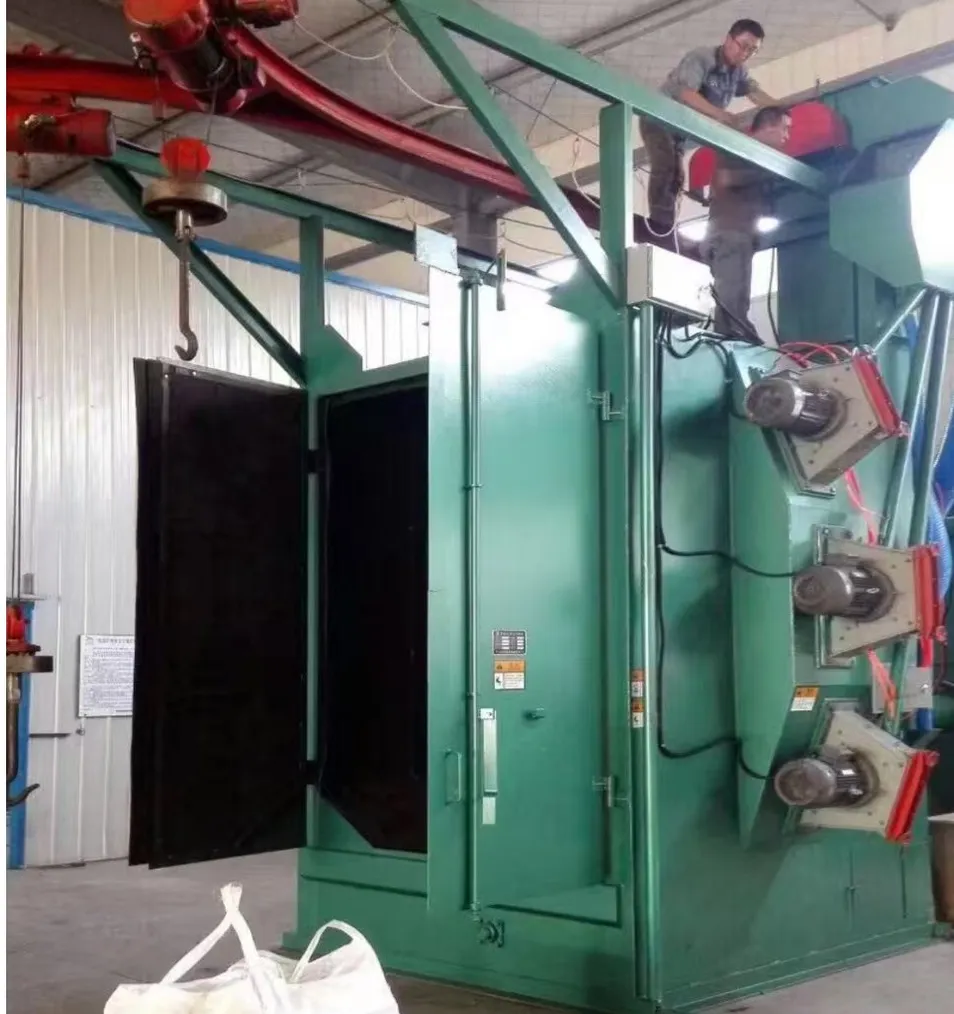

The hook-type through-type shot blasting cleaning machine adopts a pit-free design, requiring no special foundation structure, making it versatile for various workpiece shapes. Primarily utilized in machinery manufacturing and foundry industries, this equipment features advanced cantilever centrifugal technology for high blasting volume and speed, significantly improving cleaning quality.
Designed using CAD simulation, the blasting arrangement is optimized for efficiency. The lack of a pit structure saves construction costs and prevents moisture-related issues like sand clumping. The hook system supports lifting, running, and rotating, while the high-chrome plate lining ensures long-term durability and easy maintenance.
| Item | Unit | Q376 | Q3710 | Q3720 | Q3730 | Q3750 | Q37100 |
|---|---|---|---|---|---|---|---|
| Max Cleaning Weight | kg | 500 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Abrasive Flow Rate | kg/min | 2×200 | 2×250 | 3×250 | 3×250 | 4×250 | 5×250 |
| Ventilation Volume | m³/h | 5000 | 5000 | 9000 | 11000 | 14000 | 16000 |
| Hoist Capacity | t/h | 24 | 30 | 45 | 45 | 60 | 75 |
| Separator Capacity | t/h | 24 | 30 | 45 | 45 | 60 | 75 |
| Max Workpiece Size | mm | φ600×1200 | φ1200×1800 | φ1400×2200 | φ1600×2300 | φ1800×2500 | φ3000×3000 |

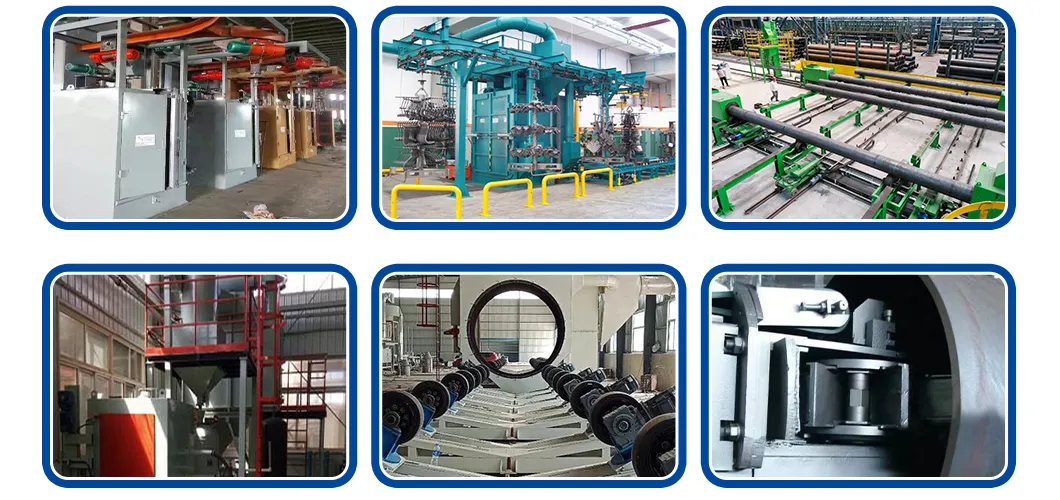

We are a leading manufacturer specializing in automated shot blasting machines and surface treatment equipment. With over 20 years of experience, we provide complete solutions for surface cleaning, rust removal, and coating preparation. Our product range includes mixing, cleaning, and dust collection equipment with nearly 20 different models designed for diverse industrial needs.

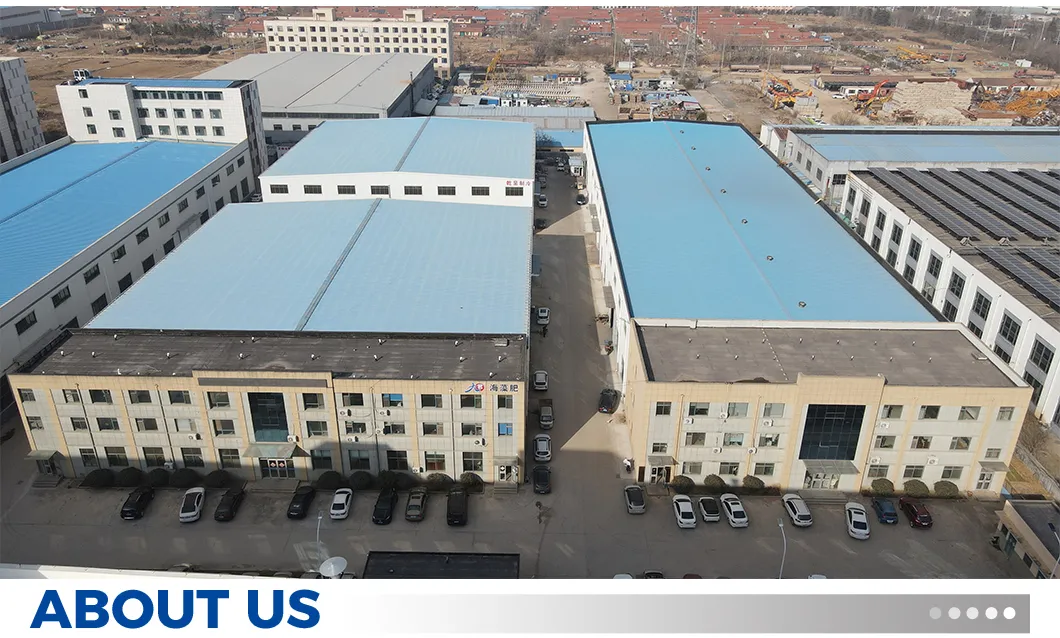

Our operations are ISO 9001:2015 certified, adhering to EU Machinery Directives (2006/42/EC) and CE standards (EN ISO 12100:2010). Located near major logistics hubs, we ensure fast and cost-effective delivery to clients globally, maintaining a philosophy of quality first and customer-centric service.
