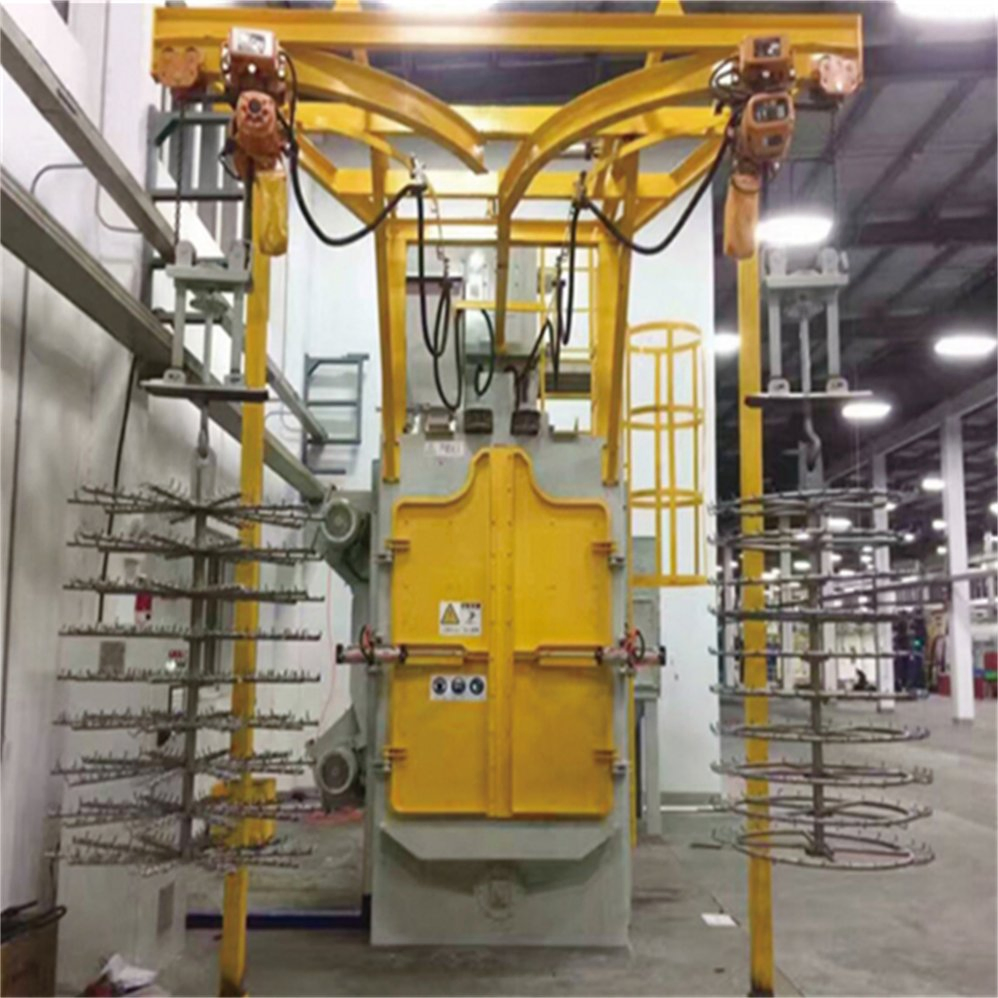

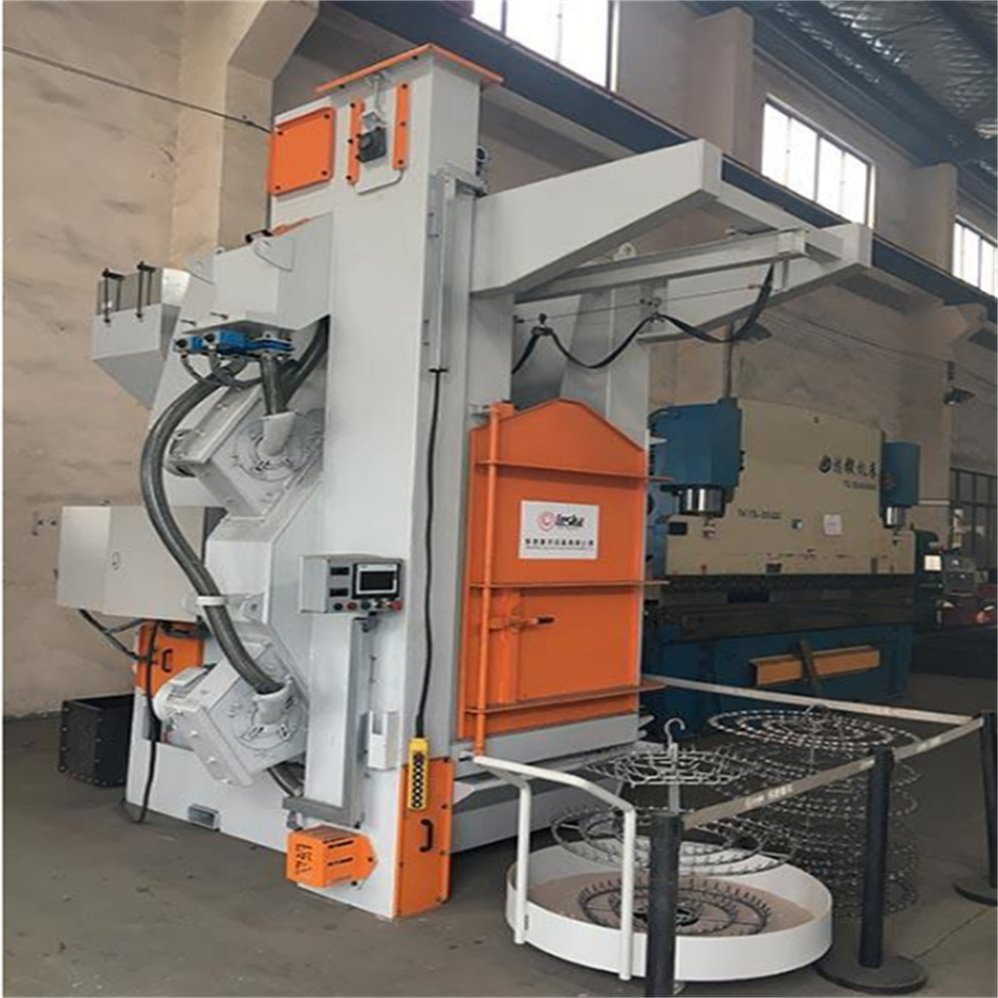

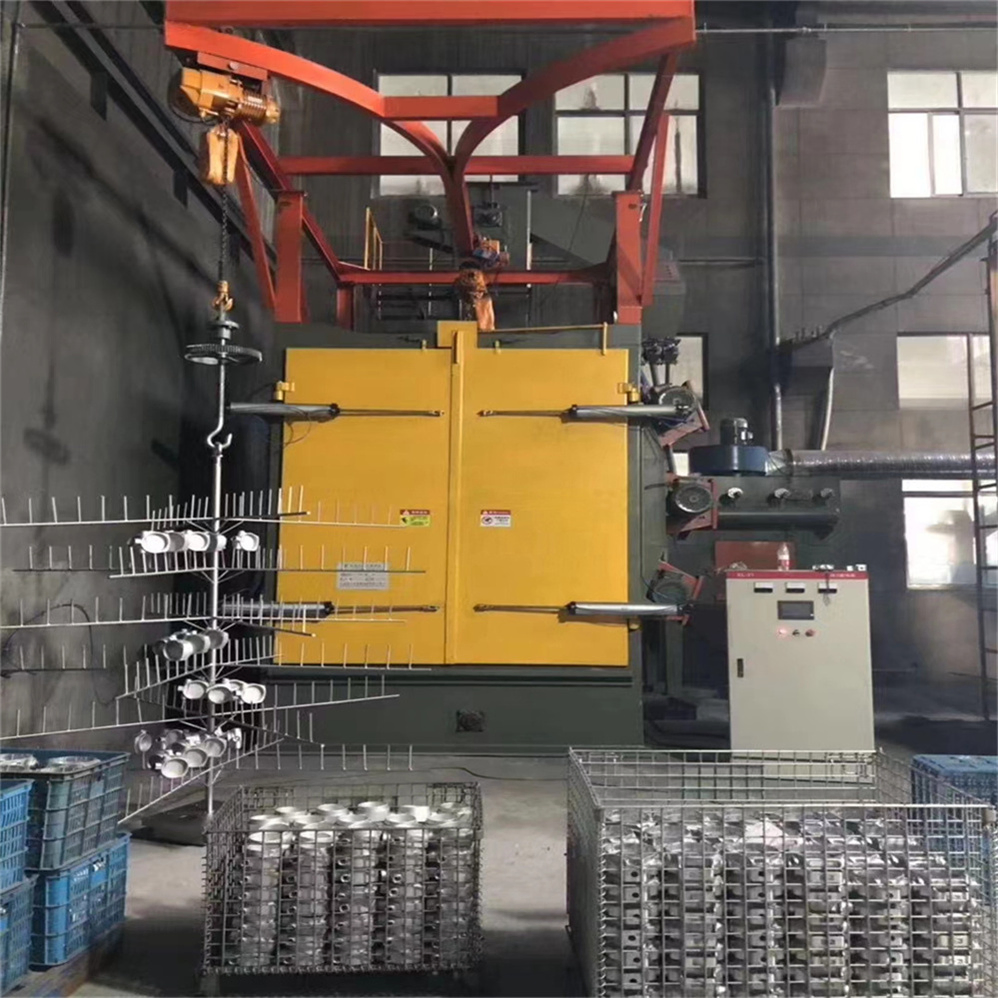

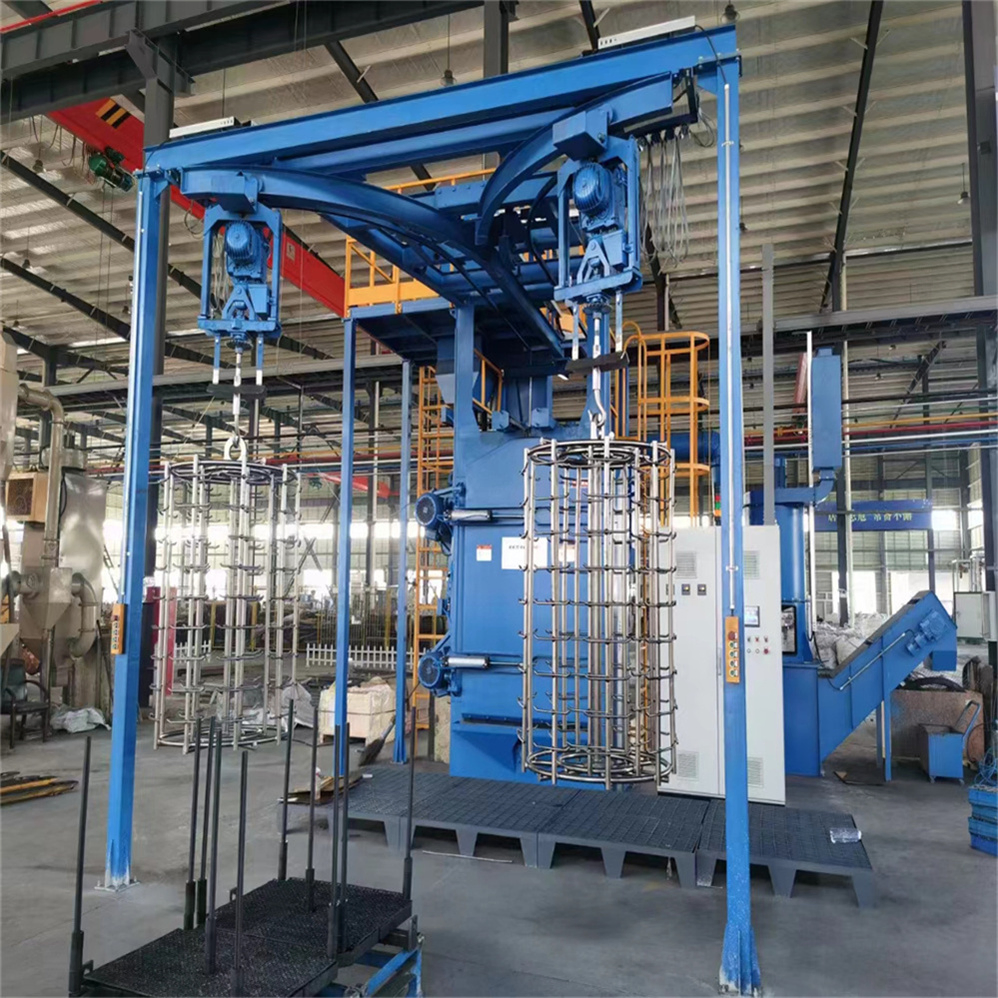

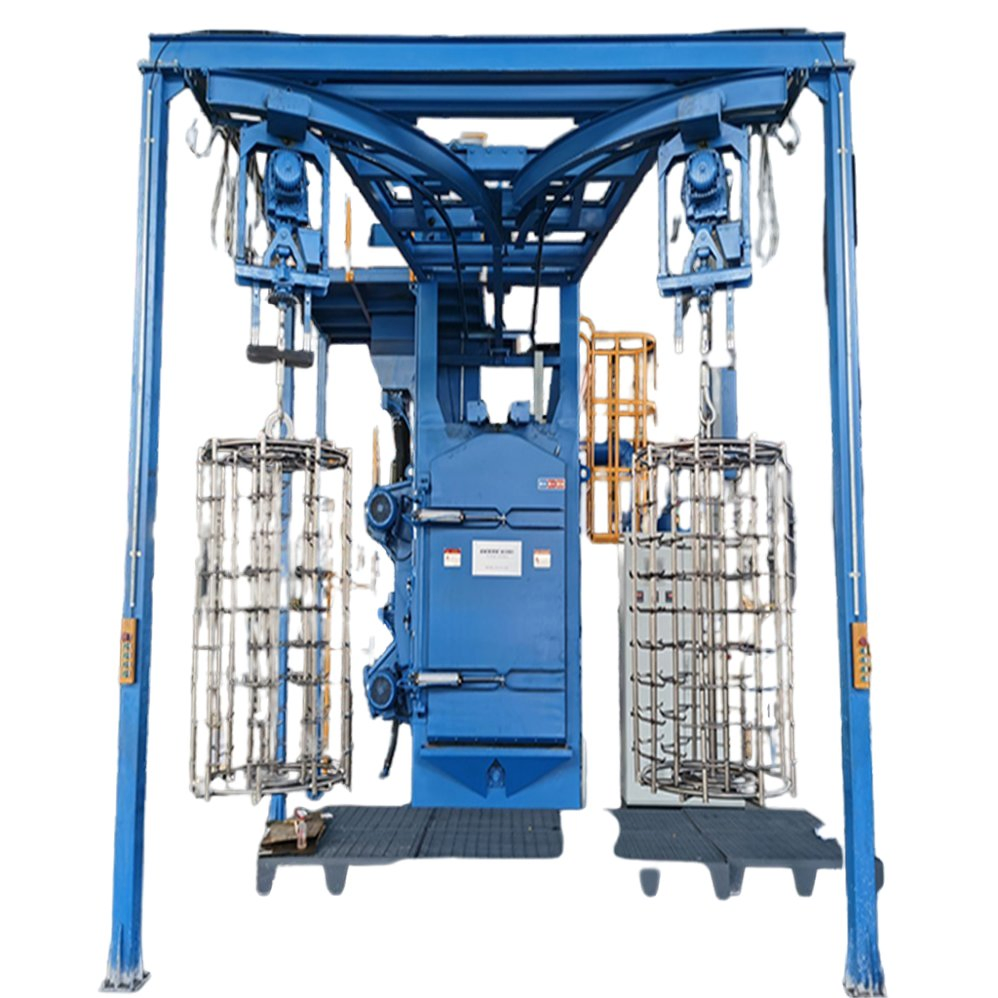

Hook Type Shot Blasting Machine

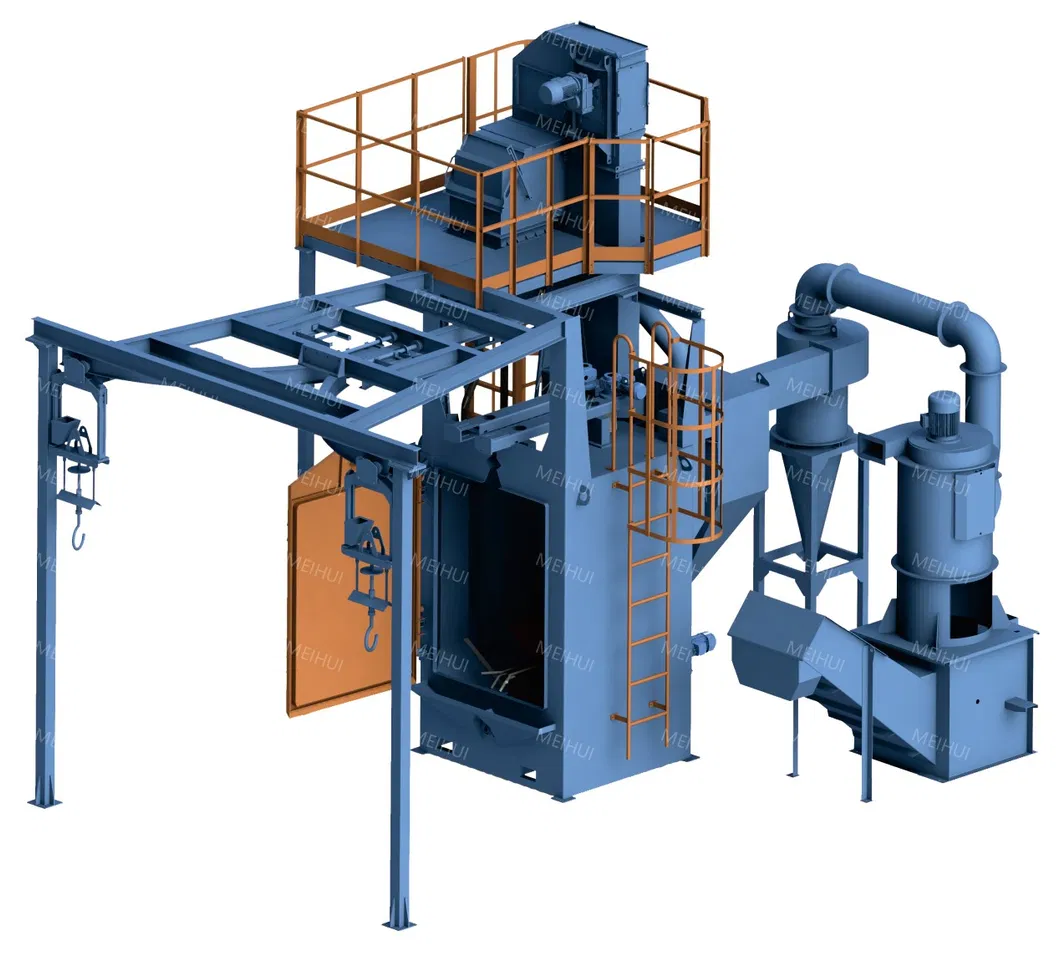

This equipment is mainly composed of a shot blasting cleaning room, shot blasting machine assembly, shot material circulation purification system, suspension chain conveyor, workpiece rotation mechanism, dust removal system, and advanced controls.
✅ Product Advantages:
🛠️ Product Application:
Designed for shot blasting and cleaning of workpieces (dimensions < Φ 900 × 1600). Guarantees the removal of rust, oxide scale, and molding sand, resulting in a clean metallic luster on all visible surfaces. Meets national GB8923-88 A-B Sa2 1/2 levels.
| Specification Name | ORB1212 | ORB1220 | Notes |
|---|---|---|---|
| Shot Blasting Equipment Qty | 2 | 3 | Customizable |
| Shot Blasting Power (kw) | 11*2 | 11*3 | Customizable |
| Diameter of Suspension (mm) | 1200 | 1200 | Customizable |
| Suspension Height (mm) | 1600 | 2000 | Customizable |
| Loading Amount of Shot (kg) | 600 | 900 | Customizable |
| Hook Load (kg) | 900 | 900 | Customizable |
| Shot Blasting Volume (kg/min) | 2*180 | 3*180 | Customizable |
| Ventilation Quantity (m³/h) | 3600 | 4300 | Customizable |
| Total Power (kw) | 29 | 42 | Customizable |
| Dust Removal Method | Dry/Wet | Dry/Wet | Filter Element / Collection |

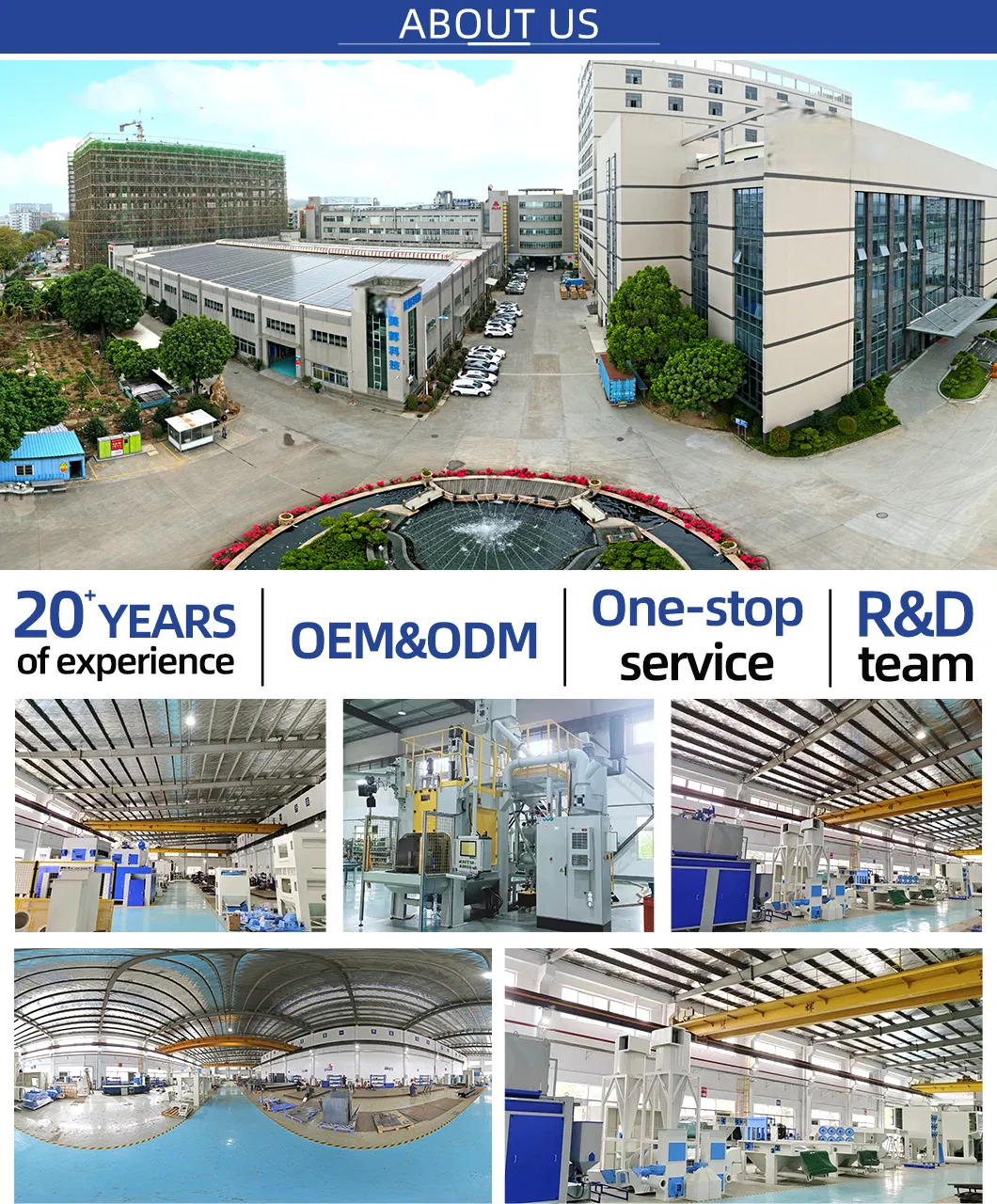

Established in 2003, we have nearly 20 years of experience in automatic spraying and throwing equipment manufacturing. In 2019, we established a dedicated 4S service standard for shot blasting equipment, covering sales, spare parts, and professional after-sales support.
Our technologies have obtained numerous national invention patents. Our equipment is certified under ISO-9001:2015 and ISO14001:2015. We have provided surface treatment equipment and process technology services to more than 500 users globally, including markets in Southeast Asia, Africa, Europe, and America.
We adhere to the principle of mutual benefit and win-win cooperation, ensuring high-quality packaging for global export standards.
