Product Description

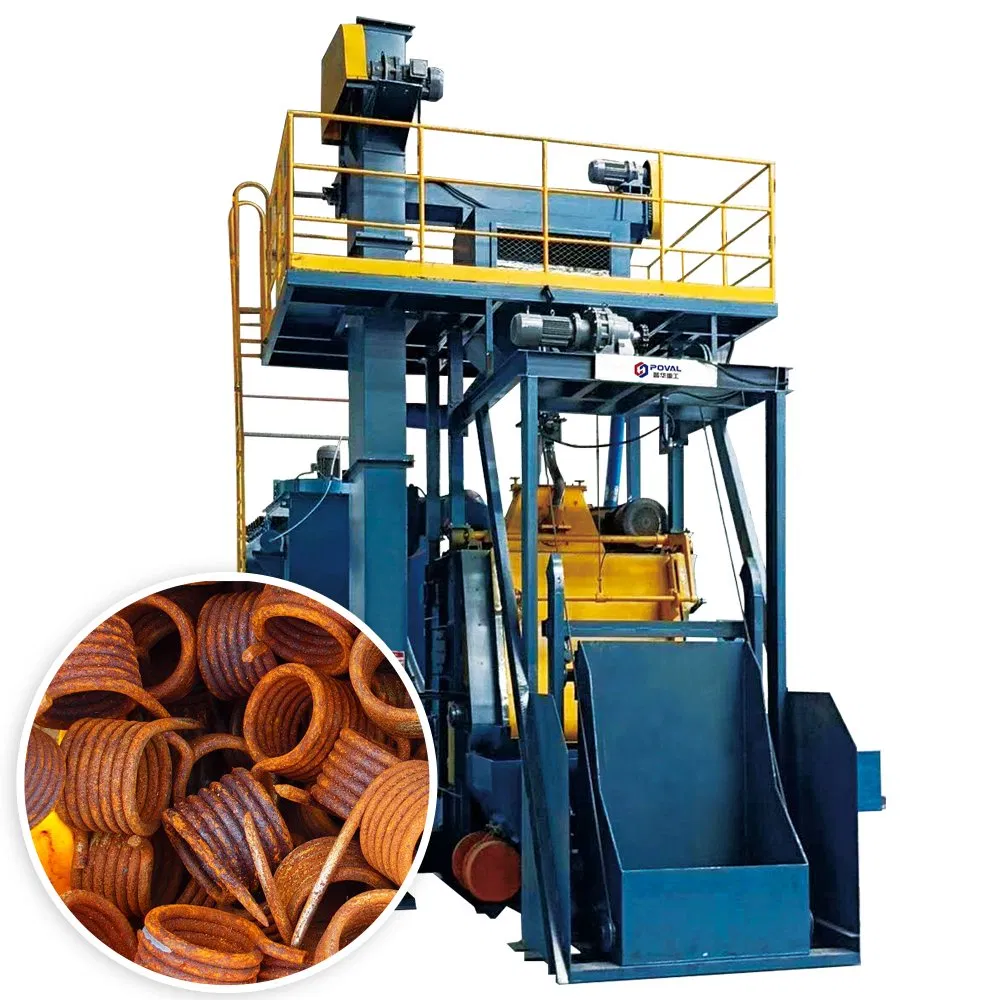

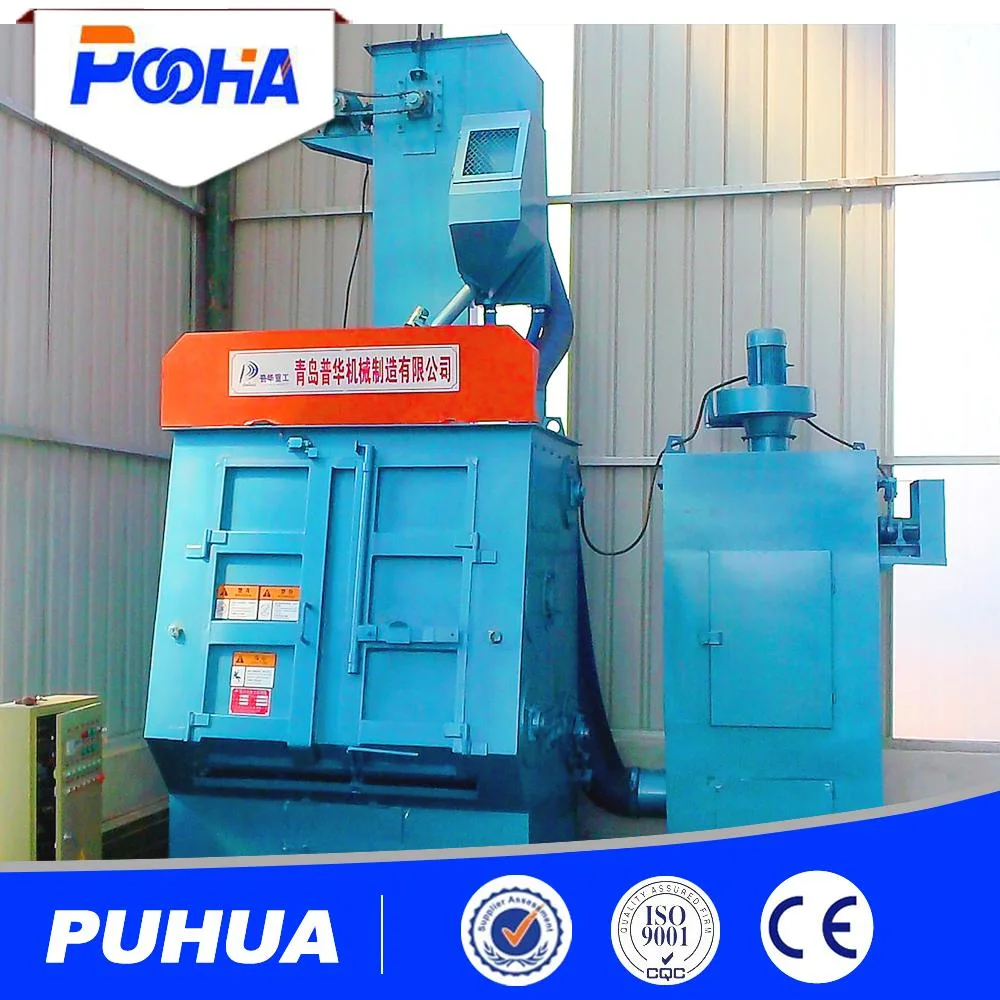

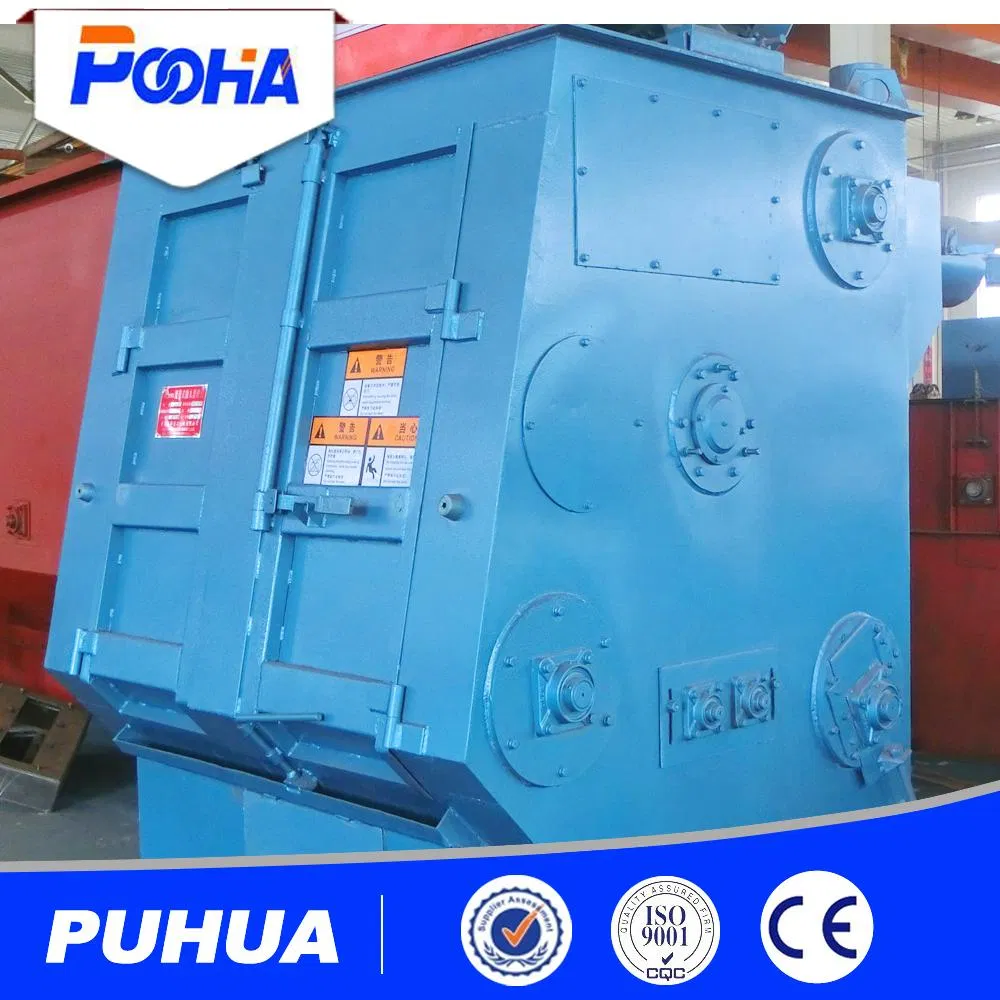

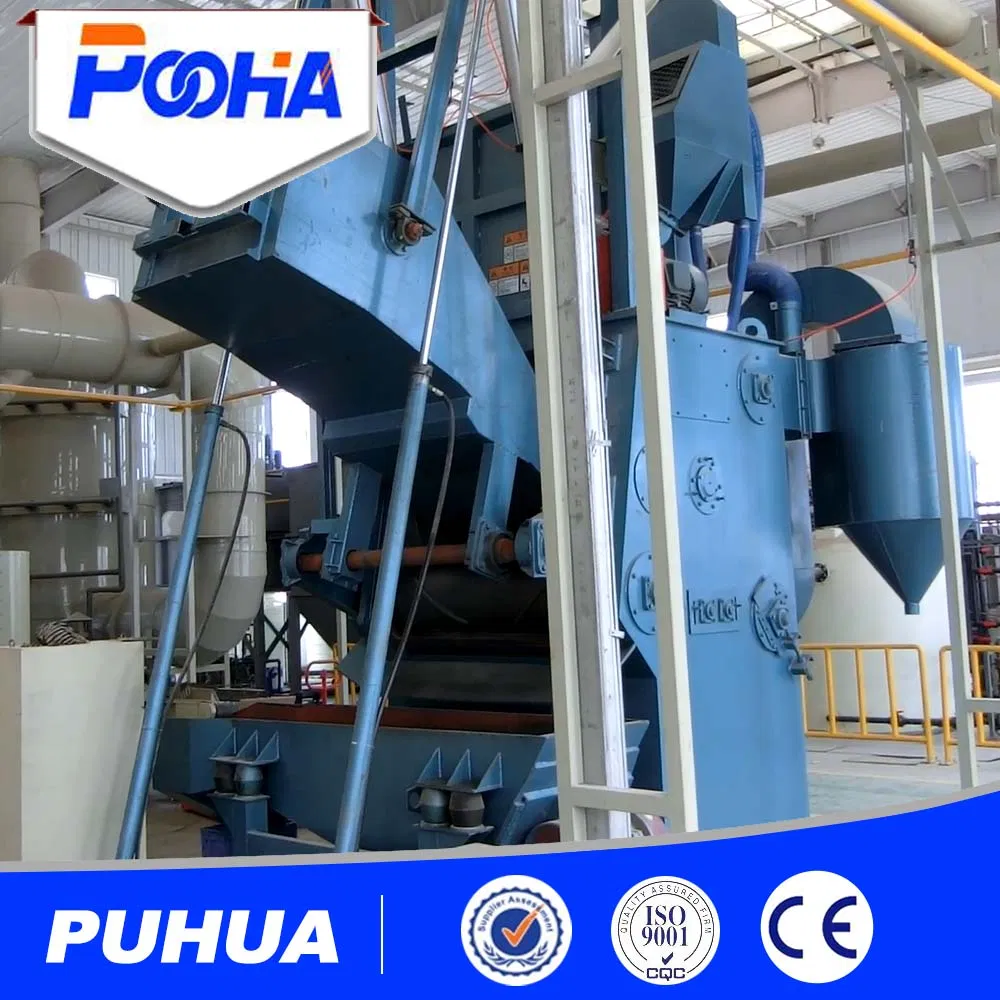

Q32 Rubber Belt Tumble Shot Blast Machine
Machine Overview
We supply professional customization design services. We can design the most suitable machine according to your detailed requirements and workpiece specifications.
Technological Strength
- First dedicated shot blasting machine for office building outside wall decoration marble in China.
- First dedicated shot blasting machine for aggrandizement floor grinding tool in China.
- First dedicated shot blasting machine for high-speed rail.
- First dedicated shot blasting machine for crystalline silicon.
- First dedicated shot blasting machine for oil field special-purpose cable tray.
Key Features
The shot blasting machine is a compact, low-noise, and complete cleaning solution with the following characteristics:
- Cantilever Centrifugal Blast Wheel: Long life and simple structure.
- Full Curtain Winnowing Separator: Excellent separation effects and higher productivity, improving blasting blade life.
- Wear-Resistant Rubber Track: Reduces workpiece collision damage and machine noise.
- Pulse Dust Collector: Efficiently collects dust to improve the labor environment.
Applications
- Descaling of forged or heat treated parts
- Desanding of ferrous and non-ferrous metal castings
- Deburring of metallic and non-metallic parts
- Deflashing of die cast parts
- Contaminant removal

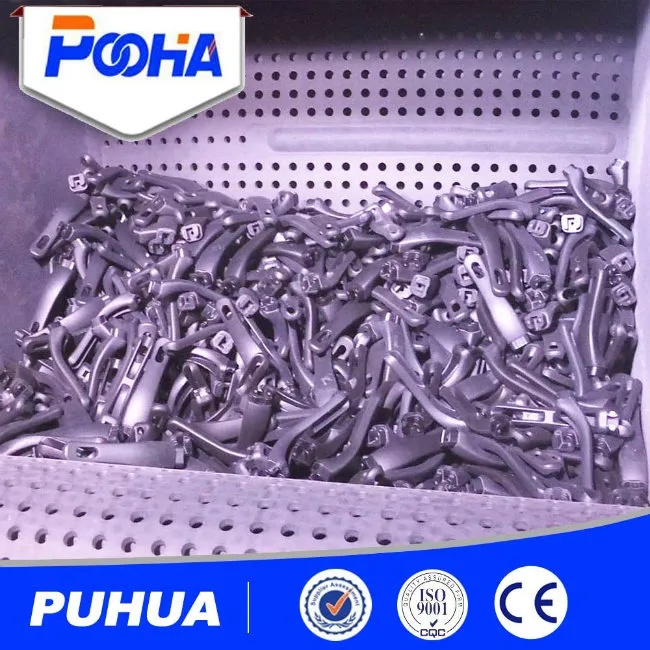

The tumbling action of the belt conveyor ensures that components are continually exposed to the blast stream and completely cleaned. For easy unloading, the belt conveyor is reversed, delivering the components into the loading skip or stillage.
Optimized Shot Blast Effect
- Workpieces are evenly and continuously tumbled for uniform treatment of all surfaces.
- Interior cavities are perfectly cleaned through continuous shot removal during tumbling.
- Final tumbling time can be regulated to suit specific workpiece types.
- Tightly sealed, leak-proof blast chamber minimizes shot consumption.
Our Advantages & Service
10 years professional production experience in shot blasting machinery.
22,000 m² production workshop with strong capacity.
Strict quality control system (CE, BV, ISO9001).
Main components adopt imported international famous brands.
Professional after-sale service with 24-hour response.
Site installation and commissioning provided.
Trade & After-Sale Terms
Trade Terms: MOQ: 1 set; Currency: USD, RMB, EUR; Mode: FOB, CIP, CFR, CIF, DDU, DDP; Payment: 30% deposit by T/T, balance before delivery.
After-Sale: 12 months warranty from commissioning; Full English documentation provided (installation drawings, manual, wiring diagrams).
Frequently Asked Questions
1. What types of parts are best suited for the Q32 tumble shot blast machine?

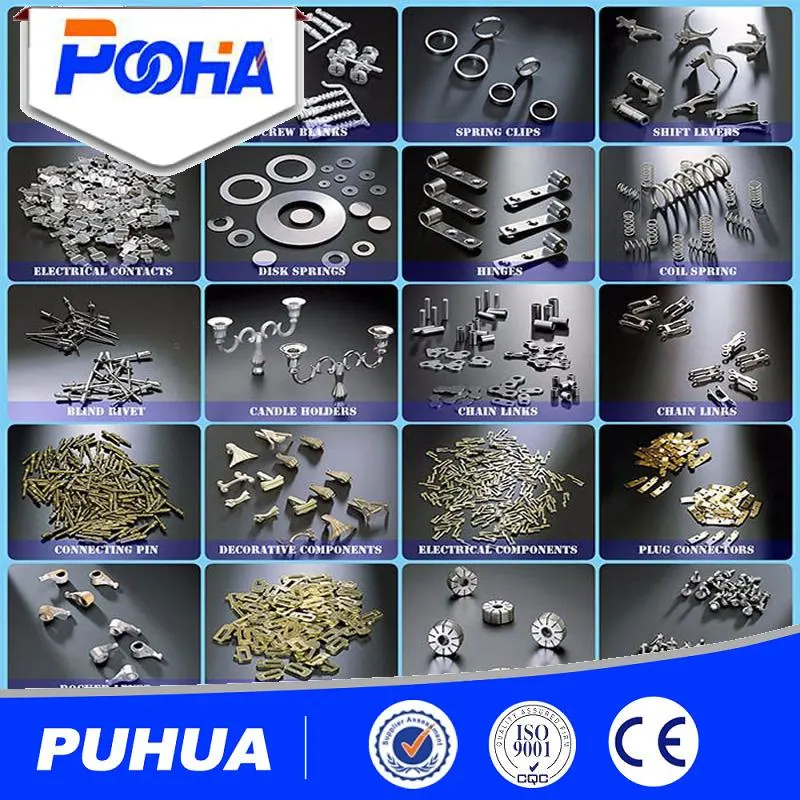

The Q32 series is ideal for small to medium-sized castings, forgings, nuts, springs, and other metal parts that can be tumbled without damage. It is excellent for descaling, deburring, and rust removal.
2. How does the rubber belt conveyor protect the workpieces?
The machine uses a high-wear-resistant rubber track which provides a gentle tumbling action. This minimizes collision damage between workpieces and significantly reduces operating noise compared to metal conveyors.
3. Is the machine easy to unload after the cleaning cycle?
Yes, the belt conveyor is reversible. Once the cleaning process is complete, the belt reverses direction to automatically deliver the cleaned components into a loading skip or container.
4. What kind of maintenance is required for the blast wheels?
The machine features cantilever centrifugal blast wheels designed for long life. Regular inspection of the blades, impeller, and distributor is recommended. High-chrome wearing parts are used to extend the maintenance intervals.
5. Can the cleaning intensity be adjusted for different materials?
Yes, the blasting time and the final tumbling time (for shot removal) can be regulated to suit the specific type and fragility of the workpieces being cleaned.
6. Does the machine include dust control systems?
Absolutely. Every machine is equipped with a pulse dust collector that ensures dust is efficiently collected, maintaining a clean working environment and meeting environmental standards.
