Product Description

Basic Information

Model NO.

FYQ37

Application

Metal Surface Cleaning

Fuel

Electric

Type

Hook Type Abrator

Cleanliness

High Cleanliness

Automation

Automatic

Certification

CE, ISO9001

Feature

Environmetal Protection

Condition

New

Customized

Core Selling Point

High Productivity

Core Components

Turbines

Marketing Type

2025 New Product

HS Code

842430

Production Capacity

5 Sets/Month

Packaging & Delivery

Package Size

300.00cm * 191.00cm * 200.00cm

Gross Weight

3500.000kg

Transport Package

Container

Product Description

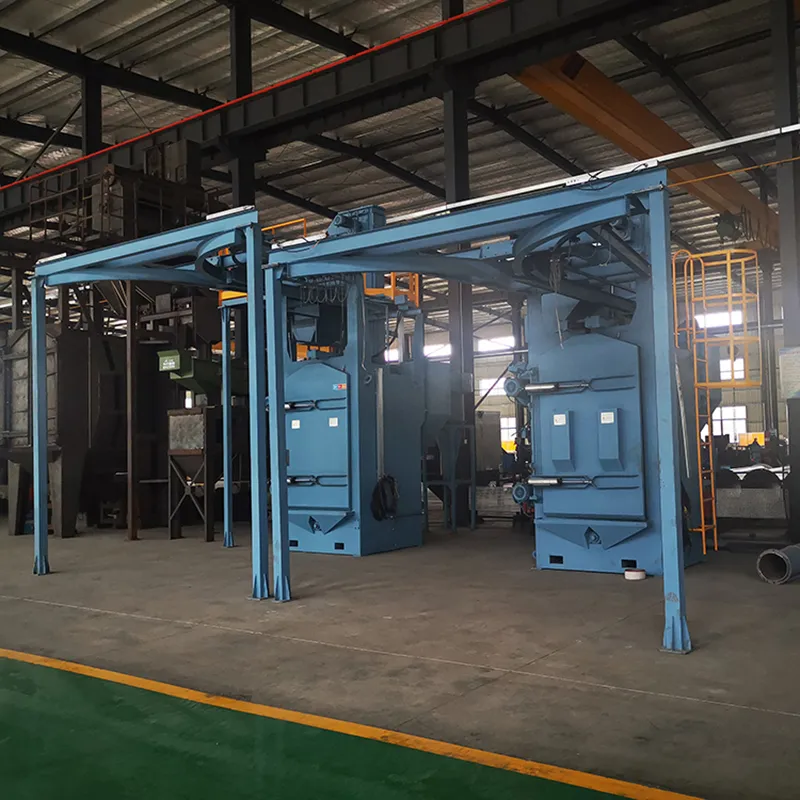

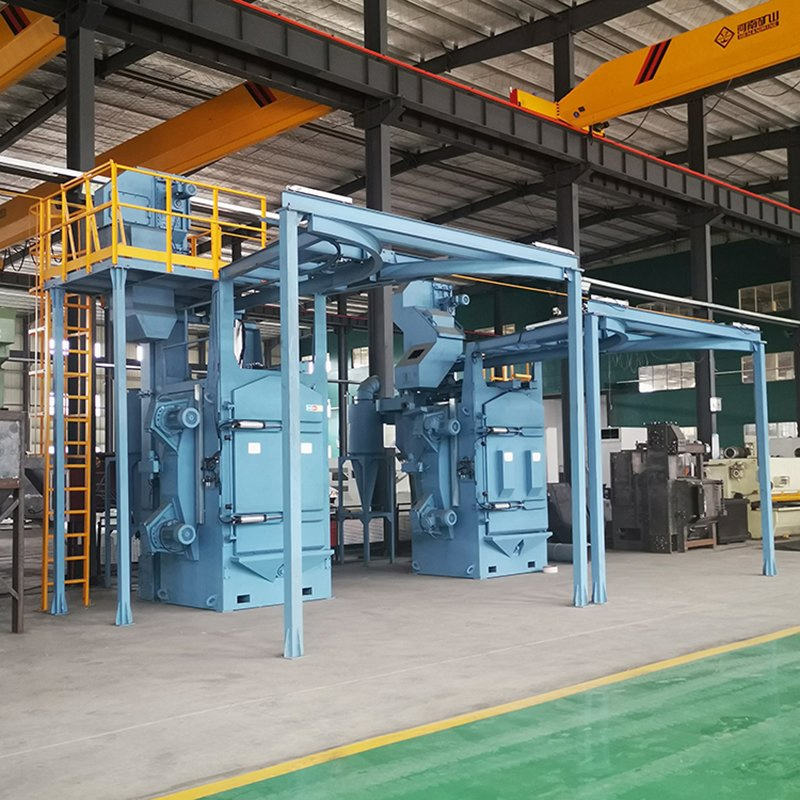

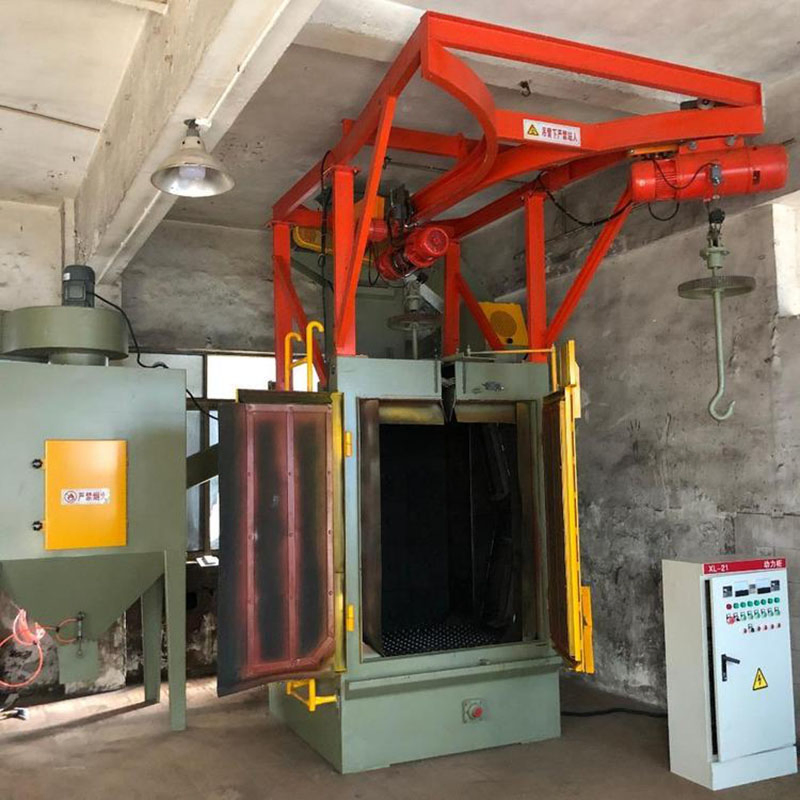

Hook type shot blasting machine usually has single hook shot blasting machine and double hook shot blasting machine. The price of double hook shot blasting machine is slightly higher than that of single hook shot blasting machine, but its production efficiency is much higher. As the two hooks rotate, the auxiliary time of the machine is greatly reduced, and the efficiency of shot peening operation is improved.

This machine is suitable for surface cleaning or strengthening of castings, forgings, and riveting parts of many varieties, medium and small batches, especially for thin-walled parts that are prone to collision damage.

Main Features

✔ This machine adopts a pit-free structure, which is easy to install and reduces investment costs.
✔ Compact structure, high production efficiency, good cleaning quality, and stable operation.

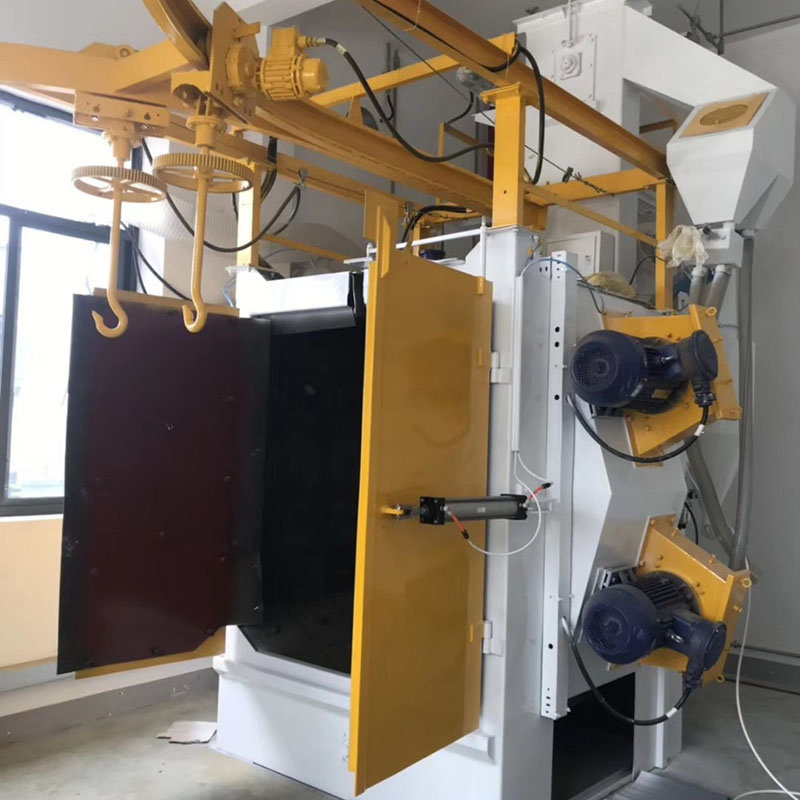

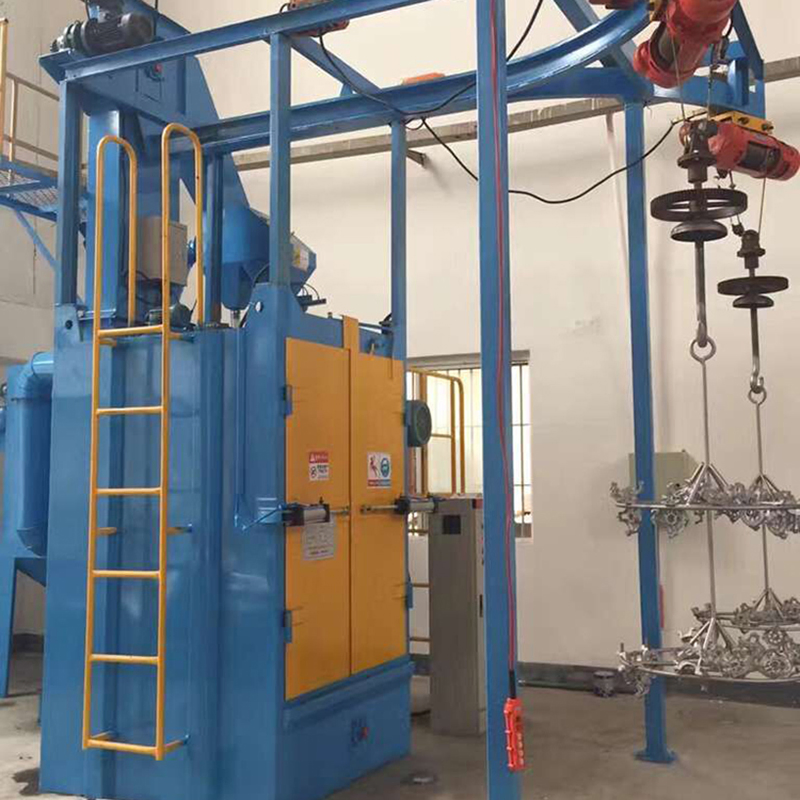

✔ The hook has three functions: self-lifting, walking, and indoor rotation.
✔ High-quality electrical components ensure reliable performance.

Machine Components

The Q37 series hook type shot blasting machine consists of: Shot blasting cleaning room, elevator, separator, screw conveyor, shot blasting assembly, projectile control system, hook walking track, hook system, rotation device, dust removal system, and electrical control part.

Item/Type	Unit	FYQ376	FYQ378	FYQ3710	FYQ3720	FYQ3730
Cleaning parts size	mm	∅800×1000	∅1000×1200	∅1200×1800	∅1400×2200	∅1600×2300
Single hook load	Kg	600	1000	1000	2000	3000
Blasting capacity	Kg/min	150×2	200×2	200×2	250×3	250×3
Elevator capacity	t/h	18	24	24	45	45
Separation capacity	t/h	18	24	24	45	45
Air volume	m³/h	2800	6000	9000	15000	15000
Total power	Kw	22	37	46	61	64

Frequently Asked Questions (FAQ)

What types of parts are best suited for the FYQ37 Hook Type Shot Blaster?

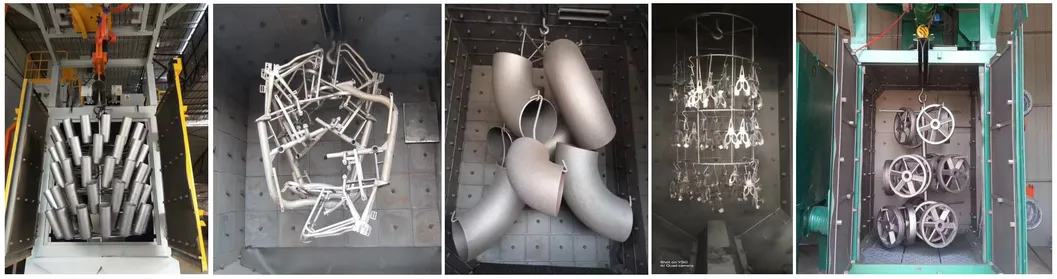

This machine is ideal for cleaning surface welding slag, descaling, and strengthening castings, forgings, and riveting parts, especially thin-walled parts that are sensitive to collisions.

What are the advantages of the pit-free structure?

The pit-free design simplifies the installation process and significantly reduces foundation construction costs, making it a cost-effective choice for many workshops.

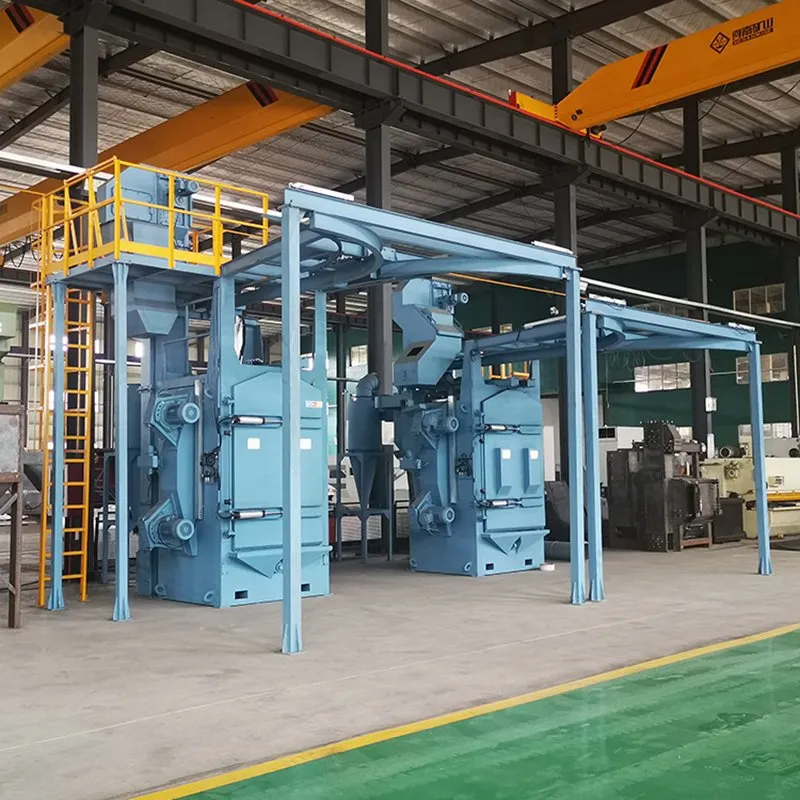

How does a double hook system improve production efficiency?

With two hooks, one can be inside the blasting chamber while the other is being loaded or unloaded outside. This continuous cycle minimizes downtime compared to a single hook system.

What are the key functions of the hook system?

The hook system features three main automated functions: self-lifting for easy loading, walking for transport into the chamber, and internal rotation to ensure complete 360-degree cleaning coverage.

Is the equipment compliant with international standards?

Yes, the FYQ37 series is manufactured under strict quality controls and holds CE and ISO9001 certifications to ensure safety and reliability.

Can the machine handle dust and environmental concerns?

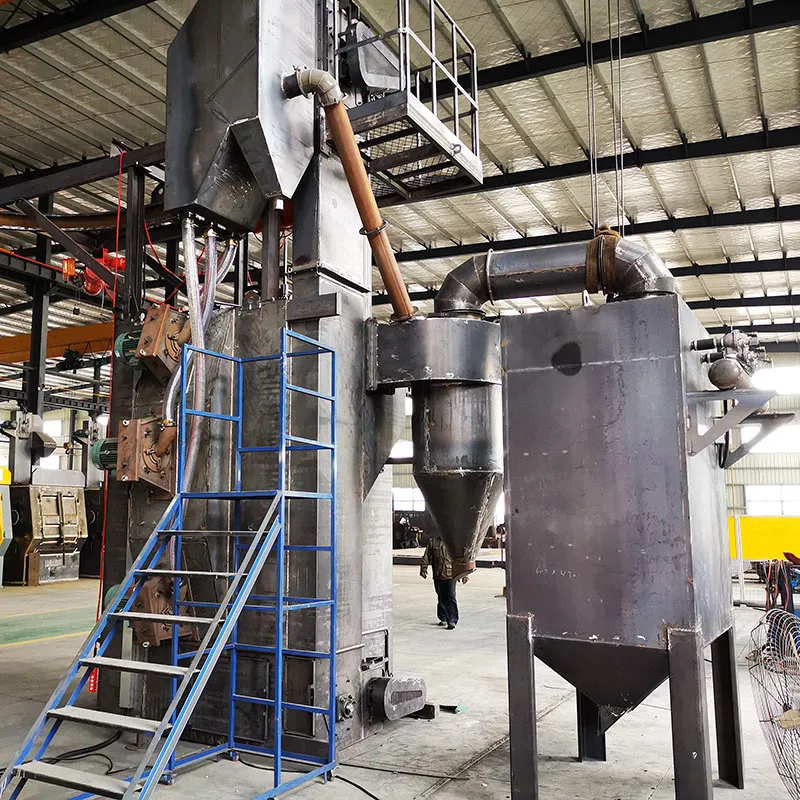

Absolutely. It is equipped with an integrated environmental dust removal system that effectively captures particles during operation, ensuring a clean working environment.
