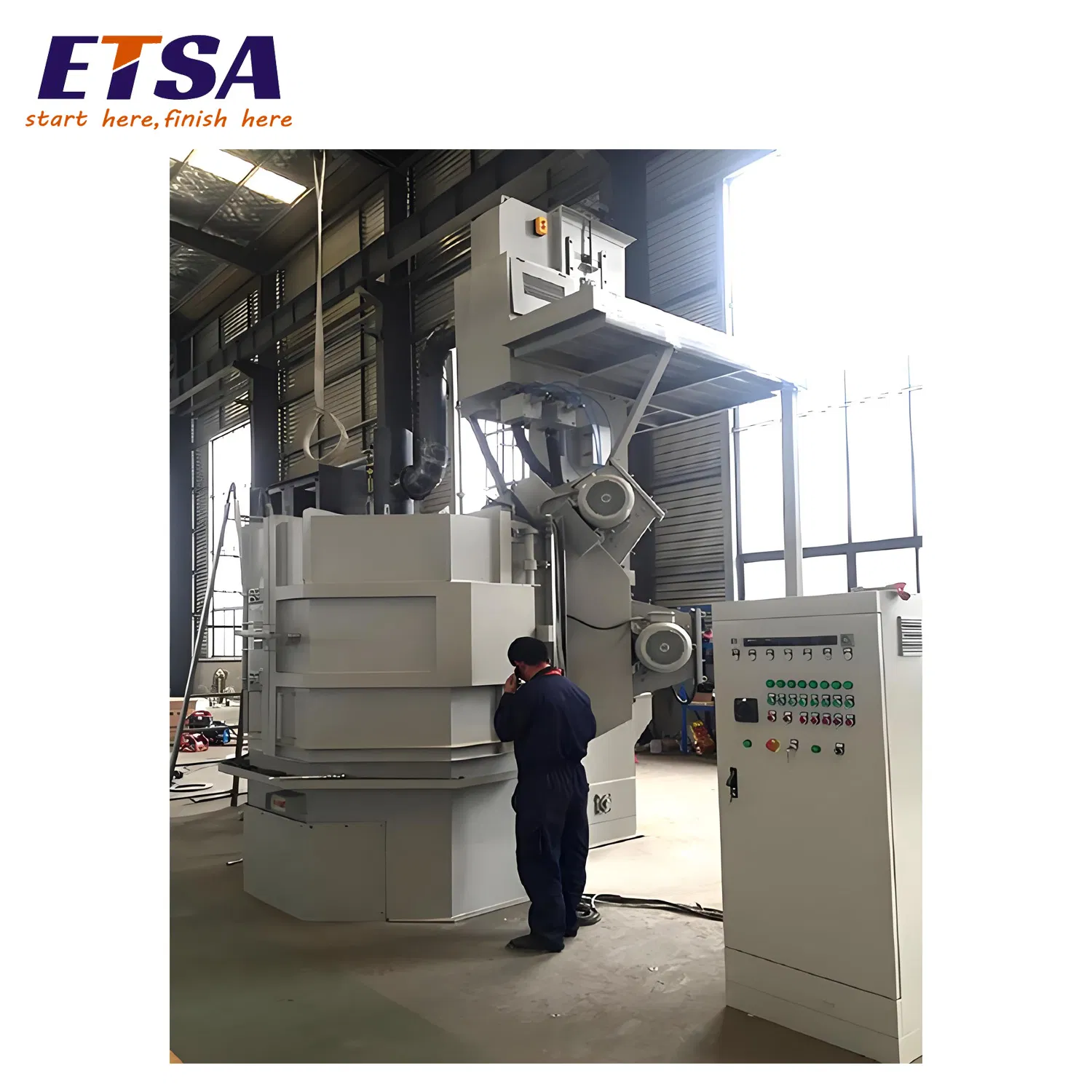

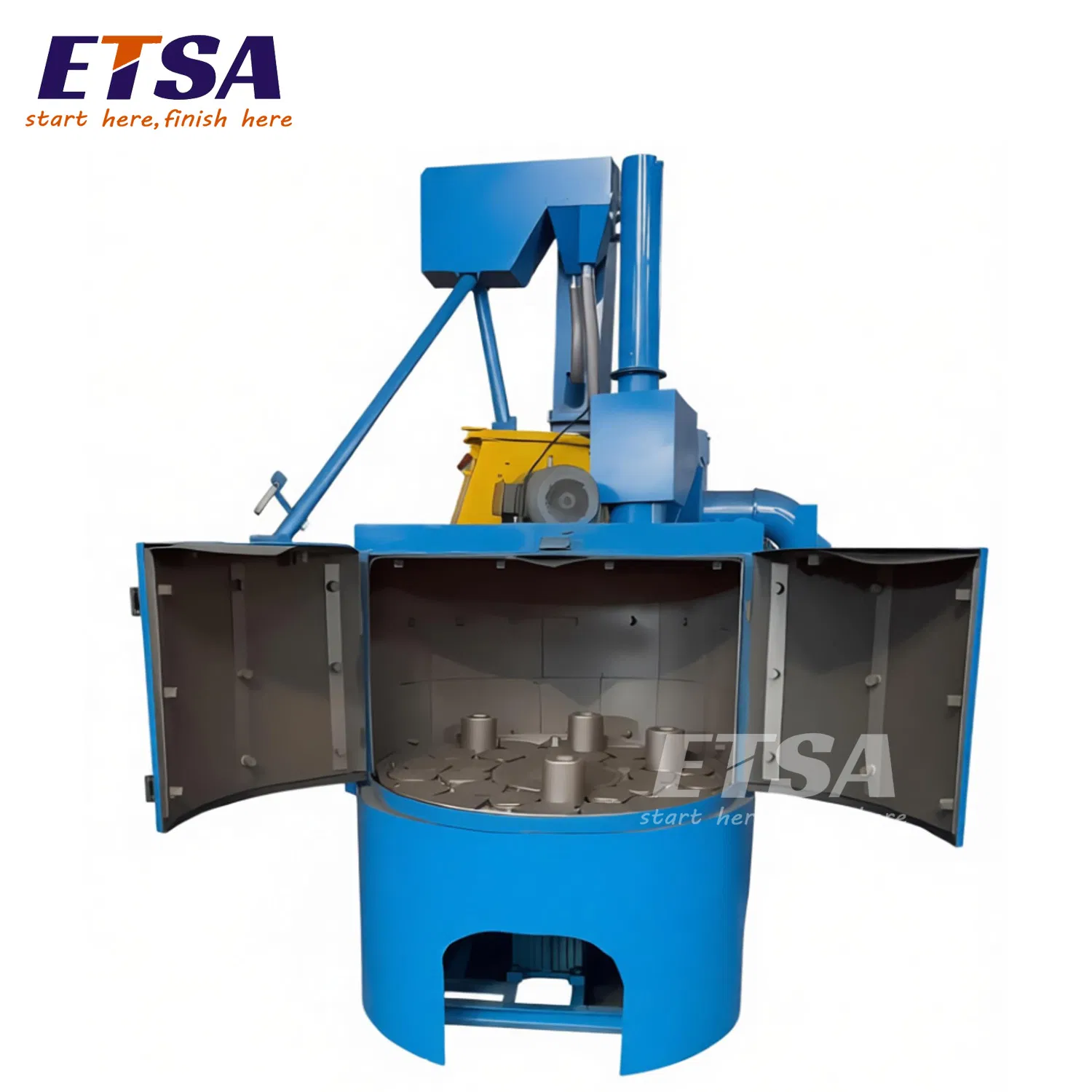

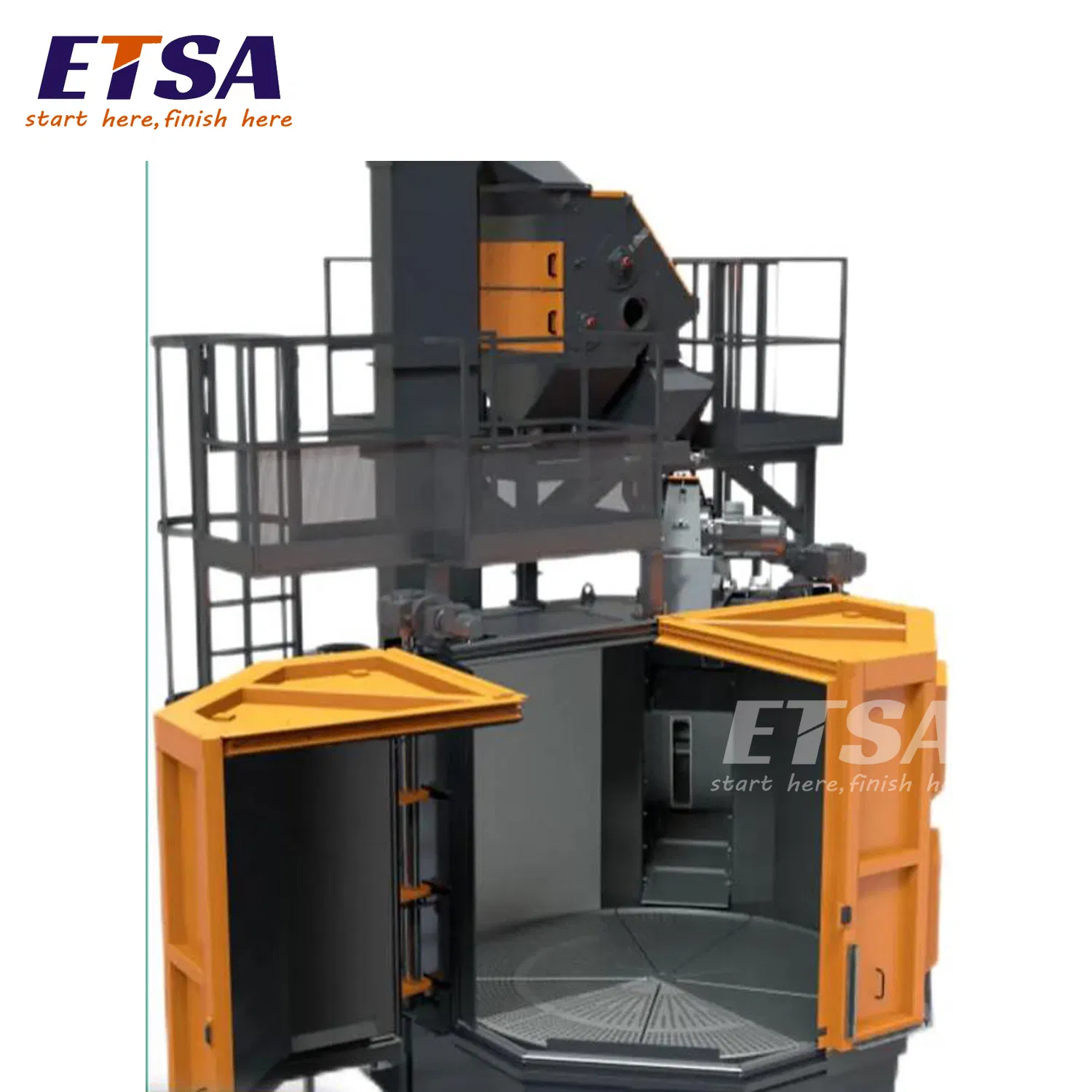

Professional Car Aluminum Alloy Wheel Turntable Rotary Table Type Shot Blasting Cleaning Machine
Professional Car Aluminum Alloy Wheel Turntable Rotary Table Type Shot Blasting Cleaning Machine
Professional Car Aluminum Alloy Wheel Turntable Rotary Table Type Shot Blasting Cleaning Machine
Professional Car Aluminum Alloy Wheel Turntable Rotary Table Type Shot Blasting Cleaning Machine
Professional Car Aluminum Alloy Wheel Turntable Rotary Table Type Shot Blasting Cleaning Machine
1 / 5
Professional Car Aluminum Alloy Wheel Turntable Rotary Table Type Shot Blasting Cleaning Machine
Professional Car Aluminum Alloy Wheel Turntable Rotary Table Type Shot Blasting Cleaning Machine
Professional Car Aluminum Alloy Wheel Turntable Rotary Table Type Shot Blasting Cleaning Machine
Professional Car Aluminum Alloy Wheel Turntable Rotary Table Type Shot Blasting Cleaning Machine
Professional Car Aluminum Alloy Wheel Turntable Rotary Table Type Shot Blasting Cleaning Machine

Professional Car Aluminum Alloy Wheel Turntable Rotary Table Type Shot Blasting Cleaning Machine

Customization: Available
After-sales Service: on Site Installation, Online Technical Support
Warranty: 2 Years
Send Inquiry

Product Description

i

Basic Information

Application
Degreasing, Descaling, Stripping, Sterilizing
Fuel
Electric
Type
Rotary Table Type
Cleanliness
High Cleanliness (SA2.5 to SA3.0)
Automation
Automatic
Blast Media
Shot Steel, Shot Grit, Wire Cut, etc.
Dust Collector
Filter Cartridge
Certification
CE, CB, ETL, RoHS, UR
Bearings
SFK or NSK
Blast Wheel
1-3 Wheels
P

Product Description

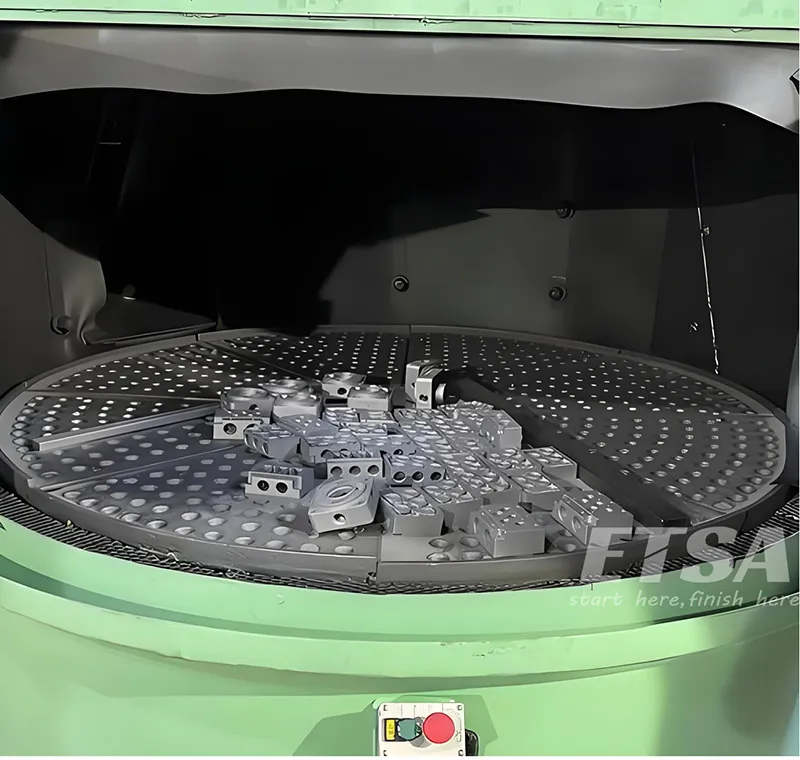

Rotary Table Shot Blasting Machine

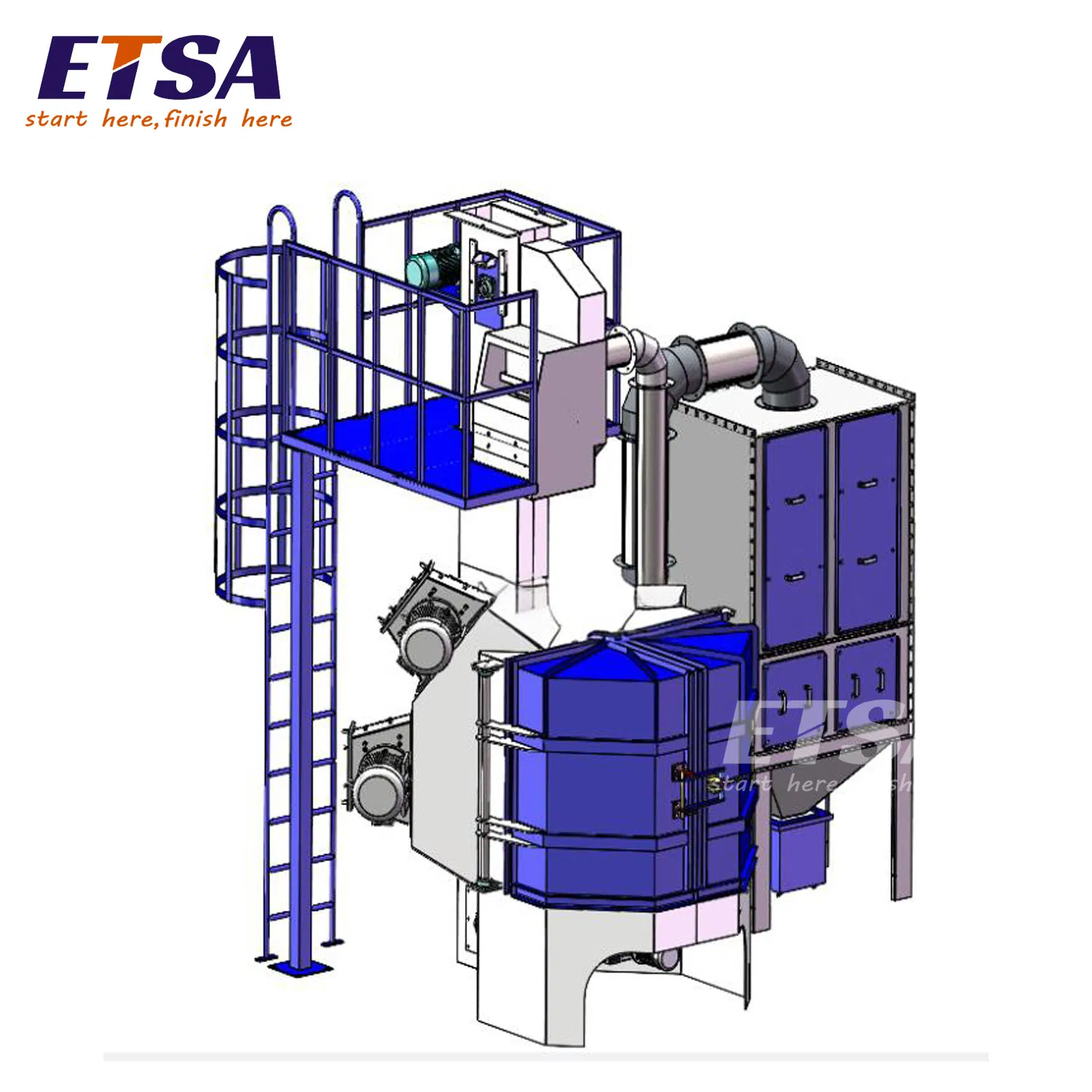

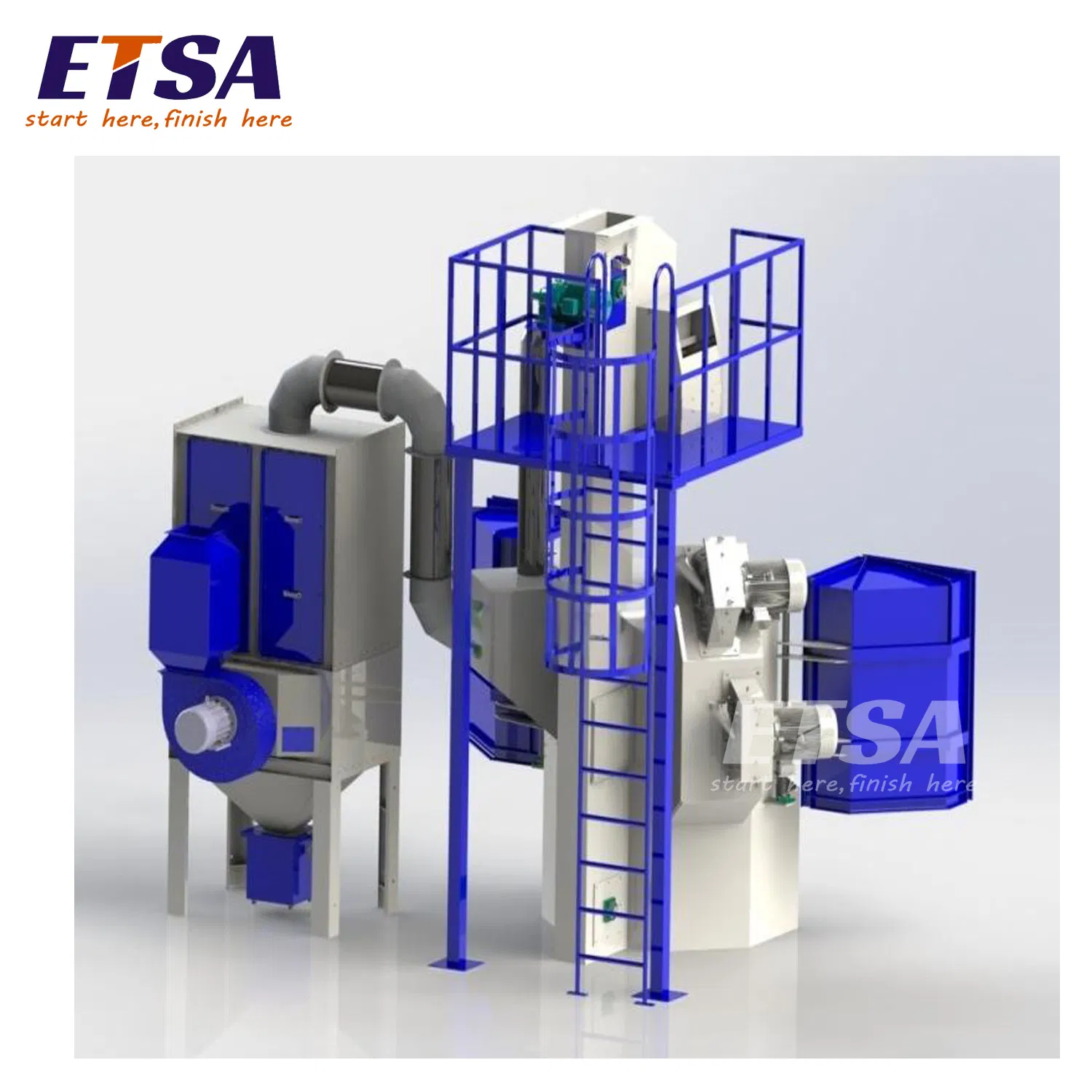

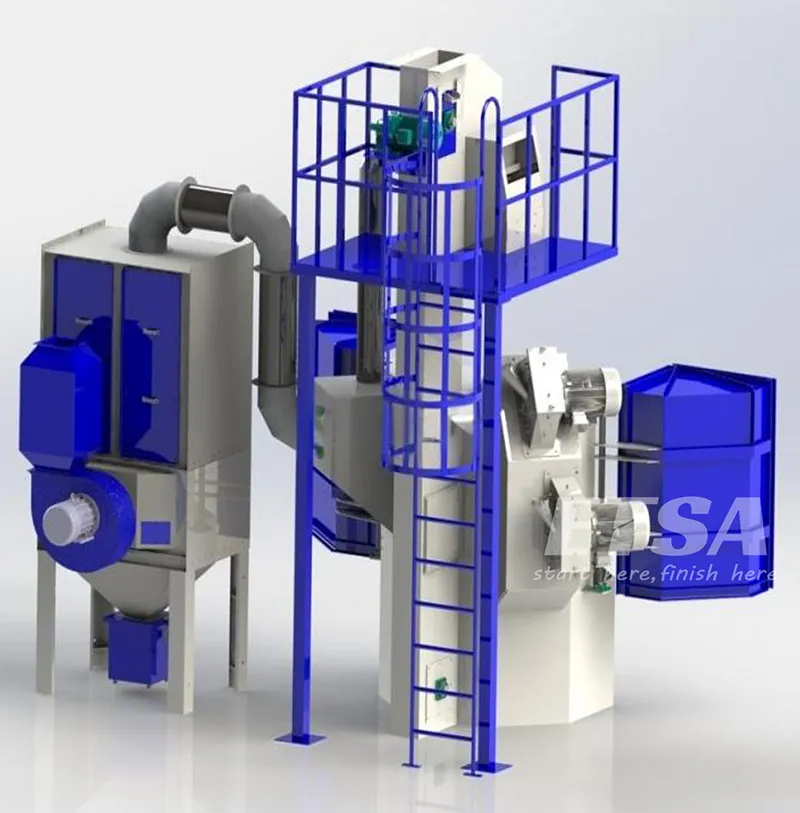

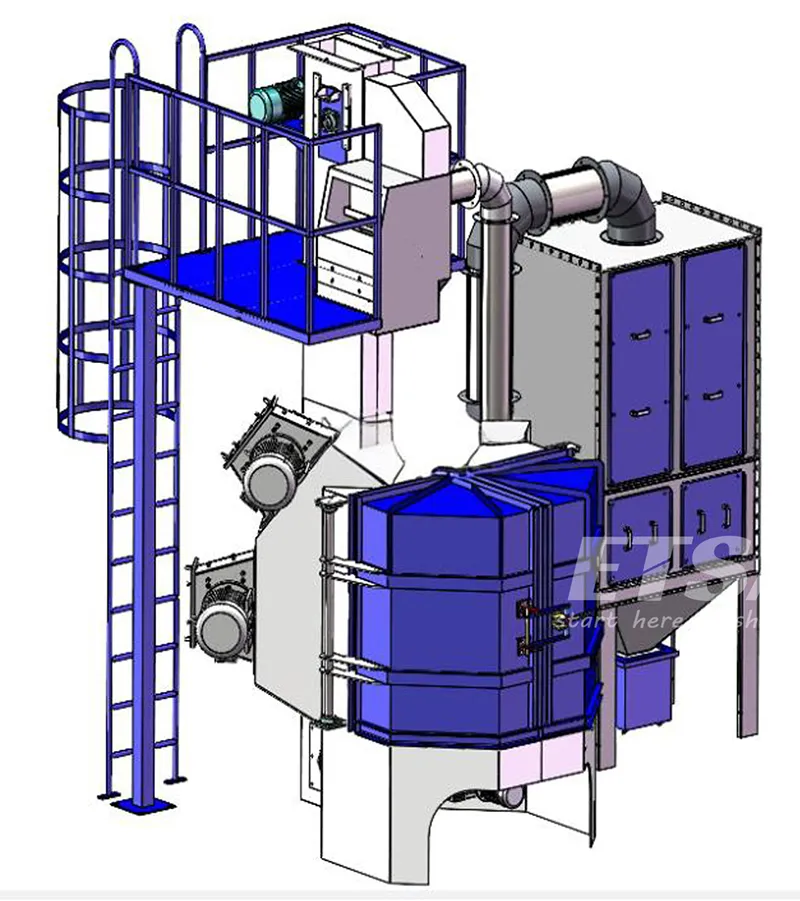

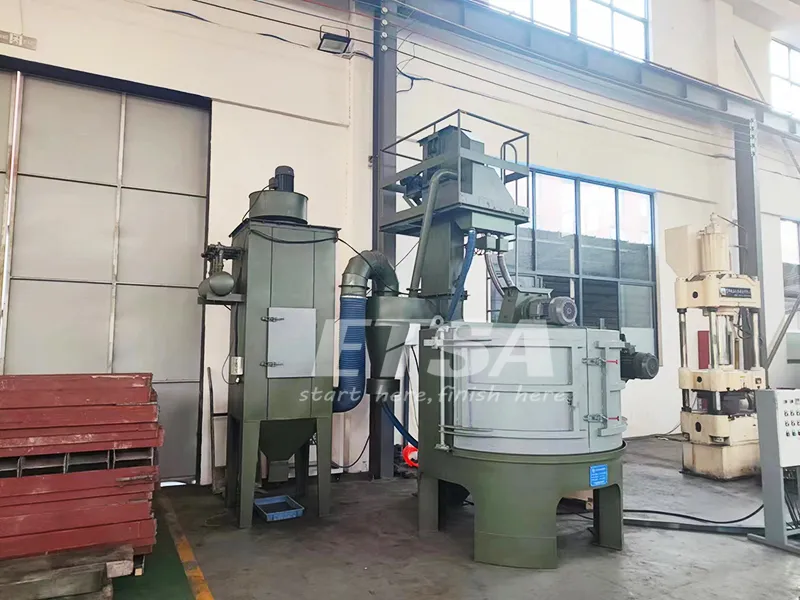

Rotary Table Shot Blasting Machine mainly consists of a blasting chamber, blast wheel, screw conveyor, bucket elevator, separator, dust collector, and electric control system.

These are universal machines used for blasting a wide variety of workpieces, such as welded constructions, castings, and forgings. The planned position of turbines provides optimum efficiency and a uniformly cleaned surface for all shapes and sizes.

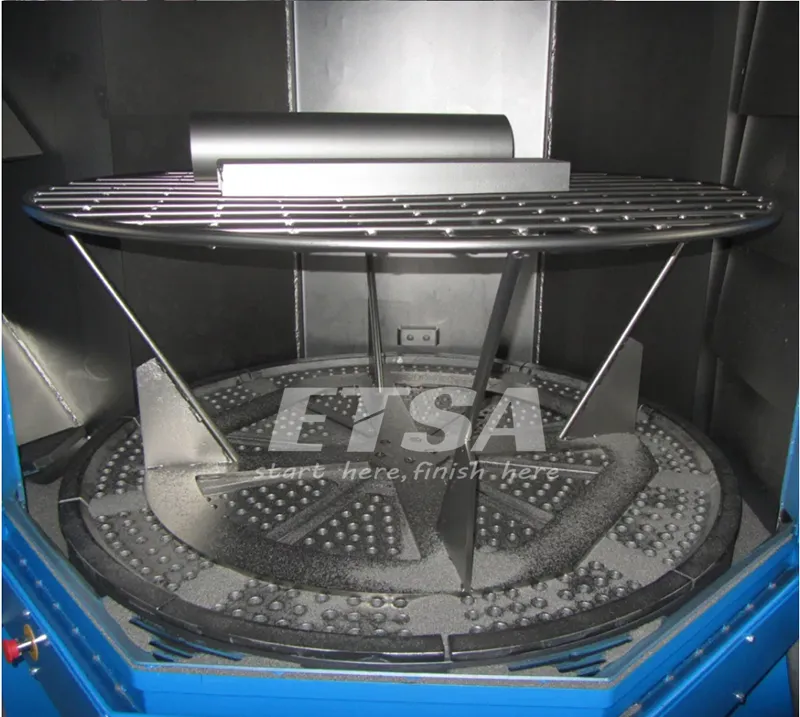

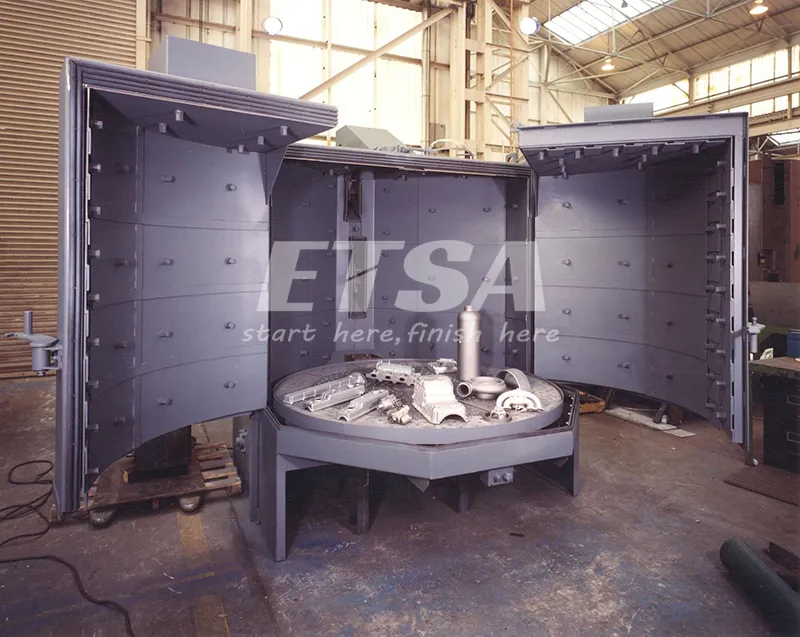

Workpieces are loaded on a table or on satellites fixed to a table. The table rotates in the shot blasting chamber, ensuring no part-on-part contact and providing thorough cleaning.

T

Product Parameters

Type RT 1000/600 RT 1200/900 RT 1500/600

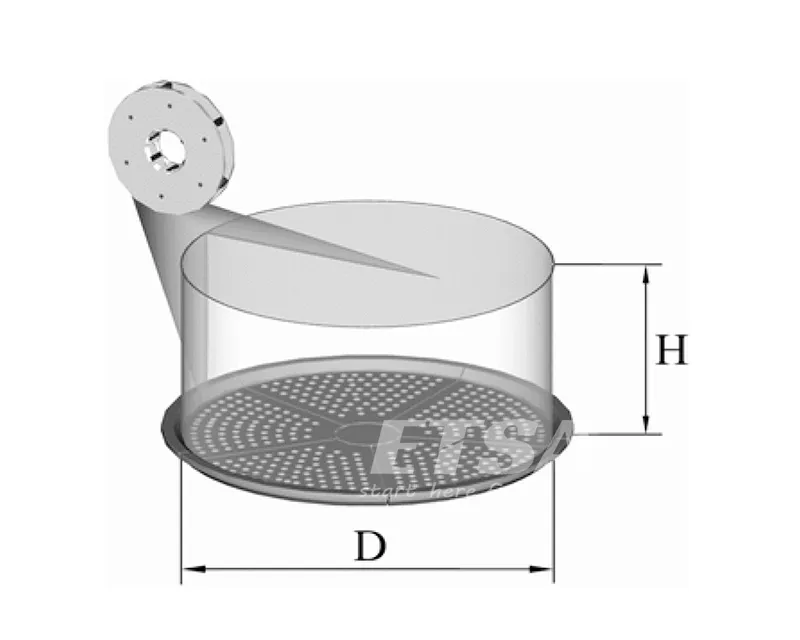

Max. dimension of chamber (mm) Φ1350×560 Φ1350×860 Φ1800×560
Max. workpiece weight (kg) 500 500 1000
Diameter of Turn Table (mm) 1200 1200 1500
Material of blast chamber Mild steel Mild steel Mild steel
Number of blast wheels 1 2 2
Power per blast wheel (kW) 7.5/11 7.5/11 11/15
Material of table Rubber/Manganese Rubber/Manganese Rubber/Manganese
A

Applications

Provides cost-effective solutions for batch cleaning, deburring, and descaling for:

  • • Ferrous and non-ferrous castings
  • • Welded structures and fabrications
  • • Heat treated forgings
  • • Small Automotive Parts
  • • Die castings and more

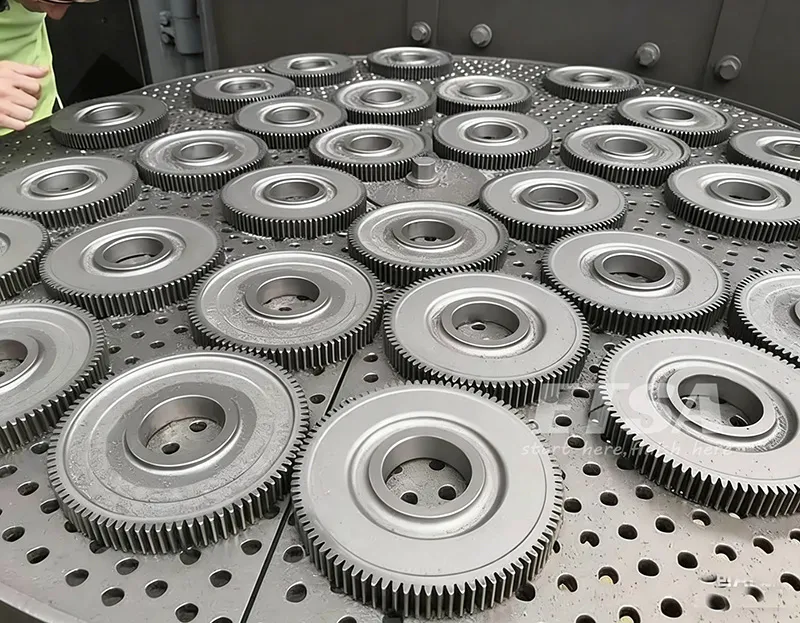

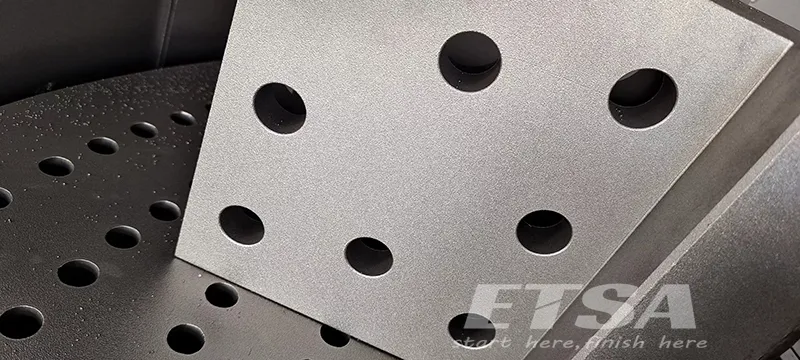

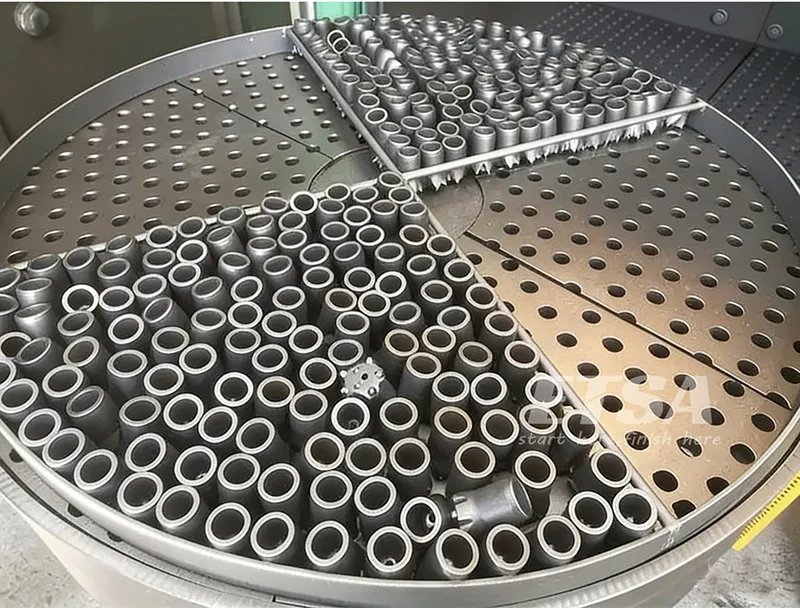

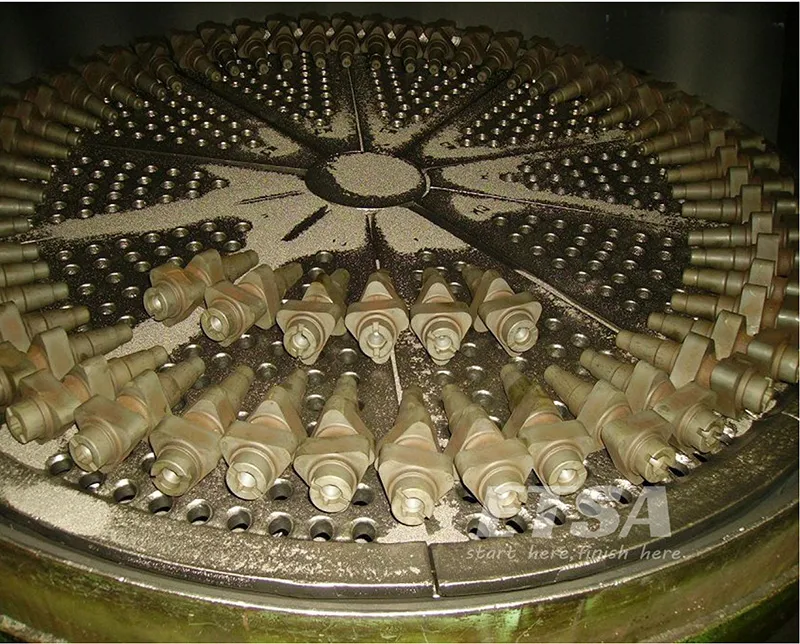

Application Image
F

Key Features

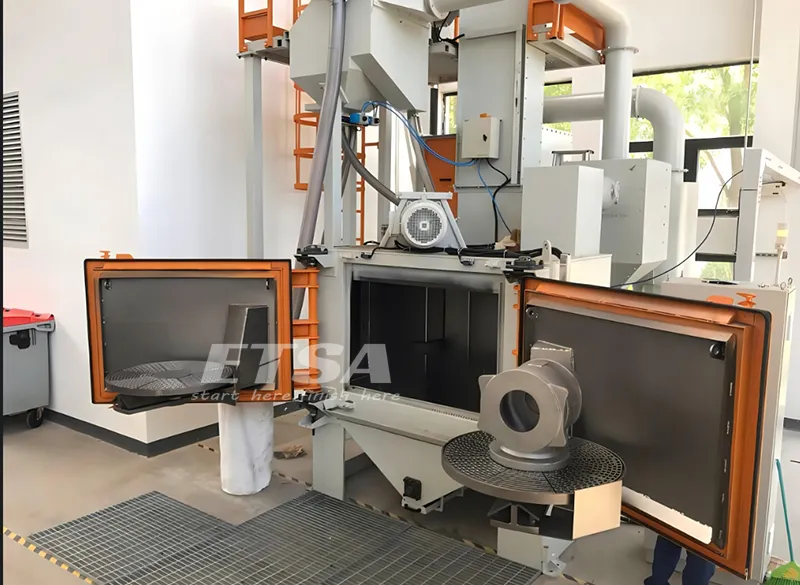

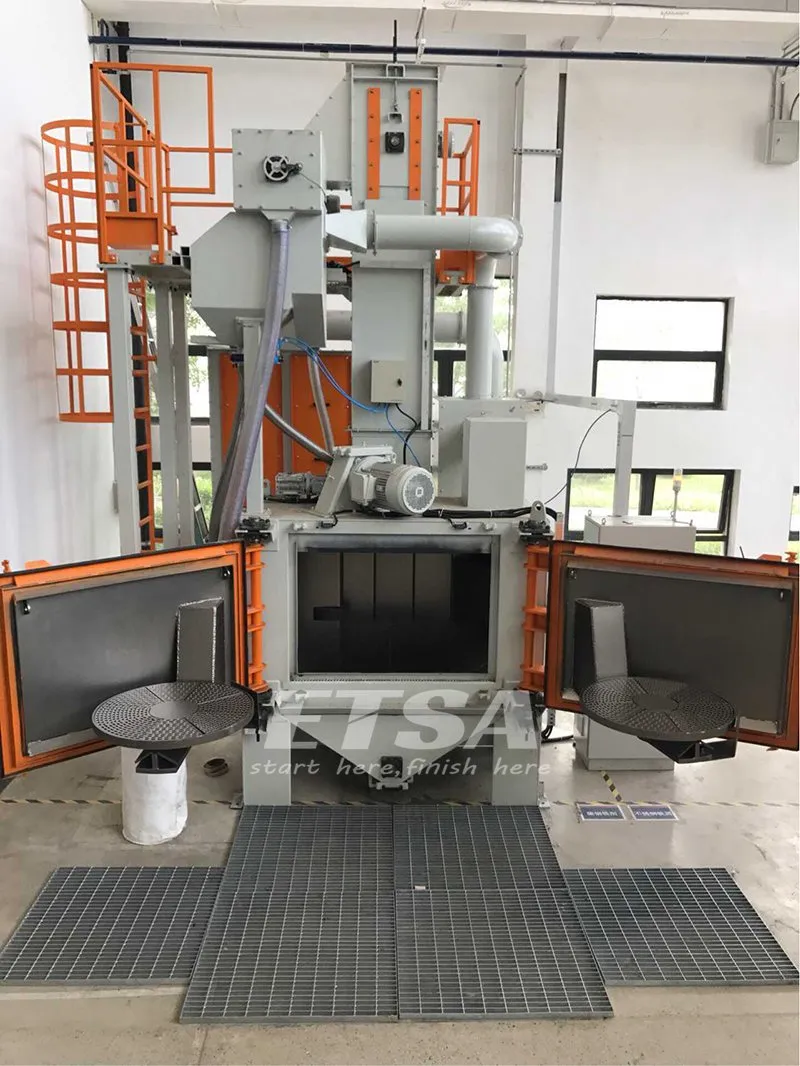

  • Available with one or two work doors and tables based on requirements.
  • Simple rubber curtain liner system with cast liners in line with blast wheels.
  • Designed for use with recyclable, long-lasting steel shot for lower costs.
  • Ruggedly built abrasive resistant blast chamber.
  • Continuous abrasive handling with air wash separator.
  • Integral cartridge type dust collector for environment safety.
  • Standard air-operated abrasive gate.
M

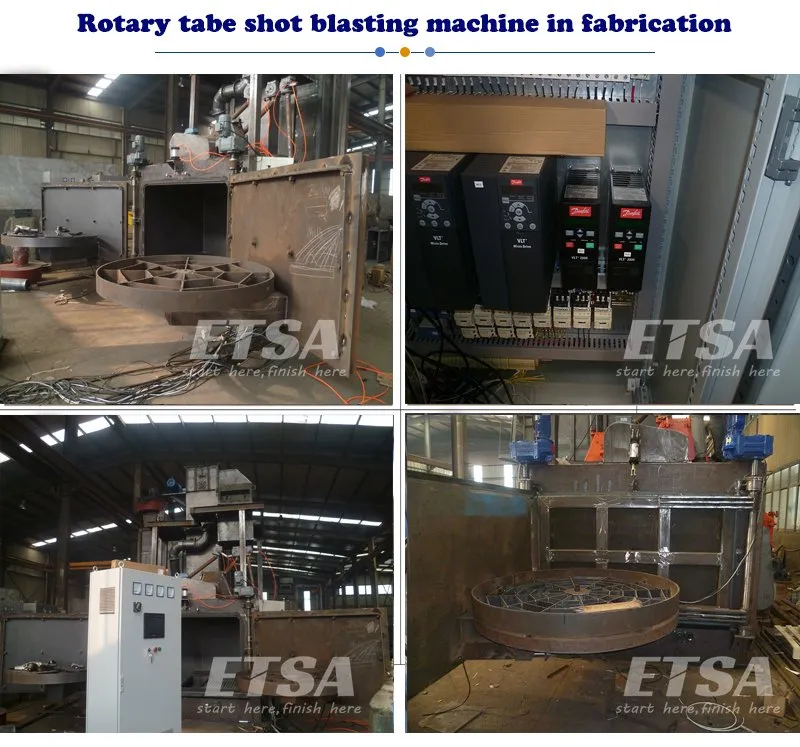

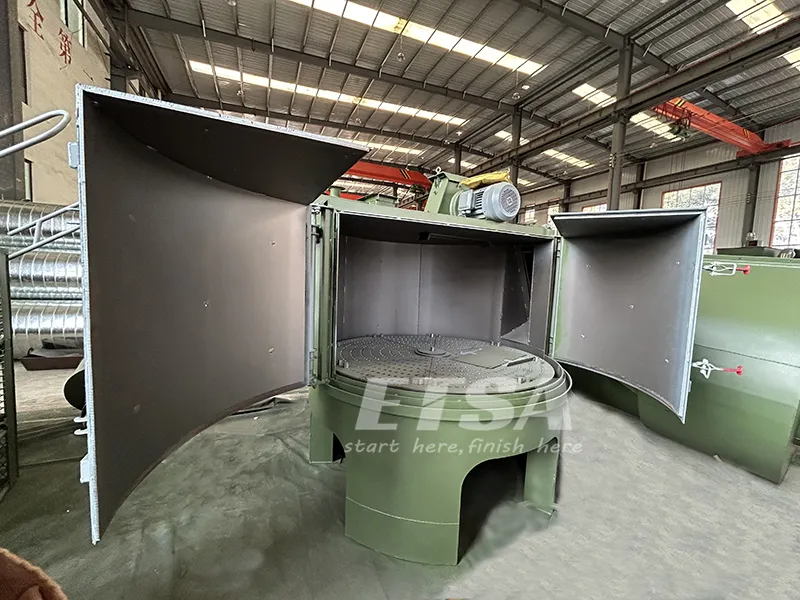

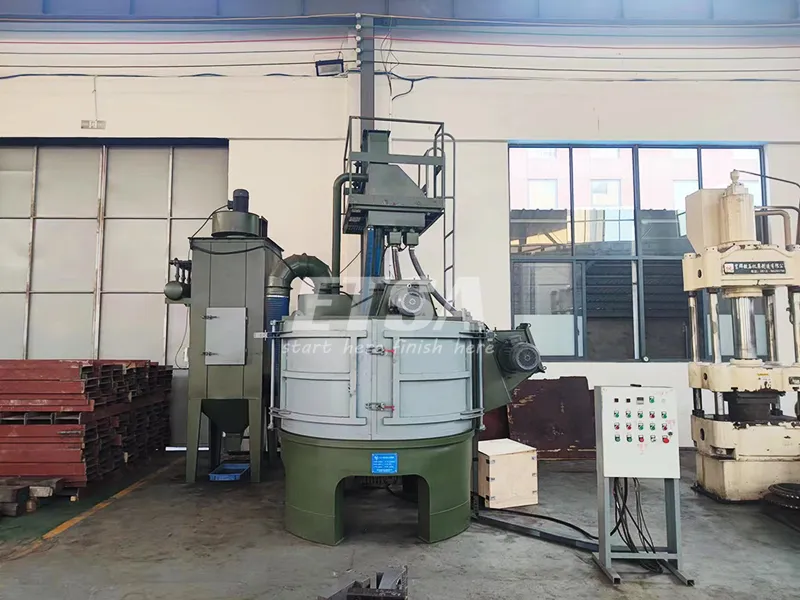

Detailed Gallery

S

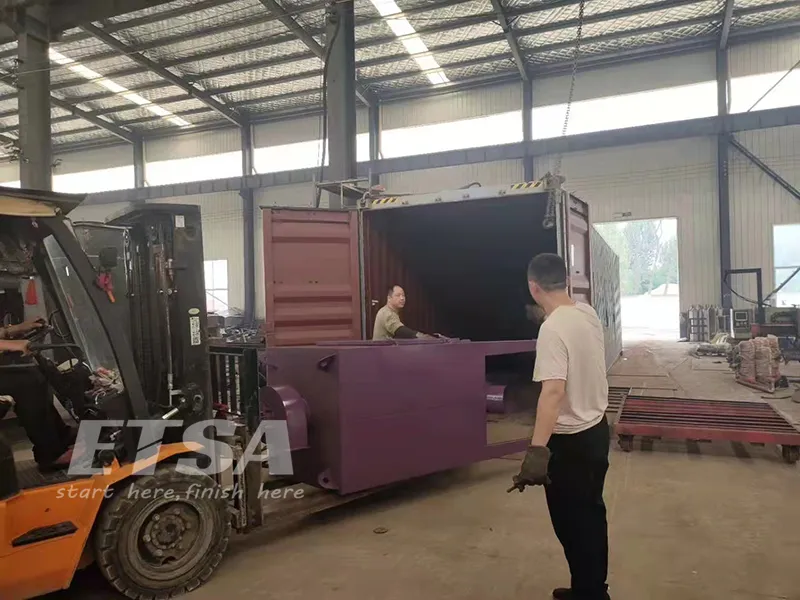

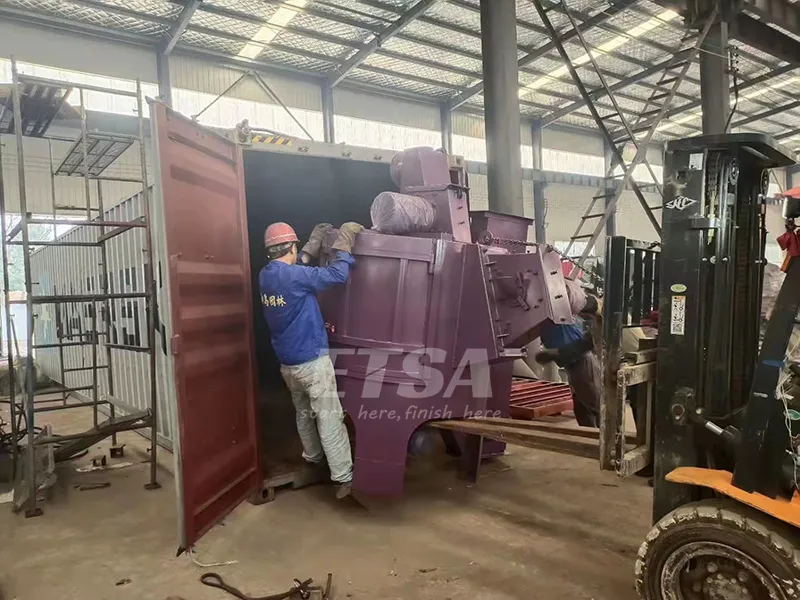

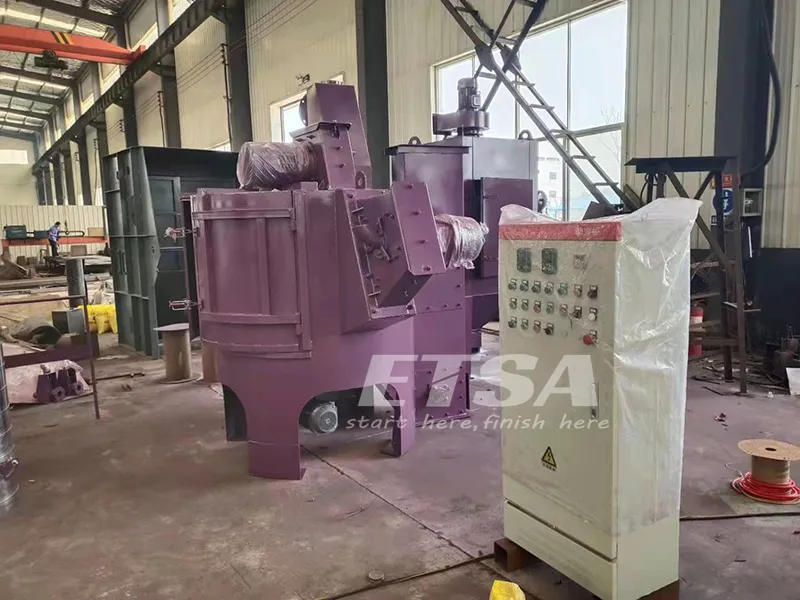

Packaging & Shipping

?

Frequently Asked Questions

What materials can be cleaned with this machine?
It is ideal for ferrous and non-ferrous castings, welded structures, forgings, and small automotive parts.
How does the rotary table improve efficiency?
The rotation ensures that all surfaces of the workpiece are exposed to the blast stream uniformly, reducing the need for manual repositioning.
Is the blast media recyclable?
Yes, the system is designed for use with recyclable steel shot or grit, featuring a continuous reclamation system to reduce operating costs.
Can the machine be customized?
Absolutely. Dimensions, power supply, and the number of blast wheels can be customized according to specific production requirements.
What level of surface finish can be achieved?
The machine typically achieves high cleanliness levels ranging from SA2.5 to SA3.0.
What kind of dust collection system is used?
It features an integral cartridge-type dust collector to ensure a clean working environment and meet environmental standards.
