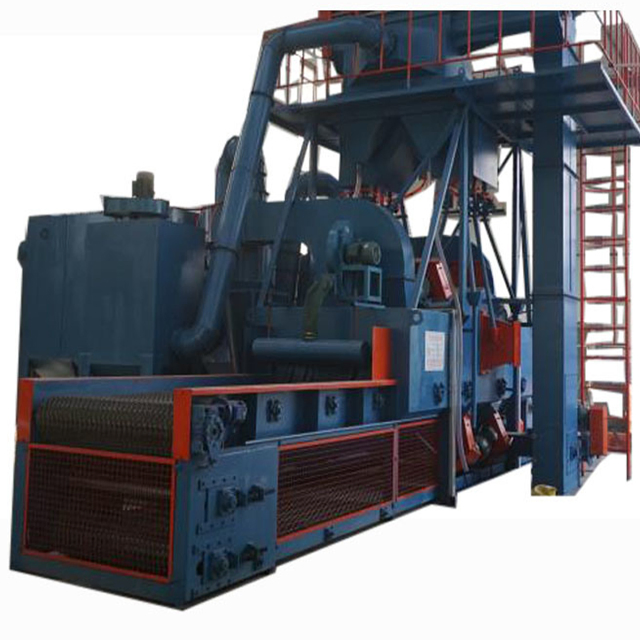

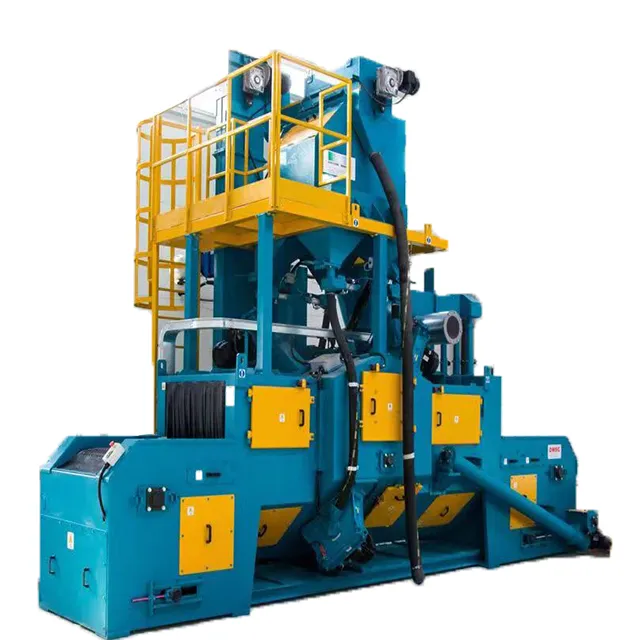

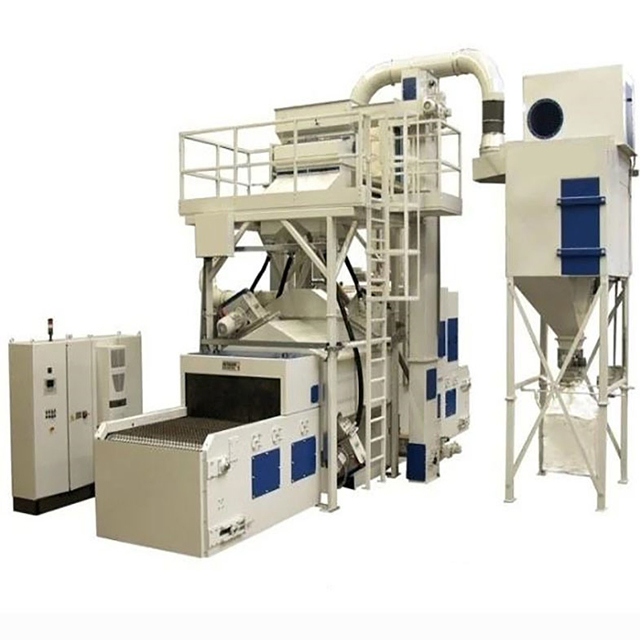

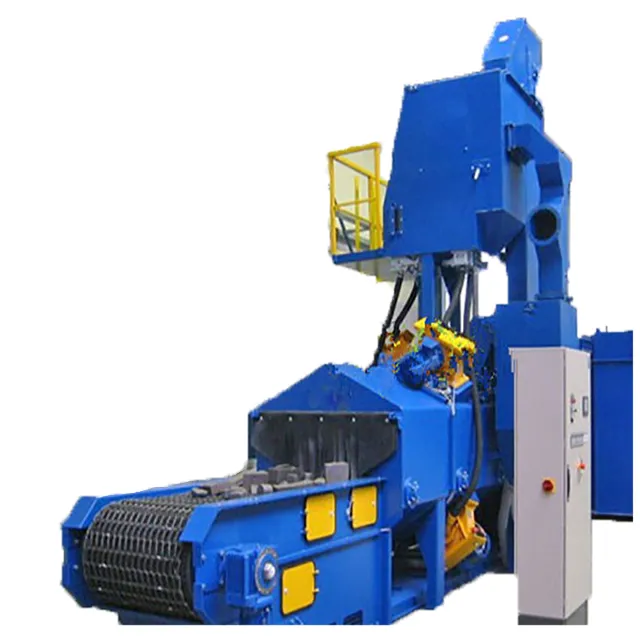

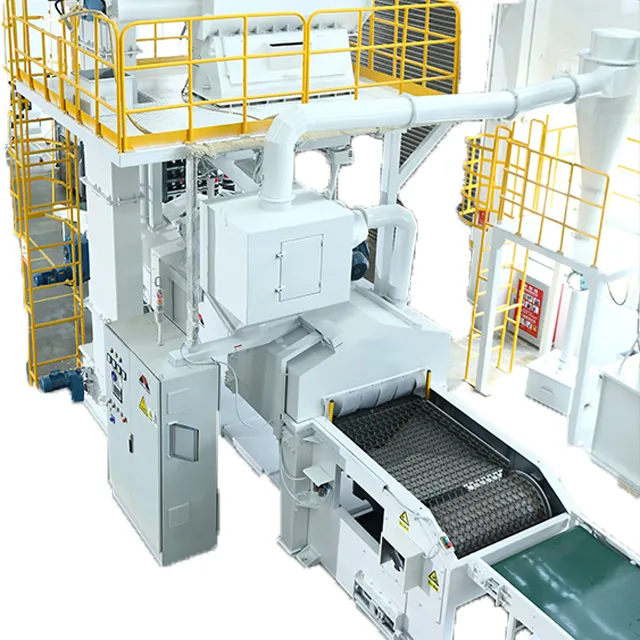

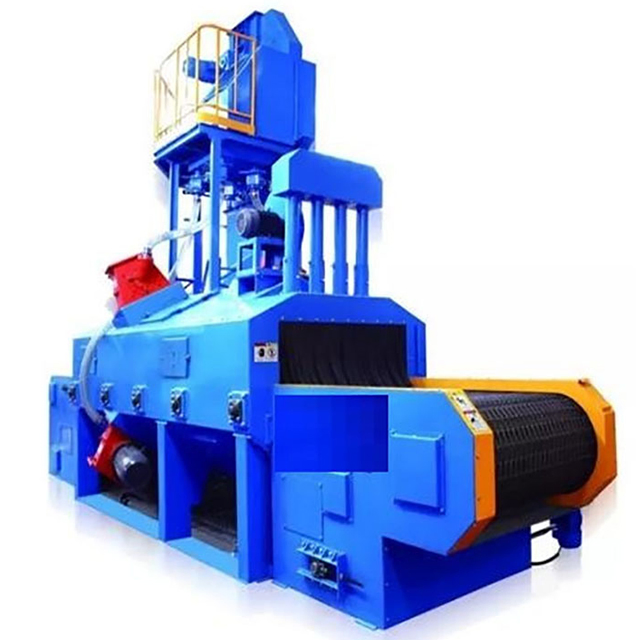

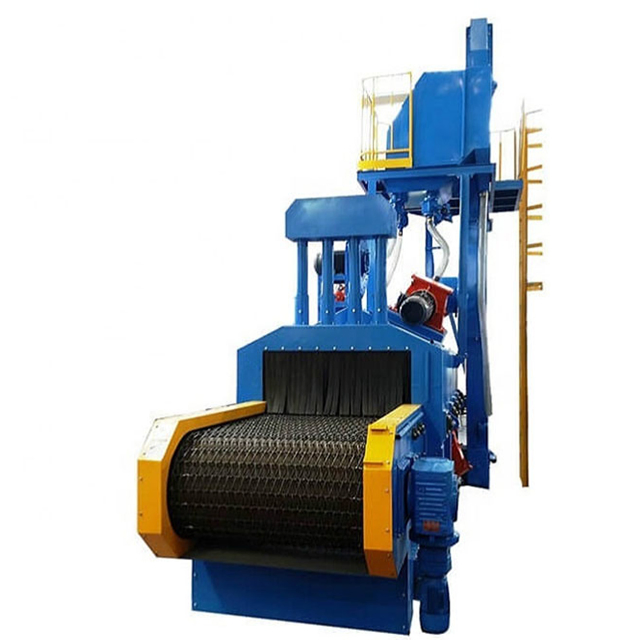

Mesh belt-type shot blasting machine/Sand blast Equipment is mainly used for thin-walled castings, thin-walled and fragile iron or aluminum alloy castings, ceramic and other small parts surface shot blasting. Mesh belt-type shot blasting machine can also be used for mechanical parts shot blasting and strengthen. With a small continuity, high cleaning efficiency, deformation is small, no pit and other characteristics; It can be used alone, also can use more than one combination.

The work-pieces are placed on the wire mesh conveyor with high wear resistance, shot blasted both above and below in single pass through the blast chamber. Progress speed of the metal wire mesh conveyor and the blast wheel rotation can be changed through the Inverter. The number of blast wheels and the installed powers can vary depending on the models.

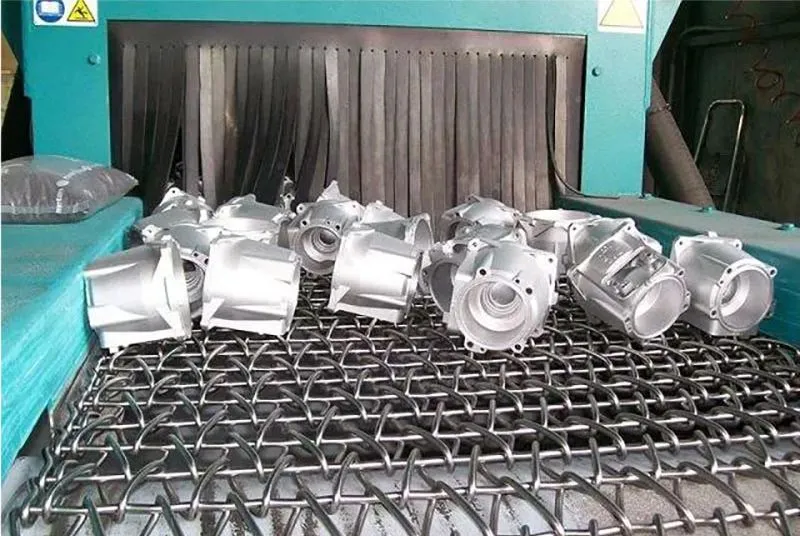

High Temperature Resistance & Fast Conveying

• Wire Conveyor Width: 600-1200mm
• Wire Conveyor Speed: 0.5-4m/min
• Wire Conveyor Load: Max unit 150kg
• Wire Mesh Diameter: 3.5-6.5mm
• Max Temperature: <1000°c

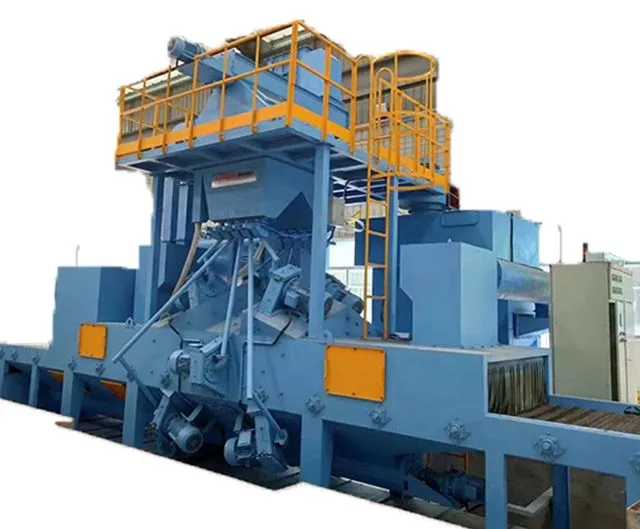

Safe & Optimized Sealing Blasting Chamber

• Chamber Shell: 10mm fabrication steel
• Chamber Liner: 10mm Mn alloy liner with high resistance
• Auxiliary Blasting Chamber: Four layers rubber curtains to prevent steel shots
• Curtains: Specialized rubber to prevent media leakage

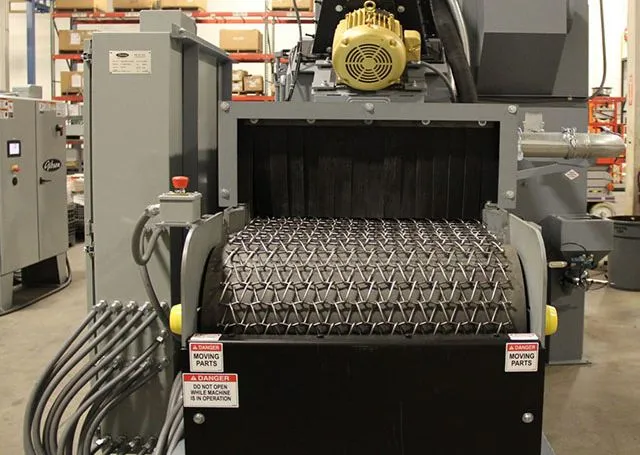

Electric Control System

• Model: Automatic (manual type available)
• Control Unit: PLC is optional
• Emergency Stop: Located on main panel and conveyors
• Power Indicator: Visual status on control panel

* Custom solutions available based on specific client requirements.
