Blatrixo Machine
Blatrixo Machine

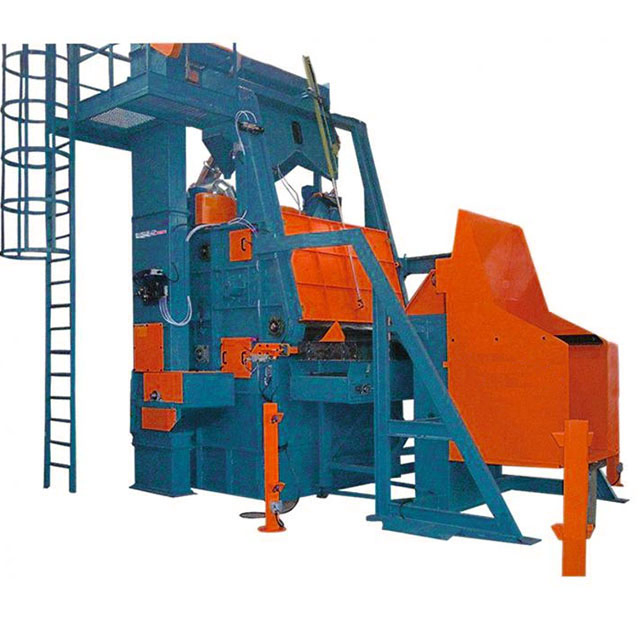

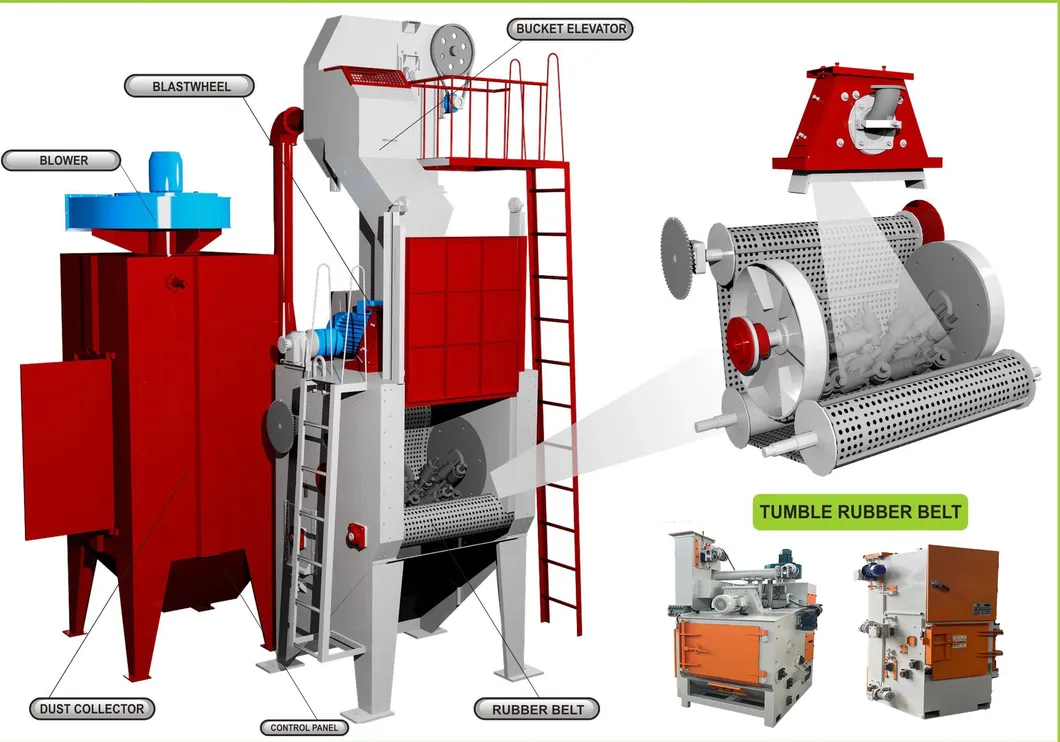

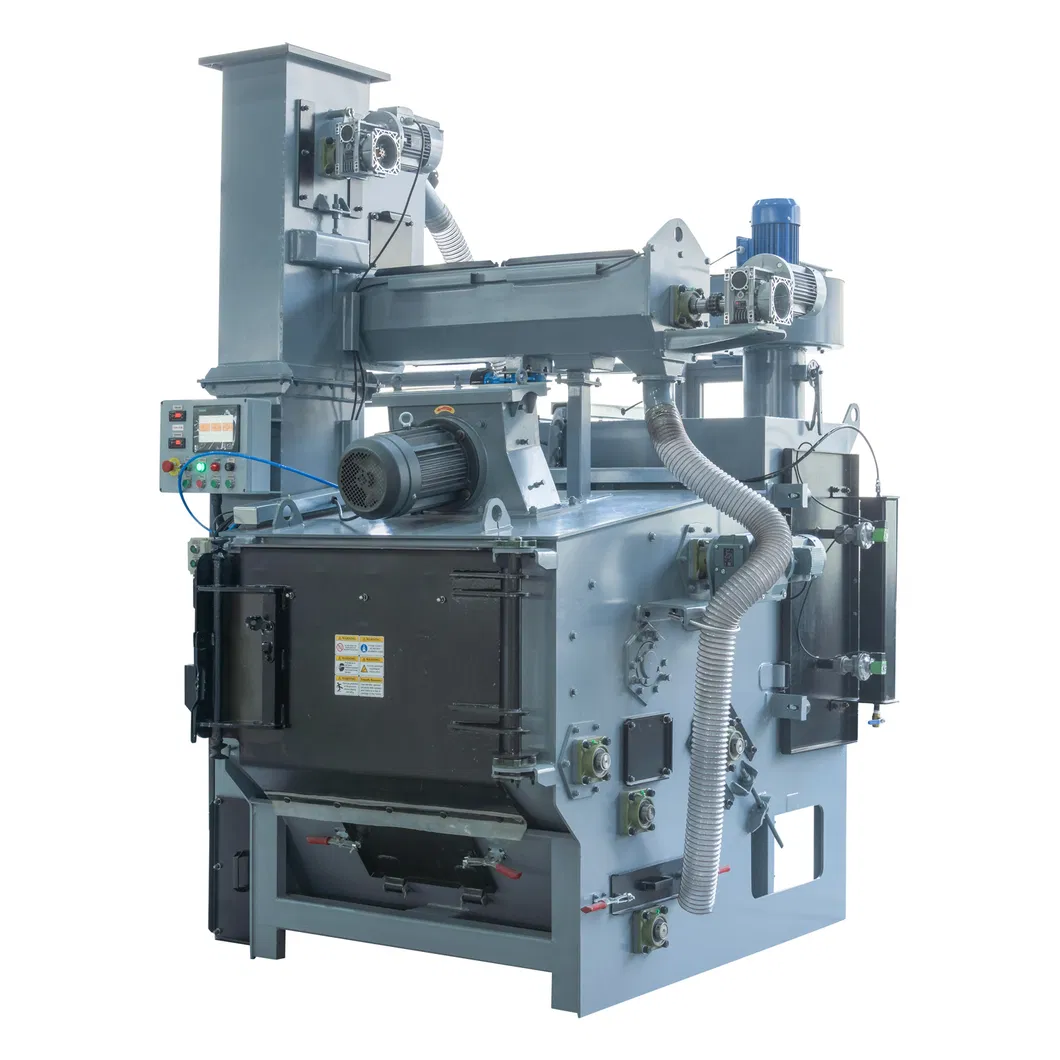

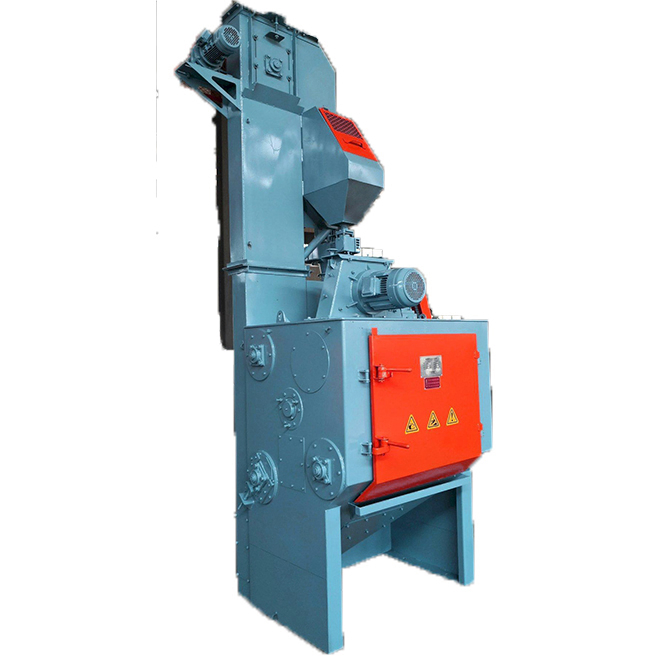

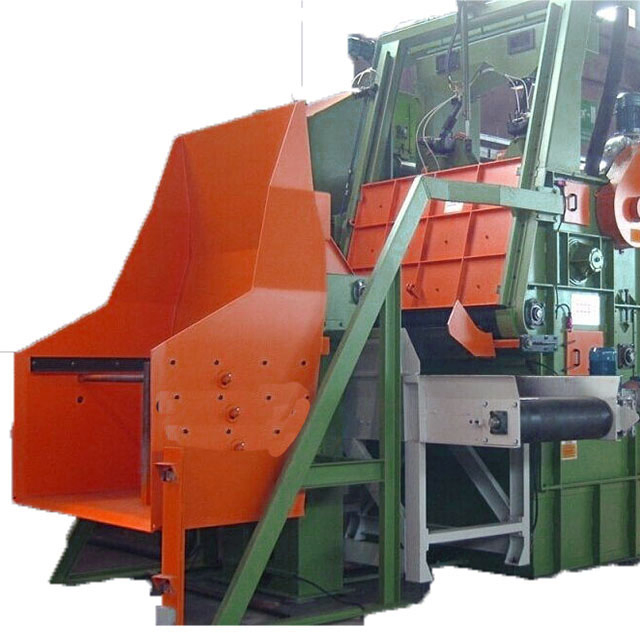

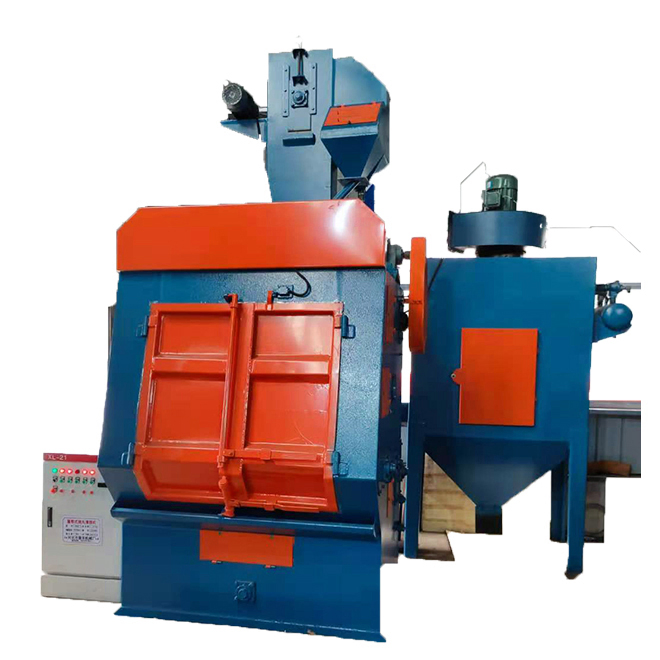

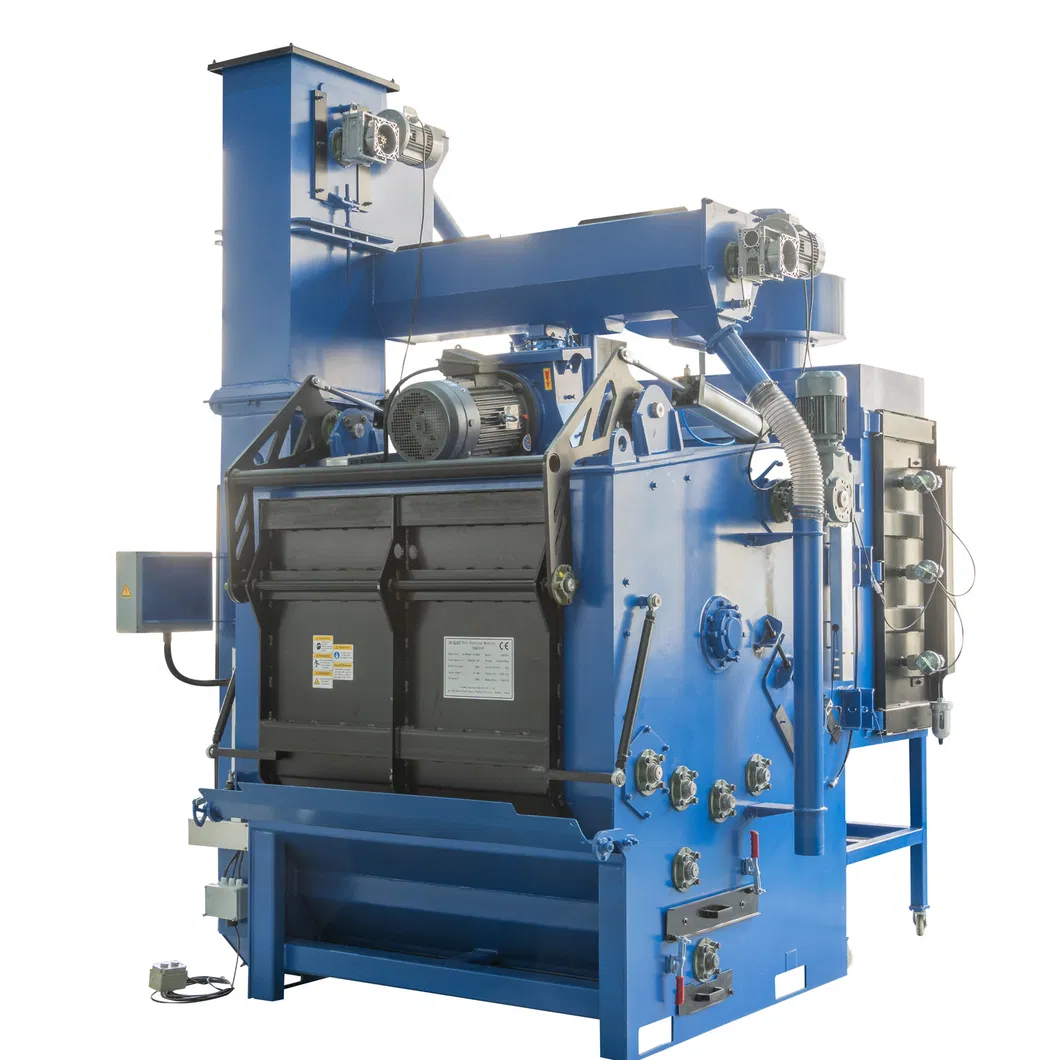

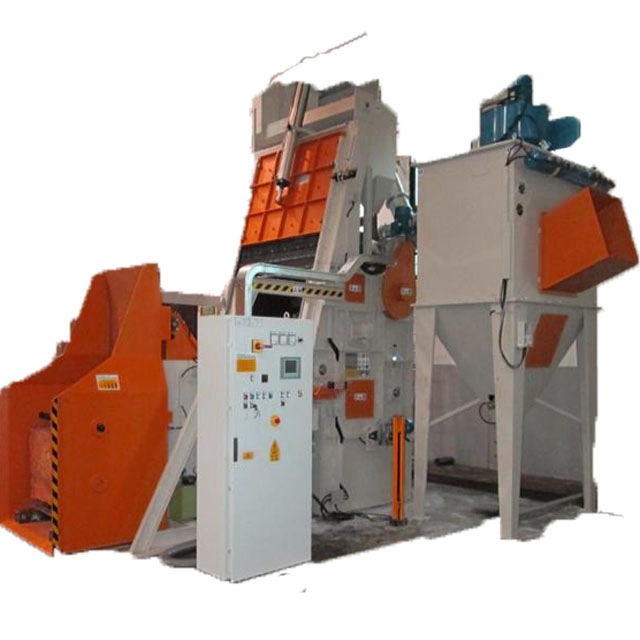

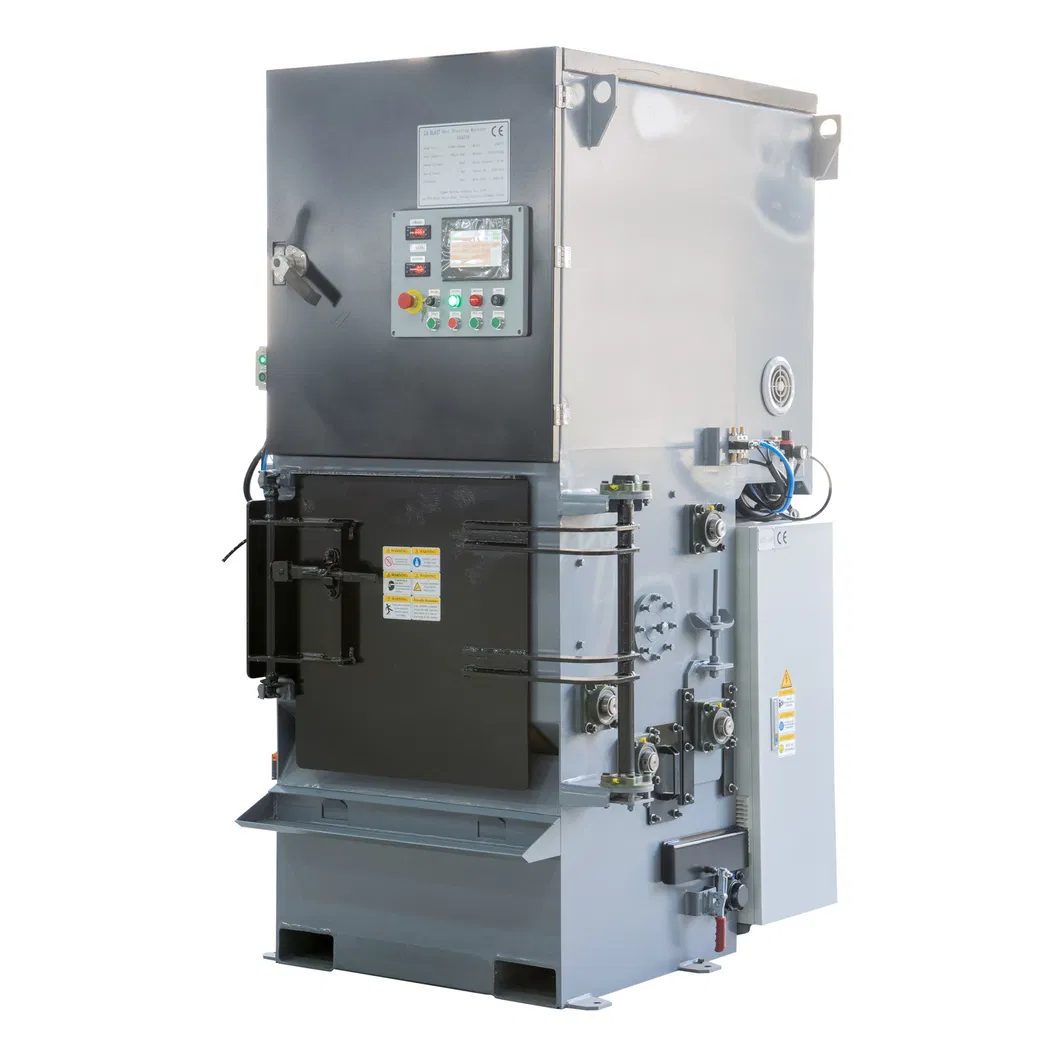

The rubber tumblast shot blast machines are the ideal way to clean and finish batches of components such as castings and small fabrications. Designed as a No-Pit system, it is exceptionally easy to install and operate. All models are self-contained and include abrasive reclaim systems, high-efficiency separators, and dust collectors.

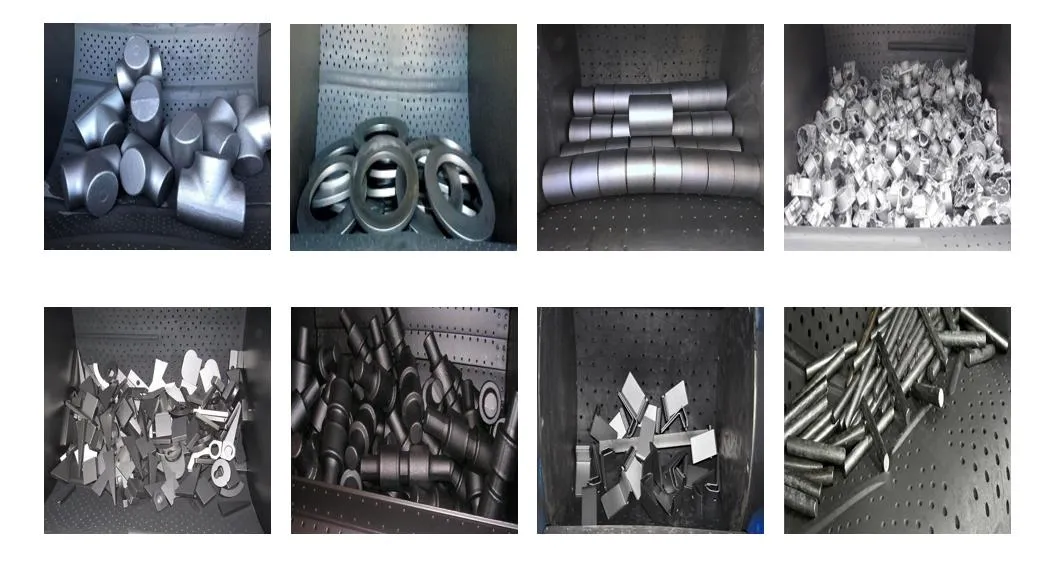

Tumblast machines are versatile and suitable for the following industrial applications:
| Model Details | Model 324 | Model 326 | Model 3210 |
|---|---|---|---|
| MAX. Loading Weight | 80KG | 200kg | 500kg |
| MAX. Worksize Weight | 5kg | 10kg | 25kg |
| End Disk Diameter | φ400mm | φ600mm | φ1000mm |
| End Disk Rotation Rate | 3.6rpm | 3.6rpm | 3.6rpm |
| End Disk Power | 0.75kw | 1.5kw | 3kw |
| Production Capacity (Grey Castings) | 250-400kg/h | 600-1200kg/h | 2000-2800kg/h |
| Blast Wheel Power | 4kw | 7.5KW | 11KW |
| Blast Capacity | 70kg/min | 130kg/min | 180kg/min |
| Total Power | 7KW | 12.7kw | 23kw |
Customization: We offer both standard machines and customized models. We can design any kind of shot blasting machine according to your detailed requests.
