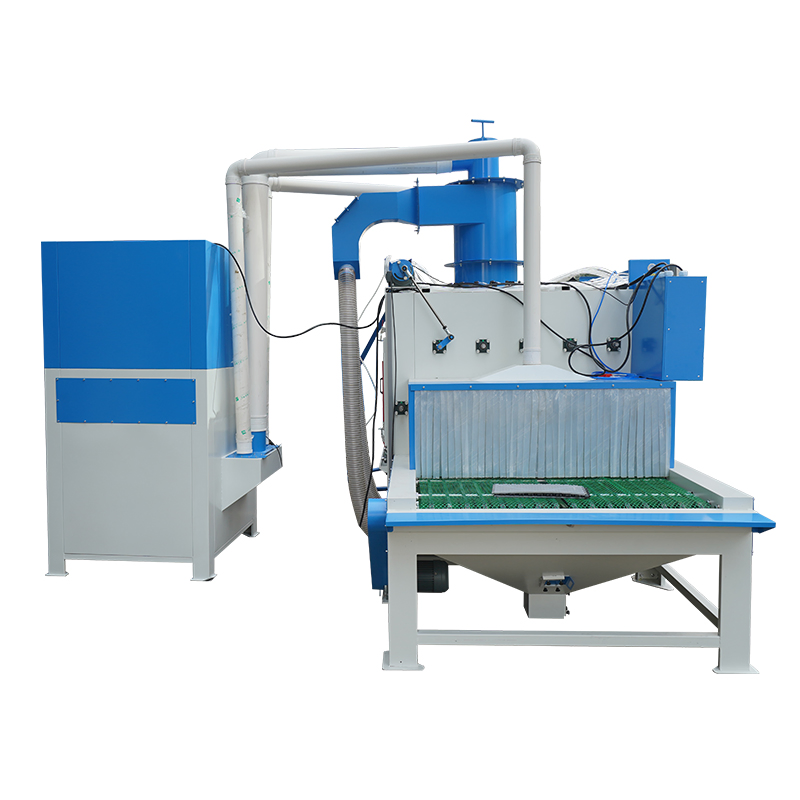

Mild Steel Plates Sand Blasting Machine Automatic Conveyor Belt Sandblasting System

1 / 5

Mild Steel Plates Sand Blasting Machine Automatic Conveyor Belt Sandblasting System

Customization:	Available
Warranty:	12months
Drive:	Electric

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.:KF-3510ZS-20A

Principle:Inhaled

Control:PLC

Layout:Horizontal

Automation:Automatic

Kind:Dry Sandblaster

Condition:New

Certification:CE

Blasting Guns:8, 12, 16, 20 PCS as Request

Origin:China

⚙️

Product Description

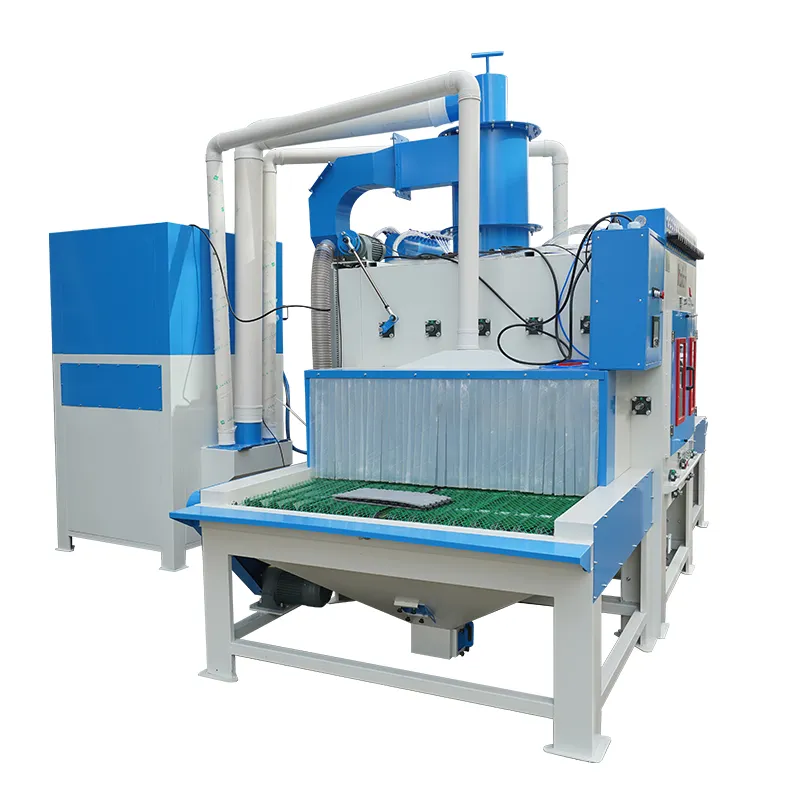

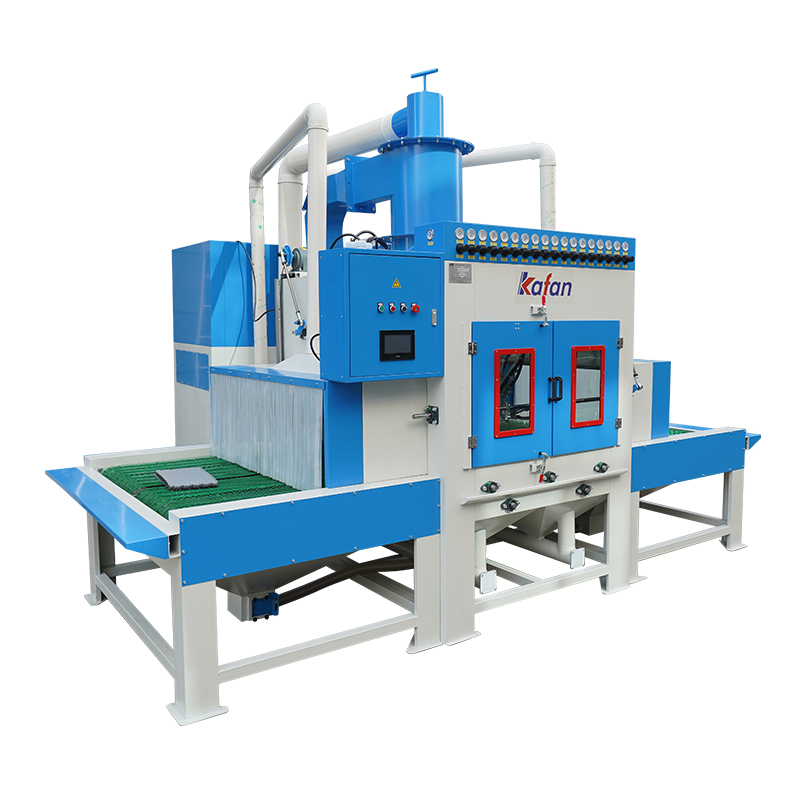

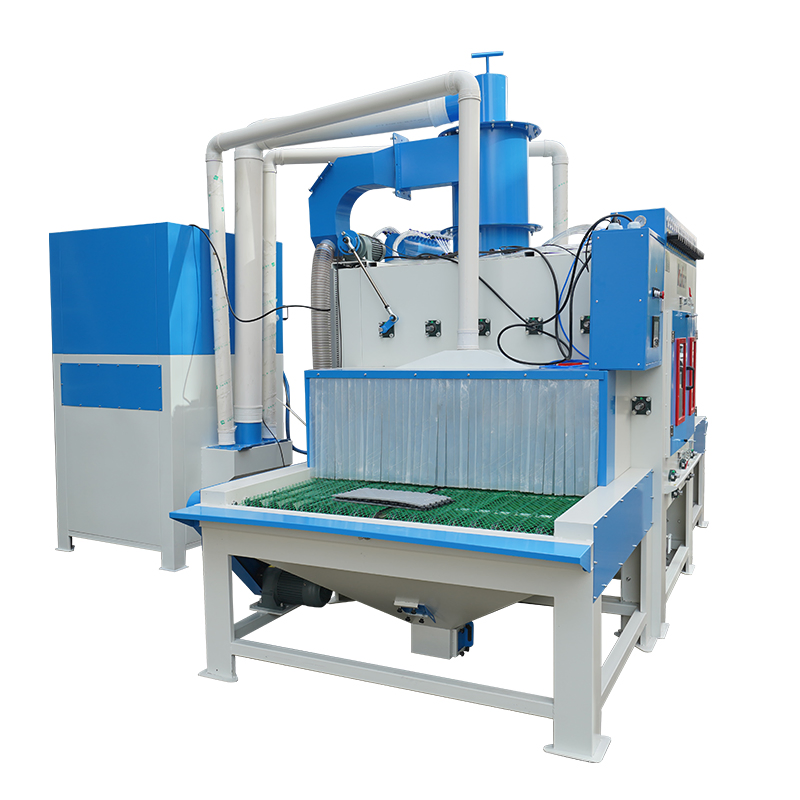

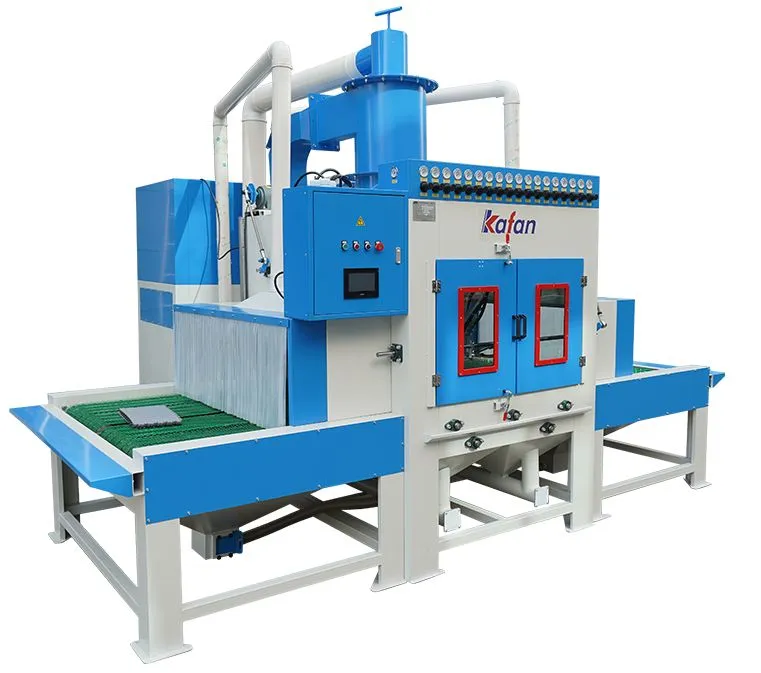

Mild steel plates sand blasting machine automatic conveyor belt sandblasting system

The Automatic Conveyor Belt Sandblasting System is an advanced through-feed machine designed to achieve high processing efficiency with minimal labor, effectively reducing costs for long-term production. Utilizing PLC control and electronic sensor technology, the blast guns automatically turn off when no components are present, eliminating energy waste and unnecessary wear-and-tear on the equipment.

🏭

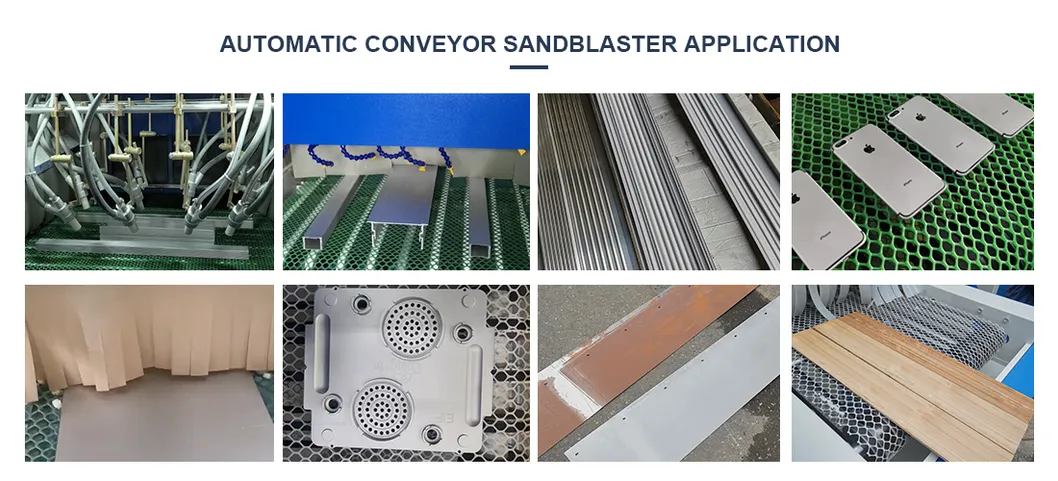

Application

This system is specifically engineered for continuous sandblasting of flat-shaped metal workparts. It is ideal for:

Metal plates and steel plates
Aluminum pans
Phone shells
Notebook mainboards and other electronic components

⭐

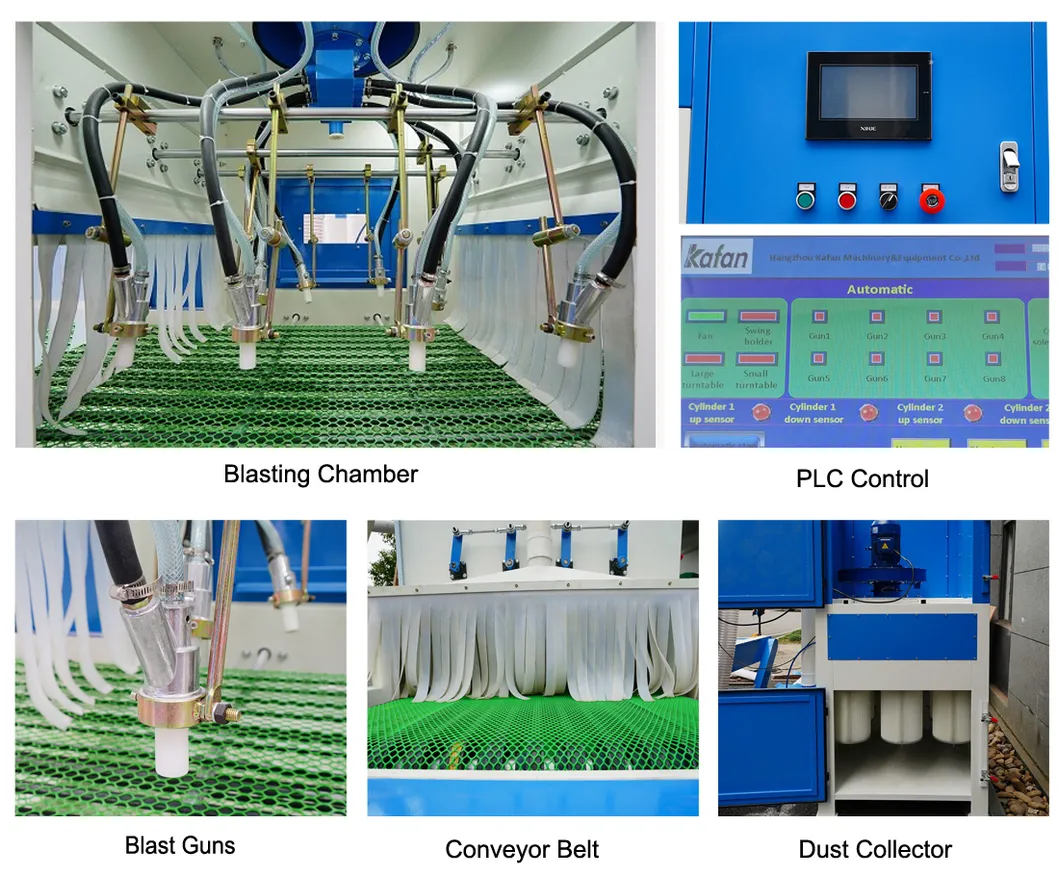

Key Features

Variable Speed Control: Conveyor speed is frequency-controlled, allowing for optimal adjustment based on different part requirements.
High Automation: Operators only need to place workpieces on the belt; the sandblasting process is completed automatically.
Adjustable Blast Guns: Blasting distance, swinging speed, and swinging angle can all be customized for various objects.

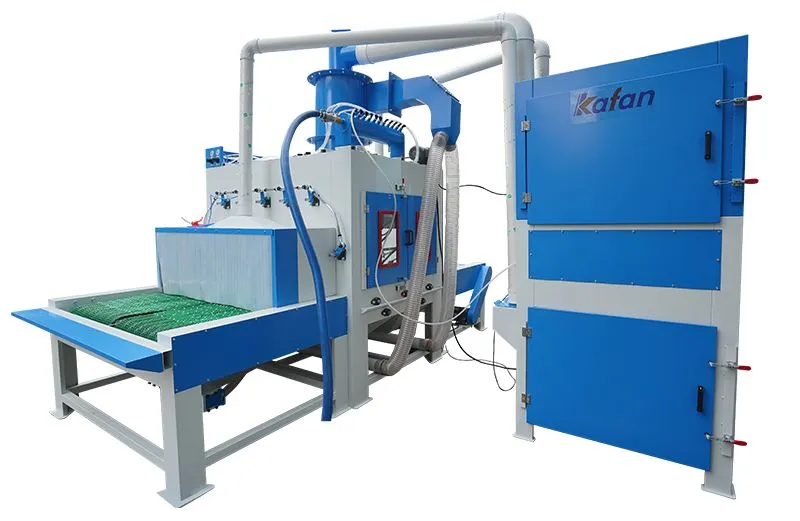

Environmental Protection: Features a large dust collector and cyclone separator to maintain a clean workspace and reduce pollution.
Abrasive Recycling: Integrated bottom funnel allows for the constant recycling of sandblasting media to lower operational costs.

🔍

Working Principle

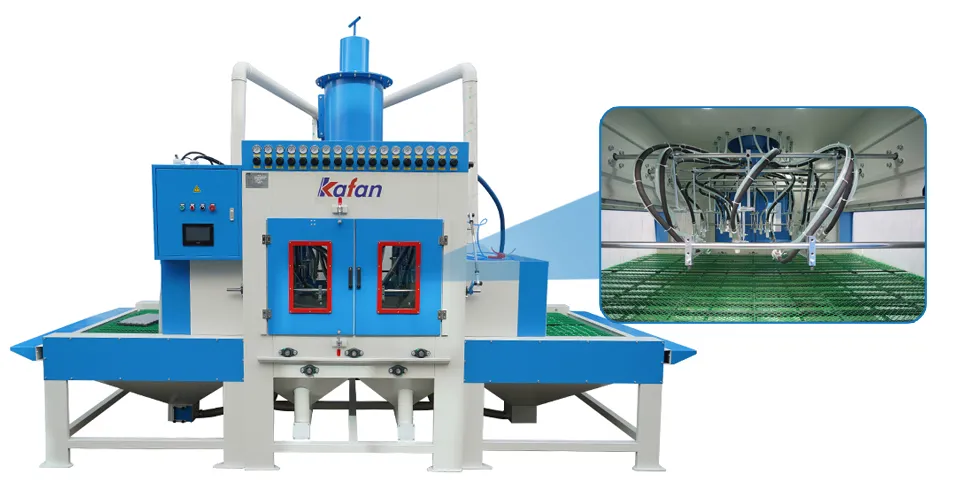

Components are continuously presented to an array of pre-positioned guns as they travel through the blast chamber on an adjustable-speed belt.

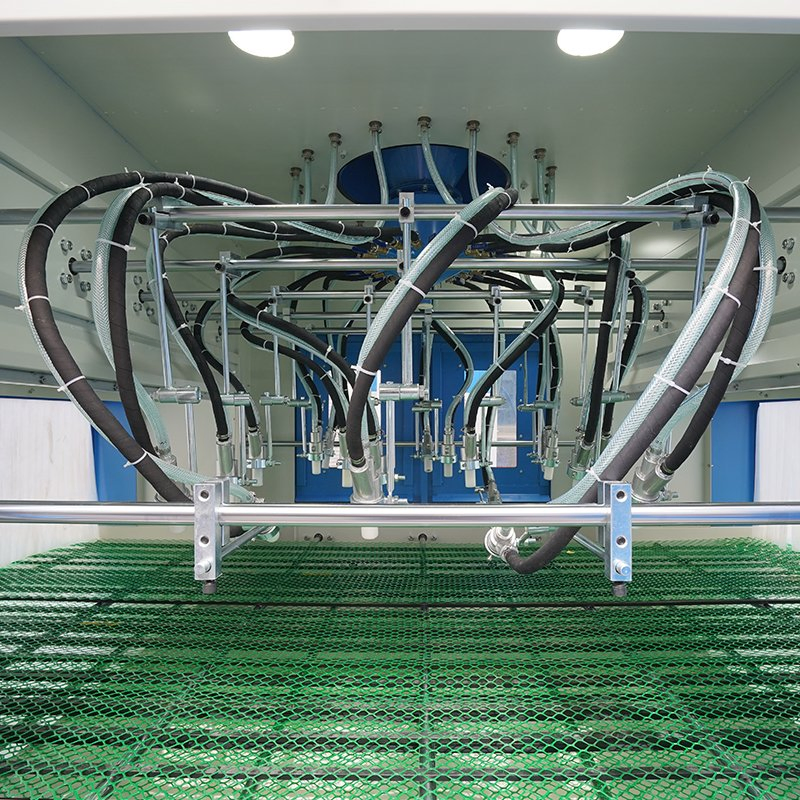

Up to 20 suction-blast guns can be fixed, rotated on a turret, or oscillated for maximum surface coverage.
The 3-chambered cabinet isolates the blasting process for cleaner, quieter operation and includes an air wash blow-off zone.
Results in a clean surface with no sticky debris, ensuring uniform finish and quality across batches.

📋

Technical Parameters

Parameter	Specifications
Outer Size	Length 3500 * Width 1100 * Height 3200 mm
Working Chamber Size	Length 3200 * Width 1000 * Height 650 mm
Dust Collector Size	Length 1000 * Width 1150 * Height 1800 mm
Dust Fan Motor Power	3kw, 380V, 50HZ
Blast Gun Swing Motor	370w, 380V, 50Hz
Number of Blast Nozzles	20pcs (Boron carbide nozzles)
Pressure	5-8 bar (kg/cm²)
Air Compressor Requirement	6.8 cubic meter
Conveyor Loading Capacity	50 kg
Total Weight	1.55 tons

Note: Custom design services are available for chamber size and gun quantity to meet specific requirements.

💎

Our Advantages

Providing professional surface treatment solutions for industries such as shipping, steel structures, automotive accessories, and more.

Frequently Asked Questions

Q: What types of products can this automatic conveyor sandblaster process? A: It is ideal for flat metal parts such as steel plates, aluminum pans, phone shells, and notebook mainboards.

Q: Is the conveyor belt speed adjustable? A: Yes, the speed is controlled by a frequency converter, allowing you to set the optimal speed for different materials.

Q: How many blast guns are included in the system? A: Standard models come with up to 20 guns, but the quantity can be customized (8, 12, 16, or 20) based on your needs.

Q: Does the machine include a dust collection system? A: Yes, it is equipped with a large dust collector and a special cyclone separator to maintain a clean environment.

Q: Is the sandblasting abrasive reusable? A: Yes, the system features a bottom funnel that automatically recycles abrasives for constant utilization.

Q: Can the machine be customized for specific dimensions? A: Absolutely. We provide custom design services for the working chamber size and conveyor type (belt or roller).
