⚙️ Product Description

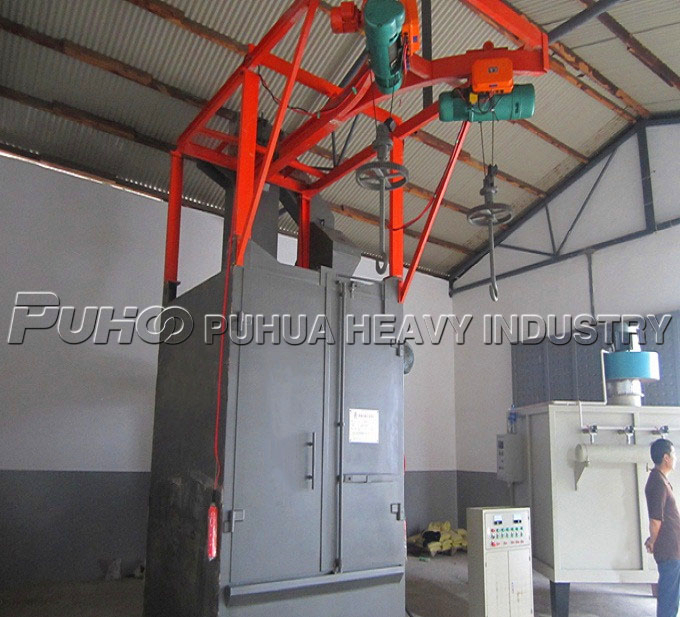

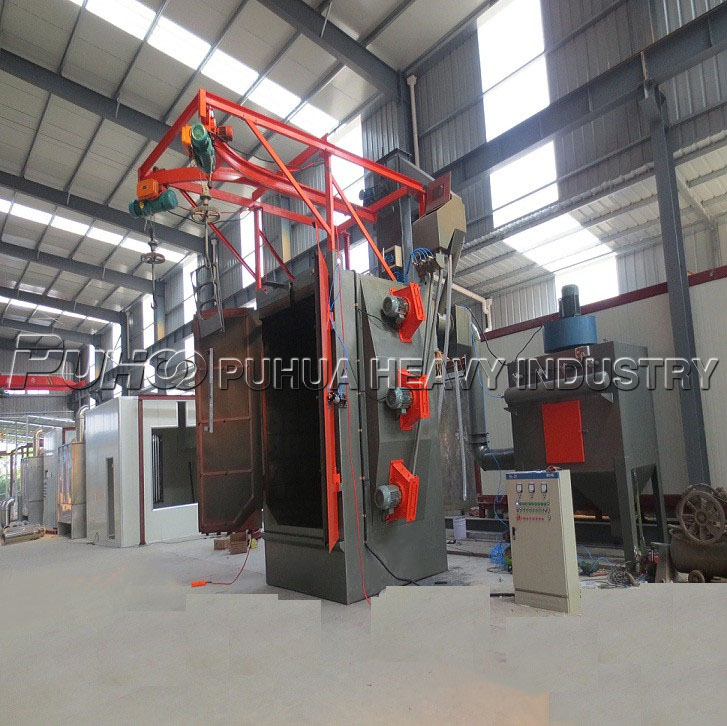

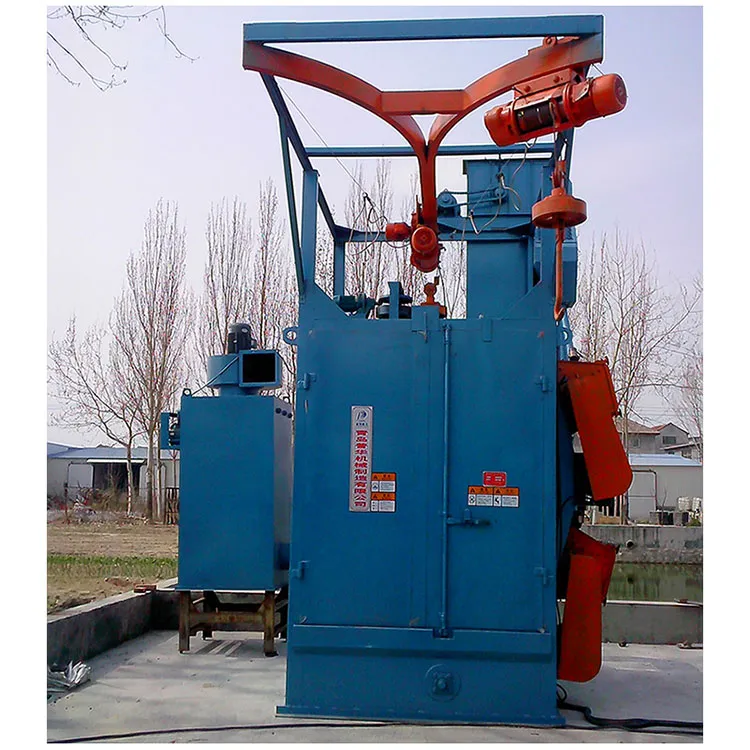

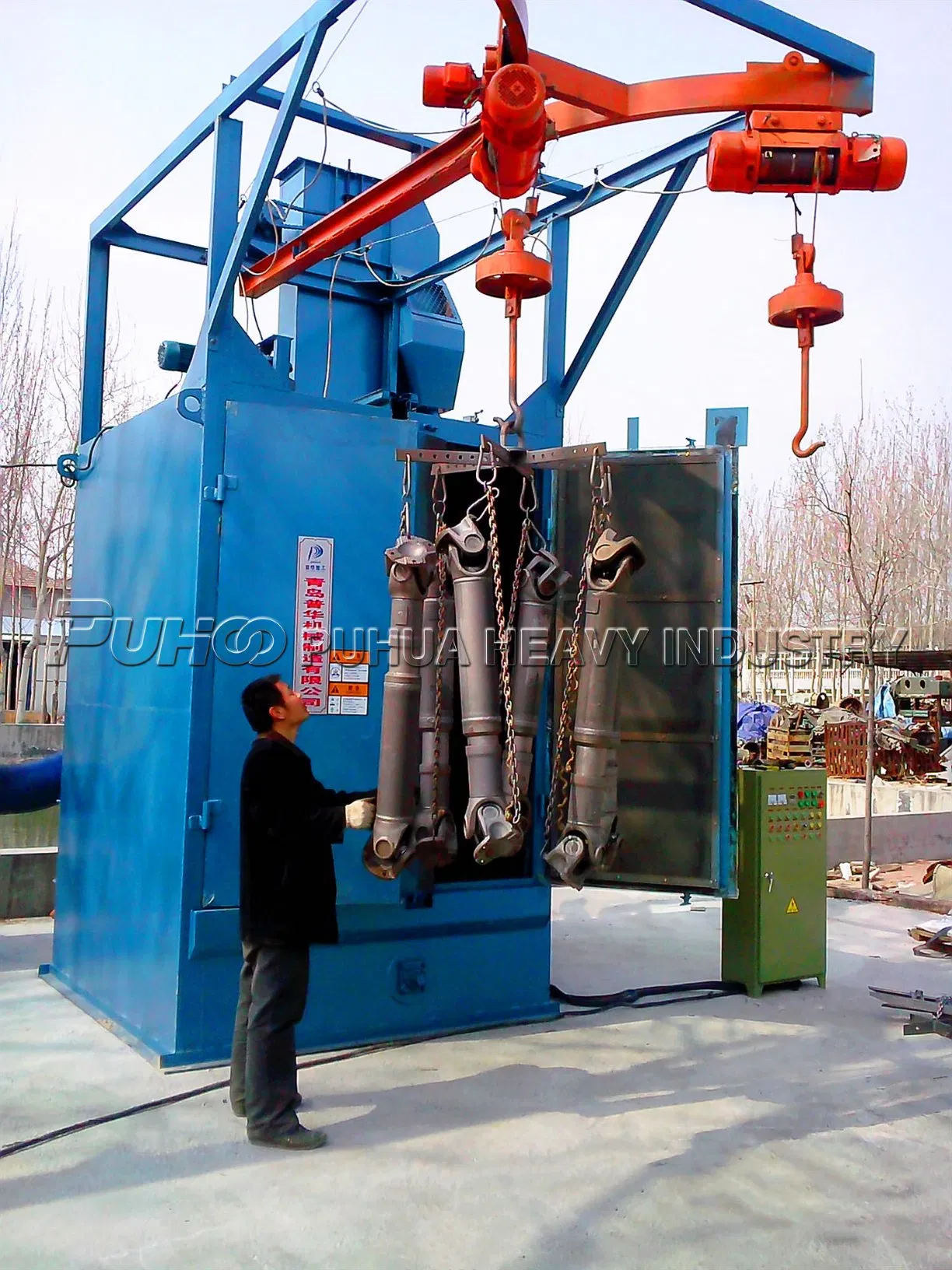

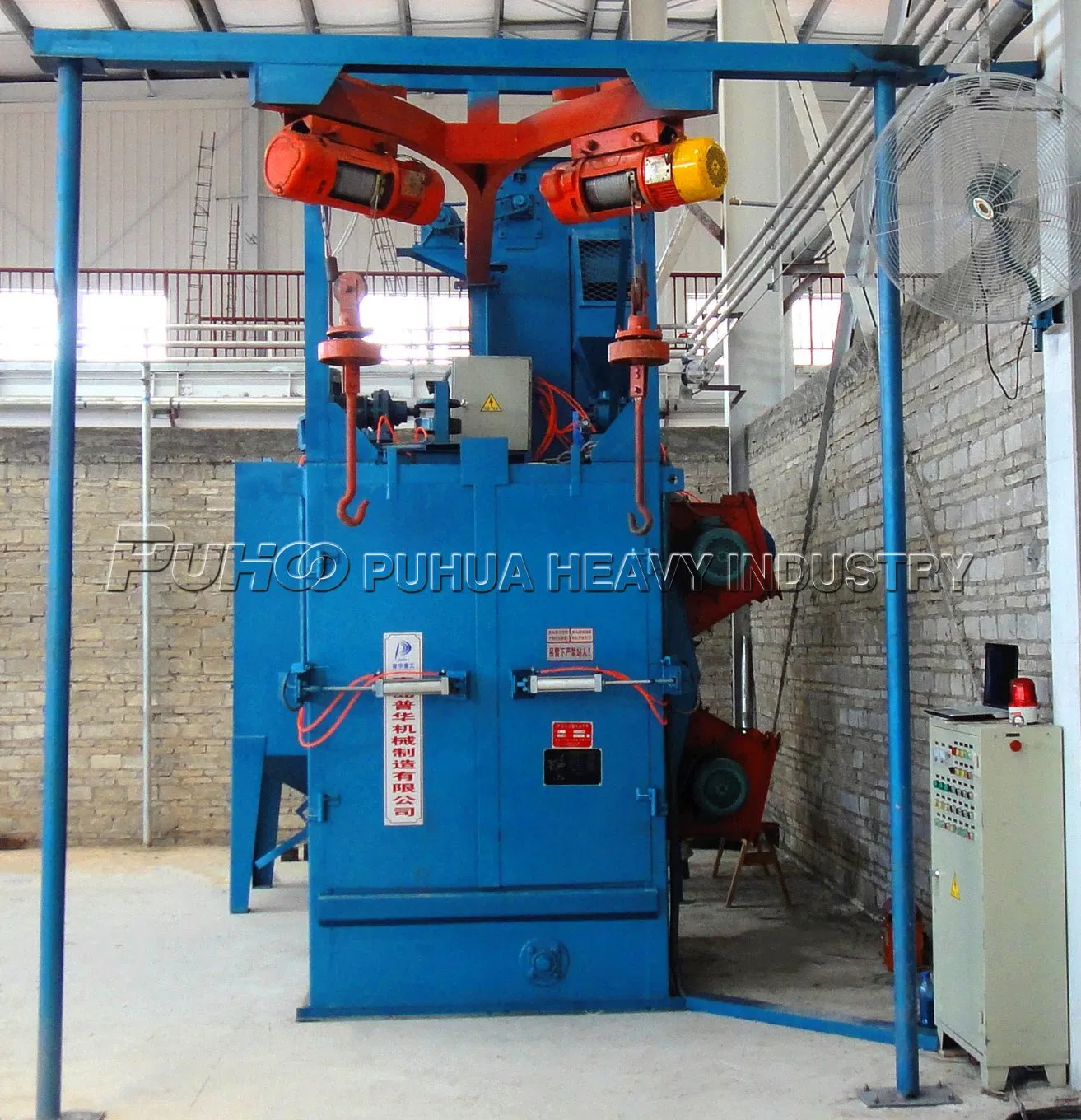

Q37 Series Hook Type Shot Blasting machine is designed for surface cleaning or strengthening treatment of small castings, forging parts in industries such as foundry, building, chemical, motor, and machine tool. It is specifically engineered for surface cleaning and blasting strengthening on various types of small production castings, forging parts, and steel construction parts to clear viscous sand, sand cores, and oxide skin. It is also highly suitable for surface cleaning and strengthening of heat treatment parts, especially for thin-walled parts that are sensitive to impact.
| Item |
Unit |
Q376 |
Q378c |
Q3710 |
Q3720 |
Q3730 |
Q3750 |
Q37100 |
| Max weight of cleaning |
Kg |
500 |
800 |
1000 |
2000 |
3000 |
5000 |
10000 |
| Abrasive flow rate |
Kg/min |
2*200 |
2*250 |
2*250 |
3*250 |
3*250 |
4*250 |
5*250 |
| Ventilation capacity |
m3/h |
5000 |
5000 |
5000 |
9000 |
11000 |
14000 |
16000 |
| Max dimension (Dia) |
mm |
Ø600 |
Ø1000 |
Ø1200 |
Ø1400 |
Ø1600 |
Ø1800 |
Ø3000 |
| Max dimension (Height) |
mm |
1200 |
1600 |
1800 |
2200 |
2300 |
2500 |
3000 |
🎯 Key Applications
Descaling of forged or heat treated parts
Desanding of ferrous and non-ferrous metal castings
Deburring of metallic and non-metallic parts
Deflashing of die cast parts
Contaminant removal from industrial components
❓ Frequently Asked Questions
1 How many days are required to produce this machine?
Standard machines are in stock for immediate delivery. For customized designs, the process from engineering to completion typically takes 30 to 50 days.
2 How is quality control managed during production?
Quality control is prioritized from start to finish. Every machine is fully assembled and undergoes rigorous testing before shipment to ensure performance.
3 What is the quality guarantee for the machinery?
We provide a one-year quality guarantee. We utilize world-famous brand components to ensure the machine remains in perfect working condition.
4 Do you provide overseas installation and commissioning?
Yes, we offer overseas services. Small machines typically take about 5 days for setup, while larger systems may require 20 days to two months depending on complexity.
5 How can I ensure the correct machine is delivered?
We guarantee the delivery of high-quality equipment as confirmed in the order. Our core values focus on innovation, quality, integrity, and efficiency.
6 What documents are provided with the export?
We supply comprehensive English documentation, including general installation drawings, pit designs, manual books, and maintenance guides.
