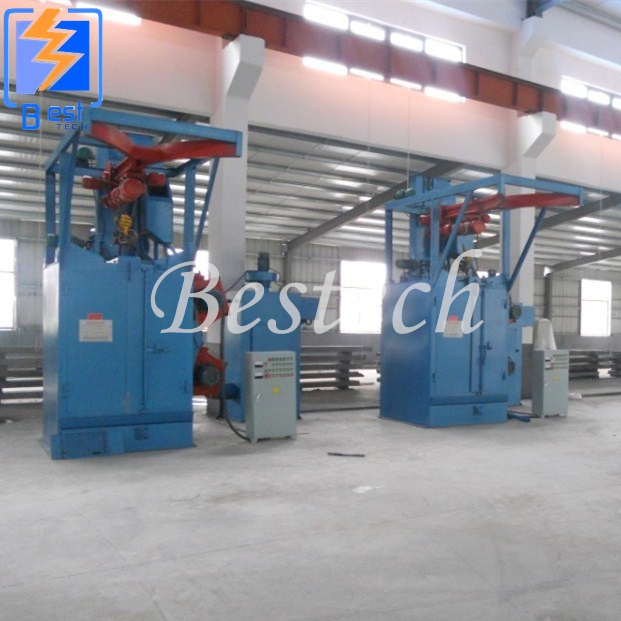

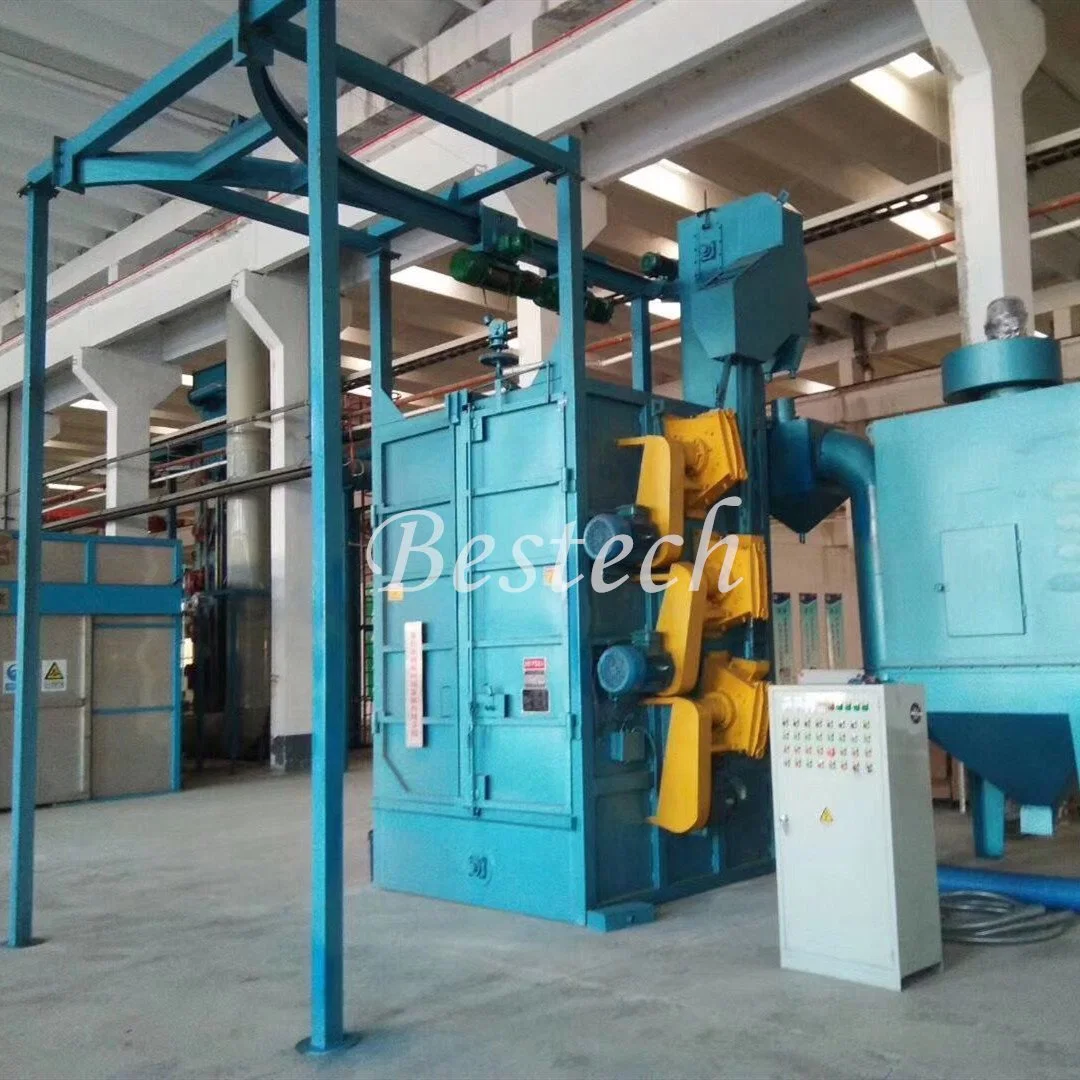

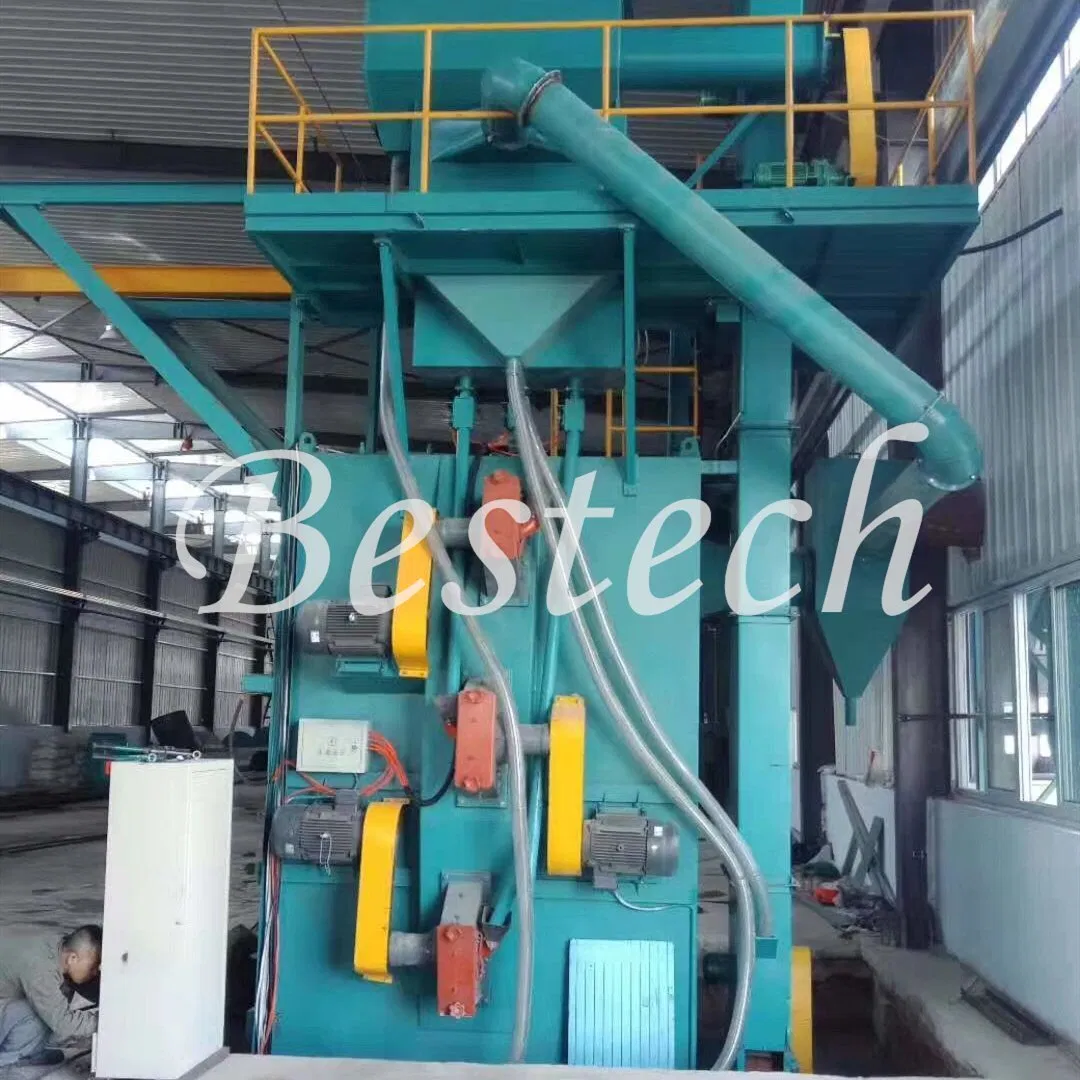

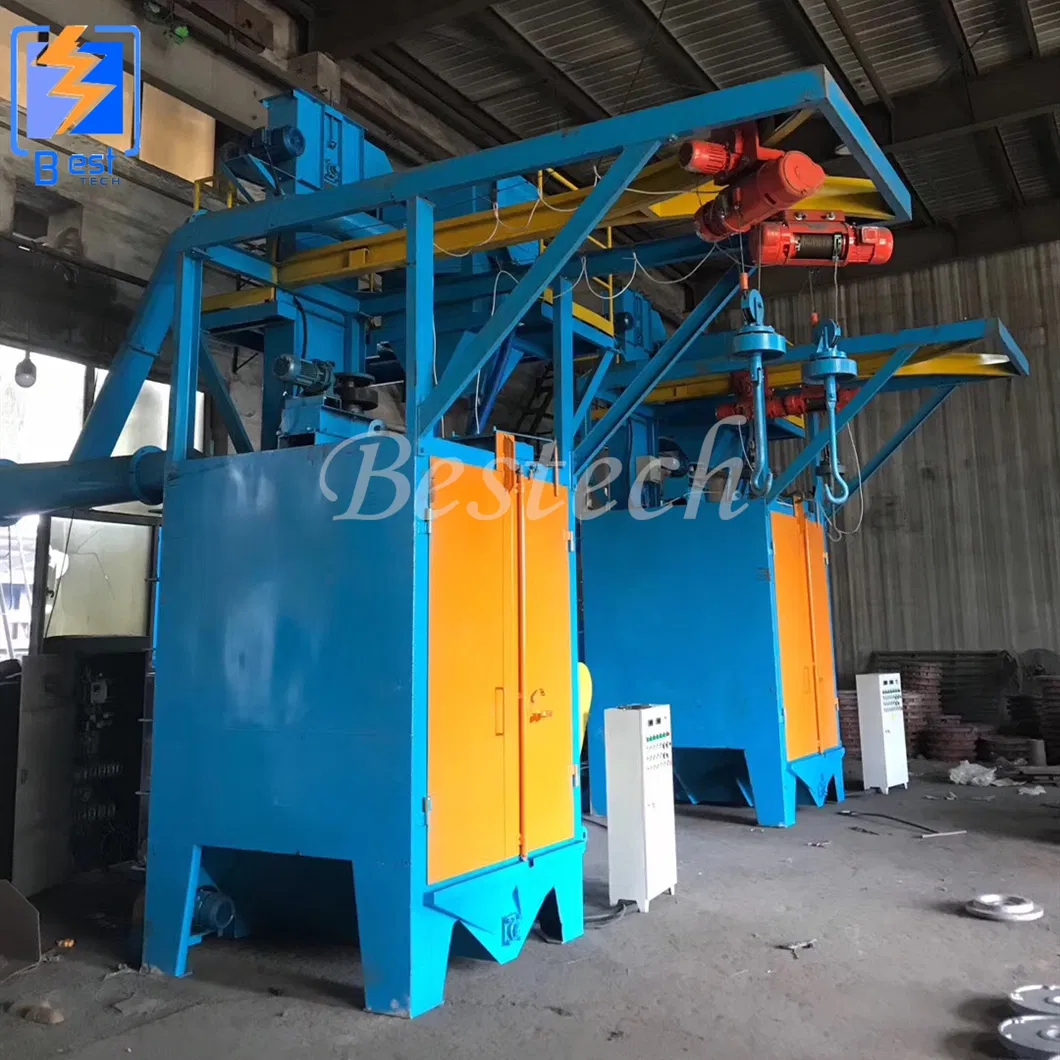

Hot Sales New Design Hanger Automatic Shot Blasting Machine For Electronic Industry Surface Processing With Siemens PLC:
Product Advantage
The turbine is composed of blast wheel, the structure is simple and durable.
Segregator is very efficient and it can protect blast wheel.
The dust filter can greatly reduce air pollution and improve the work environment.
Abrasion resistant rubber belt lighten the collision of work pieces, and lower the noise.
This machine is controlled by PLC, the operation is easy and reliable.
Key System Features
Chamber
1 set (6mm manganese steel)
Rail System
Y type double rail (2 sets hanger)
Turbine
2 sets CNC processing turbine
Separator
Air separator system
Electric System
Siemens PLC with 7" Touch Panel
Dust Collection
Dry dust collector (< 50 mg/m3)

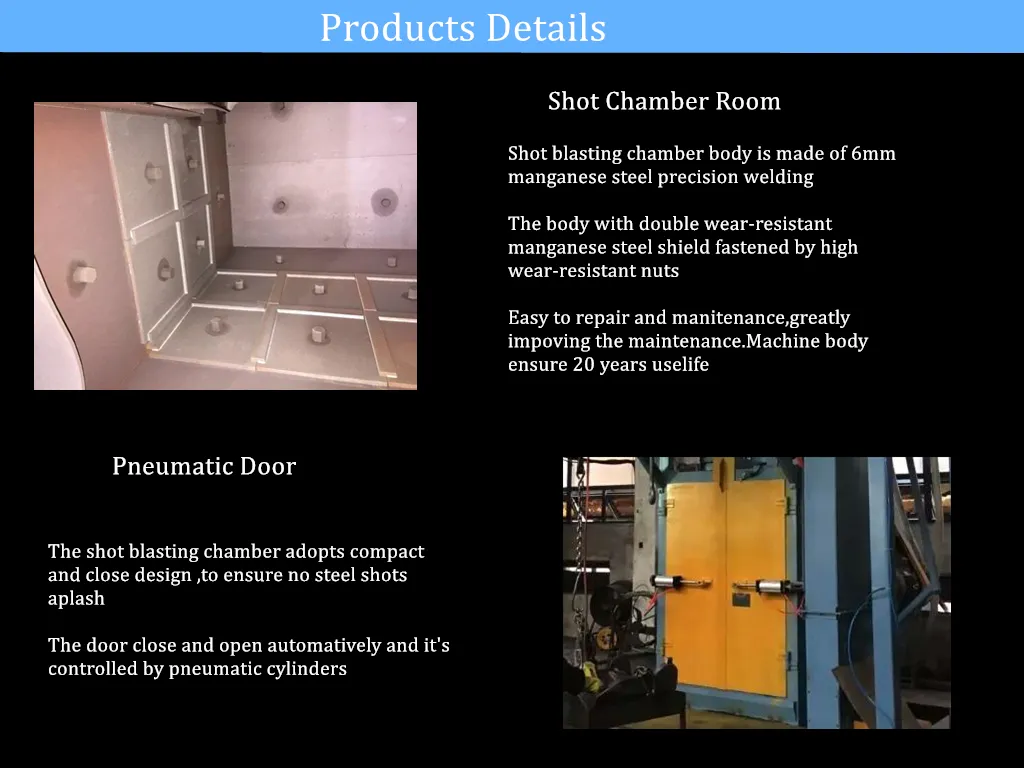

Advanced Durability: The chamber body is constructed from 6mm manganese steel precision welding, featuring a double wear-resistant shield secured by high-grade nuts, ensuring a 20-year service life.
Operational Process

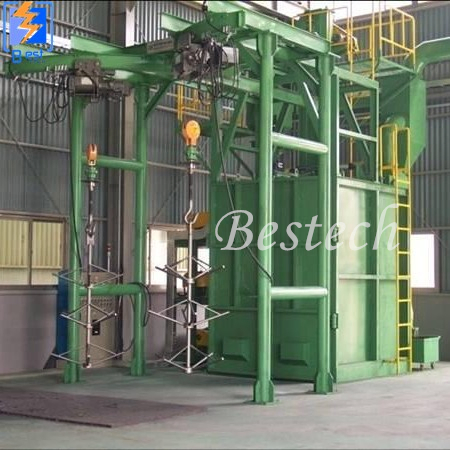

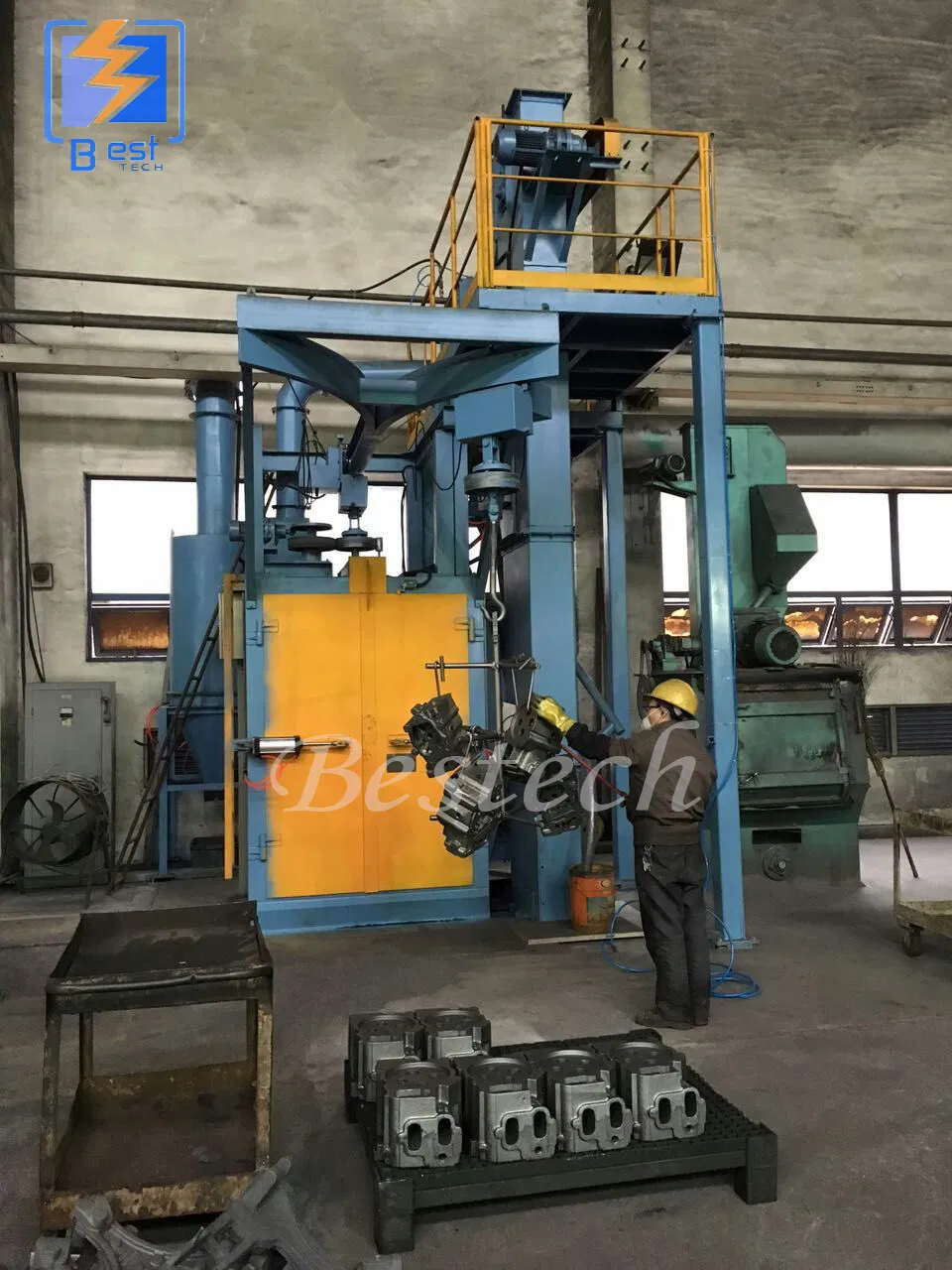

Work pieces are suspended on rotating hooks and advanced into the blasting chamber.
Doors lock automatically and blasting begins at three stations based on pre-set timers.
Abrasives are continuously cleaned and recirculated via a metering device.
Upon completion, the door opens and the pieces return to the initial position.
A vacuum unit ensures dust-free operation throughout the cycle.
Technical Data
Model
Workpiece Size (mm)
Single Hook Load (kg)
Shot-Blasting (kg/min)
Hoist Cap. (t/h)
Power (kw)
Dimensions (mm)
Q376
600*1100
500
2*120
25
19
4429*2850*3443
Q378
800*1500
1000
2*200
22
32.5
4325*2660*5009
Q3710
900*1600
1000
2*250
30
36.55
5047*3850*5156
Q3720
1400*300
2000
3*250
45
61.27
6110*3599*7842

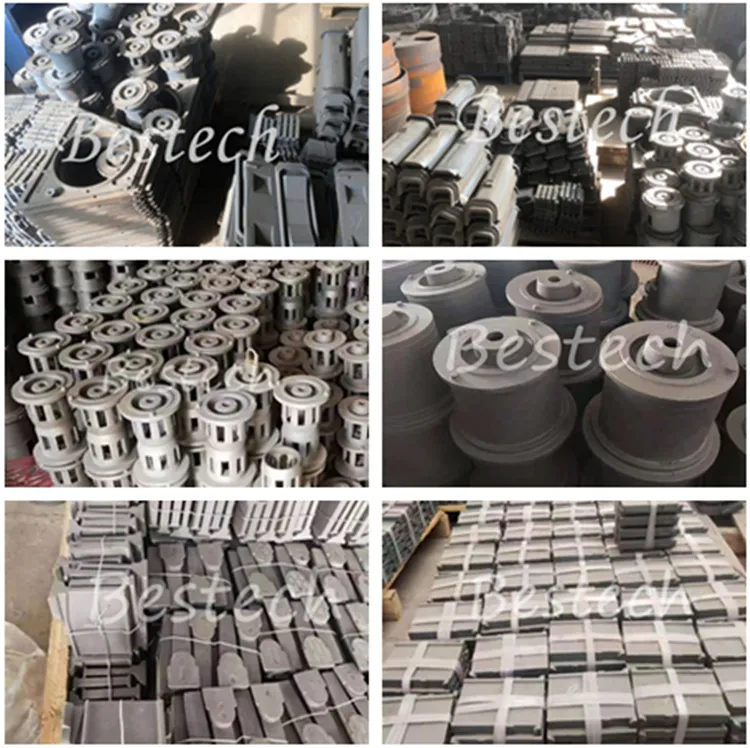

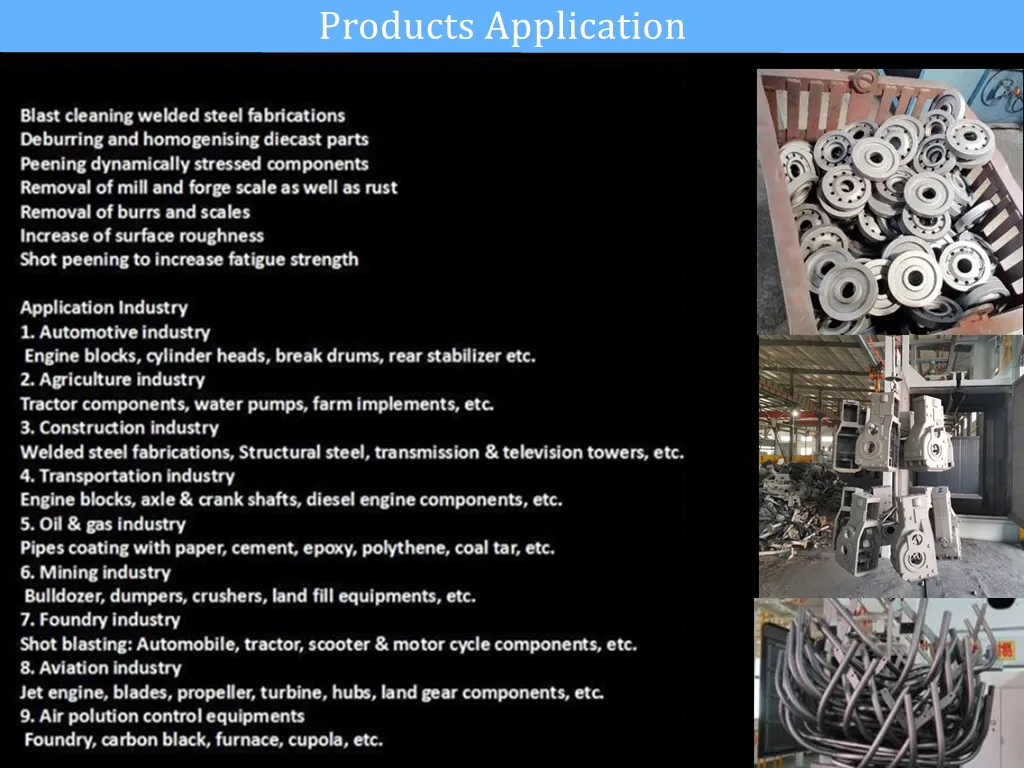

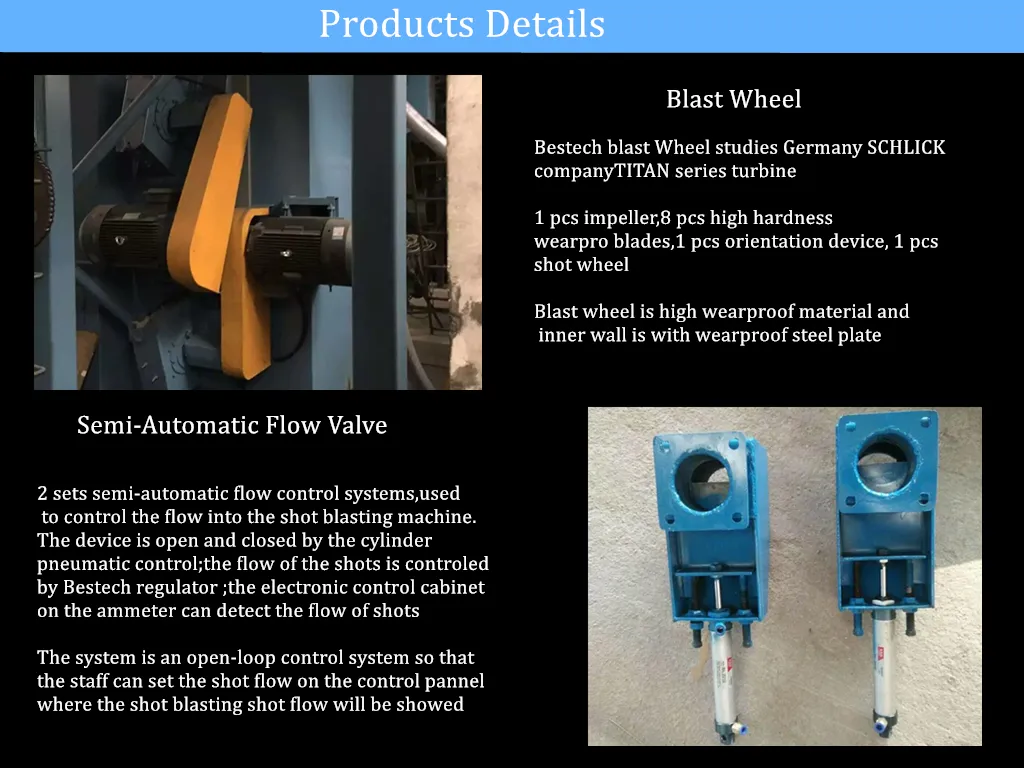

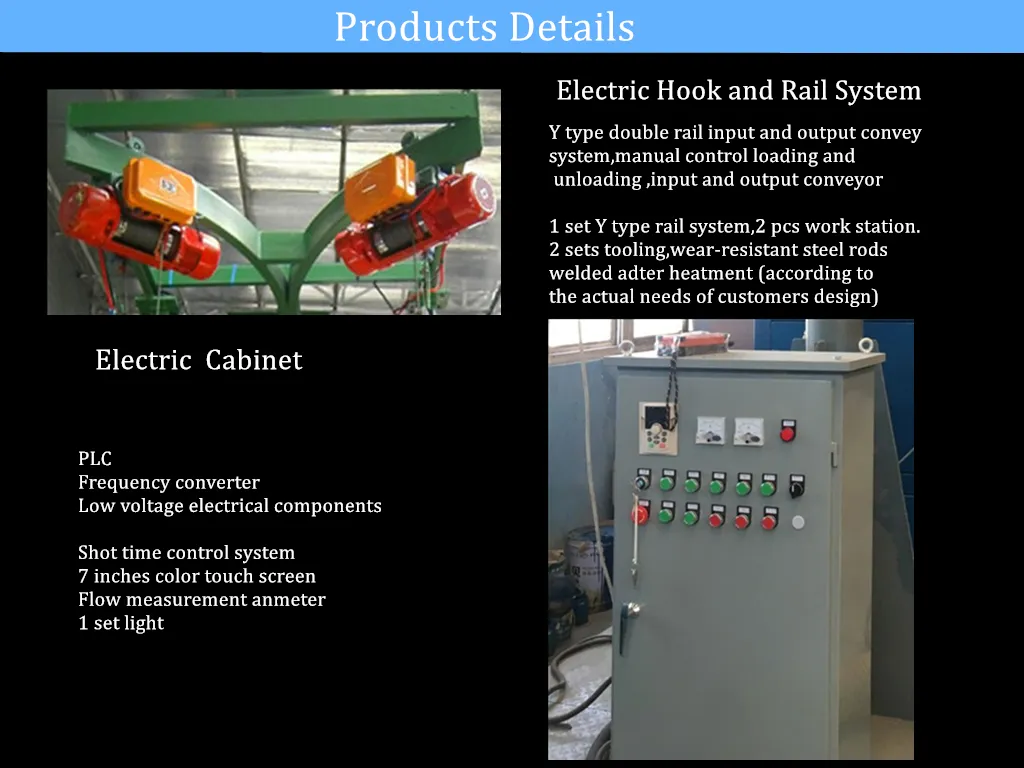

Important Parts & Application
Packing & Shipping
Frequently Asked Questions
How many days do you need to produce this hook shot blasting machine?
It depends on the size of the machine. Usually 15-25 days for shot blasting machines and 30-45 days for full production line equipment.
How is the quality of the machine controlled?
We utilize a professional technical design team and a strict production system. Our quality inspection department performs regular checks, and we pre-install machines at our workshop to ensure perfect operation before delivery.
What is the machine's quality guarantee period?
The standard guarantee is usually one year. We use world-famous brand components to maintain the machine in optimal working condition.
Can you install the machine overseas?
Yes, we have a highly experienced installation team available to set up the machine for customers worldwide.
What materials are used for the shot blasting chamber?
The chamber body is made of 6mm manganese steel with precision welding and high wear-resistant shields to ensure longevity and durability.
What kind of control system does the machine use?
The equipment is powered by a Siemens PLC system featuring a 7-inch color touch control panel with 3D animation guidance for easy and reliable operation.
