Heavy-Duty Manual Spin Blast System with Air Recycling Precision Rotary Manual Sandblasting Machine

Customization: Available
After-sales Service: Yes
Warranty: Yes

Product Description

Basic Specifications
Drive
Electric
Principle
Inhaled
Control
Artificial
Layout
Horizontal
Automation
Automatic
Kind
Dry Sandblaster
Condition
New
Certification
CE, CB, ETL, RoHS, UR
Customized
Customized
Working Chamber Size
1000×800×1200mm
Air Pressure Range
0.4–0.8 MPa
Nozzle Diameter
6mm, 8mm, 10mm
Turntable Speed
3–15 Rpm (Stepless Control)
Power Consumption
7.5 Kw (380V Three-Phase)
Abrasive Capacity
50 Kg (Aluminum Oxide/Garnet)
Cyclone Efficiency
2.2 Kw Cyclone with 99% Efficiency
Material
2.0mm Steel Plate (Galvanized)
Product Description

A Rotary Manual Sandblasting Machine is a surface treatment equipment that uses compressed air to propel abrasive media (e.g., aluminum oxide, garnet) onto workpieces via a manually controlled rotary turntable. It is designed for precision cleaning, deburring, and surface preparation, combining manual operation flexibility with rotary automation for small-to-medium batch production.

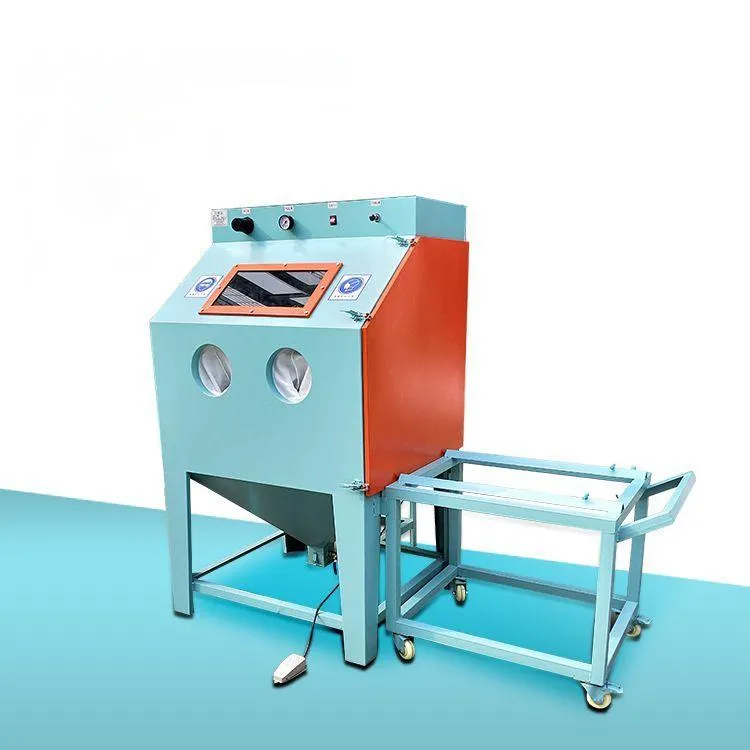

Manual Spin Blast System

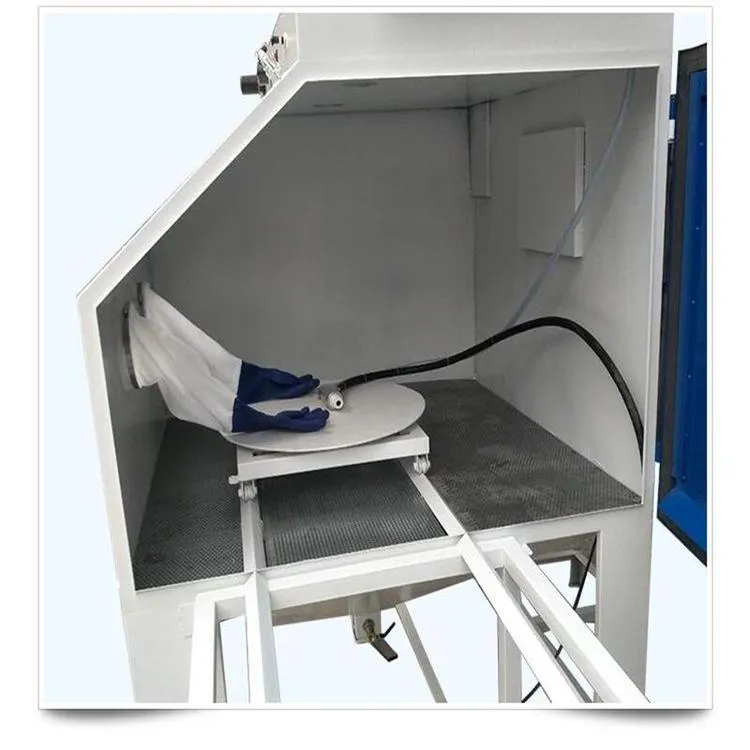

Rotary Sandblasting Machine
Key Advantages
Cost-Effective: Lower air consumption compared to pressure-type machines (suction blast method).
Versatility: Suitable for irregularly shaped parts (e.g., automotive components, glass art).
Durability: Constructed with galvanized steel (2.0mm thickness) for long-term industrial use.
Ease of Operation: Manual turntable allows precise control over blasting angles and speed.
Dust-Free: Integrated cyclone separators achieve 99% dust filtration.

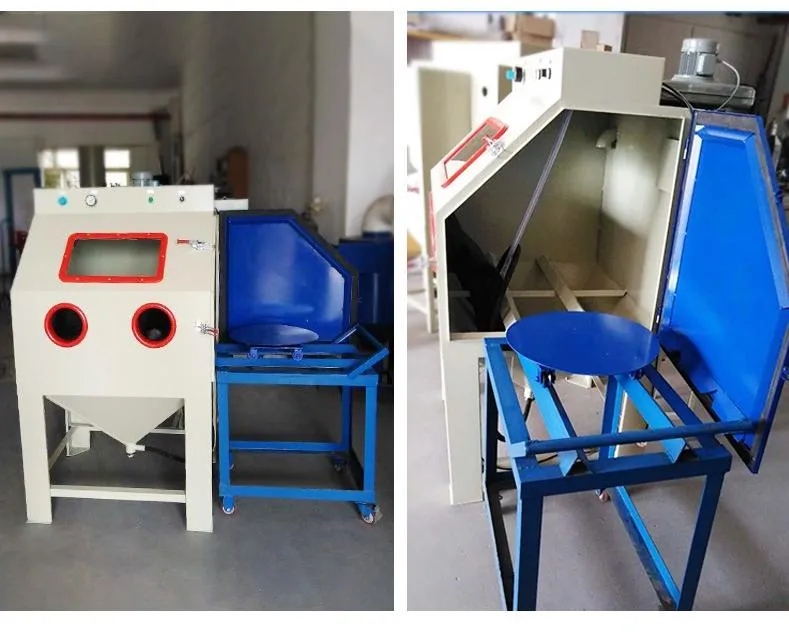

Industrial Durability
Applications
Metalworking: Rust removal, oxide layer cleaning, and pre-painting surface preparation.
Glass & Ceramics: Matte finishing, relief carving, and decorative etching.
Automotive: Deburring engine parts and restoring vintage car components.
Consumer Goods: Non-stick cookware descaling and stainless steel polishing.
Application 1

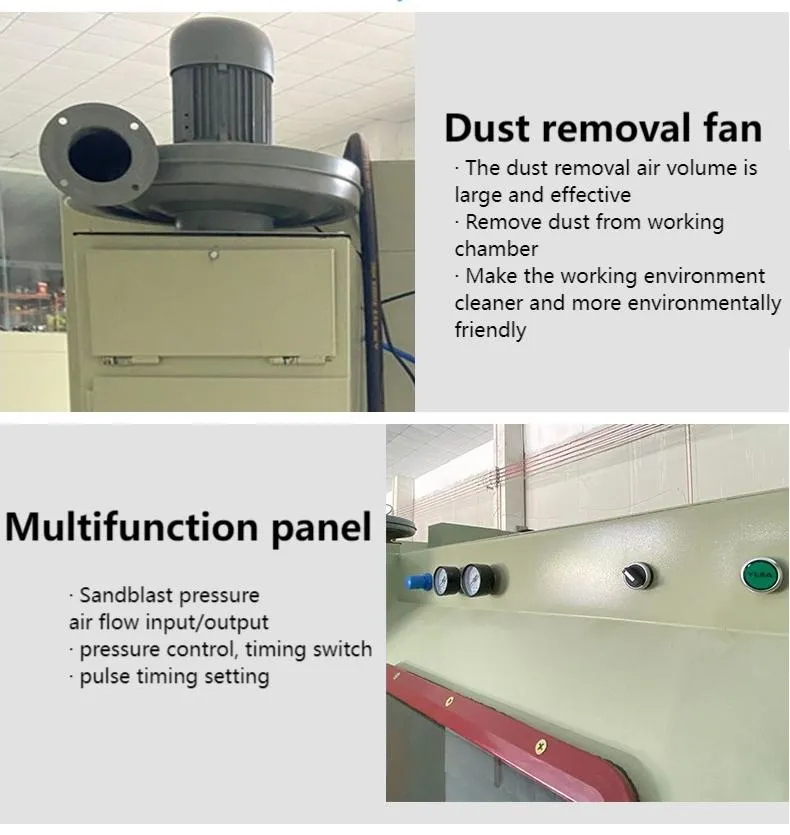

Application 2
Model Specifications
Model Abbreviation Full Form Key Features
RCR2510RC-R2510Rotary Cabinet (250L, 10 Stations)10-Station Turntable, 250L Abrasive Capacity
MT-SB9060MT-SB9060Manual Turntable (900×600mm Chamber)360° Rotating Disc, Dual Spray Guns
ZP100ZP-100Vertical Manual (100L Capacity)Glass & Metal Processing, Dust Collector Included
RTM-16SRTM-16SRotary Table Multi-Station (16 Guns)PLC Control, High-Speed Blasting
SBM-H-CSBM-H-CSteel Body Manual (Horizontal Chamber)Heavy-Duty Steel Frame, 0.8 MPa Pressure Range
Packaging & Shipping
  • Small spare parts put in plywood wooden cases
  • Other parts follow standard industrial packing or customer requirements
  • Shipping: Container transport

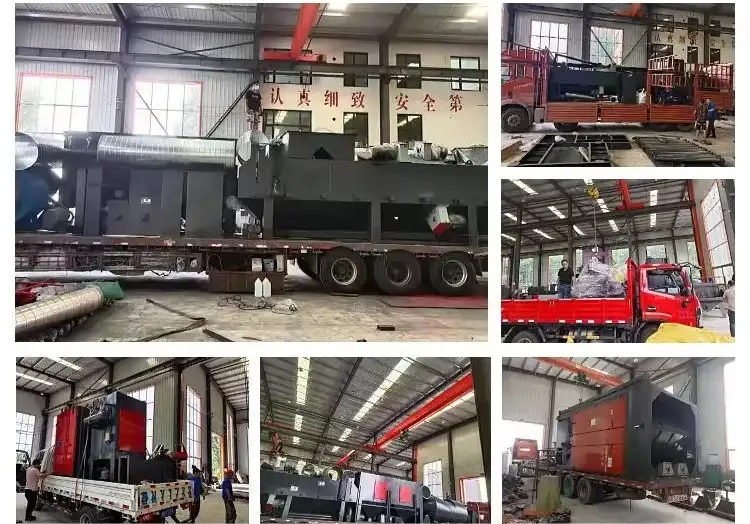

Packaging Process
Production Facility
Facility Overview
Frequently Asked Questions
How does the vacuum suction mechanism work?
The machine uses a rotary vane pump or liquid ring vacuum pump to generate negative pressure. As air is evacuated, materials are drawn through hoses into a cyclone separator, where particles settle into a collection hopper, and clean air is expelled.
What materials can it handle?
It supports dry, non-sticky granules/powders like sand, coal dust, steel grit, and food-grade substances. Liquids require specialized models with spill-proof valves for protection.
How to maintain filtration efficiency?
Regularly clean or replace pulse jet filters and inspect cyclone separators for blockages. Use embossed bags to ensure airtight sealing in dust-sensitive industries.
What are the limitations in transport distance?
Standard models handle 40-50 m horizontal/vertical ranges. For longer distances, booster pumps or high-pressure systems are recommended.
Can it operate in explosive environments?
Yes. Models with spark-resistant motors and anti-static hoses are available for hazardous zones such as coal plants.
What distinguishes industrial models from commercial vacuums?
Industrial units feature higher suction power (≥0.7 MPa), ruggedized materials like stainless steel, and compatibility with abrasive media, whereas commercial vacuums prioritize portability.
