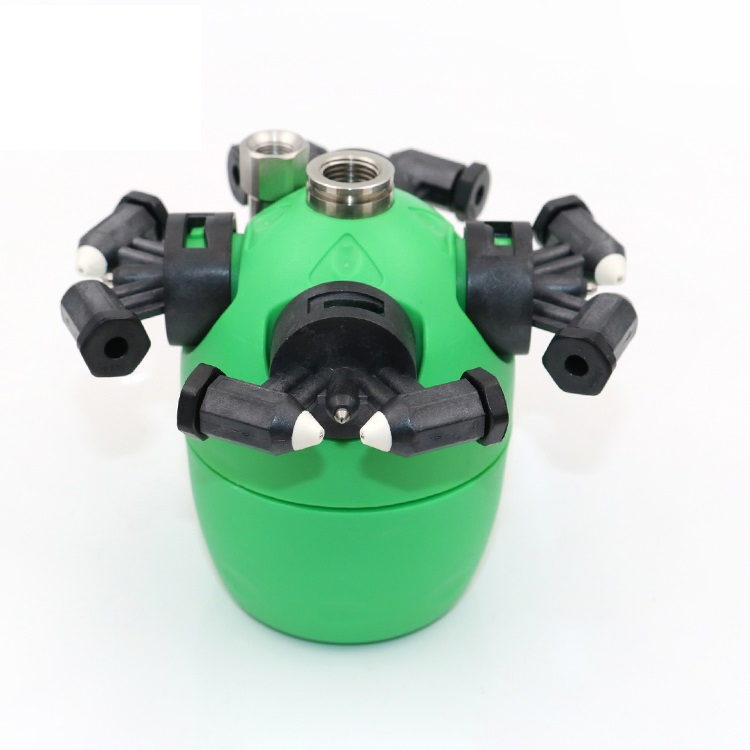

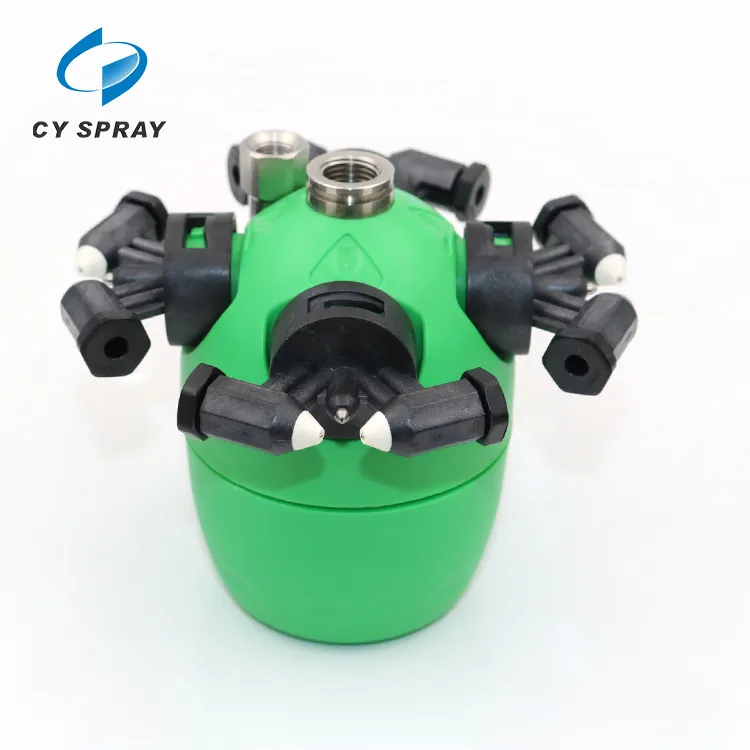

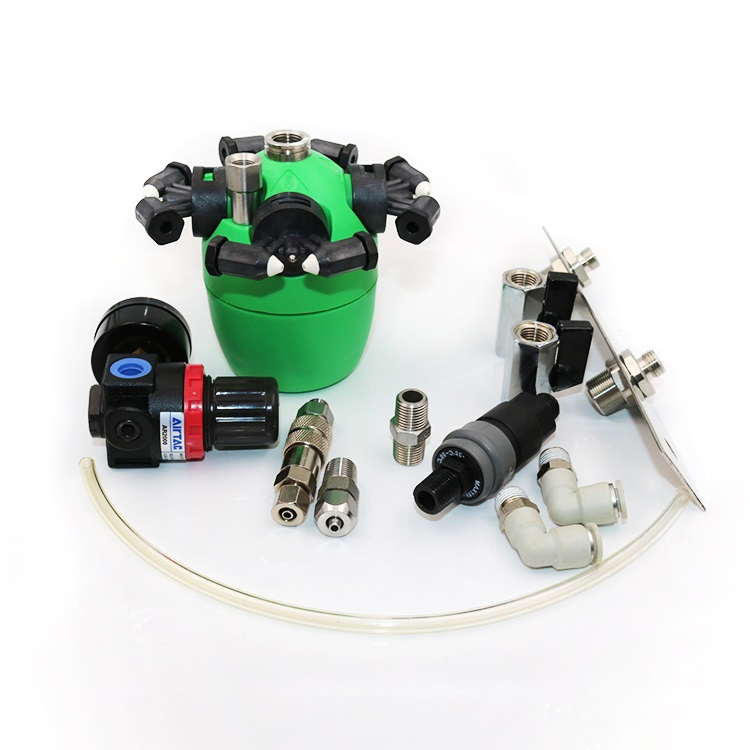

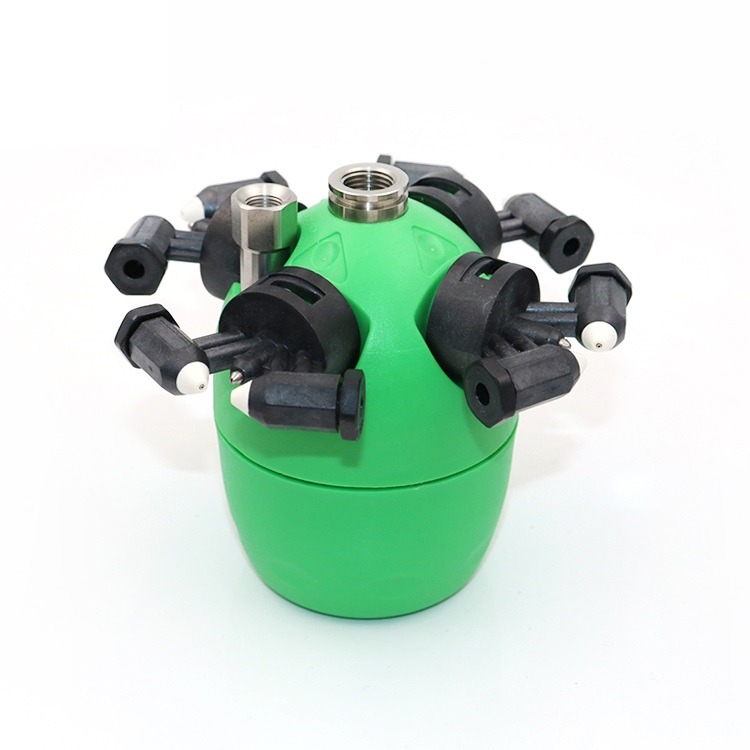

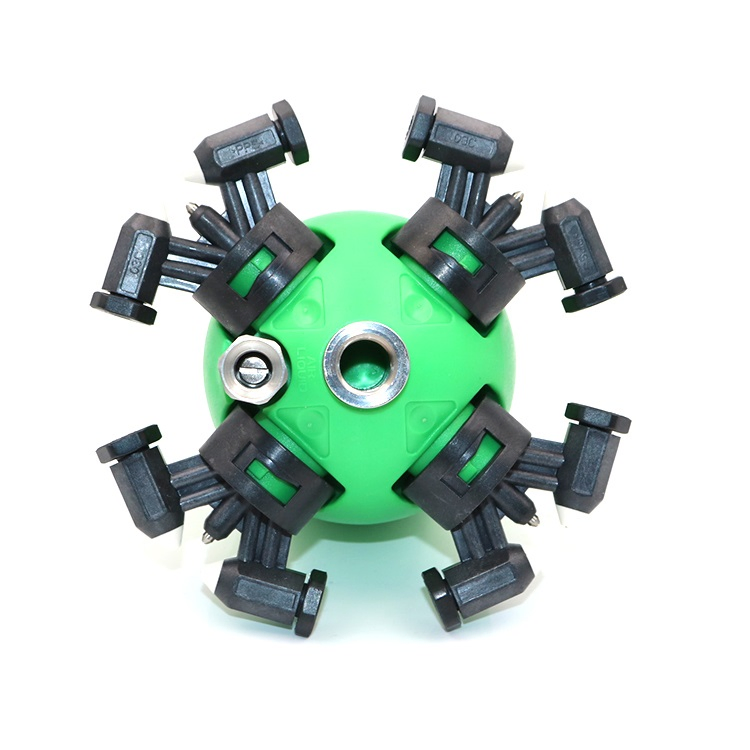

Dry Fog Humidifier Mist Cooling Humidification Systems

1 / 5

Dry Fog Humidifier Mist Cooling Humidification Systems

Customization:	Available
Certification:	RoHS, CE
Water Tank Capacity:	2.5-4L

Send Inquiry

Product Description

Basic Information

Humidification Method:

Mist Discharge

Type:

Ceiling

Material:

PP, PVC, PVDF, Stainless Steel

Feature:

Excellent Wear Resistant and High Hardness

Product Name:

Dry Fog Industrial Nozzle

Size:

Customizable

MOQ:

50PCS

HS Code:

84249090

Product Description

Product Name	Dry fog humidifier
Average Drop Size	7.5um
Size	Standard
Condition	New
OEM Service	Yes

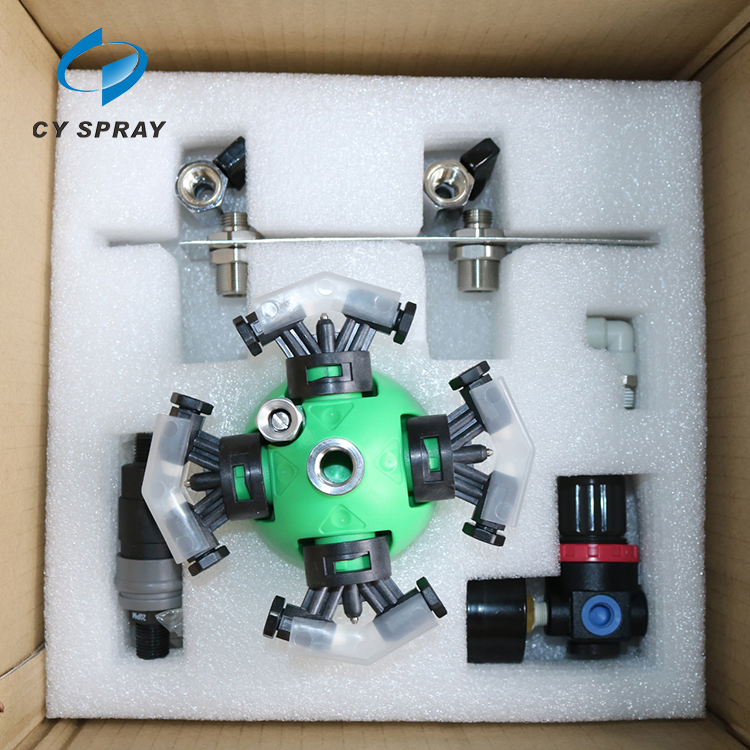

Package	Plastic Bag + Carton
Delivery	Within 7 working days after payment

Key Applications

✔ Printing houses, textile mills, and paper mills

✔ Partial humidification and anti-static for machines

✔ Dry fog cooling in plastics film factories

✔ Humidifying cold storage for vegetables, fruit, and fresh food

✔ Dust control, sandblasting, and gas cleaning

✔ Poultry farm humidification

✔ Automatic humidifying with time settings

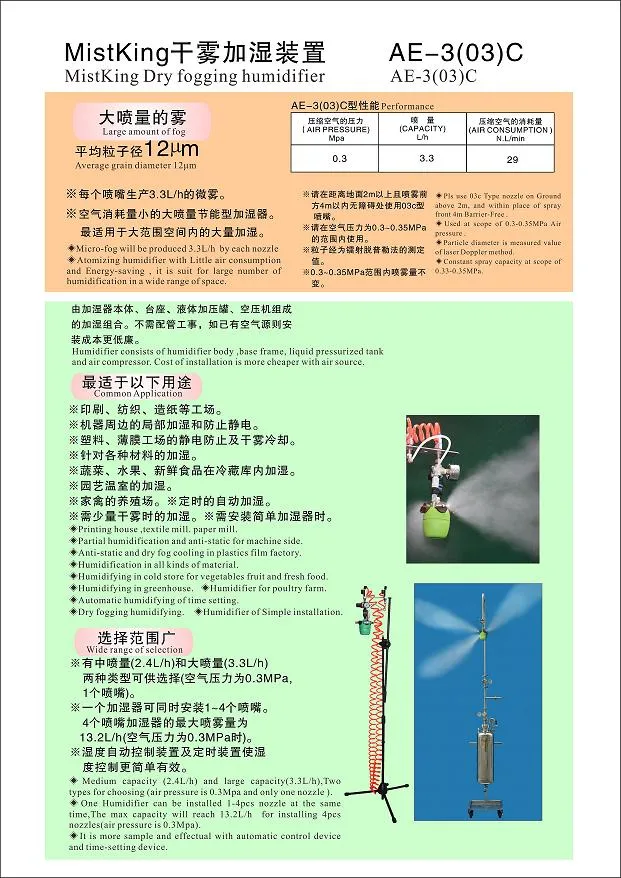

Technical Specifications

Nozzle Orifice Dia.: 0.35mm / 0.5mm Performance (At 3Mpa Air Pressure)

Nozzle Numbers	Spray Volume (L/h)	Air Consumption (N. L/m)
1 Nozzle	2.4 - 3.3	29
2 Nozzles	4.8 - 6.6	58
3 Nozzles	7.2 - 9.9	87
4 Nozzles	9.6 - 13.2	116

Frequently Asked Questions

Q1: What is the average droplet size of this dry fog humidifier?

The average droplet size is approximately 7.5um, ensuring a fine mist that provides effective humidification without wetting surfaces.

Q2: What materials are used for the construction of the nozzles?

The system utilizes high-quality materials including PP, PVC, PVDF, and Stainless Steel to ensure excellent wear resistance and durability.

Q3: How many nozzles can be used in one setup?

The system is modular, and based on our performance data, setups typically range from 1 to 4 nozzles, with spray volumes and air consumption scaling accordingly.

Q4: What are the main industrial applications for this system?

It is ideal for printing houses, textile mills, paper mills, plastics film factories for anti-static control, and cold storage for preserving fresh food.

Q5: Is OEM customization available?

Yes, we provide OEM services and can customize dimensions and specifications based on your specific industrial requirements.

Q6: What is the typical lead time for an order?

Orders are typically processed and delivered within 7 working days after payment is received.
